API 16A Annular BOP Blowout Preventers Selection Guide: Sizes, Pressure Ratings and Packing Elements

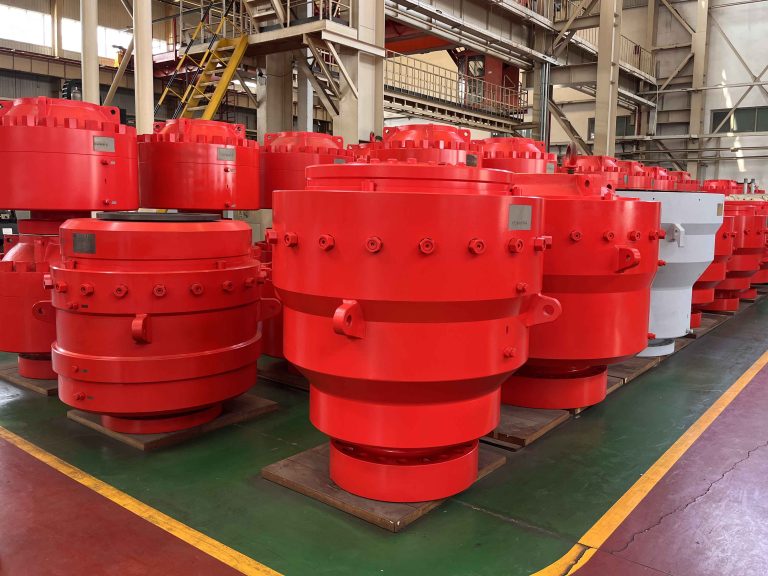

Annular BOP Blowout Preventers provide flexible pressure control during oil and gas drilling, workover, completion and well testing. Their reinforced elastomeric packing elements can seal around approved drill pipe, tubing, casing, tool joints and other tubular profiles inside a BOP stack.
Unlike a ram BOP, an annular preventer does not use two opposing ram blocks. Hydraulic pressure moves an operating piston, which compresses the packing element toward the center of the bore. The elastomer then conforms around the tubular and creates a pressure seal.
This flexibility becomes valuable when the tubular profile inside the stack changes during an operation. Depending on the approved well control procedure, crews may close the annular preventer during an initial shut-in before transferring the sealing duty to a suitable pipe ram or variable-bore ram.
An annular BOP does not replace blind rams, shear rams or other mechanical well barriers. Each preventer performs a separate function within the complete well control system.
This guide explains the annular BOP working principle, main components, common bore sizes, pressure ratings, packing element options, applications, testing requirements and purchasing considerations. It also outlines the information an annular BOP manufacturer or supplier needs before preparing an accurate technical quotation.
Annular BOP at a Glance
| Item | Typical Description |
|---|---|
| Main function | Seals around approved tubulars inside a BOP stack |
| Operating method | Hydraulic |
| Main sealing component | Reinforced elastomeric packing element |
| Common designs | Spherical and tapered |
| Applicable standard | API Specification 16A, subject to project requirements |
| Representative bore range | 7-1/16 to 21-1/4 in |
| Representative pressure classes | 2,000, 3,000, 5,000 and 10,000 psi |
| Typical applications | Drilling, workover, completion, well testing and selected intervention operations |
| Key selection factors | Bore, pressure, tubular range, fluid, temperature, connections and hydraulic volume |
| Main replacement component | Annular BOP packing element |
These values reflect representative industry configurations. Final specifications remain model- and project-specific.
What Is an Annular BOP?
An annular BOP is a hydraulically operated blowout preventer that seals the annular space around tubular equipment passing through a BOP stack.
Common industry names include annular blowout preventer, hydraulic annular preventer, drilling annular BOP, spherical BOP and API 16A annular BOP.
Depending on the qualified design and installed packing element, the preventer may seal around drill pipe bodies, tool joints, kellys, production tubing, casing, drill collars, work strings, test strings and selected drilling or completion tools.
Some models can also close when no tubular remains inside the bore. This function is known as empty-bore closure. The allowable pressure varies by design, so operators must confirm the model-specific limit before relying on it.
Drilling contractors usually install the annular preventer near the top of a surface BOP stack. Selected offshore and subsea systems may also use one or more annular preventers within an approved pressure-control arrangement.
The actual sealing capability depends on the nominal bore, packing element geometry, tubular outside diameter, tool-joint or equipment profile, wellbore pressure, hydraulic closing pressure, operating temperature and drilling or completion fluid.
A nominal bore describes the clear opening through the equipment. It does not confirm the full tubular sealing range of the packing element.
Why Is an Annular BOP Important in Well Control?
Under normal drilling conditions, the drilling fluid column provides the primary pressure barrier. Its hydrostatic pressure should keep formation fluids inside the rock.
An influx may enter the wellbore when mud weight becomes insufficient, lost circulation reduces the hydrostatic column or the crew swabs the well while pulling pipe. Formation fluid may also enter when the bit reaches an unexpected pressure zone or gas expands inside the well.
The industry calls this unplanned influx a kick.
A kick may contain natural gas, crude oil, formation water, hydrogen sulfide, carbon dioxide or a mixture of fluids. If the crew does not detect and control it, the influx may move toward the surface and develop into a serious well control event.
The annular preventer allows the crew to close around the tubular already positioned inside the BOP stack. This is particularly useful when a drill pipe body, tool joint or another approved profile remains inside the bore during shut-in.
After the well stabilizes, the crew may transfer the sealing duty to a suitable ram preventer. The correct sequence depends on the well control program, tubular position, stack arrangement, surface pressure, operator requirements and manufacturer instructions.
How Does an Annular BOP Work?
The annular BOP working principle combines hydraulic piston movement with controlled deformation of a reinforced packing element.
During normal drilling, the packing element remains open. Drill pipe, casing, downhole tools and circulating fluid can pass through the vertical bore.
When the driller activates the closing function, the BOP control unit sends regulated hydraulic fluid into the closing chamber. This pressure moves the operating piston.
Depending on the internal design, the piston pushes the packing element upward, inward or through a combined upward-and-inward movement.
As the element compresses, the elastomer and steel reinforcing inserts move toward the center of the bore. The opening becomes smaller until the rubber contacts the tubular.
The elastomer then conforms around the approved profile and creates a pressure seal. Selected designs also use wellbore pressure to help energize the sealing action.
To reopen the preventer, the control unit directs hydraulic fluid into the opening chamber. The piston moves away from the packing element, allowing the elastomer to relax and return toward its open position.
Typical Annular BOP Closing Sequence
During a typical shut-in, the crew first detects a kick or another abnormal well condition. The driller stops drilling or tripping and positions the drill string according to the approved procedure.
The driller then activates the annular preventer from the control panel. Hydraulic pressure moves the piston and compresses the packing element around the tubular.
Once the element establishes a seal, the crew confirms the shut-in and records the relevant pressures. The team can then prepare to circulate the influx or follow another approved well control method.
This sequence is a general explanation rather than a field procedure. Actual operations must follow the well-specific drilling program, operator requirements and approved instructions.
What Hydraulic Closing Pressure Does an Annular BOP Require?
The required annular BOP closing pressure depends on the model, packing element, tubular diameter, wellbore pressure, drilling fluid and operating condition.
Operators should not automatically apply the maximum pressure available from the BOP control unit.
Excessive closing pressure increases friction against the pipe and accelerates packing element wear. It may cut the elastomer, restrict controlled pipe movement and shorten the service life of internal components.
Insufficient pressure creates the opposite problem by allowing wellbore fluid to leak around the tubular.
The preferred approach is to use the minimum hydraulic pressure that maintains an effective seal within the manufacturer’s approved operating limits.
Before connecting a preventer to an existing BOP control system, engineers should confirm the maximum allowable control pressure, recommended closing pressure, opening and closing volumes, operating times, accumulator capacity and available usable hydraulic fluid volume.
These values are model-specific and should come from the approved equipment data sheet.
Typical Annular BOP Technical Parameters
| Technical Parameter | Common Options or Range | Selection Note |
| Applicable standard | API Specification 16A | Specify the applicable edition, addenda and certification scope |
| Design | Spherical or tapered | Select according to the qualified design and service |
| Nominal bore | Representative range from 7-1/16 to 21-1/4 in | Confirm maximum tool clearance |
| Rated working pressure | 2,000, 3,000, 5,000 or 10,000 psi | Not every bore supports every pressure class |
| Operating method | Hydraulic | Requires a compatible BOP control system |
| Main sealing component | Reinforced elastomeric packing element | Match the element to the model and operating environment |
| Tubular capability | Drill pipe, tubing, casing, tool joints and selected profiles | Confirm every required outside diameter |
| Empty-bore closure | Available on selected qualified models | Confirm the permitted pressure |
| Stripping capability | Available on selected designs | Confirm pressure, pipe speed and lubrication limits |
| Body construction | Forged or cast alloy steel, depending on design | Review qualification and material records |
| Connections | Flanged, studded or hubbed | Confirm size, pressure class and ring groove |
| Fluid service | WBM, OBM, SBM, brine and selected sour service | Review elastomer compatibility |
| Hydraulic volume | Model-specific | Verify control-unit and accumulator capacity |
| Temperature capability | Model- and elastomer-specific | State the actual service temperature range |
This table provides a starting point for technical discussions. It does not replace the manufacturer’s model-specific data sheet, operation manual or approved project specification.
Main Annular BOP Parts and Components
| Component | Main Function | Typical Inspection Focus |
| BOP body | Contains well pressure and supports stack loads | Cracks, corrosion, erosion and sealing surfaces |
| Upper housing or head | Retains the packing element | Threads, bolts, locking surfaces and seals |
| Operating piston | Converts hydraulic pressure into movement | Scoring, corrosion, wear and free movement |
| Packing element | Seals around approved tubulars or an empty bore | Cuts, swelling, hardening and deformation |
| Hydraulic seals | Separate opening and closing chambers | Leakage, extrusion and material compatibility |
| Wear and guide rings | Align the piston and reduce metal contact | Wear, distortion and surface damage |
| Top and bottom connections | Join the preventer to the BOP stack | Ring grooves, flange faces and orientation |
| Hydraulic ports | Connect the unit to the control system | Leakage, blockage and thread condition |
BOP Body
The body forms the main pressure-containing structure. It must withstand wellbore pressure, hydraulic operating forces, stack loads, connection loads, temperature changes and repeated operating cycles.
Manufacturers may use forged or cast alloy steel according to the qualified design.
The manufacturing route alone does not determine whether a body suits a particular project. The technical review must consider the material specification, heat treatment, mechanical properties, NDE records and design qualification.
Upper Housing and Operating Piston
The upper housing retains the packing element and closes the upper part of the preventer. Depending on the model, the head may use bolted, threaded, wedge-lock, latched or clamped construction.
Its design affects overall height, maintenance access and packing element replacement time.
The operating piston converts hydraulic pressure into mechanical movement. During closure, it transfers force to the element. During opening, it moves away and releases the bore.
Scoring, corrosion, damaged seals or contamination may cause slow movement, internal leakage or incomplete operation.
Packing Element
The annular BOP packing element provides the main wellbore seal.
It normally combines molded elastomer with steel reinforcing inserts. The elastomer contacts the tubular, while the inserts guide the element and control its deformation.
Its design influences the tubular sealing range, hydraulic closing-pressure requirement, tool-joint passage, empty-bore capability, stripping performance, temperature resistance, fluid compatibility and fatigue life.
Common industry terms include annular BOP rubber, spherical BOP element, BOP packing unit and annular preventer packing element.
Hydraulic Seals and Wear Components
Hydraulic seals separate the opening chamber, closing chamber, wellbore and external environment.
When these seals wear or fail, the preventer may move slowly, lose operating force, consume excessive hydraulic fluid or develop external leakage.
Wear rings and guide components keep the piston aligned and reduce direct metal-to-metal contact during repeated operating cycles.
Top and Bottom Connections
Annular preventers may use API flanged, studded, hubbed or manufacturer-specific subsea connections.
A complete specification identifies the connection size, pressure class, ring groove, flange or hub type, stud requirements, bolt-hole orientation and mating equipment.
A connection mismatch can prevent installation even when the bore and working pressure appear correct.
Spherical Annular BOP vs. Tapered Annular BOP
Spherical and tapered annular BOPs use different packing element geometries.
A spherical design uses an element that moves against a curved supporting surface. The internal geometry guides the elastomer and steel inserts inward around the tubular.
A tapered design uses a conical element and matching support surfaces. The piston compresses the element along the tapered geometry toward the center of the bore.
| Selection Factor | Spherical Design | Tapered Design |
| Packing element geometry | Curved or spherical | Conical or tapered |
| Closing movement | Guided inward deformation | Compression along tapered surfaces |
| Tubular sealing range | Model-specific | Model-specific |
| Stripping capability | Available on selected models | Available on selected models |
| Empty-bore closure | Available on qualified models | Available on qualified models |
| Typical applications | Land drilling, offshore surface stacks, workover and testing | Drilling, workover and selected severe-service applications |
| Selection basis | Qualification, pressure, element and service | Qualification, pressure, element and service |
Neither design is automatically better for every project.
The correct choice depends on the bore, working pressure, hydraulic volume, closing pressure, packing element compound, temperature limits, connection interface, stripping requirements and spare-parts availability.
Annular BOP vs. Ram BOP
Annular and ram preventers perform different functions inside the BOP stack.
| Comparison Item | Annular BOP | Ram BOP |
| Sealing mechanism | Reinforced elastomeric packing element | Two opposing ram assemblies |
| Tubular range | Several approved sizes and profiles | Fixed-bore or qualified variable-bore range |
| Irregular profiles | Greater flexibility on approved profiles | Depends on the installed ram type |
| Empty-bore closure | Available on qualified designs | Blind or blind-shear rams close an empty bore |
| Pipe shearing | Cannot shear pipe | Qualified shear rams may shear selected tubulars |
| Typical position | Often above the ram preventers | Normally below the annular preventer |
| Main role | Flexible sealing around approved profiles | Pipe sealing, blind closure or shearing |
| Main wear component | Packing element | Ram packers and top seals |
| Stripping capability | Available on qualified models | Depends on the ram design |
The annular preventer provides flexible sealing. A ram BOP provides a defined mechanical function according to the installed ram assembly.
A complete stack may include annular preventers, fixed-bore pipe rams, variable-bore rams, blind rams, blind-shear rams, casing shear rams, drilling spools and choke or kill outlets.
Annular BOP Sizes and Pressure Ratings
Annular BOP size normally refers to the nominal vertical through-bore.
Common bore sizes include 7-1/16, 9, 11, 13-5/8, 16-3/4, 18-3/4, 20-3/4 and 21-1/4 inches.
| Nominal Bore | Representative Pressure Classes | Typical Application |
| 7-1/16 in | 3,000, 5,000 or 10,000 psi, model dependent | Workover, testing and compact pressure-control stacks |
| 9 in | 2,000, 3,000 or 5,000 psi, model dependent | Land drilling and workover |
| 11 in | 3,000, 5,000 or 10,000 psi, model dependent | Land drilling and medium-bore well control |
| 13-5/8 in | 3,000, 5,000 or 10,000 psi, model dependent | Land and offshore drilling |
| 16-3/4 in | 3,000 or 5,000 psi, model dependent | Large-bore drilling and selected offshore stacks |
| 18-3/4 in | 5,000 or 10,000 psi on selected designs | Offshore surface and subsea systems |
| 20-3/4 in | 3,000 psi or project-specific | Large casing programs and early well sections |
| 21-1/4 in | 2,000, 3,000 or 5,000 psi, model dependent | Surface-hole and large-bore well control |
These are representative industry configurations. They do not represent a fixed SGPE manufacturing or inventory matrix.
The final bore and pressure combination must match the approved well design, tubular program, control system and remaining BOP stack equipment.
Common Annular BOP Size Selection Considerations
| Bore Size | Typical Selection Considerations |
| 7-1/16 in | Tubing range, maximum tool-joint OD, compact stack height and workover pressure |
| 11 in | Drill pipe program, land-rig stack arrangement and hydraulic operating volume |
| 13-5/8 in | Pressure class, connections, packing element, temperature and complete drilling program |
| 18-3/4 in | Offshore or subsea interface, lifting capacity, center of gravity and control-system volume |
| 21-1/4 in | Large-bore tool clearance, stack height, connection arrangement and surface-hole service |
The bore should never be selected from the drill pipe body OD alone. The largest tool joint, drill collar, stabilizer, running tool or fishing assembly may determine the actual through-bore requirement.
Need help selecting an API 16A annular BOP? Send the tubular program, maximum tool OD, required pressure class and BOP stack drawing to SGPE for a technical review.
Annular BOP Dimensions, Weight and Hydraulic Volume
Overall dimensions and weight vary significantly by bore, pressure class, body design and connection arrangement.
An installation team should never use the dimensions or weight of one model to plan another.
The approved data sheet should state the overall height, maximum width, equipment weight, center of gravity, flange or hub dimensions, lifting-point capacity, opening volume, closing volume and recommended operating pressure.
These values directly affect rig-floor space, crane selection, transportation, stack design and accumulator sizing.
Oil and Gas Applications
| Application | Typical Operations | Key Selection Factors |
| Land drilling | Drilling, tripping, casing running and kick control | Bore, pressure, tubular range and temperature |
| Offshore surface drilling | Jack-up, platform and offshore workover | Weight, stack height and corrosion protection |
| Subsea drilling | Floating rig and riser operations | Water depth, external pressure and hydraulic response |
| HPHT drilling | Deep high-pressure and high-temperature wells | Pressure rating, materials and packing element |
| Sour service | H₂S and CO₂ wells | Materials, hardness and elastomer compatibility |
| Workover | Tubing retrieval, fishing and recompletion | Compact design and operating frequency |
| Completion | Running tubing, packers and completion strings | Tool OD and fluid compatibility |
| Well testing | DST, surface testing and temporary production | Test-string size, pressure and temperature |
| Flowback | Frac cleanup and controlled production | Solids, fluids and tubular movement |
| Plug and abandonment | Pulling tubing and setting barriers | Tool passage and stack arrangement |
Land, Offshore and Subsea Drilling
Land drilling contractors use annular preventers on conventional oil wells, natural gas wells, directional wells, horizontal wells, shale wells and deep-gas wells.
Offshore surface stacks may operate on jack-up rigs, fixed platforms and offshore workover units. These projects require additional attention to equipment weight, stack height, lifting points, marine preservation and corrosion protection.
Selected subsea systems use annular preventers within the subsea BOP or lower marine riser package. Engineers must consider water depth, external hydrostatic pressure, low-temperature exposure, hydraulic response, riser interfaces and emergency disconnect functions.
HPHT and Sour-Service Wells
High-pressure and high-temperature wells place greater demands on the pressure-containing body, hydraulic system and packing element.
The technical review must confirm maximum pressure, operating temperature, elastomer compound, hydraulic volume, material properties and design qualification.
For sour service, material and elastomer selection should reflect the actual H₂S partial pressure, CO₂ content, chloride concentration, temperature, pressure and produced-water chemistry.
A general statement such as “NACE required” does not fully define the operating environment.
Workover, Completion and Well Testing
Workover units may use annular preventers during tubing retrieval, packer removal, fishing, pump replacement, sand cleanout and recompletion.
The equipment may also provide pressure control while crews run production tubing, completion strings, packers, downhole safety valves and well test tools.
Selected systems may support drill stem testing, surface well testing, temporary production and controlled well cleanup.
Flowback and Plug and Abandonment
After hydraulic fracturing, operators may use annular pressure-control equipment while flowing back frac fluid, proppant and formation fluids.
During plug and abandonment work, crews may use annular preventers while pulling tubing, retrieving tools, cutting casing and preparing the well for permanent isolation.
The selected equipment must match the work string, expected pressure, fluid chemistry, solids content and planned tubular movement.
Selected Well Intervention Applications
Purpose-designed annular equipment may support selected coiled tubing, snubbing or wireline operations.
A standard drilling annular BOP should not automatically replace a coiled tubing stripper, coiled tubing BOP, wireline valve, lubricator system or snubbing pressure-control package.
Annular BOP Selection Guide
Selecting the correct equipment requires more than matching a bore size and pressure class.
1. Define the Application
Identify whether the preventer will operate on a land rig, offshore platform, jack-up rig, subsea stack, workover unit, completion package or well testing system.
Also describe the well type, including conventional, horizontal, HPHT, sour-service or injection service.
2. Confirm the Applicable Standard
The purchase specification should identify the applicable API Spec 16A edition and addenda, certification scope, operator requirements, inspection plan and project-specific supplements.
The wording “API type” is too general because it does not define the required manufacturing, inspection or certification scope.
3. Select the Correct Bore
Review the outside diameters of drill pipe, tool joints, drill collars, stabilizers, casing, test tools, completion tools, running tools and fishing assemblies.
The largest planned outside diameter often controls the required bore.
4. Confirm the Working Pressure
The rated working pressure must meet the approved maximum anticipated surface pressure.
The wellhead, drilling spool, ram BOPs, choke manifold and kill equipment should use compatible pressure ratings.
A higher pressure class does not automatically improve the system. It may increase cost, weight, stack height and hydraulic demand without adding useful capability.
5. Define the Sealing Range
List every tubular or tool diameter that the packing element may need to seal.
The nominal bore describes the clear opening. It does not confirm the qualified sealing range of the element.
6. Select the Packing Element
The element must match the BOP model, nominal bore, pressure rating, tubular range, temperature and fluid environment.
The final choice may involve NBR, HNBR or another qualified compound, depending on the actual fluid, temperature and sour-service conditions.
7. Review Fluid and Sour-Service Data
Describe the drilling mud, brine, completion fluid, hydrocarbons and chemical additives.
For sour service, also provide H₂S, CO₂, chlorides, pressure, temperature and produced-water data.
8. Verify the BOP Control Unit
The control system must provide enough pressure and usable hydraulic volume to open and close the preventer.
When replacing or upgrading an existing BOP, recalculate accumulator capacity instead of assuming that the previous system remains adequate.
9. Confirm Stack Compatibility
Provide the top and bottom connection sizes, pressure classes, ring grooves, bolt orientation and complete BOP stack drawing.
The review must also cover total height, equipment weight, center of gravity, lifting points and available rig space.
10. Define Inspection, Documentation and Spare Parts
The purchase order should identify the required material certificates, NDE, dimensional reports, hydrostatic tests, functional tests, third-party inspection and manufacturing data book.
It should also define the required packing elements, seal kits, repair kits and special maintenance tools.
Quick Annular BOP RFQ Checklist
A complete annular BOP inquiry should identify the application and well type, applicable standard, certification requirements, nominal bore, rated working pressure and top and bottom connections.
The buyer should also provide the largest tubular or tool outside diameter, required sealing range, drilling or completion fluid, minimum and maximum temperature, and any H₂S, CO₂ or chloride conditions.
The technical review also needs the available hydraulic pressure and volume, expected stripping requirements, inspection and documentation scope, required spare parts, quantity and delivery destination.
Providing this information allows an annular BOP supplier to review the complete application instead of quoting from bore and pressure alone.
Annular BOP Buying Guide
Buyers searching for an API 16A annular BOP for sale should compare technical scope, documentation, spare parts and lifecycle support rather than price alone.
What Affects Annular BOP Price?
| Price Factor | Effect on the Quotation |
| Bore size | Larger bores require larger pressure-containing components |
| Pressure class | Higher ratings increase material and testing requirements |
| Design | Spherical and tapered models use different internal structures |
| Connection type | Flanged, studded and hubbed connections affect machining |
| Packing element | Standard, high-temperature and sour-service elements differ |
| Body construction | Forged and cast designs follow different production routes |
| API and project scope | Certification, testing and documentation affect cost |
| Sour-service requirements | Material control, hardness and overlay may increase cost |
| Spare parts | Packing elements and repair kits expand the supply scope |
| Third-party inspection | Witness visits affect cost and schedule |
| Export packing | Seaworthy packing and preservation add logistics cost |
| Delivery schedule | Urgent production may require special planning |
An annular BOP manufacturer cannot prepare an accurate price from bore size alone.
A reliable inquiry also defines the working pressure, connections, packing element, hydraulic requirements, testing scope, documentation and spare-parts package.
How to Compare Annular BOP Quotations
| Quotation Item | What to Confirm |
| BOP model | Design, nominal bore and working pressure |
| API requirements | Applicable edition, addenda and certification scope |
| Connections | Top and bottom size, type and ring groove |
| Packing element | Compound, part number and operating limits |
| Hydraulic data | Recommended pressure and operating volumes |
| Factory testing | Hydrostatic, functional and leakage tests |
| Documentation | Drawings, certificates and manufacturing data book |
| Spare parts | Packing elements, seal kits and repair kits |
| Preservation | Flange protection and export packing |
| Delivery | Manufacturing, inspection and shipment schedule |
Two quotations may appear similar while covering very different technical, documentation and spare-parts scopes.
How to Evaluate an Annular BOP Manufacturer or Supplier
A qualified annular BOP manufacturer or supplier should understand pressure-containing equipment, alloy steel heat treatment, material traceability, NDE, elastomer selection, hydraulic systems and BOP stack interfaces.
Confirm whether the company manufactures the complete preventer, works with an approved manufacturing partner or supplies replacement parts only.
When the project requires an API Monogram, verify that the selected equipment falls within the factory’s licensed scope.
A capable engineering team will ask detailed questions about the tubular program, drilling fluid, H₂S, temperature, stripping requirements, hydraulic volume and stack connections before issuing a quotation.
| Supplier Evaluation Item | Key Question |
| Manufacturing scope | Can the factory manufacture the required design? |
| Engineering review | Can the team assess the complete operating conditions? |
| Material control | Can the supplier provide heat-number traceability? |
| Testing | Can the factory perform the specified pressure and function tests? |
| Packing elements | Can the supplier provide suitable replacement elements? |
| Spare parts | Are seal kits, repair kits and wear parts available? |
| Third-party inspection | Can the supplier support buyer-appointed TPI? |
| Documentation | Can the supplier prepare the required data book? |
| Delivery control | Does the schedule include inspection and document approval? |
| After-sales support | Can the supplier support future maintenance and replacement parts? |
SGPE Annular BOP Supply and Technical Support
SGPE supports annular BOP selection for land drilling, offshore surface stacks, workover units, completion packages and well testing systems.
The available supply scope may include complete API 16A annular BOP assemblies in spherical or tapered configurations, subject to the confirmed design and project requirements. SGPE can review project-specific bore and pressure combinations, top and bottom connections, packing element selection and BOP control system interfaces.
Replacement support may include annular BOP packing elements, seal kits, repair kits, wear rings, internal replacement components, ring gaskets, studs and nuts. SGPE can also assist with spare-parts planning for remote rigs, offshore campaigns and scheduled BOP maintenance.
Depending on the purchase order, project support may include export packing, preservation, buyer-appointed third-party inspection coordination and technical or manufacturing documentation.
Each SGPE quotation is based on the actual application, required certification scope, tubular program, fluid environment, pressure class and connection arrangement.
SGPE can review a BOP stack drawing, equipment nameplate, existing data sheet or replacement sample before confirming the final supply configuration.
Annular BOP Packing Element Selection
The packing element is the most important replaceable sealing component inside the preventer.
A replacement element must match the BOP manufacturer, model, serial number, nominal bore, pressure rating, internal geometry and existing part number. The selection must also reflect the required tubular sealing range, operating temperature, fluid environment, sour-service conditions and expected stripping duty.
An element may fit inside the body but still fail to provide the correct movement, sealing range or pressure capability.
NBR Packing Elements
NBR-based compounds commonly support selected standard oilfield applications.
Depending on their qualification, they may suit water-based mud, oil-based mud and hydrocarbon exposure under moderate-temperature conditions.
HNBR Packing Elements
HNBR may provide improved resistance to higher temperatures, hydrocarbons, aggressive drilling fluids and repeated mechanical deformation.
Buyers should request model-specific temperature, pressure, chemical compatibility and sour-service limits.
Packing Element Storage
Store replacement elements in a clean, dry and controlled environment.
Protect the elastomer from sunlight, ozone, heat, welding operations, petroleum chemicals, sharp objects and mechanical deformation.
Maintenance personnel should record the manufacturing date, batch number, storage history and installation date.
SGPE can review the existing part number, BOP model, element dimensions and service conditions when supplying annular BOP replacement packing elements.
Annular BOP Stripping Operation
During stripping, the crew moves pipe through a closed or partially closed packing element while maintaining pressure control.
The moving tubular creates friction, heat and repeated deformation inside the elastomer.
The crew should use the minimum effective closing pressure, control pipe speed and apply a compatible lubricant. It should also reduce tool-joint impact and monitor the preventer for leakage.
After the operation, maintenance personnel should inspect the element for cuts, extrusion, exposed inserts or permanent deformation.
The crew should not rotate pipe through a closed annular BOP unless the manufacturer and approved operating procedure specifically permit it.
Annular BOP Testing and Inspection
A project-specific test program may include visual and dimensional inspections, function testing, low- and high-pressure tests, hydraulic leakage checks and verification of opening and closing times.
The inspection team may also check local and remote control functions, hydraulic ports, connection surfaces and the agreed manufacturing documentation.
The approved procedure should define the test medium, test pressure, hold time, test mandrel size, closing pressure, gauge accuracy, acceptance criteria and witness points.
Testing intervals and pressures depend on the operator specification, drilling program, applicable regulations and manufacturer instructions.
This guide does not replace an approved well-specific BOP test procedure.
Depending on the purchase order, SGPE can coordinate buyer-appointed third-party inspection and prepare the agreed testing and documentation package.
Annular BOP Maintenance
Regular maintenance helps prevent leakage, slow operation and unexpected packing element failure.
Inspect the packing element for cuts, cracks, swelling, hardening, missing rubber, exposed steel inserts and permanent deformation.
Check hydraulic hoses, fittings, ports, piston seals and body seals for leakage. Internal inspection should cover the piston bore, wear rings, guide surfaces and sealing areas.
The crew should also examine flange faces, ring grooves, studs, hub connections and protective covers.
Maintenance records should document function and pressure tests, packing element changes, hydraulic repairs, stripping distance, operating pressure, inspection findings and corrective actions.
Common Annular BOP Problems and Troubleshooting
| Problem | Possible Causes | Initial Checks |
| BOP does not close fully | Low control pressure, damaged element or piston obstruction | Check pressure, hydraulic volume and piston movement |
| BOP closes slowly | Restricted line, low accumulator pressure or seal leakage | Check valves, hoses and hydraulic supply |
| Leakage around pipe | Low closing pressure, worn element or unsuitable profile | Confirm tubular OD, element condition and pressure |
| External hydraulic leakage | Damaged seal, hose or fitting | Isolate and inspect the hydraulic circuit |
| Packing element wears quickly | Excessive pressure, rapid stripping or incompatible fluid | Review pressure, speed, fluid and temperature |
| BOP does not open fully | Low opening pressure or element deformation | Check the opening circuit and piston movement |
| High hydraulic consumption | Internal bypass or external leakage | Pressure-test the hydraulic system |
| Repeated pressure-test failure | Damaged element, wrong mandrel or incorrect setup | Verify the element and test arrangement |
Personnel must isolate well pressure and stored hydraulic energy before opening or dismantling the equipment.
Annular BOP Spare Parts and Repair Kits
Common annular BOP spare parts include packing elements, piston seal kits, body seals, head seals, O-rings, wear rings, guide rings, support rings, hydraulic fittings, ring gaskets, studs and nuts.
A repair kit may contain hydraulic seals, static seals, O-rings and selected wear components. The exact contents depend on the manufacturer, model, serial number and maintenance scope.
Remote rigs, offshore projects and long drilling campaigns may require several spare packing elements, multiple seal kits and special maintenance tools.
For replacement parts, send SGPE the equipment nameplate, model, serial number, existing part number, drawing or sample dimensions. This helps reduce the risk of supplying an element or seal kit that fits physically but does not match the qualified design.
Recommended Documentation
A complete manufacturing data package may include an approved general arrangement drawing, product data sheet, material certificates, heat-treatment records, mechanical test reports, NDE reports and dimensional inspection records.
Depending on the agreed scope, the package may also contain hydrostatic and functional test reports, elastomer documentation, hardness records, a certificate of conformity, an operation and maintenance manual, a spare-parts list and preservation or storage instructions.
The purchase order should define the documentation scope before production begins.
SGPE can prepare the agreed documentation package according to the confirmed product scope, inspection plan and contract requirements.
Technical References
Equipment selection, testing and operation should follow the applicable version of API Specification 16A together with project-specific operator requirements.
The final technical basis should also include the manufacturer-approved data sheet, operation and maintenance manual, approved well control procedures and applicable inspection or testing requirements.
Project documents and the manufacturer’s approved technical data take precedence over the general guidance in this article.
Frequently Asked Questions About Annular BOP Blowout Preventers
1. What are Annular BOP Blowout Preventers used for?
Annular BOP Blowout Preventers provide flexible well pressure control during drilling, workover, completion, well testing and selected intervention operations. Their reinforced packing elements can seal around approved drill pipe, tubing, casing, tool joints, drill collars and other tubular profiles positioned inside the BOP stack.
A drilling annular BOP is commonly used during an initial shut-in when the exact tubular profile inside the bore may vary. Depending on the approved well control procedure, the crew may later transfer the sealing duty to a pipe ram or variable-bore ram.
2. How does an annular BOP work?
An annular BOP uses hydraulic pressure to move an operating piston and compress a reinforced elastomeric packing element toward the center of the bore. As the element closes, the elastomer conforms around the tubular and creates a pressure seal.
To reopen the preventer, the BOP control unit directs hydraulic fluid into the opening chamber. The piston retracts and allows the packing element to relax toward its original open position.
3. What is the difference between an annular BOP and a ram BOP?
An annular BOP uses one flexible packing element to seal around several approved tubular sizes and profiles. A ram BOP uses two opposing ram assemblies designed for specific functions such as sealing around pipe, closing an empty bore or shearing selected tubulars.
The annular preventer normally provides greater flexibility during drilling and tripping, while ram preventers provide more defined mechanical barriers. A complete surface BOP stack often includes both annular and ram preventers because they perform different well control functions.
4. Can an annular BOP close on an empty bore?
Selected annular BOP models can close when no tubular remains inside the bore. This function is known as empty-bore closure.
The permitted pressure may be lower than the rated working pressure of the preventer and varies by model, packing element and qualified design. Operators should confirm the approved empty-bore pressure before using the annular preventer as an empty-hole barrier.
5. Can an annular BOP seal around tool joints, drill collars and irregular profiles?
Many annular preventers can seal around approved tool joints, drill collars, kellys and selected drilling or completion tools. The flexible packing element can adapt to a wider range of profiles than a fixed-bore pipe ram.
However, sealing capability is not determined by nominal bore alone. The annular BOP manufacturer should review the maximum outside diameter, profile shape, surface condition, required wellbore pressure and installed packing element before confirming suitability.
6. Can an annular BOP shear drill pipe?
No. An annular BOP does not contain a cutting mechanism and cannot shear drill pipe, tubing or casing.
When the well control program requires pipe shearing, the BOP stack must include a qualified shear ram, blind-shear ram or casing shear ram selected for the actual tubular program and operating conditions.
7. What annular BOP sizes and pressure ratings are commonly available?
Common annular BOP bore sizes include 7-1/16, 9, 11, 13-5/8, 16-3/4, 18-3/4, 20-3/4 and 21-1/4 inches. Representative rated working pressures include 2,000, 3,000, 5,000 and 10,000 psi.
Not every bore size is available in every pressure class. For example, compact 7-1/16-inch units may suit workover and well testing packages, while 13-5/8-inch and 18-3/4-inch annular BOPs are commonly associated with larger land, offshore surface or subsea drilling systems.
8. How much hydraulic pressure is required to close an annular BOP?
The required hydraulic closing pressure depends on the BOP model, packing element, tubular outside diameter, wellbore pressure, drilling fluid and operating condition. The maximum pressure available from the control unit should not be applied automatically.
Excessive closing pressure can increase friction, damage the packing element and restrict controlled pipe movement. Operators should use the minimum pressure that maintains an effective seal within the manufacturer’s approved operating limits.
9. How should an annular BOP packing element be selected?
An annular BOP packing element must match the preventer manufacturer, model, nominal bore, pressure rating, internal geometry and required tubular sealing range. The selection should also account for temperature, drilling or completion fluid, hydrocarbon exposure, sour-service conditions and expected stripping duty.
NBR and HNBR packing elements are available for selected oilfield applications, but the compound name alone does not confirm suitability. Buyers should request model-specific pressure, temperature and chemical compatibility data from the annular BOP packing element supplier.
10. Where are annular BOPs commonly used?
Annular preventers are used on land drilling rigs, jack-up rigs, offshore platforms, surface and selected subsea BOP stacks, workover units, completion packages and well testing systems. Typical operations include drilling, tripping, casing running, tubing retrieval, fishing, recompletion, drill stem testing, temporary production and plug-and-abandonment work.
HPHT and sour-service wells require additional review of pressure rating, temperature capability, elastomer compound, body materials and fluid chemistry. Purpose-designed pressure-control equipment may also support selected coiled tubing, wireline or snubbing operations, but a standard drilling annular BOP should not automatically replace equipment designed specifically for those services.
11. How often should an annular BOP packing element be replaced?
There is no universal replacement interval for every annular BOP packing element. Service life depends on closing pressure, operating temperature, drilling fluid, stripping distance, tool-joint passage, pressure-test history and storage conditions.
The element should be inspected for cuts, cracking, swelling, hardening, exposed steel inserts and permanent deformation. Replacement is required when inspection findings, pressure-test results or manufacturer criteria show that the element can no longer provide reliable sealing performance.
12. What information is required for an annular BOP quotation?
To obtain an accurate annular BOP price and technical quotation, the inquiry should identify the application, nominal bore, rated working pressure, top and bottom connections, maximum tubular or tool outside diameter and required sealing range.
It should also state the operating temperature, drilling or completion fluid, H₂S and CO₂ conditions, hydraulic pressure and volume, inspection scope, documentation requirements, spare parts, quantity and delivery destination.
Buyers comparing an API 16A annular BOP for sale should confirm that each quotation covers the same equipment design, packing element, connection arrangement, testing, documentation and replacement-parts scope.
SGPE can review a BOP stack drawing, equipment nameplate, existing data sheet or sample information before confirming the final configuration and quotation.
Request an Annular BOP Quotation from SGPE
Depending on the project, SGPE can also coordinate third-party inspection and prepare the agreed export documentation, preservation and packing scope.
For an accurate annular BOP price and technical quotation, provide the required bore size, rated working pressure, top and bottom connections, maximum tubular and tool outside diameters, operating temperature and drilling or completion fluid.
The inquiry should also state the H₂S and CO₂ conditions, hydraulic opening and closing requirements, inspection and documentation scope, required spare parts, quantity and delivery destination. Available stack drawings, existing data sheets or equipment nameplate photographs can support a faster technical review.
SGPE can support spherical or tapered design selection, bore and pressure-class review, top and bottom connection confirmation, packing element selection, sour-service material review, hydraulic control evaluation, BOP stack interface review and spare-parts planning.
E-Mail:
info@sgpe.com
