API 16A BOP Blowout Preventers: Types, Selection and Buying Guide
API 16A BOP blowout preventers provide essential pressure-control barriers during oil and gas drilling, completion, workover and surface well testing.
When formation pressure forces oil, natural gas or formation water into the wellbore, the drilling crew must control the influx before it develops into a blowout. A correctly selected BOP system allows the crew to shut in the well, contain pressure and circulate the influx through the choke and kill system.
A blowout preventer does not operate as a stand-alone device. It forms part of a wider well-control package that may include annular and ram preventers, drilling spools, adapter spools, choke and kill outlets, a hydraulic BOP control unit, control hoses, test stumps and pressure-rated connectors.
Selecting the correct API 16A BOP involves more than matching the nominal bore and working pressure. The technical review also considers the casing program, tubular sizes, maximum anticipated surface pressure, required closing functions, hydraulic operating volumes, temperature, fluid service, sour-service conditions and installation interfaces.
Procurement teams then need to compare the proposed drawings, installed ram assemblies, testing scope, spare parts, manufacturing records, inspection requirements and delivery schedule.
A land rig, offshore platform, high-pressure gas well, workover unit and surface well testing package may all require different BOP arrangements. This guide explains the main API 16A BOP types, common sizes and pressure ratings, stack configurations, selection criteria, supplier evaluation, testing requirements and RFQ information.
API 16A BOP Selection at a Glance
Before requesting an API 16A BOP quotation, define the operating conditions, required barriers and equipment interfaces.
| Selection Area | Questions to Answer |
|---|---|
| Well conditions | What are the maximum anticipated surface pressure, temperature and fluid conditions? |
| Bore and tubular program | Which drill pipe, tubing, casing, tool joints and downhole tools must pass through the stack? |
| Required barriers | Does the stack need annular closure, fixed pipe sealing, variable bore sealing, blind closure or shearing? |
| Equipment interfaces | What are the top and bottom connections, side outlets, ring grooves and hydraulic ports? |
| Project scope | Are drawings, third-party inspection, documentation, commissioning spares and control equipment required? |
Bore size and pressure class alone do not provide enough information for a reliable technical proposal.
What Are API 16A BOP Blowout Preventers?
A blowout preventer, commonly called a BOP, is a pressure-containing well-control device installed above the wellhead during drilling and other operations that expose the well to formation pressure.
API Specification 16A covers drill-through equipment used in oil and gas well-control systems. Its scope includes annular BOPs, ram BOPs, drilling spools, adapter spools, hydraulic connectors and related pressure-control components.
The term API 16A BOP does not describe one fixed product. It covers different preventer designs, ram functions, bore sizes, pressure classes, material options and end connections.
The industry generally divides blowout preventers into two main categories: annular BOP blowout preventers and ram BOP blowout preventers.
An annular BOP uses a reinforced elastomeric packing element that closes concentrically around the bore. A ram BOP uses two opposing ram assemblies that move horizontally toward the center.
Most drilling BOP stacks combine both designs. The annular preventer provides flexible closure around approved tubular profiles, while ram preventers provide fixed pipe sealing, variable bore sealing, open-hole closure or emergency shearing.
API Well-Control Standards at a Glance
A complete well-control package may involve several related standards. API 16A addresses drill-through equipment, while other standards cover control systems, choke and kill equipment, intervention equipment, repair and system-level requirements.
| Standard | Main Scope | Typical Equipment or System |
| API Specification 16A | Drill-through equipment | Annular BOPs, ram BOPs, drilling spools, adapters and connectors |
| API Specification 16B | Coiled tubing, snubbing and wireline well-control equipment | Dedicated intervention pressure-control stacks |
| API Specification 16C | Choke and kill equipment | Choke manifolds, kill manifolds, lines and related equipment |
| API Specification 16D | BOP and diverter control systems | Accumulators, pumps, control valves and remote panels |
| API Standard 16AR | Repair and remanufacture | Repair and remanufacture of covered drill-through equipment |
| API Standard 53 | Well-control equipment systems | System-level requirements for drilling-well BOP equipment |
API editions and project specifications may change. The purchase order should identify the applicable edition, operator requirements, inspection scope and local regulations.
A general request for an “API 16A BOP” is not sufficient for an accurate technical or commercial quotation.
How Does a Blowout Preventer Work?
During normal drilling, the hydrostatic pressure of the drilling fluid helps balance pressure in the exposed formation.
The drill bit may enter a zone where formation pressure exceeds the pressure inside the wellbore. Oil, gas or formation water can then flow into the well. The industry calls this influx a kick.
Possible kick indicators include an unexpected pit-volume gain, increased return flow, continued flow after pump shutdown, reduced pump pressure, gas-cut drilling fluid, changes in trip-tank volume, a sudden drilling break or an unexplained change in mud density.
Once the crew confirms a kick, it follows the operator’s approved well-control procedure. Depending on the tubular position and stack configuration, the crew may close an annular BOP, pipe ram or another suitable preventer.
A closed BOP allows the crew to shut in the well, seal around drill pipe or tubing, close an empty bore and contain formation pressure. It also provides the mechanical barrier needed to direct flow into the choke line, circulate through the choke manifold and pump kill-weight fluid through the kill line.
During workover, completion or surface well testing, the BOP maintains a pressure barrier while the crew changes equipment or performs other operations. In an emergency, a qualified shear ram may cut an approved tubular and help isolate the well.
The BOP does not prevent every influx from entering the well. Its role is to provide the barriers required to contain and control the well after a kick is detected.
Main Types of API 16A BOP Blowout Preventers
Annular BOP Blowout Preventers
An annular BOP uses a circular reinforced packing element. Hydraulic pressure moves an operating piston, which compresses the element and forces it toward the center of the bore.
Because the packing element closes concentrically, an annular preventer can seal around several approved tubular profiles. Depending on the model and element design, it may close around drill pipe, tubing, casing, a kelly, a tool joint or another approved profile.
This flexibility makes the annular BOP useful when tubular size or position changes during drilling.
The annular preventer may provide the initial closure during a kick. After the well is stabilized, pressure may be transferred to a suitable pipe ram or variable bore ram, reducing unnecessary wear on the annular packing element.
Annular BOPs commonly support land drilling, offshore jack-up drilling, fixed-platform drilling, selected subsea systems, workover, completion and surface well testing. Some models also support controlled stripping within defined pressure and operating limits.
Not every annular BOP can close on an empty bore at full rated pressure. Model selection requires confirmation of the approved tubular range, open-hole capability, maximum operating pressure, stripping limits, packing element material, fluid compatibility and recommended hydraulic pressure.
Learn more about packing element selection, operating principles and maintenance in the Annular BOP Blowout Preventers Guide.
Ram BOP Blowout Preventers
A ram BOP contains two opposing ram assemblies. Hydraulic pistons move the rams from opposite sides of the body toward the center of the wellbore.
The installed ram blocks determine the function of the preventer. Depending on the ram type, the BOP may seal around one fixed pipe size, cover a defined range of tubular sizes, close an empty wellbore, shear an approved tubular or cut and seal during an emergency.
Ram BOPs provide strong, function-specific barriers and are commonly installed below the annular preventer in surface and subsea stacks.
The main ram types are fixed pipe rams, variable bore rams, blind rams, blind shear rams and casing shear rams.
For model configurations, body construction and detailed ram options, see the API 16A Ram BOP page.
API 16A BOP Type and Function Comparison
| BOP Type | Main Function | Tubular Coverage | Open-Bore Closure | Shear Function | Typical Application |
| Annular BOP | Flexible concentric sealing | Several approved profiles and sizes | Model-dependent | No | Initial closure, drilling and controlled stripping |
| Fixed Pipe Ram | Seals around one specified OD | One defined pipe or tubing size | No | No | Drilling, completion and workover |
| Variable Bore Ram | Seals around an approved OD range | Several approved tubular sizes | No | No | Tapered strings and multi-size programs |
| Blind Ram | Closes an empty wellbore | No tubular present | Yes | No | Open-hole isolation and pressure testing |
| Blind Shear Ram | Cuts an approved tubular and seals | Project-specific | Yes, after shearing | Yes | Emergency well isolation |
| Casing Shear Ram | Cuts selected casing or large tubulars | Project-specific | Usually requires a separate sealing barrier | Yes | Offshore and special emergency applications |
Ram Types and Configuration Options
Fixed Pipe Rams
Pipe rams seal around one specified drill pipe, tubing or casing outside diameter.
The ram packers match a defined tubular size. When the correct pipe stands across the ram cavity, the opposing assemblies close around it and form a pressure seal.
A fixed pipe ram cannot seal correctly around every tubular size. The RFQ therefore needs to identify the actual OD and profile requiring isolation.
A ram selected for 5-inch drill pipe, for example, should not automatically be treated as suitable for 4-1/2-inch pipe.
Variable Bore Rams
Variable bore rams, commonly called VBRs, seal around a defined range of tubular outside diameters.
They suit drilling and workover programs that use several pipe or tubing sizes, including tapered drill strings, directional wells, horizontal wells and offshore campaigns.
Each VBR design has an approved sealing range and pressure capability. Providing the complete tubular program allows the supplier to confirm whether the proposed ram covers every required size.
Blind Rams and Blind Shear Rams
Blind rams close and seal an empty wellbore when no tubular stands across the cavity. Typical uses include pressure testing, temporary shut-in, drill string removal, completion and workover.
Blind shear rams add an emergency cutting function. The blades cut an approved tubular before the rams continue inward and close the bore.
Shear performance depends on the tubular dimensions and material properties, available hydraulic force and actual well conditions. A general statement such as “suitable for 5-inch drill pipe” does not confirm shear capability.
Shear Ram Technical Review Data
| Required Data | Why It Matters |
| Tubular OD | Defines blade contact geometry |
| Wall thickness and nominal weight | Affect cross-sectional area and required shear force |
| Steel grade and yield strength | Affect resistance to cutting |
| Connection or tool-joint position | Tool joints may require different capability |
| Number of tubulars in the bore | Changes the total cutting load |
| Wellbore pressure | Adds load during the shear-and-seal sequence |
| Available control pressure | Determines available piston force |
| BOP closing ratio | Converts hydraulic pressure into closing force |
| Operating temperature | May affect materials, seals and required force |
| Required final barrier | Confirms whether the ram must cut only or cut and seal |
Casing Shear Rams
Casing shear rams cut selected casing strings or other large tubulars.
Some designs cut without creating a final pressure seal. In that case, the stack may require a separate blind ram or blind shear ram to establish the required barrier.
The final arrangement should follow the approved well-control philosophy and a project-specific shear review.
Single Ram vs Double Ram BOP
A single ram BOP contains one ram cavity, while a double ram BOP contains two independent cavities in one pressure-containing body.
A single ram unit offers flexibility when a project needs one additional function or when independent maintenance is important. A double ram BOP can reduce stack height and the number of external flange connections, although the combined body usually increases lifting weight and hydraulic demand.
The number of ram cavities does not define the body manufacturing route. Both single and double ram BOPs may use cast or forged bodies, depending on the qualified design.
Cast Body vs Forged Body
Cast and forged bodies follow different manufacturing routes, but the manufacturing route alone does not determine whether a BOP suits a project.
A proper comparison considers the qualified product design, material grade, heat treatment, mechanical properties, impact toughness, hardness, minimum design temperature, sour-service requirements, NDE scope and material traceability.
Annular BOP vs Ram BOP
| Selection Point | Annular BOP | Ram BOP |
| Main sealing component | Reinforced packing element | Opposing ram blocks and packers |
| Pipe-size flexibility | High within the approved range | Depends on the installed ram type |
| Fixed pipe sealing | Flexible but not size-specific | Strong sealing with fixed pipe rams |
| Several pipe sizes | Often possible within element limits | Requires variable bore rams |
| Open-bore closure | Depends on model and pressure | Requires blind or blind shear rams |
| Tubular shearing | Not available | Requires a qualified shear ram |
| Typical stack position | Commonly near the top | Commonly below the annular BOP |
| Main wear parts | Packing element and operating seals | Ram packers, top seals and piston seals |
Most drilling operations use both types. The annular BOP provides flexible closure around approved profiles, while ram preventers provide dedicated sealing and emergency functions.
Surface BOP Stack Configuration
A surface BOP stack sits above the wellhead at the rig floor, cellar or platform level.
Land rigs, offshore jack-ups, fixed platforms, platform workover rigs and surface well testing packages commonly use surface BOP systems.

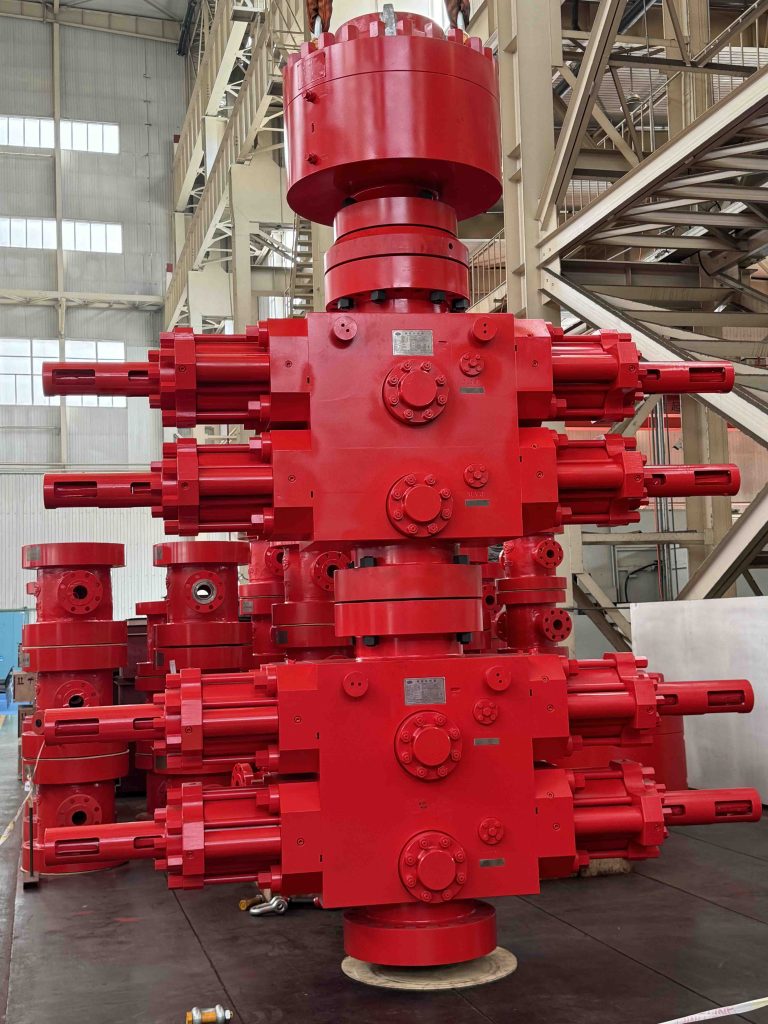

A representative surface stack may combine an annular preventer, one or more ram BOPs, a drilling spool, an adapter spool, choke and kill outlets and a hydraulic BOP control unit.
The exact stack order depends on the well-control program, operating pressure, tubular program, available rig space and local requirements.
A shallow land well may use a relatively simple arrangement. A high-pressure gas well may require additional ram cavities, verified shear capability, sour-service materials and a larger hydraulic control system.
For a custom surface BOP stack, the buyer should request a complete stack drawing rather than purchase individual components with unverified mechanical and hydraulic interfaces.
Subsea BOP Stack for Offshore Drilling
A subsea BOP stack sits on the subsea wellhead below a floating drilling unit.
A complete system may include several ram BOPs, one or more annular preventers, blind shear rams, casing shear rams, hydraulic wellhead connectors and a lower marine riser package.
It may also include subsea accumulators, hydraulic or multiplex control pods, emergency disconnect functions and backup control systems.
Subsea BOP selection requires system-level engineering. The design review must account for water depth, seawater pressure, seabed temperature, vessel movement, riser loads, remote control, shear capability, redundancy and emergency disconnect requirements.
A surface BOP data sheet cannot define a complete subsea package. Deepwater projects require dedicated system design, qualification and operational verification.
Surface vs Subsea BOP Systems
| Selection Area | Surface BOP Stack | Subsea BOP Stack |
| Installation | Above the wellhead at the rig or platform | On the subsea wellhead |
| Typical rigs | Land rigs, jack-ups and fixed platforms | Drillships and semisubmersibles |
| Control arrangement | Surface hydraulic control | Subsea hydraulic or multiplex control |
| Main design concerns | Stack height, rig-floor space and maintenance access | Water depth, redundancy, riser loads and emergency disconnect |
| Accumulators | Primarily surface-mounted | Surface and/or subsea-mounted |
| Maintenance access | Direct rig access | Requires recovery or subsea intervention |
| Engineering scope | Equipment and surface-stack integration | Complete subsea system integration |
API 16A BOP Applications
Onshore Oil and Gas Drilling
Land rigs use API 16A BOP blowout preventers while drilling conventional oil wells, natural gas wells, directional wells, horizontal wells, shale wells, exploration wells and development wells.
The selected stack must match the casing design, hole size, drill pipe program, expected surface pressure, drilling fluid, wellhead connection and available rig-floor height.
Frequently requested configurations include 11-inch ram BOPs, 13-5/8-inch 5M BOP stacks and 13-5/8-inch 10M systems for higher-pressure drilling.
Offshore Drilling
Offshore drilling often requires more redundancy, stronger emergency functions and a wider inspection and documentation scope.
Jack-up rigs commonly use surface BOP stacks, while semisubmersibles and drillships generally use subsea systems.
An offshore project may require high-pressure ram BOPs, blind shear capability, redundant controls, low-temperature materials, lifting arrangements and third-party inspection.
Large systems may use 18-3/4-inch 10M or selected 18-3/4-inch 15M configurations, subject to qualified design and complete system review.
High-Pressure Gas and HPHT Wells
High-pressure gas wells create demanding conditions because gas expands as it moves toward the surface.
These wells may require 10,000 or 15,000 psi equipment, multiple ram barriers, verified blind shear capability and a high-capacity choke and kill system.
HPHT applications add further requirements for material strength, elastomer selection, hydraulic closing force and shear capability under pressure.
The BOP, hydraulic control system, choke and kill equipment, hoses and connections all need to remain suitable for the same pressure and temperature envelope.
Sour-Service Wells
Sour wells may contain H₂S, CO₂, chlorides and produced water.
A reliable review identifies the H₂S partial pressure, CO₂ concentration, chloride level, produced-water chemistry, operating temperature, well pressure, required material class, hardness limits, corrosion-resistant overlay and elastomer compatibility.
A general request for a “NACE BOP” does not provide enough information for technical selection or an accurate quotation.
Workover, Completion and Surface Well Testing
Workover rigs use BOP equipment while crews replace tubing, repair casing, service artificial-lift equipment, change downhole pumps or recomplete producing wells.
During completion, BOP equipment maintains pressure control while crews install tubing, packers, completion strings, wellhead components and Christmas tree equipment.
A surface well testing package may combine an annular BOP and ram BOP with a flowhead, surface test tree, choke manifold, emergency shutdown valve, high-pressure flowline and test separator.
The selected preventer must match the tubular sizes, pressure, operating tools and temporary production arrangement.
BOP Replacement and Upgrade Projects
Operators may need a replacement BOP when a new well requires a higher pressure rating, different bore size or additional shear capability.
Replacement may also become necessary when spare parts are no longer available, existing connections do not match the wellhead, hydraulic demand exceeds the present control capacity or stack height needs to be reduced.
A replacement BOP supplier needs more than the existing bore and pressure rating. The interface review should compare the top and bottom connections, ring grooves, bolt patterns, side outlet orientation, hydraulic port locations, opening and closing volumes, overall dimensions, dry weight, bonnet clearance, ram removal space, lifting points and control-system compatibility.
SGPE can review existing drawings, equipment nameplates and interface dimensions before preparing a replacement BOP technical proposal.
Common API 16A BOP Sizes and Pressure Ratings
BOP size normally refers to the nominal vertical through-bore.
Common bore sizes include 7-1/16, 9, 11, 13-5/8, 16-3/4, 18-3/4, 20-3/4 and 21-1/4 inches. Representative pressure classes include 2,000, 3,000, 5,000, 10,000 and 15,000 psi.
Not every bore size is available in every pressure class. The final combination depends on the BOP type, body design, connections, materials and qualified configuration.
| Nominal Bore | Representative Pressure Classes | Typical Applications |
| 7-1/16 in. | 3,000, 5,000 or 10,000 psi | Workover, well testing and compact stacks |
| 9 in. | 2,000, 3,000 or 5,000 psi | Land drilling and workover |
| 11 in. | 3,000, 5,000 or 10,000 psi | Land oil and gas drilling |
| 13-5/8 in. | 3,000, 5,000 or 10,000 psi | Onshore and offshore surface drilling |
| 16-3/4 in. | 3,000 or 5,000 psi | Large-bore well sections |
| 18-3/4 in. | 5,000, 10,000 or selected 15,000 psi | Offshore and subsea drilling |
| 20-3/4 in. | Commonly 3,000 psi or project-specific | Large casing programs |
| 21-1/4 in. | 2,000, 3,000 or 5,000 psi | Surface-hole and large-bore drilling |
These values provide general guidance only. The approved manufacturer data sheet defines the final bore, pressure rating and available connection arrangement.
Frequently Requested BOP Configurations
| Representative Configuration | Typical Application | Key Data to Confirm |
| 7-1/16 in. Workover BOP | Workover, well testing and servicing | Pressure class, tubing OD and wellhead connection |
| 9 in. Single Ram BOP | Compact land drilling or workover | Installed ram, outlets and hydraulic volume |
| 9 in. Double Ram BOP | Compact drilling or workover stack | Upper/lower ram functions and bonnet clearance |
| 11 in. 5M Ram BOP | Medium-pressure land drilling | Pipe size, connections and control capacity |
| 11 in. 10M Ram BOP | Higher-pressure land drilling | Shear requirement, materials and hydraulic demand |
| 13-5/8 in. 5M BOP Stack | Surface drilling | Annular/ram arrangement and choke/kill outlets |
| 13-5/8 in. 10M BOP Stack | High-pressure land or offshore drilling | MASP, shear capability and stack weight |
| 18-3/4 in. 10M BOP | Offshore and subsea drilling | Connectors, control system and riser interfaces |
| 18-3/4 in. 15M BOP | Selected high-pressure subsea programs | Complete qualified system verification |
Buyers sourcing 11-inch 5M, 13-5/8-inch 10M or 18-3/4-inch 10M BOP equipment should provide the complete application, stack arrangement and interface data before requesting a quotation.
Key Technical Parameters for an API 16A BOP Data Sheet
| Parameter | Information to Specify |
| Equipment type | Annular, single ram, double ram or complete BOP stack |
| Nominal bore | Required vertical through-bore |
| Rated working pressure | Required pressure class |
| Installed ram type | Pipe, VBR, blind, blind shear or casing shear |
| Tubular sealing range | Fixed OD or approved VBR range |
| Top and bottom connections | Size, pressure class and connection type |
| Side outlets | Quantity, size, pressure class and orientation |
| Ram locking system | Manual, hydraulic or model-specific |
| Opening and closing volume | Manufacturer-defined hydraulic volume |
| Operating pressure | Manufacturer-defined control pressure |
| Temperature range | Minimum ambient and maximum fluid temperature |
| Fluid service | Mud, brine, oil, gas or sour service |
| Overall dimensions | Height, width and maintenance envelope |
| Equipment weight | Dry weight and lifting requirements |
Main Components of a BOP Stack
Annular and Ram Preventers
Annular and ram preventers provide the primary closing functions.
Their number and arrangement depend on well pressure, tubular sizes, shear philosophy, installation type and the required number of independent barriers.
Drilling Spool
A drilling spool provides vertical space between BOP components and may include choke and kill outlets.
The inquiry should define the bore, pressure rating, overall height, end connections, outlet size, outlet orientation, ring groove and required fasteners.
Choke and Kill Equipment
The choke line carries formation fluid from the closed stack to the choke manifold, where an adjustable choke helps regulate surface pressure.
The kill line provides a path for pumping drilling fluid or kill fluid into the well below a closed preventer.
BOP Control Unit
The BOP control unit stores and supplies hydraulic fluid to operate the preventers and associated valves.
A proper control-system review confirms the operating pressure, usable accumulator volume, pump capacity, number of functions, required response time, remote panel arrangement, hose sizes, backup power and minimum ambient temperature.
Each preventer’s opening and closing volume must remain within the available hydraulic capacity.
API 16A applies to drill-through equipment, while API 16D addresses the associated hydraulic control system.
For accumulator sizing, pump capacity and control-panel options, see the API 16D BOP Control Unit page.
API 16A BOP Selection Guide
A reliable BOP selection starts with the well program, not a generic supplier catalogue.
1. Define the Operation and Well Conditions
Identify whether the equipment will support land drilling, offshore drilling, workover, completion, surface well testing or a replacement project.
Record special conditions such as high-pressure gas, HPHT service, sour gas, low ambient temperature or subsea installation.
2. Confirm the Bore and Pressure Rating
The bore must allow the required drill pipe, tool joints, drill collars, casing, tubing, completion strings and fishing tools to pass through the stack.
The pressure rating needs to meet the approved well-control design and maximum anticipated surface pressure.
Every component in the pressure path requires a compatible rating. A 10,000 psi BOP cannot compensate for a lower-rated spool, valve, choke line, kill line or wellhead connection.
3. Select the Required Closing Functions
Define the required barriers before choosing the stack arrangement.
The project may need annular closure, fixed pipe sealing, variable bore sealing, open-hole closure, drill pipe shearing, casing shearing, manual or hydraulic ram locking and multiple independent barriers.
4. Provide the Complete Tubular Program
For pipe rams and VBRs, provide every tubular OD that requires sealing.
For shear rams, provide the wall thickness, nominal weight, steel grade, yield strength, connection type, tool-joint dimensions and number of tubulars that may remain in the bore.
5. Confirm Connections and Side Outlets
Define the size, pressure class and type of the top and bottom connections.
Include the ring gasket, bolt pattern, stud specification and any ring-groove overlay requirements.
For choke and kill outlets, state the quantity, size, pressure class, connection type and orientation.
6. Define Temperature and Fluid Service
State the minimum ambient temperature, maximum well-fluid temperature and all fluids that may contact the BOP.
For sour service, provide the actual H₂S, CO₂, chloride and produced-water conditions rather than relying only on a general NACE statement.
7. Match the Hydraulic Control System
Confirm that the existing or proposed BOP control unit can operate every required function.
Compare operating pressure, opening and closing volumes, usable accumulator capacity, pump output, hose sizes and remote control requirements.
8. Check Installation and Maintenance Space
Before approval, check stack height, equipment weight, rig-floor clearance and support loads.
Confirm sufficient room to open the bonnets, remove ram assemblies and reach pressure-test connections.
A technically suitable BOP can still create installation problems if the rig does not provide enough maintenance clearance.
Quick BOP Selection Table
| Project Requirement | Typical Selection Consideration |
| Several drill pipe sizes | Annular BOP plus variable bore rams |
| One fixed pipe size | Fixed pipe rams |
| Open-hole closure | Blind rams or blind shear rams |
| Emergency pipe cutting | Blind shear rams |
| Large casing cutting | Casing shear rams plus a separate sealing barrier |
| Limited stack height | Double ram BOP or compact stack review |
| Workover operation | Smaller-bore surface BOP matched to tubing and tools |
| High-pressure gas well | Higher pressure class and verified shear capability |
| Sour-service well | Project-specific materials, hardness and elastomer review |
| HPHT well | High-temperature material, seal and hydraulic review |
| Replacement project | Full dimensional, hydraulic and connection review |
How SGPE Reviews an API 16A BOP Inquiry
SGPE reviews each BOP inquiry against the proposed application, tubular program, working pressure, end connections, ram functions and hydraulic operating volumes.
For replacement projects, the review also compares the existing stack drawing, equipment nameplate, side outlets, maintenance envelope and control-system capacity.
The scope may cover an individual annular or ram preventer, a replacement BOP, a custom surface BOP stack or a wider package that includes drilling spools, adapter spools, an API 16D control unit and choke and kill equipment.
Inspection requirements, third-party witness points, the manufacturing record book and commissioning spares can also be reviewed before the technical and commercial quotation is finalized.
This process helps identify interface conflicts early and reduces the risk of field modifications after delivery.
SGPE Supply Scope for BOP Projects
Depending on the approved technical scope, SGPE can supply annular BOPs, single and double ram BOPs, pipe rams, variable bore rams, blind shear ram assemblies, drilling spools, adapter spools, test stumps and pressure-rated connectors.
The supply scope can also include API 16D BOP control units, choke and kill equipment, packing elements, ram packers, seal kits, companion flanges, ring gaskets, studs, nuts and commissioning spare parts.
The final configuration remains subject to model availability, technical review, qualified design and project requirements.
Any requirement for a specific API monogram, licensing scope, certification or named third-party inspection body should be confirmed before quotation.
Need an API 16A BOP Quotation?
Send the existing stack drawing, equipment nameplate, nominal bore, working pressure, ram requirements, tubular program, end connections and service conditions.
SGPE can review the main mechanical and hydraulic interfaces and prepare a project-specific technical proposal.
API 16A BOP Buying Guide
The lowest API 16A BOP price does not always produce the lowest total project cost. An incomplete quotation can lead to additional spending on adapters, spare parts, testing, documentation, freight and field modifications.
Confirm the Complete Supply Scope
The quotation should identify everything included in the supply.
Buyers should confirm whether the price covers the BOP body, installed ram assemblies, annular packing element, ram packers, top seals, hydraulic operators, locking system, outlet valves, companion flanges, ring gaskets, studs, hoses, lifting tools, spare parts and documentation.
Compare Technical Compliance Before Price
Compare each API 16A BOP supplier against the same technical basis.
The comparison should cover the BOP type, bore, pressure rating, ram arrangement, sealing range, shear capability, end connections, side outlets, hydraulic operating volumes, locking system, materials, service conditions, inspection scope, documentation and spare parts.
A lower price may simply reflect a smaller supply scope or fewer quality records.
Review Drawings and Interface Data
Request a model-specific GA drawing showing the overall dimensions, vertical bore, connections, side outlets, hydraulic ports, bonnet opening direction, lifting points, equipment weight and ram cavity arrangement.
For replacement equipment, compare the proposed drawing with the existing stack before production approval.
Confirm Shear Capability and Hydraulic Demand
For blind shear and casing shear rams, the supplier must review the actual tubular data rather than rely on a general pipe-size statement.
The existing or proposed BOP control unit must also provide enough pressure and hydraulic volume for the required functions.
Define Inspection and Documents Early
The purchase order should define customer witness points, third-party inspection, NDE, hardness checks, pressure testing and document review.
It should also identify the required manufacturing record book, including drawings, material certificates, heat-treatment records, inspection reports, pressure-test reports, elastomer certificates, operation manuals and spare-parts lists.
Late changes to the inspection or documentation scope may affect both lead time and price.
Plan Spare Parts and Lifecycle Support
The spare-parts package should reflect the operating program, maintenance plan and delivery location.
Remote drilling sites may need additional packing elements, ram packers, top seals, bonnet seals, piston seals, O-rings, hydraulic fittings, ring gaskets and stud sets.
A clear delivery schedule should show drawing approval, material procurement, machining, heat treatment, NDE, assembly, testing, inspection, document approval, packing and shipment.
API 16A BOP Supplier Evaluation
| Evaluation Point | What the Buyer Needs to Confirm |
| Technical review | Can the supplier review the well program and complete stack interfaces? |
| Drawings | Can the supplier provide model-specific GA and interface drawings? |
| Ram selection | Can the supplier confirm sealing ranges and shear requirements? |
| Materials and traceability | Can the supplier identify materials and provide supporting records? |
| Testing and inspection | Can the supplier perform the required tests and support third-party inspection? |
| Documentation | Can the supplier provide the agreed manufacturing record book? |
| Spare parts | Can the supplier provide model-specific seals and ram components? |
| Delivery and support | Does the supplier provide a clear schedule and future technical support? |
Investigate further when a quotation lists only the bore and pressure rating, omits the installed ram type or fails to identify the end connections and side outlets.
A supplier should not make a shear claim without reviewing the tubular data or claim interchangeability before checking the original drawings and dimensions.
API 16A BOP Price Factors
The final API 16A BOP price depends on the complete technical and commercial scope.
| Price Factor | Typical Cost Impact |
| Annular or ram design | Different bodies, operators and sealing components |
| Single or double ram body | Double ram bodies contain two cavities and more components |
| Bore size | Larger bores increase material and machining requirements |
| Working pressure | Higher pressure classes require heavier designs |
| Ram type | Blind shear and casing shear systems use specialized components |
| Cast or forged body | Depends on the qualified design and manufacturing route |
| Sour or HPHT service | Adds material, hardness, overlay and elastomer controls |
| End connections and outlets | Custom interfaces increase machining and scope |
| Hydraulic locking | Adds locking components and control functions |
| Spare parts | Packing elements and seal kits increase the supplied scope |
| Third-party inspection | Adds testing, witness and coordination costs |
| Documentation | Detailed manufacturing records require more QA work |
| Packing and freight | Large BOPs require heavy-duty preservation and transport |
Technical compliance, accessories, testing, documentation and delivery terms should be aligned before total prices are compared.
Testing, Documentation and Lifecycle Support
API 16A BOP Testing and Inspection
The manufacturer should test and inspect the BOP according to the applicable specification, qualified design, approved procedures and purchase order.
| Inspection or Test | Main Purpose | Typical Record |
| Material verification | Confirms material and traceability | MTC and identification record |
| Visual inspection | Checks surface condition and workmanship | Visual report |
| Dimensional inspection | Confirms interfaces and critical dimensions | Dimensional report |
| Nondestructive examination | Checks for relevant indications | UT, MT or PT report, as applicable |
| Hardness testing | Confirms material and sour-service controls | Hardness report |
| Hydraulic function test | Confirms opening, closing and locking | Functional test report |
| Body pressure test | Checks pressure-containing integrity | Hydrostatic test report |
| Closed-preventer test | Checks the selected sealing function | Pressure-test report |
| Drift test | Confirms the through-bore | Drift record |
| Marking inspection | Confirms nameplate and identification | Final inspection report |
The buyer may request third-party inspection by a named inspection body. Witness and hold points should be agreed before production begins.
A shear test forms part of the project only when required by product qualification, the purchase order or the project specification.
BOP Documentation Requirements
A typical manufacturing record book may include an approved GA drawing and data sheet, material certificates, heat-treatment records, NDE and hardness reports, dimensional inspection records, hydrostatic and functional test reports, elastomer certificates, assembly and traceability records, nameplate photographs, a certificate of conformity, an operation and maintenance manual, preservation records and a recommended spare-parts list.
Defining the document index at the start of the project helps prevent inspection and shipment delays.
SGPE can review the required document package during the quotation stage so the technical proposal, inspection plan and commercial scope remain aligned.
BOP Maintenance and Spare Parts
Regular maintenance helps preserve pressure integrity and hydraulic reliability.
After drilling or workover, remove mud, sand and debris. Inspect the body for corrosion, check the ram blocks and packers, examine the annular packing element and inspect piston seals, hydraulic ports, ram locks, ring grooves and sealing surfaces.
Following reassembly, complete the required opening, closing and pressure checks. After a major repair, the BOP should pass the specified function and pressure tests before returning to service.
Before ordering replacement parts, provide the manufacturer, model, serial number, bore size, working pressure, ram type and existing part number. A nameplate photograph, drawing or sample dimensions can help avoid identification errors.
Critical BOP parts should never be selected by appearance alone. A physically similar part may still use the wrong material, seal compound, geometry or pressure capability.
For replacement packing elements, ram packers, top seals and overhaul components, see BOP Spare Parts and Packing Elements.
Common API 16A BOP Purchasing Mistakes
Selecting Only by Bore and Pressure
Two BOPs with the same bore and pressure rating may use different connections, side outlets, dimensions, hydraulic volumes and ram cavities.
Ignoring the Complete Stack Interface
The BOP must match the wellhead, adapter spools, drilling spool, choke and kill system, hydraulic hoses and control unit.
Providing Incomplete Shear Data
Pipe OD alone cannot confirm whether a shear ram can cut and seal the required tubular.
Confusing API 16A and API 16D
API 16A covers drill-through equipment, while API 16D covers the associated hydraulic control system.
Assuming Every Annular BOP Has the Same Capability
Packing element ranges, open-hole capability, stripping limits and pressure limits vary by model.
Ordering Rams Without Identifying the BOP Model
Ram blocks, packers and top seals are model-specific. Similar-looking parts may not be interchangeable.
Ignoring Maintenance Clearance
The installed stack needs enough room to open the bonnets, remove the rams and perform routine maintenance.
Comparing Price Without Comparing Scope
One supplier may include installed rams, spare parts, testing and documentation, while another quotation includes only the basic BOP body.
Information Required for an API 16A BOP RFQ
| RFQ Item | Information to Provide |
| Equipment type | Annular BOP, single ram, double ram or complete stack |
| Oilfield operation | Drilling, workover, completion or well testing |
| Well type | Oil, gas, sour, offshore or HPHT well |
| Nominal bore | Required vertical through-bore |
| Working pressure | Required pressure class |
| Ram functions | Pipe, VBR, blind, blind shear or casing shear |
| Tubular data | OD, wall thickness, weight, grade and connection |
| Top and bottom connections | Size, pressure class and connection type |
| Side outlets | Quantity, size, rating and orientation |
| Temperature | Minimum ambient and maximum fluid temperature |
| Fluid service | Mud, oil, gas, brine, H₂S, CO₂ and produced water |
| Hydraulic system | Operating pressure and available accumulator capacity |
| Body requirement | Cast, forged or qualified manufacturer design |
| Locking system | Manual or hydraulic |
| Inspection | Manufacturer, customer or third-party inspection |
| Documentation | Required certificates and manufacturing record book |
| Accessories | Rams, spares, adapters, gaskets and control hoses |
| Quantity | Number of BOPs and spare sets |
| Delivery | Incoterm, destination and required date |
A complete RFQ reduces clarification time and helps the API 16A BOP supplier prepare an accurate technical and commercial quotation.
Frequently Asked Questions About API 16A BOP Blowout Preventers
1. What does API 16A mean for a BOP blowout preventer?
API Specification 16A covers drill-through equipment used in oil and gas well-control systems. Its scope includes annular BOPs, ram BOPs, drilling spools, adapter spools, hydraulic connectors and related pressure-containing equipment installed above a wellhead or within a BOP stack.
API 16A does not define one universal blowout preventer configuration. An API 16A BOP inquiry still needs to identify the equipment type, nominal bore, working pressure, ram functions, end connections, side outlets, temperature range and service conditions. The purchase order should also state the applicable standard edition, inspection requirements, documentation scope and any operator-specific requirements.
2. What are the main types of API 16A BOP blowout preventers?
The two main types are annular BOPs and ram BOPs. An annular BOP uses a reinforced elastomeric packing element that closes concentrically around approved drill pipe, tubing, casing, kelly or tool-joint profiles. It is commonly used for initial well closure and for operations where the tubular size or position may change.
A ram BOP uses two opposing ram assemblies to perform a defined function. Depending on the installed ram blocks, it may seal around a fixed pipe size, cover a range of tubular diameters, close an empty wellbore or shear an approved tubular. Most surface BOP stacks and subsea BOP systems combine annular and ram preventers because the two designs provide different but complementary well-control functions.
3. What is the difference between an annular BOP and a ram BOP?
An annular BOP provides flexible sealing around several approved tubular profiles within the operating range of its packing element. This makes it useful during land drilling, offshore drilling, workover, completion and surface well testing, especially when the drill string includes different pipe sizes or tool profiles.
A ram BOP provides a more specific closing function. Fixed pipe rams seal around one defined outside diameter, variable bore rams cover an approved diameter range, blind rams close an empty bore and blind shear rams cut an approved tubular before sealing the well. An annular preventer cannot replace every ram BOP function, so a complete well-control stack normally uses both types.
4. What is the difference between a fixed pipe ram and a variable bore ram?
A fixed pipe ram is designed to seal around one specified drill pipe, tubing or casing outside diameter. It can provide a strong pressure barrier when the correct tubular stands across the ram cavity, but it should not be assumed to seal around a different pipe size.
A variable bore ram, also called a VBR, can seal around several tubular diameters within a defined range. It is often selected for tapered drill strings, directional wells, horizontal drilling, offshore campaigns and workover programs that use more than one pipe or tubing size. The complete tubular program should still be submitted to the API 16A BOP supplier because every VBR has a model-specific sealing range and pressure capability.
5. What is the difference between a blind ram and a blind shear ram?
A blind ram closes and seals an empty wellbore when no drill pipe, tubing or casing is positioned across the ram cavity. Blind rams may be used during pressure testing, temporary shut-in, drill string removal, completion and selected workover operations.
A blind shear ram performs an additional emergency function. Its blades first cut an approved tubular and then continue inward to close the bore and establish a pressure barrier. Blind shear rams are commonly considered for offshore drilling, high-pressure gas wells, HPHT wells and other applications where emergency well isolation is required. The actual shear capability must be confirmed from the complete tubular and hydraulic data.
6. Can a blind shear ram cut any drill pipe, tubing or casing?
No. A blind shear ram cannot automatically cut every tubular with the same nominal outside diameter. Shear capability depends on the tubular wall thickness, nominal weight, steel grade, yield strength, connection position, tool-joint dimensions and number of tubulars present in the wellbore.
Wellbore pressure, available hydraulic control pressure, BOP closing ratio, blade geometry and operating temperature also affect the result. Two 5-inch drill pipes with different weights or grades may require very different shearing forces. For this reason, an API 16A BOP supplier should review the complete tubular specification and operating conditions before confirming that a blind shear ram can cut and seal the proposed string.
7. What is the difference between a single ram BOP and a double ram BOP?
A single ram BOP contains one ram cavity and provides one installed closing function. It may be fitted with pipe rams, variable bore rams, blind rams or shear rams, depending on the qualified design and project requirements.
A double ram BOP contains two independent ram cavities within one pressure-containing body. It may combine variable bore rams in one cavity with blind shear rams in the other, reducing stack height and the number of external flange connections. However, a double ram unit is generally heavier and requires more hydraulic operating volume. Single and double ram classifications describe the number of cavities; they are separate from cast-body and forged-body classifications, and either configuration may use a qualified cast or forged body design.
8. What API 16A BOP sizes and pressure ratings are commonly used?
Common API 16A BOP bore sizes include 7-1/16, 9, 11, 13-5/8, 16-3/4, 18-3/4, 20-3/4 and 21-1/4 inches. Representative working-pressure classes include 2,000, 3,000, 5,000, 10,000 and 15,000 psi, although not every bore size is available in every pressure class.
Smaller 7-1/16-inch and 9-inch BOPs are often used for workover, well servicing and compact drilling packages. Eleven-inch and 13-5/8-inch BOP stacks are widely used for onshore drilling and offshore surface applications. Large 18-3/4-inch systems are commonly associated with offshore and subsea drilling. The final bore and pressure rating must match the well design, maximum anticipated surface pressure, casing program, tubular sizes and complete stack rating.
9. How do engineers select the correct API 16A BOP for a drilling or workover project?
Selection begins with the actual well program rather than a general product catalogue. Engineers review the operation type, well pressure, bore requirement, casing and tubular program, required closing functions, top and bottom connections, choke and kill outlets, fluid service and temperature range.
The selection process also considers hydraulic opening and closing volumes, accumulator capacity, installation height, equipment weight and maintenance clearance. A high-pressure gas well may require a higher pressure class and verified blind shear capability, while a sour-service well needs a detailed review of H₂S, CO₂, chlorides, produced-water chemistry, materials, hardness and elastomer compatibility. A workover package may instead prioritize a compact bore, tubing-size pipe rams and compatibility with an existing wellhead.
10. What is the difference between a surface BOP stack and a subsea BOP stack?
A surface BOP stack is installed above the wellhead at the rig floor, cellar or platform level. It is commonly used on land drilling rigs, jack-up rigs, fixed offshore platforms, workover rigs and surface well testing packages. The main design concerns include stack height, wellhead interfaces, ram functions, side outlets, hydraulic control capacity and maintenance access.
A subsea BOP stack is installed on a subsea wellhead below a floating drilling unit. It may include several ram preventers, annular BOPs, hydraulic wellhead connectors, a lower marine riser package, subsea accumulators and multiplex control pods. Subsea selection requires additional evaluation of water depth, seawater pressure, seabed temperature, riser loads, system redundancy, emergency disconnect functions and remote intervention capability.
11. What should buyers compare when choosing an API 16A BOP supplier?
Buyers should compare the complete technical and commercial scope rather than evaluating only the API 16A BOP price. The technical comparison should cover the preventer type, bore, working pressure, installed ram assemblies, tubular sealing range, shear capability, end connections, side outlets, hydraulic volumes, locking system, materials and service conditions.
The quotation should also identify whether companion flanges, ring gaskets, studs, control hoses, spare parts, lifting tools and documentation are included. A qualified API 16A BOP supplier should be able to provide model-specific drawings, material traceability, inspection records, pressure-test reports and operation manuals. Any requirement for third-party inspection, a specific API Monogram, sour-service materials or a detailed manufacturing record book should be confirmed before production begins.
12. What information is required to request an API 16A BOP quotation from SGPE?
To request an API 16A BOP quotation, provide the required preventer type, application, nominal bore, rated working pressure, ram functions, tubular program and top and bottom connections. The inquiry should also identify the side outlets, hydraulic operating pressure, temperature range, fluid service, locking requirements, inspection scope, quantity and delivery destination.
For a replacement BOP, SGPE also needs the existing equipment nameplate, stack drawing, interface dimensions, hydraulic port locations and opening and closing volumes. Sour-service, HPHT and shear-ram applications require additional fluid-composition and tubular data. Based on this information, SGPE can review the proposed stack configuration, hydraulic compatibility, inspection requirements, documentation package, spare parts and delivery scope before preparing a technical and commercial proposal.
Standards and Technical Reference Scope
A complete well-control project may involve API 16A for drill-through equipment, API 16D for control systems, API 16C for choke and kill equipment, API 16AR for repair and remanufacture, API 16B for dedicated intervention equipment and API Standard 53 for system-level requirements.
The project team should confirm the applicable editions, addenda, operator specifications and regulatory requirements during the technical review.
This article provides general equipment-selection and purchasing information. It does not replace the operator’s approved well-control procedure, the manufacturer’s operation manual or project-specific engineering.
Conclusion
API 16A BOP blowout preventers provide essential pressure-control barriers during oil and gas drilling, completion, workover and surface well testing.
Annular BOPs provide flexible closure around approved tubular profiles. Pipe rams and variable bore rams seal around defined pipe sizes. Blind rams close an empty bore, while blind shear and casing shear rams provide emergency cutting functions for approved tubulars.
A reliable BOP selection requires a complete review of the well design, bore, pressure rating, tubular program, ram arrangement, connections, side outlets, fluid service and hydraulic control capacity.
A successful purchase also depends on the supplier’s drawings, installed ram assemblies, testing, documentation, spare parts, delivery schedule and after-sales support.
SGPE supplies API 16A BOP blowout preventers and related well-control equipment for onshore drilling, offshore drilling, workover, completion, surface well testing, high-pressure gas wells, sour-service projects, HPHT applications and BOP replacement programs.
Available supply options include annular BOPs, single and double ram BOPs, pipe rams, variable bore rams, blind shear rams, drilling spools, adapter spools, packing elements, BOP spare parts, API 16D control units and choke and kill equipment.
Request an API 16A BOP Technical Proposal and Quotation
E-Mail:
info@sgpe.com
