API 16A Ram BOP Spare Parts: Selection, Technical Reference and Buying Guide
A ram blowout preventer must close, seal and hold pressure during a kick or another well-control event. Although its pressure-containing body may remain in service for many years, ram packers, top seals, bonnet seals, hydraulic operator seals and moving components gradually wear.
For this reason, reliable API 16A Ram BOP spare parts are essential for surface well-control maintenance. Correctly matched replacement parts restore ram movement, maintain wellbore isolation, reduce hydraulic leakage and help the BOP pass function and pressure tests before returning to service.
However, part selection involves much more than matching the nominal bore and rated working pressure. Two Ram BOPs may share the same size and pressure class while using different ram blocks, packer profiles, piston rods, hydraulic operators, locking systems and seal arrangements.
For example, a 13-5/8-inch 5,000 psi Ram BOP may require entirely different internal components from a 13-5/8-inch 10,000 psi model. In addition, the upper and lower cavities of the same Double Ram BOP may contain different ram assemblies and use different shafts, operator parts or repair kits.
Therefore, accurate identification starts with the BOP manufacturer, model, serial number, ram cavity, installed ram type, tubular dimensions and actual operating conditions.
This guide explains how to identify Ram BOP replacement parts, compare repair kits, review elastomer requirements, investigate common failures and prepare a complete RFQ. In particular, it focuses on surface Ram BOPs used for land drilling, workover, fixed offshore platforms, jack-up rigs, hydraulic workover, snubbing and well intervention.

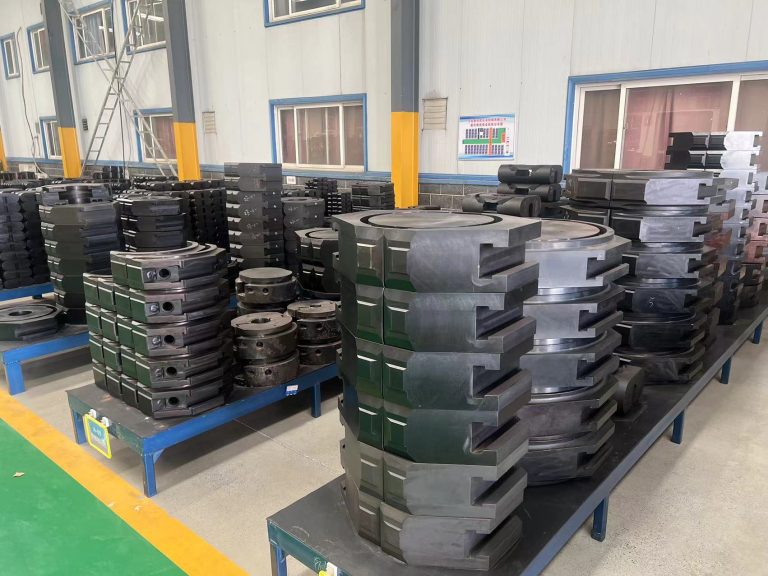

SGPE supplies individual Ram BOP components, model-specific BOP seal kits and selected overhaul packages. Before quotation, each inquiry receives a model, dimensional and service-condition review.
Quick Selection Guide for API 16A Ram BOP Spare Parts
A useful spare-parts request should identify five areas: the parent BOP, the relevant ram cavity, the required ram function, the service environment and the maintenance scope.
In addition, the buyer should decide whether the work requires one seal, one ram block, a matched ram pair, a hydraulic operator repair kit or a complete overhaul package. As a result, small but essential items such as backup rings, retainers and static seals are less likely to be omitted.
| Selection item | Information required |
|---|---|
| Parent equipment | Manufacturer, model and serial number |
| BOP configuration | Single Ram BOP or Double Ram BOP |
| Size and pressure | Nominal bore and rated working pressure |
| Ram position | Upper ram cavity or lower ram cavity |
| Ram function | Pipe ram, VBR, blind ram, blind shear ram or casing shear ram |
| Tubular data | OD, wall thickness, weight, grade and connection |
| Service conditions | Temperature, drilling fluid, hydrocarbons, H₂S and CO₂ |
| Part identification | Original part number, drawing, dimensions or sample |
| Supply scope | Individual part, seal kit, ram change kit or overhaul package |
| Quality requirements | Certificates, inspection, testing and third-party witnessing |
In most cases, a clear nameplate photograph, the original part number and several photographs of the removed component provide the best starting point. If those references are unavailable, a dimensional report or verified sample may support the review.
What Are API 16A Ram BOP Spare Parts?
API 16A Ram BOP spare parts are replaceable mechanical, hydraulic and elastomeric components used in ram-type blowout preventers. Together, these parts support opening, closing, sealing, locking and pressure-control functions.
API Spec 16A covers drill-through equipment that includes Ram BOPs, ram blocks, ram packers and top seals. However, API 16A classification does not make parts universally interchangeable. Instead, every replacement component must match the design and dimensions of the parent BOP.
A surface Ram BOP may use fixed pipe rams, variable bore rams, blind rams, blind shear rams, casing shear rams or special-purpose intervention rams. Meanwhile, some well-control programs require dual-string, coiled tubing, wireline or cable-specific ram assemblies.
Ultimately, the installed ram type determines whether the BOP can seal around a tubular, close an open bore or shear a qualified tubular before sealing the well.
Main Ram BOP Spare-Parts Groups
| Spare-parts group | Typical components | Primary function |
| Ram assemblies | Pipe ram blocks, VBR blocks, blind rams and shear rams | Seal around pipe, close an open bore or shear a qualified tubular |
| Ram sealing parts | Ram packers, top seals, blind ram seals and inserts | Form the primary wellbore pressure barrier |
| Bonnet sealing parts | Bonnet seals, door seals, O-rings and retainers | Seal the bonnet-to-body interface |
| Hydraulic operator parts | Pistons, rods, cylinders, wear rings and seals | Convert hydraulic pressure into ram movement |
| Locking components | Locking screws, shafts, wedges, nuts and bearings | Hold the rams in the required position |
| Repair kits | Minor kits, major kits and ram change kits | Restore sealing and hydraulic performance |
| Wear and hardware parts | Bushings, guides, retainers, studs and fittings | Support alignment, movement and assembly |
Elastomeric parts usually require replacement more often than metal components. By contrast, ram blocks, piston rods, cylinders and locking shafts may remain in service longer. Nevertheless, corrosion, scoring, deformation and repeated operating cycles can still make replacement necessary.
Typical Surface Ram BOP Technical Reference Data
The following values support preliminary identification and RFQ preparation. However, they do not form a universal product matrix, and not every manufacturer offers every size-and-pressure combination.
| Technical item | Common reference values or options | Selection note |
| Nominal bore size | 7-1/16″, 9″, 11″, 13-5/8″, 16-3/4″, 18-3/4″, 21-1/4″ | Bore size alone does not confirm compatibility |
| Rated working pressure | 2,000, 3,000, 5,000, 10,000 and 15,000 psi | Match the parent BOP rating |
| Ram configuration | Single Ram BOP or Double Ram BOP | Confirm the number of ram cavities |
| Ram position | Upper cavity or lower cavity | Different cavities may use different parts |
| Ram types | Pipe, VBR, blind, blind shear, casing shear and intervention ram | Match the required well-control function |
| Tubular data | OD, wall thickness, weight, grade and connection | Required for pipe, VBR and shear ram selection |
| Hydraulic components | Piston, rod, cylinder, seals, bushings and wear rings | Dimensions remain model-specific |
| Locking systems | Manual screw lock, wedge lock or hydraulic lock | Match the original equipment design |
| Service media | Water-based mud, oil-based mud, synthetic mud, brine, oil and gas | Influences elastomer selection |
| Sour-service data | H₂S, CO₂, chlorides, pressure and temperature | “NACE service” alone may not provide enough detail |
Accordingly, final compatibility should rely on the equipment nameplate, original part number, approved drawing or verified sample dimensions. Moreover, actual service conditions should be reviewed before materials or elastomer compounds are confirmed.
Why Correct Ram BOP Replacement Parts Matter
A Ram BOP must move its ram assemblies into the bore and create a dependable pressure barrier. If the installed components are incorrect, the BOP may fail to close fully, move unevenly or develop hydraulic leakage.
For instance, a pipe ram packer with the wrong bore profile may not seal around the drill pipe. Likewise, a bonnet seal with the wrong cross-section may leak under wellbore pressure. An unsuitable elastomer may also swell in oil-based mud, lose flexibility in cold weather or harden during high-temperature gas service.
Metal parts create similar risks. A poorly matched ram block may bind inside the cavity, whereas a scored piston rod may cut a new rod seal during the first operating cycle. In addition, a worn guide bushing can allow the shaft to move out of alignment.
Correctly selected surface BOP spare parts restore smooth movement, balanced packer compression and reliable sealing. Consequently, they reduce failed pressure tests, shorten maintenance periods and improve traceability.
The objective is not simply to install a component that physically fits. Instead, the replacement must support the mechanical, hydraulic and pressure-control functions of the complete BOP.
API 16A Ram BOP Spare Parts Selection Guide
Step 1: Identify the BOP Manufacturer and Model
Begin with the BOP nameplate. Record the manufacturer, model, serial number, manufacturing date, bore size, rated working pressure and temperature class when available.
Different BOP families use different cavity profiles, bonnet arrangements, piston rods, locking systems and seals. Therefore, equipment with the same nominal size and pressure rating may still require completely different internal parts.
If the nameplate is missing or unreadable, photograph the complete BOP, bonnet, hydraulic operator, ram cavity, locking mechanism and removed component.
As a result, the supplier receives more than a general equipment description. A request for “13-5/8-inch Ram BOP parts” does not provide enough information for final selection.
Step 2: Match the Bore Size and Pressure Rating
Common surface Ram BOP bore sizes include 7-1/16, 9, 11, 13-5/8, 16-3/4, 18-3/4 and 21-1/4 inches. Similarly, common rated working pressures include 2,000, 3,000, 5,000, 10,000 and 15,000 psi.
Although these values narrow the search, they do not prove interchangeability.
For example, a buyer sourcing 13-5/8-inch 5,000 psi Ram BOP spare parts should still identify the equipment model and cavity position. The same principle applies to 13-5/8-inch 10,000 psi components, 11-inch Ram BOP seal kits and 18-3/4-inch ram preventer parts.
Therefore, size and pressure should be treated as initial screening information rather than final compatibility confirmation.
Step 3: Identify the Installed Ram Type
The required parts may belong to a fixed pipe ram, variable bore ram, blind ram, blind shear ram, casing shear ram or special-purpose intervention ram.
Fixed pipe ram selection uses the actual pipe-body OD. In comparison, VBR selection uses the complete minimum-to-maximum sealing range. Furthermore, shear ram inquiries require detailed tubular and hydraulic operator information.
| Ram type | Main function | Essential technical data |
| Fixed pipe ram | Seals around one tubular OD | Pipe-body OD, BOP model and pressure |
| Variable bore ram | Seals around a defined OD range | Minimum and maximum sealing diameters |
| Blind ram | Closes and seals an open bore | BOP model, cavity and pressure |
| Blind shear ram | Shears a qualified tubular and seals | Pipe dimensions, grade and operator data |
| Casing shear ram | Shears selected casing | Casing OD, weight, wall thickness and grade |
| Intervention ram | Seals, grips or shears intervention tools | Tool OD, string number and required function |
Consequently, the ram function should be confirmed before individual blocks, packers, blades or seal kits are selected.
Step 4: Identify the Upper or Lower Ram Cavity
Single Ram BOP and Double Ram BOP describe the number of ram cavities. They do not describe the manufacturing method of the pressure-containing body.
A Single Ram BOP contains one ram cavity, while a Double Ram BOP contains two. Depending on the design, the upper and lower cavities may use different ram blocks, shafts, operators, piston rods, repair kits and locking parts.
For example, a Double Ram BOP may use variable bore rams in the upper cavity and blind shear rams in the lower cavity.
Forged-body and cast-body classifications describe how the BOP body was manufactured. Both single and double Ram BOPs may therefore use forged or cast bodies.
Accordingly, the cavity position should always be identified when ordering Double Ram BOP spare parts.
Step 5: Match the Tubular to the Required Function
For fixed pipe ram parts, use the pipe-body OD rather than only the nominal pipe description. The phrase “5-inch drill pipe,” for example, does not identify the wall thickness, tool-joint OD or connection geometry.
VBR selection begins with the full sealing range. After that, the pipe program, pressure rating and temperature range determine whether the assembly suits the operation.
Blind shear and casing shear ram inquiries require more detailed data. Specifically, the supplier needs the tubular OD, wall thickness, weight, material grade, tool-joint details, hardbanding, wellbore pressure and available hydraulic control pressure.
Therefore, BOP bore size alone says little about actual shear performance. Instead, the tubular, operator and available closing force must be considered together.
Step 6: Review Temperature, Fluid and Sour-Service Conditions
State the minimum ambient temperature and maximum well-fluid temperature.
At low temperatures, elastomers may lose flexibility. Conversely, high temperatures can accelerate hardening, extrusion and chemical degradation.
Fluid information is equally important. For example, identify whether the BOP will contact water-based mud, oil-based mud, synthetic-based mud, completion brine, crude oil, natural gas, condensate, produced water, cement slurry or kill fluid.
For sour wells, include the available H₂S, CO₂, chloride, pressure and temperature data. Otherwise, a general reference to “NACE service” may not provide enough information for final metal and elastomer selection.
Consequently, actual service data should be provided before the seal compound or material requirement is finalized.
Step 7: Establish the Part Identification Basis
An original part number provides a strong reference, but it should always be linked to the parent BOP model.
Manufacturers may revise components over time. As a result, parts that look similar may use different materials, heat-treatment requirements, seal profiles or mounting interfaces.
When the original number is unavailable, an approved drawing, dimensional report or existing sample may support identification. Useful dimensions include the overall size, seal groove geometry, bore profile, bolt-hole pattern, piston diameter, shaft interface and seal cross-section.
For obsolete or modified BOPs, reverse engineering should also include material and service-condition review. External dimensions alone may not provide enough information for a critical well-control component.
Therefore, drawing approval or sample verification may be required before manufacturing begins.
Step 8: Define the Maintenance and Supply Scope
A pressure-test failure may require one seal, whereas planned maintenance may justify a complete BOP repair kit.
Before quotation, establish whether the scope covers one seal, one ram block, one matched ram pair, one hydraulic operator, one ram cavity, one complete Ram BOP or a fleet shutdown inventory.
Available supply options may include individual replacement parts, BOP seal kits, minor and major repair kits, ram change kits and complete overhaul packages.
By defining the scope early, the buyer can compare quotations on the same technical basis and reduce the risk of missing parts.
Main Types of API 16A Ram BOP Spare Parts
Pipe Ram Blocks and Pipe Ram Packers
Pipe rams close around a specified tubular OD. Surface BOP stacks use them to seal around drill pipe, tubing or selected workstrings.
A complete pipe ram assembly normally contains two opposing ram blocks, two front packers, two top seals and the related retaining hardware.
During closure, hydraulic pressure moves the blocks toward the center of the bore. The front packers then seal around the tubular, while the top seals contact the upper sealing surface inside the BOP body.
Fixed pipe rams may close around drill pipe during a kick, isolate the annulus during well-control circulation or maintain pressure control during tubing work. In addition, they support surface pressure testing, workover and selected intervention operations.
When sourcing pipe ram replacement parts, include the actual tubular OD and ram block reference.
Common requirements include API 16A pipe ram packers, drill pipe ram packers, tubing ram packers, metal ram blocks and matched packer-and-top-seal kits.
Before fitting a new packer, inspect the metal block. Otherwise, a damaged groove, distorted body or rough surface can quickly damage the replacement elastomer.
Variable Bore Ram Parts and VBR Packers
Variable bore rams seal around several tubular sizes within a qualified range.
A VBR packer combines elastomer with arranged metal inserts. As the rams close, these inserts guide the elastomer inward and help it conform to the tubular.
Typical variable bore ram parts include left- and right-hand ram blocks, VBR packers, insert assemblies, top seals, retainers, locking hardware and guide components.
VBRs commonly support deep drilling, directional wells, horizontal wells, extended-reach wells and workover programs that use several tubular diameters.
Even so, a VBR packer replacement request should state the complete sealing range. Two packers with similar external dimensions may still have different pressure ratings, temperature limits, elastomer compounds and insert arrangements.
Therefore, external appearance should not be used as the only compatibility reference.
Blind Ram Blocks and Blind Ram Seals
Blind rams close and seal an open wellbore when no tubular crosses the ram cavity.
They may support surface BOP pressure tests, open-bore shut-in procedures, workover operations and selected abandonment activities.
Typical blind ram replacement parts include ram blocks, front seals, top seals, retainers, locking components and operator seal kits.
Because blind rams seal across the full bore, the condition of the front sealing faces is critical. Debris, hardened mud, cuts or damaged rubber may otherwise prevent a reliable seal.
Before installing new blind ram seals, inspect the ram blocks, seal grooves, cavity guides and operating mechanism. In this way, the maintenance team can identify both sealing damage and supporting metal defects.
Blind Shear Ram Parts
Blind shear rams first shear a qualified tubular and then seal the wellbore.
Typical blind shear ram parts include upper and lower ram blocks, shear blades, inserts, sealing elements, top seals, blade bolts, retainers, operating pistons and selected booster components.
Shear capability depends on the complete ram, operator and tubular combination. Accordingly, pipe OD, wall thickness, grade, tool-joint position, hardbanding, wellbore pressure, hydraulic control pressure and blade condition all affect performance.
Complete drill pipe data is essential before ordering shear blades, ram blocks or a blind shear ram repair kit.
Although two blades may look similar, visual similarity does not prove equal shear capability. Likewise, the nominal BOP pressure rating does not confirm that the operator can produce enough force for a specific tubular.
Therefore, shear ram parts should be reviewed against the actual pipe program and hydraulic closing conditions.
Casing Shear Ram Parts
Casing shear rams use a blade and force arrangement intended for selected casing or heavy-wall tubulars.
Potential applications include high-pressure exploration wells, offshore drilling, jack-up operations and selected well abandonment programs.
Before ordering casing shear ram spare parts, identify the casing OD, weight, wall thickness, material grade, connection, wellbore pressure and available closing pressure.
In addition, blade condition and operator configuration should be reviewed before any shear capability is assumed.
Dual-String and Intervention Ram Parts
Some well-control operations require ram assemblies that seal or shear around more than one tubular, cable or intervention string.
Special-purpose designs may support dual completions, coiled tubing, wireline, slickline, braided cable, snubbing and hydraulic workover.
For these applications, model-specific ram blocks, packers and inserts are required. Therefore, a standard drilling pipe ram or VBR should not replace a purpose-designed intervention ram without technical confirmation.
Ram Packers, Top Seals and Bonnet Seal Kits
Ram Packers
Ram packers create the main pressure seal around a tubular or across an open bore.
Replacement becomes necessary when inspection reveals cuts, missing rubber, permanent deformation, chemical swelling, hardening, heat damage, insert separation or excessive extrusion.
Increasing hydraulic closing pressure may temporarily improve a weak seal. However, it does not correct damaged rubber, an incorrect packer profile or a worn ram block.
Because quantities can be misunderstood, the quotation should state whether the supplied quantity covers one ram block or one matched pair.
In addition, the packer compound and service range should be confirmed before shipment.
Ram Top Seals
The top seal fits into the upper part of the ram block and seals against the BOP body.
Even when the front packer appears serviceable, a worn top seal can allow wellbore fluid to bypass the ram.
Before fitting a replacement, inspect the groove, retaining features, contact surface and ram alignment.
For planned maintenance, matched ram packers and top seals simplify both identification and installation. As a result, the risk of mixing unmatched components is reduced.
Bonnet Seals and Door Seals
The bonnet provides access to the ram cavity. Depending on the BOP design, it may use a molded seal, an O-ring arrangement or another model-specific sealing system.
Because bonnet seals may see direct wellbore pressure, the replacement must match the BOP model, bonnet geometry, working pressure, temperature and fluid exposure.
A standard BOP bonnet seal kit may not suit a high-temperature sour gas well. Therefore, actual service data provides a more reliable selection basis than a general material description.
Furthermore, the bonnet sealing surface should be inspected before the new seal is installed.
Ram BOP Hydraulic Operator Parts
The hydraulic operator converts control pressure into ram movement.
Common Ram BOP hydraulic operator parts include the piston, piston rod, ram shaft, cylinder, cylinder head, piston seals, rod seals, wear rings, guide bushings, wipers and static O-rings.
External leakage may point to a worn rod seal, scored piston rod, loose fitting or damaged cylinder-head seal. Internal bypass, meanwhile, may result from worn piston seals, cylinder damage or incorrect seal installation.
Before replacing parts, identify the actual leak path. Otherwise, a new operator seal kit may not solve a damaged rod, worn cylinder or misaligned guide.
A model-specific hydraulic operator repair kit may include piston seals, rod seals, backup rings, wipers, static seals, wear rings and guide components.
In addition, major operator overhauls may require dimensional inspection of the rod, piston and cylinder bore.
Ram BOP Locking System Parts
Many surface Ram BOPs use manual locking screws. After hydraulic closure, the operator engages the lock to help hold the rams in position.
Typical parts include locking screws, shafts, nuts, handwheels, universal joints, bearings and retaining rings.
Other designs use wedge locks, automatic locks or hydraulic locks. Consequently, these arrangements require model-specific wedges, pistons, springs, seals and position-indicator components.
Corrosion, damaged threads or bent shafts can prevent full engagement. For this reason, the mechanism should be inspected, cleaned and lubricated according to the equipment procedure.
However, the locking system does not replace hydraulic closure or pressure testing.
Ram BOP Repair Kit Buying Guide
| Repair kit | Typical components | Suitable maintenance scope |
| Minor repair kit | O-rings, backup rings, bonnet seals, piston seals, rod seals and wipers | Routine seal replacement |
| Major repair kit | Minor-kit parts plus wear rings, bushings, retainers and bearings | Hydraulic operator overhaul |
| Ram change kit | Ram packers, top seals, retaining hardware and selected O-rings | Ram sealing-element replacement |
| Complete overhaul kit | Ram assemblies, operator kits, bonnet kits and locking parts | Full refurbishment or shutdown maintenance |
Kit contents vary by BOP model. Therefore, quotations should be compared against the actual parts list rather than the kit name alone.
Minor Repair Kit
A minor repair kit normally contains the dynamic and static seals used during routine maintenance.
It suits equipment whose piston rods, cylinders, guides and other metal components remain serviceable.
Before ordering, confirm whether the kit covers one hydraulic operator, one side of the BOP or one complete ram cavity. Otherwise, the quoted quantity may not match the maintenance scope.
Major Repair Kit
A major kit may add wear rings, guide bushings, retainers, bearings and selected locking-system parts.
It suits planned operator overhaul and extended maintenance.
First, inspect the piston rod, cylinder and guide surfaces. Otherwise, replacing seals without correcting damaged metal parts may lead to another hydraulic leak or failed function test.
Furthermore, a detailed kit list should be reviewed before competing quotations are compared.
Ram Change Kit
A ram change kit normally contains packers, top seals, retainers and selected O-rings.
Depending on the supplier, the package may cover one ram block, one matched pair or one complete cavity. Accordingly, the kit boundary should be confirmed before placing an order.
In addition, the required ram type and cavity position should appear clearly on the package label.
Complete Overhaul Kit
A complete Ram BOP overhaul kit may include ram assemblies, bonnet seals, hydraulic operator kits, locking components, wear parts, fasteners and recommended emergency spares.
This type of package suits planned rig shutdowns, BOP refurbishment, workover fleet maintenance, offshore maintenance and remote drilling programs.
As a result, maintenance teams can receive a coordinated package rather than sourcing each component separately.
Ram BOP Materials and Elastomer Selection
Metal Ram BOP parts require strength, dimensional stability and wear resistance. Heat-treated alloy steel is commonly used for ram blocks, pistons, rods, shafts and locking components.
Selected rods and shafts may also use engineered surface treatments to improve wear or corrosion resistance.
Meanwhile, ram packers, top seals, bonnet seals and hydraulic operator seals may use nitrile-based, hydrogenated nitrile-based, fluoroelastomer-based or other oilfield compounds.
However, the polymer family alone does not define performance. Hardness, formulation, temperature capability, fluid compatibility and manufacturing control also matter.
| Service factor | Information required | Why it matters |
| Drilling fluid | Water-based, oil-based or synthetic-based mud | Some compounds may swell or lose strength |
| Hydrocarbon exposure | Crude oil, condensate or natural gas | Affects chemical compatibility |
| Sour service | H₂S, CO₂, chlorides and produced-water chemistry | Influences metal and elastomer selection |
| Temperature | Minimum ambient and maximum fluid temperature | Affects flexibility, hardening and extrusion |
| Pressure | Rated working pressure and expected well pressure | Influences seal loading and extrusion risk |
| Operating cycles | Expected opening and closing frequency | Affects wear and maintenance planning |
| Storage conditions | Heat, light, ozone and storage time | Can reduce service life before installation |
Therefore, BOP elastomers should not be selected by color alone. Similar colors do not guarantee the same compound, hardness or service capability.
Moreover, the final selection should reflect the complete pressure, temperature and fluid environment.
Common Signs That API 16A Ram BOP Spare Parts Need Replacement
| Operating symptom | Possible causes | Recommended inspection |
| BOP fails to hold pressure | Damaged packer, worn top seal, leaking bonnet seal or incomplete closure | Identify the leak path and inspect all sealing interfaces |
| Slow opening or closing | Low control pressure, restricted lines, worn piston seals or bent rod | Inspect the control system and hydraulic operator |
| External hydraulic leakage | Failed rod seal, scored rod, loose fitting or cylinder-head seal | Check the rod, fittings and static seals |
| Internal hydraulic bypass | Damaged piston seal, worn cylinder or incorrect installation | Inspect the piston, cylinder bore and seal arrangement |
| Uneven ram movement | Debris, worn guides, bent shaft or hydraulic restriction | Compare both operators and inspect alignment |
| Hardened elastomer | Heat exposure, ageing or unsuitable compound | Check storage history and service temperature |
| Swollen elastomer | Fluid incompatibility | Confirm fluid and elastomer compatibility |
| Excessive extrusion | High differential pressure, excessive clearance or incorrect compound | Inspect the seal groove and supporting metal surfaces |
Changing one seal without finding the root cause may lead to another failed pressure test.
For example, a new rod seal will not stop leakage if the piston rod has deep scoring. Similarly, a new ram packer may fail early if the groove contains corrosion or sharp damage.
Therefore, maintenance should begin with fault identification rather than immediate seal replacement.
API 16A Ram BOP Spare Parts for Oil and Gas Applications
| Application | Common spare-parts requirements | Main purchasing concern |
| Land drilling rigs | Pipe ram packers, VBR packers, top seals and operator kits | Remote-site stock and emergency availability |
| Fixed offshore platforms | Shutdown kits, complete ram assemblies and traceable seals | Long logistics cycles and documentation |
| Jack-up rigs | Ram change kits, bonnet seals and operator kits | Offshore packing and delivery planning |
| Workover units | Several pipe ram sizes, VBRs and repair kits | Frequent tubing-size changes |
| Hydraulic workover and snubbing | Pipe and intervention ram parts | Workstring size and under-pressure operation |
| Coiled tubing | Purpose-designed pipe, slip, shear and blind ram parts | Tool dimensions and required function |
| Wireline and slickline | Sealing, gripping or shear ram parts | Cable construction and string count |
| Sour wells | Sour-service elastomers and traceable metal parts | H₂S, CO₂, chloride and temperature |
| HPHT wells | High-temperature seals and operator parts | Complete pressure-temperature envelope |
| Well testing and flowback | Pipe ram packers, blind ram seals and operator kits | Fluid exposure and well-control sequence |
Land rigs commonly keep pipe ram packers, VBR packers, top seals and operator kits in routine stock. Because emergency transportation may extend downtime, remote drilling locations often carry complete ram assemblies as well.
Fixed offshore platforms and jack-up rigs require closer model control, traceability and packing discipline. As a result, long logistics cycles often justify complete shutdown packages and clearly labelled emergency BOP spares.
Workover, hydraulic workover and snubbing programs may use several tubing or workstring sizes. Their spare-parts plans should therefore reflect both the actual tubular program and the installed ram configuration.
Coiled tubing, wireline and slickline operations require purpose-designed ram assemblies. Consequently, standard drilling pipe rams may not provide the necessary sealing, gripping or shearing function.
This guide focuses on surface Ram BOP applications. By contrast, subsea BOP components require separate design, qualification and compatibility review.
Inspection and Quality Documentation
Critical Ram BOP parts require controlled inspection and traceability.
| Document or inspection | Typical application |
| Certificate of conformity | General order confirmation |
| Material certificate | Critical metal components |
| Dimensional report | Ram blocks, pistons, rods and machined parts |
| Hardness report | Heat-treated metal components |
| Heat-treatment record | Critical alloy steel parts |
| Ultrasonic testing | Selected internal material examinations |
| Magnetic particle testing | Surface and near-surface examination |
| Dye penetrant testing | Surface examination of suitable components |
| Elastomer batch record | Packers, top seals and bonnet seals |
| Cure-date traceability | Elastomer age and storage control |
| Functional test report | Complete operators or moving assemblies |
| Hydraulic pressure-test report | Applicable sealing or pressure-containing assemblies |
| Third-party inspection report | Independent project verification |
The required documentation depends on the component type, order scope and project specification.
In addition, every part in a repair kit should carry clear identification. Labels should show the BOP model, kit type, quantity and ram cavity when relevant.
Third-party inspection can be coordinated when the purchase order or project specification requires independent verification.
Therefore, documentation and witnessing requirements should be confirmed before production rather than after the parts are complete.
How to Plan a Ram BOP Spare-Parts Inventory
A practical inventory should support routine servicing, planned overhauls, pressure-test failures, emergency repairs and rig shutdowns.
| Inventory class | Typical parts | Stocking approach |
| Frequently replaced parts | Packers, top seals, bonnet seals, O-rings and operator seals | Keep model-specific routine stock |
| Medium-life parts | Wear rings, bushings, bearings, retainers and locking parts | Stock according to maintenance history |
| Long-life critical parts | Ram blocks, piston rods, pistons, cylinders and locking shafts | Consider lead time and operational risk |
| Shutdown packages | Complete repair kits and ram assemblies | Prepare before planned maintenance |
| Emergency spares | High-risk seals and critical operator parts | Store near remote or offshore operations |
First, create an equipment register for every Ram BOP in the fleet. The register should record the manufacturer, model, serial number, bore size, pressure rating, ram configuration, operator type, installed ram sizes and maintenance history.
Next, separate routine sealing components from medium-life wear parts and long-lead critical metal components.
Lead time should also influence stocking decisions. For example, a low-cost seal with a long manufacturing period may create more operational risk than a higher-value component that remains readily available.
Elastomer parts should be stored in a clean, dry and controlled environment. In addition, they should be protected from direct sunlight, excessive heat, ozone-producing equipment, chemicals, sharp objects and permanent deformation.
Finally, keep the part number, compound, batch, cure date and storage date with each item. In this way, maintenance teams can verify both compatibility and storage history before installation.
API 16A Ram BOP Spare Parts Buying Guide
Compare Technical Scope, Not Only Price
The lowest quotation may not provide the lowest operating cost.
Instead, compare model compatibility, materials, elastomer requirements, kit completeness, inspection scope, documentation, lead time, packing and technical support.
An incorrect ram profile or missing seal can cause more downtime than the initial price difference between suppliers.
Therefore, quotation comparison should focus on the complete technical scope rather than unit price alone.
Clarify OEM and Non-OEM Supply
The quotation should state whether the parts are OEM, OEM-equivalent or non-OEM replacements.
For non-OEM Ram BOP spare parts, the supplier should explain the basis of compatibility. This may include the original part number, approved drawing, dimensional comparison or verified sample.
When production depends on a sample or dimensional report, the critical drawing should be approved before manufacturing begins.
As a result, both the buyer and supplier have a defined replacement interface.
Check Repair-Kit Boundaries
The term “major repair kit” does not always describe the same supply scope.
One package may cover a single hydraulic operator, whereas another may cover one ram cavity or the complete BOP.
Therefore, compare quotations against the detailed kit list rather than the kit name alone.
In addition, confirm whether the quantity covers one side, one pair or the complete unit.
Define Materials and Service Conditions Early
State the drilling fluid, hydrocarbon exposure, temperature range, working pressure and sour-service data during the RFQ stage.
Otherwise, late clarification of elastomer compounds, material traceability or certification requirements may delay production and inspection.
Moreover, the actual operating environment may change the proposed seal compound or metal requirement.
Agree on Documentation Before Production
Define the required material certificates, dimensional reports, hardness reports, NDE records, test reports and third-party inspection before production starts.
In this way, the supplier can prepare the inspection and documentation scope from the beginning.
Consequently, the risk of incomplete final documentation is reduced.
Plan Packing and Delivery for the Jobsite
Remote rigs, offshore bases and shutdown projects may require moisture protection, clear labels, separate cavity identification and dedicated emergency-spare packages.
Grouping parts by BOP model, ram cavity or maintenance work order can simplify receiving, storage and site distribution.
Furthermore, clear packing lists can help prevent upper- and lower-cavity parts from being mixed during maintenance.
API 16A Ram BOP Spare Parts RFQ Checklist
| RFQ category | Required information |
| Equipment identification | Manufacturer, model, serial number and nameplate photograph |
| Size and pressure | Bore size and rated working pressure |
| Configuration | Single or Double Ram BOP |
| Cavity position | Upper or lower ram cavity |
| Part requirement | Part name and original part number |
| Ram type | Pipe, VBR, blind, blind shear, casing shear or intervention ram |
| Tubular data | OD, wall thickness, weight, grade and connection |
| VBR data | Minimum and maximum sealing diameters |
| Shear data | Pipe or casing data, hardbanding and operator pressure |
| Service conditions | Temperature, well pressure and drilling fluid |
| Sour-service data | H₂S, CO₂, chlorides and produced-water information |
| Elastomer requirement | Required compound or service description |
| Identification support | Drawing, dimensions, photographs or sample |
| Commercial data | Quantity, delivery date and destination |
| Quality data | Certificates, inspection, testing and third-party requirements |
For an initial review, send the nameplate, part number, quantity, ram type and available photographs. The technical team can then identify any missing dimensions or service data.
If shear ram parts are required, provide the complete tubular and hydraulic data as well. Likewise, VBR inquiries should include the full sealing range.
Why Model Verification Is Essential
The oil and gas industry uses many Ram BOP families and internal designs.
Although parts may look similar, they can use different seal grooves, bore profiles, guides, piston dimensions, shaft interfaces and locking mechanisms.
For this reason, a responsible Ram BOP spare parts supplier should not claim universal interchangeability.
Each requirement should be checked against the equipment nameplate, model, serial number, original part number, drawing, dimensions or physical sample.
Model verification becomes especially important for obsolete BOPs, modified operators, unreadable nameplates, mixed equipment fleets, field-repaired ram blocks and HPHT or sour-service applications.
When the original part number remains unavailable, final supply may depend on drawing approval or sample verification. Therefore, compatibility should be established before production rather than assumed after delivery.
Frequently Asked Questions About API 16A Ram BOP Spare Parts
1. What are the most commonly replaced API 16A Ram BOP spare parts?
The most commonly replaced API 16A Ram BOP spare parts include ram packers, top seals, bonnet seals, piston seals, rod seals, O-rings, backup rings and wiper seals. Because these elastomeric components face repeated pressure cycles, hydraulic movement, drilling-fluid exposure and temperature changes, they usually wear faster than ram blocks, pistons, shafts and other metal parts.
Wear rings, guide bushings, bearings, retainers, hydraulic fittings and locking-system components may also require replacement during a major Ram BOP overhaul. In practice, land drilling rigs and workover units often keep pipe ram packers, VBR packers, bonnet seal kits and hydraulic operator repair kits in routine stock because these parts directly affect function testing and pressure-control readiness.
However, the actual replacement scope should follow inspection findings rather than a standard parts list. For example, a leaking operator may need more than a rod seal if the piston rod is scored, while a failed pressure test may involve the ram packer, top seal, bonnet seal or an incomplete closing stroke.
2. Are all 13-5/8-inch Ram BOP spare parts interchangeable?
No. A 13-5/8-inch bore size does not mean that ram blocks, pipe ram packers, VBR packers, bonnet seals or hydraulic operator parts will fit every Ram BOP model.
Different BOP families may use different cavity dimensions, shaft interfaces, seal grooves, piston sizes, bonnet arrangements and locking mechanisms. Moreover, a 13-5/8-inch 5,000 psi Ram BOP may require completely different replacement parts from a 13-5/8-inch 10,000 psi unit.
The upper and lower cavities of the same Double Ram BOP may also use different ram assemblies and operator repair kits. Therefore, buyers should provide the manufacturer, model, serial number, pressure rating and cavity position before ordering 13-5/8-inch Ram BOP spare parts.
3. What information is needed to identify Ram BOP replacement parts?
Accurate identification begins with the BOP manufacturer, model, serial number, nominal bore, rated working pressure and a clear nameplate photograph. In addition, the inquiry should state the required part name, original part number, ram type and whether the component belongs to the upper or lower cavity.
Pipe ram inquiries require the actual pipe-body OD, whereas variable bore ram inquiries require the complete minimum-to-maximum sealing range. Blind shear ram and casing shear ram inquiries also need the tubular OD, wall thickness, weight, grade, tool-joint position, hardbanding details and available hydraulic closing pressure.
Furthermore, temperature, drilling fluid, hydrocarbon exposure, H₂S, CO₂, quantity, destination and documentation requirements should appear in the RFQ. If the original part number is unavailable, an approved drawing, dimensional report, clear photographs or an existing sample may support model verification.
4. What is the difference between pipe ram packers and VBR packers?
Pipe ram packers seal around one specified tubular OD. They are commonly used when a drilling, workover or well intervention program mainly operates with one drill pipe, tubing or workstring size.
By contrast, variable bore ram packers, often called VBR packers, seal around several tubular diameters within a qualified range. As the rams close, their elastomer and metal insert arrangement moves inward and conforms to the tubular.
VBRs therefore provide useful flexibility for directional drilling, horizontal wells, extended-reach drilling and workover programs that use several tubular sizes. However, a VBR does not seal every possible diameter. Its qualified sealing range, pressure rating, temperature capability and fluid compatibility must match the actual operation.
5. Can a variable bore ram replace every fixed pipe ram?
No. A variable bore ram can only operate within its qualified size, pressure, temperature and service limits. Therefore, it should not automatically replace every fixed pipe ram simply because it covers several tubular diameters.
For instance, a VBR may not suit a larger tool joint, a smaller intervention tool, a demanding HPHT well or a service condition that requires a specific elastomer compound. Available closing force and ram cavity condition also influence performance.
Before replacing fixed pipe rams with VBRs, review the complete pipe program, ram cavity, pressure rating, operating temperature, well pressure and drilling-fluid environment. In some cases, fixed pipe rams remain the more appropriate choice because the operation mainly uses one tubular OD and requires a dedicated sealing profile.
6. What is the difference between blind rams and blind shear rams?
Blind rams close and seal an open wellbore when no tubular passes through the ram cavity. They are commonly used during open-bore shut-in procedures, surface BOP pressure testing, workover operations and selected well abandonment activities.
Blind shear rams perform two functions. First, they shear a qualified tubular; afterward, they close to establish a pressure barrier. Consequently, their ram blocks, blades, sealing elements and hydraulic operator requirements differ from those of standard blind rams.
A blind ram should not be treated as a shear ram. Likewise, a blind shear ram should not be assumed capable of cutting every drill pipe or workstring. Instead, selection must consider the tubular, available closing force and BOP model together.
7. What determines whether a shear ram can cut drill pipe or casing?
Shear capability depends on the complete combination of the shear ram, hydraulic operator, available control pressure and tubular being cut.
Important factors include tubular OD, wall thickness, weight, material grade, connection, tool-joint position and hardbanding. In addition, wellbore pressure, blade design, blade condition, operator piston area and available hydraulic closing pressure affect the result.
The nominal BOP bore size or pressure rating alone cannot confirm shear performance. Therefore, before ordering blind shear ram parts, casing shear ram blocks or replacement shear blades, buyers should provide complete drill pipe or casing data for technical review.
This verification is particularly important for high-strength drill pipe, heavy-wall casing, offshore drilling, deep wells and HPHT applications, where the required shearing force may be significantly higher.
8. How should elastomers be selected for Ram BOP seal kits?
Ram BOP elastomers should be selected according to temperature, pressure and fluid compatibility rather than appearance or color.
The supplier needs to know whether the BOP will contact water-based mud, oil-based mud, synthetic-based mud, completion brine, crude oil, natural gas, condensate, produced water, cement slurry or kill fluid. For sour wells, the available H₂S, CO₂, chloride concentration, pressure and temperature data should also be reviewed.
An elastomer that performs well in one land-drilling application may swell, harden or lose flexibility in another service environment. Consequently, high-temperature gas wells, cold-climate drilling, offshore production and sour-service workovers may require different ram packers, top seals, bonnet seals and hydraulic operator seals.
Similar colors do not guarantee the same compound, hardness or service capability. Therefore, final selection should follow the BOP model, actual operating conditions and required pressure-temperature envelope.
9. What is included in a minor or major Ram BOP repair kit?
A minor Ram BOP repair kit usually contains the dynamic and static seals required for routine maintenance. Typical contents may include piston seals, rod seals, bonnet seals, O-rings, backup rings and wipers.
A major Ram BOP repair kit may include the minor-kit components together with wear rings, guide bushings, retainers, bearings and selected hydraulic operator or locking-system parts. However, exact contents vary by manufacturer, model and maintenance scope.
The term “major repair kit” does not have one universal definition. One package may cover a single hydraulic operator, while another may cover one ram cavity or the complete BOP. Buyers should therefore compare quotations against the detailed parts list rather than relying on the kit name alone.
Before installation, inspect the piston rod, cylinder bore, ram shaft, guides and sealing grooves. Otherwise, new seals will not provide a lasting repair if the supporting metal surfaces are scored, corroded, distorted or misaligned.
10. How often should Ram BOP packers and seals be replaced?
There is no single replacement interval that applies to every Ram BOP. Instead, seal life depends on pressure cycles, opening and closing frequency, drilling-fluid exposure, operating temperature, well conditions, maintenance history and storage practices.
Ram packers, top seals, bonnet seals and operator seals should be inspected during planned maintenance, after an abnormal well-control event and whenever the BOP fails a function or pressure test. Because replacement logistics can take longer, offshore shutdowns, remote drilling projects and high-cycle workover programs may justify more conservative inspection and spare-parts planning.
Age alone should not determine replacement. For example, a recently installed seal may require removal after chemical swelling, extrusion or mechanical damage, whereas a properly stored and lightly used component may remain serviceable longer.
Ultimately, the operator’s maintenance procedure, inspection findings and actual service history should determine the final decision.
11. Can new seals repair a damaged ram block or hydraulic operator?
No. New seals cannot correct damaged metal parts or restore an incorrect mechanical interface.
A corroded ram block, distorted seal groove or rough contact surface can quickly damage a new packer or top seal. Similarly, a scored piston rod may cut a new rod seal during the first operating cycle, while a worn cylinder bore can cause continued internal hydraulic bypass even after a complete operator seal kit has been installed.
Therefore, before fitting new Ram BOP seals, inspect the ram blocks, piston rods, cylinders, guide bushings, shafts and sealing surfaces. The root cause of the leakage or failed pressure test should be identified before replacement parts are installed.
If the metal components are outside acceptable condition, the maintenance scope may need to include ram block replacement, piston rod replacement, cylinder repair or a complete hydraulic operator overhaul.
12. What quality documents may accompany API 16A Ram BOP spare parts?
The required quality documentation depends on the component type, project specification and purchase-order scope.
Critical metal components such as ram blocks, pistons, piston rods and locking shafts may require certificates of conformity, material certificates, dimensional reports, hardness reports, heat-treatment records and applicable NDE reports. Depending on the part and inspection plan, NDE may include ultrasonic testing, magnetic particle testing or dye penetrant testing.
Meanwhile, elastomeric components such as pipe ram packers, VBR packers, top seals and bonnet seals may require batch identification, compound information and cure-date traceability. Complete ram assemblies or hydraulic operators may also require functional-test or hydraulic pressure-test records where applicable.
Documentation requirements should be defined before production. Third-party inspection can be coordinated when required by the purchase order or project specification. In addition, clear labeling by BOP model, kit type and ram cavity helps offshore bases, remote rigs and maintenance teams receive and distribute the correct parts.
Why Choose SGPE for Ram BOP Spare Parts?
A capable supplier should provide more than a parts list and price.
SGPE reviews the parent BOP model, ram function, cavity position, tubular size, fluid conditions, temperature and documentation scope before confirming selected replacement requirements.
In addition, SGPE can support material and elastomer review, inspection records, traceability, applicable functional or pressure testing, third-party inspection coordination, export packing and international delivery.
For rig shutdowns and remote operations, parts can be organized by BOP model and ram cavity to simplify maintenance and site distribution.
Available requirements may include pipe ram blocks, pipe ram packers, VBR assemblies, blind ram seals, blind shear ram components, casing shear ram parts, top seals, bonnet seal kits, hydraulic operator repair kits, piston rods and locking components.
As a result, buyers can combine routine seals, planned overhaul kits and selected emergency spares within one model-controlled supply package.
Technical Reference Note
The bore sizes, working pressures and ram configurations shown in this guide represent common industry reference values. However, they do not form a universal product matrix.
Spare-part selection should follow approved equipment drawings, manufacturer requirements, operator maintenance procedures and actual well conditions.
Project requirements may also reference API Spec 16A and, where sour service applies, NACE MR0175/ISO 15156.
Therefore, available configurations, materials and replacement interfaces remain subject to the parent BOP model, approved drawings and actual service conditions.
Request an API 16A Ram BOP Spare Parts Quotation
To prepare an accurate quotation, please send the BOP manufacturer, model, serial number, bore size, working pressure and a clear nameplate photograph. When available, also include the ram cavity, ram type, original part number, tubular dimensions, operating temperature, drilling fluid, sour-service conditions, quantity and required quality documents.
If the original part number cannot be confirmed, SGPE can review drawings, critical dimensions, photographs or an existing sample before quotation. In this way, the replacement basis can be checked against the parent BOP model, mounting interface and actual service environment.
Each inquiry receives model verification and technical review. In addition, parts can be organized by upper or lower ram cavity, maintenance work order or shutdown package to simplify site receiving, storage and installation.
E-Mail:
info@sgpe.com
