API 16C Choke Manifold Control Panel: Types, Applications and Selection Guide
An API 16C Choke Manifold Control Panel allows the drilling crew to operate one or more hydraulic adjustable chokes from a remote and protected position. It also places the main well control readings and operating indicators in front of the choke operator.
A conventional drilling choke control panel may display casing pressure, drillpipe pressure, hydraulic control pressure, rig-air pressure, choke position and mud-pump strokes. Digital versions can add pressure transmitters, alarms, data output, HMI displays and communication with other rig systems.
During a well kick, pressure conditions can change quickly. The crew must circulate formation fluids out of the well while maintaining the required pressure profile. Clear instruments, predictable choke movement and dependable backup controls therefore matter far more than the external appearance of the console.
A hydraulic choke control panel does more than send oil to an actuator. It brings together the adjustable choke, hydraulic actuator, power source, instruments, position-feedback device, control hoses and rig utilities in one coordinated package.
For this reason, buyers should not select a panel only by the working pressure of the choke manifold. The final configuration must also match the choke model, actuator operating pressure, displacement, stroke, control distance, pressure ranges, power source and installation environment.
SGPE reviews these interfaces before preparing a technical proposal. This engineering step helps reduce connection mismatches, unsuitable gauge ranges, slow choke response and field modifications after delivery.
This guide explains how an API 16C choke manifold control panel works, how the main control methods differ and what information manufacturers need before quotation. It also covers land and offshore drilling, HPHT and sour-service wells, workover, coiled tubing, surface well testing, managed pressure drilling, replacement projects, factory acceptance testing and price factors.
API 16C Choke Control Panel Selection at a Glance
A reliable quotation starts with accurate operating and interface data.
| Selection Item | Information Required | Why It Matters |
|---|---|---|
| Choke manifold | Working pressure, bore and layout | Confirms the pressure-monitoring and manifold interface requirements |
| Hydraulic choke | Manufacturer, model, size and trim | Establishes actuator and control compatibility |
| Actuator | Operating pressure, displacement and stroke | Supports pump, regulator and accumulator sizing |
| Choke quantity | Single-choke or dual-choke operation | Determines the number of control circuits and indicators |
| Pressure displays | Casing, drillpipe, upstream or downstream pressure | Defines gauge and transmitter ranges |
| Control distance | Actual routed hose distance | Affects hose length, flow requirement and response time |
| Power source | Rig air, electrical power or combined power | Determines the hydraulic power arrangement |
| Installation | Land, offshore, indoor, outdoor or mobile | Affects enclosure, mounting and corrosion protection |
| Emergency operation | Hand pump, backup pump or accumulator | Defines backup operating capacity |
| Inspection | FAT, witnessed testing and document review | Defines acceptance and documentation requirements |
Without this information, a choke control panel manufacturer can normally provide only a preliminary configuration and budget price.
What Is an API 16C Choke Manifold Control Panel?

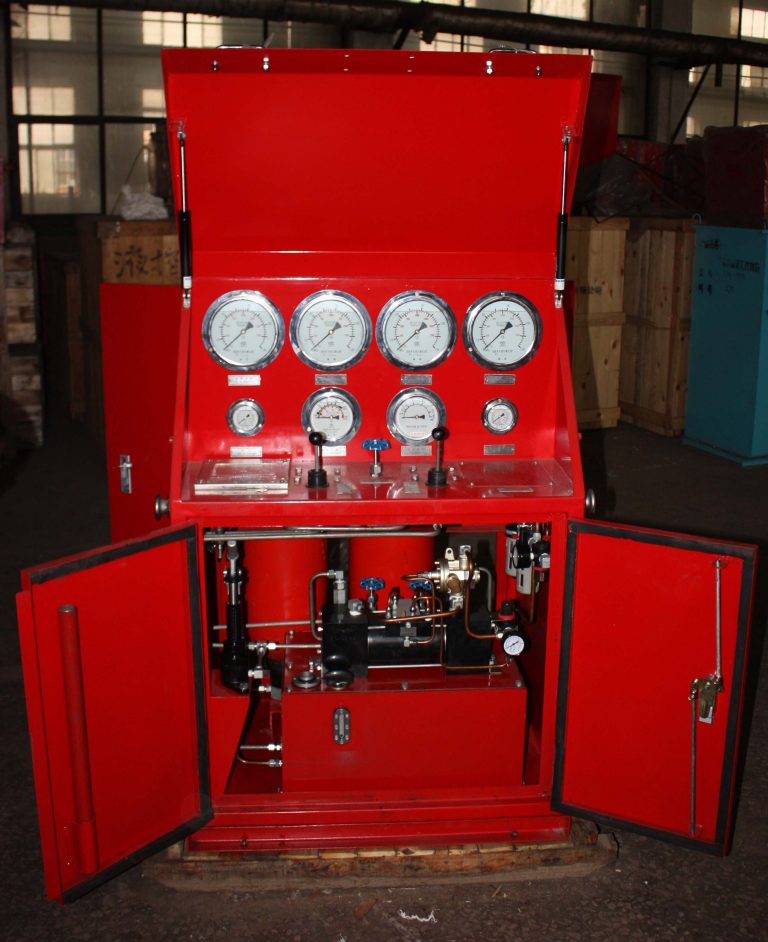

An API 16C Choke Manifold Control Panel is a hydraulic, pneumatic-hydraulic or electro-hydraulic system used to operate an adjustable choke installed on a choke manifold.
Depending on regional and company terminology, the equipment may also be called a drilling choke control panel, hydraulic choke control console, remote choke panel, drilling choke console or well control choke console.
Single-choke, dual-choke, pneumatic-hydraulic and electric-hydraulic versions are often identified by their control arrangement. Other common descriptions include choke manifold remote control panel and choke-and-kill manifold control panel.
These names do not guarantee identical functions. One console may operate a single hydraulic choke with mechanical gauges, while another controls two chokes through a PLC and HMI.
A conventional remote choke panel normally operates one or two hydraulic adjustable chokes. At the same time, it may display the pressure and pump information required during kick circulation, well killing and related well control procedures.
The hydraulic section commonly includes a reservoir, main pump, accumulator, pressure regulator, directional control valves and an emergency pump. Hydraulic hoses connect the panel to the choke actuator.
Pressure information reaches the operator through sensing lines or electronic transmitters. Choke-position data may return through pneumatic, hydraulic, mechanical or electrical feedback.
The control fluid remains separate from the well fluid. However, the pressure-sensing interface and isolation components may connect to high-pressure drilling-fluid or annular-pressure sources. These interfaces need careful review during engineering and commissioning.
How Does API 16C Apply to Choke Controls?
API Specification 16C addresses defined surface and subsea choke-and-kill equipment used in petroleum and natural gas operations.
Depending on the contractual scope and equipment design, applicable requirements may cover the choke manifold, well control choke, choke actuator, choke controls and other related equipment.
A complete remote control console can also include auxiliary electrical devices, pressure transmitters, communication hardware and project-specific interfaces. These items may need to meet separate customer, electrical or hazardous-area specifications.
The purchase specification should identify the applicable API 16C edition together with any required addenda and errata. It should also define the drilling contractor’s requirements, hydraulic choke and actuator data, hazardous-area classification, instrumentation, communication functions, FAT scope and third-party inspection requirements.
A technically clear RFQ may use wording such as:
“Applicable choke-and-kill equipment shall meet the project-specified API 16C requirements. The remote choke manifold control panel shall match the selected hydraulic choke, actuator, rig utilities, operating environment and purchaser’s well control philosophy.”
Buyers should not assume that every pump, gauge or internal control valve carries an API Monogram. Likewise, a supplier should not describe the complete assembly as API-monogrammed unless its licensed product scope supports that statement.
For technical clarity, Choke Manifold Control Panel for API 16C Choke Manifolds is often the most accurate product description.
Why Is Remote Choke Control Important?
A well kick occurs when formation pressure overcomes the hydrostatic pressure in the wellbore and formation fluid enters the well.
After shutting in the well, the drilling team may circulate the influx through the choke line and choke manifold while controlling surface backpressure.
A remote hydraulic choke control panel supports this operation in several practical ways.
First, it allows the choke operator to work away from the high-pressure manifold. During circulation, the manifold may handle drilling mud, gas, oil, formation water, cuttings and abrasive solids.
Second, the console places the main indicators in one operating area. The operator can monitor casing pressure, drillpipe pressure, choke position and pump strokes while adjusting the choke.
Third, hydraulic actuation allows gradual movement. Predictable opening and closing response helps reduce unnecessary pressure fluctuations.
Finally, the panel improves coordination between the driller, choke operator, toolpusher and drilling supervisor. Everyone can follow the same pressure schedule and approved well control procedure.
API 16C Choke Manifold Control Panel Applications
The correct control panel configuration depends on the operation, installation environment, automation level and available utilities.
| Application | Typical Configuration | Main Selection Considerations |
| Land drilling | Pneumatic-hydraulic single or dual choke console | Rig-air quality, mobility, dust and ambient temperature |
| Offshore drilling | Stainless-steel pneumatic-hydraulic or electro-hydraulic panel | Corrosion, hazardous area, vibration and lifting |
| HPHT drilling | High-range instruments with enhanced sensing and backup power | Pressure range, temperature and redundancy |
| Sour-service drilling | Project-specific pressure interfaces and corrosion protection | H₂S, CO₂, materials and area classification |
| Workover | Compact or skid-mounted hydraulic choke console | Portability, control distance and available power |
| Coiled tubing | Compact remote choke panel | Intervention pressure, return fluids and solids |
| Surface well testing | Hydraulic or electro-hydraulic console with upstream and downstream pressure display | Process control, ESD integration and data output |
| MPD | PLC-controlled or automated choke system | Control logic, transmitters, communication and software |
| Underbalanced drilling | High-response hydraulic or automated choke control | Continuous flow, solids, response time and backup control |
Remote Hydraulic Choke Control Panel for Land Drilling Rigs
Land rigs use remote choke panels during conventional well control, pressure testing and kick circulation.
The console may sit in the driller’s cabin, doghouse or another protected operating area. Hydraulic hoses connect it to the adjustable choke, while sensing lines or transmitters provide pressure information.
Applications include exploration wells, development wells, horizontal drilling, extended-reach wells, deep directional drilling and high-pressure gas projects.
Many land rigs choose pneumatic-hydraulic control because compressed air is already available. Even so, the supplier needs to confirm the actual air pressure, available flow, connection size and air quality before selecting the pump.
Mobile rigs may prefer a skid-mounted or portable choke control panel that supports repeated transportation, rig-up and relocation.
Offshore Stainless-Steel Choke Control Panel
Offshore control equipment must withstand corrosion, vibration, humidity and hazardous-area requirements.
An offshore choke control panel may operate on a jack-up rig, semi-submersible rig, drillship, production platform or offshore workover unit.
The console may use a stainless-steel enclosure, stainless-steel tubing, corrosion-resistant fittings, marine-grade fasteners and anti-vibration mounting. Certified electrical components and offshore lifting points may also form part of the design.
Projects exposed to salt spray, low temperatures or high humidity may need additional protection. Witnessed FAT, third-party inspection and sea-freight preservation may also be required.
For an offshore choke control panel quotation, provide the installation zone, environmental conditions, hazardous-area classification, lifting requirements and inspection scope.
High-Pressure Choke Control Panel for HPHT Wells
HPHT projects require accurate pressure monitoring and dependable choke response.
Although the hydraulic control circuit does not contain full choke manifold pressure, the sensing system must transfer and display casing and drillpipe pressure accurately.
An HPHT choke control console may use higher-range gauges, digital pressure transmitters, redundant sensing channels and stainless-steel sensing lines. Additional accumulator capacity or backup hydraulic power may also be appropriate.
The inquiry should identify the maximum anticipated surface pressure, shut-in casing pressure, maximum standpipe pressure, normal circulating pressure and operating temperature.
Choke Control Panels for Sour-Service and H₂S Wells
Sour wells may contain hydrogen sulfide, carbon dioxide and other corrosive fluids.
The choke manifold, choke body and other wetted pressure-containing components may require project-specific sour-service materials. Applicable wetted components may also need to meet NACE MR0175 or ISO 15156 requirements.
The control console does not normally contact well fluid directly. However, the pressure-sensing interfaces, isolation components, tubing materials and ambient corrosion conditions still require review.
A general statement such as “H₂S service” is not sufficient. Provide available H₂S and CO₂ data, operating temperature and the required material specification.
Workover and Well Servicing Choke Control Panels
Workover units often require a smaller, portable or skid-mounted hydraulic choke control console.
These panels may support well killing, tubing operations, completion repair, wellhead maintenance, fishing work, production restoration and plug-and-abandonment preparation.
The final configuration must match the choke actuator, pressure range, control distance and available utilities.
A compact workover choke control panel may be more practical than a full-size drilling-rig console when the equipment moves frequently between well locations.
Coiled Tubing Choke Control Panel
A coiled tubing choke control panel may operate alongside a coiled tubing BOP stack, stripper, injector head, return line and surface flowback package.
Typical applications include nitrogen lifting, sand washing, well cleanout, acid stimulation, scale removal and well unloading.
Before selecting the system, confirm the expected intervention pressure, return fluids, solids content, choke size, actuator displacement and emergency operating requirements.
Surface Well Testing Choke Control Console
Surface well testing packages use choke manifolds to regulate pressure and flow before directing produced fluids to separators, heaters, flare systems or storage equipment.
A well testing choke control console may display upstream and downstream pressure. It may also provide remote choke operation, position indication, high-pressure alarms, data output and emergency shutdown integration.
Because surface well testing follows a different process philosophy from conventional drilling well control, provide the process description, P&ID and instrument requirements.
Managed Pressure Drilling Choke Control
Managed pressure drilling uses controlled surface backpressure to manage the annular pressure profile.
A complete MPD system may include automated chokes, pressure transmitters, flow meters, PLC control, HMI displays, data acquisition and hydraulic models.
A conventional hydraulic choke control panel does not automatically provide these functions.
The project specification should distinguish between manual hydraulic control, remote electro-hydraulic control, PLC-controlled operation, automatic choke switching and a complete MPD choke package.
Underbalanced Drilling
Underbalanced drilling may use a rotating control device, return flowline, separator, choke manifold and high-response choke control system.
Because the well may flow during drilling, the console must provide stable choke movement and dependable position feedback.
The supplier should review expected surface pressure, gas and liquid flow rates, solids content, choke size, actuator type, control distance and emergency operating method.
How Does a Hydraulic Choke Control Panel Work?
The hydraulic reservoir stores the control fluid. An air-driven or motor-driven pump draws fluid from the reservoir and raises its pressure.
An accumulator stores hydraulic energy and helps stabilize the control pressure. Depending on the design, it may also provide limited emergency operation after loss of the primary power source.
When the operator moves the control lever, a directional valve sends hydraulic fluid to the opening or closing side of the choke actuator.
The actuator moves the choke stem, sleeve or trim mechanism, changing the available flow area.
At the same time, a feedback device sends choke-position information back to the console. Separate sensing devices transfer casing and drillpipe pressure to mechanical gauges or digital displays.
Pump-stroke sensors can also display pump rate and accumulated strokes.
Together, these functions allow the operator to monitor the main well control parameters and adjust the choke from one protected location.
Main Components and Selection Factors
| Component | Main Function | Key Selection Factors |
| Panel enclosure | Protects components and supports the operator interface | Material, mounting, corrosion and installation area |
| Hydraulic reservoir | Stores control fluid | Capacity, filtration and temperature range |
| Main hydraulic pump | Generates control pressure | Power source, output pressure and flow |
| Backup pump | Provides secondary hydraulic power | Manual, pneumatic or electrical operation |
| Hydraulic accumulator | Stores hydraulic energy | Actuator displacement, usable volume and pre-charge |
| Directional control valve | Opens and closes the choke | Flow capacity and movement control |
| Pressure regulator | Sets actuator control pressure | Actuator pressure requirement |
| Relief valve | Protects the hydraulic circuit | Set pressure and discharge arrangement |
| Casing pressure instrument | Displays annular pressure | Range, accuracy, units and readability |
| Drillpipe pressure instrument | Displays drillpipe or standpipe pressure | Range and sensing method |
| Choke-position indicator | Displays relative choke opening | Feedback type and actuator stroke |
| Pump-stroke counter | Displays pump rate and accumulated strokes | Sensor type and mud-pump quantity |
| Hydraulic hoses | Connect the console and actuator | Length, pressure rating and end fittings |
| Pressure-sensing system | Transfers well pressure data | Hydraulic, mechanical or electronic design |
Enclosure and Mounting
Painted carbon steel can suit many land drilling projects. Stainless steel provides stronger corrosion resistance for offshore rigs, coastal sites and humid environments.
The console may be floor-mounted, skid-mounted, wall-mounted or portable. Regardless of the arrangement, the operator should have clear access to the gauges, control levers and emergency functions.
Reservoir and Filtration
The reservoir capacity must support the pump, actuator displacement, hose volume and required operating cycles.
A practical design normally includes a filler and breather, level indicator, drain and filtration system. Temperature indication and low-level alarms can be added when required.
The hydraulic fluid must remain compatible with the seals and operating temperature range.
Main and Backup Pumps
A pneumatic-hydraulic choke control panel normally uses an air-driven hydraulic pump.
Pump selection depends on rig-air pressure, available air flow, actuator displacement, hose length and required choke speed.
An electric-hydraulic system uses a motor-driven pump. For this configuration, provide the voltage, frequency, phase and hazardous-area requirements.
Emergency operation may rely on a hand pump, second pneumatic pump, backup electric pump, accumulator or separate hydraulic power source.
The purchase specification should define the required number of emergency choke movements and the minimum available pressure.
Hydraulic Accumulator
The accumulator should be sized according to actuator displacement, pre-charge pressure, minimum useful pressure, required operating cycles and ambient temperature.
Usable hydraulic volume across the actual operating-pressure range is more important than the total shell volume.
Pressure Instruments
Gauge and transmitter ranges should match the drilling program.
An excessively high range reduces readability during normal circulation. An undersized instrument may exceed its range during a well control event.
Provide the maximum anticipated surface pressure, maximum standpipe pressure, normal circulating pressure, required units, accuracy and preferred display size.
Choke-Position Feedback
Position feedback may be pneumatic, hydraulic, mechanical or electrical.
Common options include cable indicators, linear position transducers, electrical sensors and digital encoders.
The selected method must match the choke design and actuator stroke. Recalibration is necessary after replacing the choke, actuator or feedback device.
Choke Control Panel Type Comparison
| Control Type | Typical Application | Main Advantages | Main Buying Considerations |
| Pneumatic-hydraulic | Land rigs and conventional offshore rigs | Uses rig air and supports practical field maintenance | Air quality, pressure, moisture and pump output |
| Electric-hydraulic | Rigs with limited compressed air | Stable hydraulic power and easier digital integration | Voltage, motor certification and backup power |
| Electro-hydraulic | Offshore and integrated rig systems | Remote commands, alarms and data output | Control logic, I/O and electrical certification |
| PLC-controlled | MPD and automated drilling systems | HMI, data logging and automatic sequences | Software, redundancy, communication and manual backup |
Pneumatic-Hydraulic Choke Control Panel
Pneumatic-hydraulic control remains common because it offers straightforward operation and practical maintenance.
Its performance depends on clean and stable compressed air. Moisture or contamination can damage pneumatic components, reduce pump output and slow choke movement.
A complete RFQ should state the rig-air pressure, available flow, connection size and air-quality conditions.
Electric-Hydraulic Choke Control Panel
Electric-hydraulic control provides stable hydraulic power and can support digital instruments, alarms and communication.
The electrical system must match the available voltage and hazardous-area requirements. Confirm the required certification scheme before component selection.
Electro-Hydraulic and PLC-Controlled Choke System
Electro-hydraulic systems combine hydraulic actuation with electrical commands and feedback signals.
A PLC-controlled package may include an HMI, pressure transmitters, position transmitters, alarms, data logging and communication interfaces.
Even with automation, the system should retain a practical manual or emergency operating method.
Before quotation, provide the control philosophy, I/O list, alarm setpoints, communication protocol, failure-position requirements and ESD logic.
API 16C Choke Manifold Control Panel Selection Guide
Step 1: Identify the Hydraulic Choke
Provide the choke manufacturer, model, size, trim, actuator type, control pressure, displacement and stroke.
For a replacement project, include the choke and actuator nameplates, hydraulic schematic, general arrangement drawing and clear photographs. The existing position-feedback method must also be identified.
Step 2: Choose Single- or Dual-Choke Control
A single-choke panel operates one hydraulic adjustable choke.
A dual hydraulic choke control panel operates two chokes independently and may use separate control valves, hydraulic circuits and position indicators.
Confirm whether the system requires primary and backup choke selection, manual changeover or automatic switching.
Step 3: Confirm Pressure Class, Bore and Connections
| Pressure Class | Rated Working Pressure | Common Selection Context |
| 5K | 5,000 psi | Conventional drilling, workover and selected well servicing applications |
| 10K | 10,000 psi | Higher-pressure drilling and well control projects |
| 15K | 15,000 psi | High-pressure drilling, deep-gas and selected HPHT projects |
| 20K | 20,000 psi | Specialized ultra-high-pressure well control applications |
These examples provide general context only. The drilling program, anticipated surface pressure, equipment design and purchaser specification determine the final pressure class.
Also provide the manifold bore, choke size, connections, temperature class, material requirements and service conditions.
Manifold working pressure does not equal actuator control pressure. A control panel for a 15K choke manifold may use an actuator operating at a much lower hydraulic pressure.
Step 4: Measure the Actual Control Distance
Measure the routed distance rather than the straight-line distance. The calculation should include vertical elevation, deck routing, structural obstacles and spare installation length.
Long hose runs may require larger hoses, higher pump flow or additional hydraulic review.
Step 5: Select the Pressure Ranges
Provide the maximum casing pressure, maximum standpipe pressure and normal circulating pressure.
The RFQ should also identify the required units, instrument accuracy, dial size and sensing method.
Step 6: Select the Power Source
Pneumatic-hydraulic control suits rigs with a clean and stable compressed-air supply.
Electric-hydraulic control suits projects with limited rig air or greater digital-instrument requirements. Electro-hydraulic and PLC systems are more suitable for integrated offshore installations and automated pressure-control packages.
Step 7: Define the Operating Environment
State whether the panel will operate on land or offshore and whether it will be installed indoors, outdoors or on a mobile skid.
The environmental data should include the ambient temperature range, humidity, salt exposure, dust, sand, vibration and hazardous-area classification.
Step 8: Define Instruments and Signals
A basic console may display casing pressure, drillpipe pressure, hydraulic pressure and choke position.
Optional functions include upstream and downstream choke pressure, rig-air pressure, pump strokes, digital alarms, data output and HMI displays.
Step 9: Define Emergency Operation
The project specification should explain how the crew will operate the choke after loss of the primary power source.
Depending on the required redundancy, the solution may use a manual pump, backup pneumatic pump, backup electric pump, secondary accumulator or emergency hydraulic power unit.
Step 10: Agree on Testing and Documents
The FAT scope, inspection points, required certificates, document language and review schedule should be agreed before the order is placed.
Early agreement reduces later changes and helps suppliers prepare technically comparable quotations.
API 16C Choke Manifold Control Panel Buying Guide
Review the Manufacturer’s Technical Process
A reliable API 16C choke manifold control panel manufacturer should request detailed actuator and installation data before confirming the design.
Be cautious when a supplier offers a standard console without asking for the choke model, actuator displacement, actuator stroke, feedback method, control distance, pressure ranges and power source.
These parameters directly affect compatibility, movement speed, pump output, accumulator capacity and emergency performance.
Compare the Complete Supply Scope
| Supply Item | Confirm Before Ordering |
| Main console | Enclosure material, dimensions and mounting |
| Main pump | Power source, pressure and flow |
| Backup pump | Manual, pneumatic or electrical operation |
| Accumulator | Total volume, usable volume and pre-charge |
| Pressure instruments | Range, accuracy, units and display size |
| Position feedback | Type, signal and calibration |
| Hydraulic hoses | Quantity, length, rating and end fittings |
| Pressure sensors | Type, range and output |
| Electrical system | Voltage, area classification and certification |
| Spare parts | Commissioning and operating spares |
| Documents | Drawings, manuals, certificates and FAT report |
A lower-priced panel may exclude hoses, sensors, backup pumps, calibration certificates, spare parts or documentation.
Compare technical compatibility and total supply scope before comparing the final price.
Review Hazardous-Area Requirements
An air-driven hydraulic pump does not automatically make the complete console suitable for every hazardous area.
Transmitters, switches, lights, junction boxes and cable glands may still require certification. The installation zone and certification requirements should therefore be defined before the supplier selects electrical components.
Check Replacement and Retrofit Compatibility
For a choke control panel replacement on an existing drilling rig, the supplier should prepare an interface drawing, port schedule, hose connection list and mounting dimensions.
Nameplates, schematics and dimensional drawings provide more reliable matching information than photographs alone.
SGPE can review obsolete drilling choke consoles, damaged remote choke panels and systems that use unsupported instruments or control components.
Review FAT and Spare Parts
The FAT should verify actual operating functions rather than appearance alone.
Testing should cover pumps, hydraulic pressure settings, accumulator operation, choke movement, position indication, instruments, alarms, holding performance and leakage.
The recommended spare-parts scope may include pump repair kits, filter elements, replacement gauges, valve seals, hose assemblies, transmitters and position sensors.
Common Choke Control Panel Buying Mistakes
Selecting a panel only by manifold pressure is one of the most common mistakes. The choke actuator determines the hydraulic control pressure, pump output and regulator setting, so manifold working pressure alone cannot define the control console.
Another frequent problem is measuring only the straight-line distance between the panel and the actuator. Long hose routes, changes in elevation, deck routing and spare installation length can affect both response time and cost.
Gauge selection also requires care. An oversized pressure gauge may cover the maximum possible pressure but make normal operating changes difficult to read. The selected range should provide sufficient protection while retaining useful resolution.
Feedback compatibility is equally important. Pneumatic, hydraulic, mechanical and electrical feedback systems use different interfaces, so a replacement console must match the existing actuator and position device.
Buyers should also avoid comparing quotations only by initial price. A lower offer may exclude pressure sensors, hose assemblies, backup power, spare parts, FAT, documentation or inspection services.
Finally, hazardous-area and electrical certification should not be defined late in the project. Late changes can affect component selection, price and delivery time.
Performance and Commissioning
The purchase specification should define opening time, closing time, movement speed, position accuracy, pressure-display accuracy and emergency operating capacity.
The choke should move smoothly and hold the selected position without unacceptable drift.
During commissioning, verify the hydraulic-fluid level, accumulator pre-charge, rig-air or electrical supply and every hose connection.
Test the main and backup pumps before operating the choke through its full stroke. Next, adjust the movement speed, calibrate the position indicator and verify the pressure displays.
Finally, test pump-stroke signals, alarms, communication functions and hydraulic holding performance. Record the results for future maintenance and troubleshooting.
Common Problems and Initial Checks
| Problem | Possible Causes | Initial Checks |
| Choke does not move | Loss of power, low fluid level, blocked filter, closed valve, damaged hose or actuator fault | Check the power source, pressure, reservoir, valves, hoses, pump and actuator |
| Choke moves slowly | Low air pressure, cold fluid, long hoses, restricted filters or internal leakage | Check rig air, fluid temperature, filters, hose size and actuator seals |
| Position reading is incorrect | Calibration error, damaged sensor, incorrect stroke or loose linkage | Verify the actual choke position, linkage, sensor and signal |
| Pressure reading is unstable | Pulsation, trapped gas, blocked sensing line or faulty instrument | Inspect sensing lines, isolation components and damping |
| Pump runs frequently | External leakage, internal valve leakage or low accumulator pre-charge | Check fittings, valves, accumulator and actuator seals |
| Hand pump cannot build pressure | Low fluid level, open bypass, faulty check valve or damaged seal | Check the reservoir, bypass valves, check valves and pump seals |
Maintenance Recommendations
Before operation, inspect the hydraulic-fluid level, rig-air pressure, hoses, fittings, instruments, choke-position indicator and visible leakage. The main pump, backup pump, alarms and emergency controls should also be tested.
At planned intervals, sample or replace the hydraulic fluid, replace filters, inspect the accumulator and calibrate gauges and transmitters.
Hydraulic hoses, control valves, feedback devices and pumps also require periodic testing.
Offshore systems need additional corrosion checks around tubing, fittings, fasteners, cable entries and enclosure seals.
Complete maintenance records help identify recurring problems and support spare-parts planning.
SGPE Choke Control Panel Replacement and Retrofit
SGPE can review replacement and retrofit projects for older drilling choke control consoles.
Where the existing choke and manifold remain suitable, a new control panel may improve reliability without replacing the complete choke manifold.
The technical review should cover the panel nameplate, choke model, actuator data, mounting dimensions, hydraulic schematic, port connections, pressure ranges, power supply and position-feedback system.
The buyer should also describe existing operating problems, such as slow movement, inaccurate position indication, leaking valves, damaged tubing or obsolete instruments.
A replacement project may include new gauges, pumps, accumulators, valves, hoses, tubing and feedback devices.
Advanced upgrades may add stainless-steel construction, electronic transmitters, PLC control, HMI displays, alarms and remote communication.
For a drilling choke control panel replacement quotation, provide existing drawings, photographs, nameplates, actuator data and port details.
API 16C Choke Manifold Control Panel Price Factors
There is no universal choke control panel price because each project uses a different configuration.
A single-choke pneumatic-hydraulic panel normally costs less than a stainless-steel dual-choke electro-hydraulic console with digital instruments and PLC control.
The hydraulic configuration is usually the first major price factor. Choke quantity, pump arrangement, backup power, accumulator capacity and hose length all affect the final scope.
Instrumentation also changes the cost. Mechanical gauges, digital transmitters, choke-position sensors, pump-stroke counters, alarms and data logging require different components and engineering.
The enclosure and installation environment create another cost difference. Offshore construction, stainless-steel tubing, hazardous-area certification and low-temperature protection can add significant requirements.
Inspection and project support should also be included in the comparison. Witnessed FAT, third-party inspection, spare parts, documentation and site commissioning may not appear in a basic quotation.
A meaningful API 16C choke control panel price comparison must use the same technical scope and acceptance requirements.
Factory Acceptance Testing
| FAT Item | Main Verification |
| General inspection | Dimensions, nameplate and workmanship |
| Components | Approved component list and ratings |
| Hydraulic circuit | Schematic conformity and correct connections |
| Electrical circuit | Wiring, controls and certification |
| Main pump | Pressure, flow and operation |
| Backup pump | Emergency operating function |
| Regulator and relief valve | Correct pressure settings |
| Accumulator | Pre-charge and usable operation |
| Choke control | Opening and closing commands |
| Stroke time | Full opening and closing time |
| Position feedback | Fully open, intermediate and closed indication |
| Pressure instruments | Range, response and calibration |
| Pump-stroke display | Sensor input and indication |
| Alarms and HMI | Activation, reset, logic and communication |
| Hydraulic holding | Position stability |
| Leakage | External and internal leakage checks |
| Identification | Hose, port, cable and instrument tags |
| Documentation | Drawings, certificates and FAT report |
SGPE can perform internal FAT and support customer or third-party witnessing according to the approved inspection plan.
Documents Supplied With the Control Panel
A complete document package may include the general arrangement drawing, hydraulic schematic, electrical schematic, instrument list, bill of materials and technical data sheet.
Operation and maintenance manuals should explain system operation, routine inspection, troubleshooting and recommended service intervals.
The final package may also contain hose and port schedules, calibration certificates, applicable electrical and material certificates, spare-parts recommendations and FAT records.
Where required by the contract, SGPE can include a certificate of conformity, third-party inspection report, packing list, preservation instructions and storage requirements.
The final document list should be agreed before production begins.
Information Required for an Accurate Quotation
| RFQ Category | Required Data |
| Choke manifold | Working pressure, bore, layout, connections and temperature class |
| Choke quantity | Number of manual and hydraulic adjustable chokes |
| Hydraulic choke | Manufacturer, model, size and trim |
| Actuator | Type, operating pressure, displacement and stroke |
| Position feedback | Pneumatic, hydraulic, mechanical or electrical |
| Control method | Pneumatic-hydraulic, electric-hydraulic, electro-hydraulic or PLC |
| Choke operation | Single or dual choke, local and remote operation |
| Pressure displays | Casing, drillpipe, upstream and downstream ranges |
| Display units | psi, MPa, bar or dual scale |
| Control distance | Actual routed hydraulic hose length |
| Rig utilities | Air pressure, air flow, voltage, phase and frequency |
| Emergency operation | Hand pump, backup pump, accumulator or nitrogen |
| Installation | Land, offshore, indoor, outdoor or mobile |
| Environment | Temperature, humidity, salt spray, dust and vibration |
| Hazardous area | Required classification and certification |
| Service condition | Standard, sour service or project-specific |
| API requirements | Applicable edition, addenda, errata and project specification |
| FAT | Internal, witnessed or third-party inspection |
| Documentation | Required drawings, manuals and certificates |
| Spare parts | Commissioning and operating spares |
| Retrofit data | Existing drawings, nameplates, photographs and connection details |
Why Source a Custom Choke Manifold Control Panel From SGPE?
SGPE supplies customized choke manifold control panels and related well control equipment for drilling, workover, well testing and intervention projects.
Available configurations include single-choke and dual-choke control, pneumatic-hydraulic power, electric-hydraulic power and electro-hydraulic control.
For projects requiring greater automation, SGPE can review PLC control, HMI displays, digital transmitters, alarms and communication interfaces.
Land drilling projects may use painted carbon-steel consoles. Offshore and coastal installations can use stainless-steel enclosures and corrosion-resistant tubing.
The supply scope can include main and backup pumps, emergency controls, accumulators, pressure instruments, position-feedback devices, hydraulic hoses and sensing-line packages.
SGPE also supports replacement and retrofit engineering for older control consoles. This work may include interface review, new drawings, port schedules, hydraulic modifications and updated instruments.
Project-specific FAT, third-party inspection coordination, final documentation and recommended spare-parts packages can form part of the agreed scope.
Rather than selecting a console only by manifold pressure, SGPE reviews the complete interface between the choke, actuator, hoses, instruments and rig utilities.
This approach helps reduce field modifications and improves the likelihood that the delivered control panel will match the actual installation.
Frequently Asked Questions About API 16C Choke Manifold Control Panels
1. What does an API 16C Choke Manifold Control Panel do?
An API 16C Choke Manifold Control Panel allows the choke operator to remotely open, close and adjust one or more hydraulic adjustable chokes installed on a choke manifold. Depending on the selected configuration, the console may also display casing pressure, drillpipe pressure, hydraulic control pressure, choke position and mud-pump strokes.
During kick circulation and well killing operations, the operator can monitor these parameters while adjusting surface backpressure from a protected location. This makes the remote hydraulic choke control panel an important part of the surface well control package used on drilling rigs, workover units and selected intervention systems.
2. Is a choke control panel part of the BOP control system?
A choke control panel forms part of the overall surface well control package, but it performs a different function from a BOP control unit. The BOP control system operates annular preventers, ram preventers and related hydraulic functions, while the choke manifold control panel operates the hydraulic adjustable choke.
Both systems may be used during the same well control event. For example, the BOP stack first shuts in the well, while the drilling choke control panel helps regulate surface backpressure as formation fluids are circulated through the choke line and choke manifold.
3. Can one choke manifold control panel operate two hydraulic chokes?
Yes. A dual hydraulic choke control panel can operate two adjustable chokes independently when the hydraulic circuits, directional valves, actuator data and position-feedback systems are designed for both chokes.
Dual-choke configurations are often selected when a drilling contractor requires a primary and backup choke, separate operating paths or improved operational flexibility. The manufacturer must confirm the actuator pressure, displacement, stroke and feedback method for each choke before finalizing the system.
4. Can the same control panel be used with 5K, 10K, 15K and 20K choke manifolds?
A properly engineered choke control panel can support choke manifold systems rated at 5,000, 10,000, 15,000 or 20,000 psi. However, the manifold working pressure does not directly determine the hydraulic pressure required by the choke actuator.
The supplier must separately review the choke model, actuator operating pressure, pressure-display ranges, sensing arrangement and service conditions. A control console for a 15K choke manifold, for example, may operate the choke actuator at a much lower hydraulic pressure.
5. Does a pneumatic-hydraulic choke control panel require rig air?
A pneumatic-hydraulic choke control panel normally uses compressed rig air to drive the hydraulic pump. Stable air pressure, adequate air flow and clean air are important because moisture, contamination or insufficient flow can reduce pump performance and slow choke movement.
Where a suitable compressed-air supply is not available, an electric-hydraulic choke control panel may be more appropriate. Offshore, automated and integrated rig packages may also use electro-hydraulic control with electronic instruments, alarms, PLC functions and remote communication.
6. Is a conventional choke control panel the same as an MPD choke system?
No. A conventional hydraulic choke control panel normally depends on operator input to adjust the choke and maintain the required pressure schedule.
A complete managed pressure drilling system may include automated chokes, pressure transmitters, flow measurement, PLC control, HMI displays, data acquisition and hydraulic modeling. Therefore, an RFQ should clearly distinguish between manual hydraulic choke control, remote electro-hydraulic control, PLC-controlled operation and a complete MPD choke package.
7. What should an offshore choke control panel include?
An offshore choke control panel may require stainless-steel construction, corrosion-resistant tubing and fittings, marine-grade fasteners, anti-vibration mounting and certified electrical components. The enclosure and internal components should be selected for the expected salt spray, humidity, temperature and hazardous-area conditions.
Depending on the project, the panel may also require offshore lifting points, low-temperature protection, witnessed factory acceptance testing and third-party inspection. Jack-up rigs, semi-submersible rigs, drillships and offshore workover units may each have different installation and certification requirements.
8. Can SGPE replace or retrofit an old drilling choke control console?
Yes. SGPE can review obsolete, damaged or unsupported drilling choke control consoles for replacement or retrofit when the existing choke manifold and hydraulic choke remain suitable for service.
A replacement project may include new pumps, accumulators, gauges, hydraulic valves, hoses, stainless-steel tubing and position-feedback devices. PLC control, HMI displays, digital transmitters and alarms can also be reviewed where a more advanced electro-hydraulic choke control system is required.
For accurate matching, provide the existing panel nameplate, choke and actuator information, hydraulic schematic, port connections, mounting dimensions and clear photographs.
9. How should the hydraulic hose length be calculated?
Hydraulic hose length should be based on the actual routed distance between the control console and the choke actuator rather than the straight-line distance.
The calculation should include vertical elevation, deck routing, structural obstacles, bends and spare installation length. Long control distances can increase hydraulic volume and affect response time, so the manufacturer may need to review hose size, pump flow and accumulator capacity before confirming the design.
10. What causes a hydraulic choke to move slowly from the control panel?
Slow choke movement can result from low hydraulic pressure, insufficient rig-air supply, cold hydraulic fluid, blocked filters, undersized hoses or internal leakage in the actuator or control valves.
The first checks should confirm the available air or electrical supply, reservoir level, pump output, filter condition and hydraulic pressure settings. The operator should also inspect the hose route and actuator seals, especially when a long-distance remote choke panel responds more slowly than expected.
11. What factors affect API 16C choke control panel price?
The price of an API 16C choke manifold control panel depends on the number of controlled chokes, control method, hydraulic pump arrangement, accumulator capacity, instrument quantity, hose length and position-feedback system.
A single-choke pneumatic-hydraulic console normally costs less than a stainless-steel dual-choke electro-hydraulic panel with digital pressure transmitters, PLC control and HMI displays. Hazardous-area certification, offshore construction, low-temperature protection, witnessed FAT, third-party inspection, documentation and spare parts can also affect the final quotation.
For a meaningful choke control panel price comparison, buyers should compare quotations based on the same technical scope and acceptance requirements.
12. What information is required for an API 16C choke control panel quotation?
An accurate quotation requires the choke manifold working pressure, nominal bore, layout and connection details. The supplier also needs the hydraulic choke manufacturer, model, size and trim, together with the actuator type, operating pressure, displacement and stroke.
The inquiry should identify whether the system will control one or two hydraulic chokes, the required pressure displays, the actual hose routing distance and the available rig-air or electrical supply. Land, offshore, workover, coiled tubing and surface well testing projects may require different enclosure, mobility and control arrangements.
For offshore, HPHT, sour-service or hazardous-area applications, also provide the operating temperature, environmental conditions, area classification, inspection requirements and required documentation. Existing drawings, nameplates and hydraulic schematics are especially valuable for replacement and retrofit projects.
Conclusion
An API 16C Choke Manifold Control Panel provides remote choke operation, pressure monitoring and position feedback during drilling and well control operations.
The correct panel must match the hydraulic choke actuator, manifold configuration, control distance, instruments, utilities and operating environment.
A reliable buying process therefore evaluates more than manifold pressure and initial price. It also reviews actuator data, emergency operation, supplier scope, FAT, spare parts, documentation and replacement support.
SGPE can evaluate these technical interfaces and prepare a customized control panel proposal for new drilling packages, offshore installations, workover units and replacement projects.
A properly engineered panel reduces field modification, simplifies maintenance and gives the drilling team a control system matched to the actual choke, actuator and rig utilities.
Request an SGPE API 16C Choke Manifold Control Panel Quotation
SGPE supplies customized API 16C Choke Manifold Control Panels for land drilling, offshore drilling, workover, coiled tubing, surface well testing and well intervention projects.
Available configurations include pneumatic-hydraulic, electric-hydraulic and electro-hydraulic control, with single-choke, dual-choke, PLC, HMI, digital pressure display, alarm and communication options.
Each control panel is engineered to match the actual choke manifold, hydraulic choke, actuator and rig utilities. The supply may include main and backup pumps, accumulator, pressure instruments, choke-position indicators, hydraulic hoses, sensing systems and recommended spare parts.
SGPE also supports obsolete or damaged drilling choke control panel replacement and retrofit. Offshore packages can include stainless-steel construction, corrosion-resistant tubing and project-specific hazardous-area components.
Factory acceptance testing, drawings, hydraulic and electrical schematics, calibration certificates, FAT reports and spare-parts lists can be provided according to the agreed scope.
E-Mail:
info@sgpe.com
