API 16D BOP Control Unit Selection Guide: Sizing and Buying Considerations
An API 16D BOP Control Unit stores and directs the hydraulic power used to operate blowout preventers and associated well control valves. Depending on the stack configuration, the system may control annular BOPs, pipe rams, variable-bore rams, blind shear rams and hydraulic choke or kill line valves.
The BOP stack provides the physical barrier around the wellbore. Its preventers, however, cannot open, close or remain in the required position without a dependable hydraulic power source. The control unit provides that power through a reservoir, charging pumps, accumulator bottles, pressure regulators, directional valves, control panels and hydraulic lines.
Selecting the correct unit involves more than comparing bottle quantities or electric motor ratings. The system must match the hydraulic volume of every connected function. Engineers must also account for the required operating sequence, hose length, control locations, available rig utilities and environmental conditions.
A compact skid-mounted BOP closing unit may suit a mobile workover rig. A large land drilling rig may need more usable accumulator volume, additional control functions and independent electric and pneumatic charging sources. Offshore platforms and jack-up rigs may require containerized construction, marine corrosion protection, stainless steel tubing and hazardous-area electrical equipment.
SGPE can review submitted BOP stack drawings, equipment nameplates, hydraulic operating volumes, hose routing and utility conditions before recommending a project-specific configuration. This approach helps buyers compare a BOP control unit quotation by engineering scope rather than by a regional model code or accumulator bottle count alone.
This guide explains how a BOP control unit works, how accumulator capacity is determined and how electric, pneumatic and diesel-driven pump systems differ. It also covers control panels, hydraulic hoses, supplier evaluation, price factors, delivery lead time, replacement projects, FAT and RFQ preparation.
API 16D BOP Control Unit: Quick Answer

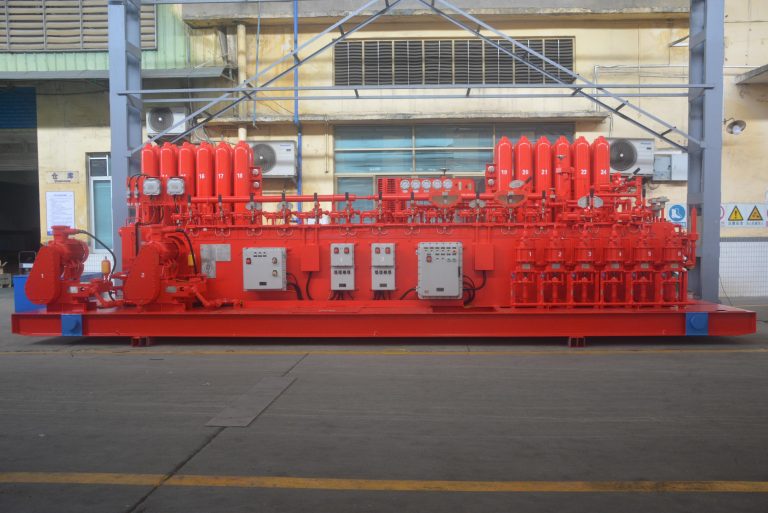

An API 16D BOP control unit is the hydraulic power and command package used with a blowout preventer stack. It stores pressurized control fluid in nitrogen-precharged accumulators and sends that fluid to the selected BOP or hydraulic valve function.
A conventional surface system normally includes a reservoir, charging pumps, accumulator bottles, a control manifold, pressure regulators, instruments, alarms and a local operating panel.
Depending on the project, the complete package may also include remote control panels, a BOP control hose bundle, junction boxes, pilot lines and electrical interfaces.
The correct configuration depends mainly on the connected equipment volume, required operating sequence, minimum acceptable pressure, pump recovery performance, hose capacity and available power sources.
Quick Technical Reference
The following values are general engineering references for conventional surface BOP control systems. They do not replace the BOP manufacturer’s data, an approved accumulator calculation or the project specification.
| Parameter | Typical Engineering Reference | Selection Note |
|---|---|---|
| Main accumulator pressure | Around 3,000 psi / 20.7 MPa for many surface systems | Confirm approved charging and maximum pressure |
| Ram manifold pressure | Regulated below accumulator pressure | Match the ram BOP and operating procedure |
| Annular control pressure | Adjustable regulated pressure | Follow the annular BOP manufacturer’s instructions |
| Accumulator charging gas | Dry nitrogen | Do not use oxygen or compressed air |
| Pump power sources | Electric, pneumatic or diesel | Match rig utilities and redundancy requirements |
| Control methods | Hydraulic, pneumatic, electrical or digital | Consider distance, response and maintenance capability |
| Remote stations | Driller’s panel, toolpusher’s panel or emergency station | Define required controls and indications |
| Installation format | Open skid, covered skid or containerized package | Match transport and environmental requirements |
| Hose pressure rating | Equal to or above the specified circuit pressure | Confirm bore, length, fire resistance and connections |
| Accumulator capacity | Calculation-based | Compare usable volume rather than bottle count |
| Reservoir capacity | System-dependent | Include equipment, hoses, piping and operating reserve |
| Ambient temperature | Project-specific | Provide actual minimum and maximum temperatures |
API Specification 16D does not prescribe one universal accumulator quantity, pump size or reservoir capacity for every BOP stack. The system must be calculated around the connected equipment and the required operating sequence.
API 16D BOP Accumulator Unit, Closing Unit and Control System: What Is the Difference?
The oil and gas industry uses several names for this equipment. Common terms include BOP accumulator unit, BOP closing unit, hydraulic BOP control unit, blowout preventer control unit, BOP hydraulic power unit and surface BOP control system.
These terms overlap, but they do not always describe the same supply scope.
A BOP accumulator unit usually refers to the reservoir, charging pumps, accumulator bottles and associated charging controls. By comparison, a BOP closing unit generally describes the hydraulic package that opens and closes the preventers.
The term hydraulic BOP control unit normally covers the accumulator package, control manifold, regulators, gauges, alarms and local panel. A complete BOP control system may also include remote stations, hydraulic hoses, pilot lines, electrical cabinets, communication equipment and project-specific emergency functions.
This difference matters during procurement. One supplier may quote only the main hydraulic skid. Another may include remote panels, hose assemblies, fittings, startup spares, factory testing and commissioning support.
Buyers should therefore compare the equipment list, technical exclusions, testing and documentation rather than relying on the product name alone.
What Does API Specification 16D Cover?
API Specification 16D addresses control systems used with drilling well control equipment and diverter equipment.
Its scope includes control systems for surface-mounted BOP stacks, common elements of subsea systems, discrete hydraulic subsea systems, electro-hydraulic or multiplex subsea systems, diverter controls, auxiliary interfaces and selected emergency functions.
This guide references API Specification 16D, Third Edition, published in November 2018, together with Addendum 1 issued in July 2023. Each project should identify the required edition, addendum and purchaser-specific requirements in its technical documents.
API 16D does not automatically apply to every oilfield hydraulic power package. Coiled tubing, snubbing, wireline pressure-control and process emergency shutdown systems may use similar hydraulic principles. Their governing requirements depend on the equipment being controlled and the defined project scope.
A conventional surface BOP accumulator unit also differs substantially from a subsea multiplex control system. For this reason, the RFQ should state the rig type, BOP location and required control-system category.
Why the API 16D BOP Control Unit Matters in Well Control
During normal drilling, the hydrostatic pressure of the drilling fluid helps balance formation pressure. Changes in pore pressure, mud density, circulation conditions or wellbore stability may nevertheless allow formation fluids to enter the well.
Once the crew detects an influx, it must follow the approved well control procedure. The BOP stack then provides a mechanical means of isolating or controlling the wellbore.
Depending on the installed configuration, the stack may close around drill pipe, seal around different tubular sizes, close an open wellbore or isolate the choke and kill lines. Where suitable shear rams are installed, the stack may also shear tubulars and seal the well during an emergency.
Every action requires hydraulic energy. The accumulator bank makes this energy available without waiting for the charging pumps.
After a function operates, the pumps restore system pressure. Regulators maintain the required delivery pressure for the annular preventer, ram manifold, pilot circuits and hydraulic valves.
Poor accumulator sizing can leave insufficient usable fluid for the required sequence. Low nitrogen precharge may reduce storage performance or cause frequent pump cycling. Restricted hoses can slow operation, while unstable pressure regulation may affect sealing performance.
For these reasons, the BOP control unit should be treated as an engineered part of the well control package rather than as a generic hydraulic power unit.
How Does an API 16D Hydraulic BOP Control Unit Work?
The operating cycle begins in the hydraulic reservoir. Clean control fluid flows from the tank to the pump suction lines.
Electric, pneumatic or diesel-driven pumps send the fluid to the accumulator manifold. Charging continues until the system reaches its specified upper pressure setting.
Inside each accumulator bottle, compressed nitrogen acts on the hydraulic fluid through a bladder, piston or another separating element. As more fluid enters the bottle, the gas compresses and stores energy.
When the operator selects a function, the control manifold directs pressurized fluid to the appropriate operating chamber.
For example, when the lower pipe ram close function is selected, fluid enters the closing chamber. At the same time, displaced fluid from the opening side returns to the reservoir.
Accumulator pressure falls after the function operates. The automatic charging system then starts the pumps and restores the required pressure.
Separate regulators may serve the annular BOP, ram manifold, pilot circuits and auxiliary valves. Gauges, pressure switches, transmitters and alarms allow the crew to monitor accumulator pressure, annular pressure, manifold pressure, reservoir level, air supply and pump condition.
In practice, the system performs three tasks. It stores hydraulic energy, directs that energy to the selected function and restores readiness after operation.
Main Components of an API 16D BOP Control Unit
| Component | Main Function | Key Selection Points |
| Hydraulic Reservoir | Stores and conditions control fluid | Capacity, filtration, heating and level monitoring |
| Charging Pumps | Restore accumulator pressure | Output at working pressure, recovery time and redundancy |
| Accumulator Bottles | Store hydraulic energy | Usable volume, precharge, pressure range and isolation |
| Control Manifold | Directs fluid to each function | Function quantity, valve arrangement and labeling |
| Pressure Regulators | Control delivery pressure | Annular, ram, pilot and auxiliary pressure ranges |
| Local Control Panel | Provides direct operation at the main unit | Gauges, alarms, controls and maintenance access |
| Remote Control Panel | Allows operation from another station | Signal type, distance, feedback and area classification |
| Hose Bundle and Piping | Connects the unit to the BOP stack | Bore, length, pressure, fire resistance and identification |
| Instruments and Alarms | Monitor system condition | Local indication, remote signals and rig integration |
Hydraulic Reservoir
The reservoir must hold enough control fluid for the pumps, accumulators, connected BOP functions, hoses and piping. It should also allow heat, entrained air and contamination to separate from the fluid.
Typical accessories include a level indicator, low-level alarm, filling connection, drain, suction strainer, return filter, breather, inspection cover and temperature indicator. Low-temperature packages may also require an immersion heater or heated enclosure.
Environmental conditions affect the final arrangement. Desert drilling may require sun protection, filtered ventilation and reservoir temperature monitoring. Cold-weather projects may need insulation, heating and a control fluid with suitable low-temperature viscosity.
SGPE can review connected equipment volume, hose capacity and operating environment before recommending a reservoir configuration.
Accumulator Bottles and Usable Hydraulic Volume
Accumulator bottles store the hydraulic energy required to operate the BOP system without waiting for the pumps.
Nominal bottle volume does not equal usable fluid volume. Actual delivery depends on the bottle size and quantity, nitrogen precharge, maximum charging pressure, pump start pressure, minimum operating pressure and ambient temperature.
The operating sequence also affects hydraulic demand. A system designed only to close one pipe ram does not require the same usable volume as a package that must close an annular BOP, operate choke and kill valves, and complete a shear-and-seal sequence.
Buyers should request a documented BOP accumulator sizing calculation instead of comparing systems by bottle count.
The bottle bank should also support safe maintenance. Individual isolation valves can allow one accumulator to be removed without unnecessarily depressurizing the complete bank.
Accumulator Precharge
Nitrogen precharge establishes the initial gas pressure inside each accumulator. An unsuitable setting can reduce usable volume, increase pump cycling and create unstable performance.
The supplier should define the target value, reference temperature, acceptable tolerance, inspection procedure and temperature-correction method.
Technicians should use dry nitrogen when checking or adjusting the precharge. Before starting the work, they must follow the approved procedure and confirm that the hydraulic side has been safely depressurized.
There is no single precharge value that suits every BOP control unit. The correct setting depends on the system pressure range and the approved accumulator calculation.
Hydraulic Pump Package
The pump package restores accumulator pressure after the system operates.
| Pump Configuration | Main Advantage | Key Selection Requirement |
| Electric hydraulic pump | Stable automatic charging and monitoring | Confirm voltage, frequency, motor power and area classification |
| Air-driven hydraulic pump | Independent backup using rig air | Confirm air pressure, flow, dryness and filtration |
| Diesel-driven pump | Independent operation at remote locations | Review fuel, exhaust, ventilation and fire protection |
| Electric-pneumatic package | Two separate charging sources | Verify each pump package at the required pressure |
| Duty and standby electric pumps | Redundant electrical charging | Confirm independent controls and power distribution |
An electric pump commonly handles routine charging, while an air-driven unit provides backup. Where dependable electricity and compressed air are unavailable, a diesel-driven package may be more practical.
Pump selection should be based on output at the actual hydraulic pressure. A theoretical low-pressure displacement figure does not show how quickly the pump can recharge the accumulator bank near its upper setting.
The quotation should state pump output, expected recharge time, automatic start and stop pressures, motor rating and utility requirements.
Control Manifold and Pressure Regulators
The control manifold directs fluid to the selected BOP or valve function. It normally contains directional valves, check valves, relief valves, regulators, isolation valves, gauges, pressure switches and test connections.
Function labels should match the approved BOP stack terminology. Typical positions include the annular preventer, upper pipe ram, lower pipe ram, variable-bore ram, blind ram, blind shear ram, choke line valve and kill line valve.
Pressure regulators reduce accumulator pressure to the level required by the connected equipment. Separate regulators commonly serve the annular BOP and ram manifold.
The annular regulator requires particular attention. Excessive closing pressure may accelerate packing-element wear. Insufficient pressure, however, may prevent an effective seal.
Operators should follow the annular BOP manufacturer’s instructions when setting or adjusting the pressure.
Local and Remote BOP Control Panels
The local panel allows direct operation from the main hydraulic unit. It usually includes directional controls, pressure gauges, regulators, pump selectors, alarms and clearly marked function labels.
A remote BOP control panel allows the crew to operate selected functions from the driller’s cabin, control room, toolpusher’s office or another approved station.
Remote commands may use pneumatic pilot signals, direct hydraulic lines, electrical solenoid valves, programmable controllers or digital communication.
The appropriate option depends on control distance, rig design, area classification and maintenance capability.
Depending on the project, the remote station may display accumulator pressure, annular pressure, manifold pressure, pump status, low-fluid alarms and function-position feedback.
SGPE can review the required stations, functions, signals and indications before preparing a custom remote-control proposal.
BOP Control Hose Bundle
The control hose bundle carries hydraulic fluid between the main unit and the BOP stack.
The supplier first needs the number of hydraulic functions and the required hose lengths. The RFQ should also define the internal bore, working pressure, end connections, minimum temperature, fire resistance, protective covering, bend radius and identification method.
Long hoses increase system volume and may also increase pressure loss. The following values show the approximate internal volume of several common hose sizes. They exclude fittings, manifolds and rigid piping.
| Nominal Hose ID | Approximate Volume per 10 m | Approximate Volume per 30 m |
| 3/8 in / 9.5 mm | 0.71 L | 2.14 L |
| 1/2 in / 12.7 mm | 1.27 L | 3.80 L |
| 3/4 in / 19.1 mm | 2.85 L | 8.55 L |
Four 30 m hoses with a 1/2-inch internal diameter contain approximately 15.2 litres of fluid before fittings and rigid lines are added.
Consequently, hose and piping volume can have a material effect on accumulator sizing.
Types of API 16D BOP Control Units
| Configuration | Main Advantage | Typical Application |
| Electric BOP Control Unit | Stable automatic charging and monitoring | Land rigs, platforms and workover rigs |
| Pneumatic BOP Control Unit | Uses rig air as the charging source | Rigs with dependable compressed air |
| Electric-Pneumatic Unit | Combines routine charging with independent backup | Land and offshore surface BOP systems |
| Diesel-Driven Unit | Operates without dependable external utilities | Remote drilling and mobile workover sites |
| Skid-Mounted Unit | Provides open maintenance access | Land rigs and sheltered offshore areas |
| Containerized Unit | Protects equipment from weather and corrosion | Offshore, desert and cold-weather projects |
Electric BOP Control Unit
An electric BOP control unit uses motor-driven hydraulic pumps. It supports automatic start-stop control, fault alarms and integration with rig monitoring systems.
Before ordering, the buyer should confirm voltage, frequency, phase, motor power, starting method, enclosure protection, cable entries and hazardous-area requirements.
The project should also define an independent backup source because the main electrical supply may not remain available during an emergency.
Pneumatic BOP Control Unit
A pneumatic BOP control unit uses air-driven hydraulic pumps. It suits rigs with clean, dry and stable compressed air and may also serve as a backup to electric charging.
Low air pressure or insufficient flow can reduce pump output. In addition, moisture and contamination may shorten component life.
The air supply may therefore need filtration, moisture separation, pressure regulation and a low-pressure alarm.
Combined Electric-Pneumatic Unit
A combined package uses electric pumps for normal charging and air-driven pumps as an independent alternative.
This arrangement suits many land drilling rigs, jack-up rigs and offshore surface BOP stacks. Nevertheless, the supplier must verify the output of each pump system at the specified hydraulic pressure.
Two pump types do not automatically provide adequate redundancy. Their individual capacities and utility sources must support the project requirements.
Diesel-Driven Unit
A diesel-driven hydraulic pump can support remote drilling, early field development and mobile well service operations.
Its design should address fuel storage, exhaust routing, ventilation, cold starting, noise, fire protection and maintenance access.
Skid-Mounted and Containerized Units
A skid-mounted unit provides open access to the reservoir, pumps, accumulator bottles and manifold. This arrangement simplifies maintenance and suits many land drilling and workover applications.
Containerized units provide greater protection from salt, dust, rain and extreme temperatures. Depending on the environment, the enclosure may include lighting, ventilation, heating, cooling, gas detection, fire detection and maintenance platforms.
SGPE can review enclosure dimensions, lifting arrangements, corrosion protection and environmental-control requirements for offshore, desert and cold-weather projects.
Surface vs Subsea BOP Control Systems
| Comparison Item | Surface BOP Control System | Subsea BOP Control System |
| BOP location | Rig floor, wellhead or surface stack | Seabed |
| Typical rigs | Land rigs, platforms, jack-ups and workover rigs | Drillships and semisubmersibles |
| Control path | Direct hydraulic, pneumatic or electrical | Electro-hydraulic or MUX through an umbilical |
| Accumulators | Usually located at the surface unit | Surface and/or subsea modules |
| Control pods | Normally not required | Commonly required |
| Emergency functions | Project-defined surface functions | May include EDS, autoshear, deadman and ROV interfaces |
| System complexity | Moderate | High |
A conventional surface BOP closing unit should not be treated as a substitute for a subsea multiplex system.
The RFQ should clearly state whether the project needs a new surface unit, replacement accumulator package, remote-panel upgrade, hose-bundle replacement or complete subsea control system.
How to Select an API 16D BOP Control Unit
Step 1: Define the Rig and BOP Location
The selection process starts with the rig type and BOP installation.
Land drilling rigs, fixed offshore platforms, jack-up rigs, workover units and mobile well service packages normally use surface control systems. Drillships and semisubmersibles with seabed-mounted BOP stacks require substantially different subsea architecture.
This first decision affects the system layout, enclosure design, corrosion protection, control distance and remote-station requirements.
Step 2: Identify Every Hydraulic Function
Prepare a complete function list for the BOP stack.
It should identify the opening and closing circuits for the annular preventer, every ram cavity, each shear function and all hydraulic choke or kill line valves. Approved connector, diverter and auxiliary functions should also be included.
Do not count only the number of BOP bodies. A double ram BOP has two separate cavities, and each cavity normally requires its own manifold position, hoses and panel indication.
The final function list determines the manifold size, number of directional valves, hose quantity and panel layout.
Step 3: Collect Opening and Closing Volumes
The supplier needs the hydraulic opening and closing volume of every connected BOP and valve.
BOP bore size and wellbore pressure rating alone do not provide enough information for accumulator sizing.
When exact volumes are unavailable, provide the equipment manufacturer, model, nameplate, data sheet, general arrangement drawing, operation manual or existing hydraulic schematic.
SGPE can review the submitted information and identify missing inputs before preparing a configuration.
Step 4: Define the Required Operating Sequence
The required sequence determines how much usable fluid the accumulator bank must deliver.
One project may require the system to close an annular BOP, close one pipe ram, operate selected choke and kill valves and retain a specified final pressure without immediate pump assistance.
Another project may require a shear-and-seal sequence. The engineer should use the sequence defined in the approved project specification and well control philosophy.
Without a clearly defined sequence, the supplier cannot complete a reliable accumulator calculation.
Step 5: Calculate Usable Accumulator Capacity
The accumulator sizing calculation should consider the BOP and valve operating volumes, hose and piping volume, maximum accumulator pressure, pump start pressure and minimum acceptable operating pressure.
It should also include nitrogen precharge, minimum ambient temperature, an appropriate engineering allowance and any required redundancy.
The proposal should state both the total installed bottle volume and the calculated usable hydraulic volume.
Illustrative Hydraulic Demand
The following example demonstrates the calculation process only. It does not represent a standard BOP stack or final equipment design.
| Selected Function | Example Fluid Demand |
| Close one annular BOP | 30 L |
| Close one pipe ram | 12 L |
| Operate two hydraulic line valves | 4 L |
| Fill selected hoses and piping | 8 L |
| Raw sequence demand | 54 L |
A system with a 54-litre raw hydraulic demand cannot simply use 54 litres of nominal accumulator capacity.
The selected bank must deliver at least the required usable volume between the approved pressure limits. Precharge, temperature and engineering allowances must also be considered.
Step 6: Check Pump Output and Recharge Time
Accumulator capacity provides immediate energy. Pump capacity restores that energy after operation.
A large accumulator bank with a small pump may complete the first sequence but recover too slowly. Conversely, a large pump cannot replace stored energy during a loss of external power.
The proposal should state pump output at actual working pressure, estimated recharge time, automatic start and stop pressures, motor power, air requirements and standby arrangement.
Buyers should also review the backup source, maintenance access and availability of pump repair parts.
Step 7: Select the Control Method
| Control Method | Suitable Application | Main Consideration |
| Direct hydraulic | Short to moderate surface distances | Hose volume and pressure loss |
| Pneumatic pilot | Rigs with dependable compressed air | Air quality, pilot pressure and response |
| Electrical | Longer distances and alarm integration | Power reliability and hazardous-area protection |
| PLC or digital | Modern rigs with integrated monitoring | Diagnostics, software support and cybersecurity |
| Subsea MUX | Deepwater subsea BOP systems | Specialized equipment and maintenance |
The RFQ should define the required local and remote stations, control distance, signal type, pressure indications, alarms and function feedback.
Step 8: Review the Hose System
Confirm the number of hydraulic lines, lengths, internal bores, working pressures, end connections, minimum temperature and fire-resistance requirements.
Each hose should carry a durable identification mark that matches the hydraulic schematic and control-panel function name.
The accumulator calculation must include the complete hose and piping volume.
Step 9: Match the Oilfield Environment
| Environment | Main Risks | Configuration Review |
| Land drilling | Dust, vibration and transport | Skid strength, covers, filtration and lifting points |
| Offshore platform | Salt, humidity and classified areas | Marine coating, stainless tubing and protected equipment |
| Jack-up rig | Salt spray, vibration and limited deck space | Compact enclosure, remote controls and lifting design |
| Desert oilfield | Heat, sand and solar radiation | Sunshade, ventilation and temperature monitoring |
| Cold-weather field | High fluid viscosity and reduced nitrogen pressure | Insulation, heating, low-temperature hoses and fluid |
| Sour-well location | Potential gas exposure | Gas detection and hazardous-area electrical protection |
Actual environmental data provide a better design basis than broad descriptions such as “offshore,” “desert” or “Arctic service.”
Step 10: Confirm Documentation, FAT and Lifecycle Support
Before placing the order, define the required drawings, calculations, data sheets, inspection points, FAT procedure, manuals and spare parts.
The buyer should also confirm whether the supplier can support commissioning, troubleshooting and future system modifications.
A technically suitable unit can still create lifecycle problems when documentation is incomplete or replacement parts are difficult to obtain.
API 16D BOP Control Unit Buying Guide
How to Evaluate a Manufacturer or Supplier
| Supplier Evaluation Item | What the Buyer Should Confirm |
| Engineering review | The supplier reviews the actual BOP stack and operating volumes |
| Accumulator calculation | The proposal states usable volume and calculation assumptions |
| Pump performance | Output is stated at the required hydraulic pressure |
| Supply boundary | Included and excluded items are clearly identified |
| Panel configuration | Local and remote panels match the function list |
| Hose scope | Length, bore, pressure, connections and fire resistance are defined |
| Environmental design | The package matches offshore, desert or cold-weather conditions |
| Factory testing | The supplier provides an agreed FAT procedure and report |
| Documentation | Drawings, calculations, manuals and parts lists are included |
| Spare parts | Startup and operating spares are available |
| Inspection | Buyer or third-party witness points can be supported |
| Technical support | Installation, troubleshooting and upgrade support are available |
Buyers looking for an API 16D BOP Control Unit manufacturer, BOP accumulator unit supplier or custom BOP closing unit quotation should compare engineering capability as well as purchase price.
Compare Usable Volume, Not Bottle Quantity
A technical quotation should state the installed accumulator capacity, usable hydraulic volume, precharge basis, calculation pressures, temperature basis and included operating sequence.
Bottle quantity alone does not prove that the unit can complete the required functions.
Compare Pump Performance at Working Pressure
Pump data should show output near the required accumulator pressure, not only theoretical low-pressure displacement.
The quotation should also define recharge time, start-stop settings, backup charging source and whether multiple pumps can operate independently.
Confirm the Complete Supply Scope
A lower-priced quotation may exclude remote panels, hydraulic hoses, electrical cables, fittings, startup spares, FAT, technical documents or commissioning support.
For a meaningful comparison, buyers should place equivalent technical scopes side by side before evaluating the final commercial price.
Verify Control Functions and Labels
The control manifold, local panel, remote station, hose tags and hydraulic schematic should use consistent function names.
This consistency reduces installation errors and helps the crew identify the correct control during tests and well operations.
Review Component Specifications
The proposal should identify the pump type, motor rating, accumulator size, regulator range, valve arrangement, gauge accuracy, pressure-switch settings, hose specification, electrical enclosure and coating system.
Where the package includes heating, cooling, gas detection, ventilation or programmable controls, these systems should be clearly described.
What Affects API 16D BOP Control Unit Price?
| Price Factor | Typical Cost Impact |
| Larger usable accumulator capacity | More bottles, frame space and piping |
| More hydraulic functions | Larger manifold, more valves, hoses and panel positions |
| Electric-pneumatic redundancy | Additional pumps, controls and air components |
| Diesel backup package | Engine, fuel system, exhaust and fire-protection requirements |
| Remote control panels | Additional controls, indicators, cables or pilot lines |
| Long hose bundles | More hose material and greater internal fluid volume |
| Fire-resistant hoses | Higher hose and testing requirements |
| Hazardous-area equipment | Classified motors, enclosures, switches and cable glands |
| Containerized construction | Enclosure, lighting, ventilation, heating or cooling |
| Offshore configuration | Marine coating, stainless tubing and corrosion-resistant hardware |
| Cold-weather package | Insulation, heaters and low-temperature components |
| PLC and data integration | Software, transmitters, communication and testing |
| Third-party inspection | Witnessing, document review and additional testing |
| Spare-parts package | Filters, seals, pump kits, valves and hose spares |
The cost of a custom BOP control unit reflects its engineering scope. A lower initial price may lead to higher lifecycle costs if usable volume is inadequate, recharge is slow or spare parts are difficult to source.
What Affects API 16D BOP Control Unit Lead Time?
Delivery depends on engineering complexity, drawing approval, component availability and inspection requirements.
Hazardous-area motors, custom control panels, long hose bundles, stainless steel tubing and containerized enclosures may require longer procurement or fabrication periods.
Heating, cooling, gas detection and offshore corrosion-protection systems can also extend production. In addition, third-party inspection, documentation approval and witnessed FAT may affect the final schedule.
Buyers should define the required delivery date during the RFQ stage and return technical comments promptly.
Replacement and Retrofit BOP Control Units
A rig may require a replacement control unit because the existing package has reached the end of its service life or no longer matches the BOP stack.
A retrofit may involve adding accumulator bottles, increasing pump capacity, installing an air-driven backup pump, replacing obsolete regulators or upgrading remote panels.
Other projects may require a new hose bundle, additional pressure transmitters, updated alarms or a replacement electrical control system.
Before preparing a replacement quotation, SGPE can review the existing hydraulic schematic, nameplates, function list, operating volumes, hose lengths, installation space and utility interfaces.
The new package should match the existing BOP connections while correcting the limitations of the old system.
API 16D BOP Control Unit Applications
Land Drilling Rigs
Land rigs use BOP control units during drilling, tripping, casing, cementing and well control operations.
A typical system may operate an annular BOP, several ram cavities and hydraulic choke and kill valves. Because the rig moves between locations, the unit should withstand lifting, transport vibration, dust and changing temperatures.
Shale and Multiwell Pad Drilling
Multiwell drilling programs require control systems that can support frequent function tests, pressure tests and rig moves.
A skid-mounted accumulator unit can simplify relocation between well slots. However, longer hose routing on a drilling pad may increase fluid volume and response time.
The engineer must therefore use the actual hose arrangement in the calculation.
Offshore Platforms and Jack-Up Rigs
Offshore surface BOP systems require dependable remote controls, corrosion protection and efficient use of deck space.
A project may require marine coatings, stainless steel tubing, corrosion-resistant fasteners, hazardous-area electrical equipment and central alarm integration.
A containerized offshore BOP control unit can protect hydraulic components from salt spray and severe weather. SGPE can review the deck layout, lifting requirements and environmental conditions before proposing the enclosure arrangement.
Workover and Well Service Rigs
Workover rigs use BOP control systems during tubing retrieval, pump replacement, well repair and production equipment servicing.
These applications often require compact dimensions, straightforward controls and easy transportation. Even so, accumulator capacity must match the actual BOPs, valves and hose lengths.
BOP Rental Fleets
Rental companies often need a control unit that can support several BOP stack arrangements.
A modular package may include spare manifold positions, adjustable regulators, replaceable hose interfaces and provision for additional accumulator capacity.
Whenever the BOP stack or hose length changes, however, the rental company should recalculate the usable hydraulic volume.
Desert and Cold-Weather Projects
Desert drilling exposes equipment to heat, dust, sand and solar radiation. Suitable protection may include a sunshade, filtered ventilation, heat-resistant hoses and reservoir temperature monitoring.
Cold weather affects nitrogen pressure, fluid viscosity, pump suction and elastomer performance. A winterized package may require an insulated enclosure, reservoir heater, space heating, low-temperature hoses and suitable control fluid.
Documentation and Factory Acceptance Testing
A technical proposal should define the applicable standard scope, included functions, exclusions, calculation basis, pump arrangement, panel scope, hose scope and environmental conditions.
| Document or Test | Main Purpose |
| General arrangement drawing | Shows dimensions, layout, access and lifting points |
| Hydraulic schematic | Shows pumps, accumulators, valves, regulators and functions |
| Electrical or pneumatic schematic | Shows power, signals, controls and interfaces |
| Accumulator calculation | Demonstrates usable hydraulic volume |
| Pump performance data | Confirms output at the required pressure |
| Equipment data sheets | Define component ratings and selected materials |
| Bill of materials | Lists supplied components |
| Inspection and test plan | Defines inspections, witness points and acceptance criteria |
| Pressure and holding tests | Verify hydraulic integrity and pressure retention |
| Functional test | Confirms correct operation of each control function |
| Remote panel test | Confirms remote control, indications and alarms |
| FAT report | Records approved factory test results |
| Operation manual | Supports installation, operation and maintenance |
| Spare-parts list | Identifies startup and operating spares |
During FAT, the test team should verify pump start and stop settings, charging performance, pressure retention, regulator stability, directional-valve operation, alarms and control-panel functions.
Where the supply includes a hose bundle, every hose tag should match the hydraulic schematic and panel label.
SGPE can arrange the agreed FAT and support buyer-appointed or third-party inspection according to the approved inspection and test plan.
Installation, Commissioning and Maintenance
The control unit should be installed on a stable foundation with enough space for operation, inspection and component removal.
The selected location should provide safe access, drainage, ventilation and protected routing for hydraulic hoses and electrical cables.
Before connecting the BOP stack, technicians should inspect and clean the hydraulic lines. Contamination can damage pumps, regulators, control valves and operating cylinders.
During commissioning, the team should verify the electrical and compressed-air supplies, hydraulic fluid, accumulator precharge, pump rotation, regulator settings, hose connections, alarm settings and panel functions.
The crew should then operate every connected BOP and hydraulic valve. Panel commands, hose tags and actual equipment movement must match.
Routine inspections should cover fluid level, system pressure, pump operation, leakage, hose condition and alarms.
Periodic maintenance may include filter replacement, precharge checks, fluid sampling, gauge calibration, relief-valve testing and remote-panel verification.
The equipment manual, rig maintenance system and operating environment should determine the final intervals.
Common BOP Control Unit Problems
| Problem | Possible Causes | Recommended Checks |
| Pumps cycle frequently | Leakage, low precharge, damaged bladder or leaking check valve | Inspect leaks, isolate circuits and verify precharge |
| Accumulator pressure drops | Internal leakage, external leakage or accumulator failure | Monitor pressure decay and inspect isolated sections |
| BOP operates slowly | Low pressure, restricted hose, cold fluid or insufficient volume | Check regulators, hoses, temperature and sizing |
| Annular BOP does not seal | Low pressure, worn packing or hydraulic restriction | Follow the BOP manual and inspect the circuit |
| Remote panel does not respond | Low pilot pressure, wiring fault or solenoid failure | Check utilities, selector positions and signals |
| Hydraulic fluid overheats | Continuous pump operation, leakage or poor ventilation | Check pump cycling, relief settings, filters and airflow |
| Pump cannot reach pressure | Pump wear, relief leakage or suction restriction | Check output, fluid level, filters and relief settings |
| Regulator pressure fluctuates | Contamination, worn seals or unstable pilot supply | Inspect fluid cleanliness and regulator condition |
Technicians should identify the cause before increasing pressure. Raising the pressure without understanding the fault may damage seals, regulators or BOP packing elements.
Information Required for a BOP Control Unit Quotation
| RFQ Category | Information to Provide |
| Rig and Application | Land rig, offshore platform, jack-up, workover rig or other installation |
| BOP Stack | BOP types, sizes, models, ram arrangement and hydraulic valves |
| Hydraulic Data | Opening and closing volumes, pressure requirements and operating sequence |
| Power Supply | Voltage, frequency, phase, air pressure, airflow or diesel requirements |
| Control Panels | Local and remote stations, signal type and control distance |
| Hose System | Function quantity, length, bore, connections and fire resistance |
| Environment | Minimum and maximum temperature, offshore exposure and area classification |
| Documentation | Drawings, calculations, ITP, certificates and manuals |
| Inspection | FAT scope, witness points and third-party inspection requirements |
| Commercial Data | Quantity, destination, Incoterm and required delivery date |
When exact operating volumes are unavailable, provide the BOP stack drawing, nameplates, data sheets or existing hydraulic schematic.
SGPE can review the available information and identify missing data before finalizing the recommended configuration.
Frequently Asked Questions About API 16D BOP Control Units
1. What is an API 16D BOP control unit?
An API 16D BOP control unit is a hydraulic power and command package used to operate blowout preventers and associated well control valves. It stores pressurized control fluid in nitrogen-precharged accumulator bottles and directs that fluid to the selected annular BOP, ram BOP, blind shear ram or hydraulic choke and kill line valve.
A conventional surface BOP control system normally includes a hydraulic reservoir, charging pumps, an accumulator bank, pressure regulators, a control manifold, gauges, alarms and a local operating panel. Depending on the rig and project requirements, it may also include remote driller’s panels, toolpusher’s panels, hydraulic hose bundles and electrical or pneumatic control interfaces.
These systems are commonly used on land drilling rigs, fixed offshore platforms, jack-up rigs, workover units and other installations with surface-mounted BOP stacks.
2. Is a BOP accumulator unit the same as a BOP closing unit?
The terms BOP accumulator unit and BOP closing unit are often used for the same main hydraulic package, although their exact supply scopes may differ.
A BOP accumulator unit usually emphasizes the reservoir, charging pumps, accumulator bottles and pressure-storage components. A BOP closing unit generally refers to the equipment that supplies and directs hydraulic fluid to open or close the connected preventers.
A complete hydraulic BOP control system may include more than the main skid. Remote control panels, hydraulic hoses, pilot lines, electrical cabinets, alarms, pressure transmitters and communication interfaces may also form part of the package.
For this reason, buyers should compare the complete equipment list, technical exclusions, FAT scope, documentation and spare parts instead of relying only on the product name.
3. What pressure does a surface BOP control unit use?
Many conventional surface BOP control units use a nominal accumulator pressure near 3,000 psi or 20.7 MPa. However, this value should be treated as a common engineering reference rather than a universal setting for every BOP stack.
Pressure regulators reduce the stored accumulator pressure before the fluid reaches the annular BOP, ram manifold, pilot circuits and hydraulic valves. The annular preventer and ram BOPs may require different regulated pressures because their operating and sealing characteristics are not the same.
Final charging pressure, pump start pressure, minimum operating pressure and regulator settings should follow the approved hydraulic calculation, the connected equipment data and the project’s well control procedure.
4. How is BOP accumulator capacity calculated?
BOP accumulator capacity is calculated from the usable hydraulic volume required during a defined operating sequence. The engineer must consider the opening and closing volumes of every connected BOP and hydraulic valve, together with the fluid volume inside hoses and rigid piping.
The calculation must also account for maximum accumulator pressure, pump start pressure, minimum acceptable operating pressure, nitrogen precharge, ambient temperature and an appropriate engineering allowance. Where the project requires backup capacity or a shear-and-seal sequence, those conditions must also be included.
A large bottle count does not automatically mean that the system has enough usable fluid. Buyers should therefore request a documented BOP accumulator sizing calculation that states the installed bottle volume, usable hydraulic volume and calculation assumptions.
5. What is the correct accumulator precharge pressure?
There is no single accumulator precharge pressure that suits every BOP control unit. The correct value depends on the accumulator design, maximum charging pressure, minimum operating pressure, reference temperature and approved sizing calculation.
An unsuitable precharge can reduce usable fluid volume, increase pump cycling and affect system stability. Temperature is also important because nitrogen pressure changes as ambient conditions change. A unit installed in a cold-weather oilfield may therefore require a different verification procedure from one operating in a hot desert environment.
The supplier should define the target precharge, tolerance, reference temperature and inspection method. Technicians should use dry nitrogen and confirm that the hydraulic side has been safely depressurized before checking or adjusting the accumulator bottles.
6. Should buyers choose an electric or pneumatic BOP control unit?
An electric BOP control unit uses motor-driven hydraulic pumps and is suitable for rigs with a stable electrical supply. It supports automatic charging, pressure-switch control, fault alarms and integration with rig monitoring systems.
A pneumatic BOP control unit uses air-driven hydraulic pumps. It can be effective where dependable rig air is available and may also serve as an independent backup to the electric pump package. However, air pressure, flow, dryness and filtration must be sufficient at the required hydraulic working pressure.
Many land drilling rigs, offshore platforms and jack-up rigs use combined electric-pneumatic BOP control units. This arrangement provides two charging sources, but the supplier must still verify the output and recovery performance of each pump system.
Remote drilling and mobile workover projects without reliable electricity or compressed air may instead require a diesel-driven hydraulic pump.
7. Can one BOP control unit operate both annular and ram BOPs?
One BOP control unit can operate annular and ram BOPs when every connected function is included in the hydraulic calculation, control manifold, hose schedule and panel layout.
The annular preventer normally has its own adjustable pressure regulation because excessive closing pressure may accelerate packing-element wear. Ram BOPs, blind shear rams and hydraulic line valves may operate through a separate regulated manifold.
The final control system should identify every opening and closing function. A double ram BOP, for example, has two independent ram cavities, and each cavity normally requires its own control valve, hose connection and panel indication.
This arrangement is common on land rigs, offshore surface BOP stacks, workover units and BOP rental packages with several preventer configurations.
8. Why is a remote BOP control panel needed?
A remote BOP control panel allows the drilling crew to operate selected well control functions from a location away from the main hydraulic unit. Common locations include the driller’s cabin, control room, toolpusher’s office or another approved emergency station.
Depending on the design, the remote panel may use pneumatic pilot signals, direct hydraulic control, electrical solenoid valves or a PLC-based interface. It may also display accumulator pressure, annular pressure, manifold pressure, pump status, low-fluid alarms and function-position feedback.
Remote operation is especially important on offshore platforms, jack-up rigs and larger land drilling rigs where the main accumulator unit may be some distance from the driller. The required control distance, signal type, hazardous-area classification and feedback functions should be stated in the RFQ.
9. Can a BOP control unit operate offshore or in extreme temperatures?
A BOP control unit can be configured for offshore, desert or cold-weather service when the actual environmental conditions are considered during design.
Offshore BOP control systems may require marine-grade coatings, stainless steel tubing, corrosion-resistant fasteners, protected electrical equipment and containerized construction. Hazardous-area motors, cable glands, switches and control enclosures may also be required for the installation location.
Desert projects may need sun protection, filtered ventilation, heat-resistant hoses and reservoir temperature monitoring. By comparison, a winterized BOP accumulator unit may require insulation, reservoir heating, enclosure heating, low-temperature hydraulic fluid and hoses suitable for the specified minimum temperature.
The RFQ should provide actual temperature limits, offshore exposure, area classification and installation conditions rather than using only broad descriptions such as offshore or Arctic service.
10. What documents and tests should a BOP control unit supplier provide?
The required documentation depends on the purchase order and project specification. A typical package may include a general arrangement drawing, hydraulic schematic, electrical or pneumatic diagram, accumulator sizing calculation, pump performance data, equipment data sheets, bill of materials, operation manual and spare-parts list.
Factory acceptance testing should verify the charging pumps, automatic start and stop settings, pressure retention, regulator stability, directional-valve operation, alarms and local control functions. Where remote panels are included, their commands, indications and feedback signals should also be tested.
The supplier should record the agreed results in a FAT report. Buyer-appointed inspectors or third-party inspection companies may witness selected tests when this requirement is included in the approved inspection and test plan.
Complete drawings and test records are particularly important for offshore drilling projects, BOP rental fleets, replacement control units and rigs that must maintain long-term spare-parts traceability.
11. What affects API 16D BOP control unit price and lead time?
BOP control unit price depends on the required usable accumulator capacity, number of hydraulic functions, pump redundancy, control-panel arrangement and hose scope. Containerized construction, hazardous-area electrical equipment, marine corrosion protection, low-temperature packages and PLC integration can also increase the project cost.
The supply boundary has a major effect on quotation comparison. A lower-priced offer may exclude remote panels, BOP control hoses, electrical cables, fittings, startup spares, FAT, technical documents or commissioning support.
Lead time depends on engineering complexity, drawing approval, component availability, custom fabrication and inspection requirements. Hazardous-area motors, stainless steel tubing, long fire-resistant hose bundles and containerized enclosures may require additional procurement time.
For an accurate commercial proposal, buyers should provide the required delivery date, inspection scope, destination and Incoterm at the RFQ stage.
12. What information should buyers include in a BOP control unit RFQ?
A useful BOP control unit RFQ should identify the rig type, BOP location and intended application. The supplier needs to know whether the package will serve a land drilling rig, offshore platform, jack-up rig, workover unit, BOP rental fleet or replacement project.
The RFQ should describe the connected annular BOPs, ram BOPs, blind shear rams and hydraulic choke or kill line valves. Equipment models, bore sizes, ram arrangements and opening and closing volumes allow the supplier to calculate the required usable accumulator capacity.
Buyers should also provide the available voltage, frequency, compressed-air pressure and airflow, together with the required local and remote control stations. Hose quantity, length, internal bore, pressure rating, connections, fire resistance and temperature limits should be included where available.
Environmental conditions, area classification, documentation requirements, FAT scope, third-party inspection, quantity, destination and required delivery date should also be stated.
When complete hydraulic data are unavailable, SGPE can review BOP stack drawings, equipment nameplates, technical data sheets and existing hydraulic schematics before recommending a project-specific BOP control unit configuration.
Request an API 16D BOP Control Unit Quotation from SGPE
SGPE supplies BOP control unit packages for land drilling rigs, offshore surface BOP stacks, jack-up rigs, workover units, BOP rental fleets and selected well control applications.
The packages can be configured for applicable API Spec 16D project requirements. Available options include electric, pneumatic, combined electric-pneumatic and diesel-driven systems.
SGPE can provide skid-mounted or containerized arrangements with local control panels, remote driller’s panels, hydraulic manifolds, accumulator banks and BOP control hose bundles.
Project-specific options may include offshore corrosion protection, hazardous-area electrical equipment, cold-weather protection, desert drilling packages, replacement units, accumulator capacity upgrades and remote-panel retrofits.
Before preparing a proposal, SGPE can review the connected annular and ram BOPs, shear functions, hydraulic valves, operating sequence, hose length, rig utilities and environmental conditions.
For a technical and commercial quotation, provide the BOP stack drawing or equipment list together with the BOP models, sizes and ram configuration. Where available, include opening and closing volumes, hose details, utility information and the required operating sequence.
E-Mail:
info@sgpe.com
