Remote BOP Control Panel for API 16D Systems: Selection, Price and Buying Guide

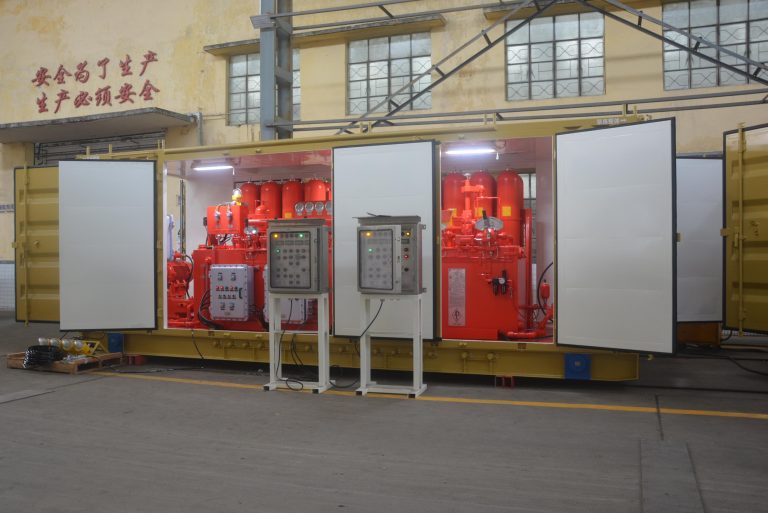

An API 16D Remote BOP Control Panel gives drilling personnel immediate access to critical well control functions from a protected operating position. From the driller’s cabin, doghouse, workover cabin or another designated station, the operator can control ram BOPs, operate an annular preventer, actuate hydraulic choke and kill line valves, and monitor essential control-system pressures.
This remote-control capability supports drilling, workover, well servicing, coiled tubing, snubbing and selected well intervention operations. When the crew detects a kick, pit gain, unexpected flow or another sign of lost primary well control, each function must be clearly identified and ready to respond.
Selecting the correct BOP remote control station involves much more than choosing the number of handles, switches or displayed functions. The panel must match the actual BOP stack, accumulator unit, main hydraulic manifold, signal method, installation route, hazardous-area requirements and operating environment.
A mismatched panel can cause crossed control signals, incorrect function labels, slow pneumatic response or incompatible electrical connections. These problems often become apparent during installation or commissioning, when field modifications are expensive and project delays are difficult to recover.
This guide explains how a Remote BOP Control Panel works, how pneumatic, electrical and PLC-based systems differ, and which technical details buyers should confirm. It also covers API 16D control-system scope, Koomey remote panel replacement, BOP control panel retrofit, factory acceptance testing, price factors and the information SGPE needs before preparing a quotation.
Scope note: This guide focuses on remote panels for surface BOP control systems used on land drilling rigs, workover units, offshore platforms, jackups, coiled tubing packages and selected intervention systems. Subsea BOP control systems use different architectures and require a separate engineering review.
API 16D Remote BOP Control Panel Buying Checklist
Before requesting a quotation, confirm the main project information shown below.
| Selection Item | Information Required |
|---|---|
| Application | Drilling, workover, coiled tubing, snubbing or well intervention |
| BOP stack | Type, bore size, working pressure, manufacturer and model |
| Controlled functions | Complete open-and-close function schedule |
| Existing control unit | Manufacturer, model, operating pressure and manifold arrangement |
| Control method | Pneumatic, electrical, electro-pneumatic, electro-hydraulic or PLC |
| Installation | Panel location and actual cable or pneumatic route |
| Project conditions | Utilities, hazardous area, environment and inspection scope |
When original drawings are unavailable, clear photographs can provide useful preliminary information. Images of the panel front, internal components, connectors, main manifold and equipment nameplate can help SGPE review the existing BOP accumulator control system before detailed engineering begins.
What Is an API 16D Remote BOP Control Panel?
A Remote BOP Control Panel is an operator interface that sends commands to a blowout preventer control system from a location away from the main hydraulic control manifold.
The panel does not normally generate the hydraulic power required to operate the BOP stack. Instead, the BOP accumulator unit stores pressurized hydraulic fluid. Electric pumps or air-operated hydraulic pumps maintain system pressure, while the main manifold directs fluid to the selected BOP or hydraulic valve.
Depending on the rig layout, the operator may use the panel from the driller’s cabin, doghouse, rig floor control area, workover cabin or coiled tubing cabin. Larger installations may include a second BOP remote control station in a central control room, toolpusher’s office or designated emergency location.
The system architecture determines how the remote panel communicates with the main control unit. Conventional installations often use pneumatic pilot signals. Modern systems may use electrical circuits, electro-pneumatic interfaces, electro-hydraulic controls or PLC-based communication.
The panel should therefore be treated as one part of the complete API 16D BOP control system. It is not a universal cabinet that can connect to every accumulator unit without verifying pressure ranges, pilot logic, electrical signals, connectors and function allocation.
Common Names Used for BOP Remote Panels
Oilfield contractors and equipment suppliers may describe similar equipment as a BOP Remote Control Panel, Remote BOP Panel, Driller’s BOP Control Panel, Driller’s Control Panel, BOP Control Console, BOP Remote Control Station, BOP Accumulator Remote Panel, Koomey Remote Panel, BOP Closing Unit Remote Panel or Blowout Preventer Control Panel.
These terms are often used interchangeably, but they do not always describe the same configuration. A complete RFQ should define the control method, functions, installation position and interface requirements instead of relying on the equipment name alone.
API 16D Scope and Remote BOP Control Panels
API Specification 16D covers control systems for drilling well control equipment and diverter equipment.
A standalone Remote BOP Control Panel does not automatically represent a complete API 16D control system. The full system also includes the hydraulic power source, accumulator capacity, control manifold, remote interfaces, operating logic, backup controls, system performance, testing and technical documentation.
Accurate equipment descriptions may include “Remote BOP Control Panel for an API 16D control system,” “Driller’s panel engineered for an API 16D BOP control unit” or “BOP accumulator remote panel for a surface well control system.”
The term API 16D-compatible BOP remote panel should only be used when the proposed design, components, test scope and document package support that description.
Before placing an order, the buyer should define the applicable API 16D scope, required system interfaces, inspection requirements and final technical documentation.
SGPE can review the remote panel as part of the complete BOP control arrangement. This review helps confirm the function schedule, gauge ranges, signal method, connector details, backup controls and required drawings before production.
Remote Panel, Driller’s Panel and BOP Accumulator Unit
These components work together, but each one performs a different role.
| Equipment | Main Function | Typical Location |
| BOP accumulator unit | Stores and supplies hydraulic power | Beside the rig or in a protected equipment area |
| Main hydraulic manifold | Directs hydraulic fluid to each controlled function | On the accumulator skid |
| Driller’s BOP Control Panel | Gives the driller access to critical controls | Driller’s cabin or doghouse |
| Secondary remote station | Provides another operating point | Control room or emergency location |
| Interface cabinet | Converts or distributes control signals | Near the main unit or remote station |
BOP Accumulator Unit
The BOP accumulator unit, also known as a BOP closing unit, hydraulic control unit or Koomey unit, supplies the hydraulic energy required to operate the BOP stack.
A typical unit contains accumulator bottles, a hydraulic reservoir, electric pumps and air-operated hydraulic pumps. It also includes regulators, relief valves, directional control valves, pressure gauges and local operating controls.
The accumulator unit provides hydraulic power. The BOP accumulator remote panel allows the operator to access selected functions from another location.
Main Hydraulic Control Manifold
The main manifold receives pressure from the accumulator bank and directs hydraulic fluid to the selected annular preventer, ram BOP or hydraulic valve.
Each function can normally be operated directly from the manifold. This local control point also provides an important backup if the remote pneumatic, electrical or communication path becomes unavailable.
Driller’s BOP Control Panel
The Driller’s BOP Control Panel is installed near the driller’s normal operating position.
Depending on the approved BOP stack, it may control annular preventers, pipe rams, variable bore rams, blind shear rams, choke line valves, kill line valves and selected auxiliary equipment.
The operator interface may use pneumatic control valves, electrical selector switches, guarded pushbuttons, indicator lights or an HMI.
Secondary BOP Remote Control Station
Large land rigs, offshore platforms and jackups may use more than one remote operating station.
For example, the primary panel may be installed in the driller’s cabin, while a secondary BOP control console is positioned in a central control room or emergency station. The RFQ should identify the quantity, location and operating authority of each panel.
Typical API 16D Remote BOP Control Panel Technical Data
Control and Pressure Data for an API 16D Remote BOP Control Panel
The following values provide a preliminary reference for remote control panels used with surface BOP control systems. They are not universal API 16D requirements. Final control methods, pressure settings and gauge ranges must be verified against the connected BOP stack, accumulator unit, main manifold and approved project specification.
| Technical Parameter | Typical Reference Data | Selection Notes |
|---|---|---|
| Control method | Pneumatic, electrical, electro-pneumatic, electro-hydraulic or PLC/HMI | Match the existing control architecture |
| Controlled functions | 4, 6, 8, 10, 12 or custom | Count every independently controlled function |
| Pneumatic supply | Commonly 0.6–0.8 MPa / 87–116 psi | Confirm pilot-valve and tubing requirements |
| Accumulator operating pressure | Commonly up to 20.7 MPa / 3,000 psi for many surface systems | Verify the actual accumulator rating |
| Accumulator gauge | Commonly 0–34.5 MPa / 0–5,000 psi | Select a range above normal operating pressure |
| Manifold pressure | Often regulated near 10.3 MPa / 1,500 psi | Follow the approved system setting |
| Manifold gauge | Commonly 0–20.7 MPa / 0–3,000 psi | Match the regulated manifold circuit |
| Annular pressure | Adjustable for the connected annular BOP | Follow the BOP operating manual |
| Annular gauge | Commonly 0–20.7 MPa / 0–3,000 psi | Confirm the required range and accuracy |
| Air supply gauge | Commonly 0–1.4 MPa / 0–200 psi | Typically used on pneumatic control panels |
Technical note: BOP working pressure is not the same as control-system pressure. Final pressure ratings and instrument ranges should be confirmed in the approved project data sheet.
Electrical, Enclosure and System Integration Data
The panel enclosure, electrical configuration and communication interface should be selected according to the installation location and operating environment. A sheltered land-rig panel may use painted carbon steel, while offshore, jackup or coastal applications may require stainless steel, marine-grade corrosion protection and certified electrical devices.
| Technical Parameter | Typical Reference Data | Selection Notes |
| Control voltage | 24 VDC commonly used | Other control voltages can be selected |
| Incoming power | 110/220 VAC, 50/60 Hz or project-specific | Confirm the available site power |
| Enclosure material | Painted carbon steel, 304 SS or 316 SS | Select according to corrosion exposure |
| Ingress protection | IP54, IP55 or IP65 commonly requested | Match indoor or outdoor installation |
| Ambient temperature | Typical industrial range: –20°C to +50°C | Special climates require component review |
| Gauge units | psi, MPa, bar or dual scale | Match operator and project preferences |
| Panel language | English, bilingual or project-specific | Approve all labels before production |
| Hazardous-area design | ATEX, IECEx, NEC/CEC or project-specific | Applies to electrical devices in classified areas |
| Communication | Hardwired I/O, industrial network or custom interface | Confirm integration with the rig control system |
| Installation distance | Project-specific | Use the actual routed cable or pneumatic distance |
Technical note: SGPE confirms the final electrical supply, enclosure material, ingress protection, hazardous-area configuration, communication method and installation interface in the approved Remote BOP Control Panel data sheet.
BOP Working Pressure Is Not Control Pressure
The BOP stack working pressure does not directly determine the operating pressure of the remote panel or accumulator control system.
A 5,000 psi, 10,000 psi or 15,000 psi BOP stack may use a hydraulic control system that operates at a different pressure. Gauges, regulators and directional control valves should not be selected from the BOP pressure rating alone.
The engineering review should confirm the accumulator operating pressure, regulated manifold pressure, annular closing pressure, pneumatic pilot pressure and actuator requirements. It should also verify the opening and closing volumes of every controlled function.
Hydraulic volume is particularly important because it affects accumulator sizing, pump recovery time and the overall response of the API 16D BOP control unit.
How Does a Remote BOP Control Panel Work?
The operating sequence depends on the selected control technology.
Pneumatic Remote BOP Control Panel
In a pneumatic system, the operator moves a control valve on the panel. Compressed air travels through a pneumatic bundle or individual pilot line to an air-operated pilot valve at the main manifold.
The pilot valve shifts the corresponding hydraulic directional valve and sends pressurized fluid to the selected actuator. Return fluid then flows back to the hydraulic reservoir.
A pneumatic Driller’s BOP Control Panel often suits conventional land rigs, mobile workover units and existing Koomey control systems because it is relatively simple to operate and troubleshoot.
Its performance still depends on clean air, correct pilot pressure, proper tubing size, leak-free connections and the actual distance between the driller’s panel and the main manifold.
Electrical BOP Control Panel
In an electrical system, the operator activates a selector switch or guarded pushbutton.
The command travels to a relay, solenoid valve or control module, which shifts the required hydraulic directional valve. Electrical BOP control panels can simplify long-distance cable routing and support additional indicator lights, alarms, pressure transmitters and monitoring functions.
Electrical components installed in classified areas must match the specified Zone or Division, gas group, temperature class and certification requirements.
Electro-Pneumatic BOP Control Panel
An electro-pneumatic control panel uses electrical commands at the operator station and pneumatic pilot signals at the main manifold.
An interface cabinet converts each electrical command into the required pneumatic signal. This arrangement is often selected for a BOP control panel retrofit because it allows an existing pneumatic manifold to remain in service while the operator station is upgraded.
Electro-Hydraulic BOP Control Panel
An electro-hydraulic design uses electrical commands to operate hydraulic control components directly or through a dedicated interface.
This arrangement can support fast command transmission, electronic pressure monitoring and valve-position feedback. However, it requires a detailed review of the hydraulic circuit, electrical power supply, hazardous-area requirements, failure response and backup operating method.
PLC and HMI BOP Control Panel
A PLC-controlled BOP panel receives commands through physical switches, an HMI or a combination of both.
The PLC processes the approved operating logic and sends the required output to the control interface. It may also display pressure values, pump status, alarm history, communication condition, valve-position information and event records.
Regardless of the selected control method, the basic sequence remains similar. The operator selects a function, the remote panel sends a command, the main manifold shifts the related valve, and hydraulic fluid operates the selected BOP or hydraulic valve.
Because every command must reach the correct physical function, SGPE reviews the pneumatic, electrical and hydraulic interfaces before finalizing a custom Remote BOP Control Panel.
Which BOP Functions Can the Panel Control?
The controlled functions depend on the BOP stack, drilling program and approved operating procedure.
| Application | Typical Controlled Functions |
| Surface drilling BOP stack | Annular, pipe rams, variable bore rams, blind shear rams, choke and kill valves |
| Workover BOP stack | Annular, pipe rams, blind rams and hydraulic wellhead valves |
| Coiled tubing BOP stack | Pipe rams, slip rams, shear rams, seal rams and equalizing valves |
| Snubbing stack | Stripping rams, pipe rams, annular, slips and isolation valves |
| Diverter system | Diverter element, port selection and flowline valves |
| Auxiliary pressure-control package | Hydraulic connectors, master valves and isolation valves |
A buyer should not request only a generic six-function, eight-function or ten-function panel. Two BOP remote panels with the same function count may operate different equipment and use different control logic.
A complete controlled-function schedule provides a reliable basis for panel engineering, pricing, mimic design, connector allocation and FAT preparation.
Example Six-Function BOP Remote Panel Schedule
| Function No. | Controlled Equipment | Commands |
| 1 | Annular BOP | Open / Close |
| 2 | Upper pipe ram | Open / Close |
| 3 | Lower pipe ram | Open / Close |
| 4 | Blind shear ram | Open / Close |
| 5 | Choke line valve | Open / Close |
| 6 | Kill line valve | Open / Close |
This arrangement is only an example. Another six-function API 16D Remote BOP Control Panel may control a completely different BOP stack. The final mimic diagram, valve allocation and connection schedule must follow the approved project configuration.
Main Components of a BOP Remote Control Panel
| Component | Main Purpose | Key Selection Point |
| Control valves or switches | Send operating commands | Match the selected control architecture |
| Mimic diagram | Shows the actual BOP stack | Match the approved stack arrangement |
| Accumulator gauge | Displays stored hydraulic pressure | Select the correct range |
| Manifold gauge | Displays regulated control pressure | Match the main manifold |
| Annular gauge | Displays annular closing pressure | Follow annular BOP requirements |
| Air gauge | Displays pneumatic supply pressure | Required for pneumatic panels |
| Alarm devices | Warn about abnormal conditions | Define setpoints and outputs |
| Enclosure | Protects internal components | Select material and IP rating |
| Interface connectors | Connect the panel to the main unit | Confirm type and allocation |
| PLC or HMI | Provides control and diagnostics | Define redundancy and failure response |
Pneumatic panels commonly use manual air control valves. Electrical panels may use selector switches, guarded pushbuttons, illuminated controls or key-operated switches. PLC-based designs may combine physical emergency controls with an HMI.
The control layout should reduce accidental operation while keeping critical functions easy to identify and reach.
The BOP stack mimic diagram must follow the approved equipment arrangement. It may show the annular preventer, ram cavities, blind shear ram, choke and kill valves, hydraulic connectors and auxiliary functions.
Pressure instruments may include mechanical gauges, electronic transmitters or both. The final panel data sheet should define gauge ranges, accuracy, dial size, display units, signal outputs, alarm setpoints and calibration requirements.
Painted carbon steel may suit sheltered land-rig installations. Offshore platforms, jackups and humid coastal locations may require stainless-steel construction, corrosion-resistant tubing or marine-grade coating.
Why Is Remote BOP Control Important?
The accumulator skid often sits away from the immediate drilling area because it requires space for bottles, pumps, the hydraulic reservoir and maintenance access.
During a well control event, however, the driller cannot leave the primary operating position to reach the accumulator unit. A BOP remote control station brings critical functions directly to the operator.
Faster Access During Well Control Operations
The operator can activate the required BOP function without traveling to the accumulator skid.
This arrangement supports faster action after the crew identifies a kick, pit gain, unexpected flow, abnormal standpipe pressure or flow with the pumps stopped.
Clear BOP Function Identification
A project-specific mimic diagram shows the actual position of the annular preventer, upper and lower ram cavities, blind shear ram, choke valves and kill valves.
Hydraulic connectors and auxiliary functions can also be identified. Clear labeling helps reduce confusion during routine pressure testing, commissioning and emergency shut-in operations.
Operation from a Protected Position
The panel can be installed in a driller’s cabin, doghouse, workover cabin, control room or another location selected through the rig layout and site risk assessment.
The final position should provide safe access, clear visibility and enough space for operation and maintenance.
Central Pressure Monitoring
The panel may display accumulator pressure, regulated manifold pressure, annular closing pressure and pneumatic supply pressure.
More advanced designs may also include pressure transmitters, low-pressure alarms, pump-status indication, communication alarms and position feedback.
Integration with Rig Control Systems
Electrical and PLC-based panels can exchange pressure data, alarm information, pump condition and function status with a rig control network.
Digital integration should not make emergency operation more complicated. Critical BOP functions still need clear controls, logical grouping and a practical backup method.
API 16D Remote BOP Control Panel Selection Guide
1. Define the Application
Start by identifying whether the panel will serve a land drilling rig, offshore platform, jackup, mobile workover unit, coiled tubing package, snubbing system or another well intervention application.
The application affects the required functions, control method, enclosure design, installation position, environmental protection and inspection scope.
2. Confirm the BOP Stack Configuration
Provide the BOP type, nominal bore, working pressure, manufacturer, model and ram arrangement.
The supplier also needs the side outlet arrangement, quantity of hydraulically controlled valves and any auxiliary functions.
A BOP stack drawing gives the clearest overview because the panel mimic and controlled-function schedule must follow the actual stack sequence.
3. Prepare the Controlled-Function Schedule
Use the same function names on the mimic diagram, valve tags, cable schedule, pneumatic connections and main manifold.
Avoid general labels such as “Ram 1” or “Valve 2” when the actual equipment can be identified as upper pipe ram, lower variable bore ram, choke line HCR valve or kill line HCR valve.
Consistent naming reduces the risk of crossed signals during manufacturing, installation and site commissioning.
4. Identify the Existing BOP Accumulator Unit
For a replacement or retrofit project, provide the accumulator manufacturer, model, serial number and operating pressure.
The engineering review must also identify the existing pilot valves, signal method, connector arrangement and local manifold logic.
Hydraulic schematics, pneumatic diagrams, wiring drawings and clear photographs can help confirm compatibility when the original documentation is incomplete.
5. Select the Control Technology
| Control Type | Suitable Applications | Main Advantages | Main Considerations |
| Pneumatic | Land rigs, workover rigs and existing Koomey units | Simple operation and maintenance | Requires clean air and suitable pilot lines |
| Electrical | Modern land rigs and compact installations | Flexible alarms and cable routing | Requires suitable power and area protection |
| Electro-pneumatic | Retrofit projects with pneumatic manifolds | Retains the existing pilot manifold | Requires an interface cabinet |
| Electro-hydraulic | Integrated rigs and selected offshore projects | Fast command transmission and electronic feedback | Requires detailed interface engineering |
| PLC and HMI | Centralized rig control systems | Diagnostics, alarms and event recording | Requires software control and redundancy planning |
A more complex system is not automatically the best choice.
A conventional land rig with an existing air-pilot manifold may benefit from a straightforward pneumatic BOP control panel. By contrast, a modernized offshore rig may require an electro-pneumatic or PLC-based driller’s panel with pressure transmitters and alarm integration.
6. Confirm the Installation Position and Route
State whether the remote control panel will be installed in the driller’s cabin, doghouse, workover cabin, central control room or emergency station.
The location affects accessibility, mounting, visibility and hazardous-area requirements.
The installed route length affects pneumatic response, cable sizing, connector selection and project cost. The inquiry should provide the approximate routed distance rather than only the straight-line measurement.
7. Define Environmental and Hazardous-Area Requirements
The project specification should state the minimum and maximum ambient temperatures, humidity, salt spray, dust, vibration and expected water exposure.
It should also identify the applicable Zone or Division, gas group, temperature class and certification requirements.
Even a mainly pneumatic Remote BOP Control Panel may contain electrical indicators, pressure transmitters, alarms, junction boxes or enclosure heaters.
8. Define Pressure Indication and Position Feedback
The buyer should confirm whether the panel requires mechanical gauges, electronic pressure transmitters, pressure switches, status lights, limit switches or verified valve-position feedback.
Advanced BOP control consoles may also include analog outputs, digital communication, HMI graphics and event recording.
A command indication does not necessarily confirm the physical position of a BOP or valve. The required feedback level should therefore be defined in the project data sheet.
9. Confirm Backup Control
The complete API 16D control system should provide a practical operating method if the primary remote path fails.
Depending on the rig design, backup control may include direct operation at the main manifold, an independent pneumatic circuit, secondary electrical power, redundant communication or another remote station.
10. Define FAT and Documentation Requirements
Before placing the order, confirm the FAT scope, third-party inspection requirements and technical document package.
The final package may include a technical data sheet, general arrangement drawing, approved BOP stack mimic, hydraulic and pneumatic schematics, wiring diagrams, component list, recommended spare-parts list, operation manual, calibration certificates and test reports.
Remote BOP Panel Selection by Application
| Application | Recommended Panel Features |
| Land drilling rig | Pneumatic or electro-pneumatic controls, clear mimic and local gauges |
| Offshore platform | Stainless-steel enclosure, certified electrical devices and remote alarms |
| Jackup rig | Marine corrosion protection, sealed connectors and a secondary station |
| Workover rig | Compact design, quick connections and transport-resistant enclosure |
| Coiled tubing | Ram-specific mimic, cabin mounting and power-pack interface |
| Snubbing | Sequence-based layout, clear ram identification and backup control |
| HPHT project | Temperature-qualified components and reviewed instrumentation |
| Retrofit project | Existing manifold compatibility and custom interface design |
Land drilling rigs commonly use pneumatic or electro-pneumatic BOP control panels. Desert projects may require improved dust protection and high-temperature components, while cold-weather rigs may need enclosure heaters, low-temperature seals and suitable tubing or cables.
An offshore API 16D Remote BOP Control Panel may require a stainless-steel enclosure, marine-grade coating, sealed connectors, corrosion-resistant tubing and certified electrical devices. Pressure transmitters, remote alarms and a secondary control station may also be required.
A workover BOP control panel should remain compact, durable and easy to reconnect because workover and well servicing equipment frequently moves between wells.
A coiled tubing BOP control panel may operate pipe rams, slip rams, shear rams, seal rams and equalizing valves. Its mimic diagram and operating logic must follow the actual coiled tubing BOP stack sequence.
Snubbing and hydraulic workover systems operate under live-well pressure. Their complete equipment stack and approved operating sequence should be reviewed before the control panel is designed or priced.
Replace the Remote Panel or the Complete BOP Control Unit?
| Existing Condition | Replace Panel | Replace Complete Unit |
| Accumulator bottles remain serviceable | Yes | Usually no |
| Pumps remain suitable | Yes | Usually no |
| Main manifold remains suitable | Yes | Usually no |
| Existing panel is obsolete | Yes | Not always |
| Mimic no longer matches the BOP stack | Yes | Not always |
| Accumulator capacity is insufficient | No | Yes |
| Pumps cannot meet system demand | No | Yes |
| Main manifold has serious damage | No | Yes |
| Control logic requires major redesign | Possibly | Often yes |
| Retrofit cost approaches new-unit cost | Review | Often yes |
A panel-only replacement may be practical when the accumulator bottles, pumps, reservoir and main manifold remain serviceable.
A complete BOP control unit upgrade may be more suitable when the available accumulator capacity is insufficient, the pumps cannot meet recovery requirements, the main manifold is damaged or the new operating logic differs significantly from the existing system.
SGPE can review the nameplates, drawings, panel photographs and manifold arrangement before recommending a Driller’s Panel Replacement, BOP control system retrofit or complete API 16D BOP control unit replacement.
Koomey Remote Panel Replacement and Retrofit
A Koomey Remote Panel Replacement may include new pneumatic pilot valves, electrical switches, pressure gauges, pressure transmitters and updated labels.
The project may also require a new BOP stack mimic diagram, stainless-steel enclosure, replacement pneumatic bundle, new electrical cables or upgraded connectors.
A more extensive BOP control system retrofit may include an electro-pneumatic interface cabinet, PLC and HMI controls, remote alarms, pressure monitoring or an additional emergency operating station.
A replacement panel should never be designed from the visible front layout alone.
The existing pilot-valve logic, connector arrangement, signal type, gauge ranges, regulator controls and actual BOP functions must all be verified. This engineering review helps reduce compatibility problems during installation, commissioning and future maintenance.
Common API 16D Remote BOP Control Panel Buying Mistakes
| Buying Mistake | Possible Result | Recommended Action |
| Buying by function quantity alone | Incorrect control layout | Provide a complete function schedule |
| Ignoring the main manifold interface | Incompatible connections | Submit drawings and photographs |
| Using a generic mimic diagram | Operator confusion | Approve the final stack graphic |
| Ignoring the installed route length | Slow response or incorrect cable size | Provide the actual routed distance |
| Omitting hazardous-area data | Incorrect electrical components | State the area classification |
| Comparing cabinet-only prices | Misleading commercial comparison | Compare the same supply scope |
| Ignoring spare-parts availability | Longer future downtime | Request component and spare lists |
A low cabinet price does not always represent the lowest total project cost.
One supplier may quote only the enclosure and operator controls. Another quotation may include the pneumatic bundle, electrical cables, connectors, interface cabinet, FAT, drawings and recommended spare parts.
A reliable commercial comparison should therefore use the same technical scope, testing requirements, document package and delivery responsibility.
How to Evaluate a Remote BOP Control Panel Manufacturer
When comparing an API 16D Remote BOP Control Panel manufacturer or supplier, look beyond the quoted price.
A qualified supplier should review the complete BOP control-system interface rather than prepare a quotation from a front-panel photograph alone.
The supplier should be able to review the BOP stack, existing accumulator unit, controlled-function schedule, installation route and operating environment. It should also prepare a project-specific mimic diagram and the required pneumatic, electrical or hydraulic interface drawings.
Depending on the agreed scope, the technical package may include a data sheet, general arrangement drawing, component list, pneumatic schematic, wiring diagram, hydraulic interface drawing, FAT procedure, test report, operation manual and recommended spare-parts list.
The quotation should clearly identify inclusions, exclusions, packing, commissioning support, inspection requirements and replacement-component availability.
SGPE supports new-build remote panels, obsolete Driller’s Panel Replacement, Koomey remote panel retrofit and complete BOP control-system packages. Each quotation defines the proposed configuration, testing scope, documentation and commercial boundaries.
Factory Acceptance Testing for a Remote BOP Control Panel
| FAT Area | Typical Verification |
| Construction | Dimensions, enclosure, coating, nameplate and component layout |
| Pneumatic system | Tubing, fittings, leakage and pilot-valve operation |
| Electrical system | Wiring, insulation, grounding and power supply |
| Instrumentation | Gauge ranges, transmitters, alarms and indicators |
| Control logic | Open-and-close commands for every function |
| Mimic diagram | Function names and actual BOP stack arrangement |
| PLC and HMI | Inputs, outputs, graphics, alarms and failure response |
| Documentation | Drawings, manuals, component list and test records |
The FAT should confirm that the manufactured panel matches the approved drawings, function schedule and interface requirements.
Whenever practical, SGPE can test the panel with the actual accumulator unit or a representative manifold simulator, depending on the agreed supply scope. This test helps confirm that each switch, pilot valve, solenoid, alarm and indicator corresponds to the intended physical function.
For PLC and HMI panels, testing may also cover communication status, input and output signals, alarm logic, event records and response to power or communication failure.
Installation and Site Acceptance Testing
During installation, the site team should verify the panel position, cable and hose routing, connector identification, electrical power and pneumatic supply.
The commissioning team should then check the function labels, gauge readings, alarms, communication, opening and closing direction, and backup operating controls.
Every command must operate the correct physical BOP or hydraulic valve. A crossed pilot line, incorrect electrical connection or wrong mimic label can create a serious well control risk.
Remote BOP Control Panel Maintenance and Troubleshooting
Routine maintenance should cover the enclosure, function labels, gauges, pressure transmitters, pneumatic tubing, electrical terminals and communication connections.
Each controlled function should also be checked during planned BOP system testing. Damaged labels, inaccurate gauges or outdated mimic diagrams should be corrected before the BOP stack returns to service.
| Problem | Possible Causes | Initial Checks |
| No functions operate | Loss of air, power or communication | Check supplies and isolation valves |
| One function does not respond | Pilot line, solenoid, relay or valve fault | Trace the affected circuit |
| Function moves in the wrong direction | Crossed lines or incorrect wiring | Stop testing and verify connections |
| Pressure indication is incorrect | Gauge, transmitter or sensing-line fault | Compare with a calibrated reference |
| Pneumatic response is slow | Low pressure, leakage, moisture or long lines | Inspect the pneumatic system |
| Repeated electrical alarms | Loose wiring, unstable power or moisture | Inspect terminals and enclosure |
| Mimic does not match the stack | Stack modification or incorrect graphic | Update labels and drawings |
Technicians should follow the approved troubleshooting procedure and isolate stored hydraulic energy before opening any control-system component.
What Affects API 16D Remote BOP Control Panel Price?
The API 16D Remote BOP Control Panel price depends on the complete engineering and supply scope.
A panel with more controlled functions requires additional valves, switches, indicators, labels and interface connections. The selected control architecture also affects cost because a pneumatic panel uses different components from an electrical, electro-pneumatic, electro-hydraulic or PLC-based control console.
The enclosure material, ingress-protection rating and hazardous-area requirements can significantly affect the quotation. A standard painted-steel panel for a sheltered land rig normally costs less than a stainless-steel offshore BOP control panel fitted with certified electrical equipment.
Price is also influenced by the number of pressure gauges and transmitters, alarm and feedback requirements, pneumatic bundle or cable length, custom connectors, interface cabinets, secondary remote stations, low-temperature packages, third-party inspection, FAT documentation and recommended spare parts.
Buyers should compare identical technical scopes rather than selecting a supplier from the cabinet price alone.
Frequently Asked Questions About API 16D Remote BOP Control Panels
1. What is the purpose of an API 16D Remote BOP Control Panel?
An API 16D Remote BOP Control Panel allows the driller or another authorized operator to control critical blowout preventer functions from a location away from the main BOP accumulator unit.
Depending on the approved configuration, the panel may operate an annular BOP, pipe rams, variable bore rams, blind shear rams, choke line valves, kill line valves and selected auxiliary hydraulic equipment.
The panel may also display accumulator pressure, regulated manifold pressure, annular closing pressure and pneumatic supply pressure. On land rigs, offshore platforms, workover units and intervention packages, this remote operating position gives the crew access to essential well control functions without leaving the driller’s cabin or another protected station.
2. Does a BOP remote control panel supply hydraulic power?
No. The remote panel normally does not generate or store the hydraulic energy required to operate the BOP stack. Hydraulic power is supplied by the BOP accumulator unit.
The remote panel sends a pneumatic, electrical, electro-pneumatic or digital command to the main control system. The manifold then directs pressurized hydraulic fluid to the selected preventer or hydraulic valve.
For this reason, a replacement BOP remote panel must match the accumulator operating pressure, control logic, connectors and valve arrangement of the existing unit.
3. Is a Remote BOP Control Panel the same as a Koomey unit?
No. A Koomey unit generally refers to the complete BOP accumulator or hydraulic closing unit, while a Koomey Remote Panel is the operator interface connected to that system.
The accumulator unit provides hydraulic power and contains the primary control manifold. The remote panel allows the driller to operate selected functions from the driller’s cabin, doghouse, workover cabin or another designated position.
A complete package may include the accumulator unit, local manifold, driller’s panel, secondary remote station, pneumatic bundle, electrical cables and interface cabinet.
4. Is a standalone Remote BOP Control Panel automatically API 16D certified?
No. A standalone panel should not automatically be described as a complete API 16D-certified control system.
API Specification 16D applies to the broader control-system arrangement, including the hydraulic power source, accumulator capacity, control manifold, remote interfaces, operating logic, backup controls, system performance, testing and documentation.
A more accurate description is “Remote BOP Control Panel for an API 16D control system.” The description “API 16D-compatible BOP remote panel” should only be used when the design, test scope and documentation support that claim.
5. Can one panel operate both annular and ram BOPs?
Yes. A properly engineered panel can operate both annular and ram-type blowout preventers when the function schedule and hydraulic control system are designed for the connected stack.
A typical surface BOP control panel may operate an annular preventer, pipe rams, variable bore rams, blind rams, blind shear rams and hydraulic choke or kill line valves.
The annular preventer normally requires independently regulated closing pressure. Its gauge range, regulator and control circuit should therefore follow the annular BOP operating requirements rather than the BOP stack working pressure alone.
6. How many functions should a Remote BOP Control Panel include?
The required number of functions depends on the actual BOP stack and the number of independently controlled hydraulic devices.
Each annular preventer, ram cavity, choke valve, kill valve, connector or auxiliary function should be counted according to the approved control logic.
A six-function panel may operate one annular preventer, two pipe ram cavities, one blind shear ram, one choke line valve and one kill line valve. Another six-function panel may operate completely different equipment. Buyers should provide both the quantity and exact name of each function.
7. Which is better: a pneumatic or electrical BOP control panel?
A pneumatic BOP control panel often suits conventional land drilling rigs, mobile workover units and existing Koomey systems. It offers relatively simple operation and troubleshooting, although its response depends on clean air, pilot pressure, tubing condition and installation distance.
Electrical and electro-pneumatic panels can support longer cable routes, additional alarms, pressure transmitters, position feedback and integration with modern rig controls.
The most suitable design depends on the existing manifold, route length, hazardous-area classification, environmental conditions and required backup controls.
8. Can a new remote panel connect to an existing BOP accumulator unit?
Yes, but compatibility must be verified before production.
The engineering review should confirm the accumulator operating pressure, pilot-valve arrangement, control-signal type, gauge ranges, connectors, installation route, function logic and main manifold configuration.
Buyers should provide the existing unit manufacturer, model, serial number, nameplate photographs and available hydraulic, pneumatic or electrical drawings. Photographs of the original panel and manifold are particularly useful when the original documents are incomplete.
9. Can an obsolete driller’s panel be replaced without changing the accumulator unit?
In many cases, yes. A Driller’s Panel Replacement may be practical when the accumulator bottles, pumps, reservoir, regulators and main manifold remain in suitable condition.
The replacement scope may include a new enclosure, pneumatic pilot valves, electrical switches, pressure gauges, transmitters, mimic diagram, cables, connectors or pneumatic bundle.
A complete API 16D BOP control unit upgrade may be more appropriate when the existing accumulator capacity, pumps, manifold or operating logic no longer meets the project requirements.
10. What should the Remote BOP Control Panel FAT include?
The FAT should confirm that the panel matches the approved drawings, controlled-function schedule and interface requirements.
Testing normally covers the enclosure, component layout, pneumatic tubing, electrical wiring, grounding, gauges, transmitters, alarms, indicators and open-and-close commands.
The FAT should also verify that every switch, pilot valve or solenoid corresponds to the correct function on the BOP stack mimic diagram. PLC and HMI panels may require additional testing of inputs, outputs, alarm logic, communication status and failure response.
11. What spare parts should operators keep for a BOP remote panel?
The recommended spare-parts package depends on the control technology and site maintenance capability.
A pneumatic panel may require spare pilot valves, regulators, filters, seals, fittings, tubing components and pressure gauges. Electrical systems may require selector switches, pushbuttons, relays, solenoid valves, fuses, power supplies and pressure transmitters.
PLC-based systems may also require selected communication, input or output modules. The final spare list should match the approved bill of materials and operating environment.
12. What information is required for an API 16D Remote BOP Control Panel quotation?
For an accurate quotation, provide the application, BOP stack drawing, nominal bore, working pressure, manufacturer, model and complete controlled-function schedule.
The inquiry should also identify the existing accumulator unit, preferred control method, panel location, cable or pneumatic route, available air supply, electrical voltage, hazardous-area classification and environmental conditions.
For a Koomey remote panel replacement or control-system retrofit, include photographs of the front panel, internal components, connectors, equipment nameplate, pneumatic bundle and main hydraulic manifold.
These details allow SGPE to review compatibility and prepare a more accurate technical and commercial proposal.
Request an SGPE API 16D Remote BOP Control Panel Quotation
SGPE supplies customized API 16D Remote BOP Control Panels, Driller’s BOP Control Panels, BOP Accumulator Remote Panels and complete surface BOP control-system packages for drilling, workover, coiled tubing, snubbing and well intervention projects.
As an oilfield well control equipment manufacturer and supplier, SGPE designs each panel around the actual BOP stack, controlled-function schedule, accumulator unit, main manifold and installation environment. Available configurations include pneumatic, electrical and electro-pneumatic controls, with selected electro-hydraulic, PLC and HMI options.
SGPE also supports Koomey Remote Panel Replacement, obsolete Driller’s Panel Replacement and BOP control system retrofit projects. The replacement scope may include pilot valves, switches, pressure gauges, transmitters, cables, pneumatic bundles, connectors, interface cabinets, mimic diagrams and secondary emergency stations.
Before recommending a panel replacement or complete BOP control unit upgrade, SGPE reviews the accumulator capacity, pump condition, manifold arrangement, signal method and control logic. This helps reduce compatibility problems and field modifications.
The API 16D Remote BOP Control Panel price depends on the function quantity, control method, enclosure material, hazardous-area requirements, route length, instrumentation, FAT scope, inspection and documentation package.
E-Mail:
info@sgpe.com
