API Drill Collar for Oilfield Drilling: Types, Specifications, Quality Control and Supplier Guide
Introduction
An API Drill Collar is a critical part of the oilfield drill string. It adds weight near the drill bit, improves bottom hole assembly stability, reduces vibration and supports efficient formation cutting in oil and gas well drilling.
For drilling contractors, oilfield service companies and petroleum equipment buyers, the right drill collar can reduce non-productive time, improve drilling performance and lower the risk of thread failure, stuck pipe, tool fatigue and other costly downhole problems.
This guide explains how API Drill Collars work, which types are commonly used, what specifications buyers should confirm and how to choose a reliable API drill collar supplier for oilfield drilling projects.
Quick Overview
| Topic | Key Point |
|---|---|
| Main function | Provides weight on bit and improves bottom hole assembly stability |
| Common types | Slick Drill Collar, Spiral Drill Collar, Non-Magnetic Drill Collar |
| Common material | AISI 4145H Modified or project-required alloy steel |
| Key specifications | OD, ID, length, connection, material grade, inspection requirements |
| Main applications | Conventional wells, deep wells, directional wells, horizontal wells, offshore drilling |
| Supplier focus | Material control, machining accuracy, thread quality, inspection documents, customization support |
What Is an API Drill Collar?

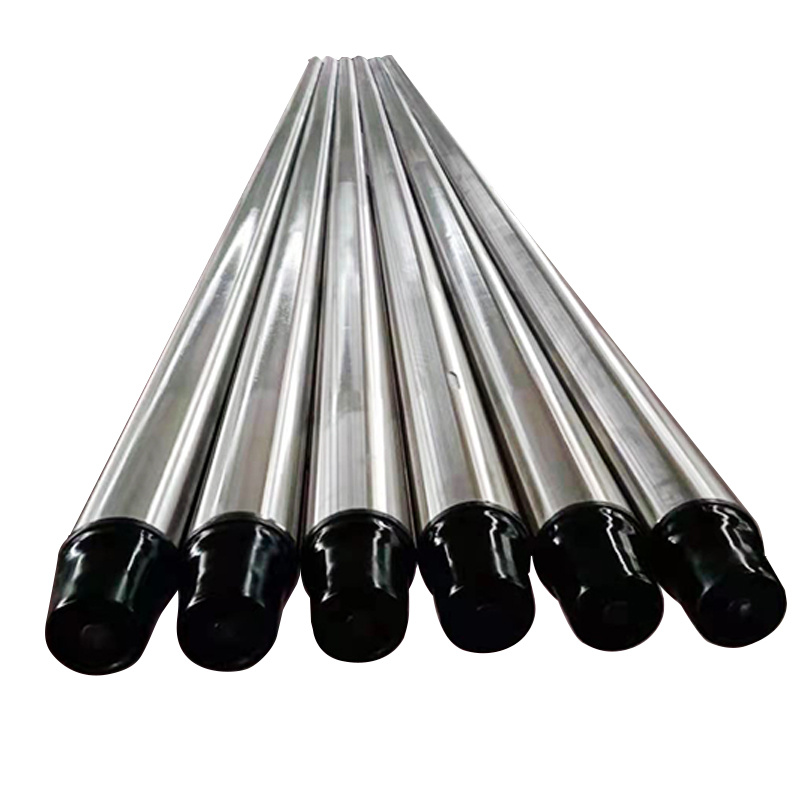

An API Drill Collar is a heavy, thick-walled drilling tool used in the lower section of the drill string. It is usually placed between the drill pipe and the drill bit. Its main purpose is to add weight near the bit and keep the bottom hole assembly, also known as BHA, stable during drilling.
Compared with standard drill pipe, a drill collar has a thicker wall, heavier body and higher rigidity. This structure allows it to handle high torque, axial load, impact, vibration and demanding downhole pressure.
In oil and gas drilling, the bit needs steady downward force to break rock formations. This force is called weight on bit, or WOB. The drill collar provides WOB through its own mass, helping the bit stay in better contact with the formation.
A high-quality oilfield drill collar also reduces bit bouncing, stick-slip, bending stress and unwanted well deviation. That is why drill collars are widely used in conventional wells, deep wells, directional wells, horizontal wells and offshore oilfield drilling projects.
Main Functions of API Drill Collar in Oilfield Drilling
Providing Weight on Bit
The primary function of an API Drill Collar is to provide controlled weight on the drill bit. Proper WOB allows the bit to cut oil and gas formations more smoothly. Too little weight slows drilling progress, while unstable weight can cause vibration, uneven cutting and early bit wear.
Improving Bottom Hole Assembly Stability
A drill collar adds stiffness to the lower drill string. This stiffness stabilizes the BHA, improves hole quality and supports more predictable drilling performance. A stable BHA also protects nearby downhole tools.
Reducing Downhole Vibration
Oilfield drilling tools often face dynamic loads. Drill collars help control vibration and impact near the bit. This protection benefits the drill bit, thread connections, mud motors, stabilizers, MWD tools, LWD tools and other downhole equipment.
Supporting Well Trajectory Control
In vertical wells, drill collars help the bit stay on the planned path. In directional and horizontal wells, they work with stabilizers, mud motors, jars, subs, MWD tools and LWD tools to support accurate trajectory control.
Lowering Downhole Risk
A properly manufactured API Drill Collar helps reduce fatigue cracks, thread damage, connection failure, stuck pipe and fishing operations. This is especially important in deep oil wells, high-pressure reservoirs, offshore drilling and complex petroleum formations.
Common Types of API Drill Collar
Different drilling programs need different drill collar designs. The three most common options are slick drill collar, spiral drill collar and non-magnetic drill collar.
Slick Drill Collar
A slick drill collar has a smooth cylindrical outer surface. It is commonly used in conventional oil and gas well drilling where operators need strong weight on bit and reliable drill string rigidity.
Oilfield crews often use slick drill collars in vertical wells, standard bottom hole assemblies and general petroleum drilling operations. This type offers a simple structure, strong mechanical performance and stable field use.

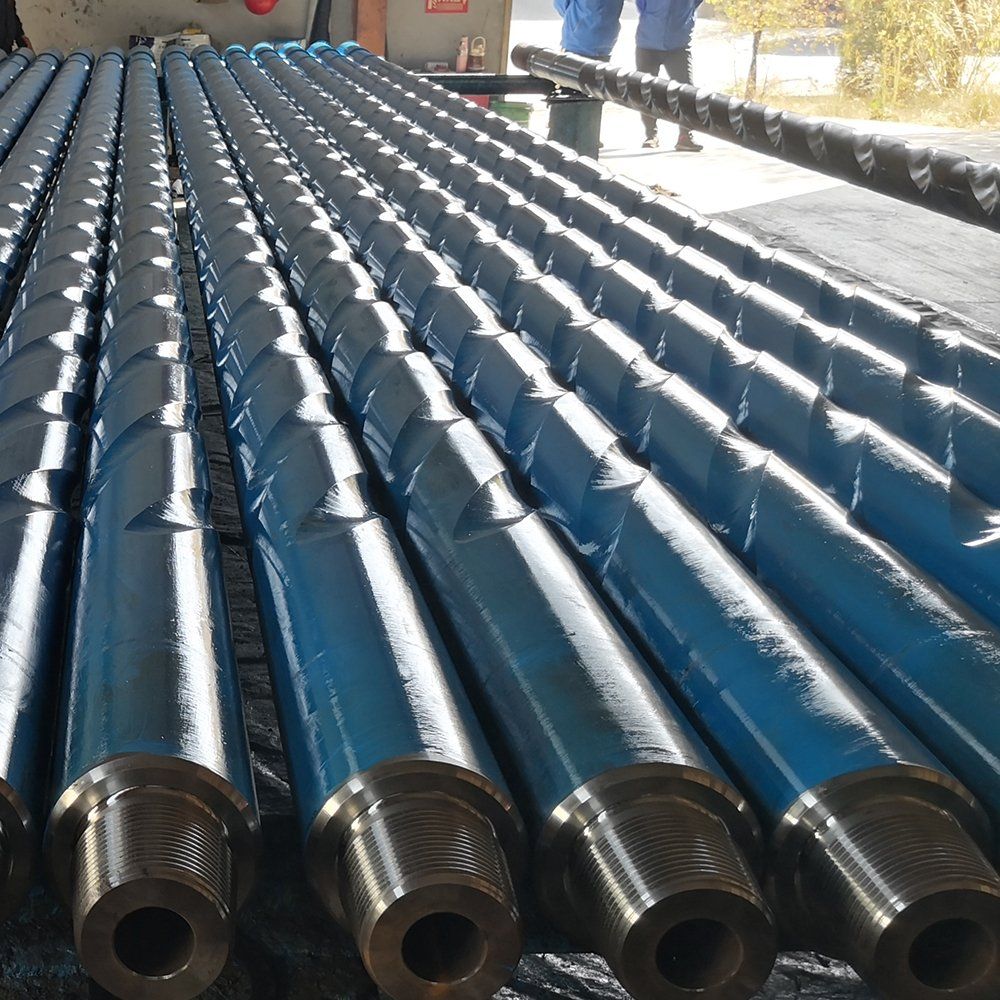

Spiral Drill Collar
A spiral drill collar has spiral grooves machined on the outer surface. These grooves reduce the contact area between the drill collar and the wellbore wall. This design helps lower the risk of differential sticking.
Spiral drill collars are often selected for directional wells, deviated wells, deep wells and complex formations. They are also useful when drilling conditions involve thick mud cake, high pressure difference or strong wellbore contact.

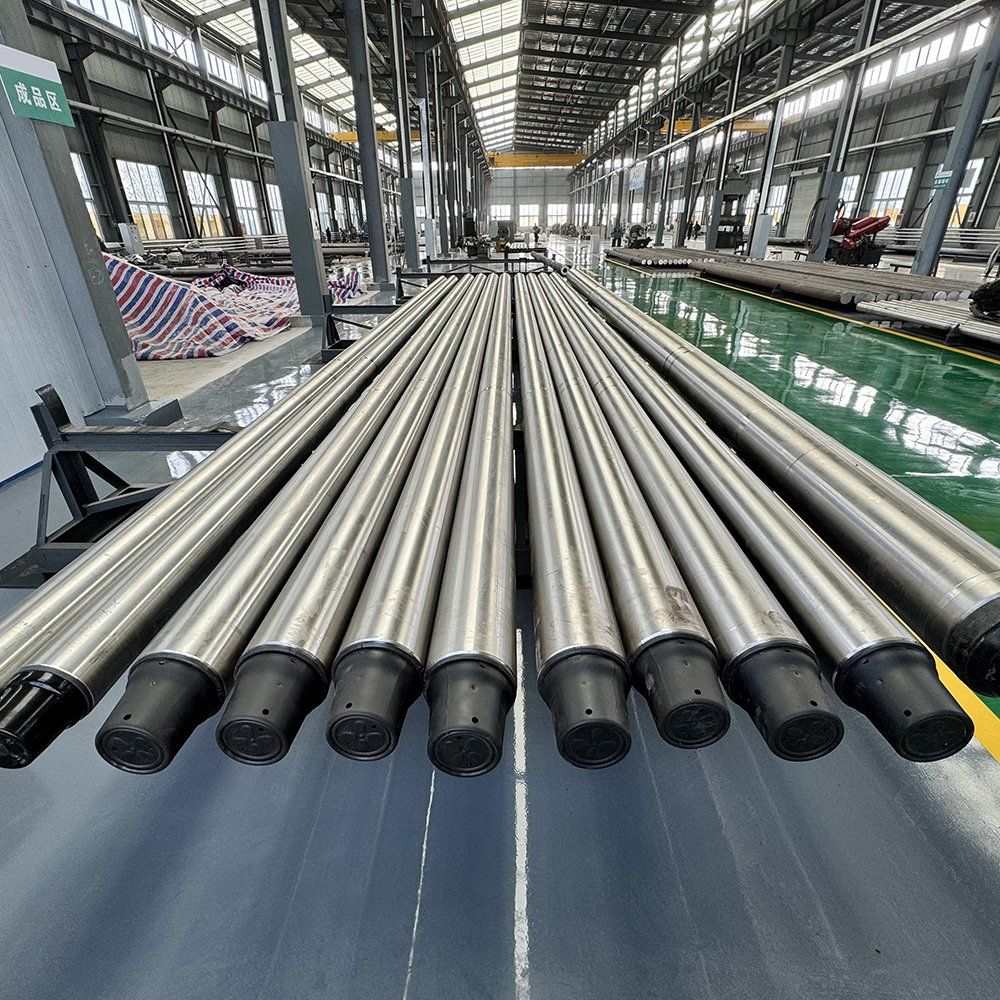

Non-Magnetic Drill Collar
A non-magnetic drill collar is used in directional drilling and measurement-while-drilling operations. It reduces magnetic interference around MWD and LWD instruments.
Accurate survey data helps drilling teams guide the wellbore toward the target reservoir. For this reason, non-magnetic drill collars are important in directional wells, horizontal wells, offshore wells and complex reservoir development.
API Drill Collar Specifications Buyers Should Confirm
Before ordering API Drill Collars, buyers should confirm the main technical specifications. Complete information allows the supplier to check production feasibility, recommend a suitable product and prepare an accurate quotation.
| Specification | Why It Matters |
|---|---|
| Drill collar type | Select slick, spiral or non-magnetic drill collar according to well design and BHA requirements. |
| Outer diameter, or OD | OD affects tool weight, wellbore clearance and BHA compatibility. |
| Inner diameter, or ID | ID affects drilling fluid circulation, hydraulic performance and tool weight. |
| Length | Standard lengths suit many drilling programs, while special wells may need customized lengths. |
| Thread connection | Common oilfield connections may include NC, REG, IF and other thread types. |
| Material grade | Material should match well depth, torque, load, formation condition and drilling fluid environment. |
| Surface treatment | Phosphate coating, anti-rust protection and other treatments protect the tool during storage and transportation. |
| Hardbanding | Hardbanding improves wear resistance when the collar contacts the wellbore wall. |
| Inspection requirements | Buyers may request dimensional inspection, thread inspection, NDT reports or third-party inspection. |
| Destination country or port | Shipping details help the supplier prepare export packaging and logistics documents. |
The correct drill collar thread connection ensures proper matching with drill pipes, heavy weight drill pipes, stabilizers, subs and other drilling tools. Clear specifications reduce communication time and help avoid production errors.
Available API Drill Collar Options from SGPE
SGPE supports standard and customized drill collar requirements for different oilfield drilling projects.
| Item | Available Options |
|---|---|
| Product type | Slick Drill Collar, Spiral Drill Collar, Non-Magnetic Drill Collar |
| Material | AISI 4145H Modified or project-required alloy steel |
| Connection | NC, REG, IF or customized oilfield thread connections |
| Length | Standard length or customized length |
| Surface protection | Phosphate coating, anti-rust oil or other protective treatment |
| Wear protection | Hardbanding available according to project needs |
| Inspection | Dimensional inspection, thread inspection, NDT and third-party inspection support |
| Packaging | Export packaging suitable for international oilfield projects |
These options help buyers match drill collar specifications with well depth, wellbore size, drilling method, formation condition and bottom hole assembly design.
Materials Used for API Drill Collar
High-quality API Drill Collars commonly use premium alloy steel such as AISI 4145H Modified. This material offers strong mechanical strength, good toughness, excellent hardenability and reliable fatigue resistance.
Oilfield drilling creates severe working conditions. Drill collars must withstand heavy load, repeated stress, torque, vibration, impact and drilling fluid exposure. Poor material quality can lead to early tool failure, thread damage, cracks or serious downhole accidents.
A reliable API drill collar manufacturer should control raw material quality from the start. Buyers should request material certificates, chemical composition reports, mechanical property reports, heat treatment records, hardness reports and non-destructive testing documents.
For high-value petroleum drilling projects, full traceability matters. Each drill collar should have clear records from raw material to final inspection.
Why API Standards Matter
API stands for American Petroleum Institute. In the petroleum industry, API standards provide widely recognized technical requirements for oilfield drilling tools.
For drill collars, relevant API requirements cover dimensions, connections, material performance, inspection procedures, marking and quality control. Buyers use these requirements to confirm product compatibility and reduce procurement risk.
API-standard drill collars also match other oilfield drilling tools more easily, including drill pipes, heavy weight drill pipes, stabilizers, subs, jars, mud motors and drill bits. This compatibility helps drilling teams build safer and more reliable bottom hole assemblies.
For international oilfield projects, API compliance also makes technical communication easier among drilling contractors, oil companies, equipment suppliers and inspection agencies.
Quality Control for API Drill Collar
Quality control directly affects drill collar safety, service life and drilling performance. A reliable drill collar must meet dimensional requirements and pass strict inspection during production.
Raw Material Inspection
Quality control starts with raw material inspection. The manufacturer should check chemical composition, mechanical properties and internal soundness before machining. Each drill collar should keep traceable material records.
Heat Treatment Control
Heat treatment gives the drill collar its required strength, hardness and toughness. Stable heat treatment improves fatigue resistance and service life. Poor heat treatment may cause uneven hardness, low impact resistance or early tool failure.
Precision Machining
Drill collars require accurate machining of the body, bore, shoulder surface and thread connection. Good machining accuracy ensures proper connection with other oilfield drilling tools and reduces field problems.
Thread Connection Inspection
Thread connection quality has a major impact on drilling safety. During oilfield drilling, the connection must handle torque, tension, compression, bending and vibration. Poor thread quality can cause galling, leakage, washout, connection damage or downhole failure.
A professional API drill collar manufacturer checks thread connections with proper gauges and inspection tools. The shoulder surface also needs accurate machining because it affects sealing, make-up quality and torque transfer.
Non-Destructive Testing
Non-destructive testing helps identify possible defects before shipment. Common inspection methods include ultrasonic testing, magnetic particle testing, dimensional inspection, hardness testing and visual inspection. For critical oilfield projects, buyers may also request third-party inspection.
Quality Documents Buyers Should Request
Professional buyers should request complete quality documents when purchasing API Drill Collars for oilfield drilling projects. These records verify product quality, confirm technical compliance and support full traceability.
A complete quality document package usually includes a material certificate, chemical composition report and mechanical property report. These records confirm whether the drill collar material meets the required strength, toughness and performance standards.
Buyers should also review heat treatment records and hardness test reports because heat treatment directly affects mechanical performance, fatigue resistance and service life. Dimensional inspection reports and thread inspection reports confirm that the product matches the required OD, ID, length, shoulder surface and thread connection specifications.
For oilfield drilling tools, NDT records are also important. Ultrasonic testing reports, magnetic particle testing reports and visual inspection reports help identify possible internal or surface defects before shipment. For critical projects, buyers may request third-party inspection before delivery.
SGPE can provide quality documents according to project requirements. These records allow oilfield customers to check material performance, machining accuracy, inspection results and final product quality before shipment.
Oilfield Applications of API Drill Collar
API Drill Collars support many oilfield drilling environments. Their use depends on well design, drilling method, formation condition and bottom hole assembly requirements.
Conventional Oil Well Drilling
In conventional oil wells, drill collars provide weight on bit and stabilize the drill string. They support smooth drilling through petroleum-bearing formations and improve drilling efficiency.
Deep Oil Well Drilling
Deep wells place higher demands on drilling tools. Drill collars used in deep oilfield projects must withstand high axial load, torque, vibration and downhole pressure. Strong material and reliable thread connections are essential.
Directional Oil Well Drilling
Directional drilling helps operators reach target reservoirs more accurately. API Drill Collars work with mud motors, stabilizers, MWD tools and other BHA components to support well trajectory control.
Horizontal Oil Well Drilling
Horizontal wells increase reservoir contact and can improve oil production. In horizontal drilling, drill collars must support the bottom hole assembly while handling complex bending and contact conditions.
Offshore Oilfield Drilling
Offshore drilling requires highly reliable tools because equipment failure can create expensive downtime. API Drill Collars used in offshore projects need stable performance, strict inspection quality and dependable documentation.
High-Pressure Oil Reservoir Drilling
High-pressure oilfield environments create demanding downhole loads. Drill collars used in these projects need strong material, accurate machining, reliable thread connections and strict quality control.
Complex Formation Oilfield Drilling
Some formations increase the risk of vibration, sticking, deviation or tool wear. Spiral drill collars and well-designed bottom hole assemblies can improve drilling safety and reduce operational problems.
How to Choose a Reliable API Drill Collar Supplier
Choosing the right supplier matters as much as choosing the right drill collar. Low-quality drill collars can lead to stuck pipe, thread failure, fishing operations, non-productive time and higher drilling cost.
A reliable API drill collar supplier should have proven manufacturing experience in slick drill collars, spiral drill collars and non-magnetic drill collars. The supplier should also support different sizes, materials, thread connections, inspection requirements and export packaging.
Buyers should check whether the supplier can provide material certificates, heat treatment records, mechanical test reports, dimensional inspection reports, thread inspection reports and NDT reports. These documents give purchasing teams a clear basis for quality review before shipment.
Good communication also matters. A professional supplier does more than quote a price. It helps customers choose suitable specifications based on well depth, wellbore size, formation condition, drilling method and bottom hole assembly design.
Need API Drill Collars for Your Project?
Send your drill collar type, OD, ID, length, connection, material grade and inspection requirements to SGPE. Our team can review your specifications and prepare a suitable quotation for your oilfield drilling project.
Request API Drill Collar Quote
Why Choose SGPE as Your API Drill Collar Supplier?
SGPE supplies oilfield drilling tools for petroleum industry customers worldwide. The company focuses on material performance, precision machining, strict inspection, stable quality and customer-oriented service.
SGPE can supply API Drill Collars, Spiral Drill Collars, Non-Magnetic Drill Collars, Heavy Weight Drill Pipe, Drill Pipe, Stabilizers, Kellys, Subs and other related oilfield drilling tools for oil and gas well operations.
For different oilfield environments, SGPE can support special OD, special ID, customized length, thread connection selection, spiral groove machining, non-magnetic material, hardbanding, surface protection, export packaging and third-party inspection support.
SGPE also helps buyers confirm key technical details before production. This reduces specification errors, improves quotation accuracy and makes international procurement easier.
With reliable manufacturing capability and strict quality control, SGPE helps oilfield customers obtain durable, safe and cost-effective drilling tools for petroleum drilling projects.

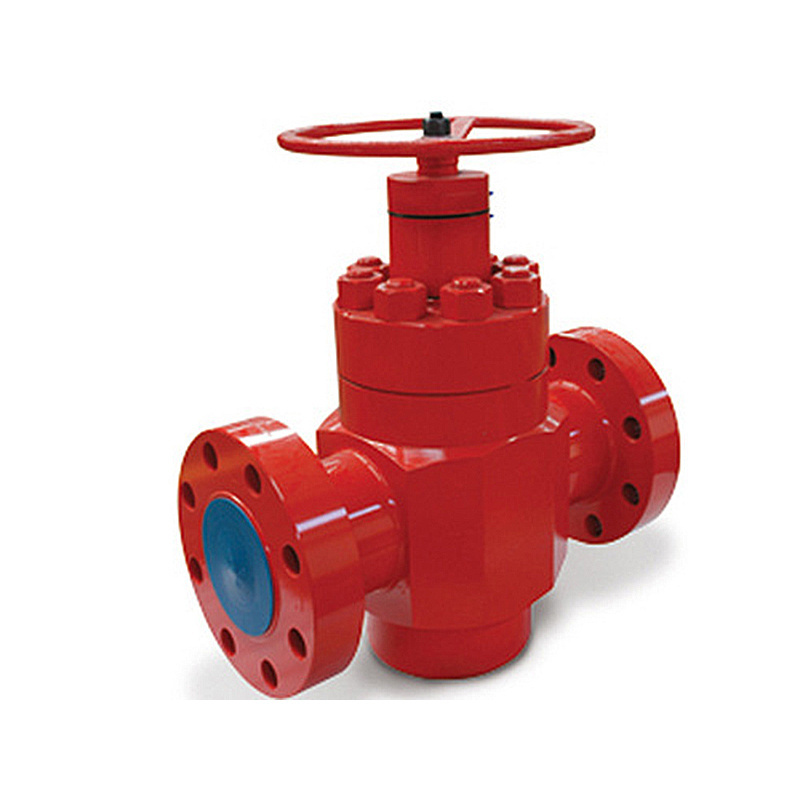

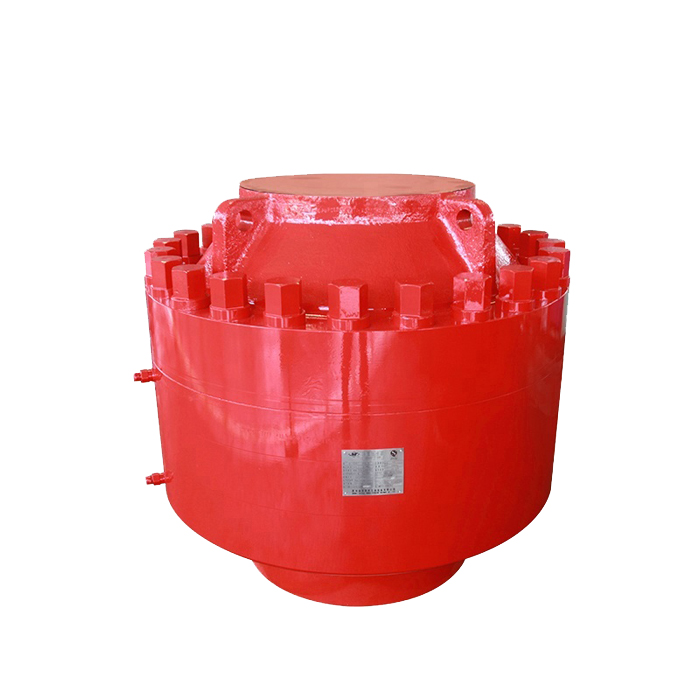

Related Oilfield Drilling Tools from SGPE
Oilfield drilling projects often require more than one drilling tool. SGPE can support complete drilling assembly requirements with related products such as Heavy Weight Drill Pipe, Drill Pipe, Stabilizer, Kelly, Subs and other oilfield equipment.
These related products help customers build stronger and more efficient drilling assemblies for different well conditions. Buyers can also compare product types, connection requirements and application needs across SGPE oilfield drilling tools.
Maintenance Tips for API Drill Collar in Oilfield Operations
Proper maintenance extends drill collar service life and reduces operational risk. Before running a drill collar into the well, operators should check the outer diameter, thread condition, shoulder surface, straightness, corrosion and visible damage.
Before make-up, crews should clean the thread and apply suitable thread compound. They should also follow the recommended make-up torque. Both over-torque and under-torque can cause connection problems.
After drilling operations, crews should clean the drill collar, apply anti-rust protection and install thread protectors. During storage, they should keep the drill collar in a dry and ventilated area and avoid direct ground contact.
Regular inspection helps detect hidden defects before reuse. This becomes especially important after deep well drilling, severe vibration, stuck pipe events, long service periods or harsh oilfield operating conditions.
Request a Quote for API Drill Collar
Looking for reliable API Drill Collars for your oilfield drilling project? SGPE supplies high-quality slick drill collars, spiral drill collars, non-magnetic drill collars and related oilfield drilling tools for petroleum industry customers worldwide.
Whether your project involves conventional oil wells, deep wells, directional wells, horizontal wells, offshore oilfield drilling or complex petroleum formations, SGPE can help you select suitable drill collar specifications and provide competitive solutions.
To help SGPE prepare a faster and more accurate quotation, please share your required drill collar type, such as slick drill collar, spiral drill collar or non-magnetic drill collar. You can also provide the outer diameter, inner diameter, length requirement, thread connection type, material grade and order quantity.
In addition, please describe the oilfield application environment, inspection or certification requirements, destination country or port and any special requirements. These may include hardbanding, surface treatment, anti-rust protection, export packaging or third-party inspection support.
With complete project information, SGPE can better understand your drilling conditions, recommend suitable API Drill Collar specifications and provide a more efficient quotation for your oil and gas well operation.
E-Mail:
info@sgpe.com
FAQ: API Drill Collar for Oilfield Drilling
1. What is an API Drill Collar used for?
An API Drill Collar adds weight near the drill bit and improves bottom hole assembly stability during oil and gas well drilling. It helps the bit cut formations more efficiently and supports smoother drilling performance.
Oilfield operators use drill collars to control weight on bit, reduce vibration and improve wellbore quality. They also use them to reduce tool damage in deep wells, directional wells, horizontal wells and offshore drilling projects.
2. How does an API Drill Collar improve drilling performance?
An API Drill Collar improves drilling performance by adding mass and stiffness near the bit. This keeps the bit in better contact with the formation and reduces unwanted movement in the lower drill string.
A stable drill collar can improve rate of penetration, reduce bit bouncing, protect downhole tools and support better trajectory control. These benefits help oilfield teams reduce drilling problems and operating cost.
3. What is the difference between drill collar, drill pipe and heavy weight drill pipe?
Drill pipe mainly transfers rotation and drilling fluid from the surface to the bit. Drill collar provides weight and stiffness near the bit. Heavy weight drill pipe, also called HWDP, works between drill pipe and drill collar to create a smoother stiffness transition.
In a typical drill string, drill pipe handles most of the length, HWDP reduces stress concentration and drill collars support the bottom hole assembly.
4. Which type of API Drill Collar should buyers choose?
Buyers should choose the drill collar type according to well design, formation condition and BHA requirement. Slick drill collars work well in many standard oil well drilling programs. Spiral drill collars help reduce differential sticking risk. Non-magnetic drill collars support MWD/LWD and directional drilling.
A professional API drill collar supplier can recommend the best option based on well depth, wellbore size, drilling method and target reservoir.
5. When should oilfield operators use a spiral drill collar?
Oilfield operators often use a spiral drill collar when the drilling program has a higher risk of differential sticking. Spiral grooves reduce contact with the wellbore wall and improve safety in challenging formations.
Spiral drill collars are suitable for directional wells, deviated wells, deep wells and formations with thick mud cake or high pressure difference.
6. Why do directional wells need non-magnetic drill collars?
Directional wells often rely on MWD and LWD tools for survey data and well trajectory control. Standard steel tools may create magnetic interference near these instruments.
A non-magnetic drill collar reduces this interference and supports more accurate measurement. It is widely used in directional wells, horizontal wells, offshore wells and complex reservoir development.
7. What material is commonly used for API Drill Collars?
Many high-quality API Drill Collars use premium alloy steel such as AISI 4145H Modified. This material offers strong mechanical strength, toughness, hardenability and fatigue resistance.
For demanding oilfield drilling projects, buyers should check material certificates, mechanical test reports, heat treatment records, hardness reports and NDT documents before shipment.
8. What specifications should buyers provide before ordering API Drill Collars?
Buyers should provide the required OD, ID, total length, material grade, quantity, thread connection type and drill collar type. They should also share the oilfield application environment, inspection requirements and destination country or port.
If the project needs surface treatment, hardbanding, anti-rust protection, special packaging or third-party inspection, buyers should mention these requirements before production.
9. How does thread connection quality affect API Drill Collar performance?
Thread connection quality affects torque transfer, sealing, make-up quality and tool life. Poor thread machining can cause galling, leakage, washout, connection damage or downhole failure.
A reliable API drill collar manufacturer controls thread machining carefully and checks the connection with suitable gauges. Buyers should request thread inspection reports for critical oilfield projects.
10. What quality documents should come with API Drill Collars?
API Drill Collars should come with quality documents that support material traceability and technical verification. These documents may include material certificates, chemical composition reports, mechanical property reports, heat treatment records, hardness reports, dimensional inspection reports, thread inspection reports and NDT reports.
For critical projects, buyers may also request third-party inspection reports before shipment.
11. What affects the price of API Drill Collars?
API Drill Collar price depends on size, material grade, length, thread connection, drill collar type, machining complexity, inspection requirements and order quantity.
Spiral grooves, non-magnetic material, hardbanding, special coating, third-party inspection and export packaging can also affect the final cost. Clear technical specifications help SGPE prepare a faster and more accurate quotation.
12. Can SGPE customize API Drill Collars for different oilfield projects?
Yes. SGPE can customize API Drill Collars according to oilfield project requirements. Custom options may include special OD, special ID, special length, slick design, spiral groove design, non-magnetic material, thread connection, hardbanding, surface protection and export packaging.
SGPE helps buyers match drill collar specifications with well depth, wellbore size, drilling method, formation condition and bottom hole assembly design.
