The Comprehensive Guide to API Drill Pipe: Ensuring High Performance in Oil and Gas Drilling Operations
Introduction
In the oil and gas industry, drilling plays a critical role in every project. To achieve reliable results, operators must use high-quality equipment that can handle extreme conditions and deliver consistent performance. Among these tools, the API Drill Pipe stands out as a key component.
API (American Petroleum Institute) drill pipes connect surface equipment to the drill bit. At the same time, they transfer drilling force and circulate fluid to downhole tools. Because drilling environments can be harsh, manufacturers design API drill pipes to meet strict industry standards. As a result, they offer strong durability, high strength, and dependable performance.
In this blog, we’ll walk through everything you need to know about API Drill Pipe. Specifically, we’ll cover its features, applications, benefits, standards, and how it improves both efficiency and safety in oil and gas drilling operations.

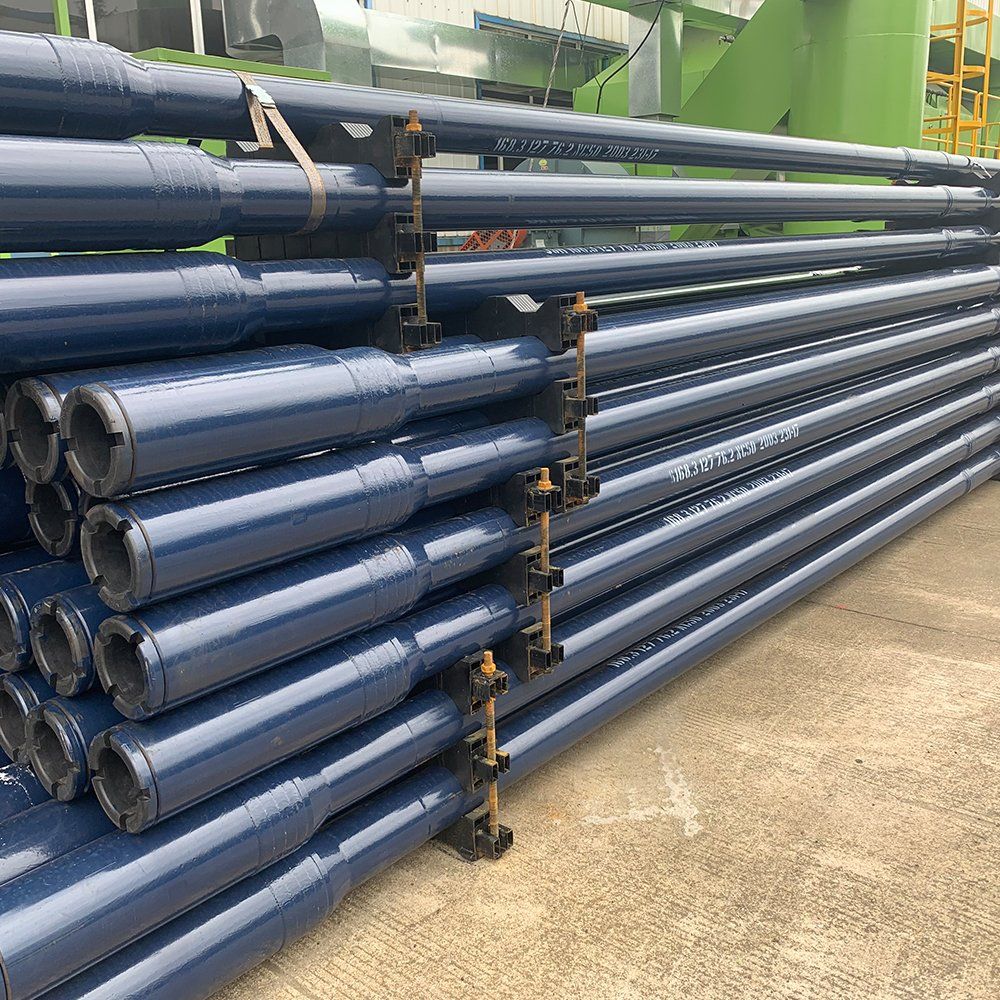

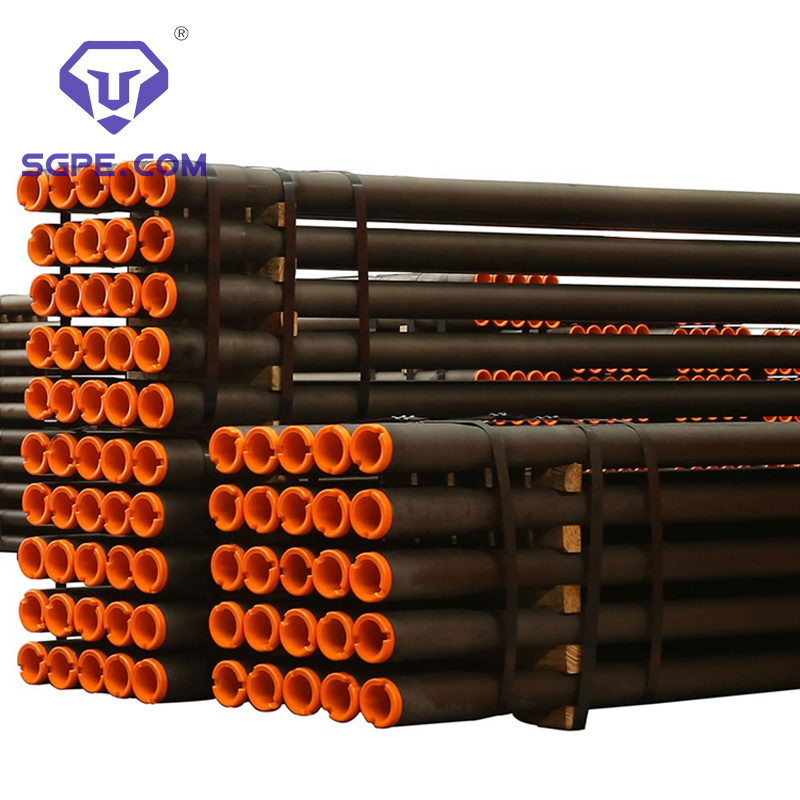

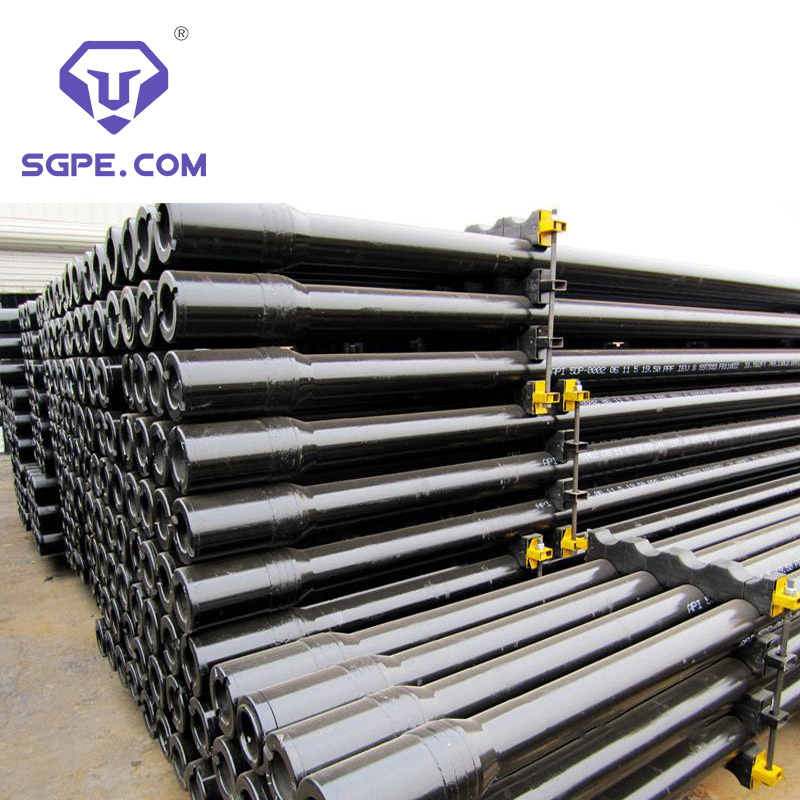

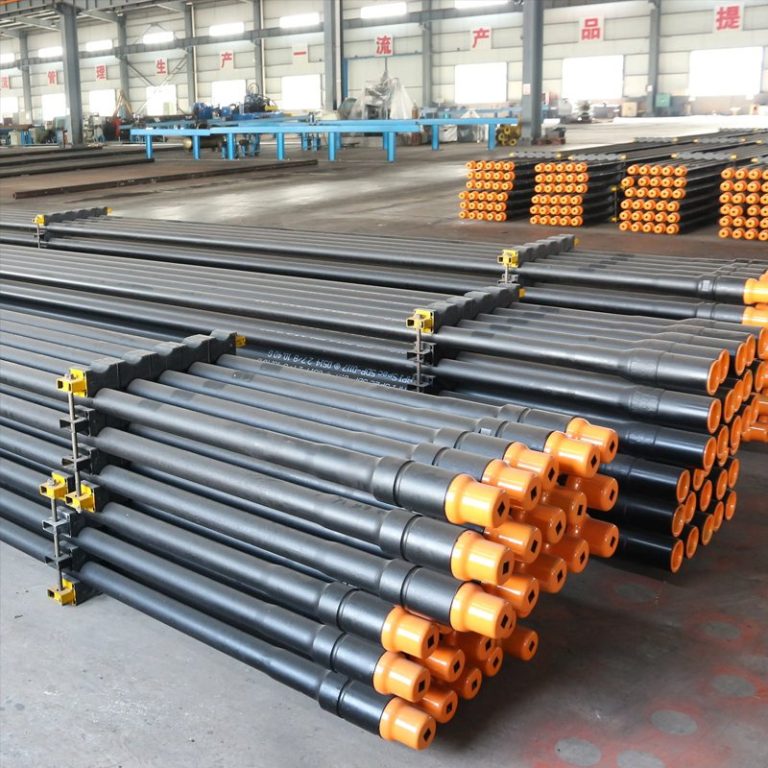

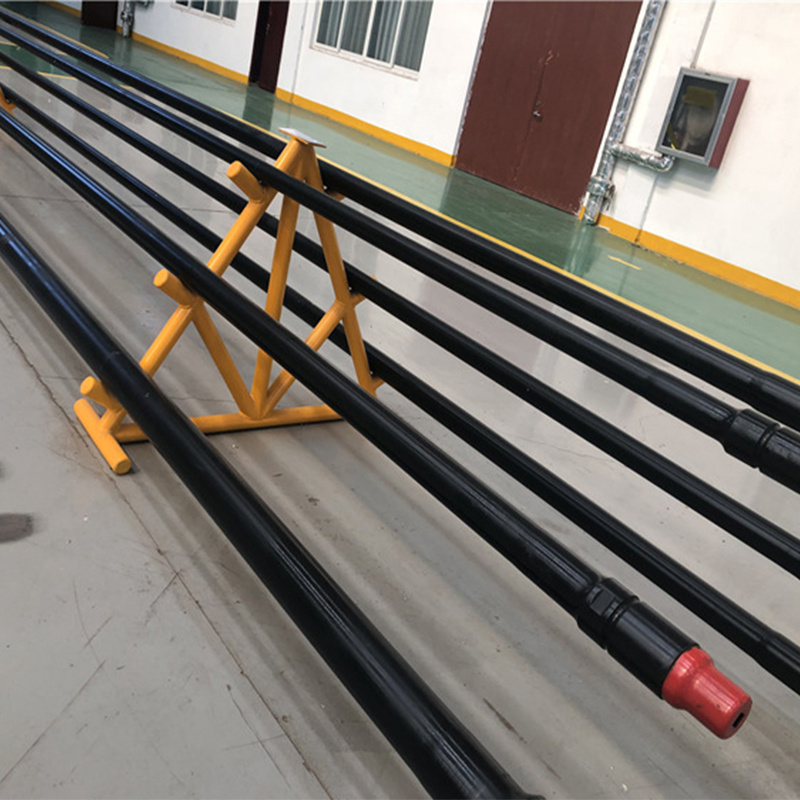

What is API Drill Pipe?
API Drill Pipe plays a crucial role in oil and gas well drilling. It connects surface equipment to the drill bit and, at the same time, transfers drilling torque and hydraulic pressure downhole. Because drilling conditions can be extreme, API drill pipes are designed to handle high pressure, high temperature, and corrosive environments. Therefore, they are widely used in both offshore and onshore drilling operations.
In addition, API Drill Pipe follows standards set by the American Petroleum Institute (API) under the API 5DP specification. This standard defines key requirements such as physical properties, manufacturing processes, and testing methods. As a result, each pipe must pass strict quality control checks to ensure it can withstand heavy loads and harsh drilling conditions.
Key Features of API Drill Pipe
1. High-Strength Steel Construction
API drill pipes use high-strength alloy steel to handle the intense mechanical stresses during drilling. This material delivers excellent tensile strength, so the pipes can withstand the heavy pressure generated in drilling operations.
2. Corrosion Resistance
During drilling, API drill pipes often come into contact with harsh chemicals, high-pressure fluids, and corrosive gases, especially in offshore environments. To address this, manufacturers use corrosion-resistant alloys. In addition, they apply protective layers such as ceramic or epoxy coatings, which further extend the service life of the pipes.
3. Durability and Fatigue Resistance
Drilling operations place continuous stress on the pipes through repeated cycles of tension, compression, and torsion. Therefore, API drill pipes are designed to handle these conditions. Their material and structure help maintain integrity over time, which reduces downtime and lowers replacement frequency.
4. Precision Manufacturing and Thread Design
Manufacturers produce API drill pipes with high precision, especially in the threaded connections. The thread design plays a critical role because it ensures a tight and leak-free connection between pipes and other drilling equipment. At the same time, the threads resist wear, reduce galling, and minimize the risk of failure during operation.
5. Standardized Dimensions and Quality Control
Another key advantage of API drill pipes lies in their standardized dimensions. These standards ensure compatibility with a wide range of drilling equipment. The API 5DP specification defines sizes, strength requirements, and manufacturing processes, which helps operators maintain consistency and reliability across different systems.
API Drill Pipe Types and Grades
API drill pipes come in different grades and types. Each option serves specific applications based on strength requirements, pressure levels, and operating environments. Therefore, choosing the right grade and type plays a key role in drilling performance and safety.
1. API Drill Pipe Grades
First, API drill pipes are classified by grade, which defines their material strength and suitable applications. The most common grades include:
- API Grade E: This grade is widely used in general drilling operations. It uses mild steel and offers reliable performance for standard conditions. As a result, many operators choose it for routine projects.
- API Grade X: This grade provides higher strength and handles more demanding conditions. Operators often use it in deep wells and high-pressure environments where stronger pipes are required.
- API Grade S: This is a super-strength grade designed for extreme applications. It performs well in offshore drilling and ultra-deep wells, where both high strength and resistance to fatigue and corrosion are essential.
2. API Drill Pipe Types
In addition to grades, API drill pipes also come in different types. Each type supports specific operational needs and drilling conditions.
- Heavy Weight Drill Pipe (HWDP): This type features a thicker wall than standard drill pipes. Because of this, it offers greater strength and better resistance to bending and buckling. Operators often use HWDP in deep drilling operations or when they need extra weight to maintain well control.
- Drill Pipe with Premium Threads: This type uses advanced thread designs to improve torque resistance, durability, and sealing performance. As a result, it performs well in deepwater and high-pressure wells, where standard threads may not provide enough reliability.
Applications of API Drill Pipe in Oil & Gas Operations
API drill pipes play a vital role in the drilling process. They support efficient and safe operations across a wide range of drilling activities. Below are the main applications:
1. Onshore Drilling
In onshore drilling, API drill pipes help create and maintain the wellbore for oil and gas extraction. At the same time, they transmit drilling fluid and pressure to the drill bit. As a result, operators can achieve stable drilling performance and maintain effective well control.
2. Offshore Drilling
In contrast, offshore drilling introduces more complex challenges, such as corrosive seawater, high pressure, and extreme temperatures. Therefore, API drill pipes used in offshore environments are engineered to handle these harsh conditions. This ensures long service life and reliable performance, even in deepwater operations.
3. Horizontal and Directional Drilling
Modern techniques like horizontal drilling and directional drilling require precise control. In these operations, API drill pipes guide the drill bit toward specific target zones. In addition, they provide the flexibility and strength needed to drill at different angles while maintaining well integrity.
4. Deepwater Drilling
Deepwater drilling demands equipment that can handle extreme pressure and depth. For this reason, API drill pipes play a critical role in these operations. Their high tensile strength and resistance to fatigue and corrosion allow them to perform reliably under such demanding conditions.
5. Well Control Systems
Finally, API drill pipes work closely with well control systems to manage pressure inside the well. They provide a secure and stable pathway for fluid and pressure flow. As a result, they help prevent blowouts and support safe drilling operations.
Benefits of API Drill Pipe in Oil & Gas Drilling
1. Enhanced Durability
API drill pipes are built for long-term use. They can handle repeated stress and harsh environmental conditions throughout the drilling process. As a result, they last longer and perform more consistently. This also helps reduce maintenance needs and cut downtime, which improves overall drilling efficiency.
2. Increased Safety
API drill pipes improve safety in several ways. First, they create reliable connections. Second, they help maintain stable pressure control during drilling. In addition, they can handle high pressure and corrosive fluids more effectively. Because of this, operators can reduce the risk of leaks, blowouts, and other serious hazards.
3. Cost-Effectiveness
API drill pipes usually cost more than non-certified pipes at the beginning. However, they bring better value over time. Their greater strength and durability mean fewer replacements and less frequent maintenance. So, even with a higher upfront cost, they can help lower total operating expenses in the long run.
4. Better Performance in Harsh Conditions
API drill pipes perform well in extreme drilling environments. For example, they can work under high pressure, high temperature, and corrosive conditions. That is why many operators choose them for offshore wells, deepwater projects, and high-pressure drilling operations. In these demanding settings, they deliver more reliable performance than ordinary pipes.
5. Regulatory Compliance
API drill pipes meet API 5DP and other important industry standards. Because of this, they help drilling companies stay in line with regulatory requirements. At the same time, compliance can reduce the risk of fines, project delays, and legal issues. As a result, companies can manage operations more smoothly and with greater confidence.
How to Choose the Right API Drill Pipe for Your Operation
Choosing the right API drill pipe depends on several factors, including the drilling environment, pressure and temperature conditions, and the specific requirements of the operation. Here are a few key considerations:
1. Pressure Rating
Ensure that the API drill pipe you choose is rated for the expected pressures in your drilling operation. API drill pipes come in different pressure ratings, with higher grades suitable for more extreme conditions.
2. Material Compatibility
The material of the API drill pipe should be compatible with the fluids and gases in your operation. For example, corrosion-resistant alloys are recommended for environments with high levels of hydrogen sulfide (H2S) or carbon dioxide (CO2).
3. Application Type
Choose the correct type of drill pipe based on the drilling method being used, such as heavy-weight drill pipe for deep or directional drilling, or drill pipes with premium threads for high-performance operations.
4. Thread Type
Select a thread design that best suits the operational requirements. API drill pipes are available with both standard and premium threads, with premium threads providing better durability and sealing properties.
Frequently Asked Questions (FAQ) about API Drill Pipe
1. What is the difference between API Drill Pipe and regular steel pipe?
API Drill Pipe serves the oil and gas industry, so it must meet strict standards from the American Petroleum Institute (API). Manufacturers use high-strength steel and design it for the intense pressure, corrosion, and mechanical stress that drilling operations create.
Regular steel pipe, by contrast, does not target these demanding conditions. It also does not go through the same level of testing for durability, fatigue resistance, and high-pressure performance. For this reason, API Drill Pipe remains the better choice for drilling applications where strength, reliability, and safety matter most.
2. What are the main grades of API Drill Pipe?
API Drill Pipe comes in several grades, and each one fits different drilling needs:
- API Grade E: This grade works well for general-purpose drilling and remains one of the most widely used options.
- API Grade X: This grade offers higher strength, so it suits deeper wells and higher-pressure environments.
- API Grade S: This grade delivers super strength for ultra-deep wells, offshore drilling, and other harsh conditions that demand maximum fatigue resistance and corrosion protection.
As a result, operators can choose the right grade based on well depth, pressure level, and operating environment.
3. How can I ensure the API Drill Pipe is compatible with my drilling equipment?
API Drill Pipe follows standardized dimensions under the API 5DP specification. Because of this, it usually matches drilling equipment from different manufacturers.
However, you should still check a few key details before making a final selection. For example, confirm that the thread type, whether standard or premium, fits your equipment. In addition, make sure the material matches the technical demands of your drilling operation. When these factors align, the drill pipe can deliver safer and more reliable performance.
4. What is the role of premium threads in API Drill Pipe?
Premium threads improve connection performance in demanding drilling conditions. They offer stronger torque resistance, better durability, and more reliable sealing.
Because of these advantages, premium threads work especially well in deepwater wells and high-pressure applications where standard threads may not perform well enough. They also help create a tighter, more secure connection. In turn, this reduces the risk of leaks, improves operational safety, and lowers the chance of failure during drilling.
5. Are API Drill Pipes used in offshore drilling different from those used in onshore drilling?
Yes, offshore and onshore drilling often require different pipe performance levels. Offshore API Drill Pipes usually use stronger alloys and additional corrosion-resistant coatings because they must handle seawater, high pressure, and extreme temperatures.
Onshore Drill Pipes also offer strong performance and durability, but they usually face less exposure to severe corrosive conditions. So, while both types support drilling operations effectively, offshore drill pipes need extra protection and strength for tougher environments.
6. What is the importance of fatigue resistance in API Drill Pipes?
Fatigue resistance plays a critical role in drill pipe performance. During drilling, API Drill Pipes face constant mechanical stress, including repeated tension, compression, and twisting. Over time, these forces can weaken the pipe.
Strong fatigue resistance helps the pipe handle long-term use without cracking or failing. As a result, operators can reduce downtime, lower maintenance costs, and keep drilling operations running safely and smoothly.
7. How does API Drill Pipe contribute to safety in drilling operations?
API Drill Pipe supports drilling safety in several important ways. First, it creates a reliable connection between the surface equipment and the drill bit. Then, it helps maintain stable pressure control throughout the operation.
This matters because poor pressure control can lead to serious accidents such as blowouts. In addition, API Drill Pipes can handle extreme pressure and corrosive conditions more effectively. Because of that, they reduce the risk of equipment failure and other safety hazards.
8. Can API Drill Pipes be used in directional and horizontal drilling?
Yes, API Drill Pipes play an important role in both directional and horizontal drilling. These drilling methods require accurate control of the well path, so the drill pipe must deliver both strength and flexibility.
API Drill Pipes meet these demands well. Their standardized design, solid mechanical performance, and dependable structure allow operators to drill at different angles and depths while protecting wellbore integrity and maintaining consistent performance.
9. What are the signs that an API Drill Pipe needs to be replaced?
Some common signs that API Drill Pipe may need replacement include:
- Visible wear or cracking in the pipe body or threads.
- Deformation of the pipe due to extreme stress or impact.
- Significant corrosion or pitting that affects the pipe’s strength.
- A reduction in the pipe’s ability to handle the required pressure or torque during operations.
10. How do I choose the right API Drill Pipe for my drilling operation?
To choose the right API Drill Pipe, you must consider the following factors:
- Pressure Rating: Select pipes with the appropriate pressure rating for your operation.
- Material Compatibility: Ensure that the pipe material is resistant to corrosion and compatible with the drilling fluids in use.
- Grade and Type: Choose the correct grade (E, X, S) and pipe type (heavy weight, premium threads) based on your drilling depth, pressure, and operational environment.
- Thread Type: Depending on your operation’s specific needs, select standard or premium thread designs for optimal performance.
11. Are API Drill Pipes eco-friendly?
API Drill Pipes may not qualify as eco-friendly products in the traditional sense. However, they still support more sustainable operations in several ways. Because they last longer and perform well in harsh conditions, operators do not need to replace them as often. This helps reduce material waste and lowers the environmental impact over time.
At the same time, many manufacturers continue to improve production and transportation processes. These efforts help reduce carbon emissions and support more responsible industry practices.
12. How do API Drill Pipes compare to non-API certified drill pipes in terms of cost?
API-certified drill pipes usually cost more than non-certified options. This higher price reflects their stricter quality standards, better materials, and stronger performance.
However, the long-term value is often better. API Drill Pipes usually last longer, need less maintenance, and reduce the risk of costly downtime. So, although the initial investment is higher, they can help lower total operating costs over time.
13. Can API Drill Pipes be used in both shallow and deepwater drilling?
Yes, API Drill Pipes can serve both shallow and deepwater drilling operations. However, deepwater drilling creates far more demanding conditions, so the pipe must deliver higher performance.
For deepwater projects, manufacturers use higher-strength materials and often add corrosion-resistant coatings. These features help the pipe handle seawater exposure, extreme pressure, and other harsh environmental conditions. In shallow drilling, the requirements may be less severe, but API Drill Pipes still provide reliable performance and durability.
14. How do API Drill Pipes ensure regulatory compliance?
API Drill Pipes help companies meet regulatory requirements because they follow the API 5DP specification. This standard defines the required mechanical properties, testing methods, and quality control requirements for drill pipes used in the oil and gas industry.
When companies choose API-compliant drill pipes, they can align more easily with both local and international regulations. As a result, they reduce the risk of operational delays, legal issues, and compliance-related penalties.
Conclusion
API Drill Pipes are essential components in oil and gas drilling operations, ensuring high-performance, safety, and durability. With their corrosion resistance, high tensile strength, and ability to withstand extreme environmental conditions, they are the preferred choice for both onshore and offshore drilling projects.
By understanding the features, benefits, and applications of API drill pipes, you can make informed decisions about the equipment you need for efficient and safe drilling operations. Whether you are involved in deepwater drilling, horizontal drilling, or well control, API drill pipes are designed to meet the rigorous demands of the oil and gas industry.
