API Hammer Union for Oilfield Flowline Connection: Selection, Applications, and Supplier Guide
In high-pressure oilfield service, a flowline connection is never a small detail. One mismatched or poor-quality connection can cause leakage, failed pressure testing, delayed rig-up, equipment damage, and serious safety risks on site.
The API Hammer Union gives crews a fast, strong, and reliable way to connect pressure lines in demanding oil and gas operations. Its hammer-tightened wing nut helps crews make up and break out the connection quickly, while the sealing structure supports stable pressure integrity during field service.
Oilfield teams use this connection in drilling flowlines, mud manifolds, cementing lines, fracturing lines, well testing equipment, workover units, pressure pumping systems, and manifold packages. Buyers also know it as an oilfield hammer union, high pressure hammer union, or flowline hammer union.
Selecting the right hammer union requires more than checking the size. Buyers should confirm the figure type, working pressure, material, seal design, end connection, service medium, temperature range, inspection documents, and compatibility with existing oilfield equipment.
This guide explains how hammer unions work, where crews use them, and how buyers can choose a reliable supplier for high-pressure oilfield flowline systems.

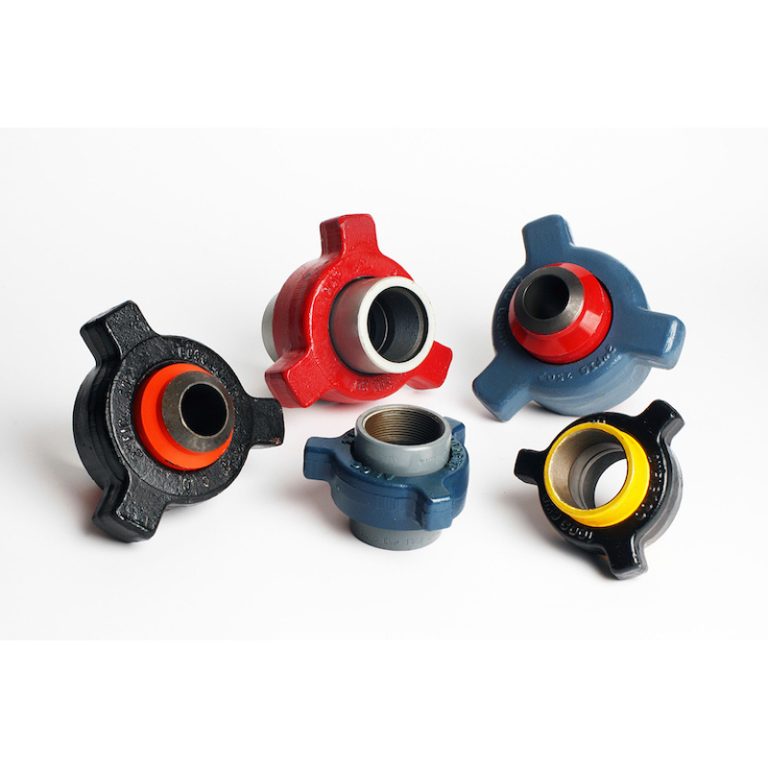

What Is an API Hammer Union?
An API Hammer Union is a mechanical connection for oilfield pressure flowline systems. It connects pipes, hoses, manifolds, pumps, treating lines, and well service equipment in drilling, cementing, fracturing, workover, and pressure pumping operations.
A standard hammer union includes three main parts:
| Component | Function |
|---|---|
| Male Sub | Connects to one side of the oilfield flowline or equipment |
| Female Sub | Connects to the opposite side and supports the sealing area |
| Wing Nut | Locks both subs together after hammer tightening |
This structure helps crews connect and disconnect flowlines quickly. Compared with many fixed connection methods, a hammer union saves time during rig-up, pressure testing, maintenance, equipment relocation, and temporary line installation.
In oilfield service, the union must handle pressure fluctuation, impact load, vibration, drilling mud, cement slurry, fracturing fluid, oil, gas, water, and chemical treatment fluids. A quality oilfield hammer union should use forged alloy steel, precision machining, controlled heat treatment, strict inspection, and hydrostatic pressure testing.
Why Hammer Unions Matter in Oilfield Operations
Oilfield jobs demand speed, strength, and safety. Crews often move equipment between wells, build temporary pressure lines, test surface systems, and adjust flowline layouts. A reliable oilfield hammer union helps teams work with better efficiency and control.
Fast Rig-Up and Rig-Down
Crews can connect and disconnect flowlines quickly with a hammer. This helps reduce non-productive time during drilling, cementing, fracturing, well testing, pressure pumping, and workover operations.
Reliable Pressure Sealing
A suitable sealing structure helps control leakage under rated working pressure. This matters in high-pressure mud lines, cementing lines, frac lines, well service lines, and manifold systems.
Strong Oilfield Adaptability
Hammer unions work with drilling rigs, workover rigs, cementing units, fracturing units, mud pumps, choke manifolds, kill manifolds, test manifolds, treating iron, and pressure pumping equipment.
Easier Field Maintenance
Crews can inspect threads, sealing rings, wing nuts, sealing surfaces, and connection areas before pressure operation. They can also clean parts and replace worn seals during routine maintenance.
Safer Connection Control
Correct figure selection, clear pressure marking, proper seal choice, and component compatibility help reduce wrong assembly risks in high-pressure oilfield service.
Main Oilfield Applications of API Hammer Union
API Hammer Union products support many oilfield pressure systems. The following applications represent the most common oilfield working environments.
1. Drilling Flowline Connection
During drilling operations, mud pumps circulate drilling fluid through surface pressure lines, standpipes, rotary hoses, mud manifolds, and related equipment. These systems need strong connections that can handle pressure, vibration, mud contamination, and repeated operation.
A drilling flowline hammer union connects mud pump discharge lines, drilling mud manifolds, standpipe manifolds, and temporary surface flowlines. It helps drilling crews complete fast rig-up and maintain stable mud circulation.
Typical drilling applications include mud pump discharge lines, standpipe manifolds, drilling mud manifolds, surface circulation lines, and temporary high-pressure mud flowline layouts.
For drilling service, buyers should confirm working pressure, mud compatibility, figure type, thread or weld-end connection, and inspection requirements.
2. Cementing Line Connection
Cementing operations require stable pressure transfer and reliable slurry handling. During casing cementing, squeeze cementing, remedial cementing, and plug cementing, cement slurry moves through pump units, treating lines, manifolds, and wellhead surface equipment.
A cementing hammer union connects cementing pump lines, treating iron, cement manifolds, and wellhead cementing lines. It helps crews assemble and remove the line quickly before and after the job.
Typical cementing applications include cementing unit discharge lines, high-pressure slurry transfer lines, cement manifold connections, wellhead cementing lines, and treating line assemblies.
For cementing service, the hammer union should handle abrasive cement slurry, pressure fluctuation, vibration, and repeated field use.
3. Fracturing and Pressure Pumping Systems
Hydraulic fracturing creates some of the toughest pressure conditions in oilfield operations. Frac pumps, treating lines, frac manifolds, missile manifolds, and wellhead pressure lines must work under high pressure, heavy vibration, and frequent connection cycles.
A high pressure hammer union, especially a suitable Fig 1502 hammer union, often works in fracturing and pressure pumping systems. It connects treating iron, frac lines, manifold outlets, and wellhead surface equipment.
Typical fracturing applications include frac pump discharge lines, treating iron connections, frac manifold branches, missile manifold outlets, and wellhead high-pressure fluid delivery lines.
For fracturing service, buyers should check rated working pressure, material strength, sealing performance, wear resistance, inspection records, and compatibility with existing treating iron.
4. Well Testing Flowline Connection
Well testing operations require safe surface flow control. During flowback, production testing, pressure testing, and temporary well evaluation, the fluid may include oil, gas, water, sand, and chemical residues.
A well testing hammer union connects test manifolds, choke lines, flowback lines, separators, temporary surface lines, and pressure control equipment. It helps crews build a flexible layout for different well testing conditions.
Typical well testing applications include test manifold connections, flowback lines, separator inlet lines, choke line connections, and temporary surface production testing lines.
For well testing service, the union should match the pressure rating, service medium, temperature range, and site safety requirements.
5. Workover and Well Service Operations
Workover and well service jobs often require frequent equipment movement and fast connection changes. Crews may perform well killing, acidizing support, flushing, circulation, pressure testing, coiled tubing support, and production restoration work.
A well service hammer union connects workover surface lines, pump trucks, manifolds, circulation lines, and pressure control equipment. It helps field teams respond quickly to changing service requirements.
Typical workover applications include workover pump lines, circulation lines, well killing lines, acidizing support lines, and pressure testing lines for well service equipment.
For workover service, buyers should confirm the service medium, pressure level, corrosion condition, seal material, and end connection.
6. Oilfield Manifold Connection
Oilfield manifolds distribute, control, and redirect pressure flow. Drilling manifolds, choke manifolds, kill manifolds, cement manifolds, frac manifolds, mud manifolds, and test manifolds all need dependable pressure connections.
An oilfield pressure union connects manifold branches, inlet lines, outlet lines, pump lines, and temporary flowlines. It allows crews to adjust system layouts efficiently while keeping pressure connections secure.
Typical manifold applications include choke manifolds, kill manifolds, mud manifolds, cement manifolds, frac manifolds, and test manifolds.
For manifold service, component compatibility matters. Field crews should not mix unknown figure types, pressure ratings, or sealing structures.
Common Hammer Union Figure Types for Oilfield Service
Hammer unions come in different figure types. Each type has its own pressure range, sealing design, structure, and field application. Buyers should always select the correct figure according to actual job requirements.
| Figure Type | Typical Oilfield Use |
|---|---|
| Fig 100 / Fig 200 | Low-pressure oilfield fluid transfer and general surface service |
| Fig 206 / Fig 207 | Low to medium-pressure oilfield flowline service |
| Fig 602 | Medium-pressure drilling, mud, and well service flowlines |
| Fig 1002 | High-pressure well service, cementing, and manifold connection |
| Fig 1502 | High-pressure cementing, fracturing, treating iron, and pressure pumping |
| Fig 2202 | Ultra-high-pressure oilfield service in selected applications |
Among these options, the Fig 1502 hammer union remains a common choice for high-pressure cementing, fracturing, and pressure pumping service. However, buyers should never select a figure type by appearance only. Similar-looking unions may have different pressure ratings, seal designs, and service limits.
Key Features of a Quality Oilfield Hammer Union
A reliable hammer union should deliver strength, sealing performance, and long service life in harsh oilfield environments.
Forged Alloy Steel Body
Forged alloy steel improves mechanical strength, toughness, and impact resistance. It helps the union withstand high pressure, vibration, rough handling, and demanding oilfield transport.
Precision Machined Threads
Accurate thread machining improves connection fit and reduces abnormal wear. Smooth thread engagement also helps crews make up and break out the union more efficiently.
Reliable Sealing Design
The sealing structure must match the pressure level, service medium, and temperature range. A suitable seal helps prevent leakage during pressure pumping, drilling mud circulation, cementing, fracturing, and well service operations.
Clear Product Marking
A quality hammer union should show clear size, figure type, pressure rating, material information, and traceability marking. Clear marking helps field crews identify the correct component before installation.
Controlled Heat Treatment
Proper heat treatment improves strength and toughness. It also helps the union maintain stable performance under pressure fluctuation and impact load.
Multiple End Connection Options
Hammer unions can use threaded ends, butt-weld ends, integral connections, or customized end connections. Buyers should select the correct end type according to the drilling line, cementing line, frac line, manifold, hose, pump unit, or well service equipment.
Quality Control and Inspection Documents for Oilfield Hammer Union
Oilfield buyers should not evaluate a hammer union only by price or appearance. For high-pressure service, quality control and documentation matter.
A reliable supplier should support inspection and traceability according to project requirements. Common quality documents may include:
| Quality Item | Buyer Value |
|---|---|
| Material Certificate | Confirms material grade and chemical / mechanical properties |
| Heat Treatment Record | Shows controlled heat treatment process |
| Dimensional Inspection Report | Confirms size, thread, and connection accuracy |
| Hydrostatic Pressure Test Report | Helps verify pressure performance before shipment |
| Hardness Test Record | Supports strength and consistency control |
| Magnetic Particle Inspection | Helps detect surface defects on critical parts |
| Traceability Marking | Helps match product identity with production records |
| Packing Inspection | Protects machined surfaces during export shipment |
For drilling, cementing, fracturing, and well service projects, these documents help procurement teams reduce risk and improve confidence before delivery.
How to Select the Right API Hammer Union for Oilfield Use
A correct selection process helps reduce leakage, wrong assembly, downtime, and unnecessary replacement costs. Before placing an order, buyers should confirm the following details with the supplier:
| Selection Factor | What to Confirm |
|---|---|
| Working Pressure | Match the union with the maximum working pressure of the oilfield system |
| Figure Type | Choose the correct figure, such as Fig 602, Fig 1002, or Fig 1502 |
| Size | Confirm the flowline size, such as 1″, 2″, 3″, 4″, or customized size |
| Service Medium | Confirm drilling mud, cement slurry, fracturing fluid, oil, gas, water, or chemical fluid |
| End Connection | Choose threaded, weld-end, integral, or customized connection |
| Service Condition | Confirm standard service, abrasive service, corrosive service, or sour service |
| Seal Material | Select a seal suitable for pressure, temperature, and fluid compatibility |
| Inspection Requirement | Request pressure test, material certificate, and inspection report if needed |
| Compatibility | Confirm compatibility with existing flowline equipment and treating iron |
Never select a hammer union only by appearance or price. A low-quality or mismatched union may create leakage, pressure test failure, field downtime, or safety risks.
API Hammer Union vs General Hammer Union
Not all hammer unions meet the same oilfield requirements. A general hammer union may work for low-risk fluid connection, but oilfield pressure service requires stronger material control, better marking, and more reliable inspection.
| Item | API Hammer Union for Oilfield Service | General Hammer Union |
|---|---|---|
| Main Use | Drilling, cementing, fracturing, well service, pressure pumping, manifold connection | General fluid or low-pressure connection |
| Material | Commonly uses forged alloy steel | Depends on supplier |
| Pressure Reliability | Suits demanding oilfield pressure systems | Varies widely |
| Marking | Shows size, figure, pressure, and traceability information more clearly | May be incomplete |
| Inspection | Fits strict oilfield procurement requirements better | Depends on supplier quality level |
| Field Safety | Better for high-pressure oilfield operations | Not always suitable for oilfield pressure service |
For oilfield applications, buyers should choose a hammer union designed for drilling, well service, cementing, fracturing, pressure pumping, and manifold systems.
Maintenance Tips for Oilfield Hammer Union
Correct maintenance helps extend service life and reduce field risks.
- Clean threads before make-up.
- Check the sealing ring before pressure operation.
- Inspect the wing nut, male sub, female sub, and sealing surface.
- Do not mix different figure types or unknown parts.
- Do not use damaged threads or cracked wing nuts.
- Replace worn or aged seals in time.
- Avoid excessive hammering after proper tightening.
- Protect machined surfaces during transport.
- Store unions in a dry and clean area.
- Remove damaged unions from oilfield service immediately.
Good maintenance helps crews improve safety, reduce leakage, protect equipment, and maintain stable high-pressure operation.
Why Choose SGPE API Hammer Union?
SGPE supplies oilfield equipment and pressure connection solutions for drilling, workover, cementing, fracturing, well service, and production support operations. Our API Hammer Union products serve demanding oilfield environments where strength, sealing reliability, and fast field operation matter.
SGPE helps buyers select suitable hammer unions for drilling flowlines, mud manifolds, cementing units, fracturing systems, well testing lines, workover equipment, pressure pumping packages, and oilfield manifold connections.
SGPE API Hammer Union Advantages
| Advantage | Value for Oilfield Buyers |
|---|---|
| Oilfield-focused design | Suitable for drilling, cementing, fracturing, well testing, workover, and pressure pumping service |
| Forged steel construction | Improves strength and durability under field conditions |
| Precision machining | Supports better connection fit and sealing performance |
| Multiple figure options | Covers different pressure levels and oilfield service needs |
| Custom connection support | Matches flowlines, manifolds, hoses, pumps, and well service equipment |
| Inspection support | Helps buyers request material certificates, pressure test reports, and inspection records |
| Export-ready supply | Supports overseas oilfield projects, distributors, service companies, and equipment packages |
Whether you need standard hammer unions or project-based connection solutions, SGPE can help match the correct figure type, size, pressure rating, material, seal, and end connection.
Request a Quote for API Hammer Union
Need a reliable API Hammer Union for your oilfield flowline system? SGPE can help you select the right hammer union according to your working pressure, figure type, connection design, service medium, and field application.
Our team supports oilfield drilling, cementing, fracturing, well testing, workover, pressure pumping, and manifold connection projects. Whether you need a standard Fig 1502 hammer union, a forged steel flowline union, or a customized end connection, SGPE can provide practical selection support for your project.
To receive a faster and more accurate quotation, please send us the following details:
| Required Information | Example |
|---|---|
| Figure Type | Fig 602, Fig 1002, Fig 1502, or other type |
| Size | 1″, 2″, 3″, 4″, or customized size |
| Working Pressure | 5,000 psi, 10,000 psi, 15,000 psi, or project requirement |
| End Connection | Threaded, weld-end, integral, or customized connection |
| Service Medium | Drilling mud, cement slurry, fracturing fluid, oil, gas, water, or chemical fluid |
| Application | Drilling, cementing, fracturing, well testing, workover, pressure pumping, or manifold connection |
| Service Condition | Standard service, abrasive service, corrosive service, or sour service |
| Quantity | 10 sets, 50 sets, 100 sets, or project batch quantity |
| Inspection Request | Material certificate, pressure test report, dimensional inspection report, or other documents |
| Destination Country | UAE, Saudi Arabia, USA, Kazakhstan, Indonesia, or other destination |
SGPE will review your technical requirements and recommend a suitable oilfield hammer union for your pressure line system. If your project involves high-pressure service, sour service, corrosive media, or special connection dimensions, please share drawings or additional technical specifications with our team.
Conclusion
The API Hammer Union is an essential connection component in oilfield pressure systems. It helps crews connect drilling flowlines, cementing lines, fracturing lines, well testing equipment, workover systems, pressure pumping units, and oilfield manifolds quickly and safely.
A reliable hammer union should offer forged steel strength, accurate machining, clear marking, dependable sealing, correct pressure rating, inspection support, and proven compatibility with oilfield equipment. For high-pressure service, buyers should never rely only on the lowest price. The right union helps reduce leakage risk, improve job efficiency, and support safer field operation.
SGPE can help you choose a suitable hammer union for your project conditions, whether you need drilling flowline connection, cementing line support, fracturing service, pressure pumping equipment, well testing lines, workover service, or manifold connection.
FAQ: API Hammer Union
1. What is an API Hammer Union used for in oilfield operations?
Oilfield crews use an API Hammer Union to connect high-pressure flowlines, manifolds, pumps, treating lines, cementing units, fracturing lines, well testing equipment, and workover systems. It helps build a strong, fast, and reliable pressure line connection on drilling sites and well service locations.
This type of oilfield hammer union supports temporary and semi-permanent flowline layouts. It works well in drilling, cementing, fracturing, pressure pumping, well testing, workover, and oilfield manifold systems where crews need quick rig-up, safe pressure transfer, and easy maintenance.
2. Where do oilfield crews commonly use hammer unions?
Oilfield crews commonly use hammer unions in drilling flowlines, mud pump discharge lines, standpipe manifolds, cementing lines, frac lines, well testing systems, workover circulation lines, choke manifolds, kill manifolds, and pressure pumping equipment.
A hammer union gives the field team more flexibility when they connect or disconnect surface pressure lines. It also helps crews move equipment between wells, adjust flowline layouts, and complete pressure testing more efficiently.

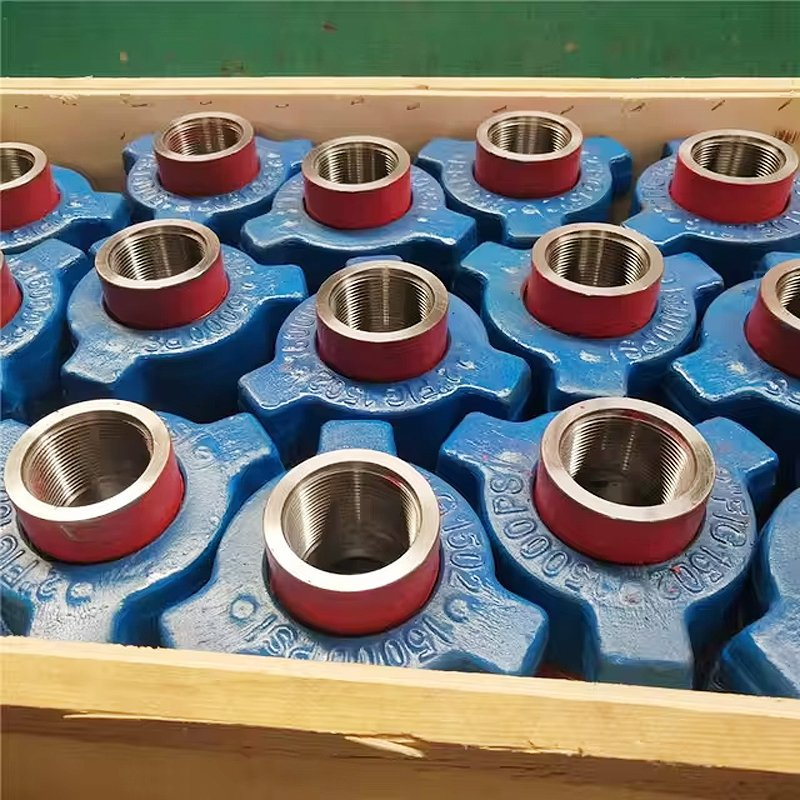

3. What is a Fig 1502 hammer union?
A Fig 1502 hammer union is a common high-pressure union for oilfield cementing, fracturing, pressure pumping, treating iron, and high-pressure flowline systems. Many buyers choose it for demanding jobs because it supports heavy-duty service and frequent field connection cycles.
Before purchasing a Fig 1502 hammer union, buyers should confirm size, working pressure, end connection, seal type, service medium, and compatibility with existing treating iron or flowline equipment. These checks help reduce leakage, wrong assembly, and downtime on site.
4. How do I choose the right API Hammer Union for my oilfield project?
Choose an API Hammer Union according to working pressure, figure type, size, end connection, seal material, service medium, temperature range, and field application. Also check whether the union will work with drilling mud, cement slurry, fracturing fluid, oil, gas, water, chemical fluids, or sour service conditions.
For high-pressure oilfield service, do not select a hammer union only by appearance or price. Similar-looking unions may have different pressure ratings, thread designs, seal structures, and service limits. A reliable supplier can help match the right figure type, such as Fig 602, Fig 1002, or Fig 1502.
5. Can API Hammer Union work with drilling mud lines?
Yes. Drilling crews use API Hammer Union products to connect drilling mud lines, mud pump discharge lines, mud manifolds, standpipe systems, and drilling fluid circulation equipment. These lines often face vibration, pressure fluctuation, mud contamination, and repeated connection cycles.
For drilling mud service, buyers should confirm the pressure rating, figure type, thread or weld-end connection, mud compatibility, and inspection requirements. A forged steel hammer union with accurate machining and reliable sealing helps maintain stable mud circulation during drilling operations.
6. Can hammer unions support cementing operations?
Yes. Oilfield service crews use cementing hammer unions to connect cementing pump lines, treating lines, cement manifolds, and wellhead cementing lines. These connections help transfer cement slurry during casing cementing, squeeze cementing, remedial cementing, and plug cementing jobs.
Cementing service can create abrasion, pressure changes, and heavy field handling. Therefore, buyers should choose a hammer union with suitable material strength, pressure rating, sealing performance, and inspection records.
7. Are hammer unions suitable for fracturing and pressure pumping?
Yes. High-pressure hammer unions support fracturing and pressure pumping systems. Crews use them to connect frac pump discharge lines, treating iron, frac manifolds, missile manifold outlets, and wellhead pressure lines.
For fracturing service, buyers often focus on Fig 1502 hammer union, high pressure rating, forged steel construction, seal reliability, wear resistance, and compatibility with existing treating iron. These details matter because frac lines work under high pressure, vibration, and frequent rig-up conditions.
8. What materials should a quality oilfield hammer union use?
A quality oilfield hammer union commonly uses forged alloy steel. Forging improves strength, toughness, impact resistance, and service life. It also helps the union handle high pressure, rough transport, and harsh oilfield working conditions.
Buyers should also check heat treatment, machining accuracy, hardness control, thread quality, and pressure test records. Good material alone does not guarantee performance; proper manufacturing and inspection also matter.
9. What end connections are available for API Hammer Union?
API Hammer Union products can use threaded ends, weld-end connections, integral connections, or customized end designs. Buyers should choose the end connection according to the flowline layout, manifold design, pump unit, hose connection, treating line, or well service equipment.
For oilfield projects, correct end connection selection helps improve installation efficiency and system compatibility. Before ordering, buyers should provide drawings, connection standards, size, pressure rating, and service conditions if the project requires a custom design.
10. Can hammer unions work in sour service or corrosive oilfield conditions?
Some hammer unions can work in sour service or corrosive oilfield conditions when the material, seal, and manufacturing requirements match the actual job. Buyers should always tell the supplier if the line will handle H2S, sour gas, corrosive fluid, acidizing fluid, or other aggressive media.
For sour or corrosive service, the supplier may need to review material requirements, seal compatibility, hardness control, and inspection documents. Clear service information helps the supplier recommend a safer and more suitable hammer union.
11. What inspection documents should buyers request for API Hammer Union?
For high-pressure oilfield service, buyers can request material certificates, dimensional inspection reports, hydrostatic pressure test reports, heat treatment records, hardness test records, magnetic particle inspection reports, and packing inspection records.
These documents help procurement teams confirm product quality, traceability, pressure performance, and shipment condition. They also give distributors, drilling contractors, and oilfield service companies more confidence before delivery.
12. Why choose SGPE as an API Hammer Union supplier?
SGPE supplies API Hammer Union products for oilfield drilling, cementing, fracturing, well testing, workover, pressure pumping, and manifold systems. We help buyers select the correct figure type, size, pressure rating, material, seal, and end connection according to real field conditions.
SGPE focuses on forged steel construction, precision machining, reliable inspection, custom connection support, and export-ready supply. Whether you need Fig 1502 hammer unions, drilling flowline unions, cementing hammer unions, or well service hammer unions, SGPE can support your oilfield project with practical selection guidance and stable supply capability.
E-Mail:
info@sgpe.com
