Driller’s Control Console: API 16D Selection and Buying Guide
A Driller’s Control Console gives the drilling crew remote access to selected blowout preventer functions from the rig floor, drilling cabin or another designated well control station.
During drilling, the driller may need to close the annular BOP, operate pipe rams, activate blind or shear rams, or control hydraulic choke and kill line valves. The console places these functions close to the operator, allowing the crew to send a command without walking to the main BOP accumulator unit.
The equipment may look like a straightforward control panel, but its design depends on the complete surface BOP control system.
The controlled-function schedule, pilot pressure, electrical supply, directional-valve logic, feedback method and front-panel graphic must match the actual BOP stack. A panel can have the correct number of controls and still be incompatible with the existing manifold.
It may use the wrong pilot pressure, reverse the required open-and-close logic or display a stack arrangement that differs from the equipment installed at the well center. These problems often appear during commissioning, when field modifications are expensive and may delay the drilling schedule.
For this reason, drilling contractors, rig manufacturers, oilfield service companies, workover contractors and well intervention companies should treat the Driller’s BOP Control Panel as an engineered part of the complete well control package.
SGPE supplies custom Driller’s Control Consoles and Remote BOP Control Panels for new drilling packages, rig upgrades and obsolete panel replacement projects. Each proposal begins with a review of the BOP stack, main control manifold, operating pressure, pilot logic, control distance and installation environment.
This guide explains how a Driller’s Control Console works, how the main control configurations compare and what buyers should confirm before requesting a quotation.
Quick Answer
A Driller’s Control Console is a remote operating interface for selected surface BOP functions. It sends pneumatic, electrical, electro-pneumatic or electro-hydraulic commands to the main BOP control manifold.
The console may operate annular preventers, pipe rams, variable bore rams, blind shear rams and hydraulic choke or kill valves. Depending on the design, it may also display system pressures, alarms, command status and actual actuator position.
The console does not normally provide the hydraulic energy required to operate the BOP. That energy comes from the BOP accumulator unit.
Because every BOP stack and control system uses a specific function arrangement, a new or replacement Driller’s Control Console must be engineered around the actual equipment.
What Is a Driller’s Control Console?

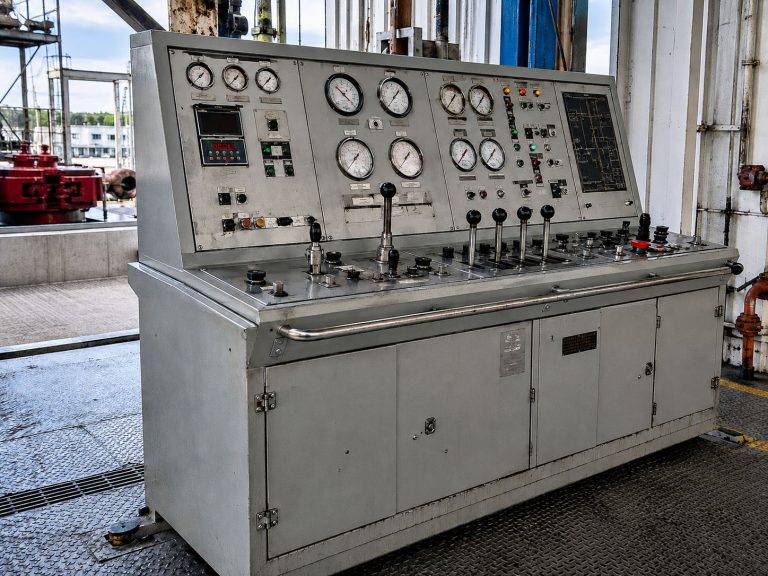

A Driller’s Control Console is a remote operating station for selected functions of a surface blowout preventer system.
The primary console usually sits near the driller’s position on the rig floor or inside the drilling control cabin. Some rigs also use a secondary remote panel in the doghouse, toolpusher’s office, emergency station or another approved location.
The same type of equipment may also be described as a Driller’s Control Panel, Driller’s BOP Control Panel, BOP Remote Control Console, API 16D Control Panel, API 16D Remote Panel, BOP Accumulator Remote Panel, Driller’s Remote Panel, Koomey Remote Panel, Remote Well Control Panel or Blowout Preventer Control Panel.
These terms often describe similar equipment, but they do not always refer to the same control architecture.
A traditional pneumatic console sends pilot-air signals directly to the main hydraulic manifold. An electro-pneumatic panel uses electrical switches or PLC outputs to operate pneumatic solenoid valves. A digital BOP control console may add an HMI, pressure transmitters, alarm history and valve-position feedback.
Buyers should therefore define the required functions, signal type and interface conditions instead of relying only on the product name.
In this guide, Driller’s Control Console refers to a remote panel for surface BOP control. It does not refer to a complete drilling machinery console that operates the drawworks, top drive, rotary table, mud pumps and pipe-handling equipment.
What Can a Driller’s Control Console Operate?
When the driller selects a function, the console sends a command to the main BOP control system. The hydraulic manifold then routes pressurized fluid to the corresponding preventer or valve actuator.
Depending on the approved controlled-function schedule, the console may open and close the annular BOP, upper and lower pipe rams, variable bore rams, blind rams and blind shear rams. It may also control hydraulic choke line valves, kill line valves, selected wellhead connectors, diverter functions and other auxiliary hydraulic equipment.
The panel may display accumulator pressure, manifold pressure, annular closing pressure, pilot-air pressure and selected auxiliary pressures.
Advanced configurations may also show whether an open or close command has been sent, whether the actuator has reached its actual position, whether the pump or power supply is available, and whether a communication or system alarm is active.
The exact function list must follow the actual BOP stack. Adding a switch to the panel does not automatically mean the hydraulic system has enough pressure, flow or accumulator volume to operate the connected equipment.
Driller’s Control Console vs. BOP Control Unit
Driller’s Control Console, BOP control panel, BOP control unit and BOP accumulator unit are sometimes used as interchangeable terms. In practice, each item performs a different role.
| Equipment | Main Function | Typical Components |
|---|---|---|
| Driller’s Control Console | Sends remote commands and displays operating information | Selector valves, switches, gauges, indicators, alarms, PLC or HMI |
| BOP Accumulator Unit | Stores and supplies hydraulic energy | Accumulator bottles, pumps, reservoir, regulators and safety valves |
| Main Control Manifold | Routes hydraulic fluid to the selected function | Directional valves, regulators, piping and pilot interfaces |
| Secondary Remote Panel | Provides another operating location | Selected controls, gauges, indicators and alarms |
The accumulator unit supplies pressure and usable hydraulic fluid. The main control manifold directs that fluid. The Driller’s Control Console tells the system which function to operate.
This distinction becomes especially important during a Driller’s Panel Replacement.
A replacement panel should not be ordered from a front-view photograph alone. The remote panel manufacturer also needs to review the pilot pressure, valve logic, tubing arrangement, electrical signals, alarm circuits and feedback method.
For legacy equipment, internal panel photographs, pneumatic schematics, terminal plans, manifold details and field measurements provide a stronger basis for interface matching.
API 16D Driller’s Control Console Requirements
API Specification 16D addresses control systems for drilling well control equipment and control systems for diverter equipment.
However, the phrase “API 16D Driller’s Control Console” is not a complete technical specification.
Before design begins, the project team should confirm the applicable API 16D requirements, operator specifications, drilling-contractor requirements and local regulations.
The engineering review should also consider the BOP manufacturer’s operating data, the complete surface stack arrangement, the hazardous-area classification, the available electrical power and control voltage, the required Factory Acceptance Test, third-party inspection, technical documentation and project marking requirements.
Two projects may both reference API 16D and still require different remote panels.
A land rig with an existing pneumatic Koomey-style control unit may need a straightforward air-operated console. An offshore installation may require an electro-pneumatic panel with stainless-steel construction, hazardous-area components, digital pressure indication and communication with the rig control system.
Buyers should also distinguish between equipment designed with reference to applicable API 16D project requirements and equipment carrying a specific certification or marking.
A supplier should not describe a control console as API-certified or API-monogrammed unless the applicable product scope and supporting documents confirm that claim.
SGPE reviews the client specification, project requirements and actual BOP operating data before confirming the design basis.
Typical Technical Data for a Custom Driller’s Control Console
The following values represent common project options rather than fixed SGPE model specifications. Final parameters depend on the approved BOP stack, actuator data, control distance and operating environment.
| Technical Parameter | Typical Project Reference | Selection Notes |
| Controlled functions | 4 to 16 or more functions | Match the actual stack and approved function schedule |
| Control architecture | Pneumatic, electrical, electro-pneumatic or electro-hydraulic | Match the manifold, signal logic and rig utilities |
| BOP hydraulic operating pressure | Many surface BOP designs use up to 1,500 psi | Verify the requirement for every actuator |
| Annular regulating range | Adjustable within the BOP manufacturer’s permitted range | Normal pressure may be lower than the maximum setting |
| Pilot-air pressure | Match the existing pneumatic system | Measure actual pressure during replacement surveys |
| Electrical control voltage | Common options include 24 VDC | Confirm current, grounding and area classification |
| Auxiliary power supply | Common options include 110–120 VAC or 220–240 VAC | Confirm frequency and available rig power |
| Pressure indication | Accumulator, manifold, annular and pilot-air pressure | Select ranges around the normal operating window |
| Position indication | Command, pressure-based or actual mechanical feedback | Define what each indicator represents |
| Enclosure material | Painted carbon steel, stainless steel 304 or 316 | Select according to the environment |
| Enclosure protection | Indoor or outdoor construction; IP65 or IP66 commonly requested | Confirm the project requirement |
| Ambient temperature | Standard and low-temperature packages available | State the actual minimum and maximum temperature |
| Panel language | English or bilingual | Use the same terms in drawings and manuals |
| Panel graphic | Customized surface BOP stack graphic | Show the correct ram order and side outlets |
| Communication | Hardwired signals, industrial network or project-specific protocol | Confirm before PLC or HMI design |
| Remote stations | One primary console with optional secondary panels | Define the function scope of each station |
Always verify the required operating pressure and actuator displacement against the approved BOP manufacturer’s data.
A large annular BOP may require much more hydraulic fluid than a smaller ram preventer. A blind shear ram may also have a different pressure requirement from a pipe ram or hydraulic gate valve.
The control-system review must therefore consider the opening volume, closing volume, operating pressure and response requirement for every controlled function.
Why the Driller’s BOP Control Panel Matters
Well control equipment must respond when the drilling crew needs it.
If the crew identifies a kick, unexpected pressure increase or another abnormal condition, the driller needs immediate access to the required BOP functions.
A correctly designed Driller’s BOP Control Panel places those functions near the operator and presents them in a layout that follows the actual BOP stack.
The console allows the crew to operate selected preventers, adjust annular closing pressure and monitor system pressure from the designated station.
It may also provide command indication, actual position feedback and low-pressure alarms. During function testing, the panel helps the crew confirm that each selector operates the intended BOP or hydraulic valve.
Accurate labels and a correct stack graphic reduce confusion. Remote control also remains available when the main accumulator unit is positioned away from the well center.
The console does not replace well control training, approved procedures, inspection or regular BOP testing. It gives trained personnel a clear interface with the control system.
How Does a Driller’s Control Console Work?
The operating sequence depends on the selected control architecture.
Pneumatic Control
In a pneumatic Driller’s Control Console, the operator moves a selector valve or control handle.
The valve sends an air pilot signal to the main hydraulic manifold. That signal shifts the corresponding directional valve, allowing hydraulic fluid to move to the selected actuator.
Pneumatic control remains common on land rigs, workover rigs and legacy Koomey-style systems. It offers straightforward operation and familiar field maintenance.
Its performance depends on the available pilot pressure, air quality, tubing diameter, tubing condition and total routing distance. Long pilot lines, moisture, leakage or restricted tubing can slow the response.
Electro-Pneumatic Control
An electro-pneumatic BOP control panel uses electrical switches, relays or PLC outputs to activate pneumatic solenoid valves.
Each solenoid then generates the pilot-air signal required by the main hydraulic manifold.
This arrangement can reduce long-distance pilot tubing and support additional alarms, digital indication and communication functions.
The solenoid logic must still match the existing pilot pressure, valve arrangement and failure philosophy.
Electrical, PLC and HMI Control
An electrical or PLC BOP control panel uses switches, relays, PLC outputs or communication signals to control the required interface equipment.
An HMI can display pressure values, function status, alarm history, communication condition and selected diagnostic information.
Digital monitoring can improve visibility, but it also introduces additional failure modes. The design must address power loss, PLC failure, HMI failure, sensor faults and communication interruption.
Depending on the project philosophy, hardwired controls, independent gauges or manual operation at the main manifold may still be required.
Electro-Hydraulic Control
An electro-hydraulic console converts an electrical command into hydraulic control action.
This arrangement may reduce signal delay and support specialized control packages. The design must clearly define the hydraulic supply, control-valve logic, pressure limits and backup operating method.
Control Architecture Comparison
| Control Architecture | Typical Applications | Main Advantages | Key Review Points |
| Pneumatic | Land rigs, workover rigs and legacy Koomey-style units | Simple operation and familiar maintenance | Air quality, pilot pressure, tubing length and leakage |
| Electrical | Rigs with centralized electrical controls | Reduced pilot tubing and easier indication | Voltage, cable length, grounding and power-loss response |
| Electro-pneumatic | Modern surface BOP systems and longer control distances | Electrical commands with pneumatic manifold interfaces | Solenoid logic, area classification and backup control |
| Electro-hydraulic | Projects requiring rapid response or specialized control | Faster signal path and advanced integration | Hydraulic interface, failure response and manual backup |
| PLC and HMI | Digital rigs, offshore units and diagnostic applications | Alarm history, communication and data display | PLC failure, sensor faults and communication scope |
Before production begins, the manufacturer should confirm the signal type, pilot pressure, hydraulic operating pressure, valve logic, tubing arrangement, electrical connections, feedback method and backup operation.
Driller’s Control Console Selection Guide
The correct Driller’s Control Console depends on the BOP stack, main control unit, installation environment and operating requirements.
The following selection process helps avoid incompatible panels, missing functions and incomplete quotations.
1. Confirm the BOP Stack and Remote Functions
Start with a current surface BOP stack drawing.
The drawing should show the annular preventer, single and double ram BOPs, drilling spools, choke and kill outlets, hydraulic gate valves, wellhead connectors and any auxiliary functions.
The ram type at every position must also be identified because pipe rams, variable bore rams, blind rams and blind shear rams may use different operating pressures, fluid volumes and feedback devices.
The next step is to prepare a controlled-function schedule. For each function, state whether the panel requires open and close control, adjustable pressure, command indication, actual position feedback, an alarm, emergency operation or manual backup.
A description such as “ten-function BOP control panel” is not enough. Two ten-function panels may use different pressures, signals and operating logic.
2. Identify the Main BOP Accumulator Unit
For a new control-system package, provide information about the proposed accumulator unit and main control manifold.
For a replacement project, provide the manufacturer, model, serial number and nameplate data. Photographs should show the existing remote panel, internal tubing, pilot valves, annular regulator, solenoid box, terminals and field connections.
Pneumatic, hydraulic and electrical schematics provide the strongest basis for matching.
When original drawings are unavailable, detailed photographs and field measurements can support the review. Final interface verification may still be required before production.
3. Select the Control Architecture
A pneumatic console usually suits an existing system that already uses pneumatic pilot valves. It also works well when the rig has reliable instrument air and field technicians prefer a simple mechanical interface.
Electro-pneumatic control becomes more attractive when long pilot lines create response or maintenance concerns. It can also support digital displays, alarms and rig-system integration.
PLC and HMI controls suit projects that need diagnostics, event records, communication or digital pressure monitoring. The project must also define how the system should respond to power and communication failures.
Electro-hydraulic control may support faster command transmission, but every hydraulic and electrical interface must be clearly documented.
4. Confirm Pressure, Volume and Operating Distance
The manufacturer needs the accumulator working pressure, main manifold pressure, annular regulated pressure, pilot-air pressure and available instrument-air pressure.
For electrical systems, the supply voltage, frequency, DC control voltage, grounding arrangement and communication requirements must also be confirmed.
The review should include the actual tubing or cable route between the remote console and the main control unit. Straight-line distance may be much shorter than the installed route.
For pneumatic systems, distance affects response time, tubing size and air consumption. For electrical systems, it affects cable size, voltage drop and communication selection.
5. Define the Installation Environment
State whether the panel will operate indoors or outdoors, onshore or offshore, and inside or outside a hazardous area.
The operating temperature range and the expected exposure to humidity, condensation, dust, sand, drilling fluids, salt spray, corrosion and vibration should also be provided.
An indoor land-rig panel may use painted carbon steel. An offshore Driller’s BOP Control Panel may require stainless-steel construction, corrosion-resistant tubing, higher enclosure protection and hazardous-area electrical components.
Low-temperature service may require special gauges, seals, cables, solenoids and electronic modules.
6. Define Alarms and Position Feedback
Command indication and actual position feedback are not the same.
Command indication confirms that the operator sent a signal. Actual position feedback confirms whether the actuator completed its movement.
Depending on the equipment, the system may use pressure switches, limit switches, proximity sensors, linear sensors or actuator-mounted feedback devices.
The project should also define alarm setpoints, reset logic, audible and visual indication, communication outputs and sensor-fault indication.
7. Approve the Panel Layout and BOP Graphic
The panel, drawings, manuals and controlled-function schedule should use the same terminology.
International projects may require English together with Arabic, Russian, Spanish, French or Chinese. Bilingual labels should remain short and easy to read.
The final panel layout and BOP stack graphic should be approved before production. The graphic must show the correct order of the annular preventer, ram BOPs, drilling spools and side outlets.
8. Review Hydraulic Capacity and Redundancy
The Driller’s Control Console cannot correct limitations in the main hydraulic system.
The accumulator unit must store enough usable fluid to operate the required BOP functions. Pumps, regulators, valves, hoses and piping must also provide the required pressure and flow.
The engineering review should consider actuator displacement, blind shear ram pressure, simultaneous operation, pressure loss, accumulator pre-charge, bottle quantity, pump capacity and required response time.
A new remote panel can add controls. It cannot make an undersized hydraulic system perform correctly.
The required redundancy depends on the rig type, risk assessment and operator specification. The complete system may include backup pumps, multiple accumulator bottles, dual power supplies, more than one remote station and manual operation at the main manifold.
Driller’s Control Console Buying Guide
A good purchasing decision involves more than selecting the lowest Driller’s Control Console price.
Compatibility, included functions, component quality, FAT, documentation, spare parts and long-term support all affect the final value.
Compare the Same Function Scope
Every quotation should refer to the same approved controlled-function schedule.
One supplier may include the annular BOP, upper and lower pipe rams, blind shear ram, choke valve and kill valve. Another may treat several of these controls as optional.
Price comparisons are misleading until the function scope is aligned.
Confirm What Each Indicator Means
Every lamp or HMI symbol should have a clearly defined meaning.
One indicator may show that an operating command has been sent. Another may represent hydraulic pressure, a pressure-switch signal or actual mechanical position.
A simple status light does not necessarily prove that the ram or valve completed its movement.
Check Existing-System Compatibility
For a replacement Remote BOP Control Panel, the technical offer should confirm that the supplier has reviewed the pilot pressure, valve logic, tubing sizes, electrical supply and field connections.
The review should also cover the annular regulator interface, terminal schedule, alarms and feedback circuits.
A visually similar panel may still be incompatible with the existing BOP accumulator unit.
Review Components and Environmental Protection
The quotation should identify the main components or include an approved vendor list.
The technical review should cover selector valves, regulators, gauges, solenoid valves, switches, pushbuttons, transmitters, terminal blocks and fittings.
PLC and HMI projects should also define the power supplies, input/output modules and communication equipment.
The enclosure material must suit the operating environment. Offshore, hazardous-area and low-temperature projects may require stainless steel, special cable glands, corrosion-resistant tubing and suitable electrical components.
Review the Factory Acceptance Test
A basic function check is not the same as a complete Factory Acceptance Test.
| FAT Item | What the Test Should Confirm | Typical Record |
| Visual and dimensional inspection | Panel size, layout, labels, nameplates and workmanship | Inspection checklist |
| Component verification | Installed components match approved documents | Bill-of-material review |
| Tubing and wiring inspection | Correct routing, tagging, termination and protection | Tubing and wiring checklist |
| Pneumatic leakage test | Pilot lines, fittings and valves hold pressure | Leakage test report |
| Function test | Every command operates the correct simulated function | Function test record |
| Pressure indication test | Gauges and transmitters display pressure within tolerance | Calibration or comparison record |
| Alarm test | Every alarm activates and resets correctly | Alarm test sheet |
| Position-feedback test | Command and actual-position signals remain clearly separated | Feedback test record |
| Power-loss test | Electrical controls follow the approved failure philosophy | Power-loss test record |
| Communication test | PLC, HMI and external interfaces exchange the required signals | Communication test report |
| Interface simulation | The panel matches the main manifold or approved simulator | FAT completion report |
SGPE can prepare a project-specific FAT procedure and support customer-witnessed or third-party-witnessed inspection when included in the purchase order.
Confirm the Documentation Package
A professional documentation package may include the general arrangement drawing, front-panel layout, BOP stack graphic, controlled-function schedule and pneumatic or hydraulic schematic.
Electrical configurations may also require a wiring diagram, terminal plan and cable schedule.
The final document package may include the bill of materials, component datasheets, operation and maintenance manual, spare-parts list, FAT procedure, FAT report, calibration records, certificate of conformity and packing list.
The required document scope should be confirmed before quotations are compared.
Compare the Complete Delivered Scope
| Scope Item | Questions to Confirm |
| Control panel | Does the price include every approved function? |
| Interface equipment | Are tubing, cables, connectors and junction boxes included? |
| Instruments | Are gauges, transmitters and feedback sensors included? |
| Enclosure | Does the material suit the operating environment? |
| Testing | Does the price include FAT and test records? |
| Documentation | Which drawings, manuals and certificates are included? |
| Spare parts | Are commissioning or operational spares included? |
| Site service | Who handles installation and commissioning? |
| Warranty | What does the warranty cover, and when does it begin? |
| After-sales support | Can the supplier support future repairs and modifications? |
A lower panel price can result in a higher installed cost when interface equipment, sensors, drawings or testing are excluded.
Need to match a new control console with an existing BOP accumulator unit? Send SGPE the stack drawing, panel photographs and available schematics for an interface review.
Main Components of a Driller’s BOP Control Panel
| Component | Main Purpose | Selection Considerations |
| Function controls | Operate selected annular, ram and hydraulic valve functions | Clear labels, correct logic and suitable selector type |
| Annular regulator | Adjust annular BOP closing pressure | BOP operating range and remote adjustment method |
| Pressure gauges | Display accumulator, manifold, annular and pilot pressures | Range, accuracy, visibility and calibration |
| Digital displays | Show pressure, alarms and diagnostic data | Power-loss response and communication interface |
| BOP stack graphic | Represents the actual stack arrangement | Correct ram order, side outlets and labels |
| Status indicators | Show command, pressure or actual position | Define exactly what each indication means |
| Alarm system | Warn of low pressure, power loss or system faults | Setpoints, reset logic and audible or visual indication |
| PLC and HMI | Provide digital control, monitoring and communication | Failure response, spare modules and software access |
| Enclosure | Protects internal components | Material, ingress protection, corrosion and temperature |
Unnecessary active controls should be avoided because extra switches can create confusion during a well control event.
The panel should be easy to read from the normal operating position, and all labels should remain consistent with the approved drawings and manuals.
Driller’s Control Console Applications
| Application | Typical Controlled Equipment | Main Selection Priorities |
| Land drilling | Annular BOP, pipe rams, shear ram, choke and kill valves | Vibration resistance, transport protection and field maintenance |
| Offshore drilling | Surface BOP stack, hydraulic valves and secondary stations | Corrosion protection, hazardous-area equipment and rig integration |
| Workover and well servicing | Smaller annular and ram BOP stacks | Compact size, quick rig-up and simple connections |
| Well completion | Completion BOPs and selected wellhead valves | Function matching and procedure-specific controls |
| Coiled tubing | Shear, slip, pipe and blind rams, stripper and master valves | Correct sequence, actuator volume and emergency operation |
| Snubbing and hydraulic workover | Stripping rams, slip rams, pipe rams and hydraulic valves | Live-well sequence and clear status feedback |
| Well intervention | Wireline, slickline and pumping pressure-control equipment | Customized layout and separation from process controls |
| Surface well testing | Selected BOP functions, choke valves and shutdown interfaces | Separation between well control and process shutdown |
Land Drilling
On a land rig, the accumulator unit often sits at ground level or away from the well center.
The Driller’s Control Console gives the crew access to selected BOP functions from the rig floor.
The panel should tolerate vibration, dust, drilling mud, rain, temperature changes and repeated rig moves. Protected connectors, durable labels and compact construction help reduce damage during transportation and rig-up.
A pneumatic panel should also use pilot valves, regulators and tubing suitable for the available instrument-air quality and actual routing distance.
Offshore Drilling
An offshore Driller’s BOP Control Panel may require stainless-steel construction, marine-grade coating and corrosion-resistant tubing.
The project may also require higher enclosure protection, hazardous-area electrical components, suitable cable glands and integration with the rig alarm system.
Limited cabin space can affect panel dimensions, door orientation and mounting arrangements.
For an offshore electro-pneumatic configuration, the solenoid location, cable routing, electrical area classification and backup operating method should be confirmed before design approval.
Workover, Coiled Tubing and Well Intervention
A workover BOP control panel may operate an annular BOP, single or double ram BOP, hydraulic choke valve, kill valve and selected wellhead valves.
Mobile workover units often need compact construction, protected connections and simple field installation.
A coiled tubing pressure-control stack may include shear, slip, pipe and blind rams together with a stripper or packoff. The remote panel must match the ram sequence, actuator displacement, feedback method and emergency procedure.
Snubbing, hydraulic workover, wireline and slickline operations may also require customized control layouts. Well control functions should remain clearly separated from unrelated process-control or emergency-shutdown functions.
Desert, Arctic and Marine Environments
Desert operations may require protection against dust, sand and high temperatures.
Arctic projects may need low-temperature seals, gauges, cables, solenoid valves and electronic components.
Marine installations may require stainless steel, enhanced coatings and stronger protection against salt spray and condensation.
The actual environmental limits should be provided before component selection begins.
Driller’s Control Panel Replacement and Retrofit
Many drilling and workover rigs still use remote panels with obsolete valves, regulators, gauges or electrical components.
A replacement Driller’s Control Console can restore maintainability without replacing the complete accumulator unit. However, the new panel must reproduce the required interface and operating logic.
| Replacement Option | Typical Scope | Best-Fit Situation |
| Like-for-like replacement | Retains the original control concept while using available components | Existing accumulator unit and manifold remain serviceable |
| Functional retrofit | Retains the main functions but adds gauges, alarms or feedback | The remote panel is obsolete, but the hydraulic system remains usable |
| Complete control-system upgrade | Replaces the panel, solenoid system, manifold and selected hydraulic or PLC equipment | The existing system needs wider modernization |
Before choosing the replacement scope, the condition of the pumps, reservoir, accumulator bottles, regulators, manifold valves, hoses and tubing should be checked.
Replacing only the panel will not correct hydraulic or mechanical problems elsewhere in the system.
How to Match a Replacement Panel to an Existing Accumulator Unit
A replacement panel must reproduce the required signals and operating logic of the existing system.
The technical review should confirm the pilot pressure, connection type, tube or cable quantity, directional-valve logic, electrical supply, alarm circuits, feedback devices, annular regulator interface and existing field connections.
Where original drawings no longer match the equipment in service, a detailed field survey or verified connection schedule may be required.
The replacement proposal should also state which existing components will remain in service and which interfaces require modification.
Koomey Remote Panel Replacement
The term Koomey unit commonly describes a BOP accumulator and control system.
However, not every Koomey-style remote panel uses the same pilot pressure, selector valves or tubing arrangement.
A Koomey Remote Panel Replacement review should confirm the pilot logic, tubing sizes, field connections, annular regulator interface, gauge ranges, alarm signals, panel dimensions and electrical supply.
Photographs help identify the equipment, but they may not reveal the complete internal logic. Existing schematics and a verified field connection schedule provide a safer basis for replacement engineering.
SGPE supports obsolete Koomey Remote Panel replacement, Driller’s Panel retrofit and remote-console matching for existing BOP accumulator units.
Installation, Commissioning and Maintenance
The installation team should verify the mounting strength, panel orientation, tubing support, cable routing, grounding and enclosure sealing.
Pneumatic lines should be cleaned before connection because dirt and debris can damage pilot valves and regulators.
During commissioning, every function should be tested individually. The panel label, control direction and actual BOP response must agree.
The commissioning team should also confirm pressure readings, alarm setpoints, command indication, actual position feedback, backup operation and system leakage.
As-built drawings should match the final installation.
Routine maintenance should include checking for pneumatic leakage, loose terminals, damaged switches, blocked regulators, cracked tubing, failed lamps, moisture ingress and corrosion.
Pressure gauges, alarms and feedback devices should also be checked according to the rig maintenance program and the approved equipment procedures.
Slow pneumatic response may result from low air pressure, restricted tubing, contamination, leakage or a sticking valve.
Incorrect position indication may result from a failed pressure switch, loose wire, misadjusted limit switch or damaged sensor.
Technicians should follow the approved schematic during troubleshooting. Tubes or wires should not be exchanged without first confirming the control logic.
Driller’s Control Console Price Factors
A Driller’s Control Console does not have one standard price.
The final cost depends on the number of controlled BOP functions and whether the selected architecture is pneumatic, electrical, electro-pneumatic, electro-hydraulic or PLC-based.
Digital pressure transmitters, actual position feedback, alarms, HMI functions and communication interfaces can further affect the cost.
The enclosure material, hazardous-area components, offshore corrosion protection and low-temperature requirements may create a significant price difference between panels with the same number of controls.
Replacement engineering, custom dimensions, interface tubing, cables, FAT, third-party inspection, technical documentation, spare parts and site commissioning support also influence the final quotation.
Two panels with the same number of functions can therefore have very different prices because the enclosure, instruments, control architecture and included documentation differ.
A low quotation may exclude sensors, connectors, tubing, cables, drawings or testing.
Buyers should compare the complete delivered scope rather than the panel price alone.
For an accurate Driller’s Control Console quotation, provide the BOP stack drawing, controlled-function schedule, operating pressure, pilot pressure, control distance and installation environment.
How to Evaluate a Driller’s Control Console Manufacturer
A suitable Driller’s Control Console manufacturer should ask detailed technical questions before issuing a final quotation.
The proposal should explain how the console interfaces with the main manifold, which BOP functions it controls, which pressures it displays and what every indicator represents.
It should also identify the included alarms and explain how the system responds to electrical power loss, pilot-pressure loss and communication failure.
The technical offer should clearly define the FAT, documentation, recommended spare parts, installation responsibilities, warranty and available after-sales support.
Be cautious when a supplier offers a standard panel without requesting the BOP stack drawing, controlled-function schedule or accumulator-unit information.
A professional Remote BOP Control Panel supplier should distinguish between a new-build system, a like-for-like replacement, a functional retrofit and a wider control-system upgrade.
Why Source a Custom Driller’s Control Console from SGPE?
SGPE supplies Driller’s Control Consoles and Remote BOP Control Panels for new drilling packages, rig upgrades and replacement projects.
The process begins with a review of the BOP stack and controlled functions. SGPE then confirms the pneumatic, hydraulic and electrical interfaces before selecting the control architecture.
After the design basis is approved, the project can proceed to the panel layout, function schedule and customized BOP stack graphic.
The supply scope may include pneumatic, electrical, electro-pneumatic, PLC or HMI control. Depending on the project, it may also include stainless-steel construction, digital pressure indication, alarms, feedback devices and secondary remote stations.
Before shipment, SGPE can complete a project-specific FAT and provide the agreed drawings, manuals and test records.
Available solutions include custom pneumatic Driller’s Control Consoles, API 16D project control panels, electrical Remote BOP Control Panels, electro-pneumatic consoles, PLC BOP control panels with HMI, offshore stainless-steel remote panels, workover BOP control panels and coiled tubing BOP control panels.
SGPE also supports Koomey Remote Panel Replacement, Driller’s Panel Replacement and broader BOP Control Panel Retrofit projects.
The final configuration depends on more than the number of controls. Pressure, signal logic, control distance, feedback, alarms, rig utilities and the operating environment all affect the design.
Frequently Asked Questions About Driller’s Control Consoles
1. What is the main purpose of a Driller’s Control Console?
A Driller’s Control Console allows the drilling crew to operate selected surface blowout preventer functions from the rig floor, drilling cabin or another designated well control station. Instead of walking to the main BOP accumulator unit, the driller can send a pneumatic, electrical or electro-pneumatic command to the main control manifold.
Depending on the approved controlled-function schedule, the console may operate an annular BOP, pipe rams, variable bore rams, blind rams, blind shear rams and hydraulic choke or kill line valves. It may also display accumulator pressure, manifold pressure, annular closing pressure, pilot-air pressure, alarms and function status.
The remote panel improves access to critical controls during drilling, tripping, stripping, BOP function testing and well shut-in operations. However, it does not replace well control procedures, crew training or the hydraulic energy supplied by the BOP accumulator unit.
2. Is a Driller’s Control Console the same as a BOP accumulator unit?
No. A Driller’s Control Console and a BOP accumulator unit perform different functions within the surface BOP control system.
The accumulator unit stores usable hydraulic fluid and supplies the pressure needed to open or close the preventers and hydraulic valves. It normally includes accumulator bottles, hydraulic pumps, a reservoir, regulators, directional valves and safety devices.
The Driller’s Control Console serves as the remote operating interface. It sends commands to the main BOP control manifold and may display pressures, alarms and position information. A complete API 16D project control system may therefore include the accumulator unit, main hydraulic manifold, primary Driller’s BOP Control Panel, secondary remote stations, pilot tubing, hydraulic hoses and electrical or feedback equipment.
3. Can one Driller’s Control Panel operate any BOP stack?
No. A Driller’s Control Panel must be engineered around the actual BOP stack, main control manifold and operating logic.
Two control panels may have the same number of selector switches but use different pilot pressures, directional-valve arrangements, tubing connections, control voltages or feedback signals. The controlled equipment may also differ because one stack could include an annular BOP, two pipe ram positions and a blind shear ram, while another stack could include variable bore rams, additional hydraulic valves or a wellhead connector.
The front-panel BOP stack graphic must also match the actual field arrangement. A generic graphic can mislead the operator if the ram order, drilling spool or side-outlet position differs from the equipment installed at the well center.
For this reason, a custom Driller’s Control Console manufacturer should review the current BOP stack drawing and controlled-function schedule before confirming the panel design.
4. What information is needed for a Driller’s Control Console quotation?
An accurate Driller’s Control Console quotation requires more than the number of controls on the front panel.
The buyer should provide the current BOP stack drawing and identify every function that must be operated remotely. The inquiry should also state whether each function needs open and close control, adjustable pressure, command indication, actual position feedback, alarms or manual backup.
The manufacturer also needs information about the BOP accumulator unit, main manifold pressure, annular regulated pressure, pneumatic pilot pressure, electrical supply, control distance and installation environment. For offshore, hazardous-area, desert or low-temperature projects, the operating temperature, corrosion protection and enclosure requirements should also be stated.
For a replacement Remote BOP Control Panel, provide the existing manufacturer and model, nameplate photographs, internal panel photographs, available pneumatic or electrical schematics, terminal details and field connection information.
5. Does every API 16D Driller’s Control Console need a PLC or HMI?
No. Many land drilling rigs, workover rigs and conventional surface BOP systems continue to use pneumatic or hardwired electrical controls without a PLC or HMI.
A pneumatic Driller’s Control Console may be the most practical choice for an existing Koomey-style BOP control unit because it uses familiar pilot valves and can be maintained by field technicians using standard pneumatic components.
A PLC BOP Control Panel with HMI may be appropriate when a project requires digital pressure display, alarm history, event records, communication with the rig control system or more detailed diagnostic information. These functions can improve monitoring, but the design must also address PLC failure, HMI failure, loss of electrical power, sensor faults and communication interruption.
The control architecture should therefore follow the actual operating philosophy and project requirements rather than adding digital equipment that the rig does not need.
6. What is the difference between pneumatic and electro-pneumatic BOP control?
A pneumatic Driller’s Control Console sends compressed-air pilot signals directly to the directional valves in the main hydraulic control manifold.
This arrangement is common on land rigs, workover rigs and legacy BOP accumulator units. It offers simple operation and familiar maintenance, but its response can be affected by long tubing routes, moisture, poor air quality, leakage or restricted pilot lines.
An electro-pneumatic BOP Control Panel uses electrical switches, relays or PLC outputs to operate pneumatic solenoid valves. The solenoids then generate the pilot-air signals required by the hydraulic manifold.
Electro-pneumatic control can reduce long-distance pilot tubing and make it easier to add alarms, digital pressure indication and communication functions. However, the solenoid logic, electrical area classification, control voltage and failure response must still match the existing BOP control system.
7. Can a Driller’s Control Console show the actual ram or valve position?
Yes, but actual position indication requires suitable feedback equipment on the BOP or hydraulic valve actuator.
A command light may only confirm that the operator moved a selector or that the control system sent an open or close signal. A pressure-based indication may show that pressure reached one side of the actuator. Neither signal necessarily proves that the ram or valve completed its full movement.
Actual position feedback may use limit switches, proximity sensors, linear position sensors or actuator-mounted mechanical feedback devices. The correct method depends on the BOP design, valve actuator and operating environment.
The technical offer should clearly state whether each indication represents an operator command, hydraulic pressure status or actual mechanical position. This distinction is particularly important for blind shear rams, hydraulic choke and kill valves, offshore BOP control systems and applications that require position confirmation from a remote station.
8. Can a new Remote BOP Control Panel connect to an existing accumulator unit?
Yes, provided that the complete interface is reviewed and verified before manufacturing begins.
The replacement panel must match the existing pilot pressure, valve logic, tubing quantity, tubing size, electrical supply, terminal arrangement, alarm circuits and feedback method. The annular pressure-regulator interface and field connection locations must also be confirmed.
A front-panel photograph may help identify the general arrangement, but it does not normally reveal the complete internal control logic. Internal photographs, pneumatic schematics, electrical diagrams and a verified field connection schedule provide a safer basis for replacement engineering.
A new remote panel can restore maintainability and replace obsolete controls, but it cannot correct weak pumps, leaking pilot lines, damaged manifold valves or insufficient accumulator capacity. The condition of the complete BOP control unit should therefore be reviewed before deciding to replace only the remote console.
9. Can SGPE replace an obsolete Koomey Remote Panel?
SGPE can evaluate obsolete Koomey Remote Panel Replacement, Driller’s Panel Replacement and broader BOP Control Panel Retrofit projects.
Because Koomey-style systems were produced in different configurations, the replacement review must confirm the existing pilot pressure, selector-valve logic, tubing arrangement, annular regulator, gauge ranges, alarm signals, panel dimensions and electrical interfaces.
The buyer should provide the accumulator-unit model, serial number, nameplate photographs, front-panel photographs, internal tubing photographs and available schematics. Where the original documents are missing or no longer match the field installation, detailed measurements and a verified connection schedule may be required.
Depending on the condition of the equipment, SGPE may propose a like-for-like panel replacement, a functional retrofit with updated gauges and alarms, or a wider control-system upgrade that also includes solenoid valves, instruments, manifold components or PLC equipment.
10. What should a Driller’s Control Console FAT include?
A Driller’s Control Console Factory Acceptance Test should confirm that the panel matches the approved drawings, function schedule and control philosophy before shipment.
The FAT normally begins with a visual and dimensional inspection of the panel enclosure, controls, labels, nameplates, BOP stack graphic, tubing, wiring and installed components. Pneumatic configurations should also undergo a leakage test to verify the integrity of pilot lines, valves and fittings.
Every open and close command should then be operated against the main manifold, a test manifold or an approved simulator. The test should confirm the control direction, pressure indication, alarm logic, command indication and position-feedback signals.
For electrical, electro-pneumatic, PLC and HMI control panels, the FAT may also include power-loss testing, communication testing, sensor-fault simulation and verification of the approved failure response.
The final FAT package may contain inspection checklists, function-test records, calibration records, alarm-test sheets and a completed FAT report. Customer-witnessed or third-party-witnessed inspection can also be arranged when included in the purchase order.
11. What affects the price of a custom Driller’s Control Console?
The price of a custom Driller’s Control Console depends on the complete technical scope rather than the number of controls alone.
A pneumatic panel for an indoor land rig will normally have a different cost structure from an offshore electro-pneumatic BOP control panel with a stainless-steel enclosure, hazardous-area components, digital transmitters and PLC or HMI functions.
Major price factors include the number of controlled BOP functions, control architecture, enclosure material, pressure instruments, alarm scope, command or actual position indication, communication interfaces and environmental requirements.
Replacement projects may also require additional engineering to verify the existing BOP accumulator unit, pilot lines, terminal connections and field-installed modifications. FAT, third-party inspection, technical documentation, spare parts, interface tubing, cables and site commissioning support can further affect the quotation.
Buyers should compare the complete delivered scope because a low panel price may exclude sensors, connectors, drawings, testing or essential interface equipment.
12. How do I request a quotation for a replacement Remote BOP Control Panel?
Begin by identifying the existing panel manufacturer, model and serial number. Clear photographs should show the front panel, nameplates, internal tubing, regulators, pilot valves, solenoid valves, terminal blocks and external connections.
Provide the available pneumatic, hydraulic and electrical schematics together with the current BOP stack drawing and list of remotely controlled functions. The inquiry should also state the pilot pressure, hydraulic operating pressure, electrical supply, control distance, operating environment and required alarm or feedback functions.
For a Koomey Remote Panel Replacement or another legacy system, explain whether the objective is a like-for-like replacement, a functional retrofit or a complete control-system upgrade.
The required FAT, third-party inspection, documentation, spare-parts package and delivery destination should also be confirmed. SGPE can use this information to review the existing interface and prepare a custom Remote BOP Control Panel quotation for land drilling, offshore drilling, workover, coiled tubing or well intervention applications.
Request an API 16D Driller’s Control Console Quotation
SGPE supplies custom Driller’s Control Consoles and Remote BOP Control Panels for land drilling, offshore drilling, workover, coiled tubing, snubbing and well intervention projects.
Available configurations include pneumatic, electrical, electro-pneumatic, PLC-based and selected electro-hydraulic control. The panel can be customized for annular BOPs, pipe rams, blind shear rams, hydraulic choke and kill valves, pressure indication, alarms, position feedback and HMI monitoring.
SGPE also supports replacement Remote BOP Control Panels for existing accumulator units, including Koomey Remote Panel Replacement, obsolete Driller’s Panel Replacement and BOP Control Panel Retrofit projects.
For an accurate quotation, please provide the BOP stack drawing, controlled-function schedule, operating pressure, pilot pressure, electrical supply, control distance and installation environment. For replacement projects, include photographs of the existing panel, internal tubing, nameplates, terminal connections and available schematics.
E-Mail:
info@sgpe.com
