Drilling Mud Gas Separator: Selection, Sizing and Buying Guide
A well kick can introduce formation gas into the drilling fluid. As the gas approaches the surface, falling pressure causes it to expand rapidly. The drilling rig therefore needs a controlled system that separates the gas, routes it away from working areas and returns usable drilling mud to the active mud system. A Drilling Mud Gas Separator performs this critical well control function.
Drilling crews may also call the equipment a Mud Gas Separator, poor boy degasser, gas buster, mud-gas separator, oilfield gas separator or atmospheric mud gas separator. Although the unit may look like a simple vertical vessel, its actual capacity depends on the complete surface gas-handling system.
Surface gas rate, drilling-fluid flow, mud density, internal baffles, gas vent-line pressure loss, mud-leg height and liquid-return conditions all influence performance. A separator that works well on one rig may be unsuitable for another rig with a longer vent line, heavier mud or a higher kill-circulation rate.
Oil and gas operators, drilling contractors, rig builders, EPC companies and oilfield service providers should therefore select the equipment around actual well and rig conditions. Vessel diameter and overall height alone cannot confirm whether the system can safely handle the expected gas and liquid returns.
This guide explains how a Drilling Mud Gas Separator works, where it is used and which technical parameters matter. It also covers Mud Gas Separator sizing, API 16C project considerations, vent-line design, mud-leg height calculation, supplier evaluation, price factors, installation, inspection and RFQ preparation.
SGPE supports custom Mud Gas Separator packages for land rigs, offshore drilling units, workover operations and selected managed pressure drilling projects. Each proposal can be reviewed around the actual choke manifold, gas vent line, mud-return system, installation space and project documentation requirements.
Drilling Mud Gas Separator Buyer Overview
| Buyer Question | Main Point to Confirm |
|---|---|
| What flow must the separator handle? | Maximum surface gas rate, liquid flow and credible well control cases |
| Will a standard vessel size work? | Capacity depends on the complete system, not vessel dimensions alone |
| What limits gas-handling capacity? | Vessel internals, vent-line pressure loss and liquid-seal stability |
| What controls mud-leg height? | Separator pressure, mud density, vessel level and downstream elevation |
| Is atmospheric service suitable? | MPD, underbalanced or closed-loop projects may require another design |
| What affects the Mud Gas Separator price? | Pressure basis, materials, internals, skid, instruments, testing and documents |
| Can an old poor boy degasser be replaced? | Yes, using verified dimensions, photographs, interfaces and operating data |
| What should an RFQ include? | Gas, mud, piping, installation, material, testing and documentation requirements |
What Is a Drilling Mud Gas Separator?
A Drilling Mud Gas Separator removes large volumes of free formation gas from gas-cut drilling fluid during drilling, well control, workover and selected well intervention operations.
During a well kick, the BOP stack closes around the drillstring or seals the wellbore. The choke manifold controls surface pressure while the drilling crew circulates the influx out of the well.
The choke manifold then directs the gas-contaminated drilling fluid into the separator. Inside the vessel, the flow slows down and repeatedly changes direction. This creates the surface area and retention time required for free gas to leave the drilling mud.
The separated gas rises toward the upper outlet. A gas vent line or flare line carries it to an approved discharge location away from the rig floor, shale shakers, mud tanks, engines, generators and occupied work zones.
Meanwhile, the recovered drilling fluid moves toward the lower outlet. A mud leg, U-tube, float-controlled discharge or active liquid-level system maintains a liquid seal before the mud returns to the active tanks.
A Mud Gas Separator mainly handles large volumes of free gas. It does not replace a vacuum degasser, which removes smaller gas bubbles that remain entrained in the drilling fluid after the mud enters the solids-control system.
Most drilling mud gas separation systems use a vertical cylindrical vessel with internal baffles. These baffles distribute the incoming flow, reduce momentum and encourage gas breakout. The liquid-level arrangement then prevents separated gas from travelling into the mud-return line.
Why the Complete Surface Gas-Handling System Matters
A Drilling Mud Gas Separator cannot be evaluated as an isolated vessel.
The choke manifold outlet, inlet piping, vessel internals, gas outlet, vent line, liquid outlet, mud leg and downstream tank elevation all affect performance.
A large vessel cannot compensate for a narrow or blocked gas vent line. Likewise, a large gas outlet will not solve problems caused by insufficient mud-leg height or a restricted mud-return pipe.
Gas expands as pressure falls. Even a relatively small downhole influx can become a much larger volume near the surface. When the system cannot handle the return, gas may escape around the shale shakers, active tanks or rig floor.
Hydrocarbon gas also creates fire and explosion risks. If the influx contains H₂S, toxic exposure becomes an additional concern.
Excessive separator pressure can disturb the liquid seal. Once that seal becomes unstable, gas may travel through the mud outlet instead of leaving through the vent line.
The return fluid may also carry cuttings, sand, cement particles, scale and lost-circulation material. These solids can erode the inlet, collect around internal baffles or restrict the liquid outlet.
For these reasons, SGPE reviews the separator together with the connected piping, liquid-seal arrangement, installation limits and operating conditions before confirming a custom Mud Gas Separator proposal.
Mud Gas Separator, Poor Boy Degasser and Gas Buster
The oil and gas industry uses several names for this equipment.
Mud Gas Separator
Mud Gas Separator is the most common technical and procurement term. Operators use it in drilling programs, technical specifications, purchase orders and well control equipment lists.
Drilling Mud Gas Separator
Drilling Mud Gas Separator emphasizes the equipment’s role in removing free formation gas from drilling fluid. Buyers commonly use this term when searching for a manufacturer, supplier, technical proposal or customized quotation.
Poor Boy Degasser
Poor boy degasser is a traditional field name for a vertical atmospheric separator.
Commercial searches often include poor boy degasser manufacturer, poor boy degasser supplier, poor boy degasser price, poor boy degasser for sale, skid-mounted poor boy degasser and replacement poor boy degasser.
Gas Buster
Gas buster is another field term for equipment that receives gas-cut mud from the choke manifold during kick circulation or well killing.
These names often describe the same general equipment. However, the pressure basis, internal design, connection layout and supply scope can differ considerably.
One supplier may quote only the vessel and support frame. Another may include internal baffles, a mud leg, instruments, lifting points, inspection openings, access equipment and installation drawings.
A meaningful comparison starts with the design basis, capacity assumptions and included equipment—not the product name alone.
How Does a Drilling Mud Gas Separator Work?
Most drilling mud gas separators use a vertical vessel.
Gas-cut drilling fluid enters through an inlet near the upper or middle section. The inlet arrangement reduces momentum and directs the flow toward internal baffles or distribution plates.
As the drilling mud moves downward, each baffle forces it to change direction and spread across a wider surface. Free gas leaves the liquid phase and rises through the vessel.
The heavier drilling fluid continues downward toward the liquid outlet. The separated gas exits through the upper connection and enters the vent or flare line.
A mud leg, U-tube or active liquid-level system maintains the liquid seal. This seal prevents gas from escaping through the mud-return route.
A typical well control flow path is:
BOP Stack → Choke Line → Choke Manifold → Drilling Mud Gas Separator → Gas Vent or Flare Line
The recovered mud follows a separate path:
Drilling Mud Gas Separator → Mud Leg or Liquid Outlet → Active Mud Tank
The flow path looks straightforward, but every connection affects the result. Low points in the vent line can collect mud or condensate. A small mud-return pipe can raise the vessel level. An incorrect liquid-seal height can allow gas to reach the active tanks.
The separator, gas vent line and liquid-return system therefore need one combined review.
Main Applications of a Drilling Mud Gas Separator
Land Drilling Rigs
Land rigs use Mud Gas Separators during conventional oil and gas drilling, directional drilling, horizontal drilling, shale development and deep-well operations.
The equipment usually stands near the choke manifold or active mud system. The layout needs enough space for inlet piping, the gas vent line, the mud-return route, lifting operations and maintenance access.
A skid-mounted Drilling Mud Gas Separator for a land drilling rig can simplify relocation between wellsites. SGPE can review fixed and mobile skid arrangements according to transportation limits, available footprint and connection requirements.
Shale and Horizontal Drilling
Shale and horizontal wells often combine high circulating rates with repeated moves between wells on the same pad.
As an influx approaches the surface, the gas rate can rise quickly. Selection therefore needs to consider the maximum anticipated surface gas rate, kill circulation rate, drilling-fluid properties and vent-line backpressure.
A portable poor boy degasser with clearly identified connections and practical lifting points can reduce rig-up work during multi-well operations.
Deep and High-Pressure Gas Wells
Deep wells and high-pressure gas reservoirs may create demanding surface return conditions.
Gas expands rapidly as pressure falls, while heavy drilling fluids affect the required liquid-seal height and vessel pressure basis.
A high-capacity Mud Gas Separator for deep gas wells should reflect the expected surface gas rate, kick volume, kill circulation rate, mud density, vent-line geometry and liquid-return capacity.
Where H₂S or CO₂ may be present, the design must also address materials, hardness controls, welding procedures and gas-routing requirements.
Offshore Drilling Units
Offshore Mud Gas Separators may operate on jack-up rigs, platform rigs, semi-submersibles and other mobile offshore drilling units.
These projects often impose strict limits on footprint, overall height, operating weight and deck loading. Marine coating, certified lifting points, structural calculations and project-specific documentation may also be required.
Because offshore space is limited, the vessel, mud leg, support structure, access system and piping interfaces should be reviewed as one package.
For an offshore Mud Gas Separator quotation, SGPE can review the deck layout, equipment weight limits, lifting requirements, coating specification and documentation list before preparing the proposal.
Workover and Well Servicing
Workover rigs may encounter formation gas during well killing, circulation, plug drilling, tubing operations and completion repair.
A compact workover Mud Gas Separator or workover gas buster can support these operations when its gas and liquid capacities match the expected returns.
Because workover equipment moves frequently, each new installation should confirm the vent-line route, mud-return elevation, connection sizes, foundation and available mud-leg height.
Managed Pressure Drilling
Some managed pressure drilling operations produce higher or more continuous gas returns than conventional kick circulation.
A standard atmospheric poor boy degasser may therefore be unsuitable for certain MPD projects.
The engineering review should cover gas and liquid flow rates, drilling-fluid properties, operating pressure, gas-disposal method, vent-line backpressure and liquid-level control.
Selected projects may need an MPD Mud Gas Separator, a pressurized separator or an enclosed gas-handling package.
Underbalanced Drilling
Underbalanced drilling allows formation fluids to reach the surface during normal drilling.
This can create continuous gas and liquid returns rather than a short-duration kick event. The equipment must handle the complete operating envelope.
A conventional gas buster should not enter underbalanced service without a detailed process and capacity review.
Sour-Service Wells
H₂S and CO₂ can affect material selection, welding, hardness limits, bolting, gaskets and inspection requirements.
The purchaser should provide available gas composition, H₂S partial pressure, CO₂ content, chloride level, temperature and drilling-fluid information.
The wider sour-well safety plan must also address gas detection, flare routing, breathing air and emergency response.
A sour-service Mud Gas Separator should therefore be specified around the actual well-fluid conditions rather than a general material description.
Poor Boy Degasser Replacement
Many drilling contractors still operate old poor boy degassers with missing drawings, unclear pressure ratings or corroded support structures.
A replacement project offers an opportunity to correct old problems rather than copy them.
SGPE can begin a Mud Gas Separator replacement review from nameplate photographs, vessel and skid dimensions, connection locations, vent-line information, mud-leg height, inspection records and previous operating issues.
The replacement unit should fit the existing rig interfaces while improving any weak points identified during the review.
Application and Configuration Reference
| Application | Main Concern | Engineering Focus | Typical Configuration |
| Conventional land drilling | Intermittent kick circulation | Gas rate, mud flow, vent route and liquid seal | Vertical atmospheric separator |
| Shale and horizontal drilling | High circulation and repeated relocation | Liquid capacity, transport size and interfaces | Skid-mounted Mud Gas Separator |
| Deep gas well | Rapid surface gas expansion | Gas capacity, backpressure and heavy mud | Engineered high-capacity separator |
| Offshore drilling | Space, weight and lifting limits | Deck load, coating, access and structure | Compact offshore package |
| Workover operation | Frequent moves and temporary piping | Connection compatibility and tank elevation | Compact workover gas buster |
| Managed pressure drilling | Higher or continuous multiphase returns | Flow cases, pressure control and liquid discharge | Engineered atmospheric or pressurized package |
| Underbalanced drilling | Continuous formation-fluid flow | Process capacity and gas disposal | Enclosed or pressurized system |
| Sour-service well | H₂S and CO₂ exposure | Materials, welding, hardness and gas routing | Sour-service Mud Gas Separator |
| Replacement project | Missing drawings or obsolete equipment | Dimensions, interfaces and previous failures | Custom replacement poor boy degasser |
Main Components of a Mud Gas Separator
Separator Vessel
The vessel provides the internal space needed for gas breakout and liquid separation.
Diameter, height, wall thickness, corrosion allowance and rated working pressure depend on the approved project basis.
A larger diameter can reduce upward gas velocity. Sufficient height provides room for internal baffles, gas disengagement and liquid-level control.
Vessel dimensions do not define capacity by themselves. Similar-looking separators may perform differently because of their internal design, inlet arrangement, outlet sizes and connected piping.
Inlet Connection
The inlet receives gas-cut drilling fluid from the choke manifold.
It must handle the expected gas volume, liquid rate, solids, erosion, vibration and piping loads.
Inlet orientation also matters. Poor flow direction can create unnecessary turbulence or drive liquid toward the gas outlet.
Matching the inlet to the choke manifold outlet and approved rig piping reduces field modification work.
Internal Baffles
Internal baffles slow the incoming fluid and force it to change direction.
This promotes gas breakout and reduces the chance that liquid slugs will move directly toward the gas outlet.
The baffles should resist erosion and remain accessible for flushing, cleaning and inspection.
Gas Outlet and Vent Line
The gas outlet directs separated gas into the vent or flare line.
Its diameter must match the expected gas rate and downstream pressure-loss calculation.
A large gas outlet cannot compensate for a narrow, long or restricted vent line.
Gas vent-line diameter, total length, elevation, bends, reductions and discharge conditions all affect vessel pressure. Low points can collect condensate, rainwater or drilling mud, adding backpressure and reducing capacity.
For this reason, Mud Gas Separator vent-line sizing should form part of the complete equipment review.
Liquid Outlet and Mud Return
The liquid outlet returns drilling mud to the active system.
It must handle the expected liquid rate without backing up the vessel.
A restricted mud-return line can raise the internal level and send liquid into the gas outlet. Outlet diameter, fluid viscosity, solids loading, line slope and downstream elevation all require review.
Mud Leg or U-Tube
The mud leg creates hydrostatic pressure and maintains the liquid seal.
This seal prevents separated gas from reaching the active mud tanks.
Required mud-leg height depends on separator pressure, mud density, vessel liquid level and downstream tank elevation.
Lighter drilling fluid needs a taller liquid column than heavier mud for the same hydrostatic pressure.
Active Liquid-Level Control
An active liquid-level system may use a float, control valve, transmitter or other control equipment.
It can maintain the vessel level more directly and may support a wider operating range in selected projects.
However, active control introduces instruments, moving parts, calibration and maintenance requirements.
Inspection Openings, Drains and Support Structure
Manways, handholes, drains and flushing connections support cleaning and internal inspection.
Their location should provide access to vessel walls, welds, baffles and the liquid outlet.
The support structure may include skid beams, lifting lugs, ladders, platforms, pipe supports and grounding points.
Offshore and mobile units may require additional structural calculations, lifting documentation and coating inspection.
API 16C Mud Gas Separator Project Considerations
Where a project specifies API 16C, the purchaser and supplier should confirm the applicable edition, pressure-vessel code, pressure basis, materials, corrosion allowance and structural requirements before production.
An API 16C Mud Gas Separator quotation should clearly identify the standard or purchaser specification being applied. It should also state the maximum drilling-fluid density, gas vent-line arrangement, rated working pressure, inspection scope and required documentation.
| Design Item | Typical Project Requirement | Procurement Check |
| Vessel construction | Recognized pressure-vessel code | Confirm code and stamping requirements |
| Rated working pressure | Based on hydrostatic loading and project conditions | Review the calculation basis |
| Maximum mud density | Purchaser-specified drilling-fluid weight | Provide the highest expected mud weight |
| Corrosion allowance | Code and service requirement | Confirm suitability for the design life |
| Sour-service materials | Project-approved H₂S service basis | Provide gas composition and temperature data |
| Vessel testing | Pressure and inspection records | Define required witness and hold points |
| Minimum metal thickness | Stated in the design package | Use for future integrity inspection |
| Support structure | Recognized structural design basis | Confirm skid, foundation and lifting loads |
| Offshore installation | Additional structural and coating requirements | Review deck loading and marine exposure |
| Active discharge | Optional engineered liquid-level system | Compare operating benefits and complexity |
API 16C design requirements, API Monogram status and purchaser-specific acceptance criteria are not the same thing. The purchase specification should state exactly which requirements apply.
Typical Mud Gas Separator Technical Specifications
The following table provides a preliminary procurement framework. It does not represent one fixed SGPE model.
| Technical Parameter | Customizable Option | Selection Information |
| Application | Land, offshore, workover, MPD or underbalanced drilling | Drilling program and operating philosophy |
| Installation | Fixed, skid-mounted or deck-mounted | Layout, transport route and lifting plan |
| Vessel orientation | Vertical or project-specific | Capacity, footprint and access limits |
| Service type | Atmospheric or engineered low-pressure | Surface gas-handling philosophy |
| Rated working pressure | Project-specific | Vent-line case and maximum mud density |
| Inlet connection | Project-specific size, type and orientation | Choke manifold outlet and return rate |
| Gas outlet | Project-specific diameter | Gas rate and vent-line calculation |
| Liquid outlet | Project-specific diameter | Mud flow, viscosity and tank elevation |
| Internal design | Baffles or engineered distribution internals | Separation requirement |
| Liquid-level system | Mud leg, U-tube, float or active discharge | Capacity and control philosophy |
| Vessel material | Carbon steel or project-approved material | Pressure, temperature and corrosion |
| Sour-service option | Material and hardness controls | H₂S and CO₂ conditions |
| Corrosion allowance | Code and project requirement | Fluid chemistry and design life |
| Coating | Land, marine or offshore system | Environmental exposure |
| Instrumentation | Pressure, level, alarm or transmitter options | Monitoring requirement |
| Structural scope | Skid, lifting lugs, ladder and platform | Installation and maintenance plan |
| Documentation | Drawings, calculations, certificates and reports | Contract requirements |
How to Select a Drilling Mud Gas Separator
1. Define the Operating Application
The selection process begins with the drilling operation.
A mobile land rig may need a transportable skid. An offshore unit may require a compact footprint, certified lifting points and marine coating. A workover contractor may prioritize rapid rig-up and flexible interfaces.
MPD and underbalanced drilling can require a different gas-handling philosophy from conventional kick circulation.
The RFQ should identify the rig type, drilling method, well conditions and whether the project involves new equipment or poor boy degasser replacement.
2. Confirm Surface Gas and Liquid Rates
Expected gas and liquid rates form the main basis for Mud Gas Separator sizing.
Useful inputs include maximum anticipated surface gas flow, normal circulation rate, kill circulation rate, choke manifold flow and expected influx volume.
High gas flow increases upward gas velocity and vent-line pressure loss. High liquid flow reduces available gas space and increases the risk of mud carryover.
Several credible operating cases provide a stronger design basis than one general value.
3. Provide Drilling-Fluid Properties
Mud density directly affects the liquid-seal calculation.
Viscosity, gel strength, temperature, solids content and foaming tendency also influence separation and liquid discharge.
Water-based, oil-based and synthetic-based muds may release gas differently. Heavy or viscous fluid can require more attention to retention time and outlet capacity.
4. Review Gas Composition
Gas composition affects corrosion, materials and safety.
Available information should identify methane, heavier hydrocarbons, H₂S, CO₂ and other relevant gases.
Sour-service projects may require additional material control, hardness limits, welding qualifications and traceability.
5. Check the Gas Vent-Line Arrangement
The gas vent line often limits the capacity of the complete system.
Provide its internal diameter, total length, vertical elevation, number of bends, reductions and discharge location.
A narrow or long line creates additional friction loss. Low points can collect liquid and add hydrostatic pressure.
The separator and vent line should receive one combined calculation.
6. Confirm the Mud-Return Route
The liquid outlet must return mud without backing up the vessel.
The review should cover return-line diameter, slope, downstream tank elevation, fluid viscosity and available liquid-seal height.
A poorly routed return line can raise the vessel level even when the separator itself is large enough.
7. Calculate the Mud-Leg Height
Engineers commonly estimate hydrostatic pressure in field units with:
Hydrostatic pressure, psi = 0.052 × mud weight, ppg × vertical liquid height, ft
Therefore:
Required liquid height, ft = required hydrostatic pressure ÷ (0.052 × mud weight)
| Mud Weight | Height for 10 psi | Height for 25 psi | Height for 50 psi |
| 10 ppg | 19.2 ft / 5.9 m | 48.1 ft / 14.7 m | 96.2 ft / 29.3 m |
| 12 ppg | 16.0 ft / 4.9 m | 40.1 ft / 12.2 m | 80.1 ft / 24.4 m |
| 14 ppg | 13.7 ft / 4.2 m | 34.3 ft / 10.5 m | 68.7 ft / 20.9 m |
| 16 ppg | 12.0 ft / 3.7 m | 30.0 ft / 9.2 m | 60.1 ft / 18.3 m |
These values show hydrostatic column height only. They do not represent the final mud-leg height or an approved separator design.
Final Mud Gas Separator mud-leg sizing must also include vessel liquid level, vent-line backpressure, outlet pressure loss, downstream tank elevation and the required engineering margin.
8. Select Passive or Active Liquid Control
A passive mud leg offers a simple liquid seal with few moving parts.
Active liquid-level control can manage the vessel level more directly and may suit projects with wider operating ranges.
The choice depends on capacity, available utilities, maintenance capability and the approved operating philosophy.
9. Confirm Atmospheric or Pressurized Service
Most conventional poor boy degassers use an atmospheric or low-pressure vessel.
That arrangement suits many conventional well control operations when vent-line backpressure remains limited and the liquid seal stays stable.
Some MPD, underbalanced and closed-loop projects require a pressurized or enclosed gas-handling system instead.
10. Define Materials, Testing and Documentation
Material selection should reflect pressure, temperature, corrosion and sour-service conditions.
The manufacturer also needs the available footprint, height limit, operating weight, foundation or deck arrangement and lifting restrictions.
Before quotation, define the vessel code, inspection level, NDE scope, pressure test, coating inspection, lifting documentation and operating-manual requirements.
Clear requirements make supplier quotations easier to compare and reduce field changes after delivery.
Drilling Mud Gas Separator Buying Guide
Standard Size or Custom Design?
Some manufacturers offer standard Mud Gas Separator sizes. However, standard vessel dimensions do not guarantee suitable performance on every rig.
Gas rate, liquid flow, mud density, vent-line arrangement, liquid seal and downstream elevation still control system capacity.
A standard model can provide a starting point. Connections, skid dimensions, mud leg, coating, instruments and documentation can then be adjusted to match the project.
A custom Mud Gas Separator is usually more suitable for offshore installation, sour service, MPD, unusual piping interfaces or old equipment replacement.
Compare the Design Basis
Two Mud Gas Separator manufacturers may propose similar vessel sizes while using very different gas rates, liquid rates and vent-line assumptions.
Ask each supplier to explain the operating cases behind the proposed equipment.
A quotation that lists only vessel dimensions cannot support a meaningful technical comparison.
Check the Rated Working Pressure
Atmospheric separators can still experience pressure from gas vent-line friction, hydrostatic loading and liquid accumulation.
A useful quotation states both the rated working pressure and the calculation basis behind it.
The pressure basis should reflect the actual vent-line elevation and maximum project mud density.
Review Connections and Installation Interfaces
Confirm the inlet, gas outlet and liquid-outlet sizes, orientations, connection types and ratings.
Matching the separator to the choke manifold and rig piping reduces field modification work.
Installation drawings should also show the support arrangement, mud-return elevation, vent-line direction and maintenance access.
Evaluate Manufacturing and Quality Control
A reliable Drilling Mud Gas Separator manufacturer should control material traceability, welding qualifications, nondestructive examination, dimensional inspection, pressure testing and coating quality.
Offshore and sour-service projects may require additional material, hardness, lifting and documentation controls.
The inspection and test scope should be agreed before production.
Review the Documentation Package
| Document | Purpose |
| General arrangement drawing | Confirms dimensions and interfaces |
| Process or flow schematic | Shows gas and mud flow routes |
| Nozzle schedule | Defines connection sizes and ratings |
| Vessel design calculation | Confirms the pressure-vessel basis |
| Capacity calculation | Explains gas and liquid assumptions |
| Vent-line calculation | Evaluates pressure loss and hydrostatic loading |
| Mud-leg calculation | Confirms the liquid-seal basis |
| Material certificates | Provide traceability |
| Welding records | Confirm welding controls |
| NDE reports | Record examinations |
| Pressure-test report | Confirms completed testing |
| Dimensional report | Verifies interfaces |
| Coating report | Records surface preparation and coating thickness |
| Lifting documentation | Supports transport and offshore lifting |
| O&M manual | Guides operation and maintenance |
| Spare-parts list | Supports lifecycle planning |
Understand the Mud Gas Separator Price
Mud Gas Separator price depends on much more than vessel diameter.
Rated working pressure, wall thickness, material grade, corrosion allowance, connection sizes and internal design all influence cost.
The liquid-level system, support skid, lifting arrangement, access platform, instruments, coating, inspection, documentation, packing and shipping also affect the final quotation.
A low Mud Gas Separator price may exclude the mud leg, instruments, structural calculations, NDE reports or offshore coating.
Buyers searching for a Mud Gas Separator for sale, poor boy degasser price, custom Mud Gas Separator supplier, offshore Mud Gas Separator manufacturer or drilling rig gas separator supplier should compare the complete technical and commercial scope.
Evaluate Replacement Capability
Poor boy degasser replacement often begins without an original drawing.
A capable supplier can review photographs, nameplate information, measured dimensions, connection data, vent-line details and previous operating problems.
The replacement should match the rig interfaces without repeating old weaknesses such as restricted outlets, poor access or insufficient liquid-seal height.
SGPE can begin a preliminary replacement review before the complete documentation package becomes available.
Why Buyers Request SGPE Quotations
SGPE supports customized drilling and well control equipment projects rather than limiting buyers to one fixed Mud Gas Separator model.
The technical review can cover new Drilling Mud Gas Separator packages, API 16C project requirements, land-rig and offshore installations, skid-mounted poor boy degassers, workover units, sour-service conditions, selected MPD applications and old equipment replacement.
Customer drawings, nameplates, equipment photographs, measured dimensions and existing piping information can provide the starting point.
The final proposal can define the vessel, internal baffles, mud leg, support skid, lifting arrangement, instruments, coating, inspection and documentation scope.
Installation and Pre-Commissioning
Correct installation helps the separator reach its designed capacity.
The foundation or offshore deck must support the equipment weight, operating fluid, connected piping and environmental loads.
Connected piping needs independent supports. The inlet, gas vent line and mud-return line should not transfer excessive loads or vibration into the vessel nozzles.
The gas vent line must route gas toward an approved discharge or flare location. The layout should consider wind direction, occupied areas, engines, generators, electrical equipment and ventilation air intakes.
The mud-return line should drain freely toward the active tanks.
| Pre-Commissioning Item | Main Check |
| Approved layout | Equipment and piping match the approved drawing |
| Connections | Sizes, ratings, gaskets and bolting are correct |
| Gas vent line | Line is open, supported and free from restrictions |
| Mud-return route | Line drains freely to the approved tank |
| Mud leg | Height and arrangement match the calculation |
| Vessel internals | No shipping debris remains |
| Instruments | Pressure and level devices operate correctly |
| Supports | Skid, pipe supports and lifting points are undamaged |
| Coating | Transport and installation damage has been repaired |
| Operating limits | Rig crew understands the approved capacity |
| Emergency procedures | Drilling and HSE teams understand response actions |
Operating a Mud Gas Separator During a Well Kick
The approved well control procedure governs separator operation during a kick.
Operators should monitor separator pressure, liquid level, vent-line behaviour, mud-return flow and gas detection while circulating the influx.
Unexpected pressure growth may indicate a restricted gas vent line, excessive gas flow or liquid accumulation.
Mud entering the gas outlet may indicate excessive liquid flow, foaming, a high vessel level or restricted liquid discharge.
Gas near the active mud tanks may indicate loss of the liquid seal.
The separator does not have unlimited capacity. When operating conditions approach the approved limit, the crew must follow the drilling program and well control contingency procedures.
Common Mud Gas Separator Problems
| Operating Symptom | Possible Cause | Main Inspection Area |
| Gas reaches active tanks | Weak liquid seal or excessive vessel pressure | Mud leg, level system and vent line |
| Mud enters the gas vent line | High liquid flow, foaming or restricted outlet | Inlet, baffles, outlet and level |
| Separator pressure rises | Blocked vent or excessive gas flow | Vent line, valves and flare route |
| Solids accumulate | Cuttings, cement or lost-circulation material | Drains, vessel bottom and baffles |
| Internal corrosion develops | H₂S, CO₂, chlorides or coating damage | Vessel walls, welds and wetted parts |
| Excessive vibration occurs | Slug flow, poor supports or nozzle loading | Inlet piping, supports and skid |
| Mud return falls | Restricted liquid outlet | Outlet and downstream piping |
| Level becomes unstable | Incorrect mud leg or control problem | Liquid-level arrangement |
Inspection, Cleaning and Maintenance
A Drilling Mud Gas Separator needs scheduled inspection even when the rig rarely experiences a kick.
External checks should cover corrosion, coating condition, support-frame damage, bolting, nozzle loads, pipe supports, lifting points, ladders and platforms.
Internal inspection should cover vessel walls, welds, baffles, drains, erosion and solid deposits.
Ultrasonic thickness measurements can track metal loss and compare the remaining wall thickness with the minimum value in the design package.
The connected gas vent and mud-return piping also require inspection. The vessel may remain in acceptable condition while the surrounding pipework becomes restricted or corroded.
Cleaning requires strict isolation, gas testing, ventilation, confined-space controls and rescue planning.
Information Required for a Mud Gas Separator Quotation
| RFQ Information | Details to Provide |
| Drilling application | Land, offshore, workover, MPD or underbalanced drilling |
| Well information | Well type, depth and expected pressure conditions |
| Surface gas rate | Maximum anticipated gas flow |
| Drilling-fluid flow | Normal, kill and maximum liquid rates |
| Mud density | Normal and maximum mud weight |
| Mud properties | Fluid type, viscosity, solids and foaming tendency |
| Gas composition | Methane, H₂S, CO₂ and other known gases |
| Temperature | Minimum and maximum operating temperature |
| Choke manifold interface | Outlet size, type, rating and orientation |
| Gas vent line | Diameter, length, elevation, bends and discharge point |
| Mud-return line | Diameter, slope and tank elevation |
| Liquid-seal arrangement | Available height and preferred control method |
| Installation space | Footprint, height and weight limits |
| Structural requirements | Skid, foundation, deck load and lifting criteria |
| Materials | Sour-service and corrosion requirements |
| Instrumentation | Pressure, level, transmitter and alarm requirements |
| Standards | Vessel code, API 16C and operator specifications |
| Testing | Pressure test, NDE and third-party inspection |
| Documentation | Drawings, calculations, certificates and manuals |
| Replacement information | Nameplate, dimensions, photographs and operating history |
Frequently Asked Questions About Drilling Mud Gas Separators
1. What is the purpose of a Drilling Mud Gas Separator?

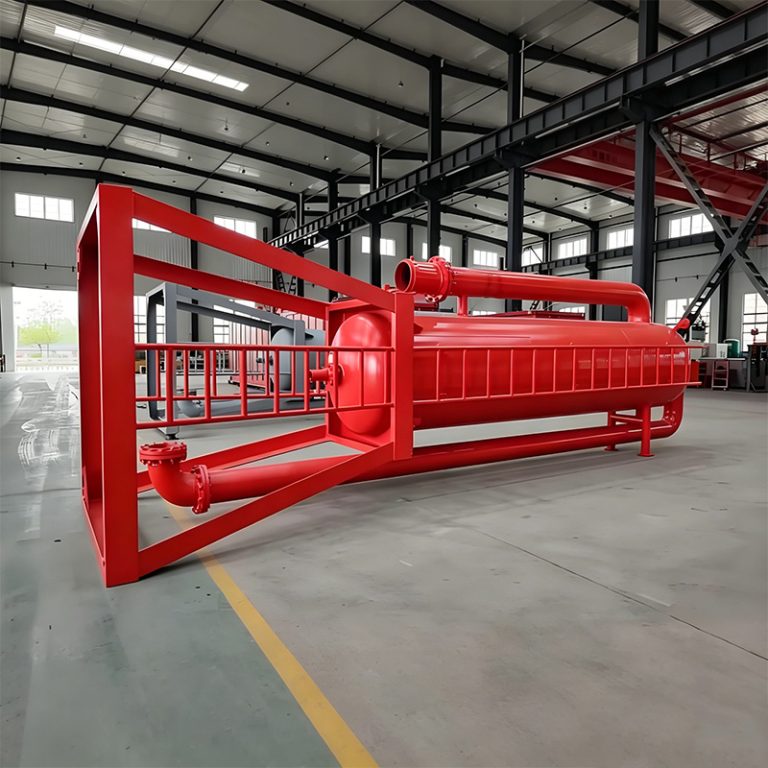

A Drilling Mud Gas Separator removes large volumes of free formation gas from gas-cut drilling fluid during well control operations. Gas enters the separator with the drilling mud, rises through the vessel and leaves through the gas vent or flare line, while the recovered mud returns to the active mud system through the liquid outlet and mud leg.
This equipment is commonly used on land drilling rigs, offshore drilling units, workover rigs and selected managed pressure drilling projects. It helps keep gas away from shale shakers, mud tanks, engines, generators and occupied working areas.
2. Is a Mud Gas Separator the same as a poor boy degasser or gas buster?
In many drilling operations, Mud Gas Separator, poor boy degasser and gas buster describe the same general type of vertical gas-liquid separation equipment. These terms are often used interchangeably in drilling programs, rig equipment lists and purchase inquiries.
However, two units with the same product name may have different vessel dimensions, rated working pressures, internal baffles, gas outlets, mud-leg arrangements and support structures. Buyers should therefore compare the complete technical scope rather than relying only on the equipment name.
3. Do Drilling Mud Gas Separators have standard sizes?
Some Mud Gas Separator manufacturers offer standard vessel sizes, but a standard diameter and height do not guarantee suitable performance on every drilling rig. Actual capacity depends on the expected surface gas rate, drilling-fluid flow, mud density, vent-line backpressure, internal separation area and liquid-return conditions.
A standard unit may suit a conventional land drilling application after the connections, skid and mud leg are adjusted. Offshore drilling, sour service, MPD, high-pressure gas wells and old poor boy degasser replacement projects usually require a more detailed engineering review.
4. How is Mud Gas Separator capacity determined?
Mud Gas Separator capacity is determined by reviewing both gas and liquid operating cases. The main inputs include maximum anticipated surface gas flow, normal and kill circulation rates, drilling-fluid density, viscosity, foaming tendency, expected influx volume and the internal separation arrangement.
The calculation must also consider gas vent-line diameter, line length, elevation changes, bends, outlet restrictions and mud-return capacity. A large vessel cannot reach its expected gas-handling capacity when the vent line or liquid outlet creates excessive backpressure.
5. Why is Mud Gas Separator vent-line sizing important?
The gas vent line carries separated formation gas away from the vessel and toward an approved flare or discharge location. If the line is too narrow, too long or contains excessive bends and restrictions, friction loss can raise pressure inside the separator.
Higher vessel pressure may reduce gas-handling capacity and disturb the liquid seal. Mud Gas Separator vent-line sizing should therefore consider the expected gas rate, internal diameter, total length, elevation, fittings, reductions and the possibility of liquid collecting at low points.
6. How is Mud Gas Separator mud-leg height calculated?
The mud leg creates the hydrostatic pressure needed to maintain a liquid seal between the separator and the active mud system. Its preliminary height can be estimated from the required pressure and drilling-fluid density, but the final design needs more than a basic hydrostatic calculation.
Mud-leg sizing should also account for the normal vessel liquid level, gas vent-line backpressure, pressure loss through the liquid outlet, downstream tank elevation and an appropriate engineering margin. Lighter drilling fluid generally requires a taller liquid column than heavier mud for the same sealing pressure.
7. Does an atmospheric Mud Gas Separator still need a rated working pressure?
Yes. An atmospheric Mud Gas Separator can still experience internal pressure caused by gas vent-line friction, hydrostatic loading, liquid accumulation and temporary flow restrictions.
The quotation should state the rated working pressure and the calculation basis used to establish it. This is particularly important for deep gas wells, heavy drilling fluids, long vent lines and offshore installations where the discharge route may create additional pressure loss.
8. What should an API 16C Mud Gas Separator quotation include?
An API 16C Mud Gas Separator quotation should identify the applicable standard edition, pressure-vessel code, rated working pressure, maximum drilling-fluid density, corrosion allowance and material requirements. It should also define the gas vent-line basis, mud-leg arrangement, inspection scope, pressure testing and structural requirements.
The proposal should clearly distinguish between API 16C project requirements, API Monogram status and purchaser-specific acceptance criteria. Offshore and sour-service projects may also require structural calculations, lifting documentation, marine coating records, hardness controls and additional material traceability.
9. Can a Mud Gas Separator be used for H₂S or sour-service wells?
A properly engineered sour-service Mud Gas Separator can support wells where H₂S or CO₂ may be present. Material selection, welding procedures, hardness limits, bolting, gaskets, corrosion allowance and inspection requirements must match the actual gas composition and operating conditions.
Before preparing a proposal, the manufacturer needs available H₂S partial pressure, CO₂ content, temperature, chloride level and drilling-fluid information. The wider well-control plan should also address gas detection, flare routing, breathing air and emergency response.
10. What factors affect the Mud Gas Separator price?
Mud Gas Separator price depends on the complete technical and documentation scope rather than vessel size alone. Rated working pressure, wall thickness, material grade, corrosion allowance, connection sizes, internal baffles and the selected liquid-level system all influence cost.
The support skid, lifting arrangement, ladder, platform, instruments, offshore coating, NDE, pressure testing, third-party inspection and technical documentation can also affect the final quotation. Buyers comparing a Mud Gas Separator for sale or a poor boy degasser price should confirm which components, tests and documents are included.
11. Can SGPE replace an old poor boy degasser without the original drawing?
Yes. SGPE can begin a preliminary poor boy degasser replacement review using the equipment nameplate, photographs, measured vessel and skid dimensions, connection locations, vent-line information and mud-leg height.
Inspection records and previous operating problems are also useful. The new Mud Gas Separator can then be reviewed to match the existing rig interfaces while correcting issues such as restricted outlets, insufficient access, corroded supports or an unsuitable liquid-seal arrangement.
12. How should buyers compare Drilling Mud Gas Separator manufacturers and suppliers?
Buyers should compare the design basis behind each proposal, including the assumed gas rate, liquid flow, mud density, vent-line conditions and liquid-return arrangement. Similar vessel dimensions do not always mean that two separators provide the same operating capacity.
A reliable Drilling Mud Gas Separator supplier should also define the materials, rated working pressure, internal design, connections, support structure, testing and documentation scope. For land, offshore, workover, MPD or replacement projects, the supplier should demonstrate that the proposed equipment matches the actual rig layout and operating conditions rather than offering only a standard vessel size.
Request an SGPE Drilling Mud Gas Separator Quotation
Depending on the approved scope, the supply may include the separator vessel, internal baffles, choke manifold inlet, gas and mud outlets, mud leg or U-tube, liquid-level control, support skid, lifting points, instruments, inspection openings and technical documentation.
SGPE also supports replacement of old, corroded, damaged or unsupported Mud Gas Separators. When original drawings are unavailable, nameplates, equipment dimensions, piping photographs and inspection records can be used for a preliminary replacement review.
For an accurate technical proposal, provide the expected gas rate, drilling-fluid flow, mud density, operating temperature, gas composition, vent-line dimensions, mud-return arrangement and installation requirements. Sour-service projects should include available H₂S and CO₂ data, while offshore projects should also provide deck layout, lifting, coating and documentation requirements.
E-Mail:
info@sgpe.com
