Drilling Mud Manifold Types, Selection and Buying Guide

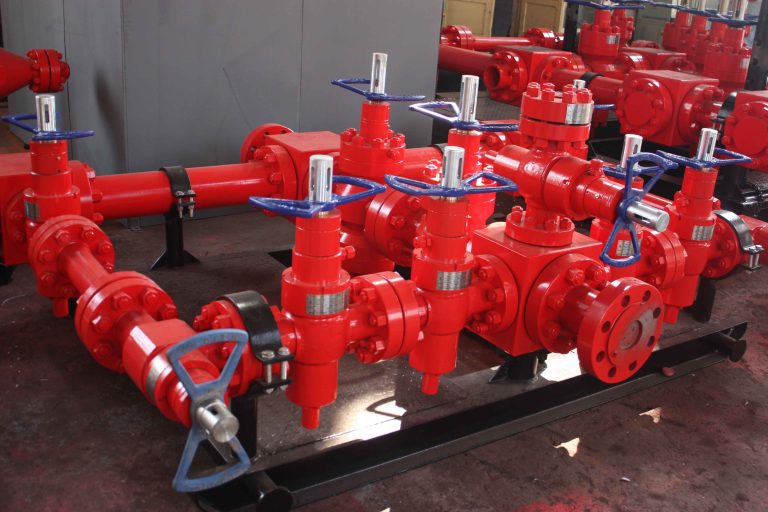

A Drilling Mud Manifold connects the mud pumps with the standpipe and controls the route of high-pressure drilling fluid across an oil and gas drilling rig.

The assembly may occupy only a small area, but it works under demanding conditions. It must handle abrasive drilling mud, high circulation rates, pump pulsation, vibration and frequent valve operation.

Its internal bore and valve arrangement also influence the wider mud circulation system. A restricted flow path can consume hydraulic energy before the fluid reaches the standpipe. Poorly positioned valves may also make pump switching, pressure release and maintenance more difficult.

A correctly engineered oilfield mud manifold provides a clear route from the mud pumps to the active standpipe. It allows the drilling crew to select pumps, isolate equipment, monitor pressure and maintain stable circulation.

SGPE supplies custom Drilling Mud Manifold packages for land drilling rigs, offshore drilling units, workover equipment, rig upgrades and replacement projects. Each technical proposal starts with the actual mud pump data, operating sequence, drilling fluid properties and existing rig interfaces.

This guide explains how a drilling mud manifold works, how different configurations compare and what buyers should confirm before requesting a quotation. It also covers line sizing, working pressure, valve selection, applications, factory acceptance testing, maintenance, price factors and replacement requirements.

Drilling Mud Manifold Quick Selection Summary

Selection Point	What the Buyer Should Confirm
Manifold function	Pump discharge, standpipe distribution or a combined package
Mud pumps	Manufacturer, model, quantity, pressure and maximum flow
Simultaneous operation	Maximum number of pumps expected to run together
Working pressure	Maximum credible circulation pressure, not only normal standpipe pressure
Main bore	Sufficient for the maximum combined flow and allowable pressure loss
Valve arrangement	Pump isolation, standby operation, parallel pumping and standpipe selection
Connections	Flanges, clamp hubs, hammer unions, weld ends and existing centerlines
Drilling fluid	Mud type, density, solids, sand content, chemicals and temperature
Instrumentation	Local gauges, transmitters, alarms and remote signals
Relief system	Set pressure, discharge capacity, outlet connection and safe routing
Installation	Available space, maintenance clearance, supports, weight and lifting method
Testing	Hydrostatic testing, valve closure tests, FAT and third-party inspection
Documentation	Drawings, certificates, reports, manuals and spare-parts lists

What Is a Drilling Mud Manifold and What Does It Include?

A Drilling Mud Manifold is a high-pressure piping and valve assembly that receives drilling fluid from one or more mud pumps and directs it toward the standpipe, rotary hose, top drive or swivel and drill string.

The manifold allows the drilling crew to select an active pump, keep another pump on standby or combine the output of several pumps when higher circulation flow is required. Depending on the drilling rig layout, it may also route mud toward a second standpipe, flushing connection, temporary bypass or pressure-test outlet.

A typical package contains a common high-pressure header, individual mud pump branches, isolation valves, check valves and pressure instruments. Drain points and bleed connections help technicians release trapped pressure before opening a section for inspection or maintenance.

Project-specific systems may also include pressure-relief equipment, electronic transmitters, instrument tubing, structural supports and a transportable skid. A skid-mounted Drilling Mud Manifold can reduce field assembly, improve component alignment and simplify rig moves. Offshore packages may require a compact layout, corrosion-resistant instrumentation, weight control and project-specific lifting provisions.

The final equipment scope depends on the number of mud pumps, required flow routes, working pressure, connection types and available installation space.

Common Drilling Mud Manifold Terms and Supply Scope

Several related terms appear in drilling rig specifications, equipment lists and supplier catalogues. These terms describe similar equipment, but they do not always refer to the same supply scope.

Common Term	Typical Meaning	Main Location or Function
Drilling Mud Manifold	General name for the high-pressure mud routing system	Between mud pumps and standpipe
Mud Pump Discharge Manifold	Combines output from one or more mud pumps	Close to the mud pump packages
Mud Pump Manifold	General term for pump discharge piping and valves	Downstream of the mud pumps
Mud Pump Header Manifold	Common header for several pump discharge lines	Near the mud pump area
Mud Standpipe Manifold	Routes pressurized mud toward one or more standpipes	Upstream of the standpipe
Standpipe Manifold	Selects or isolates standpipe flow routes	Near the derrick or mast
High Pressure Mud Manifold	Emphasizes high-pressure drilling fluid service	Rig mud circulation system
Drilling Fluid Manifold	Routes drilling fluid through the circulation package	Drilling rig mud system
Skid-Mounted Mud Manifold	Combines piping, valves and instruments on one skid	Modular land or offshore package
Replacement Mud Manifold	Matches existing interfaces while upgrading equipment	Rig retrofit or refurbishment

A mud pump discharge manifold normally combines pump output near the pump packages, while a mud standpipe manifold distributes pressurized fluid toward one or more standpipes.

Some rigs use separate discharge and standpipe assemblies. Others combine both functions within one skid-mounted Drilling Mud Manifold.

Before comparing quotations, buyers should confirm the P&ID, battery limits, connection schedule, required flow routes and included components. Otherwise, two offers may appear similar in price while covering different piping, valves, instruments and documentation.

Custom Drilling Mud Manifold Manufacturer and Supplier

Buyers often search for a Drilling Mud Manifold manufacturer, mud manifold supplier, custom mud pump discharge manifold, drilling rig mud manifold for sale or high pressure mud manifold quotation.

In practice, a drilling manifold is rarely an off-the-shelf product.

The final configuration depends on the number of mud pumps, maximum combined flow, working pressure and standpipe arrangement. Drilling fluid properties, valve sequence, existing connections and available installation space also influence the design.

A mobile land rig may need a robust transport skid, protected instruments and quick field connections. By contrast, an offshore drilling unit may place more emphasis on weight control, corrosion protection, instrument tubing and lifting provisions.

Replacement projects introduce another challenge. The new manifold may need to match old pump discharge positions, standpipe centerlines and support locations without major modification to the rig.

SGPE reviews these conditions before confirming the layout. The approved package can cover high-pressure piping, mud gate valves, plug valves, check valves, pressure instruments, relief equipment, structural supports and matched flowline connections.

This engineering-led approach helps prevent an undersized header from creating excessive pressure loss. It also reduces the risk of connection mismatches that delay installation and incomplete quotations that exclude critical valves, instruments or documentation.

How Does a Drilling Mud Manifold Work?

During normal drilling, a mud pump draws drilling fluid from the active mud tank and raises it to the required circulation pressure.

The discharge line carries the pressurized fluid into the manifold. The drilling crew then opens the valves that create the selected circulation route.

Mud travels through the common header and enters the active standpipe. It continues through the rotary hose and reaches the top drive or swivel.

From there, the fluid flows down the drill string and exits through the drill bit nozzles. It returns through the annulus while carrying drilled cuttings toward the shale shakers and other solids-control equipment.

The normal circulation path follows this sequence:

Mud Tanks → Mud Pumps → Mud Pump Discharge Lines → Drilling Mud Manifold → Standpipe → Rotary Hose → Top Drive or Swivel → Drill String → Drill Bit → Annulus → Solids-Control Equipment

This circulation removes cuttings, cools and lubricates the bit, supports wellbore stability and supplies hydraulic energy to downhole tools.

Because the manifold sits between the mud pumps and standpipe, its internal design affects the hydraulic performance of the complete circulation system.

A small internal bore increases fluid velocity. A reduced-port valve, narrow adapter or restricted cross can add pressure loss even when the nominal pipe size appears suitable.

Sharp directional changes may also create local erosion points. A smoother flow path with correctly sized valves and connections helps preserve hydraulic energy for the drill bit.

Main Types of Drilling Mud Manifolds

The correct manifold configuration depends on the number of mud pumps, available standpipe routes and required operating sequence.

Configuration	Typical Arrangement	Main Advantage	Common Application
Single-Pump Manifold	One pump inlet and one standpipe outlet	Simple and compact	Workover or compact land rig
Dual-Pump Manifold	Two pump inlets and one common outlet	Pump redundancy and parallel operation	Standard land drilling rig
Three-Pump Discharge Manifold	Three independently isolated pump branches	High-flow flexibility	Large land or offshore rig
Mud Pump Discharge Manifold	One to three pump inlets and a common header	Combines mud pump output	Near the pump packages
Mud Standpipe Manifold	One inlet and one or two standpipe outlets	Route selection and standpipe isolation	Derrick or mast area
Dual-Standpipe Manifold	One common inlet and two standpipe branches	Redundancy and easier maintenance	Large drilling rig
Skid-Mounted Mud Manifold	Project-specific piping and valves on one base	Reduced field assembly	Modular drilling package
Offshore Standpipe Manifold	Compact custom arrangement	Space, weight and corrosion control	Jackup, semisubmersible or drillship
Replacement Mud Manifold	Matches existing connection positions	Easier retrofit	Older or unsupported rig

Single-Pump Mud Manifold

A single-pump manifold creates a direct circulation route between one mud pump and the standpipe.

This simple arrangement may suit a compact land rig, small drilling package or selected workover operation. Even with a basic configuration, the system still needs suitable isolation, pressure indication and overpressure protection.

Dual-Pump Mud Manifold

A dual-pump mud manifold connects two mud pumps to one common high-pressure header.

The drilling crew can operate either pump separately or run both pumps together when the hydraulic design supports parallel operation. One pump may remain on standby while the other supports routine circulation.

Independent isolation remains important. Technicians should be able to close and depressurize one pump branch without dismantling the complete discharge flowline.

Three-Pump Mud Manifold

Large drilling rigs may use three mud pumps.

A three-pump mud manifold connects each pump through an independently isolated branch. The common header must support the maximum number of pumps expected to operate together.

Three installed pumps do not always mean that all three pumps will run at the same time. Many rigs normally operate two pumps while keeping the third available.

This operating philosophy affects the required header bore, check-valve arrangement and pressure-loss calculation. Buyers should therefore state the expected simultaneous pump quantity clearly in the RFQ.

Mud Standpipe and Dual-Standpipe Manifolds

A mud standpipe manifold routes pressurized drilling fluid toward one or more standpipes.

A dual-standpipe arrangement gives the crew two circulation routes. This configuration may provide operational redundancy or allow one standpipe to remain isolated during inspection and maintenance.

Depending on the rig, the assembly may include local gauges, electronic pressure transmitters, bleed points and a dedicated pressure-test connection.

Skid-Mounted Drilling Mud Manifold

A skid-mounted Drilling Mud Manifold combines piping, valves, instruments and structural supports on one transportable base.

This arrangement can reduce field assembly, improve component alignment and shorten rig-up time.

The skid should match the rig transport method. Lifting points, forklift pockets, shipping supports, overall dimensions and center-of-gravity information may all require review.

Offshore Mud Standpipe Manifold

An offshore manifold often needs a compact footprint because deck space is limited.

Compact design should not come at the expense of access. Valve handwheels, pressure instruments, drain points and removable valve internals still need practical service clearance.

The project may also require marine coating, corrosion-resistant instrument tubing, lifting details, weight information and a detailed manufacturing record package.

Typical Drilling Mud Manifold Operating Modes

A properly arranged manifold supports several drilling and maintenance modes.

During routine operation, one mud pump may supply the active standpipe while another remains on standby. When higher circulation flow is required, two or more pumps may operate through the common header.

Independent valves allow the drilling crew to switch pumps without dismantling the discharge piping. They also allow technicians to isolate one branch while another mud pump remains available.

The manifold may route drilling fluid toward either of two standpipes, depending on the rig configuration. A flushing line can support cleaning or commissioning, while a pressure-test outlet provides a controlled connection for approved testing procedures.

Bleed connections allow technicians to release trapped pressure before maintenance. Some systems also include a temporary bypass for selected commissioning or service operations.

The pressure-relief route must discharge toward a safe tank or collection point. The final valve sequence should always follow the actual drilling rig operating philosophy rather than a generic supplier drawing.

Where Is a Drilling Mud Manifold Installed?

A Drilling Mud Manifold normally sits downstream of the mud pumps and upstream of the standpipe.

On a large land rig, the mud pump discharge manifold may sit close to the pump packages. A separate standpipe manifold can then route the combined flow toward the derrick or mast.

Compact rigs may combine both functions on one skid. This reduces field piping and simplifies transport between well locations.

The installation area should allow technicians to operate each valve and read local pressure instruments. It should also provide enough clearance to remove bonnets, gates, seats or check-valve internals.

External piping requires proper support. Pulling misaligned pipework into position can introduce unwanted loads into manifold connections and skid structures.

Drilling Mud Manifold Applications

The basic function remains similar across most drilling operations. Pressure, flow, materials and layout, however, change with the well program and installation environment.

Application	Main Operating Demand	Key Selection Considerations
Conventional Land Drilling	Routine circulation and pump switching	Simple layout, transport skid and maintenance access
Shale Drilling	High circulation rates and long lateral sections	Large combined flow capacity and low pressure loss
Horizontal and Directional Drilling	Stable flow for hole cleaning and downhole tools	Suitable bore and reliable pressure monitoring
Deep and HPHT Drilling	Higher pressure, temperature and longer circulation	Materials, elastomers, erosion resistance and testing
Extended-Reach Drilling	High hydraulic demand across long trajectories	Low restriction and accurate line sizing
Offshore Drilling	Limited space, marine corrosion and weight control	Compact design, lifting data and marine coating
Arctic Drilling	Low temperature and freezing risk	Low-temperature materials and effective drainage
Desert Drilling	Dust, sunlight and high ambient temperature	Suitable coating, seals and instrument protection
Oilfield Workover	Compact circulation package and changing operations	Small footprint, isolation and relief protection
Rig Upgrade	Increased pump output or new instrumentation	Interface matching and improved flow capacity
Replacement Project	Old, worn or obsolete manifold	Dimensional verification and connection compatibility

Land Rig and Shale Drilling Mud Manifolds

Land rigs use mud manifolds during exploration, development drilling and multiwell pad operations.

Because these rigs often move between locations, the manifold may need a robust transport skid, protected instruments and practical lifting points.

Consistent inlet and outlet positions can also simplify rig-up across a drilling contractor’s fleet.

Shale drilling creates additional hydraulic demands. Long horizontal sections often require high circulation rates for cuttings transport and downhole tool performance.

The common header must support every pump expected to operate together. Reliable isolation is equally important because one unit may need maintenance while the remaining pumps continue circulating.

SGPE reviews skid dimensions, lifting points, mud pump inlet positions and standpipe outlet locations against the actual rig layout.

Horizontal and Directional Drilling Mud Manifolds

Horizontal and directional wells rely on stable drilling fluid flow for hole cleaning, measurement-while-drilling tools, rotary steerable systems and downhole motors.

A correctly sized drilling fluid manifold maintains the required circulation rate without adding unnecessary surface restriction.

The complete internal bore matters more than the nominal pipe size alone. One restricted valve, adapter or outlet can affect pressure loss across the entire surface system.

Extended-Reach Drilling

Extended-reach wells already create considerable hydraulic demand along the well trajectory.

Additional pressure loss across the surface manifold reduces the hydraulic energy available at the drill bit.

For this reason, a low-pressure-loss mud manifold may use full-opening valves, a larger common header and fewer sharp directional changes.

Where the available hydraulic margin is limited, the supplier should review the expected mud flow and pressure loss before the buyer approves the final bore.

Deep-Well and HPHT Drilling

Deep wells often require higher standpipe pressure and longer circulation periods.

The manifold must support sustained high-pressure operation while controlling erosion and flow restriction.

HPHT drilling adds temperature and material concerns. Buyers should provide the maximum circulation pressure, expected mud temperature and available fluid composition.

Materials, elastomers, instruments and test procedures should match the approved operating conditions.

Every valve, flange, clamp hub, hammer union and pressure-containing branch also needs a suitable pressure and temperature rating.

SGPE reviews project-specific deep-well and HPHT requirements before confirming materials, seals, instruments and pressure-test procedures.

Offshore Drilling Mud Manifolds

Offshore drilling units operate with strict space, weight and corrosion limits.

An offshore standpipe manifold may require a compact layout, corrosion-resistant instrument tubing and a marine coating system.

The order may also request dry weight, operating weight, center-of-gravity information and lifting details.

Material certificates, NDE reports, coating records, hydrostatic test reports and final manufacturing records may form part of the documentation package.

Arctic and Cold-Weather Drilling

Cold-weather equipment should minimize trapped liquid because retained water or drilling mud may freeze during shutdown.

Low-temperature materials, suitable elastomers and effective drainage may require review. Selected projects may also consider insulation or heat tracing around specific lines and instruments.

Desert Drilling

Desert rigs face dust, strong sunlight and high ambient temperatures.

The coating system, elastomers and instruments should suit the local environment.

Protective covers may help shield gauges and transmitters, but they should not prevent quick pressure checks or routine calibration.

Replacement Mud Manifold for an Existing Drilling Rig

A rig upgrade may require a new mud manifold because the original equipment no longer supports the planned mud pump output, standpipe arrangement or instrumentation.

The replacement package may increase flow capacity, add pressure transmitters, improve valve access or introduce a second standpipe route.

Older rigs may also need a replacement mud pump discharge manifold because of internal erosion, obsolete valves, damaged connections or structural corrosion.

A new manifold can retain the original pump and standpipe interfaces while upgrading the header, valves, instruments, relief system, skid structure and coating.

Accurate interface information is essential.

Original general arrangement drawings, P&IDs, mud pump data and equipment nameplates provide a useful starting point. Verified centerlines, elevations, connection orientations, support locations and dimensional reports help confirm the existing layout.

Photographs are useful, but they should not replace measurements. When no reliable drawing exists, a qualified sample or controlled site survey may support the technical review.

SGPE checks the available interface data before preparing the replacement manifold drawing and commercial quotation.

Main Components of a Drilling Mud Manifold

High-Pressure Mud Header

The common header connects the mud pump branches with the standpipe outlets.

Manufacturers may build the flow path from heavy-wall pipe, forged crosses, tees, elbows or integrated pressure-containing blocks.

The design should limit unnecessary directional changes and avoid narrow restrictions. The selected bore must support the maximum combined mud pump flow.

A high working-pressure rating does not automatically confirm adequate flow capacity. Pressure class and internal bore must be evaluated together.

Mud Gate Valves

Mud gate valves isolate pump branches and control the selected circulation route.

The gates, seats, stems and seals must suit abrasive drilling mud. Full-opening designs usually provide a less restrictive flow path than reduced-port valves.

Before approving a valve, buyers should confirm its nominal size, working pressure and actual internal bore. The gate and seat materials, stem sealing and bonnet sealing should match the drilling fluid and operating temperature.

The selected operating method also affects the final arrangement. Manual valves provide a simple solution for many land rigs, while gear operators reduce the force required to move larger valves. Hydraulic actuators support remote operation but add control tubing, position indication and maintenance requirements.

Required operating torque, replaceable trim and spare-parts availability should form part of the technical review. A valve with replaceable seats, gates and seals can reduce lifecycle cost in abrasive drilling mud service.

SGPE can include matched mud gate valves and recommended replacement parts within the manifold package.

Plug Valves

Some high-pressure mud manifolds use plug valves because they offer compact dimensions and relatively fast operation.

Drilling fluid may contain barite, sand and drilled solids. The plug, inserts, seals and lubrication system must therefore match the actual mud condition.

Maintenance access should allow the operator to lubricate, inspect and replace wear components without dismantling unrelated piping.

Check Valves

Check valves help prevent reverse flow from the common header into an inactive mud pump.

This function becomes especially important when two or three pumps operate in parallel.

The selected valve should provide sufficient flow capacity without creating excessive pressure loss. Its location should also allow technicians to inspect and replace internal parts.

Pressure Gauges and Transmitters

A local pressure gauge gives the drilling crew direct pressure information near the manifold.

Depending on the project, the instrumentation package may also include electronic pressure transmitters, gauge isolation valves, pressure snubbers, digital displays and high-pressure alarms.

Modern drilling rigs may require remote signals or integration with a drilling control or data-acquisition system.

The measuring range should provide enough margin above normal operating pressure while maintaining useful reading resolution.

Pressure-Relief Equipment

The high-pressure drilling fluid circulation system needs suitable overpressure protection.

A relief valve or shear-type pressure-relieving device may route drilling fluid toward a designated tank or collection point.

The buyer should confirm the set pressure, required discharge capacity, outlet connection and final destination.

The relief line must also have a suitable pressure rating and a safe, unobstructed route.

Pulsation Dampeners

Reciprocating mud pumps create pressure pulsations that affect connected piping and instruments.

A discharge pulsation dampener helps reduce these fluctuations before the drilling fluid enters the manifold and standpipe system.

The mud pump package normally determines the dampener size and pre-charge requirement. The surrounding layout must still leave enough space for inspection and servicing.

Flanges, Clamp Hubs and Hammer Unions

Different drilling rigs use different high-pressure connection systems.

Common options include flanges, clamp hubs, hammer unions, integral flowline connections, weld ends and project-specific adapters.

Hammer unions support fast rig-up and rig-down on many land rigs. The figure number, nominal size, working pressure, seal arrangement and end type must match the existing system.

Flanged or hub connections may suit permanent and offshore installations where controlled alignment and assembly receive greater attention.

SGPE can review existing flange, hub and hammer union interfaces from drawings, verified dimensions or qualified samples.

Typical Drilling Mud Manifold Technical Parameters

Drilling Mud Manifold Configuration, Pressure and Fluid Parameters

The following values provide preliminary purchasing references for a custom Drilling Mud Manifold. They do not represent one fixed SGPE model.

The final manifold type, pump inlet quantity, outlet arrangement, nominal line size and working pressure depend on the actual mud pump package, maximum simultaneous flow and rig circulation layout. Drilling mud density, solids content and operating temperature also affect the hydraulic review, material selection, valve trim and seal compatibility.

Technical Item	Typical Project Option	Main Selection Basis
Equipment Type	Mud pump discharge manifold, standpipe manifold or combined system	Rig circulation layout
Pump Inlets	One, two or three	Installed mud pump quantity
Simultaneous Pumps	One, two or selected three-pump operation	Maximum required circulation flow
Manifold Outlets	Single outlet, dual standpipe, bypass or test outlet	Rig operating philosophy
Nominal Line Size	Commonly around 2 to 6 inches	Maximum flow and allowable pressure loss
Working Pressure	Common project ratings may include 2,000, 5,000 or 7,500 psi	Mud pump and circulation pressure
Higher-Pressure Configuration	Subject to engineering review and project confirmation	Complete system design
Test Pressure	According to the approved design and test procedure	Component rating and purchaser requirements
Operating Medium	Water-based, oil-based or synthetic-based drilling mud	Seal and trim compatibility
Compatible Fluids	Selected brine, flushing fluid or compatible test fluid	Approved operating procedure
Mud Density	Project-specific	Pump performance and drilling program
Solids and Sand Content	Project-specific	Erosion and valve trim selection
Operating Temperature	Project-specific	Material, elastomer and instrument selection

Drilling Mud Manifold Valves, Connections and Sizing Requirements

Valve bore, operating method and connection type affect pressure loss, maintenance access and compatibility with the existing drilling rig. Structural design, coating, inspection and FAT requirements should therefore be confirmed during quotation.

Technical Item	Typical Project Option	Main Selection Basis
Valve Type	Mud gate, plug, check or combined arrangement	Flow and isolation requirements
Valve Bore	Full-opening or project-selected bore	Pressure-loss and erosion control
Valve Operation	Manual, gearbox, hydraulic or mixed	Valve size and control philosophy
Main Connection	Flange, clamp hub, hammer union, integral connection or weld end	Existing rig interface
Instrumentation	Gauge, transmitter, alarm or remote monitoring	Rig monitoring requirements
Relief Arrangement	Relief valve or shear-type device	Overpressure protection
Drain and Bleed Points	Project-specific	Maintenance and trapped-pressure release
Mounting	Free-standing, framed or skid-mounted	Installation and transport
Structural Design	Land transport skid, offshore frame or fixed support	Rig layout and lifting
Coating	Industrial, desert-duty, marine or project-specific	Operating environment
Inspection	Dimensional, visual, NDE and coating inspection	Purchaser specification
FAT	Hydrostatic, functional and document review	Project quality plan
Documentation	Drawings, certificates, reports and O&M manual	Purchase-order requirements

Correct sizing starts with the maximum flow from each mud pump and the maximum number of pumps expected to run together. A rig may have three installed pumps but normally operate only two in parallel, so the hydraulic review should follow the maximum simultaneous flow rather than the installed quantity alone.

The complete internal bore also requires attention. A large header cannot prevent pressure loss if a reduced-port valve, narrow check valve or small adapter becomes the main restriction. For high-flow shale drilling, deep wells or extended-reach programs, the supplier should review fluid velocity and pressure loss using actual drilling mud properties whenever possible.

How to Select the Working Pressure

The manifold working pressure should match the maximum credible pressure in the drilling fluid circulation system.

Normal standpipe pressure alone does not define the requirement.

A proper review considers the maximum mud pump pressure, normal circulation pressure, relief-device setting and expected pressure pulsation. Possible transient pressure, connected equipment ratings and the project safety margin may also affect the final selection.

Each pressure-containing component must suit the approved pressure basis. This includes valves, flanges, clamp hubs, hammer unions, instrument branches and relief piping.

Selecting a much higher pressure class does not always create a better system. It can increase valve cost, equipment weight and connection requirements without improving the planned drilling operation.

Drilling Mud Manifold Selection Guide

1. Define the Required Scope

Start by confirming whether the project needs a mud pump discharge manifold, standpipe manifold or combined package.

The inquiry should identify the pump inlets, standpipe outlets, bypasses, drains, bleed points and pressure-test connections.

Clear battery limits are equally important. The quotation should state which mating connections, adapters, relief lines and field piping form part of the supplier’s scope.

2. Collect the Mud Pump Data

Provide the mud pump manufacturer, model and installed quantity.

The most useful data includes maximum pressure, normal circulation pressure, maximum flow per pump and maximum combined flow.

Pump liner size, stroke rate, discharge connection and pulsation dampener arrangement may also affect the proposed design.

Pump horsepower alone cannot define the manifold size. Two pumps with similar horsepower may produce different pressure and flow combinations.

3. Describe the Drilling Fluid

State whether the rig uses water-based, oil-based or synthetic-based drilling mud.

Mud density, solids content, sand content, chloride concentration and operating temperature influence erosion, sealing and material selection.

When H₂S, CO₂ or other corrosive contaminants may be present, include the available service information and project material requirements.

4. Confirm the Connections

A connection mismatch can delay installation even when the manifold meets the required pressure and flow.

Connection Type	Information Required
Flange	Nominal size, pressure rating, sealing face, dimensional standard and bolt pattern
Hammer Union	Figure number, nominal size, working pressure, end type and seal arrangement
Clamp Hub	Hub profile, clamp type, seal details and orientation
Weld End	Pipe size, wall thickness, material and welding requirements
Replacement Interface	Centerline, elevation, orientation, support position and available space

For retrofit work, verified dimensions are more reliable than general photographs.

5. Define the Valve Sequence

The valve arrangement should reflect how the drilling rig will operate.

The buyer should confirm whether the crew needs one duty pump and one standby pump, two pumps in parallel or three independent mud pump branches.

The inquiry should also state whether the system needs dual-standpipe selection, a flushing route, pressure-test connection, temporary bypass or dedicated bleed point.

6. Select the Instruments and Relief Arrangement

The pressure gauge range, transmitter output, alarm requirements and remote signal interface should match the rig monitoring philosophy.

Instrument isolation and pulsation protection may also be necessary.

For the relief system, the inquiry should state the required set pressure, outlet size, discharge capacity and final discharge location.

7. Check the Installation Limits

Provide the maximum allowable length, width, height and weight.

The layout review should consider valve operating clearance, bonnet removal space, instrument access and drain access.

External pipe loads, lifting methods and transport restrictions may also influence the structural design.

8. Define Testing and Documentation

The buyer should confirm the required material certificates, dimensional inspection, NDE, hydrostatic test, valve closure test, instrument calibration and FAT scope.

Third-party inspection should be stated during quotation because it can affect both cost and delivery.

The final document package may include approved drawings, material records, test reports, coating records, calibration certificates, operating manuals and spare-parts recommendations.

Drilling Mud Manifold Buying Guide

Compare the Complete Supply Scope

Buyers searching for a Drilling Mud Manifold price, mud pump discharge manifold quotation, custom mud manifold package or drilling rig mud manifold supplier should compare the complete supply scope rather than the final price alone.

One quotation may include valves, instruments, relief equipment, matched connections, a structural skid and full test records. Another may cover only the main piping assembly.

Supply Item	Questions Buyers Should Ask
High-Pressure Piping	Does the quotation include all headers, branches and outlets?
Valves	Are mud gate, plug and check valves included?
Instruments	Does the scope include gauges, transmitters and isolation valves?
Relief Equipment	Does the supplier include the relief device and discharge connection?
Connections	Are mating flanges, hubs, unions or adapters included?
Structural Skid	Does the scope include supports, lifting points and transport provisions?
Testing	Does the price include hydrostatic, functional and valve closure testing?
FAT	Can the purchaser or third-party inspector witness the test?
Documentation	Which drawings, certificates and reports form part of the package?
Spare Parts	Does the quotation include commissioning and operational spares?
Packing	Does the supplier include preservation and export packing?

A lower price may reflect a smaller supply scope rather than a more competitive design.

Review the Technical Proposal

A useful technical offer should identify the manifold type, working pressure, test pressure, line size and internal bore.

It should also define the valve arrangement, connections, materials, instruments and test scope.

The supplier should state which drawings, certificates, spare parts and mating components are included.

Open technical points should appear clearly in the proposal instead of being left until manufacturing begins.

Check Hydraulic Suitability

The supplier should review the maximum combined pump flow and every restriction along the flow path.

For high-flow applications, ask whether the proposed header, mud valves, check valves and outlets share a compatible bore.

A pressure-loss review may provide additional confidence for shale drilling, deep wells and extended-reach drilling.

Evaluate Manufacturing and Retrofit Capability

A qualified Drilling Mud Manifold manufacturer should understand high-pressure mud piping, valve selection, welding control, NDE and hydrostatic testing.

Instrument integration, skid fabrication and connection matching require additional experience.

Offshore orders may involve weight control, lifting calculations, marine coating and detailed manufacturing records.

Replacement projects demand accurate dimensional control because the new manifold must fit the existing drilling rig interfaces.

Confirm FAT, Spare Parts and Delivery

Factory Acceptance Testing helps verify the manifold before shipment.

The FAT should follow the approved project scope and may cover hydrostatic testing, valve closure, functional operation, instrument verification and dimensional inspection.

Spare parts also influence lifecycle value. Seats, gates, stem packing, bonnet seals, plug inserts, check-valve internals and pressure instruments may require future replacement.

Export packing should protect sealing faces, hub profiles, hammer union threads, gauges, transmitters and coated surfaces.

Drilling Mud Manifold Price Factors

The Drilling Mud Manifold price depends on the final technical scope rather than one fixed market rate.

Price Factor	How It Affects Cost
Working Pressure	Higher ratings may require heavier components and higher-rated valves
Main Line Size	A larger bore increases material and valve size
Pump Inlet Quantity	Additional branches require more piping and isolation valves
Outlet Quantity	Dual standpipe and bypass routes increase component quantity
Valve Type	Gate, plug, check and actuated valves have different costs
Valve Operation	Hydraulic actuation adds controls, tubing and testing
Connection Type	Flanges, hubs and hammer unions require different machining
Instrumentation	Gauges, transmitters and alarms increase the project scope
Material Grade	Low-temperature or corrosion-resistant materials increase cost
Wear-Resistant Trim	Hardfacing and replaceable trim add manufacturing work
Skid Design	Offshore and transport skids require additional engineering
Lifting Requirements	Certified lifting points increase fabrication and documentation
Testing	FAT, NDE and third-party inspection add quality-control work
Documentation	Detailed manufacturing records require additional preparation
Spare Parts	Commissioning and operational spares increase package value
Export Packing	Large skid packages need additional protection and supports

For an accurate quotation, provide the mud pump data, operating arrangement, connections, drilling fluid properties and installation limits.

Drilling Mud Manifold vs. Related Equipment

Drilling Mud Manifold vs. Mud Pump Discharge Manifold

A mud pump discharge manifold normally combines the output from several mud pumps near the pump packages.

A Drilling Mud Manifold may include the pump discharge function, standpipe function or both.

Buyers should confirm the inlets, outlets, valve arrangement and battery limits rather than assuming that both names describe identical equipment.

Drilling Mud Manifold vs. Standpipe Manifold

A standpipe manifold routes pressurized drilling fluid toward one or more standpipes.

It may include isolation valves, pressure instruments and bleed connections.

A Drilling Mud Manifold may describe the discharge assembly, standpipe assembly or complete system between the mud pumps and standpipe.

Drilling Mud Manifold vs. Choke Manifold

A Drilling Mud Manifold belongs to the normal drilling fluid circulation system. It directs mud from the pumps toward the drill string during routine drilling.

A choke manifold performs a different well-control function. It controls and routes well returns while the BOP system contains well pressure.

The two systems are not interchangeable.

What Does “API Drilling Mud Manifold” Mean?

Many buyers search for an API Drilling Mud Manifold, but the phrase requires careful explanation.

A complete manifold may contain valves, flanges, hammer unions, hoses, relief devices, piping materials and welded structures. Different components may follow different specifications or project requirements.

A general statement such as “manufactured to API standard” does not provide enough technical detail.

The technical proposal should identify the design basis for the complete manifold. It should also define the applicable requirements for valves, connections, relief equipment, materials, welding, NDE and pressure testing.

Marking, traceability and purchaser specifications should appear in the project documentation.

The supplier must distinguish between requirements for the complete package and requirements that apply only to individual components.

Materials and Erosion Resistance

Drilling mud may contain barite, sand, drilled solids and chemical additives.

These materials can wear valve seats, tees, elbows and narrow passages when they move at high velocity.

Pressure strength and erosion resistance should therefore be reviewed together.

Service Factor	Possible Design Response
High Mud Velocity	Larger bore and smoother flow path
High Sand or Solids Content	Wear-resistant trim and replaceable parts
Oil-Based Mud	Compatible elastomer selection
Elevated Temperature	Temperature-suitable seals and instruments
Sour or Corrosive Conditions	Project-specified materials and corrosion review
Offshore Environment	Marine coating and corrosion-resistant instruments
Low-Temperature Service	Impact-qualified materials and cold-weather seals
Frequent Valve Operation	Durable stem, seat and operating mechanism

Replaceable trim can reduce lifecycle cost because technicians can replace worn seats, gates, inserts or seals without changing the complete valve.

SGPE Manufacturing and Quality Control

SGPE controls each project according to the approved drawings, technical specification and inspection plan.

The quality process may begin with material certificate review and heat-number traceability.

During fabrication, the team can complete dimensional inspections, welding procedure reviews and welder qualification verification.

Visual inspection and the required surface or volumetric NDE help check fabricated components.

The inspection team can also verify valve assembly, valve operation and selected instruments.

Before shipment, SGPE can review the coating, nameplates, interface positions and final dimensions.

The approved inspection and test plan should identify acceptance criteria, witness points and hold points.

Drilling Mud Manifold Factory Acceptance Testing

A Factory Acceptance Test allows the purchaser to inspect the manifold before shipment.

FAT Item	Typical Check	Main Purpose
Drawing Review	Compare the package with approved drawings	Confirm final configuration
Bill-of-Material Review	Check major valves, materials and instruments	Confirm supply scope
Dimensional Inspection	Measure connection positions and overall dimensions	Confirm installation fit
Connection Inspection	Verify flange, hub or union details	Prevent site mismatch
Hydrostatic Body Test	Pressurize pressure-containing sections	Confirm pressure integrity
Valve Closure Test	Check isolation performance	Identify seat leakage
Functional Valve Test	Operate each valve through its required travel	Confirm operability
Gauge Check	Compare readings with a calibrated reference	Confirm pressure indication
Transmitter Check	Verify signal output and range	Confirm remote monitoring
Relief-Device Review	Verify set pressure and documents	Confirm protection basis
Drain and Bleed Test	Check maintenance functions	Confirm safe pressure release
Coating Inspection	Check thickness and condition	Confirm environmental protection
Nameplate Review	Verify ratings and identification	Support traceability
Final Document Review	Confirm reports and certificates	Complete project records

SGPE can support in-person, third-party or remote FAT according to the approved purchase-order requirements.

For remote FAT, the project team should agree on video coverage, calibrated instruments, test steps and document submission before manufacturing begins.

Installation and Commissioning

Before installation, inspect the manifold for transport damage, loose instruments and missing connection protectors.

Confirm the flow direction and check the inlet and outlet alignment. Valve clearance, external supports and lifting points should match the approved installation plan.

Drain and relief lines need clear and safe routes. Instruments should remain accessible for calibration and maintenance.

Do not pull misaligned piping into position by tightening flange bolts or hammer unions. This can transfer unwanted loads into the manifold and its connections.

After assembly, flush the system with a compatible fluid. Then complete the required field pressure test according to the approved site procedure.

Before starting the mud pumps, verify the complete valve line-up.

Drilling Mud Manifold Maintenance and Troubleshooting

Regular maintenance helps reduce leakage, difficult valve operation and unplanned downtime.

Problem or Inspection Point	Possible Cause	Recommended Action
Excessive Pressure Loss	Undersized header, restricted valve or accumulated solids	Review the complete bore and clean the flow path
Rapid Internal Erosion	High velocity or abrasive drilling fluid	Inspect wear areas and review line sizing
Valve Leakage	Worn seats, damaged gates or dirty sealing faces	Inspect or replace valve trim
Difficult Valve Operation	Solids buildup, corrosion or stem damage	Exercise, lubricate and inspect the valve
Unstable Pressure Reading	Pump pulsation, damaged gauge or blocked impulse line	Check the snubber and instrument connection
Connection Leakage	Misalignment, damaged seal or incorrect assembly	Verify dimensions and sealing components
Excessive Vibration	Weak supports or poor pulsation control	Inspect supports and dampener condition
Trapped Pressure	Missing or blocked bleed connection	Verify the isolation and bleed route
Repeated Relief Activation	Incorrect valve line-up or relief setting	Review the operating route and set pressure
Coating Damage	Impact, corrosion or poor surface condition	Clean and repair the affected area

Valves that remain in one position for long periods may become difficult to operate. A planned valve-exercise program can identify problems before a pump change becomes urgent.

Pressure gauges and transmitters should follow the drilling contractor’s calibration schedule. Relief equipment should undergo inspection and testing at the required interval.

How to Evaluate a Drilling Mud Manifold Manufacturer

A qualified Drilling Mud Manifold manufacturer and supplier should review the complete circulation system before preparing a quotation.

The supplier should understand mud pump pressure, flow and common header sizing. It should also have experience with high-pressure valve selection, connection matching and pressure-loss review.

Material traceability, welding control, NDE and hydrostatic testing form another important part of supplier evaluation.

For offshore projects, buyers should check the supplier’s ability to provide weight, lifting, coating and documentation support.

For replacement work, dimensional-control and retrofit experience are particularly important.

FAT support, spare-parts availability and export packing also influence total purchasing value.

A supplier that asks detailed questions about mud pump data, drilling fluid properties, connections and operating modes will usually provide a more reliable proposal than one that quotes from the equipment name alone.

SGPE reviews the available technical information before confirming the commercial offer. This process helps buyers avoid generic quotations that overlook flow, pressure, interface and maintenance requirements.

Information Required for a Drilling Mud Manifold Quotation

Required Information	Details to Provide
Rig Type	Land rig, offshore drilling unit or oilfield workover rig
Well Application	Conventional, shale, horizontal, deep, HPHT or extended-reach drilling
Mud Pumps	Manufacturer, model, quantity, pressure and flow
Operating Arrangement	Single pump, standby pump or parallel operation
Working Pressure	Normal and maximum operating pressure
Maximum Flow	Flow per pump and maximum combined flow
Manifold Type	Pump discharge, standpipe or combined manifold
Inlet Connections	Size, rating, type, position and quantity
Outlet Connections	Size, rating, type, position and quantity
Drilling Fluid	Type, density, solids content and temperature
Valves	Gate, plug, check, manual, gearbox or hydraulic
Instrumentation	Gauges, transmitters, alarms and remote signals
Relief System	Set pressure, outlet size and discharge destination
Installation Limits	Maximum length, width, height and weight
Environment	Desert, tropical, arctic, coastal or offshore
Testing	Hydrostatic, functional, FAT or third-party inspection
Documentation	Drawings, certificates, reports and final data book
Spare Parts	Commissioning and operational spare requirements
Delivery Location	Country, port and preferred shipping method

An existing P&ID, mud pump data sheet, drilling rig drawing or equipment photograph can help SGPE prepare a more accurate technical proposal.

Frequently Asked Questions About Drilling Mud Manifolds

1. What does a Drilling Mud Manifold do?

A Drilling Mud Manifold receives high-pressure drilling fluid from one or more mud pumps and directs it toward the standpipe, rotary hose, top drive or swivel and drill string. It forms an important part of the drilling rig mud circulation system because it provides a controlled route between the mud pumps and the active standpipe.

The valve arrangement allows the drilling crew to select an operating pump, isolate a standby pump or combine the output of several pumps when higher circulation flow is required. Depending on the rig layout, the manifold may also direct mud toward a second standpipe, flushing connection, pressure-test outlet or temporary bypass.

A correctly sized high pressure mud manifold can reduce unnecessary flow restriction, improve pump-switching flexibility and provide practical access for pressure monitoring and maintenance. These functions are important during conventional land drilling, shale drilling, horizontal wells, deep wells, offshore drilling and selected workover operations.

2. Is a mud pump discharge manifold the same as a standpipe manifold?

A mud pump discharge manifold and a standpipe manifold perform related functions, but they are not always the same piece of equipment.

The mud pump discharge manifold normally sits close to the pump packages and combines the output from one, two or three mud pumps into a common high-pressure header. A mud standpipe manifold is usually installed farther downstream and directs the combined flow toward one or more standpipes.

Some drilling rigs use separate discharge and standpipe manifolds. Compact land rigs, mobile drilling packages and selected skid-mounted systems may combine both functions within one Drilling Mud Manifold.

For this reason, buyers should not rely on the equipment name alone. The P&ID, battery limits, number of pump inlets, standpipe outlets, valve sequence and connection schedule should define the actual supply scope before a mud manifold quotation is compared.

3. How do I select the correct Drilling Mud Manifold pressure rating?

The working pressure of a Drilling Mud Manifold should match the maximum credible pressure within the drilling fluid circulation system. Normal standpipe pressure provides useful information, but it should not be the only basis for selecting the manifold pressure rating.

The technical review should consider the maximum mud pump discharge pressure, normal circulation pressure, relief-device setting, pump pulsation, possible transient pressure and the ratings of all connected equipment. Every pressure-containing component, including mud gate valves, plug valves, check valves, flanges, clamp hubs, hammer unions and instrument branches, should suit the approved pressure basis.

Selecting a much higher pressure class does not always provide a practical advantage. A higher rating can increase valve size, weight, connection requirements and overall Drilling Mud Manifold price. The most suitable configuration balances operating pressure, system safety, installation limits and project cost.

4. How do I size a drilling mud manifold?

Correct drilling mud manifold sizing starts with the maximum flow from each mud pump and the maximum number of pumps expected to operate at the same time.

A rig may have three mud pumps installed but normally use only two pumps in parallel. In that case, the hydraulic review should consider the maximum combined two-pump flow while still providing three correctly arranged pump branches.

The complete internal bore requires attention. A large main header cannot prevent pressure loss if a reduced-port mud valve, narrow check valve, small adapter or restricted outlet becomes the controlling flow restriction.

Fluid velocity also affects performance. Excessive velocity may increase pressure loss and accelerate erosion around valves, tees, crosses and elbows. For high-flow shale drilling, deep-well circulation or extended-reach drilling, a pressure-loss review based on the actual drilling mud properties may help confirm the required line size and valve bore.

5. Can one mud manifold connect two or three mud pumps?

Yes. A dual-pump mud manifold can connect two mud pumps to one common header, while a three-pump discharge manifold can provide three independently isolated pump branches.

A dual-pump configuration allows either pump to operate separately and may also support parallel pumping when the header, valves and outlets have sufficient flow capacity. One pump can remain on standby while the other supports routine circulation.

A three-pump mud manifold offers additional flexibility for large land rigs and offshore drilling units. However, three installed pumps do not automatically mean that all three will operate together. The supplier should know the maximum simultaneous pump quantity before confirming the header bore, check-valve arrangement and expected pressure loss.

The required operating sequence should appear clearly in the RFQ because it influences the manifold size, valve arrangement, instrumentation and final quotation.

6. What valves are used in a high pressure mud manifold?

A high pressure mud manifold may use mud gate valves, plug valves and check valves, depending on the required flow routes and operating philosophy.

Full-opening mud gate valves provide dependable isolation and a relatively unrestricted flow path. They are commonly used to isolate individual mud pump branches, standpipe outlets and bypass connections. The gate, seats, stem seals and bonnet seals should suit abrasive drilling fluid and the required operating temperature.

Plug valves offer compact dimensions and relatively fast operation. However, their plugs, inserts, seals and lubrication systems must match the drilling mud properties, especially when the fluid contains barite, sand or drilled solids.

Check valves help prevent reverse flow from the common header into an inactive mud pump. This function becomes especially important in dual-pump and three-pump systems. The selected check valve should provide adequate flow capacity without becoming a major pressure-loss point.

7. Can SGPE supply a custom skid-mounted Drilling Mud Manifold?

SGPE can review custom skid-mounted Drilling Mud Manifold packages for land drilling rigs, offshore drilling units, modular drilling packages and selected workover equipment.

A skid-mounted mud manifold combines the high-pressure piping, valves, instruments and structural supports on one transportable base. This arrangement can reduce field assembly, improve component alignment and shorten rig-up time.

The final layout depends on the number of mud pump inlets, maximum combined flow, working pressure, standpipe outlets, valve arrangement and available installation space. The design should also provide enough clearance for valve operation, instrument reading, bonnet removal and routine maintenance.

For mobile land rigs, the skid may require practical lifting points, forklift access and protected instruments. Offshore mud manifold projects may add marine coating, corrosion-resistant instrument tubing, weight information, center-of-gravity data and project-specific lifting requirements.

8. Can SGPE manufacture a replacement mud pump discharge manifold?

SGPE can review replacement mud manifold projects for old, damaged, eroded or unsupported drilling rig equipment.

A replacement mud pump discharge manifold may retain the original pump and standpipe interfaces while upgrading the high-pressure header, valves, instruments, relief equipment, structural skid and coating system. The project may also increase flow capacity, add pressure transmitters or introduce a second standpipe route.

Accurate interface information is essential. Original general arrangement drawings, P&IDs, equipment nameplates, mud pump data and dimensional reports provide the best starting point. Verified connection centerlines, elevations, orientations and support positions help ensure that the new manifold fits the existing rig.

Photographs can support the review, but they should not replace measurements. When reliable drawings are unavailable, a qualified sample or controlled site survey may help establish the replacement dimensions.

9. What should a Drilling Mud Manifold FAT include?

A Drilling Mud Manifold Factory Acceptance Test should verify that the completed package matches the approved drawings, technical specification and purchase-order requirements.

The FAT may include a review of the bill of materials, valve models, instruments, connection types and overall configuration. Dimensional inspection should confirm the inlet and outlet positions, centerlines, skid dimensions and maintenance clearances.

Hydrostatic testing checks the integrity of the pressure-containing sections. Valve closure testing helps identify seat leakage, while functional testing confirms that each valve operates through its required travel. Pressure gauges and transmitters may also require verification against calibrated reference instruments.

Depending on the project, the FAT can include coating inspection, nameplate review, drain and bleed checks, relief-device document review and final manufacturing-record verification. SGPE can review requirements for in-person, third-party or remote FAT according to the approved inspection and test plan.

10. What spare parts should be ordered with a drilling mud manifold?

The recommended spare-parts scope depends on the selected valves, instruments, connections and expected operating conditions.

Mud gate valve spares may include seats, gates, stem packing, bonnet seals and selected operating components. Plug valves may require inserts, seals and lubrication-related parts, while check valves may need replacement internal components.

Pressure gauges, transmitter isolation parts and hammer union seals may also be useful for commissioning or routine maintenance. For abrasive mud service, wear components generally deserve more attention because high solids content and elevated fluid velocity can accelerate erosion.

A project-specific spare-parts list should match the actual valve models and manifold configuration rather than using a generic package. Commissioning spares can support installation and initial testing, while operational spares help reduce downtime during long drilling programs, offshore campaigns and remote-site operations.

11. What affects Drilling Mud Manifold price?

The Drilling Mud Manifold price depends on the final technical scope rather than one fixed market rate.

Working pressure, main line size and pump inlet quantity have a direct effect on the amount and rating of pressure-containing equipment. Dual-standpipe routes, bypass lines and additional pump branches increase the quantity of piping, valves and connections.

Valve type and operation also influence the quotation. Hydraulic actuators, remote position indication, electronic pressure transmitters and alarm functions add equipment, control tubing and testing requirements.

Materials, low-temperature requirements, marine coating, wear-resistant trim, NDE, third-party inspection and detailed documentation can further affect cost. Offshore skids may require additional structural engineering, weight control and lifting documentation.

When comparing quotations, buyers should confirm whether each offer includes the valves, instruments, relief equipment, mating connections, structural skid, FAT, spare parts and export packing. A lower price may simply reflect a smaller supply scope.

12. What information is needed for a Drilling Mud Manifold quotation?

An accurate Drilling Mud Manifold quotation starts with the mud pump and operating data.

The supplier should know the mud pump manufacturer, model, installed quantity, maximum pressure, maximum flow per pump and maximum combined flow. The inquiry should also explain how many pumps will operate together and whether the rig needs standby-pump operation, parallel pumping or three independent pump branches.

Connection information should include the inlet and outlet sizes, pressure ratings, connection types, positions and quantities. Existing drawings, P&IDs, flange details, hammer union figure numbers, clamp hub profiles and verified centerlines can improve quotation accuracy.

The buyer should also provide the drilling fluid type, density, solids content, operating temperature and any available corrosive-service information. Installation dimensions, environmental conditions, instrumentation, relief-system requirements, FAT scope, documentation and spare-parts expectations should be included whenever available.

Complete technical information allows SGPE to review the manifold bore, valve arrangement, connection layout, test requirements and total supply scope before preparing the commercial offer.

Request an SGPE Drilling Mud Manifold Quotation

Available configurations include single-pump, dual-pump, three-pump, standpipe, dual-standpipe and skid-mounted manifolds. The supply can include mud gate valves, plug valves, check valves, pressure gauges, transmitters, relief equipment, matched flowline connections and recommended spare parts.

These systems can support conventional drilling, shale development, horizontal and directional wells, deep and HPHT drilling, extended-reach projects and selected workover operations.

For a technical review, please provide the mud pump manufacturer and model, maximum pressure, flow per pump, maximum combined flow, number of operating pumps, inlet and outlet connections, drilling fluid information, rig layout or P&ID, installation dimensions and environmental conditions.

For replacement projects, original drawings, nameplates, photographs and verified interface dimensions are also helpful.

SGPE supplies custom Drilling Mud Manifold packages for land rigs, offshore drilling units, rig upgrades and replacement projects. After reviewing the project data, SGPE will recommend a suitable Drilling Mud Manifold configuration and provide the corresponding technical proposal and quotation.

E-Mail:
info@sgpe.com
