High Pressure Flowline Equipment for Petroleum Industry Operations: Complete Oilfield Buyer Guide
What Is High Pressure Flowline Equipment?
High pressure flowline equipment is a key part of petroleum pressure pumping operations. During oil and gas drilling, hydraulic fracturing, cementing, acidizing, well testing, workover and well intervention jobs, field crews need pressure-rated flowline systems to move fluids between pumps, manifolds, wellheads, treating lines, service units and pressure control equipment.
In oilfield service, this equipment refers to the group of components that connect, control, redirect and isolate fluid flow at the wellsite. A complete oilfield flowline package may include hammer unions, swivel joints, pup joints, plug valves, check valves, integral fittings, tees, elbows, crosses, adapters, manifolds and other pressure pumping accessories.
Each component may look simple on its own. However, the full flowline system must handle pressure fluctuation, vibration, abrasive slurry, corrosive fluids, outdoor exposure and frequent field installation. Selection should never depend only on size or price. The equipment must match working pressure, test pressure, service fluid, end connection, temperature, material, sealing structure, H2S service condition and project requirements.
For oilfield service companies, a reliable pressure pumping flowline improves job efficiency and lowers the risk of connection problems. Drilling contractors, frac companies, cementing crews and well service teams also need a well-matched equipment package to complete rig-up faster and control the job more smoothly. From a procurement perspective, the right supplier can reduce downtime, urgent replacement cost and compatibility risk.
Many buyers search for products and solutions using terms such as high pressure flowline equipment, oilfield flowline equipment, petroleum flowline equipment, pressure pumping equipment, fracturing flowline equipment, cementing flowline equipment, FIG 1502 flowline equipment, hammer union, swivel joint, pup joint, plug valve, check valve and high pressure manifold fittings.
This guide explains the main product types, oilfield applications, specification points and inquiry details that buyers need to know before ordering high pressure flowline equipment for petroleum operations.
Why High Pressure Flowline Equipment Matters in Oilfield Operations
Oilfield pressure pumping depends on stable, controlled and safe fluid movement. In hydraulic fracturing, high-pressure pumps deliver fracturing fluid and proppant into the formation. Cementing operations require cementing units to pump slurry through treating lines and wellhead connections. Acidizing jobs use service pumps to deliver acid or chemical fluid into the wellbore. During well testing, temporary flowlines connect the wellhead with choke manifolds, separators, burners, sand traps and other surface equipment.
In these operations, flowline equipment connects key pressure points at the wellsite. It also allows crews to build temporary lines, adjust layouts, change flow direction, isolate sections and control reverse flow. A weak connection, wrong pressure rating or mismatched union figure can delay the job and create serious safety concerns.
A high pressure oilfield flowline works as a complete system, not as separate parts. The hammer union must match the pup joint, while the swivel joint needs the correct working pressure and connection type. Plug valves should suit the fluid and operating frequency. Check valves must also match the actual flow direction and field condition.
When every component fits the same pressure line, the system becomes easier to install, inspect, maintain and replace. It also helps reduce field delays caused by missing adapters, wrong union figures or incompatible spare parts.
Main Petroleum Industry Applications
High pressure flowline products appear across many oil and gas wellsite operations. Different applications require different pressure ratings, sizes, connections, materials and sealing solutions. The main purpose remains the same: connect equipment, transfer high-pressure fluid and control flow safely in petroleum industry environments.
Hydraulic Fracturing Flowline Equipment
Hydraulic fracturing creates one of the most demanding working conditions for oilfield flowline equipment. In a frac job, pressure pumping units inject fracturing fluid, sand and chemical additives into the formation through the wellhead. The line must handle high pressure, vibration, pressure pulses and abrasive proppant-laden fluid.
Frac flowlines often require 10,000 psi or 15,000 psi rated components, especially in shale gas, tight oil and high-pressure reservoir development projects. FIG 1502 connections are common in petroleum fracturing service because they support high-pressure field connection and fast wellsite assembly.
Common fracturing flowline products include pup joints, integral fittings, swivel joints, hammer unions, plug valves, check valves and frac manifold connections. Search terms such as frac flowline equipment, fracturing flowline, 1502 flowline equipment, high pressure frac fittings, oilfield pressure pumping flowline, fracturing manifold fittings and FIG 1502 hammer union fittings often come from buyers with active well stimulation projects.
A matched frac flowline package helps crews connect pumps, manifolds and wellheads faster. It also lowers the risk of downtime during high-intensity pressure pumping work.
Oilfield Cementing Flowline Equipment
Cementing operations require strong and stable high pressure connections between cementing units, cement manifolds, treating lines and wellheads. The line must carry cement slurry under pressure and maintain reliable connection during the pumping process.
Cement slurry can create abrasion inside the line. Therefore, procurement teams need to consider flow speed, slurry density, pressure rating, service life and cleaning requirements. In oilfield cementing service, common products include hammer unions, pup joints, swivel joints, plug valves, check valves, cementing heads, high pressure fittings and cementing manifolds.
For many petroleum cementing jobs, common union figures include FIG 602, FIG 1002 and FIG 1502. The final choice depends on pressure requirement, well program and existing field connection. A clear cementing flowline inquiry usually includes slurry type, working pressure, temperature, connection type, required line length and project standard.
A complete cementing flowline package improves compatibility between the cementing unit, treating line and wellhead equipment. It also reduces delays caused by missing adapters or mismatched union connections.
Acidizing Flowline Equipment
Acidizing is an important petroleum well stimulation operation. During acidizing, service crews pump acid or chemical fluids into the formation to improve flow capacity or remove near-wellbore damage. The flowline system must handle pressure, chemical exposure and possible corrosive conditions.
Acid can attack unsuitable materials and seals. For this reason, equipment selection must consider material compatibility, seal selection, corrosion resistance and post-job cleaning practice. Acidizing flowline equipment should match the actual acid type, concentration, temperature, exposure time and wellsite operating procedure.
Common oilfield acidizing flowline products include plug valves, check valves, hammer unions, pup joints, swivel joints, high pressure fittings and chemical injection manifolds. A useful inquiry should state service fluid, acid concentration, working pressure, temperature, H2S condition and required connection type.
Clear operating details help the supplier recommend suitable materials, sealing options and pressure-rated components for petroleum acidizing service.
Well Testing Flowline Equipment
Well testing operations use temporary surface equipment to evaluate oil and gas well performance. During well testing, flowlines may connect the wellhead with test separators, choke manifolds, burners, sand traps, surge tanks and other testing equipment. The system may handle oil, gas, water, sand and pressure fluctuation.
Because well testing conditions can change during the test period, the flowline system needs reliable pressure performance and flexible field connection. Operators may adjust layouts, change connection points or isolate certain sections during the job.
Common well testing flowline equipment includes pup joints, hammer unions, swivel joints, plug valves, check valves, tees, elbows, crossovers and adapter fittings. Some projects also need special adapters to connect different wellhead outlets, choke manifold connections or test separator inlets.
For oilfield well testing projects, the supplier needs working pressure, fluid type, gas content, sand content, connection standard, flow direction and site layout. These details help the supplier recommend a more suitable high pressure flowline package.
Workover and Well Service Flowline Equipment
Workover and well service operations often require temporary pressure lines at the oilfield wellsite. Crews may connect pumps, tanks, manifolds, tubing equipment, wellheads and service tools under changing field conditions. In these jobs, fast installation, easy replacement and strong connection compatibility matter.
Hammer unions, swivel joints and pup joints help crews build pressure lines quickly. Plug valves and check valves help control flow direction, isolate sections and protect upstream equipment from reverse flow. Because workover sites may change frequently, standard sizes and common union figures often make field replacement easier.
High pressure flowline equipment for workover and well service may support tubing circulation, well killing, well flushing, pressure testing, stimulation support and other petroleum well intervention tasks. Before placing an order, the final check should cover pressure rating, service fluid, end connection and required accessories.
Common Types of High Pressure Flowline Equipment
A complete high pressure flowline system in the petroleum industry contains several product types. Each product has a clear function in the pressure pumping line. When procurement teams understand these functions, they can select equipment more accurately and send better inquiries.
High Pressure Hammer Unions
High pressure hammer unions provide fast and strong connection for oilfield flowlines. Field crews use them to connect pup joints, hoses, manifolds, valves, wellhead equipment and pressure pumping lines. A hammer union usually contains a wing nut, male sub, female sub and seal ring.
The main advantage of a hammer union is fast assembly and disassembly. Crews can connect or disconnect line sections with proper tools and field procedures. This feature makes hammer unions common in temporary oilfield flowline systems, pressure pumping units, cementing lines, fracturing lines and well service jobs.
Common hammer union figure types include FIG 100, FIG 200, FIG 206, FIG 400, FIG 402, FIG 602, FIG 1002, FIG 1003, FIG 1502 and FIG 2202. Different figures support different pressure ratings, sealing structures and service conditions. In petroleum pressure pumping service, many projects focus on FIG 602, FIG 1002 and FIG 1502 hammer unions.
Before ordering hammer unions, the final check should cover nominal size, figure type, rated working pressure, test pressure, threaded or welded connection, standard or sour gas service, seal material, service fluid, temperature range and compatibility with existing field equipment.
A wrong hammer union figure can create connection mismatch and safety risk. Field crews should never mix union figures only because the size looks similar. The figure number, pressure rating and sealing structure must match before installation.
High Pressure Swivel Joints
High pressure swivel joints allow flowlines to change direction and absorb movement during oilfield pressure pumping operations. They reduce pipe stress and support flexible layout in limited wellsite space. Depending on the style, a swivel joint can rotate through one or more planes.
Oilfield crews often install swivel joints in fracturing lines, cementing lines, acidizing lines, choke and kill lines, well testing systems and pump discharge lines. These components help connect equipment when straight pipe installation becomes difficult or when the wellsite layout requires directional changes.
Common options include short radius swivel joints and long radius swivel joints. Short radius designs suit compact wellsite layouts. Long radius designs help reduce flow resistance and improve service life in abrasive flowline applications. Different styles support different direction changes and installation arrangements.
When selecting a swivel joint, procurement teams need to check size, working pressure, union figure or threaded connection, style number, radius type, number of swivel points, seal structure, ball race design, service fluid and maintenance requirements.
For high-pressure and abrasive oilfield service, flow path design and wear resistance also matter. A suitable swivel joint can improve installation flexibility and reduce stress on connected flowline equipment.
High Pressure Pup Joints
High pressure pup joints, also called flowline pup joints or straight pipe pup joints, connect different sections of a petroleum pressure pumping line. They adjust line length, connect valves, link manifolds and build temporary oilfield flowlines.
Pup joints usually come with hammer union ends, threaded ends or other customer-required connections. Typical union end options include FIG 602, FIG 1002 and FIG 1502. Available sizes often cover 1 inch, 2 inch, 3 inch and 4 inch, while common pressure ratings include 6,000 psi, 10,000 psi and 15,000 psi.
Buyers often search for high pressure pup joint, flowline pup joint, integral pup joint, 1502 pup joint, oilfield pup joint and pressure pumping pup joint when sourcing these products for petroleum industry use.
A high pressure pup joint should offer accurate length, strong pressure capacity and reliable end connection. For sour gas oilfield service, the material and manufacturing control also need to match H2S conditions.
Important selection points include overall length, nominal size, end connection, working pressure, test pressure, material grade, wall thickness, service fluid, standard service or H2S service, marking and traceability.
Because pup joints often form the main body of a pressure line, the final selection directly affects installation, leakage control and replacement efficiency.
High Pressure Plug Valves
High pressure plug valves control flow in petroleum pressure pumping lines. Operators use them to open, close or isolate fluid flow during fracturing, cementing, acidizing, well testing and well service operations. A plug valve has a compact structure and can handle high pressure in demanding oilfield conditions.
In petroleum fracturing, cementing and acidizing jobs, plug valves often face high pressure, frequent operation and abrasive or corrosive fluid. Therefore, the valve body, plug, seals and internal coating must match the working condition.
Common search terms include high pressure plug valve, oilfield plug valve, flowline plug valve, 1502 plug valve, pressure pumping plug valve and well service plug valve.
When selecting a plug valve, the final review should cover size, pressure rating, end connection, standard bore or full bore design, manual or hydraulic operation, service fluid, operating torque, seal material, repair kit availability and maintenance method.
A good plug valve lets crews control flow quickly and safely. It also supports maintenance because many models allow seal and internal part replacement.
High Pressure Check Valves
High pressure check valves prevent reverse flow in oilfield pressure pumping and well service lines. They protect pumps, manifolds and upstream equipment from backflow. In many petroleum field systems, check valves work as important flow control components.
Common oilfield check valve types include dart check valves and flapper check valves. Different designs suit different flow conditions, maintenance preferences and service fluids.
Buyers often search for high pressure check valve, oilfield check valve, flowline check valve, 1502 check valve, dart check valve and flapper check valve.
Important selection factors include flow direction, pressure rating, size, end connection, valve type, service fluid, internal material, seal material, pressure loss and maintenance access.
A check valve must match the actual flow direction during installation. Field crews also need to inspect the valve regularly because sand, scale and debris may affect sealing performance.
Integral Fittings, Tees, Elbows and Crosses
Integral fittings help build oilfield pressure line layouts with different directions and connection points. Common fittings include 45-degree elbows, 90-degree elbows, tees, crosses, laterals, adapters and crossovers.
In petroleum pressure pumping applications, integral fittings usually offer better strength than welded fabricated fittings because they come from forged bodies and machined flow paths. They reduce weak points in high-pressure oilfield systems and improve field connection reliability.
Common search terms include high pressure integral fittings, oilfield flowline fittings, 1502 fittings, hammer union fittings, manifold fittings, pressure pumping fittings and forged flowline fittings.
When selecting integral fittings, the review should cover connection type, pressure rating, flow direction, bore size and oilfield layout drawing. For petroleum manifold packages, arrangement, inlet and outlet size, valve position and skid design also matter.
High Pressure Manifolds
High pressure manifolds distribute, combine or control flow between pumps, wells and oilfield service equipment. They appear in petroleum fracturing, cementing, well testing, choke and kill, acidizing, workover and pressure pumping systems.
A manifold can include valves, fittings, pressure gauges, unions, skid frames and lifting structures. Its design depends on job purpose, pressure rating, number of inlets and outlets, flow capacity and wellsite layout.
Common buyer keywords include high pressure manifold, frac manifold, cementing manifold, choke manifold, kill manifold, well testing manifold and pressure pumping manifold.
When buying a high pressure manifold, customers should provide a drawing or clear details about inlet and outlet quantity, connection size, pressure rating, valve type, flow direction, skid requirement, lifting requirement, testing requirement, surface treatment and project standard.
A well-designed manifold can simplify oilfield operation and reduce connection complexity at the wellsite.
Technical Specification Reference for Oilfield Flowline Equipment
The following table gives buyers a quick reference for common high pressure flowline equipment used in petroleum pressure pumping operations. Final selection should always match the actual working pressure, test pressure, service fluid, temperature, connection standard, H2S condition and project requirements.
| Equipment Type | Common Size Range | Common Pressure Rating | Common Connection | Typical Oilfield Use |
|---|---|---|---|---|
| Hammer Union | 1 in to 4 in | 2,000 psi to 15,000 psi | FIG 602, FIG 1002, FIG 1502 | Fast connection for flowlines, valves, manifolds and wellhead equipment |
| Swivel Joint | 1 in to 4 in | 6,000 psi to 15,000 psi | Union end or threaded end | Direction change and flexible wellsite layout |
| Pup Joint | 1 in to 4 in | 6,000 psi to 15,000 psi | Hammer union end, threaded end or customized end | Length adjustment and pressure line connection |
| Plug Valve | 1 in to 4 in | 6,000 psi to 15,000 psi | FIG 1502, FIG 1002, threaded or customized | Flow control and isolation in pressure pumping lines |
| Check Valve | 1 in to 4 in | 6,000 psi to 15,000 psi | FIG 1502, FIG 1002, threaded or customized | Backflow prevention in oilfield pumping systems |
| Integral Fitting | 1 in to 4 in | 6,000 psi to 15,000 psi | Hammer union or customized end | Direction change, branch connection and manifold layout |
| High Pressure Manifold | Customized | 5,000 psi to 15,000 psi or project-based | Union, flange, threaded or customized | Flow distribution, flow control and wellsite pressure management |
This table helps buyers compare different oilfield flowline products before sending an inquiry. It also improves communication between procurement teams, engineers and suppliers.
Common Pressure Ratings for High Pressure Flowline Equipment
Pressure rating plays a key role in flowline equipment selection. Procurement teams must choose products according to the maximum working pressure of the petroleum operation. They also need to consider test pressure, pressure fluctuation and project safety margin.
Common pressure ratings include 2,000 psi, 3,000 psi, 5,000 psi, 6,000 psi, 10,000 psi, 15,000 psi and 20,000 psi.
For oilfield pressure pumping equipment, many projects focus on 6,000 psi, 10,000 psi and 15,000 psi products. FIG 602 often appears in medium to high-pressure petroleum service. FIG 1002 and FIG 1502 appear more often in higher-pressure fracturing, cementing and well service lines.
However, pressure rating alone does not define the final selection. The final review also needs to cover temperature, fluid type, connection compatibility, cyclic loading, sour service and site practice. For example, a 15,000 psi product for standard service may not suit H2S service unless the material, heat treatment and inspection process meet the required sour service conditions.
Common Sizes and Connections
High pressure flowline equipment usually comes in standard oilfield sizes. Common sizes include 1 inch, 1-1/2 inch, 2 inch, 3 inch and 4 inch. Larger sizes may appear in special oilfield manifold systems or customized petroleum service packages.
End connections can include hammer union ends, line pipe threads, tubing threads, flanged ends, welded ends and customer-specified adapters.
Hammer union connections remain common in temporary high pressure oilfield flowline systems because they offer fast connection and wide field use. FIG 1502 union connections appear frequently in petroleum fracturing and pressure pumping jobs. FIG 1002 and FIG 602 also serve many cementing, testing and well service applications.
Before placing an order, buyers need to confirm the existing field connection standard. Even small differences in union figure, thread form or sealing structure can cause installation problems.
Material, Manufacturing and Inspection Considerations
High pressure flowline equipment must handle pressure, impact, vibration and harsh oilfield conditions. Therefore, manufacturers usually use forged alloy steel for key pressure-containing parts. Forging improves mechanical strength and supports safer performance under demanding pressure cycles.
Manufacturing quality affects product life and field reliability. A reliable supplier should control raw material, forging, heat treatment, machining, sealing surfaces, assembly, pressure testing and final inspection. For critical pressure-containing parts, traceability also matters because petroleum customers may need material certificates, heat treatment records and test reports.
Important manufacturing and inspection points include forged body quality, chemical composition control, mechanical property testing, heat treatment control, accurate CNC machining, thread and union profile inspection, seal groove accuracy, hydrostatic pressure testing, magnetic particle inspection when required and clear product marking.
Depending on product type and project requirements, buyers may also request applicable API, NACE, material, pressure test and inspection documents. The exact document package should match the order scope and service condition. Available documents can be confirmed according to product type and order requirement.
For buyers, these details help separate professional oilfield flowline equipment suppliers from low-price traders. Price matters, but pressure safety matters more in petroleum field operations.
Standard Service and H2S Service
Oilfield flowline equipment may work in standard petroleum service or sour gas service. Sour gas service means the working environment contains hydrogen sulfide, also known as H2S. H2S can create serious material failure risks if the wrong material or hardness control enters service.
For H2S service, buyers need to state the sour service requirement during inquiry. They should also provide working pressure, temperature, fluid composition and applicable petroleum project standard. The supplier can then recommend suitable material, heat treatment and hardness control.
Many buyers search for H2S service flowline equipment, sour gas service hammer union, NACE flowline fittings, H2S service pup joint and sour service pressure pumping equipment. These keywords usually show strong purchasing intent because the buyer often has a real oilfield project requirement.
How to Choose the Right High Pressure Flowline Equipment
Choosing high pressure flowline equipment requires more than matching size and pressure. A practical selection process reviews the complete petroleum working condition and reduces mistakes before quotation or production.
First, define the oilfield application. Fracturing, cementing, acidizing, well testing, workover and well intervention jobs have different pressure, fluid and layout needs. Fracturing may need higher pressure and better abrasion resistance. Acidizing may require corrosion-resistant material and seals. Well testing may need a flexible temporary flowline system.
Second, confirm the pressure rating. The rated working pressure must meet the petroleum job requirement. Test pressure and inspection procedure also need confirmation.
Third, confirm the connection. Hammer union figure, thread type, flange standard and adapter design must match existing oilfield equipment. Connection mismatch can cause field delays and extra cost.
Fourth, confirm the fluid. Oil, gas, water, drilling mud, cement slurry, acid, completion fluid and sand-laden fluid can affect material and seal selection.
Fifth, review the service environment. Temperature, H2S, CO2, chloride content, outdoor conditions and wellsite layout may affect product design.
Sixth, plan maintenance needs. Plug valves, check valves and swivel joints may require repair kits, lubrication or seal replacement. For long-term field service, spare parts should be ordered together with the main equipment.
Finally, choose a supplier that understands petroleum wellsite operations. A professional oilfield supplier can review the whole line, not only one product. This support helps customers avoid hidden compatibility problems.
How to Reduce Connection Mismatch at the Oilfield Wellsite
Connection mismatch is one of the most common problems in oilfield flowline procurement. In many replacement projects, the buyer knows the size and pressure rating, but the union figure, thread type or sealing structure remains unclear.
Before ordering replacement flowline equipment, check the marking on the existing part. Photos of the union connection, pressure rating, thread end and nameplate can help the supplier identify the correct replacement. If the old part has no clear marking, a drawing or sample measurement becomes more important.
For temporary wellsite flowlines, avoid mixing different union figures in the same pressure line. A similar outside shape does not mean the parts can connect safely. The final connection must match size, figure number, pressure rating and sealing design.
A complete flowline package from one supplier can also reduce compatibility risk. When hammer unions, pup joints, swivel joints, plug valves, check valves and fittings come from a coordinated package, the buyer can manage spare parts, markings and pressure ratings more easily.
Common Sourcing Terms and Buyer Requirements
Oilfield buyers rarely search with only one keyword. They may search by product name, petroleum application, pressure rating, connection figure, service condition, replacement requirement or wellsite use. Therefore, a strong oilfield website should cover these keyword groups naturally within useful product and application content.
Broad Oilfield Flowline Search Terms
For broad search intent, buyers may use keywords such as high pressure flowline equipment, oilfield flowline equipment, petroleum flowline equipment, high pressure flowline products, pressure pumping equipment, oilfield pressure pumping flowline and petroleum pressure pumping equipment.
These terms usually come from users who want to understand the full product category or compare different oilfield flowline solutions. They also help build topical relevance around petroleum pressure pumping systems.
Application-Based Buyer Keywords
Application-based searches often show clearer purchasing intent. Buyers may search for fracturing flowline equipment, frac flowline fittings, cementing flowline equipment, oilfield cementing flowline, acidizing flowline equipment, well testing flowline equipment, workover flowline equipment and well service flowline equipment.
These keywords are valuable because the buyer already knows the oilfield job type and needs equipment that matches a specific service condition.
Product-Based Flowline Equipment Keywords
Many buyers search directly by product name when they need replacement parts or a specific pressure pumping component. Common product keywords include high pressure hammer union, FMC WECO type hammer union, high pressure swivel joint, oilfield swivel joint, high pressure pup joint, flowline pup joint, integral pup joint, high pressure plug valve, oilfield plug valve, high pressure check valve, dart check valve, flapper check valve, high pressure integral fittings and oilfield manifold fittings.
These terms help attract users who are sourcing individual flowline components or building a complete oilfield pressure line package.
FIG Connection and Pressure Rating Keywords
Connection and pressure-related searches often come from buyers with clear technical requirements. Important keywords include 1502 flowline equipment, FIG 1502 hammer union, FIG 1002 flowline fittings and FIG 602 union fittings.
A page targeting these terms should explain size, pressure rating, union figure, sealing structure and compatibility with existing wellsite equipment.
H2S and Sour Service Search Terms
For sour service and special working conditions, buyers may search for H2S service flowline equipment, sour gas service flowline fittings, H2S service pup joint, sour service hammer union and sour service pressure pumping equipment.
These keywords usually come from real petroleum projects. The content should mention material selection, heat treatment, hardness control, inspection documents and project-specific requirements when applicable.
When a blog covers these keyword groups in natural sentences instead of placing them only in a list, it can reach more Google search queries, improve topical relevance and attract petroleum industry buyers from different stages of the sourcing process.
Common Mistakes Oilfield Buyers Should Avoid
Many flowline problems start before the products reach the oilfield. They often begin with incomplete inquiries or wrong assumptions.
Some buyers choose only by price. Low-cost equipment may look similar, but pressure-containing parts need strict material control, machining accuracy and pressure testing. Cheap products can create higher long-term cost if they fail early or cause downtime at the wellsite.
Some orders fail because the connection details do not match. A buyer may order the right size but the wrong union figure. As a result, the new equipment cannot connect to existing oilfield lines.
Unclear service conditions can also create risk. If the inquiry does not mention acid, H2S, high temperature or abrasive sand, the supplier may quote standard service products. This can cause problems during actual petroleum field operation.
Buying single parts from many suppliers may create small differences in connection, marking, pressure rating and spare parts. A complete set from one professional supplier often improves system compatibility.
Spare parts planning also matters. Plug valves, check valves and swivel joints need maintenance. Seal kits, repair kits and consumable parts should be prepared before urgent wellsite needs appear.
What Information Should Buyers Provide for a Fast Quotation?
A clear inquiry helps the supplier recommend the right high pressure flowline equipment faster. It also reduces repeated communication and lowers the risk of wrong selection.
For a fast and accurate quotation, please provide product name, required quantity, nominal size, working pressure, test pressure if required, end connection, union figure or thread type, overall length for pup joints, style and radius for swivel joints, manual or hydraulic operation for plug valves, valve type for check valves, service fluid, temperature range, standard service or H2S service, petroleum application, required certificates and destination port.
The application should clearly state whether the equipment will work in hydraulic fracturing, cementing, acidizing, well testing, workover, well intervention, drilling support or oilfield pressure pumping service.
Photos, drawings or old part numbers can also help. If the customer wants to replace existing equipment, a picture of the marking and connection can reduce mistakes.
Request a Quote for Oilfield High Pressure Flowline Equipment
If you need high pressure flowline equipment for petroleum drilling, hydraulic fracturing, cementing, acidizing, well testing, workover, well intervention or oilfield pressure pumping service, SGPE can help you review the right product combination.
E-Mail:
info@sgpe.com
Why Choose SGPE for High Pressure Flowline Equipment?
SGPE supplies high pressure flowline equipment for petroleum drilling, hydraulic fracturing, cementing, acidizing, well testing, workover, well intervention and oilfield pressure pumping operations. The product range covers hammer unions, swivel joints, pup joints, plug valves, check valves, integral fittings and related pressure pumping flowline products.
SGPE focuses on practical oilfield use. Instead of offering only single parts, SGPE helps customers match product type, pressure rating, end connection, service fluid and petroleum project requirement. This support reduces selection mistakes and improves procurement efficiency.
Customers can contact SGPE for standard models or customized oilfield flowline equipment. The team can review drawings, old samples, field photos and technical requirements, then recommend suitable specifications for the actual petroleum job.
For oil and gas projects, SGPE can support common pressure ratings, common hammer union figures, standard and customized sizes, forged flowline components, pressure pumping line accessories, flowline valves and fittings, H2S service options when required, technical selection support, export packing and international delivery.
FAQ About High Pressure Flowline Equipment
1. What does high pressure flowline equipment do in oilfield operations?
Field crews use high pressure flowline equipment to connect, control, redirect and isolate high-pressure fluids at the oilfield wellsite. These products help transfer fracturing fluid, cement slurry, acid, water, oil, gas, drilling mud and other petroleum service fluids between pumps, manifolds, wellheads, treating lines, valves and pressure control units.
In petroleum drilling, hydraulic fracturing, cementing, acidizing, well testing, workover and well intervention operations, the flowline system must handle high pressure, vibration, pressure pulses, abrasive slurry and changing field layouts. Because of this, buyers need pressure-rated oilfield flowline equipment that matches working pressure, test pressure, service fluid, end connection and project standard.
2. What products does a complete oilfield high pressure flowline package include?

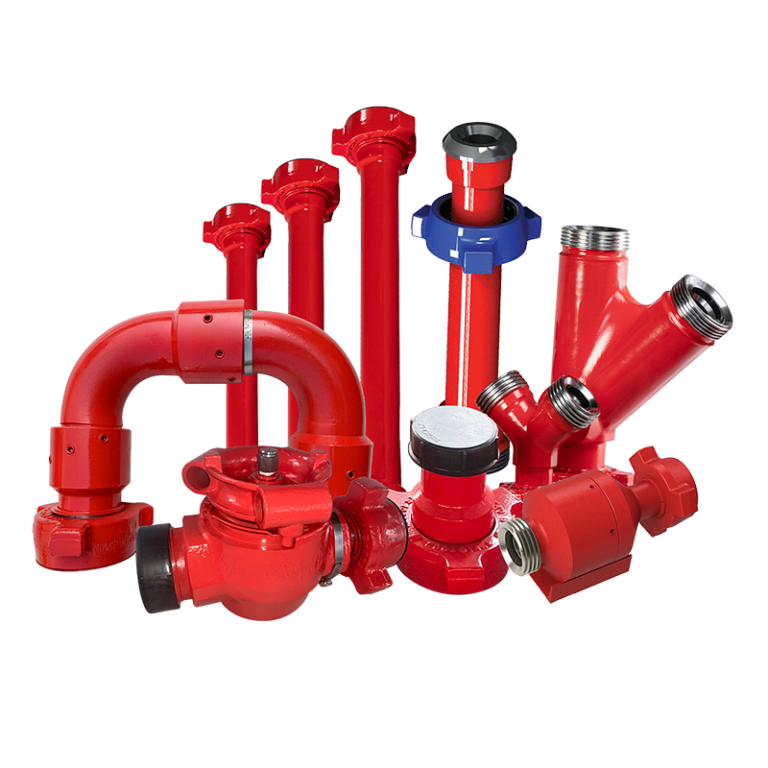

A complete oilfield high pressure flowline package usually includes hammer unions, swivel joints, pup joints, plug valves, check valves, integral fittings, tees, elbows, crosses, adapters and high pressure manifolds. These components work together to build a safe and flexible pressure pumping line at the wellsite.
Each product has a clear job. Hammer unions provide fast field connection. Pup joints adjust line length. Swivel joints help crews change direction and reduce pipe stress. Plug valves control or isolate flow. Check valves prevent backflow. When these products are supplied as a matched package, the buyer can reduce connection mismatch and spare parts confusion.
3. Which oilfield applications need high pressure flowline equipment?
High pressure flowline equipment serves many petroleum industry applications, including hydraulic fracturing, oilfield cementing, acidizing, well testing, workover, well intervention, drilling support and oilfield pressure pumping service. These jobs all require reliable flowline connections between pumps, manifolds, wellheads and surface service equipment.
For fracturing operations, the system often handles high pressure and proppant-laden fluid. Cementing operations require flowlines to carry cement slurry through treating lines and wellhead connections. In acidizing jobs, the equipment must match acid concentration and chemical exposure. Well testing and workover service also need temporary pressure lines that crews can install quickly and safely.
4. What pressure ratings do high pressure flowline products commonly use?
Oilfield buyers commonly choose 6,000 psi, 10,000 psi and 15,000 psi high pressure flowline equipment for pressure pumping operations. Some petroleum projects may also require 2,000 psi, 3,000 psi, 5,000 psi or 20,000 psi flowline products, depending on the well program and pressure requirement.
However, pressure rating alone does not decide the final selection. The buyer also needs to check test pressure, temperature, service fluid, connection type, cyclic loading, H2S condition and site practice. A 15,000 psi standard service product may not suit sour gas service unless material, heat treatment, hardness control and inspection records match the project requirement.
5. What does FIG 1502 flowline equipment mean?
FIG 1502 flowline equipment refers to oilfield high pressure flowline products with FIG 1502 hammer union connections. Buyers often choose FIG 1502 hammer unions, FIG 1502 pup joints, FIG 1502 plug valves, FIG 1502 check valves and FIG 1502 integral fittings for hydraulic fracturing, cementing, well service and pressure pumping operations.
FIG 1502 connections help crews build high-pressure field lines quickly. Even so, the size, pressure rating, sealing structure and connection compatibility must match before ordering. Similar-looking union connections do not always connect safely, so the figure number and pressure rating must match the existing field equipment.
6. What is the difference between FIG 602, FIG 1002 and FIG 1502 flowline equipment?
FIG 602, FIG 1002 and FIG 1502 refer to different hammer union connection figures for oilfield flowline equipment. Many projects use FIG 602 for medium to high-pressure service, while FIG 1002 and FIG 1502 appear more often in higher-pressure cementing, fracturing and well service lines.
The right choice depends on working pressure, service fluid, existing field connection and project standard. Before ordering replacement parts, check the marking on the old hammer union, pup joint, valve or fitting. Photos of the union end, pressure marking and thread connection can help the supplier confirm the correct figure and reduce field installation problems.
7. How should buyers choose hammer unions, pup joints and swivel joints?
The selection of hammer unions, pup joints and swivel joints depends on size, working pressure, test pressure, end connection, service fluid, temperature and wellsite layout. For hammer unions, the figure number and sealing structure matter most. Pup joints also require confirmation of overall length, wall thickness, material grade and union end type. Swivel joints need close attention to style, radius, rotation plane, seal structure and maintenance requirements.
A correct combination improves field installation speed and lowers leakage risk. For example, a pressure pumping line may need FIG 1502 hammer unions, straight pup joints for line length adjustment and swivel joints for directional changes near the pump truck or manifold. If these parts do not match each other, the crew may face delays during rig-up.
8. How should buyers choose plug valves, check valves and integral fittings?
Plug valve selection depends on size, pressure rating, end connection, bore type, operation method, service fluid, seal material and repair kit availability. In fracturing, cementing and acidizing service, plug valves may face frequent operation, abrasive slurry and corrosive fluid, so the internal structure and maintenance plan matter.
For check valves, the main points include flow direction, valve type, pressure rating, end connection and internal material. Dart check valves and flapper check valves suit different flow conditions. For integral fittings, bore size, flow direction, union figure, pressure rating and layout drawing need confirmation. These details help the whole oilfield flowline system work smoothly.
9. Can high pressure flowline equipment work in H2S or sour gas service?
Yes. High pressure flowline equipment can work in H2S or sour gas service when the buyer clearly specifies the sour service requirement and the supplier selects suitable material, heat treatment, hardness control and inspection procedures. H2S service can create material failure risks, so it should never be treated as normal standard service.
When sending an inquiry for H2S service flowline equipment, please provide working pressure, temperature, fluid composition, H2S condition, CO2 condition and applicable project standard. Material certificates, hardness records, pressure test reports and applicable NACE-related documents can also be requested when the project requires them.
10. How can buyers avoid connection mismatch at the oilfield wellsite?
Connection mismatch can be avoided by confirming the union figure, pressure rating, size, thread type, sealing structure and flow direction before ordering. In many replacement projects, the buyer knows the size and pressure rating but forgets to confirm the exact connection. This often causes delays when the new part reaches the wellsite.
Photos help a lot. Clear pictures of the old part marking, union end, thread connection, nameplate and pressure rating can help the supplier identify the correct replacement. If the old part has no visible marking, a drawing or sample measurement becomes more important. A complete flowline package from one supplier can also reduce compatibility risk.
11. What information should buyers send for a fast quotation?
For a fast quotation, please send product name, quantity, nominal size, working pressure, test pressure if required, end connection, union figure, thread type, overall length for pup joints, style and radius for swivel joints, valve type for check valves, operation method for plug valves, service fluid, temperature range and H2S service requirement.
The inquiry should also mention the petroleum application clearly, such as hydraulic fracturing, cementing, acidizing, well testing, workover, well intervention, drilling support or oilfield pressure pumping service. Field photos, old part numbers, drawings and destination port can help the supplier review the request faster and recommend a more accurate oilfield flowline solution.
12. Why source high pressure flowline equipment from a professional oilfield supplier?
A professional oilfield supplier understands how hammer unions, swivel joints, pup joints, plug valves, check valves, integral fittings and manifolds work together in a pressure pumping system. This experience helps customers reduce wrong selection, connection mismatch and spare parts confusion.
For petroleum projects, buyers need more than a low price. They need correct pressure ratings, compatible connections, suitable materials, clear markings, pressure testing, inspection records and reliable delivery. SGPE can help review the required size, pressure rating, union figure, end connection, service fluid, H2S condition and application, then recommend suitable high pressure flowline equipment for oilfield operations.
Final Thoughts
High pressure flowline equipment forms the backbone of petroleum pressure pumping systems. It connects pumps, manifolds, valves, wellheads and service units at the oilfield wellsite. It supports hydraulic fracturing, cementing, acidizing, well testing, workover, well intervention and other oil and gas operations. More importantly, it helps field crews move high-pressure fluids with better control and efficiency.
A strong oilfield flowline system depends on the right combination of hammer unions, swivel joints, pup joints, plug valves, check valves, integral fittings and manifolds. Selection should never depend on appearance alone. Working pressure, connection type, service fluid, temperature, H2S condition, material, testing and field compatibility all need attention.
For oilfield service companies, reliable flowline equipment reduces downtime and supports safer operations. Procurement teams can also simplify sourcing and reduce technical risk by working with a professional supplier. For petroleum project managers, a well-matched flowline package can improve installation speed and job performance.
E-Mail:
info@sgpe.com
