High Pressure Flowline Pup Joints Buying Guide for Oilfield Pressure Pumping Systems

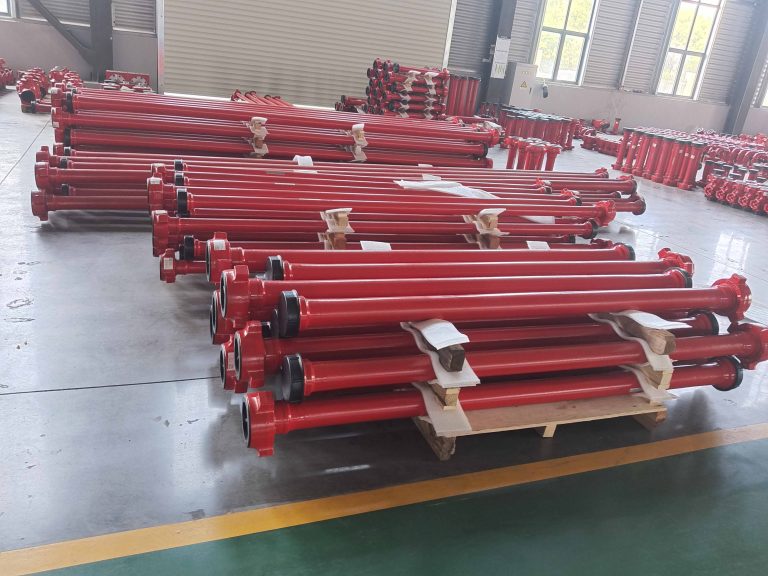

High Pressure Flowline Pup Joints are short pressure-rated pipe sections used in oilfield pressure pumping, drilling support, hydraulic fracturing, cementing, acidizing, well testing, flowback and workover service. At the wellsite, crews use these short flowline sections to connect pumps, manifolds, valves, wellhead equipment and temporary treating lines.

A standard pipe length does not always fit the rig site, frac spread or well pad layout. For this reason, a properly selected pup joint helps build a safer, cleaner and more flexible oilfield flowline system.

This buying guide explains how to select the right pup joint for high pressure oilfield service. It covers hammer union pup joints, integral pup joints, welded pup joints, butt weld pup joints, sour service pup joints, H2S service pup joints, custom length pup joints, common FIG connections, inspection requirements, RFQ details and field maintenance points.

Although a pup joint looks simple, it works in a demanding environment. It may face high pressure, vibration, abrasive fluid, repeated hammering, temperature changes and frequent handling. Depending on the job, the line may carry fracturing fluid, cement slurry, drilling fluid, acid, crude oil, produced water, gas, sand or proppant-laden flowback fluid.

Because of these conditions, every order should include clear technical details: working pressure, end connection, material, heat treatment, service fluid, temperature range, sour service condition and inspection documents. A complete specification helps drilling contractors, oilfield service companies, pressure pumping contractors and procurement teams reduce selection mistakes before purchase.

Quick Answer: How to Select High Pressure Flowline Pup Joints

To select High Pressure Flowline Pup Joints, start with the system working pressure, nominal size, FIG connection, end arrangement and required length. Then confirm the service fluid, sour service condition, material requirement, inspection documents and any project-specific standard.

For most RFQs, buyers should provide the following information before requesting a quotation.

Required RFQ Detail	Example
Nominal size	2 in, 3 in, 4 in
Working pressure	6,000 psi, 10,000 psi, 15,000 psi, 20,000 psi class
End connection	Fig 602, Fig 1002, FIG 1502, Fig 2002, Fig 2202
End arrangement	Male x female, male x male, female x female
Length basis	Overall length or shoulder-to-shoulder length
Service fluid	Frac fluid, cement slurry, acid, oil, gas, produced water
Sour service	NACE MR0175 / ISO 15156 if required
Documents	MTC, hydrotest report, NDT report, COC

This checklist is useful for preliminary selection. Final configuration, however, should always match the complete flowline system, connected equipment and project specification.

What Are High Pressure Flowline Pup Joints?

High pressure flowline pup joints are short pipe sections designed for oilfield flowline systems. They connect pumps, treating lines, choke manifolds, cementing manifolds, frac manifolds, plug valves, check valves, swivel joints, integral fittings, wellhead equipment and pressure control packages.

Most oilfield pup joints use hammer union ends, such as Fig 206, Fig 402, Fig 602, Fig 1002, FIG 1502, Fig 2002 or Fig 2202. Some projects may also require threaded ends, flanged ends, API connections, butt weld ends or customized end combinations.

The final design depends on pressure rating, service fluid, wellsite layout, connection arrangement and connected equipment. In practical purchasing, a clear technical specification is always more useful than a general product name.

Main Components and Functions

Main Part	Function in Oilfield Service
Pipe body	Carries high pressure fluid through the flowline
End connection	Connects the short section to pumps, valves, manifolds or wellhead equipment
Sealing area	Helps maintain pressure integrity at the connection
Product marking	Shows size, pressure rating, material and traceability details
Surface protection	Protects the product during storage, transport and field use

Compared with long flowline pipes, pup joints give field crews more layout flexibility. They help adjust spacing, replace worn short sections, connect temporary packages and complete flowline layouts when standard pipe lengths do not fit the site.

Common High Pressure Pup Joint Search Terms Buyers Use

Oilfield buyers do not always use the same product name. Some search by structure, such as Integral Pup Joint or Welded Pup Joint. Others search by connection type, such as Hammer Union Pup Joint or Union Pup Joint. Many procurement teams also search by pressure class, such as FIG 1502 Pup Joint, Fig 1002 Pup Joint or Fig 602 Pup Joint.

Search Terms by Product Type and Structure

The table below shows common search terms related to product type, structure and service condition. It helps buyers understand whether they need a general high pressure pup joint, an integral design, a welded design, a hammer union connection or a sour service option.

Search Term	What Buyers Usually Mean	Common Selection Focus
High Pressure Flowline Pup Joints	Short high pressure pipe sections for oilfield flowlines	Pressure rating, size, connection, length
High Pressure Pup Joint	General high pressure oilfield pup joint	Working pressure, test pressure, material
Oilfield Pup Joint	Pup joint for drilling, well service or production support	Application, size, pressure class
Integral Pup Joint	Pup joint with integral forged or machined connection design	Strength, traceability, pressure integrity
Hammer Union Pup Joint	Pup joint with hammer union ends	Fig connection, male/female arrangement
Union Pup Joint	Oilfield pup joint with union end connection	Union figure, seal type, field compatibility
Welded Pup Joint	Pup joint with welded end or welded structure	Welding quality, NDT, heat treatment
Butt Weld Pup Joint	Pup joint with butt weld end connection	Weld end dimensions, material, project standard
Sour Service Pup Joint	Pup joint for sour oilfield service	NACE MR0175 / ISO 15156, hardness, H2S condition
H2S Service Pup Joint	Pup joint selected for H2S-containing well fluid	Material, heat treatment, documentation
Custom Length Pup Joint	Pup joint made to special length	Overall length, shoulder-to-shoulder length, drawing

Search Terms by FIG Connection and Pressure Class

The following table focuses on common FIG connection search terms. In practice, these terms usually show that the buyer already has a pressure class, hammer union figure or existing flowline connection in mind.

Search Term	What Buyers Usually Mean	Common Selection Focus
FIG 1502 Pup Joint / Fig 1502 Pup Joint	Common 15,000 psi class hammer union pup joint	Frac iron, cementing, high pressure service
Fig 1002 Pup Joint	Common 10,000 psi class hammer union pup joint	Well service, pressure pumping
Fig 602 Pup Joint	Common 6,000 psi class hammer union pup joint	Cementing, workover, pressure lines
Fig 402 Pup Joint	Common 4,000 psi class hammer union pup joint	General flowline service
Fig 206 Pup Joint	Common 2,000 psi class hammer union pup joint	Lower-pressure utility lines
Fig 2002 Pup Joint	Special high pressure union pup joint	Project-specific high pressure service
Fig 2202 Pup Joint	Special high pressure union pup joint	Project-specific high pressure service

How to Use These Keywords in an RFQ

These names may describe different structures, pressure ratings or applications. A useful inquiry works best when it includes size, pressure rating, connection type, end arrangement, length, service fluid and required documents.

For example, “2 inch FIG 1502 pup joint” is more useful than “2 inch pup joint.” Even then, the buyer should also state the end arrangement, length basis, service fluid and required certificates.

High Pressure Flowline Pup Joints Selection Guide

Selecting the correct pup joint starts with the actual service condition. In most projects, the choice depends on pressure rating, nominal size, connection type, end arrangement, length, service fluid, sour service requirement and documentation.

Key Selection Factors

Selection Item	Common Options	Why It Matters
Nominal size	1 in, 2 in, 3 in, 4 in	Affects flow capacity, weight and field handling
Working pressure	2,000 psi to 20,000 psi class or project-specific	Must match the rating of the complete flowline system
Connection type	Fig 206, Fig 402, Fig 602, Fig 1002, FIG 1502, Fig 2002, Fig 2202	Determines pressure class and equipment compatibility
End arrangement	Male x female, male x male, female x female	Prevents wrong site connection
Structure type	Integral, welded, butt weld, hammer union or custom design	Affects manufacturing route and inspection scope
Length	1 ft, 2 ft, 3 ft, 4 ft, 5 ft, 6 ft, custom length	Helps crews adjust the flowline layout
Service fluid	Frac fluid, cement slurry, acid, oil, gas, produced water	Affects material and seal review
Sour service	NACE MR0175 / ISO 15156 if required	Supports H2S service evaluation
Documents	MTC, hydrotest report, NDT report, COC	Supports project acceptance and traceability

Why Selection Details Matter

This table helps procurement teams prepare a clearer RFQ for FIG 1502 pup joints, hammer union pup joints, integral pup joints, welded pup joints and customized oilfield pup joints.

Clear selection details also reduce unnecessary back-and-forth between purchasing, engineering and the supplier. They help avoid wrong end connections, missing sour service requirements and delayed document approval.

Why High Pressure Flowline Pup Joints Matter

Oilfield pressure systems leave little room for error. During fracturing, pumps may deliver large fluid volumes at high treating pressure. In cementing service, the line may carry heavy cement slurry with solid particles. Acidizing operations may create corrosion risk, while well testing and flowback systems can handle oil, gas, produced water, sand and unstable pressure conditions.

Because of these conditions, every short section in the line matters. A poor-quality pup joint can cause leakage, connection failure, erosion, downtime or safety risk. In contrast, a well-manufactured high pressure pup joint helps the flowline system run more reliably.

Field Value of Pup Joints

Field Need	How the Pup Joint Helps
Layout adjustment	Bridges short gaps between pumps, valves, manifolds and wellhead equipment
Connection alignment	Reduces unnecessary bending load on flowline connections
Maintenance flexibility	Allows crews to replace a worn short section instead of a long line
Faster rig-up	Helps pressure pumping crews adapt to different wellsite layouts
Inventory control	Allows service companies to keep practical Fig 1502, Fig 1002 and Fig 602 options ready

In practice, pup joints are not just short pieces of pipe. They are practical pressure line components that help crews build safer, cleaner and more efficient flowline systems.

Oilfield Application Guide for High Pressure Flowline Pup Joints

These short pressure line sections serve many oilfield environments. They work in land drilling sites, oilfield well pads, offshore platforms, well testing packages, pressure pumping spreads and workover locations. Application review is an important step before purchase because each job creates different pressure, fluid and documentation requirements.

Common Oilfield Applications

Application	Common Fluid or Condition	Common Selection Focus
Hydraulic fracturing	Frac fluid, sand, proppant	FIG 1502, bore size, erosion resistance, pressure test
Cementing	Cement slurry, additives	Internal bore, cleaning, hydrotest report, connection quality
Acidizing	Acid-based fluid	Material review, seal compatibility, corrosion risk
Well testing	Oil, gas, condensate, produced water, sand	Sour service, traceability, test documents
Flowback	Produced water, sand, proppant, chemicals	Wear resistance, pressure rating, bore condition
Workover	Produced fluids, old well conditions	Fast installation, connection durability, documents
Coiled tubing support	Pumping lines, control equipment	Compact length, union compatibility, layout fit
Choke and kill line support	Well control pressure line	Project standard, API 16C if required, NACE if required
Offshore service	Saltwater exposure, strict documentation	Coating, packing, traceability, inspection records

Drilling Rig Flowline Support

In drilling operations, pressure-rated pup joints may support mud circulation, pressure control packages, choke and kill lines, testing lines and temporary wellsite connections. The drilling environment often includes vibration, drilling fluid, restricted space and frequent equipment movement.

For drilling rig service, common technical points include pressure rating, connection compatibility, material, length and required documents. When the short section works near well control equipment, the project may require stricter inspection and traceability.

Hydraulic Fracturing Flowlines

Hydraulic fracturing is one of the most demanding applications for high pressure flowline pup joints. Frac crews use these short sections to connect frac pumps, frac manifolds, plug valves, check valves, swivel joints and wellhead equipment.

Because the system often handles high pressure, high flow rate and abrasive fracturing fluid, selection usually focuses on FIG 1502 connection, working pressure, bore size, forged construction, wall thickness, erosion resistance and hydrostatic test records.

Frac Flowline Search Terms

Search Term	Typical Buyer Intent
Frac flowline pup joint	Pup joint for fracturing flowline system
FIG 1502 pup joint / Fig 1502 pup joint	15,000 psi class hammer union pup joint
Frac iron pup joint	Short flowline section for frac iron package
High pressure frac pup joint	Pup joint for high pressure fracturing service
Hammer union pup joint	Pup joint with union end connection
Oilfield pressure pumping pup joint	Pup joint for pumping, treating or well service line

These long-tail keywords match real purchasing behavior. They also help buyers find the right product by application, pressure class or connection type.

Cementing Lines

Cementing operations use high pressure pup joints to connect cementing pumps, cementing manifolds, cement heads and treating lines. Since cement slurry contains solids, it can create internal wear. Cement residue may also damage the line if crews do not clean it soon after operation.

For cementing service, buyers normally review pressure rating, internal bore condition, end connection, seal surface quality and cleaning requirements. When a project requires formal acceptance, hydrotest reports, dimensional inspection records and material certificates also become important.

Acidizing Service

Acidizing service creates a different challenge. In this operation, the line may carry acid or acid-based treatment fluid. This fluid can attack unsuitable materials or seals, especially at elevated temperature.

A clear RFQ lists acid type, concentration, operating temperature and expected service duration. With these details, the supplier can review material selection, seal compatibility and corrosion risk. If the job involves H2S, the technical requirement also needs NACE MR0175 / ISO 15156 sour service information.

Well Testing and Flowback Operations

Well testing and flowback operations often use temporary flowline systems to control, measure and separate well fluids. In this package, pup joints connect wellhead equipment, choke manifolds, test manifolds, separators, sand traps and flowback lines.

During these operations, the line may carry crude oil, gas, condensate, produced water, sand, proppant and drilling fluid returns. Since pressure and flow conditions can change quickly, the short section needs reliable pressure integrity, clear marking and complete traceability.

For these services, common selection points include connection type, pressure class, sour service requirement, temperature range, internal wear risk and documentation.

Workover and Coiled Tubing Support

Workover and coiled tubing operations require flexible temporary pressure lines. Crews may connect pumps, manifolds, wellhead equipment, pumping units and pressure control packages in limited site space.

Short high pressure pup joints help complete the layout safely and efficiently. In these applications, field teams usually check working pressure, union type, length, connection orientation, repeated handling risk and compatibility with existing equipment.

Choke and Kill Line Packages

Some oilfield projects use high pressure pup joints in choke and kill line support packages. These lines play an important role in well control and pressure management.

In this application, selection follows the project standard instead of only matching the connection size. The specification may involve API 16C, NACE compliance, specific pressure testing, third-party inspection or special documentation.

Offshore Oilfield Operations

Offshore platforms and offshore drilling units often have limited space, strict documentation requirements and more demanding corrosion protection needs. As a result, pup joints used offshore may require stronger coating, seaworthy packing, better traceability and additional inspection records.

For offshore service, the RFQ normally includes saltwater exposure, coating system, lifting and handling requirements, certification documents and project standards before production.

Type Selection Guide for High Pressure Flowline Pup Joints

Different oilfield projects use different pup joint designs. Before placing an order, buyers need to match the product type with pressure class, connection requirement, service fluid and inspection scope.

Main Pup Joint Types

Pup Joint Type	Common Connection	Main Advantage	Typical Use
Hammer Union Pup Joint / Union Pup Joint	Fig 206, Fig 402, Fig 602, Fig 1002, FIG 1502, Fig 2002, Fig 2202	Fast rig-up and rig-down	Fracturing, cementing, well testing
Integral Pup Joint	Union end or integral forged end	Strong structure and traceability	Frac iron, high pressure treating lines
Welded Pup Joint	Project-specific connection	Special layout flexibility	Customized oilfield piping
Butt Weld Pup Joint	Butt weld end connection	Welded system connection	Permanent or project-specific piping
Threaded Pup Joint	Threaded end	Fits selected field connections	Lower-pressure auxiliary lines
Sour Service Pup Joint / H2S Service Pup Joint	Union, flange or customized	Supports H2S service review	Sour wells, well testing, flowback
Custom Length Pup Joint	Any approved connection	Matches special layout requirement	Rig-up adjustment and customized packages

Hammer Union Pup Joint / Union Pup Joint

A Hammer Union Pup Joint, also called a Union Pup Joint in many oilfield RFQs, uses hammer union ends for fast field installation. Common union figures include Fig 206, Fig 402, Fig 602, Fig 1002, FIG 1502, Fig 2002 and Fig 2202.

Because hammer unions allow quick assembly and disassembly, crews use them widely in fracturing, cementing, well testing, flowback and workover operations. For this type, the RFQ needs union figure, size, pressure class, male/female end arrangement, length and service condition.

Integral Pup Joint

An Integral Pup Joint offers strong structural integrity because the body and connection follow an integral design. In many high pressure applications, buyers prefer this structure for pressure resistance, traceability and reliable field performance.

Oilfield buyers often use integral pup joints in frac iron packages, high pressure treating lines, cementing systems and severe pressure pumping service. A practical purchase specification normally includes material, heat treatment, hardness, pressure test and required inspection documents.

Welded Pup Joint and Butt Weld Pup Joint

A Welded Pup Joint uses welded construction or welded end connections to meet specific layout or project requirements. Meanwhile, a Butt Weld Pup Joint uses butt weld ends for connection to a welded piping system.

These designs may fit customized piping systems, skid-mounted packages or permanent welded interfaces. However, welding quality becomes a key control point. Before acceptance, engineering teams usually review weld end dimensions, wall thickness, material grade, bevel requirement, welding procedure, heat treatment, NDT inspection and hydrostatic pressure test.

Sour Service Pup Joint / H2S Service Pup Joint

A Sour Service Pup Joint or H2S Service Pup Joint works in oilfield environments where the fluid may contain hydrogen sulfide. If material, hardness or heat treatment does not suit the service condition, H2S can create sulfide stress cracking risk.

For this reason, sour service requirements belong in the RFQ from the beginning. Buyers usually provide NACE MR0175 / ISO 15156 requirements, H2S content if available, operating pressure, temperature range and service fluid. These details help the supplier review material and hardness control before quotation.

Custom Length Pup Joint

A Custom Length Pup Joint helps crews solve special layout problems at the wellsite. Standard lengths such as 1 ft, 2 ft, 3 ft, 4 ft, 5 ft and 6 ft cover many jobs. However, some projects need special lengths to connect pumps, manifolds, valves or wellhead equipment.

For custom length pup joints, the RFQ must state the measurement basis clearly. Overall length, end-to-end length, shoulder-to-shoulder length and make-up length can mean different things. A drawing gives the best confirmation.

Pressure Rating Selection Guide

Pressure rating is one of the most important selection points. A high pressure flowline pup joint must match the system working pressure and test pressure. However, a similar connection size does not always mean the same pressure class.

Common Pressure Ratings

Common Connection	Typical Working Pressure	Approx. MPa	Common Oilfield Use
Fig 206 Pup Joint	2,000 psi	13.8 MPa	Low-pressure oilfield utility lines
Fig 402 Pup Joint	4,000 psi	27.6 MPa	General flowline service
Fig 602 Pup Joint	6,000 psi	41.4 MPa	Cementing, workover and pressure lines
Fig 1002 Pup Joint	10,000 psi	69.0 MPa	High pressure well service and pumping lines
FIG 1502 Pup Joint / Fig 1502 Pup Joint	15,000 psi	103.4 MPa	Fracturing, cementing and severe pressure pumping
Fig 2002 Pup Joint	20,000 psi class or project-specific	137.9 MPa class or project-specific	Special high pressure systems
Fig 2202 Pup Joint	Project-specific high pressure class	According to manufacturer and project requirement	Special high pressure systems

How to Read the Pressure Table

This table gives a general selection reference. Final selection still follows the manufacturer data sheet, project specification and connected equipment rating. In particular, Fig 2002 pup joints and Fig 2202 pup joints often need extra review because high pressure projects may define special test pressure, material and inspection requirements.

The connection figure alone does not complete the selection. The specification also needs nominal size, bore, material, temperature, seal design, sour service requirement and test pressure.

For example, a 2 inch FIG 1502 pup joint and a 3 inch Fig 1502 pup joint may both suit 15,000 psi class service. However, they differ in flow capacity, weight, handling method and layout requirement. The complete flowline design should guide the final choice.

Size and Length Selection Guide

High pressure flowline pup joints come in different nominal sizes and lengths. Common sizes include 1 inch, 2 inch, 3 inch and 4 inch. Some projects may also require larger sizes for special high-flow service.

Common Nominal Sizes

Nominal Size	Common Pressure Class	Common Application	Typical Buyer Focus
1 in	6,000 psi to 15,000 psi class	Auxiliary high pressure lines, compact service lines	Connection accuracy and layout fit
2 in	10,000 psi to 15,000 psi class	Frac iron, cementing, well service	FIG 1502, bore, pressure test
3 in	10,000 psi to 15,000 psi class	High flow fracturing and treating lines	Flow capacity, weight, handling
4 in	Project-specific	Large flowline packages	Custom design, connection compatibility

Common Length Options

Common Length	Typical Oilfield Use
1 ft	Short spacing adjustment near valves or manifolds
2 ft	Wellsite connection between compact equipment
3 ft	Flexible rig-up layout
4 ft	General oilfield flowline assembly
5 ft	Longer spacing adjustment
6 ft	Temporary line extension
Custom length	Project-specific field layout

Length Measurement Notes

Length measurement needs special attention. Some projects use overall length. Others use shoulder-to-shoulder length, end-to-end length or make-up length. Even a small difference may affect field installation.

A drawing or clear measurement note can prevent costly rework. It also helps the supplier confirm whether the quoted length includes union ends, shoulder position or make-up allowance.

Material Selection Guide for Oilfield Service

Material selection affects pressure integrity, service life and project compliance. A high pressure flowline pup joint usually needs forged alloy steel or high-strength steel suitable for oilfield service. The supplier selects material according to pressure rating, temperature, fluid condition and project standard.

Material and Service Conditions

Service Condition	Material / Design Focus	Common Concern
Standard oilfield pressure service	Forged alloy steel or high-strength steel	Strength, toughness, pressure rating
Abrasive fracturing service	Suitable wall thickness and bore condition	Sand and proppant erosion
Cementing service	Internal bore quality and cleanability	Cement slurry wear and residue
Acidizing service	Material and seal compatibility	Corrosion and chemical attack
Sour service with H2S	NACE MR0175 / ISO 15156 review	Sulfide stress cracking risk
Offshore service	Coating and packing system	Corrosion during storage and operation
Welded or butt weld design	Welding procedure, NDT and heat treatment	Weld quality and pressure integrity
Integral design	Forging quality, heat treatment and traceability	High pressure strength and reliability

Strength and Toughness

The pipe body and end connection must handle internal pressure, field vibration and repeated handling. Therefore, the material needs suitable tensile strength, yield strength and impact performance.

Hardness Control

For sour service, hardness control becomes critical. NACE MR0175 / ISO 15156 requirements often limit hardness to reduce sulfide stress cracking risk. If the well fluid may contain H2S, the RFQ needs clear sour service information.

Heat Treatment

Heat treatment helps the material reach the required mechanical properties. In high pressure forged oilfield parts, proper heat treatment improves strength, toughness and stability.

Corrosion Resistance

Standard alloy steel may suit many pressure pumping jobs. However, acidizing, sour service, offshore conditions and produced fluids may require extra review. In some cases, the project may need corrosion allowance, special coating or alternative material.

Traceability

Oilfield projects often require material certificates, heat numbers, mechanical test reports and product traceability. These records help confirm that the finished product matches the approved material and project specification.

Connection Selection Guide

End connection mistakes cause many procurement problems. Two connections may look similar, but they may not interchange safely. Because of this, the RFQ needs exact end connection information before purchase.

Connection Details to Confirm

Item to Confirm	Why It Matters
Connection figure	Confirms pressure class and matching equipment
Nominal size	Ensures correct flowline assembly
Male or female end	Prevents wrong field connection
Thread type	Supports correct make-up
Seal type	Helps maintain pressure integrity
Existing equipment compatibility	Helps match current wellsite inventory
Drawing or standard	Reduces dimensional misunderstanding

For example, “2 inch FIG 1502 pup joint” still does not provide enough information. The supplier also needs the end arrangement, such as male x female, male x male, female x female or another combination. In addition, the required length must match the connection arrangement.

Common End Arrangements

End Arrangement	Typical Use
Male x Female	Common line connection and layout adjustment
Male x Male	Special wellsite layout or manifold connection
Female x Female	Connection between two male-ended components
FIG 1502 x Flange	Customized connection to flanged equipment
Fig 1002 x FIG 1502	Transition between different pressure line sections, if project allows
API connection x Hammer Union	Customized equipment interface
Butt Weld x Hammer Union	Customized interface between welded piping and union line
Flange x Butt Weld	Skid-mounted or project-specific connection

Typical Specifications for High Pressure Flowline Pup Joints

The following table gives a general reference for common oilfield configurations. Final selection should always follow the project requirement.

Common Specification Reference

Product Type	Common Connection	Rated Working Pressure	Common Sizes	Common Applications
Union End Flowline Pup Joint	Fig 602	6,000 psi	1 in, 2 in, 3 in, 4 in	Cementing, workover, well service
Union End Flowline Pup Joint	Fig 1002	10,000 psi	1 in, 2 in, 3 in, 4 in	High pressure pumping, well testing
Union End Flowline Pup Joint	FIG 1502 / Fig 1502	15,000 psi	1 in, 2 in, 3 in, 4 in	Fracturing, cementing, acidizing
Integral Pup Joint	Fig 1502 or project-specific	15,000 psi or project-specific	2 in, 3 in, 4 in	Frac iron and severe oilfield service
Welded Pup Joint	Butt weld, flange or project-specific	As required	As required	Customized oilfield piping
Sour Service Pup Joint	Union, flange or project-specific	As required	As required	H2S service, well testing, flowback
Custom Length Pup Joint	Project-specific	As required	As required	Drilling, testing or workover layout

This table supports preliminary selection only. Before production, the buyer and supplier need to align drawings, material, pressure rating, testing and connection details.

Quality Control Guide for Oilfield Flowline Pup Joints

A high pressure pup joint needs strict quality checks before shipment. Since it works in a pressure system, visual appearance alone cannot prove quality. A reliable inspection process helps reduce field risk and supports project acceptance.

Main Inspection Items

Inspection Item	What It Checks	Why It Matters
Material verification	Material grade, heat number, certificate	Confirms raw material traceability
Dimensional inspection	Length, bore, connection dimensions	Ensures fit with field equipment
NDT inspection	Surface or internal defects	Helps identify cracks or discontinuities
Hydrostatic pressure test	Pressure integrity	Confirms sealing and body strength
Hardness test	Hardness level	Supports sour service compliance
Weld inspection	Weld quality for welded or butt weld pup joints	Supports pressure integrity
Marking check	Size, rating, heat number, traceability	Helps field identification
Coating inspection	Surface protection	Reduces corrosion during storage and transport
Packing inspection	Export protection and labels	Helps prevent transit damage

Material Verification

The supplier checks material grade, heat number and certificate. This step confirms that the raw material matches the purchase order and technical specification.

Dimensional Inspection

Dimensional inspection covers length, bore size, connection dimensions, thread details, seal area and marking. As a result, the short section can fit the existing oilfield system more reliably.

NDT Inspection

Depending on project requirements, the inspection plan may include magnetic particle inspection, ultrasonic testing, liquid penetrant testing or other NDT methods. These inspections help find cracks, surface defects or internal discontinuities.

Hydrostatic Pressure Test

Hydrostatic testing checks pressure integrity. The test pressure and holding time follow the project specification or applicable standard. For formal acceptance, the supplier provides a hydrotest report.

Hardness Test

For sour service or special material requirements, hardness testing helps confirm compliance. This point matters when the project requires NACE MR0175 / ISO 15156.

Weld Inspection

For welded pup joints and butt weld pup joints, weld quality directly affects pressure integrity. In many projects, the inspection plan may include visual inspection, dimensional inspection, NDT and pressure testing according to the project requirement.

Marking and Traceability

Clear marking helps field teams identify size, pressure rating and connection. It also helps maintenance teams trace product records later.

Coating and Packing Inspection

Oilfield equipment may travel a long distance before it reaches the rig site or well pad. Proper coating, thread protection, union protection and export packing help reduce transit damage.

Step-by-Step Selection Guide for Buyers

A clear selection process can prevent costly mistakes. Before placing an order, buyers should review the following steps.

Selection Checklist

Step	Selection Point	Key Question
1	Working pressure	Does the pup joint match the system pressure class?
2	Nominal size and bore	Does the bore match the required flow capacity?
3	End connection	Does the connection match existing equipment?
4	Structure type	Does the project need integral, welded, butt weld, union or custom design?
5	Length	Does the length follow the correct measurement basis?
6	Fluid and service condition	Does the fluid require special material or seal review?
7	Sour service	Does the job require NACE MR0175 / ISO 15156?
8	Standards and documents	Does the project need MTC, NDT, hydrotest or TPI?

Step 1: Working Pressure

Start with system working pressure. A line working at 10,000 psi needs a matching pressure class and approved connection. If the job requires 15,000 psi, FIG 1502 is commonly reviewed. For 20,000 psi class or special high pressure systems, Fig 2002, Fig 2202 or project-specific designs need supplier confirmation.

Step 2: Nominal Size and Bore

Nominal size and internal bore affect flow capacity, weight and handling. A larger bore supports higher flow, but it also changes the weight and layout. For this reason, the bore needs to match the flowline design and connected equipment.

Step 3: End Connection

End connection details include connection figure, male/female arrangement, thread type and seal design. A simple request such as “2 inch high pressure pup joint” does not provide enough information for accurate quotation.

Step 4: Structure Type

The project may require a hammer union pup joint, integral pup joint, welded pup joint, butt weld pup joint, sour service pup joint or custom length pup joint. Since each type has different manufacturing and inspection requirements, the RFQ should identify the required structure clearly.

Step 5: Length

Length must be stated with a clear measurement basis. Overall length, shoulder-to-shoulder length and make-up length may produce different final dimensions. For special layouts, a drawing is the safest reference.

Step 6: Fluid and Service Condition

The fluid affects material and seal selection. Fracturing fluid, cement slurry, acid, crude oil, gas, drilling fluid and produced water create different risks. If H2S exists, sour service needs to be stated clearly.

Step 7: Standards and Documents

Required documents may include MTC, pressure test report, NDT report, dimensional report, certificate of conformity, coating report, packing list and third-party inspection report. In addition, some projects may require TPI or special tender forms.

Buying Guide: Common Purchasing Mistakes to Avoid

Many purchasing problems come from incomplete technical information. Procurement teams should avoid the following common mistakes in oilfield equipment purchasing.

Common Mistakes and Better Practices

Common Mistake	Possible Result	Better Practice
Asking only by size	Supplier cannot quote accurately	Provide pressure, connection, length and quantity
Ignoring end arrangement	Product may not fit the wellsite line	Confirm male x female, male x male or female x female
Mixing pressure classes	Safety risk and project rejection	Match all components to system pressure
Forgetting sour service	Material approval problems	Mention H2S and NACE requirements early
Unclear length basis	Installation mismatch	State overall length or shoulder-to-shoulder length
Confusing welded and integral design	Wrong manufacturing route	State integral, welded, butt weld or union design clearly
Requesting documents too late	Shipment or acceptance delay	List document requirements in the RFQ

Practical RFQ Mistakes to Avoid

A request such as “quote 2 inch pup joint” does not allow accurate pricing. The supplier still needs pressure rating, connection, length, material and quantity. Without these details, the quotation may not match the field requirement.

End arrangement is another common issue. For example, a 2 inch FIG 1502 pup joint can have different end combinations, including male x female, male x male and female x female. If this information is missing, the delivered product may not fit the wellsite line.

Sour service also needs early attention. If the well fluid may contain H2S, the RFQ should mention NACE MR0175 / ISO 15156 requirements from the beginning. Otherwise, the project may face material approval problems later.

Flowline Pup Joints vs Standard Pipe Spools

Some buyers ask whether they can use standard pipe spools instead of high pressure flowline pup joints. In low-pressure auxiliary systems, a pipe spool may fit. However, high pressure oilfield flowlines need components designed for pressure pumping service.

Comparison with Standard Pipe Spools

Comparison Item	High Pressure Flowline Pup Joint	Standard Pipe Spool
Typical service	Oilfield pressure pumping and treating lines	General piping or low-pressure auxiliary lines
Connection	Hammer union, API, flange, butt weld or customized	Flange, weld or thread
Field assembly	Fast rig-up and rig-down for union type	Usually slower
Pressure class	Often 2,000 psi to 20,000 psi class or project-specific	Depends on pipe design
Typical use	Fracturing, cementing, well testing, flowback	General piping layout
Documentation	MTC, hydrotest, NDT and traceability often required	Depends on project requirement

When to Use Purpose-Built Pup Joints

High pressure pup joints support fast field connection through hammer unions or approved end connections. They provide compact length options for temporary wellsite layouts and can meet pressure, handling and documentation requirements.

By comparison, standard pipe spools may not match the connection style, pressure class, field handling method or oilfield service conditions. For drilling, fracturing, cementing, acidizing, well testing, flowback and workover systems, purpose-built high pressure flowline pup joints are usually the safer choice.

Maintenance Guide for High Pressure Flowline Pup Joints

Good maintenance extends service life and reduces risk. Oilfield crews inspect pup joints before and after use, especially in abrasive or high-pressure service.

Pre-Use and Post-Use Checks

Check Item	Field Purpose
Connection surface	Prevent leakage caused by damage
Thread or union condition	Ensure smooth make-up
Weld area, if applicable	Check welded or butt weld pup joint integrity
Seal area	Confirm pressure integrity
Body surface	Find cracks, dents or severe corrosion
Marking	Confirm size and pressure rating
Internal cleanliness	Avoid contamination inside the flowline

Handling and Storage Tips

During operation, crews should avoid excessive hammering, misalignment and unsupported bending. After use, they clean the internal bore, protect the connection and store the product in a dry location.

For abrasive service, inspection frequency increases. Sand, cement and proppant can erode the inner wall, especially near turbulence zones. Worn parts should be removed from service before they become unsafe.

Documentation Guide for Buyers

Different projects require different documentation. However, many oilfield RFQs include the following documents.

Common Documents

Document	Purpose
Material Test Certificate	Confirms material grade and mechanical properties
Hydrostatic Test Report	Confirms pressure test result
NDT Report	Confirms inspection result
Dimensional Inspection Report	Confirms key dimensions
Certificate of Conformity	Confirms product compliance
Heat Treatment Report	Supports mechanical property control
Hardness Test Report	Supports sour service or project requirements
Welding / NDT Record	Supports welded pup joint or butt weld pup joint acceptance
Painting or Coating Report	Confirms surface protection
Packing List	Supports shipment and customs clearance
Third-Party Inspection Report	Supports buyer acceptance when required

Tender and Export Documents

For some tenders, buyers may also require API-related documents, NACE compliance, country of origin, chamber-attested invoice or special project forms. Listing these needs in the RFQ helps avoid delays before shipment.

RFQ Guide: What Information Should Be Included?

A clear RFQ helps the supplier quote faster and more accurately. For high pressure flowline pup joints, a complete inquiry normally includes the following details.

RFQ Information Checklist

RFQ Item	Example
Product name	High pressure flowline pup joint
Product type	Hammer union, integral, welded, butt weld or sour service pup joint
Quantity	10 pcs
Nominal size	2 in, 3 in or 4 in
Working pressure	6,000 psi, 10,000 psi, 15,000 psi, 20,000 psi class or project-specific
End connection	Fig 206, Fig 402, Fig 602, Fig 1002, FIG 1502, Fig 2002, Fig 2202 or customized
End arrangement	Male x female, male x male or female x female
Length	Overall length, shoulder-to-shoulder length or custom length
Material	Forged alloy steel or project-specified material
Service fluid	Frac fluid, cement slurry, acid, crude oil, gas or produced water
Temperature range	Minimum and maximum operating temperature
Sour service	NACE MR0175 / ISO 15156 if required
Documents	MTC, hydrotest report, NDT report, COC and inspection records

RFQ Examples

Example for a hammer union design:

“Please quote 2 inch FIG 1502 high pressure flowline pup joints, 15,000 psi working pressure, male x female connection, 4 ft shoulder-to-shoulder length, forged alloy steel body, suitable for oilfield pressure pumping service. Please include MTC, hydrotest report, dimensional inspection report and certificate of conformity.”

Example for a welded or butt weld design:

“Please quote 3 inch butt weld pup joints for oilfield high pressure service. Please confirm material, wall thickness, weld end dimensions, working pressure, test pressure, NDT requirement and available inspection documents.”

With this information, SGPE can check configuration, cost and delivery time more efficiently.



Need a Fast Quotation for High Pressure Flowline Pup Joints?

For a fast quotation, please send the basic technical information first. Size, pressure rating, connection type, end arrangement, length, quantity and required documents are the most important details.

For urgent oilfield projects, a drawing or photo of the existing flowline connection can also help. If the pup joint will work in sour service, acidizing service, offshore service or abrasive fracturing service, please mention the service condition clearly.

A complete RFQ allows SGPE to review the configuration faster and recommend a suitable option for your drilling, fracturing, cementing, well testing, flowback or workover application.



High Pressure Flowline Pup Joints for Frac Iron Packages

Frac iron packages often include plug valves, check valves, tees, crosses, elbows, swivel joints, manifolds and pup joints. In this package, short pup joints connect different pressure components and help crews build a workable flowline layout.

A frac flowline pup joint must handle high pressure and abrasive fluid. The specification needs close attention to wall thickness, forged connection quality, internal bore condition and pressure test records.

In many hydraulic fracturing jobs, 2 inch and 3 inch FIG 1502 pup joints appear frequently. However, the final size depends on pump capacity, flow rate, treating pressure and field layout. Because frac operations involve high energy, field teams should not mix uncertain old parts with new certified components.

High Pressure Pup Joints for Cementing Service

Cementing service can look less aggressive than fracturing at first glance. However, cement slurry creates strong wear inside the line. It can also harden if cleaning does not happen quickly after operation.

For cementing pup joints, crews check internal cleanliness, bore condition and connection quality. After use, they flush the line properly and inspect key areas. As a result, parts with severe internal wear, damaged seal surfaces or unclear markings can be removed from service earlier.

Pup Joints for Sour Service and H2S Service

Sour service requires special attention because H2S can cause sulfide stress cracking in unsuitable materials. When a project includes H2S, the technical specification should state NACE MR0175 / ISO 15156 requirements clearly.

For Sour Service Pup Joints and H2S Service Pup Joints, the supplier reviews material, hardness, heat treatment and documentation. In addition, the project may require hardness test reports and material certificates. In some cases, it may require specific material grades or additional inspection.

Since sour service risk depends on actual well fluid condition, pressure, temperature and chemical environment, the RFQ should provide as much information as possible.

Surface Protection and Packing for Oilfield Delivery

Surface protection helps the pup joint resist corrosion during storage, transport and field use. Common protection methods include primer, paint, anti-rust oil, thread protectors, union protectors and seaworthy packing.

For offshore projects, the specification may require special coating systems or stronger packing. Meanwhile, for long-distance export shipments, wooden cases, steel frames or palletized packing can help protect the product during handling.

Clear labels are also useful. For example, they help the warehouse team identify size, pressure rating, quantity and order number quickly.

Why Choose SGPE High Pressure Flowline Pup Joints?

SGPE supplies oilfield high pressure flowline equipment for drilling, fracturing, cementing, well testing, workover, flowback and production support applications. For high pressure flowline pup joints, SGPE focuses on practical field use, reliable connection quality and clear documentation.

SGPE can review different project needs, including hammer union pup joints, union pup joints, high pressure pup joints, integral pup joints, welded pup joints, butt weld pup joints, sour service pup joints, H2S service pup joints and custom length pup joints. Depending on the project, available connection options may include Fig 206, Fig 402, Fig 602, Fig 1002, FIG 1502, Fig 2002, Fig 2202 and other customized interfaces.

For oilfield buyers, SGPE can help review key selection details before quotation, such as pressure rating, size, length, connection arrangement, sour service requirement, testing and required documents. This support helps reduce procurement risk and improves communication between purchasing, engineering and field teams.



FAQ About High Pressure Flowline Pup Joints

1. What are High Pressure Flowline Pup Joints?

High Pressure Flowline Pup Joints are short pipe sections used to connect oilfield pressure equipment in high pressure flowline systems. At the wellsite, crews use them between pumps, manifolds, plug valves, check valves, swivel joints, wellhead equipment and temporary treating lines.

In drilling, fracturing, cementing, well testing, flowback and workover service, a standard long pipe often does not fit the wellsite layout. A pup joint helps adjust line length, improve connection alignment and complete the pressure pumping system safely.

2. What is the difference between an Integral Pup Joint and a Welded Pup Joint?

An Integral Pup Joint uses an integral design that supports strength, pressure resistance and traceability. Many oilfield buyers use it in frac iron packages, high pressure treating lines and severe pressure pumping service.

By comparison, a Welded Pup Joint uses welded construction or welded end connections. It can fit special piping layouts, but it needs careful welding control, NDT inspection and pressure testing. The RFQ should state whether the project needs an integral pup joint, welded pup joint or butt weld pup joint.

3. What is a Hammer Union Pup Joint?

A Hammer Union Pup Joint is a pup joint with hammer union ends. Buyers may also call it a Union Pup Joint. Common options include Fig 206, Fig 402, Fig 602, Fig 1002, FIG 1502, Fig 2002 and Fig 2202.

Because hammer union pup joints support fast rig-up and rig-down, crews often use them in fracturing, cementing, well testing, flowback and workover operations.

4. What is a FIG 1502 Pup Joint?

A FIG 1502 Pup Joint, also written as Fig 1502 Pup Joint, is a high pressure hammer union pup joint commonly used for 15,000 psi class oilfield pressure pumping service. Frac crews often use FIG 1502 pup joints in hydraulic fracturing lines, frac manifolds, treating lines, plug valve connections and wellhead pressure equipment.

However, the figure number alone does not complete the selection. A complete RFQ also needs size, bore, end arrangement, material, length, working pressure, test pressure, temperature range and sour service requirement.

5. What is the difference between Fig 206, Fig 402, Fig 602, Fig 1002, Fig 1502, Fig 2002 and Fig 2202 pup joints?

These names refer to different hammer union figures and pressure classes. Fig 206 usually relates to lower-pressure service, while Fig 602, Fig 1002 and Fig 1502 often appear in cementing, well service and high pressure pumping applications. Meanwhile, Fig 2002 and Fig 2202 usually need project-specific confirmation because high pressure projects may define special ratings, test pressure and material requirements.

The final selection should match the project specification, manufacturer data sheet and connected equipment.

6. Can high pressure pup joints work in sour service or H2S service?

Yes, high pressure pup joints can work in sour service when the design, material, hardness, heat treatment and documents meet project requirements. The RFQ should mention H2S, sour gas or NACE MR0175 / ISO 15156 from the beginning.

This information helps the supplier review material and inspection plans before quotation. It also reduces approval problems during project documentation review, especially for well testing, flowback, workover and offshore oilfield applications.

7. When do buyers need a Custom Length Pup Joint?

Buyers need a Custom Length Pup Joint when standard lengths do not fit the wellsite layout. This often happens near manifolds, plug valves, swivel joints, wellhead equipment, cementing units or frac iron packages.

To avoid mistakes, the RFQ should state the exact measurement basis, such as overall length, shoulder-to-shoulder length, end-to-end length or make-up length. In most custom projects, a drawing gives the best confirmation.

8. What information should I provide when ordering oilfield pup joints?

A clear RFQ should include product name, product type, quantity, nominal size, working pressure, test pressure, end connection, male or female end arrangement, required length, material, service fluid, temperature range and required documents.

For a high pressure flowline pup joint inquiry, it also helps to mention whether the line will handle fracturing fluid, cement slurry, acid, crude oil, gas, produced water, sand or proppant. If the well contains H2S, the RFQ should also state NACE MR0175 / ISO 15156 sour service requirements.

9. What end connections are common for high pressure flowline pup joints?

Most high pressure flowline pup joints use hammer union connections, such as Fig 602, Fig 1002 and FIG 1502. Some oilfield projects may also require threaded ends, flanged ends, API connections, butt weld ends or customized connection combinations.

The end arrangement matters as much as the connection figure. Common arrangements include male x female, male x male and female x female. For special layouts, buyers may also request FIG 1502 x flange, Fig 1002 x Fig 1502, API connection x hammer union or butt weld x hammer union.

10. What material should high pressure flowline pup joints use?

High pressure flowline pup joints usually need forged alloy steel or high-strength steel suitable for oilfield pressure service. The material should match working pressure, temperature range, fluid type and project standard.

For abrasive fracturing service, strength, wall thickness and internal wear risk matter more. For acidizing service, corrosion resistance becomes more important. Meanwhile, in sour service with H2S, material, heat treatment and hardness need to meet NACE MR0175 / ISO 15156 requirements.

11. What inspection and test documents should come with oilfield pup joints?

Common documents include Material Test Certificate, hydrostatic pressure test report, dimensional inspection report, NDT report and Certificate of Conformity. In addition, some projects may require hardness test report, heat treatment report, coating report, packing list, welding records or third-party inspection report.

For high pressure flowline pup joints used in critical oilfield service, document requirements should appear at the inquiry stage. As a result, the supplier can prepare the correct inspection plan and avoid delays before shipment.

12. Can SGPE supply customized high pressure flowline pup joints?

Yes. SGPE can review customized high pressure flowline pup joints for drilling, fracturing, cementing, well testing, flowback, workover and other oilfield pressure pumping applications.

Customized options may include custom length pup joints, FIG 1502 pup joint configuration, hammer union end arrangement, integral pup joint design, welded pup joint design, butt weld pup joint connection, sour service requirement, offshore coating and project-specific documents. For faster quotation, please send size, pressure rating, connection type, end arrangement, length basis, service fluid, quantity and required certificates.

Conclusion

High pressure flowline pup joints help oilfield crews build safer and more flexible pressure pumping lines. Although they look simple, they must meet demanding requirements for pressure, connection, material, inspection and documentation.

For drilling, fracturing, cementing, acidizing, well testing, flowback and workover operations, every key detail matters: working pressure, size, length, end connection, male/female arrangement, material, sour service condition, H2S service requirement, temperature range and required certificates.

SGPE can support high pressure flowline pup joints for different oilfield applications, including hammer union, integral, welded, butt weld, sour service, H2S service and custom length designs. Whether the project requires FIG 1502 pup joints for frac iron service, Fig 1002 or Fig 602 pup joints for pressure pumping, or project-specific Fig 2002 / Fig 2202 configurations, a complete RFQ helps us review your requirements and recommend a suitable solution.

For a faster quotation, please send the required size, working pressure, FIG connection, end arrangement, length basis, service fluid, sour service condition, quantity and required documents. SGPE will review the configuration and recommend a suitable high pressure flowline pup joint solution for your oilfield project.

E-Mail:
info@sgpe.com
