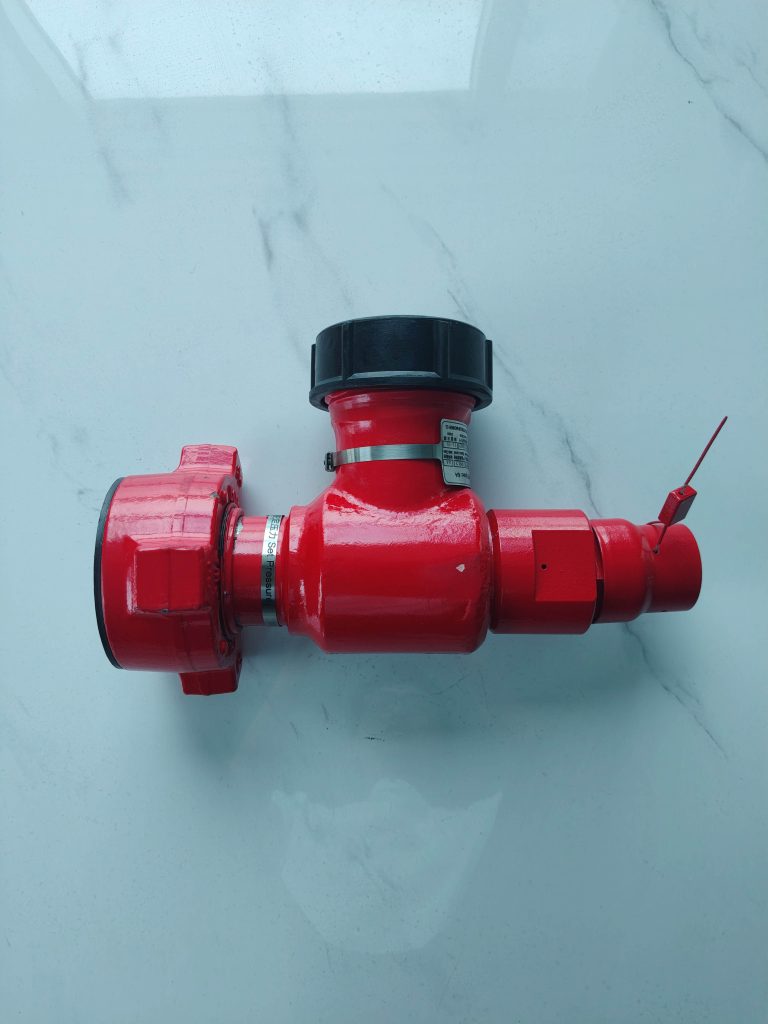

High Pressure Relief Valves: A Complete Selection Guide for Oilfield Pressure Control
High Pressure Relief Valves protect oilfield equipment from unsafe overpressure. In drilling, well control, wellhead service, choke and kill operations, cementing, fracturing, well testing, BOP control and production, pressure can rise quickly. A valve may close too fast, a pump may run against a restricted line, a choke may limit flow, or a hose may become blocked. Therefore, every high pressure system needs a dependable pressure release point.
A reliable high pressure relief valve opens when system pressure reaches the set value. Then, it releases fluid or gas through a safe discharge path and closes again after pressure drops. As a result, pumps, manifolds, flowlines, pressure vessels, hydraulic circuits and connected petroleum equipment receive an added layer of protection.
For oilfield buyers, a relief valve is not a small accessory. In many high pressure packages, it works as the final protection point. Because of this, the selected valve must match the actual working condition, not only the rated pressure.
Different oilfield applications require different valve designs. For example, a BOP control unit may need an adjustable pressure relief valve for hydraulic oil service. Meanwhile, a well testing package may need a safety relief valve or pressure safety valve / PSV for gas, liquid or multiphase well flow. In addition, a choke manifold, kill manifold, cementing line, fracturing flowline or Fig 1502 flowline may need a rugged oilfield relief valve with the correct connection, trim material, seat design and sour service compatibility.
This selection guide explains how high pressure relief valves work in petroleum service. It also shows where oilfield buyers use them, how to select a suitable model and what information to send before requesting a quotation.
Quick Answer
A high pressure relief valve releases pressure when an oilfield system exceeds a preset limit. As a result, it helps protect pumps, manifolds, flowlines, BOP control units, pressure test units, well testing packages, cementing lines, fracturing flowlines and production skids from pressure damage.
For correct selection, buyers should provide working pressure, set pressure, flow capacity, service medium, temperature range, end connection, material requirement, sour service condition and required documents. In addition, the discharge route and inspection requirement should be confirmed before final quotation.
What Are High Pressure Relief Valves?
High pressure relief valves are pressure protection devices. They open when system pressure exceeds a preset limit. Therefore, their main function is to stop pressure from rising beyond the safe operating range of oilfield equipment.
Common Protected Equipment
In petroleum service, these valves are commonly used to protect:
- Wellhead pressure lines
- Choke manifold and kill manifold systems
- BOP control units and hydraulic power units
- Pressure test units
- Cementing and fracturing flowlines
- Fig 1502 high pressure flowline packages
- Well testing separators and sand traps
- Production and oilfield process skids
- High pressure pumps, hoses and manifolds
Basic Working Principle
A typical high pressure relief valve includes a valve body, inlet, outlet, seat, sealing element, spring or pilot mechanism, adjustment structure and discharge path. During normal operation, the valve stays closed. However, when inlet pressure reaches the set pressure, fluid force overcomes the closing force. Then the valve opens and releases pressure.
After pressure falls to a safer level, the valve closes again. Consequently, pressure spikes become easier to control, and upstream equipment receives better protection.
Common Product Names Buyers Use
Oilfield buyers may use different names for similar pressure protection products. Common terms include pressure relief valve, oilfield relief valve, safety relief valve, pressure safety valve, PSV, high pressure safety valve, spring loaded relief valve, adjustable pressure relief valve, hydraulic relief valve and overpressure protection valve.
Although these terms often overlap, the design, application and flow capacity may differ. For this reason, a clear working condition is more important than the product name alone.
Quick Technical Data Reference
The following table gives a practical reference for common oilfield pressure levels. However, final selection must follow the project specification, actual set pressure and equipment design pressure.
| Common Pressure Rating | Approx. MPa | Typical Oilfield Application | Common Selection Focus |
|---|---|---|---|
| 3,000 psi | 20.7 MPa | Low to medium pressure test lines, utility skids, some production systems | Medium, set pressure, connection type |
| 5,000 psi | 34.5 MPa | Wellhead service, test packages, hydraulic systems, process skids | Material, documents, discharge route |
| 10,000 psi | 69.0 MPa | High pressure flowlines, choke manifolds, kill manifolds, pressure test units | End connection, flow capacity, sour service |
| 15,000 psi | 103.5 MPa | Pressure pumping, Fig 1502 flowlines, high pressure manifolds | Seat design, trim material, hammer union connection |
| 20,000 psi | 138.0 MPa | Special high pressure service, project-specific packages | Engineering review, material, testing, inspection |
These values help buyers compare common pressure levels. However, pressure rating does not replace set pressure confirmation. For example, a 10,000 psi relief valve and a 15,000 psi relief valve may still need different set pressure, flow capacity, connection type, material and documentation.
Why High Pressure Relief Valves Matter in Oilfield Systems
Oilfield equipment often works under high pressure, vibration, abrasive fluids and fast-changing flow conditions. Therefore, pressure control is not only a design requirement. It is also a practical safety measure for drilling, testing, pumping and production operations.
Common Causes of Overpressure
Pressure can rise for several reasons. A downstream valve may close too quickly. A choke may restrict flow. Meanwhile, a pump may continue to deliver fluid when the line cannot accept it. In addition, a hose may become blocked, gas may expand inside a test line, or temperature changes may increase pressure in blocked-in liquid sections.
Although these events may last only a short time, they can still create high pressure spikes. As a result, seals, fittings, hoses, manifolds and pump components may face unnecessary stress.
Equipment Protection Value
Without reliable overpressure protection, pressure can damage seals, crack fittings, deform valve parts, burst hoses and create safety risks. Even a short pressure surge can reduce the service life of pumps, manifolds and flowline equipment.
A properly selected oilfield relief valve reduces this risk by giving pressure a controlled release path. In addition, it can reduce downtime and protect expensive equipment such as BOP control packages, choke manifolds, pressure test units, well testing skids, cementing units, fracturing flowlines and hydraulic power units.
Why Buyers Include Relief Valves in Pressure Control Packages
For drilling contractors, oilfield service companies and petroleum equipment package builders, relief valves make the complete pressure control package safer and more professional. Therefore, many buyers include high pressure relief valves when purchasing wellhead equipment, choke and kill manifolds, cementing units, frac equipment, BOP accumulator units, pressure test skids and production systems.
Common Oilfield Applications of High Pressure Relief Valves
High pressure relief valves appear in many petroleum systems. However, the correct valve type depends on pressure, medium, installation position and operating purpose.
Drilling Pressure Control Systems
During drilling operations, pressure control equipment must respond to rapid pressure changes. Therefore, high pressure relief valves are often used to protect mud pump discharge lines, standpipe systems, choke and kill lines, hydraulic control circuits and pressure test lines.
Drilling service may involve mud, water, oil, gas, solids and vibration. As a result, a relief valve near a mud system may need different trim and seal materials from a relief valve in a clean hydraulic circuit. Before selection, buyers should check the fluid type, working pressure, set pressure, installation point and discharge direction.
Wellhead and Christmas Tree Equipment
Wellhead systems and Christmas tree assemblies control formation pressure during production, testing, workover and intervention. In this area, a wellhead relief valve may protect pressure-containing lines, control circuits, test lines or auxiliary service connections.
Because wellhead service may involve crude oil, natural gas, produced water, sour gas, sand or mixed well fluids, material selection, seal compatibility, trim design and end connection type all matter. Therefore, buyers should not select a valve only by size or pressure rating.
For sour service, share H2S conditions and project requirements at the inquiry stage. In addition, if the project requires NACE MR0175 / ISO 15156 materials, state this requirement clearly before quotation.
Choke Manifold and Kill Manifold Applications
Choke manifolds and kill manifolds handle high pressure flow during drilling, well control, well testing and pressure circulation. In these systems, a manifold pressure relief valve, choke manifold relief valve or kill manifold relief valve can help protect the line from pressure spikes caused by flow restriction, pump pressure changes, incorrect operation or rapid valve closure.
For this application, review rated working pressure, set pressure, end connection, bore size, flow capacity, trim material and sour service compatibility. In addition, common connection types may include hammer union, flanged end, threaded end or customized oilfield connections.
Since choke and kill manifolds often work in critical well control systems, procurement teams usually need clear pressure test reports, material certificates and inspection records before shipment. Therefore, documentation should be discussed before order confirmation.
Flowline Pressure Relief Valve for High Pressure Lines
A flowline pressure relief valve protects high pressure lines that connect pumps, manifolds, wellhead equipment and treatment systems. These lines may include hammer unions, pup joints, swivel joints, plug valves, check valves and other high pressure fittings.
Flowline service requires careful matching between pressure rating, connection type and system layout. For example, a 10,000 psi flowline package may need a relief valve with compatible pressure rating, set pressure and end connection. In addition, the outlet should lead to a safe discharge point or return line according to site requirements.
For high pressure flowline equipment, buyers often request rugged body construction, reliable seat sealing and quick field maintenance. However, if the flowline handles abrasive fluid, sand, scale or proppant, trim and seat selection become especially important.
Fig 1502 Pressure Relief Valve for Pressure Pumping Lines
A Fig 1502 Pressure Relief Valve usually refers to a high pressure relief valve with a Fig 1502 hammer union connection for oilfield pressure pumping, cementing, acidizing or fracturing service. Therefore, buyers often use this search term when they need a relief valve that connects directly with high pressure flowline equipment.
Fig 1502 connections commonly appear in pressure pumping packages, manifold skids and temporary high pressure lines. Therefore, the valve must match the required pressure rating, connection type, male or female configuration, flow direction and discharge arrangement.
Before ordering a Fig 1502 pressure relief valve, provide the working pressure, set pressure, service medium, required flow capacity and whether the fluid contains sand, acid, cement slurry or other abrasive materials. In this way, the supplier can check both connection compatibility and service suitability.
Fracturing Pressure Relief Valve for Frac Flowlines
A fracturing pressure relief valve protects pumps, manifolds and high pressure frac flowlines during hydraulic fracturing operations. Since fracturing service often involves high flow, high pressure and abrasive fluid, the valve must handle more than simple clean-water pressure control.
The fluid may contain water, chemical additives, proppant and other treatment materials. Because pressure can change suddenly during frac operations, the relief valve must open reliably and release enough flow. Moreover, it should resist wear caused by abrasive media.
For this reason, review trim material, seat design, end connection, set pressure, flow capacity and spare parts support before purchase. As a result, a properly selected fracturing pressure relief valve can help reduce pressure overload risk in frac manifolds, pump discharge lines and temporary high pressure flowlines.
Cementing Pressure Relief Valve for Cementing Units and Lines
A cementing pressure relief valve protects cementing pumps, cementing manifolds and cementing flowlines from overpressure. Cementing operations can create pressure changes when slurry density changes, fluid viscosity increases or the line becomes restricted.
Since cement slurry may contain solids and create abrasive service conditions, the valve needs a suitable seat, seal and trim design. In addition, buyers often consider hammer union connections, field repair kits and pressure test documentation.
For quotation, provide the cementing unit pressure rating, required set pressure, flow rate, connection type, slurry condition and sour service requirement if applicable. As a result, the supplier can review both pressure protection and slurry service compatibility.
Acidizing and Other Pressure Pumping Applications
Acidizing service creates another demanding environment for oilfield relief valves. Because acidizing fluid may require special material and seal compatibility, an ordinary relief valve may not suit acid service unless the body, trim and elastomer materials match the chemical condition.
For acidizing lines and other pressure pumping systems, share the chemical medium, concentration, temperature, set pressure, flow capacity and connection requirement before selection. As a result, the supplier can review material and seal compatibility more accurately.
BOP Control Units and Hydraulic Power Units
BOP control units, accumulator units and hydraulic power units use relief valves to protect pumps, accumulators, control valves, cylinders, actuator lines and hydraulic circuits. A hydraulic relief valve or adjustable pressure relief valve limits the maximum pressure in the circuit and helps prevent overload.
In BOP control systems, the relief valve usually works with hydraulic oil, control fluid or other approved fluids. Therefore, important selection points include working pressure range, set pressure, flow rate, adjustment range, port size, seal material and installation position.
Because BOP control systems directly support well control operations, hydraulic relief valves need stable pressure control, reliable reseating and easy maintenance. Moreover, spare parts support matters, especially for remote drilling sites.
Pressure Test Units for Oilfield Equipment
Pressure test units use high pressure pumps to test BOP stacks, gate valves, choke manifolds, kill manifolds, hoses, wellhead equipment, high pressure fittings and pressure vessels. Since test pressure can rise quickly, a high pressure relief valve helps prevent accidental overpressure during hydrostatic or functional testing.
This application requires accurate set pressure, stable opening and reliable closing. Also, the valve needs to match the test medium, such as water, glycol, hydraulic oil or another approved test fluid.
For field service companies, a dependable pressure test unit relief valve protects test pumps and test lines. In addition, it helps operators perform safer pressure testing work on site.
Well Testing Packages, Separators and Sand Traps
Well testing packages often include test manifolds, separators, sand traps, plug catchers, flowlines and control valves. Therefore, pressure relief devices are commonly used to protect vessels and piping from overpressure during testing and flowback operations.
In this service, the relief valve must match gas, liquid or multiphase well flow. Moreover, if the fluid contains H2S, CO2, sand, condensate or corrosive components, material and seal selection become more important.
Before ordering a safety relief valve or pressure safety valve / PSV for a well testing package, provide set pressure, relief capacity, discharge line arrangement, vessel design conditions and inspection requirements. In addition, documentation may include pressure test reports, material certificates, calibration records and certificates of conformity.
Production and Oilfield Process Skids
Production skids, metering skids, chemical injection skids, produced water packages and early production facilities may use pressure safety valves, PSVs and pressure relief valves to protect pumps, vessels, filters, heaters, separators and pipelines.
Although some production systems operate at lower pressure than drilling or pressure pumping equipment, they still need dependable overpressure protection. Therefore, buyers often focus on corrosion resistance, long-term stability, maintainability and spare parts availability. If the system handles sour gas, high chloride water, crude oil or chemical injection media, the valve material and seal material should match the service condition.
Application Selection Table for Oilfield Buyers
This table helps buyers compare common oilfield applications before sending an inquiry. Therefore, it can be used as a quick reference before technical clarification.
| Application | Common Valve Search Term | Typical Medium | Key Selection Points |
| BOP control unit | Adjustable pressure relief valve, hydraulic relief valve | Hydraulic oil, control fluid | Set pressure range, port size, flow rate, seal material |
| Choke manifold | Manifold pressure relief valve, choke manifold relief valve | Drilling fluid, well fluid, gas-liquid flow | Pressure rating, trim material, discharge route |
| Kill manifold | Kill manifold relief valve | Kill fluid, drilling fluid, well fluid | Working pressure, sour service, inspection records |
| High pressure flowline | Flowline pressure relief valve | Water, oil, gas, slurry, mixed fluid | End connection, pressure rating, seat design |
| Pressure pumping line | Fig 1502 pressure relief valve | Frac fluid, cement slurry, acidizing fluid | Fig 1502 connection, abrasive service, field repair kits |
| Cementing unit | Cementing pressure relief valve | Cement slurry, spacer, water | Slurry condition, set pressure, wear resistance |
| Fracturing flowline | Fracturing pressure relief valve | Frac fluid, proppant-laden fluid | Flow capacity, trim material, maintenance access |
| Well testing package | Safety relief valve, PSV | Gas, liquid, multiphase well flow | Relief capacity, documentation, discharge line |
| Production skid | Pressure safety valve / PSV | Crude oil, gas, produced water | Material, corrosion resistance, calibration record |
Main Types of High Pressure Relief Valves for Oilfield Use
High pressure relief valves come in several designs. Each design has its own advantages in petroleum applications. Therefore, buyers should choose the valve type according to the actual medium, set pressure, flow capacity and installation position.
| Valve Type | Typical Use | Main Advantage | Selection Note |
| Spring Loaded Relief Valve | Flowlines, test units, hydraulic systems, manifolds | Simple structure and easy maintenance | Check spring range and set pressure |
| Adjustable Pressure Relief Valve | BOP control units, HPUs, test skids | Flexible setting range | Confirm adjustment range and locking method |
| Safety Relief Valve | Well testing, vessels, process skids | Safety protection for pressure systems | Confirm medium, capacity and discharge condition |
| Pressure Safety Valve / PSV | Separators, production skids, test packages | Project-recognized overpressure protection | Confirm documentation and calibration needs |
| Pilot Operated Relief Valve | Larger systems, gas service, higher flow demand | Stable pressure control and higher capacity | Cleaner service is usually preferred |
| Thermal Relief Valve | Blocked-in liquid lines | Protects against thermal expansion | Usually lower flow, but important for closed sections |
Spring Loaded Relief Valve
A spring loaded relief valve uses spring force to keep the valve closed. When inlet pressure reaches the set pressure, the valve opens and releases pressure.
Many oilfield relief valves use spring loaded construction because it performs well in rugged field environments. In addition, it suits hydraulic systems, pressure test units, high pressure lines, manifold packages, cementing lines, fracturing flowlines and many general oilfield pressure protection applications.
Adjustable Pressure Relief Valve
An adjustable pressure relief valve allows users to set the opening pressure within a defined range. Therefore, this design appears often in BOP control units, hydraulic power units, pressure test skids and field service packages.
This valve type gives operators flexibility when one unit must support different pressure settings. However, the adjustment range must match the actual working pressure. Otherwise, a valve with the wrong spring range may not provide accurate or stable protection.
Safety Relief Valve and Pressure Safety Valve / PSV
A safety relief valve protects equipment by releasing pressure when the system exceeds a safe limit. In oilfield service, buyers may use this term for well testing packages, separators, pressure vessels, production skids, manifolds and high pressure flowlines.
A pressure safety valve, or PSV, usually protects vessels, separators, production skids, test packages and piping systems from overpressure. In many petroleum projects, the end user may also request PSV sizing data, set pressure records, calibration certificates or inspection documents.
Because terminology varies by region and project, describe the application clearly. Instead of only writing “PSV,” include medium, set pressure, flow capacity and system type.
Pilot Operated and Thermal Relief Valves
A pilot operated relief valve uses a pilot valve to control the main valve. It can provide higher flow capacity and stable pressure control in certain applications. However, it usually needs cleaner service conditions and more careful maintenance.
Thermal relief valves protect blocked-in oilfield liquid lines from pressure rise caused by temperature increase. Even a small temperature rise can create high pressure when liquid has no room to expand. Therefore, thermal protection should not be ignored in closed liquid sections.
Key Selection Factors for High Pressure Relief Valves
Choosing the right high pressure relief valve requires more than selecting a pressure rating. Therefore, buyers should review the following factors before quotation.
Working Pressure and Set Pressure
Working pressure is the normal operating pressure of the system. By contrast, set pressure is the pressure at which the relief valve starts to open. Therefore, the set pressure must protect the equipment while allowing normal operation.
If the set pressure is too close to normal working pressure, the valve may open too often. This can cause leakage, seat wear and unstable operation. However, if the set pressure is too high, the valve may not protect the equipment in time.
For this reason, provide both normal working pressure and required set pressure. Also include maximum allowable working pressure if the valve protects a vessel, skid package or pressure-containing assembly.
Flow Capacity
A relief valve must release enough flow to prevent pressure from rising beyond the safe limit. Therefore, flow capacity should be reviewed together with valve size, orifice area, pressure drop, medium properties and discharge conditions.
For hydraulic oil, water or test fluid service, liquid flow data matters. For gas service, gas composition, temperature and relieving conditions may affect sizing. Meanwhile, for multiphase well flow, the calculation becomes more complex.
Therefore, provide the required relieving flow rate, system pump capacity or maximum expected flow, not only the pressure rating.
Service Medium
The service medium affects body material, trim material, seal material and internal design. Therefore, buyers should describe the medium clearly before asking for a final model.
Common petroleum media include crude oil, natural gas, produced water, drilling mud, hydraulic oil, nitrogen, cement slurry, acidizing fluid, fracturing fluid and multiphase well fluid. If the fluid contains sand or other solids, the valve may need wear-resistant trim. If it contains H2S or CO2, sour service materials may be required. In addition, if the medium contains acid or chemical additives, seal compatibility becomes especially important.
Temperature Range
Temperature affects seals, springs, body material and pressure rating. Therefore, a valve that works well at ambient temperature may not suit high temperature well fluid, low temperature gas, arctic field service or hot oilfield process conditions.
For petroleum projects, provide minimum and maximum operating temperature. In addition, mention API temperature classes, low-temperature impact requirements or special elastomer requirements if they apply.
End Connection
High pressure relief valves can use NPT thread, API thread, hammer union, flange, hub connection, welded end or customized oilfield connection. Therefore, the end connection must match the skid, manifold or flowline design.
For oilfield flowline service, hammer union connections such as Fig 602, Fig 1002 and Fig 1502 may appear in different pressure ranges. In contrast, wellhead or manifold packages may use API flanges or other pressure-rated connections.
Connection mismatch can delay installation and increase cost. Therefore, specify size, pressure class, connection standard and male/female configuration before production.
Material, Seal and Seat Design
Material selection depends on pressure, temperature, fluid type and corrosion condition. Therefore, the material should be confirmed according to both the system pressure and the service medium.
Carbon steel may suit many general oilfield applications. However, stainless steel, alloy steel, Inconel, Monel or other special alloys may be considered for corrosive, sour or high temperature service.
The valve seal must match the medium and temperature. Common seal materials may include NBR, HNBR, FKM, PTFE or metal-to-metal sealing structures. Moreover, for high pressure, high temperature or abrasive petroleum service, seat design becomes very important because sand, scale or solids can damage soft seals after repeated opening.
Discharge Arrangement
A high pressure relief valve must discharge to a safe location. In oilfield systems, the outlet may connect to a return tank, mud pit, closed drain, flare line, vent line, test tank or other safe discharge path. However, poor discharge piping can create back pressure and affect valve performance.
Some relief valves also require a specific installation direction. Therefore, follow the valve flow arrow and mounting instructions. As a result, good installation can reduce chatter, leakage and unstable operation.
Selection Data Checklist
The following table helps buyers prepare enough data before model selection. More complete information usually leads to a faster and more accurate quotation. Therefore, buyers should prepare this data before sending an RFQ.
| Required Data | Why It Matters | Example Information |
| Working pressure | Confirms operating range | 5,000 psi, 10,000 psi, 15,000 psi |
| Set pressure | Defines opening point | Set at 4,500 psi, 9,500 psi or project value |
| Flow capacity | Confirms relieving ability | Pump flow rate, maximum expected flow |
| Service medium | Affects material and seal | Hydraulic oil, cement slurry, gas, crude oil |
| Temperature range | Affects elastomer and material | -20°C to 80°C, or project-specific range |
| End connection | Confirms installation fit | NPT, flange, Fig 602, Fig 1002, Fig 1502 |
| Material requirement | Affects corrosion and pressure service | Carbon steel, stainless steel, alloy steel |
| Sour service | Affects hardness and material control | H2S service, NACE MR0175 / ISO 15156 |
| Documentation | Supports approval and handover | MTC, COC, pressure test report, calibration record |
Relevant Standards and Project Requirements
High pressure relief valves may need to meet different requirements depending on the oilfield application, country, end user and project specification. For example, a pressure safety valve / PSV used on a pressure vessel may follow different requirements from a spring loaded relief valve used in a hydraulic control circuit.
Standards Buyers May Review
In petroleum projects, buyers may need to review API, ASME, NACE or customer-specific requirements before final selection. For sour service, NACE MR0175 / ISO 15156 is often important. Meanwhile, pressure vessels, separators or test packages may refer to ASME or other vessel-related requirements.
For wellhead, manifold or pressure control systems, the buyer may also request API-related documentation or project-specific inspection records. Therefore, document requirements should be confirmed together with the technical data.
Why Project Specifications Matter
Standards vary by application. Therefore, share the project specification during inquiry. This helps the supplier confirm material, testing, marking, documentation and inspection requirements before production.
Common High Pressure Relief Valve Specifications
The following table supports preliminary selection for petroleum applications. However, final configuration should match project documents and engineering requirements.
| Selection Item | Common Oilfield Options | Buyer Should Confirm |
| Product Name | High Pressure Relief Valve, Safety Relief Valve, Pressure Safety Valve, PSV, Oilfield Relief Valve | Exact application and required function |
| Valve Type | Spring Loaded Relief Valve, Pilot Operated Relief Valve, Adjustable Pressure Relief Valve, fixed set pressure relief valve, thermal relief valve | Medium, flow rate and set pressure |
| Pressure Rating | 3,000 psi, 5,000 psi, 10,000 psi, 15,000 psi or higher | Working pressure, test pressure and set pressure |
| Application Type | Flowline Pressure Relief Valve, Fracturing Pressure Relief Valve, Cementing Pressure Relief Valve, Manifold Pressure Relief Valve, Fig 1502 Pressure Relief Valve | System layout and operating purpose |
| Size | 1/4 in to 6 in or customized | Required inlet and outlet size |
| End Connection | NPT, API thread, hammer union, Fig 602, Fig 1002, Fig 1502, flange, hub, welded end | Connection standard and pressure class |
| Body Material | Carbon steel, stainless steel, alloy steel, special alloy | Fluid, corrosion and temperature |
| Seal Material | NBR, HNBR, FKM, PTFE, metal seal | Medium and temperature range |
| Service Medium | Crude oil, natural gas, produced water, drilling mud, hydraulic oil, cement slurry, acidizing fluid, fracturing fluid, nitrogen | Clean fluid, solids, sour gas or chemicals |
| Documents | MTC, pressure test report, COC, calibration report, inspection report | Project, customs and site requirements |
Connection and Application Reference
End connection affects installation, pressure rating and spare parts matching. Therefore, the table below gives a practical reference for common oilfield inquiries.
| Connection Type | Common Use | Buyer Notes |
| NPT thread | Hydraulic systems, test units, small lines | Confirm thread size, pressure rating and sealing method |
| API thread | Wellhead and petroleum equipment packages | Confirm thread specification and mating part |
| Flanged end | Wellhead, manifold and production skids | Confirm flange size, pressure class and facing |
| Hammer union Fig 602 | Medium to high pressure flowline service | Confirm male/female type and pressure rating |
| Hammer union Fig 1002 | High pressure flowline and pumping service | Confirm connection figure and seal ring requirement |
| Hammer union Fig 1502 | High pressure pumping, cementing, fracturing and manifold lines | Confirm Fig 1502 connection, working pressure and discharge direction |
| Hub connection | Project-specific high pressure packages | Confirm hub profile, clamp and seal requirement |
| Welded end | Fixed piping and skid-mounted packages | Confirm material, welding procedure and inspection needs |
Common Search Terms Oilfield Buyers Use
The following search terms reflect common buyer intent in oilfield pressure control applications. To improve readability, these terms can be grouped into general product searches and oilfield application searches.
General Relief Valve Search Terms
| Search Term | Buyer Intent | Suitable Content Angle |
| High Pressure Relief Valve | General product search | Product overview and selection guide |
| High Pressure Relief Valves | Category search | Full product range and oilfield applications |
| Safety Relief Valve | Technical buyer search | Valve type, medium and set pressure |
| Pressure Safety Valve / PSV | Vessel and skid protection search | Separator, test package and production skid protection |
| Spring Loaded Relief Valve | Common valve type search | Rugged field service and simple maintenance |
| Adjustable Pressure Relief Valve | Set pressure flexibility search | Hydraulic, BOP control and test unit applications |
| Oilfield Relief Valve | Petroleum application search | Wellhead, manifold and flowline service |
| Oil and Gas Relief Valve | Industry-specific search | Drilling, testing and production protection |
| Hydraulic Relief Valve | Hydraulic system search | BOP control unit, HPU and actuator circuit protection |
| Sour Service Relief Valve | H2S service search | NACE material and corrosion control |
| 10000 psi Relief Valve | High pressure search | 10,000 psi flowline and manifold protection |
| 15000 psi Relief Valve | Ultra-high pressure search | 15,000 psi pressure control service |
Oilfield Application Search Terms
| Search Term | Buyer Intent | Suitable Content Angle |
| Flowline Pressure Relief Valve | Flowline protection search | High pressure lines and manifold packages |
| Fracturing Pressure Relief Valve | Frac service search | Pump and frac flowline overload protection |
| Cementing Pressure Relief Valve | Cementing service search | Cementing pump and slurry line protection |
| Manifold Pressure Relief Valve | Manifold buyer search | Choke manifold and kill manifold protection |
| Fig 1502 Pressure Relief Valve | Hammer union connection search | Fig 1502 flowline and pressure pumping service |
| Wellhead Relief Valve | Wellhead equipment search | Pressure control for wellhead service |
| Choke Manifold Relief Valve | Well control search | Choke line and manifold pressure protection |
| Kill Manifold Relief Valve | Well control search | Kill line and manifold pressure protection |
| Pressure Test Unit Relief Valve | Testing equipment search | Hydrostatic and functional pressure testing |
| BOP Control Unit Relief Valve | Well control hydraulic search | Accumulator and hydraulic circuit protection |
Using these terms naturally helps the page reach more long-tail searches. However, keyword stuffing can reduce readability. Therefore, the best approach is to answer real buyer questions while placing important keywords in headings, tables and practical selection sections.
How High Pressure Relief Valves Improve Oilfield System Reliability
A relief valve does not replace good system design. However, it supports reliability when abnormal pressure occurs. In other words, it gives pressure a controlled path instead of allowing pressure to damage the weakest point.
Reliability in Different Oilfield Packages
In a BOP control unit, the relief valve protects the pump, accumulator circuit and actuator line. During field testing, it helps prevent accidental overpressure in pressure test units. Similarly, in a choke manifold or kill manifold, it reduces risk when sudden valve closure or flow restriction occurs.
For well testing packages, the valve supports pressure protection for vessels, test lines and manifolds. Meanwhile, in a pressure pumping system, it helps protect pumps and high pressure flowlines from overload.
Frequent Opening Is a Warning Sign
A properly selected valve can also help operators identify system problems. If a relief valve opens often, the system may have a restriction, wrong pressure setting, undersized line, blocked outlet or operating issue. Therefore, the valve can also act as an important warning point.
Operators should not treat frequent relief valve opening as normal operation. Otherwise, continuous relief flow can damage the seat, heat the fluid and reduce equipment life. Instead, the system should operate below the set pressure during normal conditions.
Important Questions Before Buying High Pressure Relief Valves
Before ordering, answer these practical questions:
- What oilfield equipment does the valve protect?
- Which medium flows through the valve?
- What set pressure does the system require?
- How much flow must the valve relieve?
- Which end connection does the system use?
- Where will the valve discharge?
- Which documents does the project need?
- Does the valve need sour service design?
Match the Valve to the Protected Equipment
A valve for a BOP control unit differs from a valve for a well testing separator, choke manifold, cementing line or fracturing flowline. Likewise, clean hydraulic oil creates a different requirement from sour gas, crude oil, produced water, drilling mud, cement slurry, acidizing fluid or abrasive flowback fluid.
Therefore, the protected equipment should be confirmed before model selection. In addition, buyers should share the system layout if the valve will be installed on a manifold, skid or temporary high pressure flowline.
Confirm Pressure, Flow and Connection
The set pressure must protect the equipment without interrupting normal operation. However, a small valve may open at the right pressure and still fail to release enough flow. Therefore, buyers should confirm both pressure and relieving capacity.
If the system uses a Fig 1502 pressure relief valve, the connection must match the hammer union figure, pressure rating, flow direction and male/female configuration. In addition, the outlet line must lead to a safe place and avoid harmful back pressure.
Prepare Sour Service and Documentation Details
For sour service, clearly state H2S conditions and NACE MR0175 / ISO 15156 requirements. For project approval, also confirm MTC, pressure test report, certificate of conformity, calibration record, packing list and third-party inspection requirements if needed.
In this way, the supplier can review technical requirements before quotation. As a result, both sides can reduce revision time during technical clarification.
Installation Tips for Oilfield Service
Correct installation helps high pressure relief valves work as designed. Although each model has its own instructions, several general rules apply.
Inlet and Mounting Position
Install the valve close to the equipment it protects. A long or restricted inlet line can affect valve response. Also, keep the inlet line clean and free from debris. Sand, metal particles, thread sealant or welding residue can damage the seat.
In addition, avoid unnecessary elbows and restrictions near the valve inlet. These restrictions can create pressure loss and unstable operation.
Discharge Line Arrangement
Route the outlet to a safe discharge point. For hydraulic systems, the outlet may return to a tank. For well testing or gas service, it may connect to a flare, vent or closed drain system according to the project design. For pressure test units, the discharge may return to a test tank.
In addition, support the discharge piping properly. Otherwise, heavy outlet piping can stress the valve body and affect long-term reliability.
Inspection After Installation
After installation, verify the set pressure and check for leakage. During operation, inspect the valve regularly. If the valve opens frequently, investigate the system instead of only replacing the valve.
Therefore, maintenance teams should record repeated opening events. In many cases, frequent opening indicates an operating issue, a blocked line or an unsuitable pressure setting.
Maintenance Tips for High Pressure Relief Valves
Regular maintenance extends service life and keeps the valve ready for abnormal pressure events. Therefore, a maintenance plan should match the medium, operating frequency and project requirements.
Routine Inspection
Operators should keep the valve clean, especially around the inlet and outlet. They should also inspect leakage, corrosion, vibration damage and loose connections. If the valve has an adjustment screw, avoid unauthorized adjustment.
When the valve opens during operation, the seat may experience wear. Therefore, inspect the sealing surface if leakage appears after relief action. For dirty, sandy or abrasive oilfield service, inspect the valve more often.
Spare Parts Planning
Spare parts can reduce downtime. Common spare items include seal kits, seats, springs, O-rings, gaskets and repair kits. Therefore, for remote drilling sites, well testing locations, cementing jobs, fracturing operations and pressure pumping projects, keeping basic spares on hand can prevent long shutdowns.
In addition, spare parts should match the exact valve model, seal material, pressure class and service medium. Otherwise, maintenance teams may face delays during field repair.
Common Spare Parts and Maintenance Items
The required spare parts depend on the valve model, medium and working frequency. Therefore, the table below can help buyers prepare a basic maintenance plan.
| Spare Part / Item | Main Purpose | When to Review |
| Seal kit | Restores sealing performance | Leakage, scheduled maintenance, after repeated opening |
| Seat | Maintains tight shutoff | Seat wear, leakage, abrasive service |
| Spring | Maintains set pressure control | Set pressure drift, corrosion, long-term use |
| O-rings and gaskets | Prevents external leakage | Disassembly, inspection, leakage repair |
| Adjustment screw components | Supports set pressure adjustment | Adjustment failure, thread damage |
| Trim parts | Handles flow and wear | Sand, slurry, proppant or erosive service |
| Calibration record | Confirms set pressure | Project handover, periodic inspection |
| Pressure test report | Confirms pressure integrity | Before shipment, after repair, project acceptance |
Why Documentation Matters for Oilfield Projects
Oilfield buyers often need more than the valve itself. They also need documents for internal approval, customs clearance, project handover, site inspection and maintenance records.
Common Documents
Common documents include material test certificates, pressure test reports, certificates of conformity, dimensional drawings, user manuals, packing lists and calibration records. In addition, special petroleum projects may require inspection and test plans, third-party inspection reports, NACE compliance statements or traceability documents.
Handover and Approval Value
SGPE High Pressure Relief Valve Supply Capability
SGPE supplies oilfield pressure control equipment and related high pressure valves for drilling, well control, well testing, production, cementing, fracturing, pressure pumping and hydraulic systems.
Available Valve Configurations
For high pressure relief valves, SGPE can support buyers with model selection based on pressure rating, set pressure, connection type, material, medium and documentation requirements.
Available configurations may include safety relief valves, spring loaded relief valves, adjustable pressure relief valves, hydraulic relief valves, flowline pressure relief valves, fracturing pressure relief valves, cementing pressure relief valves, manifold pressure relief valves, Fig 1502 pressure relief valves and customized pressure protection solutions for petroleum equipment packages.
Supported Oilfield Systems
SGPE can help match relief valves with wellhead equipment, choke manifolds, kill manifolds, high pressure flowlines, pressure test units, BOP control units, hydraulic power units, well testing packages, cementing units, fracturing flowlines and production skids.
In addition, SGPE can provide supporting documents according to order requirements, such as material certificates, pressure test reports and certificates of conformity.
Technical Confirmation for Special Service
How to Send a Clear Inquiry
To receive a fast and accurate quotation, please provide the following information:
- Product name: high pressure relief valve, safety relief valve, pressure safety valve / PSV, flowline pressure relief valve, Fig 1502 pressure relief valve or other required type
- Application: wellhead, choke manifold, kill manifold, BOP control unit, HPU, pressure test unit, well testing separator, flowline, cementing line, fracturing flowline or pressure pumping system
- Quantity required
- Working pressure and set pressure
- Required flow capacity or pump flow rate
- Service medium
- Temperature range
- Inlet and outlet connection
- Material requirement
- Sour service requirement, if any
- Required documents and inspection
- Delivery destination and preferred trade term
A complete inquiry saves time for both sides. More importantly, it helps the supplier recommend a valve that actually fits the oilfield working condition.
Frequently Asked Questions About High Pressure Relief Valves
1. What do high pressure relief valves do in oilfield pressure control systems?
High pressure relief valves protect oilfield equipment from unsafe overpressure. When pressure rises above the set value, the valve opens and releases fluid or gas through a safe discharge path. After pressure drops, the valve closes again and helps the system return to normal operation.
In petroleum service, these valves protect pumps, flowlines, choke manifolds, kill manifolds, wellhead equipment, BOP control units, pressure test units, well testing packages, cementing lines, fracturing flowlines and production skids. Therefore, they are widely used in drilling, testing, pressure pumping and production packages.
2. What is the difference between a high pressure relief valve and a safety relief valve?
A high pressure relief valve describes the pressure range and function. Therefore, it protects high pressure systems by releasing pressure when the system exceeds the set value.
By comparison, a safety relief valve focuses more on the safety function. Buyers often use this term for vessels, separators, test packages, production skids and oilfield pressure control systems. Since the terms may overlap, describe the application, service medium, set pressure, flow capacity and documentation requirements before selection.
3. What is a pressure safety valve / PSV in oilfield service?
A pressure safety valve, or PSV, usually protects pressure vessels, separators, production skids, test packages and piping systems from overpressure. In oilfield projects, a PSV may require set pressure records, calibration reports, pressure test documents and project-specific inspection records.
When requesting a PSV, state whether the valve protects a vessel, separator, manifold, test skid or flowline. In this way, the supplier can review the correct design, material and documentation requirements.
4. Where can oilfield buyers use high pressure relief valves?
Oilfield buyers use high pressure relief valves in drilling pressure control systems, wellhead service, Christmas tree equipment, choke manifolds, kill manifolds, BOP control units, hydraulic power units, pressure test skids, cementing lines, fracturing flowlines, well testing separators, sand traps and production skids.
Each application needs a different valve configuration. For example, a BOP control unit relief valve usually works with hydraulic oil and protects the accumulator circuit. However, a flowline pressure relief valve may handle high pressure well fluid, drilling fluid, cement slurry or multiphase flow.
5. How do I choose the right high pressure relief valve for oilfield service?
Start with the real working condition. First, confirm the equipment that the valve needs to protect, such as a wellhead line, pressure test unit, BOP control unit, hydraulic system, choke manifold, kill manifold, cementing line, fracturing flowline or pressure pumping flowline.
Then check working pressure, set pressure, required relieving flow rate, service medium, temperature range, end connection, material and sour service requirement. Also review the discharge arrangement and required documents.
6. What is a spring loaded relief valve?
A spring loaded relief valve uses spring force to keep the valve closed during normal operation. When inlet pressure reaches the set pressure, the valve opens and releases pressure.
Oilfield buyers often choose this design because the structure is simple, rugged and easy to maintain. In addition, it can suit hydraulic systems, pressure test units, flowlines, manifolds, cementing lines, fracturing flowlines and other high pressure oilfield systems.
7. What is an adjustable pressure relief valve?
An adjustable pressure relief valve allows the operator to set the opening pressure within a defined range. Therefore, this design suits BOP control units, hydraulic power units, pressure test skids and field service packages that may need different pressure settings.
Before ordering, confirm the adjustment range, required set pressure, working pressure, flow rate, port size, seal material and whether the project needs a set pressure certificate or calibration record.
8. What is a Fig 1502 pressure relief valve?
A Fig 1502 pressure relief valve usually means a high pressure relief valve with Fig 1502 hammer union connection. Therefore, oilfield buyers often use it in pressure pumping, cementing, fracturing, manifold and high pressure flowline service.
Before selecting this type of valve, confirm the pressure rating, set pressure, flow capacity, male or female connection, service medium and discharge direction. Also mention whether the line handles cement slurry, acidizing fluid, fracturing fluid, proppant or sour service media.
9. Can high pressure relief valves work in sour service with H2S?
Yes. High pressure relief valves can work in sour service when the design, material and sealing structure match the H2S condition. However, buyers should not assume that every oilfield relief valve automatically suits sour service.
If the well fluid contains H2S, CO2 or other corrosive components, share the sour service requirement during the inquiry stage. Then the supplier can review body material, trim material, hardness control, seal compatibility and NACE MR0175 / ISO 15156 requirements.
10. What pressure ratings are common for oilfield high pressure relief valves?
Common oilfield pressure ratings may include 3,000 psi, 5,000 psi, 10,000 psi, 15,000 psi or higher, depending on the system design. For example, buyers often select high pressure relief valves for wellhead equipment, choke manifolds, kill manifolds, pressure pumping lines, test units and hydraulic control systems.
However, pressure rating alone does not complete the selection. Also confirm set pressure, test pressure, flow capacity, inlet size, outlet size, end connection, material and service medium.
11. What information should I provide when requesting a quotation?
For a fast and accurate quotation, provide product name, application, quantity, working pressure, set pressure, flow capacity, service medium, temperature range, inlet and outlet connection, material requirement and discharge direction.
In addition, mention sour service conditions, H2S or CO2 content, required documents, inspection requirements and project standards.
12. How can SGPE help select high pressure relief valves for oilfield applications?
SGPE can help oilfield buyers select high pressure relief valves according to working pressure, set pressure, service medium, connection type, material, flow capacity and project documentation requirements.
For sour service, abrasive fluid, high temperature, low temperature or special oilfield media, SGPE recommends technical confirmation before quotation. Send SGPE your application, pressure rating, set pressure, medium, connection type and required documents. Then, SGPE will help recommend a suitable high pressure relief valve for your oilfield pressure control system.
Final Thoughts
High pressure relief valves protect petroleum systems from unsafe overpressure. Therefore, they support safer drilling, well control, well testing, production, hydraulic control, cementing, fracturing and pressure pumping operations.
However, the right valve depends on more than pressure rating. It also depends on set pressure, flow capacity, medium, temperature, end connection, material, seal design, discharge arrangement, installation and documentation.
For petroleum buyers, the best approach is simple: describe the real working condition clearly, confirm the required set pressure and flow, and choose a supplier that understands high pressure oilfield equipment.
E-Mail:
info@sgpe.com
