High Pressure Test Unit: Selection, Applications and Buying Guide
A reliable High Pressure Test Unit helps drilling contractors, well-control service companies, equipment manufacturers and maintenance workshops verify pressure integrity before oilfield equipment enters service.
Typical test objects include blowout preventers, wellheads, Christmas trees, choke and kill manifolds, drilling spools, API valves, frac equipment, coiled tubing and wireline packages, high-pressure hoses and surface flowlines.
The required pressure source may be a compact air-driven hydrostatic test pump, an automated electric test skid or a complete truck-mounted BOP test unit. Choosing between them involves more than checking the maximum pressure on a pump data sheet.
A 15,000 psi pump may test a compact gate valve efficiently but take too long to fill a complete BOP stack. A portable pneumatic package may work well for occasional field maintenance, yet it may not provide the filling capacity, automation or traceable pressure records required by a wellhead factory.
A mobile pressure test truck offers excellent flexibility between wellsites. However, it may add unnecessary cost when the equipment will remain in one workshop.
In practice, buyers need to consider the pressure profile, filling flow, high-pressure output, internal volume, test medium, cycle time, instruments, controls, available utilities and operating environment as one complete system.
As a custom High Pressure Test Unit manufacturer and supplier, SGPE engineers each package around the actual test duty. The technical review covers the equipment under test, low- and high-pressure stages, estimated volume, desired filling and pressurization times, pump arrangement, connections, recording method, mounting style and document scope.
This guide explains how oilfield hydrostatic testing systems work, where they are used and how to select a pneumatic, electro-pneumatic, electric, diesel-driven, portable, skid-mounted or mobile configuration.
High Pressure Test Unit Selection at a Glance
| Project Requirement | Recommended Starting Configuration |
|---|---|
| Small valves, tools or short tubing sections | Portable pneumatic or electric hydrostatic test pump |
| BOP maintenance at a drilling or workover site | Pneumatic or skid-mounted BOP test unit |
| Repeated wellhead, valve or manifold factory testing | Electric or electro-pneumatic test skid with PLC and pressure recording |
| Large BOP stacks or complete manifolds | Dual-pump system with a filling pump and high-pressure booster |
| Remote operation without dependable site utilities | Diesel-driven hydrostatic test unit |
| Testing at several rigs or service locations | Trailer-mounted or truck-mounted pressure test unit |
| Low- and high-pressure testing in one procedure | Separate pressure circuits or dedicated instrument ranges |
| Customer-witnessed FAT | Calibrated instruments with mechanical or digital pressure records |
| Serial-number traceability | Digital pressure logger with equipment identification and report export |
| Offshore or classified-area installation | Project-specific frame, coating, tubing and certified electrical components |
This table provides an initial direction only. Final equipment selection should follow the approved test procedure and actual project information.
What Is a High Pressure Test Unit?

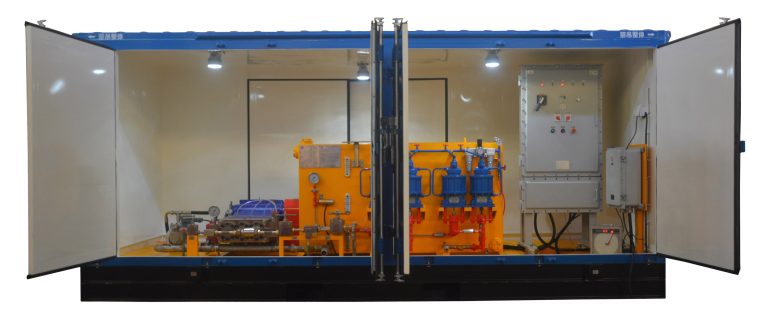

A High Pressure Test Unit is an integrated liquid-pressure system used to fill, vent, pressurize, isolate, monitor and depressurize equipment during a hydrostatic test.
The same equipment may also be described as a hydrostatic test unit, hydro test pump unit, high-pressure test pump, oilfield pressure testing unit, BOP test unit, wellhead pressure test unit, valve pressure test unit, hydrotest skid, mobile hydrotest unit or pressure test truck.
These terms overlap, but they do not always describe the same supply scope.
A basic hydrostatic test pump mainly generates liquid pressure. A complete pressure testing package may also include a fluid reservoir, filling pump, high-pressure pump, control manifold, relief devices, calibrated gauges, pressure transmitters, chart recorder, digital data logger, hoses, adapters and a structural frame.
The test medium is normally clean water, treated water, a water-glycol mixture, hydraulic oil or another approved liquid. The system fills the equipment, removes trapped air and raises the pressure through the stages defined in the approved test procedure.
During the holding period, operators monitor the equipment body, sealing elements, temporary fixtures and pressure curve. A mechanical chart recorder or digital acquisition system can retain the pressure-versus-time record for customer inspection, FAT documentation and equipment traceability.
Depending on the project, SGPE can integrate separate low- and high-pressure circuits, multiple test outlets, PLC control, HMI monitoring, remote emergency shutdown, hose reels and portable, skid, trailer or truck mounting.
The pressure pump is therefore only one part of the package. A complete test system must coordinate filling, pressure generation, isolation, measurement, recording and controlled depressurization.
Typical High Pressure Test Unit Technical Parameters
Pressure, Flow and Reservoir Parameters
The following values provide preliminary engineering references for customized oilfield pressure testing equipment. They do not represent one fixed SGPE model.
Final pressure and flow ratings depend on the selected pump curve, equipment volume, required test cycle, duty level and approved test procedure.
| Technical Item | Typical Customizable Range or Option | Main Selection Basis |
|---|---|---|
| Maximum test pressure | 5,000, 10,000, 15,000, 20,000 or up to 30,000 psi on selected engineered packages | Actual test pressure and required design margin |
| Low-pressure circuit | Commonly 0–500, 0–1,000 or 0–3,000 psi | BOP sealing, valve seat testing or approved procedure |
| High-pressure output flow | Approximately 0.5–20 L/min, subject to pressure and pump selection | Internal volume and required pressurization time |
| Filling-pump flow | Approximately 20–300 L/min | Equipment volume and desired filling time |
| Test-fluid reservoir | Approximately 50–2,000 L | Test volume, fluid recovery and package dimensions |
| Pressure outlets | 1–4 outlets or a project-specific manifold | Number of test sections and connection arrangement |
| Pneumatic drive-air pressure | Commonly 0.4–0.8 MPa | Pump ratio and available air supply |
Maximum pressure alone does not define test-unit performance. Filling capacity, output at the required pressure, low-pressure resolution, reservoir size and expected cycle time should be evaluated together.
Control, Recording and Installation Options
The control and installation arrangement should match the test frequency, available utilities, operating environment and required level of traceability.
These options can be configured for portable service units, workshop test skids, offshore packages and mobile pressure testing systems.
| Technical Item | Typical Customizable Range or Option | Main Selection Basis |
| Electric power supply | Project-specific, 50/60 Hz, single- or three-phase | Destination-country power supply |
| Test medium | Clean water, treated water, water-glycol or hydraulic oil | Test procedure and wetted-material compatibility |
| Pressure display | psi, bar, MPa or combined units | Operator and end-user requirements |
| Recording method | Analog gauges, chart recorder, digital logger or hybrid system | Inspection and traceability requirements |
| Control method | Manual, electro-pneumatic, PLC or HMI | Test frequency and automation level |
| Mounting type | Portable, trolley, skid, trailer or truck | Mobility and operating environment |
| Pressure connections | NPT, cone-and-thread, hammer union, API flange or hub | Equipment under test |
| Installation | Indoor, outdoor, onshore, offshore or classified area | Enclosure, lifting, coating and electrical requirements |
These values should be treated as project references rather than standard catalogue specifications. Final configuration should follow the approved equipment drawing, test procedure, operating environment and document requirements.
Common Oilfield Pressure Classes
Oilfield specifications often use psi, MPa and bar in the same project.
| Pressure Class | Approximate MPa | Approximate bar | Common Oilfield Application |
| 3,000 psi | 20.7 MPa | 207 bar | Lower-pressure wellhead, manifold and service equipment |
| 5,000 psi | 34.5 MPa | 345 bar | BOPs, wellheads, valves and drilling equipment |
| 10,000 psi | 69.0 MPa | 690 bar | High-pressure BOP, wellhead, choke and kill equipment |
| 15,000 psi | 103.4 MPa | 1,034 bar | High-pressure well-control, frac and wellhead equipment |
| 20,000 psi | 137.9 MPa | 1,379 bar | Specialized ultra-high-pressure equipment |
| 30,000 psi | 206.8 MPa | 2,068 bar | Specialized component or laboratory testing |
These figures describe nominal pressure classes. They do not automatically define the required hydrostatic test pressure.
A 10,000 psi component, for example, may have different body, shell or seat-test requirements depending on the product specification and approved procedure.
When requesting a quotation, provide the equipment working pressure together with the actual low-, intermediate- and high-pressure test values.
High Pressure Test Unit vs. Hydrostatic Test Pump
Buyers often use “High Pressure Test Unit” and “hydrostatic test pump” as interchangeable terms. In practice, the equipment scopes can be very different.
A basic hydrostatic test pump may consist of one pneumatic or electric pump, a regulator, one gauge, one outlet and simple isolation and bleed valves. This arrangement may suit small valves, individual tools, short tubing sections or occasional maintenance checks.
A complete pressure test unit goes further. It may combine a reservoir, filling pump, separate pressure circuits, several outlets, calibrated instruments, pressure recording, automatic controls, hose reels, containment and a structural skid or mobile platform.
| Comparison Item | Basic Hydrostatic Test Pump | Complete High Pressure Test Unit |
| Main function | Generates liquid pressure | Fills, pressurizes, controls, records and depressurizes |
| Reservoir | Small or not included | Integrated and sized for the test duty |
| Filling pump | Usually not included | Available for large-volume equipment |
| Pressure circuits | Usually one circuit | Separate low- and high-pressure circuits available |
| Recording | Basic pressure gauge | Gauges, chart recorder and digital logger options |
| Automation | Mainly manual | Manual, electro-pneumatic, PLC or HMI |
| Mobility | Portable or trolley | Portable, skid, trailer or truck |
| Typical use | Small valves and components | BOPs, wellheads, manifolds and complete packages |
When comparing a High Pressure Test Unit for sale, review the complete supply boundary.
One quotation may cover only the pressure pump. Another may include the reservoir, filling pump, test manifold, relief system, calibrated instruments, pressure recorder, hoses, adapters and structural frame.
Those quotations do not represent the same equipment and should not be compared by price alone.
Why Hydrostatic Pressure Testing Matters
Oilfield pressure-control equipment operates under demanding conditions. It may experience formation pressure, repeated pressure cycles, temperature changes, vibration, corrosion, erosion, sand, sour-service fluids, transportation loads and repeated assembly.
These conditions can affect pressure-containing bodies, bonnets, covers, flanges, hubs, sealing elements, valve seats, choke trim, pressure tubing, flexible hoses and threaded connections.
A controlled hydrostatic test helps verify that the equipment can contain the required pressure without unacceptable leakage or structural damage.
Manufacturers use pressure testing during production and factory acceptance testing. Drilling contractors test BOP stacks before critical operations. Wellhead service companies verify installed or repaired equipment. Valve workshops conduct body and seat tests before returning valves to service.
Testing may also be required after overhaul, seal replacement, transportation, modification or a scheduled maintenance interval. In many projects, the final test is witnessed by the end user or an appointed inspection company.
The pressure test unit supplies and controls the pressure, but it does not determine whether the equipment passes.
The applicable specification, approved test procedure, customer requirement and inspection plan should define the pressure stages, ramp rate, stabilization period, holding time, leakage criteria, recording method and depressurization sequence.
How Does a High Pressure Test Unit Work?
A typical hydrostatic test follows five main stages.
Filling and Venting
The operator first identifies the pressure boundary and connects the test system to the equipment.
Every hose, fitting, adapter, plug, mandrel and temporary fixture must have a suitable pressure rating. Valve positions should also be confirmed before introducing the test fluid.
A filling pump transfers liquid into the test object. Large BOP stacks, manifolds and wellhead assemblies often need a dedicated filling circuit because a high-pressure booster normally provides limited flow.
Technicians open high-point vents during filling. Removing trapped air improves pressure stability, reduces stored energy and prevents misleading pressure changes during the holding period.
Low-Pressure Testing
Many BOP, wellhead and valve procedures include a low-pressure test before the final stage.
This initial check allows technicians to verify temporary connections, closures, test plugs and valve positions before applying full pressure.
A dedicated low-range gauge or transmitter generally provides better resolution than one high-range instrument.
Controlled Pressurization
After the low-pressure check, the operator raises pressure gradually.
The approved procedure may include intermediate levels and stabilization periods. These stages allow technicians to inspect the equipment and avoid sudden loading on seals, hoses and temporary fixtures.
On an automated test skid, the PLC can control the pressure ramp, pause at programmed values and begin the holding timer after the system stabilizes.
Pressure Holding and Recording
Once the target pressure is reached, the pressure source is isolated.
The holding period normally starts only after pressure and temperature stabilize. Operators then monitor the equipment body, seals, flanges, hubs, hoses and temporary fixtures while reviewing the recorded pressure curve.
Temperature variation, trapped air, equipment elasticity and hose expansion can affect the reading. The approved procedure should therefore define the permitted pressure variation.
Controlled Depressurization
After the holding period, pressure is released through the designated bleed circuit.
The bleed valve should reduce pressure gradually and return the liquid to a reservoir or safe collection point. A pressurized fitting should never be loosened to release trapped pressure.
High Pressure Test Unit Applications
A High Pressure Test Unit can support drilling, completion, production, well intervention and oilfield maintenance operations.
Each application requires a different balance of filling flow, final pressure, test connections, instrumentation and mobility.
Application Selection Matrix
| Application | Equipment Under Test | Important Test-Unit Features | Typical Connections |
| BOP stack testing | Annular BOP, ram BOP, drilling spool and choke or kill lines | Separate pressure ranges, high filling flow, long hoses and recording | API flanges, hubs and high-pressure hoses |
| Wellhead testing | Casing heads, casing spools, tubing heads and seals | Accurate pressure holding, clean fluid and several adapters | API flanges, test plugs and custom fixtures |
| Christmas tree testing | Master valves, wing valves, swab valve and tree body | Multiple test boundaries and serial-number records | API flanges, hubs and temporary blanks |
| Choke and kill manifold testing | Gate valves, chokes, blocks and high-pressure piping | Several outlets, sufficient filling flow and pressure recording | API flanges, hubs and hammer unions |
| Valve testing | Gate, plug, check, choke and frac valves | Low- and high-pressure circuits and seat-test control | Flanges, hubs, threaded adapters or test bench |
| Coiled tubing and wireline testing | BOPs, lubricators, risers, tool traps and valves | Portable or mobile package with several outlets | Flanges, quick-test subs and custom adapters |
| Hose testing | Rotary, vibrator, choke and kill, cementing and frac hoses | Controlled pressure ramp, recording and remote operation | Hose ends and test-bay manifold |
| Flowline testing | Pup joints, swivels, plug valves and frac flowlines | Hammer-union adapters and fluid recovery | Fig. hammer unions and integral connections |
| Pipeline hydrotesting | Pipeline sections and long piping systems | High filling flow, circulation and temperature recording | Project-specific test manifold |
BOP Stack Pressure Testing
A BOP Test Unit, also called a BOP test pump or BOP pressure testing unit, supplies controlled wellbore-side pressure for testing blowout preventers and connected well-control equipment.
A surface BOP stack may contain an annular preventer, single or double ram BOPs, pipe or variable bore rams, blind or blind shear rams, drilling spools, adapter spools, hydraulic gate valves and connected choke or kill lines.
Depending on the approved procedure, the test may verify annular sealing around drill pipe, ram sealing, BOP body integrity, flange and hub connections, drilling spool outlets and connected well-control lines.
The BOP test unit does not replace the BOP control unit.
The control system closes the annular preventer, rams and hydraulically actuated valves. The pressure testing package then applies internal pressure below or between the closed sealing elements.
A practical BOP test system should provide stable low-pressure control, adequate filling capacity, controlled final pressure, rated hoses and reliable pressure recording.
Large stacks often benefit from a dual-pump arrangement. The filling pump handles the main fluid volume, while the high-pressure booster controls the final stage.
For a 10,000 psi or 15,000 psi BOP test unit, pressure rating is only the starting point. The supplier must also review the stack bore, internal volume, test sequence, hose length, outlet quantity and available site utilities.
SGPE can configure custom BOP test packages with separate instrument ranges, multiple pressure outlets, mechanical chart recording, digital data acquisition and project-specific hose assemblies.
Wellhead and Christmas Tree Pressure Testing
A Wellhead Pressure Test Unit can support manufacturing, installation, maintenance and repair.
Typical test objects include casing heads, casing spools, tubing heads, tubing spools, hanger sealing areas, secondary packoffs, wellhead gate valves, adapter spools and test plugs.
Christmas tree testing may cover the tree body, master valves, wing valves, swab valve, tree cap, production outlets, kill outlets and installed chokes.
The test setup depends on the selected pressure boundary. Flange blanks, test mandrels, test plugs or custom fixtures may be required to isolate individual cavities.
For repeated factory testing, an electric or electro-pneumatic wellhead pressure test skid can improve consistency. PLC control manages the pressure stages and holding time, while a digital logger links each pressure record to the equipment serial number.
For installation and service work, a portable, skid-mounted or trailer-mounted package may offer better mobility.
When evaluating a supplier, confirm whether the proposed scope includes the adapters, test plugs, hoses, calibrated instruments and recording system required for the actual wellhead design.
Choke, Kill, Mud and Standpipe Manifold Testing
A pressure test skid can test one selected flow path or a complete manifold assembly.
Choke and kill manifolds may contain manual and hydraulic gate valves, adjustable or positive chokes, manifold blocks, buffer chambers, high-pressure piping, hammer unions, API flanges, hubs and instrument connections.
Mud and standpipe manifolds may include plug valves, mud gate valves, tees, crosses, swivel joints, pup joints and flanged piping.
These assemblies normally contain more fluid than an individual valve. A dedicated filling pump can therefore reduce preparation time before the high-pressure circuit takes over.
The test manifold may also include several independently isolated outlets. This allows technicians to test separate sections without rebuilding the primary connection.
For repeated manifold FAT, a skid-mounted hydrostatic test system with a high-flow filling circuit and pressure recorder can significantly shorten the total test cycle.
Oilfield Valve and Choke Testing
Oilfield valve manufacturers and repair workshops use Valve Pressure Test Units for body, shell, seat and closure testing.
Common applications include API 6A gate valves, hydraulic gate valves, expanding gate valves, plug valves, check valves, adjustable chokes, positive chokes and frac valves.
A valve test may cover body integrity, low- and high-pressure seat sealing, upstream and downstream closure, cavity integrity and backseat performance where applicable.
The unit should provide accurate control across the complete range. A 15,000 psi valve test pump may still need a separate low-pressure circuit for seat testing.
For repeated production work, the package may operate with a hydraulic clamping bench, protective enclosure, fluid-recovery system, automatic controls and digital reporting software.
The valve size, pressure class, end connection, body volume, seat-test direction and required production rate should all be considered before pump selection.
Frac Valve and Frac Stack Testing
Frac equipment operates under high pressure, repeated cycling and abrasive service.
A pressure testing package may support manual and hydraulic frac valves, frac heads, goat heads, flow crosses, spacer spools, adapter flanges, frac manifolds and high-pressure flowline components.
Large-bore frac equipment can require substantial filling capacity. A separate filling pump combined with a final high-pressure pump often performs more efficiently than one small booster.
When hydraulic frac valves are included, a separate HPU operates the actuators, while the pressure test unit supplies the internal body pressure.
For high-volume equipment, buyers should review both the transfer-pump capacity and the final high-pressure output. Maximum pressure alone does not indicate the expected cycle time.
Coiled Tubing, Wireline and Well Intervention Testing
A coiled tubing pressure test unit may test quad BOPs, shear-seal BOPs, strippers, lubricators, risers, tool traps and hydraulic master valves.
Wireline and slickline applications may include wireline valves, grease injection heads, stuffing boxes, lubricators, quick-test subs and flow tubes.
These pressure-control assemblies often contain several test boundaries and require custom adapters.
A compact pneumatic pressure test pump may suit a small wireline setup. A complete coiled tubing stack may require a larger reservoir, filling pump, several outlets and a pressure-recording system.
For mobile intervention work, total package weight, hose storage, lifting arrangement and field utility requirements are also important selection factors.
Oilfield Hose and Flowline Testing
Oilfield hose manufacturers and service workshops use hydrostatic test equipment for rotary drilling hoses, vibrator hoses, choke and kill hoses, BOP control hoses, cementing hoses and frac hoses.
A hose pressure test system should include rated end connections, suitable restraints, remote operation where required and a protected test area.
A digital pressure logger can retain the pressure curve, holding time, equipment identification and final result against each hose serial number.
High-pressure flowline equipment includes pup joints, swivel joints, elbows, tees, crosses, plug valves, check valves, cementing lines and frac flowlines.
Because these components use different hammer-union figures and sizes, the pressure test package may require a dedicated hose and adapter set.
Pipeline Hydrostatic Testing
Pipeline hydrotesting involves much larger fluid volumes than component or BOP testing.
A pipeline hydrostatic test package may combine a high-flow filling pump, air-removal and circulation circuit, final pressurization pump, pressure recorder, temperature recorder, water-treatment equipment and test manifold.
A compact BOP test pump cannot fill a long pipeline section efficiently.
Pipeline projects require a dedicated strategy based on pipe diameter, test-section length, elevation profile, water source, internal volume, filling time and final pressure.
High Pressure Test Unit Configuration Options
The equipment under test, available utilities, test frequency and mobility requirements determine the most suitable configuration.
| Configuration | Typical Technical Arrangement | Best Application | Main Consideration |
| Pneumatic High Pressure Test Unit | Air-driven liquid booster, reservoir and manual controls | BOP maintenance, valve repair and field service | Requires sufficient compressed-air pressure and flow |
| Electro-Pneumatic Test Unit | Air-driven pump, solenoid valves, PLC and digital instruments | Repeated workshop testing and FAT | Requires compressed air and electrical power |
| Electric Hydrostatic Test Unit | Motor-driven filling and pressure pumps with PLC/HMI | Factories and high-duty test bays | Requires suitable site power |
| Diesel-Driven Hydrotest Unit | Diesel engine, filling pump, plunger pump and reservoir | Remote sites and pipeline work | Requires fuel, cooling and engine maintenance |
| Portable Hydrostatic Test Unit | Compact pump, gauges, regulator and small reservoir | Small valves and intervention components | Limited filling capacity |
| Skid-Mounted Pressure Test Unit | Reservoir, dual pumps, manifold, controls and lifting frame | Rigs, workshops and offshore projects | Requires lifting or handling equipment |
| Trailer-Mounted Hydrotest Unit | Mobile reservoir, pumps, hose reels and generator | Multi-site service operations | Road and towing compliance |
| Truck-Mounted BOP Test Unit | Complete mobile station and operator cabin | Remote BOP, wellhead and manifold testing | Higher capital and vehicle cost |
Pneumatic High Pressure Test Unit
A pneumatic unit uses compressed air to drive a liquid booster.
As outlet pressure rises, the pump slows and eventually stalls when hydraulic output force balances the drive-air force. This provides simple pressure adjustment and stable control at low flow.
Pneumatic systems suit field service, BOP maintenance and valve repair where a reliable compressor is available.
The compressor, air filter, regulator and hose must provide sufficient air volume as well as pressure. A restricted air supply can reduce pump performance even when the indicated pressure appears correct.
When comparing air-driven pumps, request the pump ratio, required drive pressure, air consumption, output at the target pressure and recommended air-line size.
Electro-Pneumatic Pressure Test Unit
An electro-pneumatic system combines an air-driven pressure pump with electrical monitoring and control.
The electrical package may operate solenoid valves, display pressure, manage test stages, start holding timers and trigger overpressure or pressure-drop alarms.
A PLC and HMI can store test recipes, show system status and generate digital records. This configuration suits factories and repair workshops that need repeatable tests while retaining an air-driven high-pressure pump.
Electric Hydrostatic Test Unit
An electric High Pressure Test Unit uses motor-driven filling and pressure pumps or a hydraulic power package.
It often suits BOP factories, wellhead manufacturers, valve workshops, choke manifold assembly facilities and fixed maintenance bases.
Electric systems can provide higher filling flow, frequent test cycles, PLC control, automatic reporting and integration with factory databases.
Before pump and motor selection, the customer should confirm the site voltage, frequency, phase, available power and hazardous-area requirements.
An electric hydrostatic test skid with PLC control is often suitable where several repeat tests are completed per shift and consistent pressure stages or electronic reports are required.
Diesel-Driven Hydrotest Unit
A diesel-driven package provides an independent pressure source for remote drilling, workover, pipeline and well-service locations.
The unit may include a diesel engine, fluid reservoir, filling pump, high-pressure plunger pump, cooling system, chart recorder or digital logger, hose reels, lighting and protective framing.
The design should consider altitude, ambient temperature, dust, fuel quality, noise limits and local engine-emission requirements.
Portable, Skid and Mobile Pressure Test Units
A portable hydrostatic test unit suits small valves, individual wellhead components, wireline equipment and other limited-volume applications.
A skid-mounted pressure test unit integrates the pumps, reservoir, manifold, instruments and controls on one structural base. The frame may include lifting eyes, forklift pockets, guards, drip containment and hose storage.
Trailer- and truck-mounted systems suit service companies that travel between rigs and remote wellsites. These packages may include independent utilities, a larger reservoir, hose reels, tool storage, a control cabin and mechanical or digital recording.
For offshore or mobile use, structural, lifting, coating, corrosion, road and vehicle requirements should be confirmed before production.
Pressure, Flow and Test-Volume Sizing Reference
The following table provides preliminary guidance. Final pump sizing requires the actual pressure profile, internal volume, test medium and desired cycle time.
| Test Object | Indicative Internal Volume | Suggested Filling-Flow Approach | Typical High-Pressure Flow Need |
| Small valve or compact component | Below approximately 10 L | Small reservoir or 5–20 L/min filling circuit | Approximately 0.5–3 L/min |
| Large valve or wellhead component | Approximately 10–100 L | 20–80 L/min filling pump | Approximately 1–5 L/min |
| Christmas tree or manifold section | Approximately 50–300 L | 40–120 L/min filling pump | Approximately 2–8 L/min |
| Complete BOP or intervention stack | Approximately 100–1,000 L or more | 50–200 L/min or higher filling system | Approximately 2–10 L/min or project-specific |
| Large frac or surface package | Project-specific | High-flow transfer and circulation system | Project-specific |
| Pipeline test section | Very large and length-dependent | Dedicated filling and circulation package | Project-specific |
These values are preliminary engineering references rather than standard model data.
Equipment elasticity, flexible hose expansion, temperature variation, final pressure and required test time can all change the pump selection.
High Pressure Test Unit Selection Guide
1. Define the Equipment Under Test
Start with the exact equipment type.
Provide the nominal size, working pressure, connection type, drawing and approximate internal volume where available.
A valve, BOP stack, manifold and pipeline section may require the same final pressure but very different pumps and reservoirs.
2. Confirm the Actual Pressure Profile
Do not provide only the nameplate working pressure.
The inquiry should state the low-pressure test, high-pressure test, intermediate stages, relief setting and required instrument ranges.
Pump and gauge selection should follow the actual test sequence.
3. Estimate Internal Volume and Cycle Time
Internal volume directly affects filling and pressurization time.
When the exact volume is unavailable, provide the bore size, equipment length, stack arrangement, manifold drawing and connected hose length.
Also state the preferred filling and pressurization times. A pump may reach the target pressure but still perform too slowly for the planned workload.
4. Confirm the Test Medium
Most oilfield hydrostatic tests use clean or treated water. Other projects may require water-glycol mixtures, hydraulic oil or another approved liquid.
The medium affects pump seals, manifold valves, reservoir coating, pressure tubing, hose compatibility, filtration and flushing.
5. Select the Drive and Mounting Arrangement
A pneumatic system suits sites with reliable compressed air and applications that need compact equipment and stable low-flow control.
An electro-pneumatic package adds PLC sequencing, alarms and digital records while retaining an air-driven pump.
Electric systems suit fixed factories with frequent testing or higher filling-flow requirements. Diesel-driven units suit remote locations without dependable utilities.
Portable equipment suits smaller components. Skid-mounted systems suit workshops and rigs. Trailer- and truck-mounted packages suit mobile service operations.
6. Confirm Low-Pressure Performance
Many BOP, wellhead and valve procedures include both low- and high-pressure stages.
A system designed only around maximum pressure may not provide enough resolution at the lower value.
The solution may include a dedicated low-range gauge, regulator, low-pressure pump, separate circuit or suitable digital transmitter.
7. Select the Recording and Automation Level
A project may use analog gauges, a chart recorder, a digital pressure logger or a combination of these methods.
Manual packages are easier to operate and maintain in the field. Automated systems can manage pressure ramps, holding timers, alarms, controlled depressurization, pass-or-fail indication and electronic reporting.
Automation should support the approved procedure without making the system unnecessarily complicated.
8. Confirm Connections, Environment and Documents
The test outlet must match the equipment. Common connections include NPT threads, cone-and-thread fittings, hammer unions, API flanges, hubs, quick couplings and custom manifolds.
The supplier also needs the hose quantity, length and pressure rating, together with ambient temperature, dust, humidity, salt exposure, altitude, available space, lifting method and hazardous-area classification.
Customer witness testing, third-party inspection, FAT records, calibration certificates, drawings, manuals and spare-parts documents should be confirmed during the quotation stage.
High Pressure Test Unit Buying Guide
Compare the Complete Supply Scope
When reviewing a High Pressure Test Unit quotation, confirm whether the proposal includes the reservoir, filling pump, high-pressure pump, test manifold, relief devices, calibrated instruments, recording system, hoses, adapters, structural frame and technical documents.
A low price may cover only a pressure pump and basic controls.
A complete quotation should identify the agreed supply boundary, optional equipment, inspection scope and document package.
Compare Flow at Operating Pressure
Pump output normally decreases as pressure rises.
Request the filling-pump flow, high-pressure output at the relevant pressure stages, estimated filling time, expected pressurization time, air consumption or motor power and recommended duty cycle.
These figures provide a more realistic view of performance than maximum pressure alone.
Review Instrument Accuracy
Confirm the low- and high-pressure ranges, gauge and transmitter accuracy, display units, calibration standard and certificate scope.
This is particularly important for BOP sealing tests and valve seat tests, where one high-range gauge may not provide enough resolution.
Select the Recording Method
A mechanical chart recorder provides an immediately visible pressure trace and remains practical for field operations.
A digital pressure logger offers stronger data storage, serial-number traceability, electronic reporting and alarm records.
Some customers use both systems: the chart for witness inspection and the digital file for the long-term project record.
When a chart recorder is required, confirm its range, paper format, drive system and calibration scope.
For digital recording, confirm the sampling rate, file format, report content, storage method and equipment-identification fields.
Review Safety and Maintenance
A complete pressure test package may include a pressure-relief valve, discharge check valve, emergency stop, remote shutdown, automatic overpressure protection, low-fluid-level protection, lockable isolation valves, controlled bleeding, guards and drip containment.
The layout should also provide practical access to pumps, filters, manifold valves, instruments and drains.
Recommended seal kits, filters, gauges and normal operating spares should be identified before delivery.
Check Material Compatibility
The reservoir, internal coating, pressure tubing, manifold valves, pump seals and hose linings must suit the selected test medium.
Water service may require corrosion protection and effective drainage. Glycol and hydraulic oil require compatible elastomers and hoses.
Offshore packages may also need stainless steel pressure tubing and enhanced external coating.
Evaluate Long-Term Operating Cost
The lowest purchase price may not provide the lowest operating cost.
A correctly sized filling pump can shorten every test. Accurate instruments can reduce repeated work. Reliable recording simplifies inspection, while good maintenance access reduces downtime.
Consider cycle time, utility consumption, calibration, spare-parts availability, maintenance frequency, operator training and expected service life.
Main Components of a High Pressure Test Skid
Test-Fluid Reservoir and Filling Circuit
The reservoir supports filling, circulation, fluid return and recovery.
Its usable capacity, material, internal coating, drainage, cleanout access and filtration should match the test volume and selected medium.
The filling pump transfers a larger fluid volume at relatively low pressure. This shortens preparation time and helps remove trapped air from BOP stacks, wellheads and manifolds.
High-Pressure Pump
The final pressure circuit may use an air-driven liquid booster, reciprocating plunger pump, triplex pump, hydraulic intensifier or electric high-pressure pump.
The selection depends on maximum pressure, flow at pressure, test medium, duty cycle and control accuracy.
Large-volume equipment may require separate filling, intermediate-pressure and final-pressure circuits.
Pressure Test Manifold
The manifold controls filling, pump isolation, test isolation, bypass, bleeding and fluid return.
A typical arrangement may include outlet valves, check valves, a relief valve, gauge isolation valves, a calibration connection and a controlled bleed circuit.
Every pressure-containing component must meet the design pressure of its circuit.
Pressure Instruments and Recording
A wide test range often requires separate low- and high-range gauges.
Pressure transmitters can support remote indication, PLC control, data logging and automatic reports.
A mechanical chart recorder provides a visible pressure trace, while a digital logger can retain pressure stages, holding time, temperature, alarms, operator information and equipment identification.
Safety and Shutdown Devices
Depending on the approved design, the package may include relief valves, discharge check valves, emergency stops, remote shutdown, automatic overpressure protection, low-level protection, guards and controlled bleed valves.
The final safety arrangement should follow the approved risk assessment and operating procedure.
Standards Related to Oilfield Pressure Testing
A High Pressure Test Unit does not automatically fall under one API product specification.
Instead, the equipment under test or its approved procedure may relate to:
- API 6A for specified wellhead and Christmas tree equipment;
- API 16A for covered BOPs and drilling spools;
- API 16C for choke and kill equipment;
- API 16D for well-control system functions;
- API 6D for specified pipeline valves;
- API 7K for applicable drilling equipment;
- API 17K for applicable bonded flexible pipe.
Projects may also refer to ASME requirements, end-user specifications, customer FAT procedures or operator field-testing instructions.
These standards generally govern the equipment under test or the test method. They do not automatically mean that the High Pressure Test Unit itself carries an API Monogram.
The purchase specification should identify the applicable standard, actual test pressure, holding period, test medium, recording method, calibration scope, hazardous-area requirements, offshore lifting requirements and inspection plan.
Typical Hydrostatic Test Procedure
1. Review the Test Requirements
Confirm the equipment drawing, identification, pressure limits, test medium, holding period and acceptance criteria.
2. Inspect the Test Equipment
Check the pumps, gauges, pressure recorder, relief valve, hoses, adapters, test plugs and protective barriers.
3. Establish the Pressure Boundary
Confirm the valve positions and install the correct test plugs, mandrels, flange blanks or other closures.
4. Connect, Fill and Vent
Connect the pressure testing system with rated hoses, tubing and fittings. Introduce the fluid slowly and vent the high points until no trapped air remains.
5. Complete the Low-Pressure Test
Raise the pressure to the specified low value and inspect the equipment, connections and temporary closures.
6. Increase Pressure in Controlled Stages
Follow the approved ramp rate, intermediate pressure levels and stabilization periods.
7. Hold and Record the Final Pressure
Allow pressure and temperature to stabilize before starting the holding period. Monitor the pressure record, equipment body, seals, flanges, hubs, hoses and temporary fixtures.
8. Depressurize, Drain and Document
Release pressure through the designated bleed circuit. Drain or preserve the equipment as required, then complete the test report with the pressure stages, holding time, instrument details, observations and final result.
Common High Pressure Test Unit Purchasing Mistakes
Selecting by Maximum Pressure Alone
A high maximum pressure does not guarantee efficient testing.
The buyer must also compare filling flow, high-pressure output, internal volume, low-pressure accuracy and required test time.
Ignoring Filling Capacity
A small booster may test an individual valve but take too long to fill a complete BOP stack or manifold.
A separate filling circuit often provides a more practical solution.
Underestimating the Air Supply
An air-driven pump needs sufficient air pressure and air volume.
A restricted compressor line, filter, regulator or hose may reduce performance even when the indicated pressure appears correct.
Using One Gauge for the Entire Range
A high-range gauge may provide poor resolution during low-pressure testing.
Separate low- and high-range instruments normally improve readability and control.
Overlooking Fluid Compatibility
Water, glycol mixtures and hydraulic oil require different seals, coatings, tubing and filtration arrangements.
The exact medium should be confirmed before the wetted components are selected.
Adding the Recorder Too Late
A chart recorder or digital logger affects the manifold, instruments, control panel and software scope.
Define the recording method during the quotation stage.
Ordering a Workshop Skid for Offshore Use
A standard workshop frame may not meet offshore structural, lifting, coating or corrosion requirements.
Confirm the installation environment from the beginning.
Confusing a Test Unit with a BOP Control Unit
The High Pressure Test Unit generates internal test pressure.
The BOP control unit supplies hydraulic control pressure to operate the preventers and actuated valves.
A complete BOP pressure test normally requires both systems.
Comparing Only the Purchase Price
Two quotations may contain different reservoirs, pumps, manifolds, instruments, controls, hoses, documents and inspection scopes.
Compare the complete supply and expected operating cost before choosing a supplier.
High Pressure Test Unit Price Factors
The High Pressure Test Unit price depends on the complete test duty rather than maximum pressure alone.
The required pressure, high-pressure output, filling-pump capacity, reservoir volume and number of circuits establish the basic system size.
The drive and control method also affect cost. A manual pneumatic unit normally costs less than an electric or electro-pneumatic skid with PLC, HMI, automatic pressure stages and digital reporting.
Portable and basic skid-mounted systems generally cost less than trailer- or truck-mounted packages with independent utilities, hose reels, storage and an operator cabin.
Instrumentation, stainless steel pressure tubing, hazardous-area components, offshore lifting design, high-pressure hoses, adapters, third-party inspection, calibration certificates and spare parts also affect the final quotation.
A compact pneumatic BOP test pump may have a lower initial price than an automated mobile unit. However, insufficient filling flow, poor recording or unsuitable connections can create higher operating costs and later modification work.
For an accurate quotation, the supplier must first confirm the equipment under test, pressure stages, internal volume, cycle time, operating environment and final supply scope.
Information Required for a High Pressure Test Unit Quotation
| Information Category | Details to Provide |
| Equipment under test | Equipment type, nominal size, model and drawing |
| Pressure requirements | Working pressure, low-pressure test, high-pressure test and intermediate stages |
| Volume and timing | Internal volume, desired filling time, pressurization time and holding period |
| Test medium | Water, treated water, glycol mixture, hydraulic oil or another approved liquid |
| Available utilities | Air pressure and flow, electrical voltage and frequency, or diesel requirements |
| Control method | Manual, electro-pneumatic, PLC or HMI |
| Recording | Gauges, chart recorder, digital logger and required report format |
| Connections | Flange, hub, hammer union, thread, hose quantity and hose length |
| Environment | Indoor, outdoor, onshore, offshore, desert, cold climate or hazardous area |
| Mounting | Portable, trolley, skid, trailer or truck |
| Documents | Drawings, manuals, calibration, FAT, inspection and certificates |
| Spare parts | Seal kits, filters, pump parts, gauges and operating spares |
Not sure which pump arrangement fits the test duty?
Send SGPE the equipment drawing, required test pressures, estimated internal volume and available utilities. The engineering team can review the information and identify the remaining parameters before preparing the proposal.
Why Choose SGPE as Your High Pressure Test Unit Manufacturer?
SGPE manufactures and integrates customized oilfield pressure testing equipment rather than offering only one standard pump package.
Each project begins with a review of the actual test duty. SGPE evaluates the equipment under test, pressure stages, internal volume, filling and pressurization times, test medium, available utilities, connection arrangement, recording method, operating environment and inspection scope.
Depending on the approved design, the package may include carbon steel or stainless steel reservoirs, high-flow filling pumps, air-driven boosters, electric or diesel-driven pressure pumps, low- and high-pressure circuits, control manifolds, stainless steel pressure tubing, electrical control panels, PLC and HMI systems, chart recorders, digital pressure acquisition, rated hoses and adapters.
Portable, skid-mounted, trailer-mounted and truck-mounted configurations are available according to the intended application.
SGPE’s manufacturing scope can cover structural skid fabrication, reservoir installation, pump assembly, control-panel wiring, manifold assembly, pressure-tubing installation, instrument mounting and complete package integration.
This approach helps ensure that the pumps, controls, instruments, tubing and structural frame operate as one coordinated pressure testing system.
SGPE Factory Acceptance Testing
Before delivery, SGPE can complete the agreed factory acceptance testing according to the approved inspection plan.
The FAT may verify overall dimensions, pump operation, filling-circuit performance, low- and high-pressure functions, relief-valve operation, pressure instruments, controls, alarms, shutdown functions and chart or digital recording.
For automated units, testing can also cover PLC sequences, HMI functions, holding timers and digital data output.
The customer or an appointed third-party inspector may witness the agreed test stages when required.
SGPE Documentation Package
The project document package can include the general arrangement drawing, system schematic, electrical drawing, component data sheets, instrument list, calibration certificates, pressure-test records and FAT report.
SGPE can also provide operating and maintenance instructions, troubleshooting guidance, a recommended spare-parts list, packing documents and a certificate of conformity.
For offshore, hazardous-area or independently inspected projects, the required certification and document scope should be confirmed before manufacturing.
Frequently Asked Questions About High Pressure Test Units
1. What is the difference between a High Pressure Test Unit and a hydrostatic test pump?
A hydrostatic test pump mainly generates liquid pressure.
A complete High Pressure Test Unit can also fill and vent the test object, control pressure stages, isolate the test boundary, record the pressure curve and depressurize the system.
Small valves and components may only require a portable pump. BOP stacks, wellheads, Christmas trees and manifolds normally need a more complete package.
2. What oilfield equipment can a High Pressure Test Unit test?
A correctly configured system can test BOP stacks, drilling spools, wellheads, Christmas trees, choke and kill manifolds, oilfield valves, frac equipment, coiled tubing BOPs, wireline pressure-control equipment, hoses and high-pressure flowlines.
The pumps, manifold and connections should be selected around the actual equipment size, pressure, internal volume and test medium.
3. Can a High Pressure Test Unit test a complete BOP stack?
Yes. A large BOP stack may require a filling pump, several outlets, long high-pressure hoses, separate instrument ranges and a chart recorder or digital logger.
The BOP control unit operates the preventers, while the test unit supplies the internal wellbore-side pressure.
4. How should I select the maximum pressure rating?
Select the pressure rating from the highest actual test pressure rather than the equipment working pressure alone.
Provide the low-pressure test, high-pressure test, intermediate stages, relief setting and required gauge ranges.
An unnecessarily high pressure range may increase cost and reduce low-pressure resolution.
5. Why must pressure, flow and internal volume be considered together?
Maximum pressure does not show how quickly a system can fill and pressurize large equipment.
A small booster may reach 15,000 psi on a compact valve but work too slowly on a complete BOP stack.
Accurate sizing requires the internal volume, desired filling time, final pressure, pressurization time and expected test frequency.
6. Is a pneumatic or electric High Pressure Test Unit better?
A pneumatic unit offers compact construction, simple adjustment and good low-flow control. It suits rigs and service workshops with reliable compressed air.
An electric unit often provides higher filling flow, frequent-duty operation, PLC control and digital reporting. It suits factories and fixed test bays.
An electro-pneumatic package combines an air-driven pump with electrical monitoring and automation.
7. Why does a BOP or wellhead test unit need a filling pump?
A high-pressure booster normally provides limited flow, especially as pressure rises.
A dedicated filling pump moves a larger fluid volume at low pressure and helps remove trapped air before the final test stage.
This arrangement shortens the cycle and reduces unnecessary booster operation.
8. Which test fluids can the unit use?
Most oilfield hydrostatic test systems use clean or treated water.
Some projects use water-glycol mixtures, hydraulic oil or another approved liquid.
The medium affects pump seals, manifold valves, pressure tubing, reservoir coating, filtration and hoses.
9. Does the unit need a chart recorder or digital pressure logger?
The recording method depends on the inspection plan.
A chart recorder creates a visible pressure-versus-time trace. A digital logger can retain pressure stages, holding time, temperature, alarms and equipment identification.
Some projects require both systems.
10. Can a High Pressure Test Unit operate offshore or in a hazardous area?
Yes, but the requirements must be defined before design approval.
An offshore package may need a verified lifting frame, enhanced coating, stainless steel pressure tubing, containment and weather protection.
A hazardous-area project should identify the zone or division, gas group, temperature class and required certification.
An air-driven pump alone does not make the complete package suitable for a hazardous area.
11. Should I choose a portable, skid-mounted, trailer-mounted or truck-mounted unit?
A portable unit suits small components and limited test volumes.
A skid-mounted package suits workshops, drilling rigs, offshore installations and fixed service bases.
Trailer- and truck-mounted systems suit companies that move between rigs or remote service locations.
The correct choice depends on the equipment volume, travel frequency, road conditions and available handling equipment.
12. What information should I provide for a High Pressure Test Unit quotation?
Provide the equipment type, nominal size, working pressure, required test pressures, approximate internal volume, test medium, holding period, desired filling time and available utilities.
Also identify the connections, hose lengths, preferred mounting arrangement, recording method, automation level, document scope and inspection requirements.
When some details remain unknown, send SGPE the equipment drawing, photograph or approved test procedure for technical review.
Final Thoughts
A High Pressure Test Unit should provide more than a high pressure value on a pump data sheet.
The system must fill the equipment efficiently, remove trapped air, raise pressure smoothly, maintain the target value, record the result clearly and depressurize the test boundary safely.
A compact pneumatic hydro test unit may suit BOP maintenance, wireline equipment or valve repair.
An automated electric test skid may suit a wellhead, Christmas tree, manifold or valve factory.
A diesel-driven, trailer-mounted or truck-mounted package may provide better mobility for remote drilling, well intervention and pipeline operations.
The best configuration depends on the equipment under test, pressure profile, internal volume, test medium, available utilities, required cycle time and documentation scope.
By following a clear High Pressure Test Unit Selection Guide and Buying Guide, buyers can avoid undersized pumps, slow test cycles, inaccurate low-pressure readings and incomplete recording systems.
SGPE can review the actual test duty and develop a custom High Pressure Test Unit around the required pressure, flow, controls, recording method, mounting arrangement and oilfield operating environment.
Request an SGPE High Pressure Test Unit Quotation
SGPE supplies custom High Pressure Test Units for drilling contractors, BOP service companies, wellhead and Christmas tree manufacturers, choke manifold manufacturers, valve factories, hose manufacturers, oilfield maintenance workshops, well intervention contractors and pipeline service companies.
Available configurations include pneumatic, electro-pneumatic, electric and diesel-driven pressure testing systems.
SGPE can provide portable hydrostatic test pumps, integrated pressure test skids, trailer-mounted packages and complete truck-mounted BOP test units.
Each quotation follows the actual test duty rather than one generic pressure rating.
E-Mail:
info@sgpe.com
