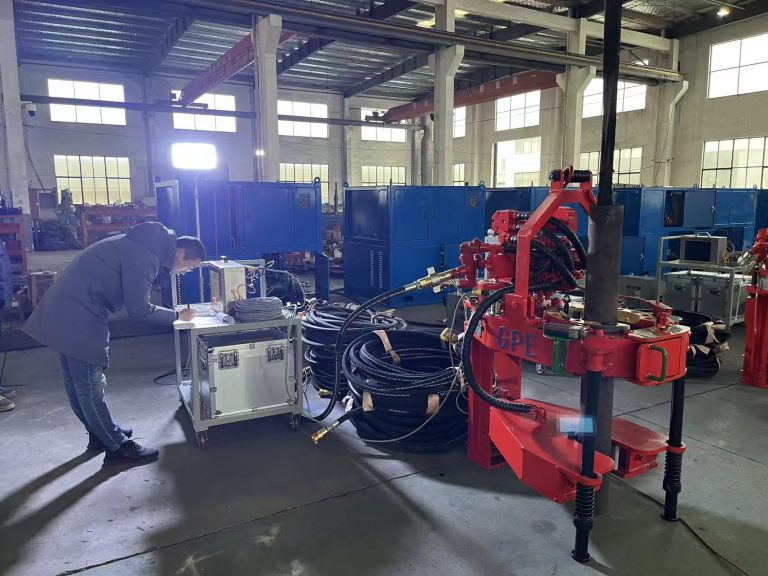

Hydraulic Casing Power Tong: A Practical Guide for Oilfield Casing Operations

Introduction

Running casing is one of the most critical stages in oil and gas drilling. Each connection must be tightened with the correct torque to ensure well integrity and prevent leakage or structural failure. For this reason, drilling crews rely on specialized equipment designed to apply controlled torque safely and efficiently.

One of the most widely used tools for this task is the Hydraulic Casing Power Tong. This equipment uses hydraulic power to grip and rotate casing pipes, allowing operators to make up and break out threaded connections quickly and accurately.

Compared with traditional manual tongs, hydraulic casing power tongs provide greater torque control, improved safety, and significantly higher operational efficiency. As a result, they have become standard equipment on modern drilling rigs, workover rigs, and well servicing units.

A professional oilfield equipment supplier can provide hydraulic casing power tongs that offer:

• High torque output for large casing strings

• Durable alloy steel construction

• Stable hydraulic control systems

• Reliable gripping performance in harsh environments

What Is a Hydraulic Casing Power Tong?

A Hydraulic Casing Power Tong is a specialized oilfield tool designed to apply torque when connecting or disconnecting casing pipes.

During drilling operations, casing strings are installed inside the wellbore to stabilize the formation and protect the well structure. Each section of casing must be securely connected using threaded joints.

Hydraulic casing power tongs simplify this process by providing controlled torque through a hydraulic drive system.

Typical functions include:

• making up casing connections

• breaking out threaded casing joints

• applying accurate torque to casing strings

• improving safety during pipe handling

Because of their reliability and efficiency, hydraulic casing power tongs are widely used in oilfield drilling equipment systems worldwide.

How a Hydraulic Casing Power Tong Works

The working principle of a hydraulic casing power tong is straightforward but highly effective.

First, the tong positions around the casing pipe. Internal jaw dies grip the pipe securely to prevent slippage. The hydraulic motor then drives a gear transmission system, which rotates the tong head and applies torque to the casing connection.

This process allows operators to tighten or loosen threaded joints with controlled torque, ensuring that casing connections meet required specifications.

Main Components

A typical hydraulic casing power tong consists of several key parts.

Hydraulic Motor
Provides the rotational power needed to drive the tong.

Gear Transmission System
Transfers torque from the motor to the tong head.

Jaw Dies
Special hardened inserts grip the casing pipe firmly.

Hydraulic Control System
Allows operators to control torque, speed, and rotation direction.

These components work together to deliver stable torque output during casing operations.

Key Features of Hydraulic Casing Power Tongs

Hydraulic casing power tongs are widely used because they offer several important advantages in drilling operations.

High Torque Output

Hydraulic systems generate powerful torque that allows the tong to handle large casing pipes used in deep well drilling.

This capability is particularly valuable in:

• deep drilling projects

• offshore drilling operations

• heavy-duty casing installations

Improved Operational Safety

Manual casing operations can expose workers to significant risks. Hydraulic casing power tongs reduce the need for manual torque application and provide more stable pipe handling.

Secure jaw dies and controlled torque output help reduce the risk of pipe slippage and equipment damage.

Higher Operational Efficiency

Hydraulic casing power tongs allow drilling crews to make up or break out casing connections much faster than traditional manual tools.

By reducing the time required for casing operations, drilling companies can lower rig downtime and improve overall project efficiency.

Wide Pipe Size Range

Many casing power tong models support multiple casing diameters through interchangeable jaw dies.

Typical casing sizes include:

• 4½ inch casing

• 7 inch casing

• 9⅝ inch casing

• 13⅜ inch casing

This flexibility allows operators to use the same equipment for different drilling projects.

Applications of Hydraulic Casing Power Tongs

Hydraulic casing power tongs are widely used across the oil and gas industry, particularly in operations that require reliable tubular handling.

Oilfield Drilling Rigs

During well construction, casing must be installed to stabilize the wellbore. Power tongs ensure that each casing connection is tightened with the correct torque.

Workover Operations

Workover rigs use casing power tongs when repairing wells or replacing damaged casing sections.

Offshore Drilling Platforms

Offshore environments require durable equipment capable of operating under harsh conditions. Hydraulic casing power tongs provide the torque and reliability required for offshore casing operations.

Well Servicing Operations

Service companies use casing power tongs for tubing replacement, casing repair, and other well maintenance tasks.

How to Choose the Right Hydraulic Casing Power Tong

Selecting the correct casing power tong depends on several operational factors.

Torque Capacity

Torque capacity should match the casing specifications used in the drilling project.

Common torque ranges include:

• 20,000 Nm

• 40,000 Nm

• 80,000 Nm

• 120,000 Nm or higher

Pipe Size Compatibility

Different tong models support different casing diameters. Always ensure the tong can handle the full range of pipe sizes used in the project.

Equipment Durability

Oilfield equipment must operate in demanding environments. High-quality casing power tongs are usually manufactured from heat-treated alloy steel, which provides excellent strength and wear resistance.

Safety Features

Modern hydraulic casing power tongs may include additional features such as:

• torque monitoring systems

• backup tongs

• remote control operation

These features improve operational safety and torque accuracy.

Product Details of SGPE Company’s Casing Power Tong

Model	ZQ203-125I	ZQ203-100	ZQ203-100II	ZQ203-100III	ZQ162-50	ZQ127-25
Size range	127-203 mm	127-203 mm	127-203 mm	127-203 mm	85-162 mm	65-127 mm
	31/2″ coupling	31/2″ coupling	31/2″ coupling	31/2″ coupling	23/8″ coupling	23/8″ coupling
	8 body	8 body	8 body	8 body	5 body	31/2″ body
Max. torque	125 kN.m	100 kN.m	100 kN.m	100 kN.m	50 kN.m	25 kN.m
	92200 ft.lbf	73750 ft.lbf	73750 ft.lbf	73750 ft.lbf	36880 ft.lbf	18440 ft.lbf
Speed of tong head Hi.	40 rpm	40 rpm	40 rpm	40 rpm	60 rpm	65 rpm
Speed of tong head Lo.	2.7 rpm	2.7 rpm	2.7 rpm	2.7 rpm	4.1 rpm	10.5 rpm
Hydraulic system pressure rating	20 MPa	16.6 MPa	16.6 MPa	16.6 MPa	16 MPa	12 MPa
	2900 psi	2400 psi	2400 psi	2400 psi	2320 psi	1740 psi
Hydraulic system flow rating	114 L/min	114 L/min	114 L/min	114 L/min	120 L/min	180 L/min
	30 gpm	30 gpm	30 gpm	30 gpm	32 gpm	48 gpm
Stroke of shifting cylinder	1500 mm	1500 mm	1500 mm	1500 mm	1000 mm	1000 mm
	59 in	59 in	59 in	59 in	39.4 in	39.4 in
Moving distance of tong	1500 mm	1500 mm	1500 mm	1500 mm	0-1500 mm	0-59 mm
	59 in	59 in	59 in	59 in	0-59 in	0-19 in
Lifting distance of tong	0-485 m	0-485 m	0-485 m	0-485 m	0-800 m	0-31.5 m
	0-19 in	0-19 in	0-19 in	0-19 in	0-31.5 in	0-31.5 in
Overall dimensions	1720×1050×1750 mm	1700×1000×1400 mm	1700×1000×1400 mm	1700×1000×1400 mm	1750×1650×2050 mm	1110×790×820 mm
	68×41×69 in	67×39×55 in	67×39×55 in	67×39×55 in	69×65×81 in	44×31×32 in
Weight	2600 kg	2400 kg	2500 kg	3250 kg	1500 kg	620 kg
	5730 lb	5290 lb	5510 lb	7165 lb	3310 lb	1360 lb



Frequently Asked Questions

What is the difference between tubing power tongs and casing power tongs?

Tubing power tongs are designed for smaller diameter production tubing, while casing power tongs handle larger casing pipes used during well construction.

What torque range do casing power tongs provide?

Most hydraulic casing power tongs offer torque capacities ranging from 20,000 Nm to more than 100,000 Nm, depending on the model.

Are hydraulic casing power tongs suitable for offshore drilling?

Yes. Many hydraulic casing power tong models are designed specifically for offshore drilling platforms and meet international safety standards.

What maintenance is required for casing power tongs?

Routine maintenance typically includes:

• checking hydraulic hoses

• lubricating gear components

• inspecting jaw dies

• verifying torque calibration

Regular maintenance ensures long service life and reliable performance.

Request a Quote for Hydraulic Casing Power Tongs

If you are looking for a reliable Hydraulic Casing Power Tong supplier, choosing high-quality oilfield equipment is essential for safe and efficient drilling operations.

Our company provides a wide range of oilfield power tongs designed for:

• drilling rigs

• workover rigs

• well servicing operations

• offshore drilling platforms

We offer:

 high-performance casing power tongs
 customized torque solutions
 fast global delivery
 professional technical support

 Contact us today to receive a quotation, product catalog, and technical consultation.
