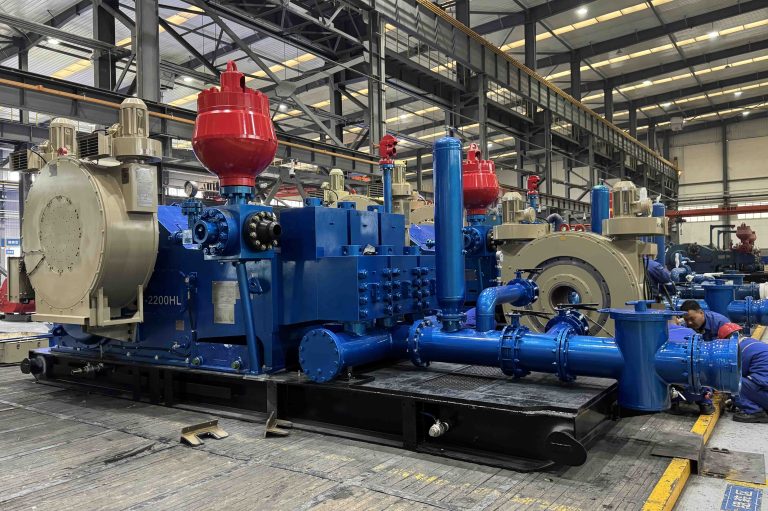

Mud Pump Selection and Buying Guide for Oil and Gas Drilling
A reliable mud pump provides the pressure and flow needed to circulate drilling fluid through an oil or gas well. It draws conditioned mud from the active system, pumps it through the drill string and bit nozzles, and returns it to the surface through the annulus.
This circulation cools and cleans the drill bit, carries formation cuttings, supports wellbore stability and helps control circulating pressure. Mud pump performance therefore has a direct effect on hole cleaning, drilling efficiency, component life and rig availability.
Selecting an oilfield mud pump requires more than comparing horsepower or maximum pressure. The pump must deliver the required flow for the planned hole size, depth and trajectory while overcoming hydraulic losses through the surface piping, drill string, bottom-hole assembly and bit nozzles.
Liner size, stroke rate, mud density, solids content, duty cycle and suction conditions all influence the actual operating point. Even a high-horsepower drilling rig mud pump may underperform if the charging pump or suction system cannot supply enough fluid. A low-priced unit may also create higher operating costs when fluid-end parts wear too quickly.
SGPE supplies F500, F800, F1000, F1300, F1600, F1600HL, F2200 and F2200HL triplex mud pumps for land rigs, offshore drilling units, workover rigs, new-rig projects and replacement applications.
This guide explains mud pump operation, pump types, model selection, pressure-flow matching, drilling applications, maintenance, spare parts and replacement requirements.
Mud Pump Selection at a Glance
Before requesting a drilling mud pump quotation, define the main operating and installation requirements.
| Selection Factor | Information to Confirm | Why It Matters |
|---|---|---|
| Drilling application | Land, offshore, deep well, horizontal well, HPHT, workover or replacement | Defines duty cycle, environment and reliability requirements |
| Required flow | Maximum and continuous flow in gpm or L/min | Determines hole-cleaning capacity and liner requirements |
| Required pressure | Normal operating pressure and maximum standpipe pressure | Determines fluid-end rating and suitable liner size |
| Drilling fluid | Mud type, density, viscosity, solids and temperature | Affects hydraulic load, suction performance and component wear |
| Duty cycle | Intermittent, continuous or extended high-output operation | Influences cooling, lubrication, wear and maintenance planning |
| Drive system | Diesel, electric, VFD, gearbox, belt or chain drive | Determines input power, speed control and interface requirements |
| Installation interfaces | Footprint, shaft height, connections and maintenance space | Prevents costly field modifications |
| Package scope | Bare pump, skid, motor, charging pump, controls and spare parts | Allows competing quotations to be compared fairly |
A professional mud pump manufacturer should review these factors together. Selecting equipment from horsepower alone may result in insufficient flow, excessive operating pressure, poor suction performance or an unsuitable installation arrangement.
The following sections explain how each factor affects pump sizing, model selection, package scope and quotation accuracy.
What Is a Mud Pump?
A mud pump is a high-pressure reciprocating pump used to circulate drilling fluid through an oil and gas drilling system.
Most modern drilling rigs use a positive-displacement triplex mud pump. This design contains three pumping chambers, with pistons moving inside replaceable liners.
During each suction stroke, the pump draws drilling fluid into a chamber. During the discharge stroke, it forces the mud into the high-pressure circulation system.
Unlike a centrifugal pump, which normally moves large fluid volumes at relatively low pressure, a reciprocating drilling pump maintains controlled displacement against substantial hydraulic resistance.
That resistance increases as the well becomes deeper, the drill string becomes longer, the mud becomes heavier or the bit nozzles become smaller. Restrictive bottom-hole assemblies, long directional sections and complex surface manifolds can also raise the required discharge pressure.
The mud pump therefore acts as the main pressure source in the drilling-fluid circulation system.
The industry may refer to this equipment as a drilling mud pump, oilfield mud pump, drilling rig mud pump, triplex drilling pump, high-pressure mud pump, mud circulation pump, oil drilling pump or F series mud pump. Although these terms may describe different configurations, they generally refer to the main positive-displacement pump used to circulate drilling fluid through the well.
Before purchasing equipment, determine whether the project requires a complete pump, a replacement power end, a mud pump fluid end or only maintenance parts. Each requirement creates a different technical and commercial scope.
How Does a Drilling Mud Pump Work?
A drilling-fluid circulation system follows a continuous loop.
Mud tanks first store and condition the drilling fluid. Agitators, mixing equipment and solids-control systems help maintain the required density, viscosity and solids content.
A centrifugal charging pump then feeds mud from the active tank to the suction manifold of the main pump. Stable inlet pressure is essential because each pumping chamber must fill completely before the next discharge stroke.
The triplex mud pump raises the fluid pressure and sends the mud through the discharge manifold. From there, the fluid travels through the standpipe manifold, rotary hose, swivel or top drive before entering the drill string.
After moving down the drill pipe, the mud passes through the bit nozzles. The high-velocity fluid cleans the bit face, cools the cutting structure and carries newly drilled cuttings away from the bottom of the hole.
The fluid then returns through the annulus between the drill string and wellbore. Shale shakers, desanders, desilters, mud cleaners and centrifuges remove unwanted solids before the mud returns to the active system.
A correctly selected drilling pump must provide enough flow to transport cuttings and enough pressure to overcome hydraulic losses throughout this route.
For that reason, mud pump sizing should begin with the drilling hydraulic program rather than the pump model name alone.
Why Mud Pump Performance Matters
Hole Cleaning
Drilling fluid carries formation cuttings from the bottom of the well to the surface.
When flow is too low, cuttings may settle in the annulus. The risk becomes greater in deviated and horizontal wells because gravity causes solids to collect along the low side of the wellbore.
Poor hole cleaning may increase torque, drag and standpipe pressure. It can also contribute to pack-off, stuck pipe, restricted circulation and slower drilling progress.
The pump must provide enough annular velocity for the planned hole section, mud properties and well trajectory.
Bit Cooling and Bottom-Hole Cleaning
Drill bits generate heat while cutting the formation. Drilling fluid removes part of this heat and helps protect the bit, mud motor and bottom-hole assembly.
Stable circulation becomes especially important during deep drilling, hard-formation drilling, long directional sections and high rotary speeds.
Strong hydraulic flow also cleans the bit face and removes cuttings before they are recut.
Hydraulic Energy and Standpipe Pressure
The drilling rig mud pump supplies the hydraulic energy that drives fluid through the bit nozzles.
Correct nozzle selection and pump output can improve bottom-hole cleaning and support a higher rate of penetration. However, the drilling team must balance bit pressure loss against the maximum allowable standpipe pressure.
A pump with reasonable pressure reserve gives the drilling engineer more flexibility when optimizing bit hydraulics.
Wellbore Pressure Management
Mud density creates hydrostatic pressure, while circulating friction adds dynamic pressure.
The pump does not determine mud weight, but its flow rate directly affects circulating pressure and equivalent circulating density.
Careful pump control becomes particularly important in narrow drilling windows, depleted formations, weak formations, deep gas wells, HPHT wells and managed pressure drilling operations.
Excessive flow may raise equivalent circulating density and damage the formation. Insufficient flow may reduce hole-cleaning performance and increase wellbore instability.
Rig Availability
A mud pump failure can stop drilling even when the top drive, drawworks and other major rig systems remain operational.
Many rigs use two or three pumps so that several units can operate during high-flow drilling while another remains available as a standby. This arrangement also allows planned maintenance without removing all circulation capacity.
A reliable oilfield mud pump supplier should therefore support both the main equipment and the operating spare-parts strategy.
Duplex, Triplex and Quintuplex Mud Pumps
Oil and gas drilling operations use several reciprocating pump configurations.
| Comparison Item | Duplex Mud Pump | Triplex Mud Pump | Quintuplex Mud Pump |
| Pumping chambers | Two | Three | Five |
| Common arrangement | Often double-acting | Usually single-acting | Usually single-acting |
| Typical application | Older rigs and selected workover units | Modern land and offshore drilling rigs | Selected high-performance drilling packages |
| Discharge pulsation | Generally higher | Smoother than traditional duplex designs | Can provide lower pulsation |
| Maintenance focus | Double-acting seals and fluid-end parts | Liners, pistons, valves and seats | More pumping elements and expendables |
| Main advantage | Compatibility with legacy equipment | Broad availability and practical maintenance | Stable high-output operation |
| Main limitation | Larger size and more sealing points | Requires correct liner and suction selection | Higher part count and maintenance cost |
Duplex Mud Pumps
A duplex mud pump uses two pumping chambers. Many older drilling rigs use double-acting duplex designs that move fluid during both directions of piston travel.
These pumps can provide dependable service when maintained correctly. However, they normally have more sealing points, larger fluid ends and greater pressure pulsation than modern triplex designs.
Duplex pumps remain in service on older land rigs, workover units and refurbished drilling packages.
A triplex conversion may improve hydraulic performance and simplify fluid-end maintenance, but it can require changes to the skid, drive, suction piping, discharge system and controls.
For a duplex-to-triplex conversion, provide the original pump drawing, foundation dimensions, shaft height and drive information.
Triplex Mud Pumps
A triplex mud pump uses three single-acting pumping chambers. This configuration has become the main choice for modern land rigs and many offshore drilling packages.
Compared with a traditional duplex pump, a triplex design normally provides higher pressure capability, a more compact structure and smoother discharge flow.
It also has fewer fluid-end sealing points and allows easier replacement of liners, pistons, valves and seats.
Triplex pumps work with electric and diesel drive systems. Their broad operating range suits conventional land wells, deep wells, horizontal drilling, shale development and selected offshore projects.
When comparing a triplex mud pump manufacturer or triplex mud pump supplier, focus on pressure-flow performance, liner range, drive compatibility, spare-parts availability and technical documentation rather than the model name alone.
Quintuplex Mud Pumps
A quintuplex pump uses five pumping chambers.
This arrangement can reduce discharge pulsation and distribute the load across more pistons. Selected high-performance rigs use quintuplex pumps where stable high output or reduced vibration has particular value.
The design also introduces more liners, pistons, valves, seats and expendable parts. Purchase price, maintenance workload, component accessibility and spare-parts availability should therefore form part of the comparison.
SGPE F Series Mud Pump Range
The F Series Mud Pump remains widely used on land drilling rigs and selected offshore drilling packages.
Subject to technical confirmation, the SGPE range includes F500, F800, F1000, F1300, F1600, F1600HL, F2200 and F2200HL models.
F series pumps use a horizontal, single-acting triplex structure. Their relatively long stroke supports useful displacement at moderate operating speeds.
Lower stroke rates can reduce the cycling frequency of pistons, valves and seals. Actual service life still depends on mud properties, operating pressure, suction conditions, component quality and maintenance practice.
| Model | Approximate Rated Power | Typical Positioning | Common Oilfield Applications |
| F500 | 500 HP | Compact, lower-capacity circulation | Smaller land rigs, shallower wells and selected workover service |
| F800 | 800 HP | Moderate pressure and displacement | Medium-size rigs, workover units and replacement projects |
| F1000 | 1,000 HP | Balanced hydraulic capacity | Medium-depth wells, directional drilling and rig modernization |
| F1300 | 1,300 HP | Higher pressure and flow demand | Deeper wells, larger hole sections and high-density mud |
| F1600 | 1,600 HP | High-power drilling circulation | Deep wells, horizontal drilling, shale development and offshore rigs |
| F1600HL | 1,600 HP | Selected high-pressure service | Extended-reach wells, deep directional wells and long laterals |
| F2200 | 2,200 HP | High-capacity circulation | Deep and ultra-deep wells requiring high displacement |
| F2200HL | 2,200 HP | High-pressure and high-capacity service | Offshore, long-lateral and demanding extended-reach wells |
This table provides preliminary model positioning rather than guaranteed performance.
The final proposal depends on the approved fluid-end configuration, liner range, pressure-displacement curve, SPM, drive arrangement and complete discharge-system rating.
An F1600 mud pump quotation, F1300 mud pump price or F2200 mud pump package should therefore be based on the required operating points rather than the model name alone.
Typical Mud Pump Technical Parameters
The following information supports preliminary engineering discussions. It does not represent one fixed SGPE model.
| Technical Parameter | Typical Option or Reference | Main Selection Basis |
| Pump design | Duplex, triplex or selected quintuplex | Rig design, output and maintenance strategy |
| F-series rated power | Approximately 500–2,200 HP | Well depth, required pressure and flow |
| Working pressure | Model-, liner- and fluid-end-dependent | Hydraulic program and complete discharge-system rating |
| Flow unit | gpm or L/min | Hole size, annular velocity and hydraulic program |
| Pump speed | Model-dependent SPM | Required displacement, wear control and drive limit |
| Stroke length | Model-dependent long-stroke design | Displacement, piston speed and duty cycle |
| Liner options | Multiple diameters for each model | Pressure-flow balance across different hole sections |
| Drive options | Electric, diesel, mechanical, belt, chain or gearbox | Rig power system and installation arrangement |
| Mud service | Water-based and oil-based drilling fluids | Elastomer, liner, seal and corrosion requirements |
| Installation | Bare pump, skid-mounted unit or complete package | New rig, retrofit or replacement project |
| Control options | Local control, VFD and selected remote monitoring | Speed adjustment and rig-system integration |
The approved technical data sheet and quotation should confirm all model-specific and project-specific values.
How Liner Size Changes Mud Pump Pressure and Flow
Liner diameter has a direct effect on pump displacement and available pressure.
A larger liner moves more drilling fluid during each stroke. It supports higher flow at a given SPM, but the larger piston area requires more power to reach the same pressure.
A smaller liner delivers less fluid per stroke. However, it allows the pump to reach higher pressure within the same horsepower limit.
| Liner Selection | Main Advantage | Main Limitation | Typical Use |
| Larger liner | Higher displacement and circulation rate | Lower pressure capability at the same power | Surface holes and high-flow drilling sections |
| Medium liner | Balanced pressure and flow | Must be checked against the complete hydraulic program | General drilling and directional sections |
| Smaller liner | Higher pressure capability | Lower displacement | Deep, restrictive and high-pressure sections |
This relationship explains why a pump should never be selected from maximum pressure alone.
The hydraulic program should identify the pressure, flow, liner diameter and SPM combination for every major hole section. Final selection should also account for volumetric efficiency, mud properties, suction conditions and continuous-duty limits.
Need help with mud pump liner size selection? Send SGPE the required pressure, flow, mud density and available drive power for a preliminary configuration review.
How to Select the Right Mud Pump
Start with the Required Pressure and Flow
The real hydraulic operating point should determine the pump model.
A higher horsepower rating does not automatically make a pump suitable. The unit must deliver the required flow at the required pressure with the selected liner and stroke rate.
A useful technical proposal needs to show the pressure and displacement available with each liner, expected flow at different SPM values, maximum continuous operating speed, required input power and recommended operating margin.
These values allow buyers to compare actual performance rather than rely on headline horsepower or maximum pressure.
Review the Complete Well Program
Different hole sections require different pump settings.
A large-diameter surface hole may need high flow and a larger liner. A deeper section may operate at lower flow but require much higher pressure. Horizontal sections often need sustained circulation to transport cuttings along the lateral.
The pump and available liner range should cover the complete drilling program, not only one operating point.
Define the Drilling-Fluid Properties
Heavy or abrasive drilling mud increases hydraulic load and fluid-end wear.
State whether the project uses water-based or oil-based mud. The inquiry should include mud density, solids content, sand content, maximum temperature and important chemical conditions.
Expected H₂S, CO₂ or corrosion exposure should also be identified. These details influence liner, piston, seal and fluid-end material selection.
Consider the Duty Cycle
Some pumps operate intermittently, while others run near their normal operating limit for extended periods.
Shale and horizontal drilling programs may involve long pumping hours. Deep and HPHT wells may require sustained high pressure.
For continuous-duty service, review cooling, lubrication, bearing capacity, fluid-end life and the planned spare-parts inventory.
Check the Suction System
A high-pressure triplex mud pump cannot perform correctly without stable suction flow.
The suction review should cover charging-pump capacity, suction-pipe diameter, piping length, the number of elbows, strainer arrangement, mud-tank level, available inlet pressure, mud density, mud viscosity and maximum pump displacement.
Restricted piping, low tank level, air leakage or insufficient charging pressure may cause cavitation, unstable discharge pressure, reduced output and premature valve wear.
Even a correctly sized main pump will underperform if the suction system cannot fill its pumping chambers.
Confirm Rig Interfaces
The pump must fit the drilling rig and connect to the available drive and piping.
Important interfaces include overall dimensions, weight, foundation pattern, shaft-center height, suction-inlet position, discharge-outlet position, transport width, lifting points and maintenance-removal space.
These details become especially important for mobile land rigs, offshore units and drilling rig mud pump replacement projects.
Plan for Maintenance and Spare Parts
A low initial price can create high operating costs when parts wear quickly or remain difficult to source.
Compare liner and piston availability, valve and seat compatibility, fluid-end accessibility, critical-parts lead time, documentation quality and technical support.
Commissioning spares and recommended operating parts can form part of the initial SGPE package. This approach helps remote rigs reduce the risk of extended downtime.
Main Mud Pump Parts
A complete drilling mud pump has two primary sections: the power end and the fluid end.
Power-End Components
The power end converts rotational energy from the motor or engine into reciprocating piston movement.
Its main components include the frame, pinion shaft, bull gear, crankshaft or eccentric shaft, connecting rods, crossheads, crosshead guides, extension rods, bearings and lubrication system.
The power end handles repeated mechanical loading during every stroke. Frame rigidity, gear alignment, bearing condition and lubrication quality therefore have a direct effect on reliability.
Operators should monitor unusual noise, excessive vibration, oil pressure, bearing temperature, lubricant contamination and crosshead condition.
Mud Pump Fluid End
The mud pump fluid end contacts the drilling fluid and creates the required discharge pressure.
A typical fluid end contains the module, cylinder liners, pistons, piston rods, suction and discharge valves, valve seats, valve inserts, liner seals, cylinder heads, valve covers and suction and discharge manifolds.
These parts operate under abrasive, high-pressure and repetitive conditions. Material quality, heat treatment, machining accuracy and correct installation all influence service life.
Available SGPE supply options may include complete fluid-end modules, liners, pistons, valves, seats and sealing components.
For a mud pump fluid-end replacement, provide the pump model, pressure rating, part number, drawing, nameplate information or verified dimensions.
Mud Pump Liners
A liner forms the internal cylinder surface in which the piston moves.
| Liner Type | Main Characteristics | Typical Buying Considerations |
| Bimetal liner | Strong outer shell with a hardened inner sleeve | Practical balance of price, strength and wear resistance |
| High-chrome liner | Hardened chromium-alloy inner surface | Abrasive mud and higher solids content |
| Ceramic liner | High wear resistance in suitable service | Longer service goals and controlled handling conditions |
Replacement-liner inquiries should include the pump model, liner diameter, overall dimensions, part number or approved drawing.
When the original part number is unavailable, old samples and verified dimensional reports can help confirm compatibility.
Mud Pump Pistons
A piston creates a dynamic seal inside the liner and transfers force to the drilling fluid.
Common options include rubber pistons, polyurethane pistons, bonded designs and high-temperature elastomer compounds.
Material selection depends on mud type, temperature, solids content, chemical additives, liner material, operating pressure and stroke rate.
Short piston life may result from abrasive mud, a damaged liner, insufficient liner washing, incorrect material selection, rod misalignment or excessive temperature.
Mud Pump Valves and Seats
Each pumping chamber contains suction and discharge valves.
Their condition directly affects volumetric efficiency and pressure stability. Worn valves or damaged seats may cause backflow, reduced output, unstable pressure, excessive pulsation and fluid-end vibration.
A typical assembly includes a valve body, replaceable insert and matching seat.
Valve and seat inquiries can be reviewed by model, part number, size, drawing or sample. Similar pump names do not always guarantee interchangeable parts.
Pulsation Dampeners and Charging Pumps
A reciprocating pump creates pressure fluctuations during every stroke.
A discharge pulsation dampener absorbs part of this energy and stabilizes high-pressure flow. Correct selection and charging can reduce pressure spikes, piping vibration, gauge fluctuation, hose fatigue and manifold loading.
On the suction side, a centrifugal charging pump supplies mud at stable inlet pressure. A suction dampener reduces inlet pulsation and supports complete chamber filling.
Poor suction conditions may cause cavitation, unstable pressure, reduced flow, valve damage and premature fluid-end wear.
Mud Pump Applications in Oil and Gas Drilling
| Application | Main Hydraulic Requirement | Recommended Selection Focus |
| Conventional land drilling | Balanced pressure and flow | Transport size, drive power and liner range |
| Deep-well drilling | Higher pressure for long periods | Fluid-end rating, smaller liners and continuous duty |
| Directional and horizontal drilling | Stable high flow through increasing friction | Pressure reserve, suction capacity and liner range |
| Shale drilling | High flow and extended operating hours | F1600-class capacity, VFD control and planned spares |
| Extended-reach drilling | High total hydraulic loss | Standpipe pressure and operating margin |
| HPHT drilling | Heavy mud and high continuous pressure | Seals, cooling, materials and monitoring |
| Offshore drilling | High reliability in limited space | Compact skid, marine protection and maintenance access |
| Managed pressure drilling | Stable and adjustable output | VFD control and coordination with choke operation |
| Workover operations | Moderate circulation and flexible duty | Compact installation and fluid compatibility |
Land Drilling
Conventional land wells often require moderate to high pressure and stable circulation flow.
Depending on well depth, hole size and the mud program, an F800, F1000, F1300 or F1600 mud pump may provide suitable performance.
Mobile rigs must also consider pump weight, transport dimensions, skid structure, available motor power and rig-up time.
A diesel-driven mud pump can suit remote sites with limited electrical infrastructure. Electric packages remain practical where the rig already uses AC or DC power.
Deep-Well and HPHT Drilling
Deep wells create greater friction losses inside the drill string and surface circulation system.
A high-pressure mud pump for deep-well drilling should be selected around maximum standpipe pressure, the smallest planned liner, continuous input power, mud density, operating SPM, fluid-end rating and discharge-manifold pressure.
HPHT projects also require careful review of mud temperature, seal compatibility, liner and piston materials, cooling capacity, lubrication performance and monitoring instruments.
The selected pump needs a practical operating margin so it does not run continuously at its theoretical limit.
Directional, Horizontal and Shale Drilling
Long directional and horizontal sections require stable circulation and effective cuttings transport.
Friction pressure increases as the lateral grows, while cuttings tend to collect along the low side of the wellbore. The pump must provide enough flow without exceeding the standpipe pressure limit.
Many shale drilling rigs use two or three F1600-class pumps to provide combined flow, standby capacity and maintenance flexibility.
An F1600 mud pump for horizontal drilling should be evaluated together with charging-pump capacity, liner range, VFD control, duty cycle and the fluid-end spare-parts plan.
Extended-Reach Drilling
Extended-reach wells create high hydraulic losses because of their long drill strings and complex trajectories.
The drilling team should evaluate total pressure loss, equivalent circulating density and maximum allowable standpipe pressure together.
The pump needs enough reserve to accommodate changes in mud density, bit nozzles and bottom-hole equipment as the well develops.
Offshore Mud Pump Packages
Offshore drilling requires reliable equipment, compact installation and clear maintenance access.
An offshore mud pump package may require marine-grade coating, hazardous-area electrical equipment, remote monitoring, controlled drainage, certified lifting points, project-specific inspection and detailed technical documentation.
Operators should also establish an offshore spare-parts inventory because urgent replacement deliveries may involve long lead times and high logistics costs.
Managed Pressure Drilling
Managed pressure drilling requires stable and precise pump output.
Although the mud pump does not control the complete MPD system, changes in flow affect annular friction and bottom-hole pressure.
Pump speed, mud flow, mud density and choke control must therefore work together.
Workover and Well-Servicing Operations
Workover units may use mud pumps for well cleanout, sand removal, scale removal, completion-fluid circulation, plug drilling, tubing operations and selected intervention work.
The pump must match the actual fluid, required pressure, installation space and duty cycle.
Diesel-Driven vs Electric Mud Pumps
| Comparison Item | Diesel-Driven Mud Pump Package | Electric Mud Pump Package |
| Typical application | Remote land rigs and independent pumping packages | Modern AC or DC drilling rigs |
| Main advantage | Operates where electrical infrastructure is limited | Smooth speed control and easier automation |
| Speed control | Engine and transmission dependent | VFD or DC control |
| Main project checks | Fuel, emissions, cooling and engine support | Voltage, frequency, motor rating and hazardous-area class |
| Installation focus | Package weight and mechanical alignment | Electrical integration, cables and control system |
A diesel-driven package may include the engine, gearbox, couplings, skid, cooling system and local controls.
An electric mud pump with VFD control may include an AC motor, variable-frequency drive, local panel, sensors, cables and rig-control interfaces.
The final drive scope follows the available power system, operating environment and installation requirements.
Mud Pump Replacement and Retrofit Guide
Replacement projects require detailed dimensional and interface verification.
The new pump must fit the existing skid and connect to the current drive, suction piping and discharge manifold. Even a small difference in shaft height, foundation pattern or connection position can create costly field modifications.
A replacement mud pump quotation should identify the existing manufacturer and model, serial number, nameplate information, motor or engine power, operating speed, gear ratio, current liner sizes, normal and maximum operating pressure, typical flow rate, foundation dimensions, shaft-center height, suction and discharge connections, available installation space and any spare-parts compatibility requirements.
When the original model has become obsolete, the project may require a direct replacement, an upgraded pump or a complete skid conversion.
Drawings, verified dimensions, nameplates and installation photographs improve replacement accuracy. SGPE also reviews damaged fluid ends, discontinued pumping packages and rigs that require a higher-capacity triplex pump.
Replacing an old or unsupported mud pump? Send the nameplate, installation drawing and connection dimensions to info@sgpe.com.
New vs Refurbished Mud Pumps
A refurbished or used pump may reduce the initial purchase cost. However, its real value depends on the frame, gears, bearings, crosshead clearances, fluid-end condition, corrosion and maintenance history.
Previous operating pressure, spare-parts availability and drive compatibility also affect total project cost.
A low-cost used pump can become expensive when it requires a new fluid end, bearings, gears, liners, pistons, valves or controls.
A new mud pump package provides a confirmed manufacturing scope, current documentation, spare-parts support and easier customization for the rig interfaces.
The final decision should compare refurbishment, installation and operating costs rather than purchase price alone.
How to Compare Mud Pump Manufacturers and Suppliers
A professional mud pump manufacturer or oilfield mud pump supplier should provide more than a model number and headline price.
Technical Review
The supplier needs to review pressure, flow, liner size, mud properties, drive power, suction conditions and installation interfaces before confirming a model.
A proposal based only on horsepower cannot show whether the pump will meet the hydraulic program.
Clear Supply Scope
The quotation should explain whether it covers a bare pump, skid-mounted unit or complete drilling-pump package.
It should also identify whether the motor or diesel engine, transmission, charging pump, dampeners, manifolds, controls, instruments, spare parts, testing and documentation are included.
Pressure and Displacement Data
A useful proposal includes a liner, pressure and displacement table.
A maximum-pressure figure alone does not explain the available flow. The buyer needs to know which liner size, SPM and input power apply to each important operating point.
Replacement and Spare-Parts Support
For replacement work, the supplier should review drawings, dimensions and existing interfaces rather than assume that pumps with similar names will fit directly.
Before placing an order, confirm the availability of liners, pistons, valves, seats, piston rods, extension rods, fluid-end modules, seals and selected power-end components.
Inspection and Documentation
Depending on the project, the document package may include an approved technical data sheet, general arrangement drawing, foundation drawing, pressure and displacement chart, liner table, operation manual, maintenance manual, spare-parts list, inspection report, test report, selected material certificates, electrical documents and packing list.
The final document scope follows the approved specification and purchase order.
API 7K and Mud Pump Components
API Specification 7K applies to selected drilling and well-servicing equipment. Its scope may cover specific piston mud pump components rather than every item in a complete pumping package.
The supplier should identify the applicable standard, exact component scope, inspection requirements, testing scope, marking and supplied documents.
Avoid broad statements such as “the complete mud pump system is API certified” unless the applicable licensing and product scope are clearly defined.
SGPE confirms the relevant standards and documentation according to the approved project requirements.
SGPE Testing and Documentation Support
A mud pump purchase should include more than the physical equipment.
Depending on the agreed scope, SGPE can prepare documents and inspection records that support manufacturing, installation, commissioning and future maintenance.
| Project Stage | Typical SGPE Support |
| Technical review | Pressure, flow, liner range, mud properties and drive-interface review |
| Drawing approval | General arrangement, foundation and connection information |
| Manufacturing | Material, machining, assembly and internal quality control |
| Inspection | Dimensional checks and project-defined inspections |
| Testing | Functional or project-agreed testing within the approved scope |
| Documentation | Data sheets, drawings, manuals, spare-parts lists and reports |
| Packing | Export packing, equipment protection and packing-list preparation |
| After delivery | Technical clarification and replacement-parts support |
The exact inspection and testing plan follows the purchase contract.
Projects requiring third-party inspection should identify the inspection agency, hold points and document requirements in the RFQ.
Complete Mud Pump Package Scope
| Package Item | Bare Pump | Skid-Mounted Package | Complete Drilling Pump Package |
| Main triplex pump | Included | Included | Included |
| Base skid | Optional | Included | Included |
| Motor or diesel engine | Not normally included | Optional | Included as confirmed |
| Gearbox or transmission | Optional | Optional | Included as required |
| Charging pump | Optional | Optional | Included as required |
| Suction and discharge manifolds | Optional | Normally included | Included |
| Pulsation dampeners | Optional | Normally included | Included |
| Lubrication and cooling | Pump standard | Included | Included |
| Local control panel | Optional | Optional | Included as required |
| VFD or motor controls | Not included | Optional | Included as required |
| Instruments and alarms | Basic or optional | Project-dependent | Included as confirmed |
| Commissioning spare parts | Optional | Optional | Included as confirmed |
| Operating spare parts | Optional | Optional | Included as confirmed |
| Technical documents | Basic | Project package | Full confirmed package |
All battery limits, options and exclusions should appear clearly in the quotation.
This allows buyers to compare packages from different mud pump suppliers on the same basis.
Mud Pump Maintenance Checklist
Before Each Shift
Before starting the pump, check the lubricating-oil level and pressure, visible leakage, liner-wash flow, piston-rod condition and the condition of fasteners and guards.
Confirm the suction and discharge pressures, inspect the dampener and listen for unusual noise or vibration.
During Operation
Monitor discharge pressure, pump SPM, suction pressure, oil temperature, bearing temperature, vibration, pump sound and liner-wash performance.
A sudden pressure drop may indicate a worn piston, damaged valve, leaking seal or suction problem.
Irregular pressure movement may point to valve leakage, air entering the suction system or an incorrect dampener charge.
After Operation
Clean exposed surfaces, inspect fluid-end expendables and record abnormal conditions.
Accurate maintenance records help identify repeated wear patterns and improve spare-parts planning.
Repeated piston failures, for example, may indicate a damaged liner, poor cooling or piston-rod misalignment rather than a piston-quality problem.
Scheduled Power-End Inspection
Scheduled inspection should cover gear contact, bearing condition, crosshead clearance, guides, fasteners, lubrication passages, oil filters, drive alignment and frame condition.
Maintenance intervals should follow the approved operation manual and actual drilling duty.
Mud Pump Troubleshooting
| Symptom | Possible Cause | Recommended Check |
| Low discharge pressure | Worn piston, leaking valve, large liner or low SPM | Inspect pistons, valves, seats, liners and pump speed |
| Unstable pressure | Valve leakage, air entry or dampener problem | Check valves, suction seals and dampener |
| Excessive vibration | Poor alignment, loose fasteners or bearing wear | Inspect drive alignment, skid and bearings |
| Cavitation noise | Restricted suction or low charging pressure | Check piping, strainers, tank level and charging pump |
| High fluid-end temperature | Poor liner washing or excessive friction | Inspect cooling flow, liner and piston |
| Short piston life | Abrasive mud, damaged liner or misalignment | Check mud, liner wear, cooling and rod alignment |
| Repeated valve failure | Solids damage or worn seat pocket | Inspect valves, seats, mud solids and fluid end |
| High oil temperature | Low oil, blocked filter or bearing wear | Check lubricant, filters and bearings |
| Fluid leakage | Worn seals or damaged sealing surfaces | Replace seals and inspect mating surfaces |
| Reduced flow | Incomplete chamber filling or low volumetric efficiency | Check suction conditions, SPM, valves and liners |
SGPE Mud Pump Spare Parts Supply
SGPE supplies mud pump spare parts for new pumping packages, planned maintenance programs and compatible replacement requirements.
Available parts may include mud pump liners, pistons, valve assemblies, valve seats and inserts, piston rods, extension rods, liner and rod seals, valve-cover seals, cylinder-head seals, crosshead parts, bearings, lubrication filters, fluid-end modules, pulsation-dampener components, manifolds, gaskets and fasteners.
Before ordering replacement parts, confirm the pump model, part number, drawing and critical dimensions.
Two pumps with similar model names may use different fluid ends, liners, valves or sealing systems. A nameplate photograph, approved drawing or old sample can reduce compatibility risks.
Companies looking for a mud pump spare parts supplier should also state their expected annual consumption or planned drilling period. This information helps prepare a practical operating-spares list.
What Determines Mud Pump Price?
The mud pump price depends on much more than the model number.
| Price Factor | How It Affects the Quotation |
| Rated horsepower | Larger power ends, drives and skids increase cost |
| Working pressure | High-pressure fluid ends and discharge equipment add cost |
| Required flow | Higher displacement may require a larger pump and suction system |
| Drive method | Motors, diesel engines, gearboxes and VFDs change package price |
| Package scope | A bare pump costs less than a complete skid-mounted system |
| Control system | PLC, HMI, VFD and remote monitoring increase scope |
| Offshore requirements | Coating, lifting, hazardous-area equipment and documentation add cost |
| Inspection and testing | Third-party inspection and project testing affect price and schedule |
| Spare-parts package | Commissioning and operating spares increase initial cost but reduce downtime risk |
| Delivery schedule | Urgent manufacturing or special transport may increase cost |
A bare F1600 mud pump will not have the same price as a complete F1600 package with a motor, VFD, charging pump, dampeners, controls and operating spare parts.
Quotations should therefore be compared line by line.
A low-priced offer may exclude essential equipment. A more complete proposal may already include the items required for installation, commissioning and reliable operation.
For an accurate drilling mud pump price, provide the required pressure, flow, liner range, drive system and supply scope.
Information Required for an SGPE Mud Pump Quotation
| Information Group | Details to Provide |
| Drilling application | Land, offshore, deep, directional, horizontal, HPHT or workover |
| Well information | Planned depth, hole sizes and well trajectory |
| Hydraulic requirements | Maximum flow, continuous flow, maximum pressure and normal pressure |
| Pump operation | Expected SPM, number of pumps and duty cycle |
| Drilling fluid | Mud type, density, solids, sand, temperature and chemical conditions |
| Preferred configuration | Model, horsepower, liner range and drive method |
| Electrical information | Voltage, frequency, motor rating and hazardous-area requirements |
| Mechanical interfaces | Footprint, shaft height, suction connection and discharge connection |
| Package scope | Bare pump, skid, motor, charging pump, dampeners, controls and instruments |
| Quality requirements | Standards, tests, inspection, material documents and coating |
| Commercial information | Quantity, destination, packing, delivery schedule and shipping terms |
| Replacement details | Existing nameplate, drawings, photographs and verified dimensions |
Complete information allows SGPE to prepare a reliable technical and commercial proposal instead of an inaccurate budget estimate.
Why Choose SGPE as Your Mud Pump Supplier?
SGPE supplies F series drilling mud pumps for land rigs, offshore drilling packages, rig manufacturing, equipment replacement and oilfield maintenance programs.
Available configurations include F500, F800, F1000, F1300, F1600, F1600HL, F2200 and F2200HL mud pumps, subject to technical confirmation.
Model selection starts with the required pressure and flow. Buyers may request a bare pump, skid-mounted package or a more complete electric or diesel-driven system.
For new-rig and replacement projects, the technical review can cover equipment drawings, nameplates, verified installation dimensions, drive interfaces, suction arrangements and discharge connections.
Commissioning spares, operating spare parts, export packing and technical documentation may form part of the approved supply. Compatible liners, pistons, valves, seats, seals and selected fluid-end expendables are also available.
This coordinated supply approach helps drilling contractors, rig builders and oilfield distributors reduce compatibility risks and simplify future maintenance planning.
Frequently Asked Questions About Mud Pumps
1. What is a mud pump used for in oil and gas drilling?
A mud pump circulates drilling fluid from the active mud system through the drill string, bottom-hole assembly and bit nozzles before returning the fluid to the surface through the annulus. This continuous circulation cools and cleans the drill bit, transports formation cuttings, supports wellbore stability and helps manage circulating pressure.
The pump also provides hydraulic energy for bit cleaning, mud motors and selected downhole drilling tools. Its pressure and flow therefore have a direct effect on hole cleaning, drilling efficiency and rig availability during land drilling, offshore drilling, directional drilling, horizontal drilling and workover operations.
2. What is the difference between a drilling mud pump and a centrifugal pump?
A drilling mud pump is a reciprocating positive-displacement pump designed to deliver controlled flow against high discharge pressure. Modern drilling rigs commonly use triplex mud pumps as the main pressure source in the drilling-fluid circulation system.
A centrifugal pump normally moves a larger fluid volume at lower pressure. On a drilling rig, centrifugal pumps often handle mud transfer, mixing, solids-control circulation and charging service. A charging pump feeds drilling fluid to the suction side of the main triplex pump, but it cannot replace the high-pressure mud pump.
3. What is the difference between a duplex, triplex and quintuplex mud pump?
A duplex mud pump has two pumping chambers and is commonly found on older land rigs, workover units and legacy drilling packages. Many duplex pumps use a double-acting design, which creates flow during both directions of piston travel.
A triplex mud pump uses three single-acting pumping chambers. It normally offers a more compact structure, smoother discharge flow and easier access to liners, pistons, valves and seats. For this reason, triplex pumps are widely used on modern land and offshore drilling rigs.
A quintuplex mud pump uses five pumping chambers. It can provide stable high-output operation with lower discharge pulsation in selected applications, but it also requires more pumping elements, expendable parts and maintenance planning.
4. How do I choose between an F1000, F1300 and F1600 mud pump?
The correct model depends on the required pressure, flow, liner range, pump speed, drilling-fluid properties, duty cycle and available drive power.
An F1000 mud pump may suit conventional land drilling, medium-depth wells and selected rig-modernization projects. An F1300 can support deeper wells, larger hole sections, directional drilling and higher-density mud programs. An F1600 mud pump is commonly considered for deep wells, horizontal drilling, shale development and projects that require high circulation rates or multi-pump operation.
These model descriptions provide preliminary guidance only. Final selection should follow the hydraulic program and the approved pressure-displacement data for the selected liner and fluid-end configuration.
5. How does mud pump liner size affect pressure and flow?
Mud pump liner diameter directly affects displacement and pressure capability.
A larger liner moves more drilling fluid during each stroke, which increases flow at the same SPM. However, the larger piston area requires more input power to reach the same pressure. Larger liners are therefore often used in surface-hole sections and other high-flow drilling applications.
A smaller liner delivers less flow per stroke but allows the pump to reach higher pressure within the same horsepower limit. This makes smaller liners useful for deeper, more restrictive or higher-pressure hole sections.
The final liner selection should balance pressure, flow, SPM, mud properties, volumetric efficiency and continuous-duty requirements across the complete drilling program.
6. What is the best mud pump for horizontal and shale drilling?
There is no single mud pump model that fits every horizontal or shale well. Selection depends on the lateral length, hole size, standpipe pressure, required circulation rate, mud density, bottom-hole assembly and available rig power.
Many horizontal and shale drilling programs use F1600-class triplex mud pumps because these projects often require high flow, long pumping hours and two- or three-pump operation. However, the pump must also have a suitable liner range, adequate charging-pump capacity, reliable VFD control and a practical fluid-end spare-parts plan.
The complete suction system must be reviewed as well. A high-capacity main pump cannot maintain stable output when restricted piping, low inlet pressure or insufficient charging-pump flow prevents the chambers from filling correctly.
7. What should be considered when selecting a mud pump for deep-well or HPHT drilling?
Deep-well and HPHT drilling normally creates higher hydraulic losses and longer periods of high-pressure operation. Selection should begin with the maximum allowable standpipe pressure, required flow, smallest planned liner, continuous input power and fluid-end rating.
Mud temperature, density, solids content and chemical conditions also influence component selection. High-temperature or corrosive service may require careful review of piston compounds, seals, liner materials, fluid-end materials, cooling and lubrication performance.
A high-pressure mud pump for deep-well drilling should retain a practical operating margin. Running continuously at the theoretical limit may increase component wear and reduce equipment availability.
8. What causes mud pump cavitation and unstable discharge pressure?
Mud pump cavitation usually occurs when the suction system cannot supply enough drilling fluid to fill the pumping chambers.
Common causes include restricted suction piping, blocked strainers, low mud-tank level, air leakage, excessive mud viscosity, an undersized charging pump or insufficient inlet pressure. Long suction lines and too many elbows can also increase inlet losses.
Cavitation may produce unusual noise, unstable discharge pressure, reduced flow and premature damage to valves, seats and other fluid-end components. The operator should inspect the complete suction arrangement rather than assume that the main pump is defective.
9. What causes short mud pump piston, liner, valve or seat life?
Premature fluid-end wear can result from abrasive solids, high sand content, damaged liner surfaces, incorrect piston materials, poor liner washing, rod misalignment, excessive temperature or high operating speed.
Valve and seat life may also decrease when solids damage the sealing surfaces, the seat pocket becomes worn or the suction system allows incomplete chamber filling. Replacing one failed component without checking the surrounding parts may lead to another early failure.
When wear becomes repetitive, inspect the drilling-fluid condition, liner surface, piston rod, cooling arrangement, valve assembly, seat pocket and pump alignment as one system.
10. How often should mud pump fluid-end parts be inspected or replaced?
No fixed replacement interval applies to every oilfield mud pump.
The service life of liners, pistons, valves, seats and seals depends on mud properties, operating pressure, SPM, temperature, material selection, liner washing and maintenance quality. A pump circulating clean water-based mud at moderate pressure may show a very different wear pattern from a pump handling heavy, abrasive drilling fluid during extended horizontal drilling.
Operators should inspect fluid-end expendables regularly, monitor changes in pressure and flow, and record the service life of each component. Condition-based maintenance and accurate operating records provide a better replacement basis than a universal time interval.
11. Why does a mud pump lose pressure or deliver less flow?
A mud pump may lose pressure or flow because of worn pistons, leaking valves, damaged seats, liner wear, low SPM or an unsuitable liner size.
The same symptoms can also come from the suction side. Blocked strainers, restricted piping, low tank level, air leakage and insufficient charging-pump pressure can reduce chamber filling and lower volumetric efficiency.
Troubleshooting should compare the actual SPM, suction pressure, discharge pressure and liner configuration with the expected operating point. Inspecting both the fluid end and suction system helps avoid unnecessary part replacement.
12. What information is required for mud pump selection, replacement and quotation?
For a new drilling mud pump, provide the drilling application, planned well depth, hole sizes, trajectory, maximum and continuous flow, normal and maximum pressure, expected SPM and duty cycle. The inquiry should also state the mud type, density, solids content, temperature, drive method, electrical supply and required package scope.
For a replacement mud pump project, include the existing manufacturer and model, serial number, nameplate photographs, general arrangement drawing, foundation dimensions, shaft-center height, suction and discharge connections, motor or engine power, gear ratio and available installation space.
This information allows SGPE to review whether the project requires a bare pump, skid-mounted unit, complete electric or diesel-driven package, upgraded triplex pump or direct replacement solution. It also helps confirm the appropriate liners, fluid-end parts, controls, commissioning spares and technical documentation.
Request an SGPE Mud Pump Quotation
Available supply options include bare pumps, skid-mounted triplex mud pump packages, electric or diesel-driven systems, fluid-end modules and compatible spare parts such as liners, pistons, valves, seats and seals. For an accurate mud pump quotation, provide the required flow, working pressure, mud density, liner range, duty cycle, drive method, electrical supply and installation arrangement.
For a replacement project, also send the existing pump nameplate, general arrangement drawing, shaft height, suction and discharge connection details, and available installation space.
E-Mail:
info@sgpe.com
