Description
A Type Drill Collar Slips API 7K for Petroleum Drilling and Drill Collar Handling
SGPE A Type Drill Collar Slips help rig crews hold drill collars securely during petroleum drilling, oilfield workover and well servicing operations. These API 7K oilfield slips work with the rotary table and support drill collar running, pulling, make-up and break-out work on the rig floor.
Drill collars face heavy loads, repeated friction and frequent handling in oilfield operations. Because of this, crews need slips that grip firmly, match the insert bowl correctly and adapt to real rig floor conditions. SGPE Type A slips use a multi-piece structure, so the tool can adjust to slight changes in drill collar outside diameter after field wear. This design gives the slips a wide clamping range, easier handling and stable gripping performance.
SGPE manufactures A Type Drill Collar Slips according to API Spec 7K requirements. The product fits drilling rigs, workover rigs, well servicing units, rig floor tubular handling systems and petroleum equipment supply projects that need dependable drill collar handling tools.
Product Overview
A Type Drill Collar Slips hold drill collars in the rotary table during oilfield drilling and tubular handling work. The slips operate with a matching insert bowl. When the drill collar passes through the rotary table, the gripping inserts contact the drill collar outside diameter and help keep the tubular steady.
SGPE Type A slips cover common drill collar OD ranges from 3 in to 11 3/4 in. Their multi-piece body structure allows one set of slips to cover a wider size range. As a result, crews can reduce tool changes and improve efficiency during drilling, tripping, workover and service operations.
These API 7K drill collar slips suit petroleum drilling contractors, workover companies, well servicing crews, rig maintenance teams and oilfield equipment distributors that need durable drill collar handling tools for daily rig operations.
Key Features of SGPE A Type Drill Collar Slips
Multi-Piece Structure for Worn Drill Collars
SGPE Type A slips use a multi-piece structure that helps them adapt to drill collars with slight outside diameter changes. Drill collars often show surface wear after repeated drilling, tripping and downhole service. This structure helps the tool maintain practical field usability when the actual drill collar OD stays within the approved range.
For drilling crews, this design reduces unnecessary tool replacement and supports more flexible rig floor operation.
Wide Drill Collar Clamping Range
The slips cover a broad drill collar OD range. This helps crews handle different drill collar sizes with fewer tool changes during drilling, tripping and workover operations.
For rig operators, a wide clamping range also supports simpler tool preparation, better inventory control and faster response during drill collar handling work.
Light Weight for Rig Floor Handling
The product offers a lighter and more convenient structure than many heavy fixed-size tools. Rig crews can move, position and remove the slips more easily during repeated drill collar running and pulling operations.
This feature improves daily rig floor efficiency, especially when crews need frequent handling during drilling or workover service.
Firm Grip on Drill Collars
The slip body and gripping inserts work together to hold the drill collar securely. A firm grip helps keep the drill collar stable during make-up, break-out, running and pulling operations.
This gripping performance matters in rotary table operation, drill string handling and rig floor safety.
API Spec 7K-Based Manufacturing
SGPE manufactures these drill collar slips according to API Spec 7K requirements. This makes the product a practical choice for petroleum drilling equipment supply, rig maintenance projects and API 7K oilfield tubular handling applications.
Main Applications in Petroleum Industry
SGPE A Type Drill Collar Slips serve oil and gas field operations that require stable drill collar handling on the rig floor. Drilling crews use these slips on petroleum drilling rigs to hold drill collars in the rotary table during running, pulling, make-up and break-out operations. The slips help keep the drill collar steady while crews handle heavy drill string components in demanding oilfield environments.
In oilfield workover and well servicing operations, Type A slips also support tubular handling, drill string support and drill collar maintenance work. They help crews manage drill collar replacement, rotary table holding and related petroleum service tasks more efficiently. Because the slips work with a matching insert bowl, they also suit API 7K oilfield slip replacement and spare tool supply needs.
SGPE develops this product specifically for petroleum industry environments rather than general clamping use. It fits applications where drill collars, drill strings, rotary table equipment and rig floor tools require stable, safe and reliable handling.
Technical Parameters
| Item | Description |
|---|---|
| Product Name | A Type Drill Collar Slips |
| Brand | SGPE |
| Product Type | API 7K oilfield drill collar handling tool |
| Application | Petroleum drilling, oilfield workover and well servicing |
| Standard | API Spec 7K requirements |
| Structure | Multi-piece structure |
| Main Advantages | Light weight, wide clamping range and firm gripping |
| Working Position | Rotary table and rig floor |
| Suitable Tubular | Drill collar |
| Size Range | 3 in to 11 3/4 in drill collar OD |
| Use With | API, No.3 or No.2 insert bowl |
| Replacement Parts | Replacement inserts available upon request |
Drill Collar OD Range
| Drill Collar OD Range | Metric Range |
| 3–4 1/2 in | 76.2–114.3 mm |
| 3 1/4–4 3/4 in | 82.55–120.65 mm |
| 4 1/4–5 3/4 in | 107.95–146.05 mm |
| 5 1/2–7 in | 139.7–177.8 mm |
| 6 3/4–8 1/4 in | 171.5–209.55 mm |
| 8 1/4–10 in | 209.55–254 mm |
| 10–11 3/4 in | 254–298.45 mm |
The insert bowl selection depends on drill collar size, rotary table type and rig floor configuration. Customers can provide the drill collar OD and insert bowl information before ordering. SGPE can then help confirm the suitable configuration for drilling, workover or well servicing use.
Why Type A Drill Collar Slips Matter in Petroleum Drilling
Drill collars play an important role in petroleum drilling. They add weight to the drill bit, help maintain drilling stability and support drill string performance. Since crews handle drill collars frequently on the rig floor, the slips must grip them firmly and safely.
During drilling and tripping operations, drill collars may experience surface wear after repeated running, pulling, connection work and downhole service. This wear can slightly change the outside diameter. The multi-piece structure of SGPE Type A slips helps adapt to these OD changes within the approved range.
This feature makes the tool practical for real oilfield conditions. Crews do not always work with brand-new drill collars. They often handle tubulars that have already served in difficult wells. A drill collar slip with better OD adaptability helps improve tool usability and supports continuous rig floor operation.
Designed for Efficient Rig Floor Operation
Time matters in drilling and workover projects. Each rig floor tool should help the crew work faster, safer and more smoothly. SGPE Type A Drill Collar Slips support efficient operation by reducing tool changes between close drill collar sizes and helping crews maintain stable drill collar handling.
The wide clamping range helps reduce the number of slip sets required for different drill collar sizes. The lighter structure makes handling easier. The firm gripping design helps hold drill collars securely during critical rig floor steps.
Together, these advantages help crews improve workflow during drilling, tripping and service operations. For drilling contractors, this means better tool flexibility and more efficient rig preparation. For oilfield distributors, it means a practical API 7K handling tool that matches common drilling rig requirements.
Structure and Working Principle
SGPE A Type Drill Collar Slips include slip segments, gripping inserts, hinge components and related connection parts. The slips work with a matching insert bowl installed in the rotary table.
When the drill collar enters the slip opening, the inserts contact the drill collar OD. As the drill collar load moves downward, the slips wedge inside the insert bowl and create gripping force. This action helps hold the drill collar securely during running, pulling, make-up and break-out work.
Correct size selection plays an important role in safe operation. The drill collar OD must match the rated slip range. The insert bowl must also match the slip type and rig floor configuration. Proper matching improves gripping performance and reduces abnormal wear during oilfield rig operations.
Manufacturing and Quality Control
SGPE focuses on stable quality for oilfield drilling tools. A Type Drill Collar Slips must handle impact, load, friction and repeated rig floor use. Therefore, SGPE controls key production steps carefully.
The production process may include material inspection, machining, heat treatment, insert fitting, assembly inspection and final quality checking. SGPE checks key dimensions to help ensure proper fit with drill collars and insert bowls.
The gripping inserts contact the drill collar surface directly and help provide reliable holding performance. Good insert quality helps the slips maintain a firm grip during drilling, workover and well servicing operations.
Replacement Inserts and Spare Parts Support
Drill collar slip inserts contact the drill collar surface directly. After long-term rig floor service, inserts may wear and affect gripping performance. Regular inspection and timely replacement help keep the slips ready for safe operation.
SGPE can support replacement inserts and related spare parts according to customer requirements. Buyers can provide the slip model, drill collar OD range and insert bowl information when requesting spare parts.
This support helps drilling contractors, workover service companies and oilfield distributors maintain equipment more efficiently and reduce downtime caused by worn inserts.
Suitable Buyers
SGPE A Type Drill Collar Slips suit petroleum drilling contractors, oilfield workover service companies and well servicing teams that need reliable drill collar handling tools for daily rig floor operations. These slips help crews hold drill collars securely during drilling, tripping, make-up, break-out and related oilfield tubular handling work.
The product also serves rig equipment maintenance teams, petroleum equipment procurement companies, drilling rig package suppliers and oil and gas field service providers. For these buyers, the slips can work as original rig floor equipment, replacement drill collar slips or spare handling tools for petroleum drilling and workover projects.
Oilfield drilling tool distributors, API 7K oilfield tool suppliers and rig floor tubular handling equipment buyers can also add this product to their supply range. With wide drill collar OD coverage, API Spec 7K-based manufacturing and insert bowl matching support, SGPE Type A slips offer a practical choice for customers who supply drilling rigs, workover rigs and well servicing units.
How to Select the Right A Type Drill Collar Slip
Confirm the Drill Collar Outside Diameter
Customers should first confirm the actual drill collar OD. The selected slip range must cover the real outside diameter, not only the nominal size. If the drill collar has worked in the field for a long time, measure the worn OD before ordering.
Check the Insert Bowl Type
The slip and insert bowl must match correctly. Customers should confirm whether the rig uses API, No.3, No.2 or another suitable insert bowl. Correct matching supports stable gripping performance in rotary table operation.
Define the Rig Application
Customers should confirm whether the tool will work on a petroleum drilling rig, oilfield workover rig or well servicing unit. Different rig environments may have different handling requirements, so clear application details help SGPE recommend a better configuration.
Confirm Quantity and Spare Inserts
Customers should share the required quantity and let SGPE know whether they need replacement inserts or related spare parts. This information helps SGPE provide a more complete quotation.
Share Documentation Requirements
Some projects may require inspection documents, certificates, packing marks or project-specific files. Customers can include these requirements in the inquiry to help the order process move more smoothly.
With these details, SGPE can help customers select the proper drill collar slip and reduce order mistakes.
Advantages for Oilfield Operations
SGPE Type A Drill Collar Slips bring practical value to petroleum industry users. They help crews hold drill collars firmly on the rig floor, cover multiple drill collar OD ranges and support efficient tubular handling in drilling and workover projects.
The tool also helps reduce frequent slip changes during rig operations. This can simplify tool inventory and improve preparation for drill collar handling work. For drilling crews, the main benefits include simple operation, stable grip and easier handling. For procurement teams, the product offers API 7K-based design, common oilfield size coverage, spare parts support and dependable supply from SGPE.
Maintenance Recommendations
Proper maintenance helps extend the service life of A Type Drill Collar Slips. Before use, rig crews should inspect the slip body, gripping inserts, hinge parts and contact surfaces. If the inserts show serious wear, cracks or poor gripping condition, crews should replace them in time.
After operation, crews should clean drilling mud, sand, metal particles and other oilfield debris from the slips. They should also store the tool in a dry place and apply anti-rust protection when needed. Regular inspection helps keep the slips ready for drilling, workover and service operations.
Operators should always choose the correct slip size and matching insert bowl. Wrong selection may reduce gripping performance and increase rig floor risk.

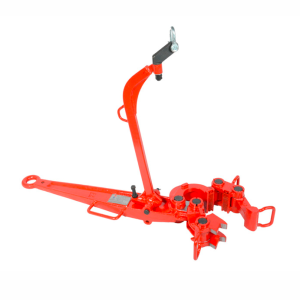

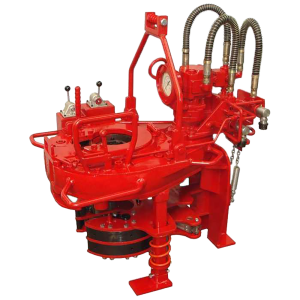

Related SGPE Oilfield Handling Tools
Customers who purchase A Type Drill Collar Slips may also need matching oilfield handling tools for drilling, workover and well servicing operations. SGPE can supply insert bowls, drill collar elevators, safety clamps, manual tongs, casing slips, tubing slips and other rig floor tubular handling tools.
These related products help crews handle drill collars, drill pipe, tubing, casing and other oilfield tubulars more efficiently. They also support petroleum drilling contractors, workover service companies and oilfield equipment distributors that need a more complete rig floor handling tool package.
Why Choose SGPE
SGPE supplies oilfield handling tools, drilling tools and petroleum equipment for drilling, workover and well servicing operations. The company understands rig floor demands and provides practical products for oil and gas field use.
When customers buy SGPE A Type Drill Collar Slips, they receive more than a single tool. SGPE can support product selection, size confirmation, insert bowl matching, spare parts requirements and order configuration. This helps customers save time and choose the correct oilfield handling tool for their project.
E-Mail:
info@sgpe.com
Frequently Asked Questions About A Type Drill Collar Slip
1. What are A Type Drill Collar Slips?
A Type Drill Collar Slips are API 7K oilfield handling tools for holding drill collars in the rotary table. Rig crews use them during drill collar running, pulling, make-up and break-out work.
SGPE Type A slips use a multi-piece structure. This structure helps them cover a wide drill collar OD range and adapt to slight size changes after field wear.
2. Where do rig crews use these drill collar slips?
Crews use these slips on the rig floor with a rotary table and a matching insert bowl. They support drill collar handling during drilling, tripping, drill string connection work, workover and well servicing operations.
The tool fits petroleum drilling rigs, workover rigs and well servicing units that require stable drill collar holding.
3. What drill collar sizes can SGPE Type A slips cover?
SGPE Type A slips cover drill collar OD ranges from 3 in to 11 3/4 in, or 76.2 mm to 298.45 mm. The available ranges include 3–4 1/2 in, 3 1/4–4 3/4 in, 4 1/4–5 3/4 in, 5 1/2–7 in, 6 3/4–8 1/4 in, 8 1/4–10 in and 10–11 3/4 in.
Before ordering, customers should measure the actual drill collar outside diameter, especially when the drill collar has served in the field for a long time.
4. How does the multi-piece structure help in oilfield operation?
The multi-piece structure helps the slips adapt to drill collars with slight OD changes. Drill collars often show surface wear after repeated drilling, tripping and downhole service.
This design gives the Type A drill collar slips a wider clamping range and helps crews reduce tool changes when they handle different drill collar sizes within the approved range.
5. Do SGPE A Type Drill Collar Slips meet API Spec 7K requirements?
SGPE manufactures A Type Drill Collar Slips according to API Spec 7K requirements. This makes the product suitable for petroleum drilling equipment supply, rig maintenance and API 7K oilfield tubular handling applications.
Customers can share project requirements, inspection needs and order details before quotation. SGPE can then help confirm the suitable product configuration.
6. Which insert bowl should work with A Type Drill Collar Slips?
A Type Drill Collar Slips work with a matching insert bowl, such as API, No.3 or No.2 insert bowl, depending on the selected size and rig configuration.
To choose the right slip range, customers should provide the drill collar OD, rotary table information and insert bowl type.
7. How do A Type Drill Collar Slips work in the rotary table?
The slips sit inside the matching insert bowl in the rotary table. When the drill collar passes through the slips, the gripping inserts contact the drill collar surface.
As the drill collar load moves downward, the slips wedge inside the insert bowl and create gripping force. This helps hold the drill collar securely during running, pulling, make-up and break-out work.
8. How should customers choose the correct model?
Customers should confirm the actual drill collar OD, insert bowl type, rotary table configuration, rig application and spare parts needs.
For better selection, customers can provide the drill collar OD range, insert bowl number, rig type, quantity and working environment. SGPE can help recommend a suitable Type A drill collar slip for the project.
9. Can SGPE supply replacement inserts?
Yes. SGPE can support replacement inserts and related spare parts according to the slip model, drill collar OD range and customer requirements.
Because inserts contact the drill collar directly, they may wear after long-term rig floor service. Regular inspection and timely replacement help maintain stable gripping performance.
10. What information should customers provide for a quotation?
Customers should provide the drill collar outside diameter, required size range, insert bowl type, quantity and rig application. They can also share whether the slips will work on a drilling rig, workover rig or well servicing unit.
For a more complete quotation, customers can include spare insert requirements, packing marks, inspection documents and delivery needs.
11. How should rig crews maintain A Type Drill Collar Slips?
Crews should inspect the slip body, gripping inserts, hinge parts and contact surfaces before use. They should replace worn or damaged inserts when the slips no longer grip the drill collar firmly.
After operation, crews should clean drilling mud, sand, metal particles and other oilfield debris from the tool. Dry storage and anti-rust protection also help extend service life.
12. Why choose SGPE for A Type Drill Collar Slips?
SGPE offers API 7K oilfield handling tools for drilling, workover and well servicing operations. For A Type Drill Collar Slips, SGPE can support size selection, insert bowl matching, replacement inserts and order configuration.
This makes SGPE a practical choice for drilling contractors, workover service companies, well servicing crews, petroleum equipment buyers and oilfield tool distributors.
Inquiry Information
When sending an inquiry for SGPE A Type Drill Collar Slips, please provide the actual drill collar outside diameter, the required size range, the insert bowl type and the order quantity. These details help SGPE confirm whether the selected slips can match your drill collar OD, rotary table arrangement and rig floor operation requirements.
Customers can also share the rig type and working environment, such as petroleum drilling, oilfield workover or well servicing use. If the project requires spare inserts, special packing, shipping marks, inspection documents or other order files, please include these requirements in the inquiry.
With complete technical and purchasing information, SGPE can provide product selection support, technical details and a more accurate quotation for your oilfield operation needs.
SGPE A Type Drill Collar Slips for Oilfield Drill Collar Handling
SGPE A Type Drill Collar Slips provide a strong, practical and reliable solution for drill collar handling in petroleum drilling, oilfield workover and well servicing environments. The product combines a multi-piece structure, wide clamping range, light weight, firm gripping performance and spare parts support.
For drilling contractors, workover service companies, well servicing crews and petroleum equipment distributors, SGPE offers dependable API 7K drill collar slips for rotary table operation and rig floor tubular handling.
