Description

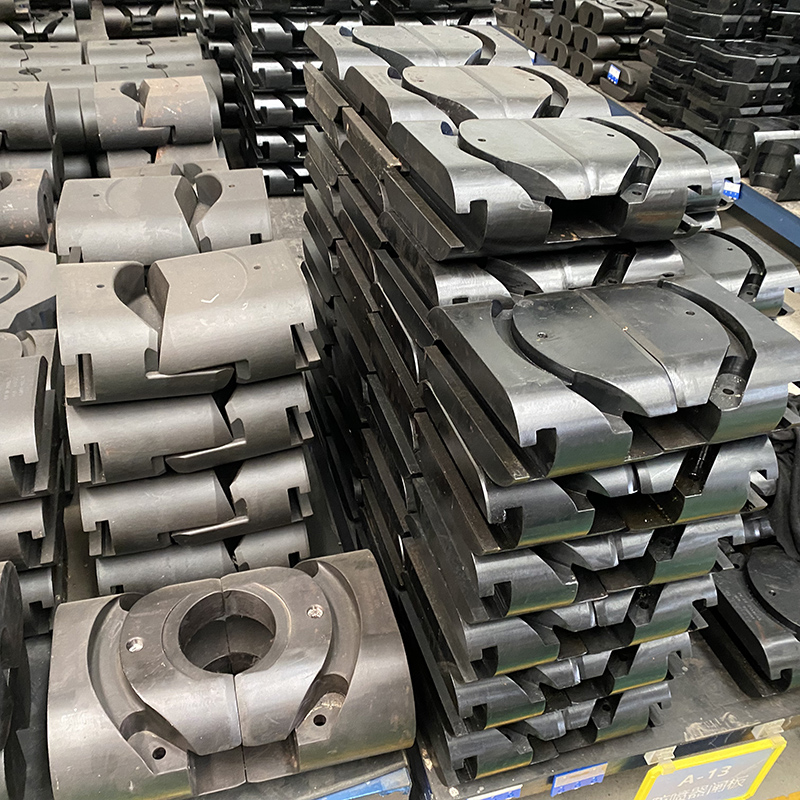

API 16A BOP Shear Ram Assembly for Oilfield Blowout Preventer
SGPE supplies API 16A BOP Shear Ram Assembly for ram type blowout preventers used in oil and gas drilling, workover, well testing, completion, well intervention, wellhead pressure control and BOP stack maintenance.
As a critical cutting and closing component inside a ram BOP, the shear ram assembly helps cut specified drill pipe, tubing or other oilfield tubulars when a well requires emergency shut-in. At the same time, it supports pressure isolation through the BOP stack during demanding well control operations.
Correct replacement depends on more than nominal bore size and working pressure. The shear ram assembly also needs to match the BOP model, ram cavity, bonnet, piston, hydraulic closing system, front seal, top seal, ram rubber and tubular data. For this reason, SGPE reviews BOP nameplates, old ram photos, drawings or sample dimensions before quotation. This matching step helps reduce field mismatch, modification work, maintenance delay and unnecessary rig downtime.
Customers can source standard replacement parts, customized replacement parts or complete BOP spare parts packages for U type BOP, SH type BOP and other common oilfield ram BOP structures.
Product Short Description
SGPE API 16A BOP Shear Ram Assembly is a high-strength ram BOP replacement part used for emergency tubular shearing and well shut-in in oilfield blowout preventers. It is suitable for drilling, workover, well testing, completion, well intervention, wellhead pressure control and BOP stack maintenance.
Product Snapshot
| Item | Details |
|---|---|
| Product Name | API 16A BOP Shear Ram Assembly |
| Main Function | Emergency tubular shearing and BOP shut-in |
| Related Names | BOP Shear Ram Assembly, Blowout Preventer Shear Ram, Blind Shear Ram Assembly, BSR Assembly |
| Applicable Equipment | Oilfield Ram Type Blowout Preventer |
| Common BOP Types | Single Ram BOP, Double Ram BOP, Three Ram BOP |
| Common Structures | U Type BOP, SH Type BOP and other common ram BOP designs |
| Bore Size Range | 7-1/16 inch to 21-1/4 inch |
| Working Pressure Range | 2,000 psi to 15,000 psi |
| Service Options | Standard service, H2S service, sour oil and gas service |
| Supply Method | Complete assembly, ram block, rubber parts or seal kit |
What Is a BOP Shear Ram Assembly?
A BOP shear ram assembly is a complete ram system installed inside an oilfield ram blowout preventer. It normally includes the ram block, cutting area, front seal, top seal, ram rubber and related retaining parts.
When the hydraulic operating system closes the BOP, two ram assemblies move toward the bore center. The cutting edges then contact the drill pipe, tubing or specified tubular, shear it and help the BOP close the wellbore.
Different ram types solve different well control problems. A pipe ram seals around a fixed pipe size. A blind ram closes the bore when no pipe remains inside the BOP. A variable bore ram seals around several pipe sizes within its rated range. By contrast, a shear ram assembly handles emergency tubular cutting when pipe movement becomes impossible or when the well condition requires fast pressure control.
Buyers often search this product with terms such as API 16A BOP Shear Ram Assembly, BOP shear ram assembly, blowout preventer shear ram, blind shear ram assembly, BSR assembly, shear ram for blowout preventer, BOP shear ram replacement, API 16A ram BOP parts, ram BOP spare parts, BOP ram rubber, BOP front seal and BOP top seal.

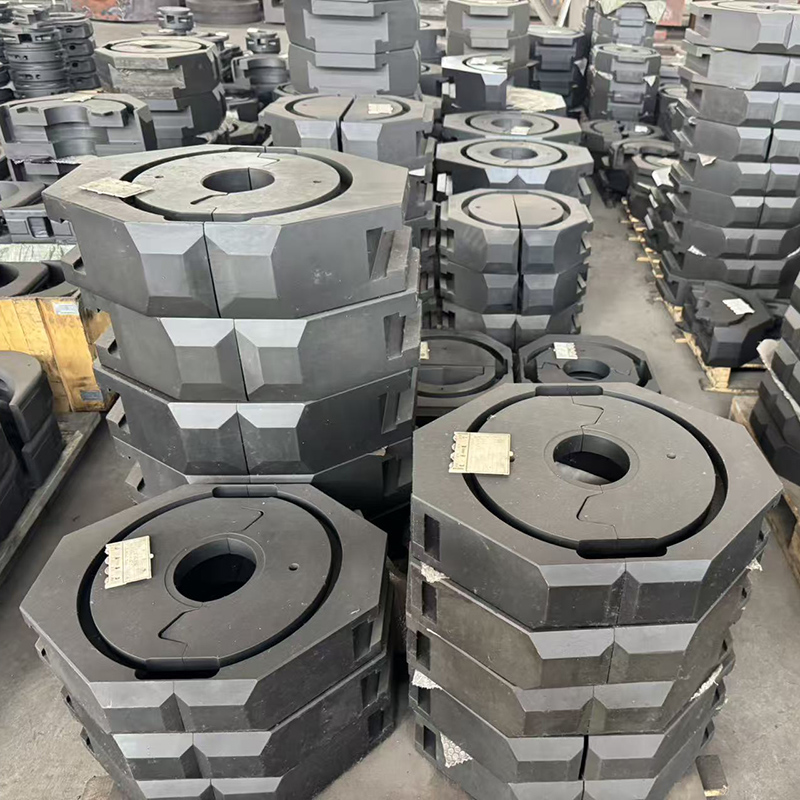

Main Components of a BOP Shear Ram Assembly
A shear ram assembly may vary by BOP model. However, the main parts usually work together to support cutting, movement and sealing.
| Component | Main Function |
| Ram Block | Carries the cutting and sealing structure |
| Cutting Area | Contacts and shears specified drill pipe, tubing or oilfield tubulars |
| Front Seal | Helps create sealing contact at the bore center after ram closure |
| Top Seal | Helps seal between the ram and BOP body |
| Ram Rubber | Provides elastic sealing performance under well pressure |
| Seal Retainer | Holds sealing parts in the correct position |
| Guide Surface | Supports smooth movement inside the BOP ram cavity |
| Inserts or Fasteners | Support assembly, replacement and sealing according to BOP structure |
For serious wear, damaged sealing areas or unclear old part numbers, a complete BOP shear ram assembly is usually the safer replacement choice. For routine BOP maintenance, customers may only need BOP ram rubber, front seal, top seal or a BOP ram seal kit.
Supply Scope Options
| Supply Scope | Suitable Requirement |
| Complete Shear Ram Assembly | Replacement of worn or damaged shear ram assemblies |
| Blind Shear Ram Assembly / BSR Assembly | Pipe shearing and bore sealing requirement |
| Shear Ram Block Only | Replacement when rubber parts will be sourced separately |
| BOP Ram Rubber | Routine maintenance or rubber replacement |
| BOP Front Seal | Front sealing replacement for ram closure |
| BOP Top Seal | Top sealing replacement between ram and BOP body |
| BOP Ram Seal Kit | Front seal, top seal, ram rubber and related sealing parts |
| Customized Ram BOP Parts | Replacement based on drawing, sample or BOP nameplate |
Common Bore Sizes and Pressure Ratings
SGPE reviews BOP shear ram assembly requirements according to common ram BOP sizes and pressure ratings. Final availability depends on the exact BOP model, ram cavity, ram type, pipe data and service condition.
| Common Bore Size | Approx. Bore in mm | Common Pressure Ratings | Typical Oilfield Use |
| 7-1/16 inch | 179.4 mm | 2K, 3K, 5K, 10K, 15K | Compact BOP stacks, workover and wellhead pressure control |
| 11 inch | 279.4 mm | 3K, 5K, 10K, 15K | Land drilling rigs, workover rigs and BOP replacement projects |
| 13-5/8 inch | 346.1 mm | 3K, 5K, 10K, 15K | Drilling BOP stacks and well control service |
| 16-3/4 inch | 425.5 mm | 3K, 5K, 10K | Large drilling and workover BOP systems |
| 18-3/4 inch | 476.3 mm | 5K, 10K, 15K | Offshore and high-spec drilling BOP stacks |
| 21-1/4 inch | 539.8 mm | 2K, 5K, 10K | Large-bore drilling and pressure control equipment |
Old BOP models, special bore sizes and non-standard replacement requirements can also be reviewed according to drawings, samples or nameplate information.
Working Pressure Reference
| Pressure Class | Working Pressure | Approx. MPa |
| 2K | 2,000 psi | 13.8 MPa |
| 3K | 3,000 psi | 20.7 MPa |
| 5K | 5,000 psi | 34.5 MPa |
| 10K | 10,000 psi | 69.0 MPa |
| 15K | 15,000 psi | 103.5 MPa |
The pressure rating of the replacement shear ram assembly should match the BOP working pressure, BOP design and end-user well control requirement.
Technical Parameters
| Item | Specification |
| Product Name | API 16A BOP Shear Ram Assembly |
| Related Names | BOP Shear Ram Assembly, Blind Shear Ram Assembly, BSR Assembly, BOP Ram Assembly, Ram BOP Parts |
| Applicable Equipment | Oilfield Ram Type Blowout Preventer |
| Standard Reference | API 16A, ISO 9001 Quality Management |
| Common Bore Size | 7-1/16 inch to 21-1/4 inch |
| Working Pressure | 2,000 psi to 15,000 psi |
| Pressure Rating Options | 2K, 3K, 5K, 10K, 15K |
| Suitable BOP Type | Single Ram BOP, Double Ram BOP, Three Ram BOP |
| Ram Type Options | Shear Ram, Blind Shear Ram, Pipe Ram, Blind Ram, Variable Bore Ram |
| Compatible Structure | U Type, SH Type and Other Common Ram BOP Designs |
| Service Condition | Standard Oilfield Service, H2S Service, Sour Oil and Gas Service |
| Main Material | Forged or High-Strength Alloy Steel According to Requirement |
| Sealing Parts | Front Seal, Top Seal, Ram Rubber, Ram Seal Kit |
| Customization | Available According to BOP Model, Drawing, Nameplate or Sample |
| Inspection | Dimensional Check, Material Review, Assembly Matching Check, Visual Inspection |
Final selection depends on BOP model, nominal bore, working pressure, ram cavity size, pipe OD, pipe grade, pipe wall thickness, shear requirement, well fluid, temperature condition and sour service requirement.
Why Correct BOP Ram Matching Matters
A shear ram assembly cannot be selected only by bore size and pressure rating. For example, two 13-5/8 inch 10,000 psi ram BOPs may use different ram cavities, seal profiles and guide surfaces. Even when the pressure rating looks the same, the ram may not fit if the internal structure differs.
For replacement orders, our team checks the BOP model, nameplate information, ram cavity width, guide surface, front seal shape, top seal groove, ram block size, closing direction, bonnet structure, piston structure, old ram wear condition, pipe data and oilfield service condition. This review helps customers reduce wrong BOP ram selection, field modification, delayed maintenance and extra rig downtime.
Replacement Compatibility Checklist
| Check Item | Why It Matters |
| BOP Model | Confirms the basic BOP structure and ram cavity design |
| BOP Nameplate | Helps confirm bore size, pressure rating and model information |
| Ram Cavity Width | Affects installation and ram movement |
| Front Seal Profile | Confirms center sealing contact after closure |
| Top Seal Groove | Confirms sealing between ram and BOP body |
| Guide Surface | Affects smooth ram movement inside the cavity |
| Closing Direction | Helps avoid wrong installation or mismatch |
| Bonnet and Piston Structure | Confirms the operating system connection |
| Old Ram Photos | Helps compare shape, wear, seal position and part structure |
| Pipe Data | Helps review shearing requirement and selection direction |
Need help checking compatibility? Send the BOP nameplate and old ram photos to SGPE. Our team can review the ram cavity, seal profile and replacement direction before quotation.
Oilfield Applications
SGPE API 16A BOP Shear Ram Assembly is used in oil and gas well control systems where the BOP stack needs reliable emergency closure, tubular shearing and pressure isolation. It is suitable for land drilling rig BOP stacks, offshore drilling rig BOP stacks, oil and gas workover rigs, well testing pressure control systems, completion operations, well intervention operations and snubbing service.
This shear ram assembly is also used in wellhead pressure control equipment, BOP stack maintenance, ram BOP spare parts replacement and emergency well control spare parts preparation. For oilfield BOP repair workshops and service bases, it can support routine BOP overhaul, old ram replacement, seal replacement and drilling rig spare parts inventory planning.
Many customers purchase shear ram assemblies together with pipe ram assemblies, blind ram assemblies, variable bore rams, BOP ram rubbers, front seals, top seals, spherical packers, pistons and bonnets. Package supply helps drilling contractors, workover contractors, well testing companies and BOP maintenance teams prepare compatible spare parts before rig operation, repair work or field service.

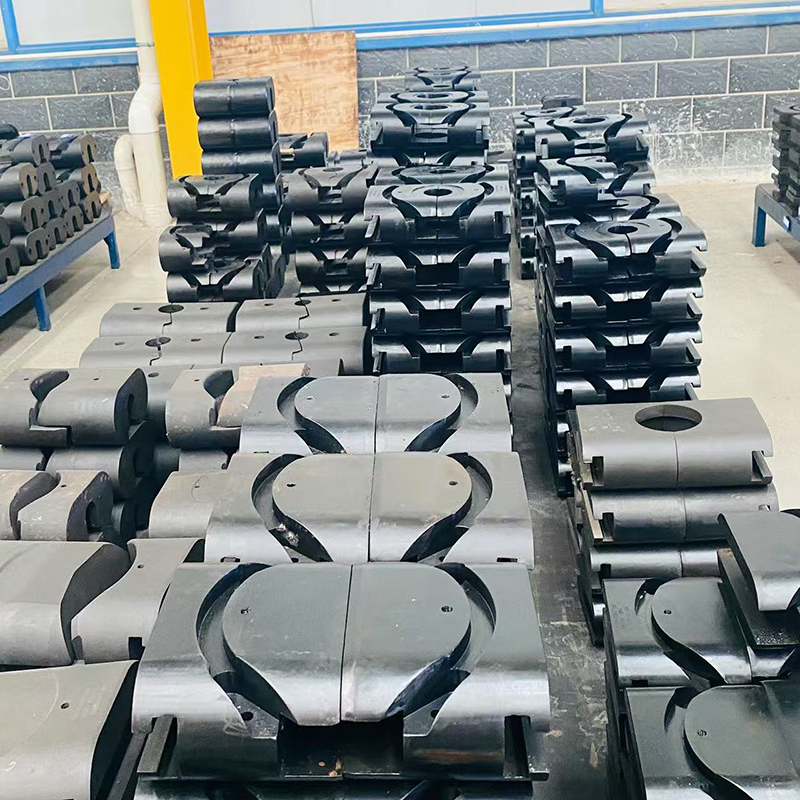

Shear Ram Assembly, Blind Shear Ram Assembly and BSR Assembly
A shear ram assembly mainly cuts specified drill pipe, tubing or oilfield tubulars inside the BOP bore. In many projects, buyers need a blind shear ram assembly, also called a BSR assembly. This type cuts the tubular and helps seal the bore after closure.
Blind shear rams need both cutting and sealing performance, so they usually require stricter confirmation of ram structure, seal profile, material route and shear condition. Before ordering, buyers should confirm whether they need a shear ram assembly, blind shear ram assembly, BSR assembly, pipe ram assembly, blind ram assembly, variable bore ram, ram block only or sealing kit only.
Pipe Data Needed for Shear Ram Selection
The shear capability of a BOP shear ram assembly depends on the ram design, pipe data and BOP closing system. Pipe OD, pipe grade and wall thickness can affect the required shearing force, so tubular details should be confirmed before final selection.
| Pipe Information | Why It Matters |
| Pipe OD | Confirms the tubular size to be sheared |
| Pipe Grade | Affects required shearing force |
| Wall Thickness | Influences cutting load and ram selection |
| Tubular Type | Helps identify drill pipe, tubing, casing or special tubular |
| Tool Joint or Upset Area | Needs separate confirmation because it may not match normal pipe body shearing conditions |
| Service Condition | Confirms standard, sour, high-temperature or low-temperature oilfield service |
| BOP Closing System | Helps check whether the existing BOP can provide suitable closing force |
For critical well control projects, buyers should provide the end-user specification or BOP stack requirement. After that, SGPE can review the replacement direction and confirm whether the requested BOP shear ram assembly fits the project condition.
Common Pipe Information for RFQ
| RFQ Item | Example Format |
| Pipe Type | Drill pipe, tubing, casing or special tubular |
| Pipe OD | 3-1/2 inch, 4-1/2 inch, 5 inch, 5-1/2 inch |
| Pipe Grade | E75, X95, G105, S135 or project-specific grade |
| Wall Thickness | Standard wall or heavy wall, with exact thickness if available |
| Shearing Position | Pipe body, tool joint, upset area or unknown |
| Service | Standard service, H2S service or sour service |
| End-User Requirement | BOP stack requirement, rig specification or maintenance document |
Tool joint, heavy wall pipe and special upset areas should not be assumed shearable unless the BOP model, ram design and closing system support the condition.
Compatible Ram BOP Structures
For example, two BOPs may both be 11 inch 5,000 psi models, but their ram cavities and sealing profiles may not be the same. In this case, detailed structure review helps confirm whether the replacement direction is practical.
For BOP repair workshops, SGPE can support replacement according to old samples. This works well when the BOP model is old, the original part number is unclear or the end user cannot provide a full drawing.
BOP Ram Types Available from SGPE
| BOP Ram Type | Main Function | Typical Oilfield Use |
| Shear Ram Assembly | Cuts specified oilfield tubulars | Emergency well control in drilling, workover or testing |
| Blind Shear Ram Assembly | Cuts pipe and helps seal the bore | High-risk well shut-in and emergency BOP closure |
| Pipe Ram Assembly | Seals around a fixed pipe size | Drilling, workover and completion operations |
| Blind Ram Assembly | Closes the open bore | Pressure control without pipe in hole |
| Variable Bore Ram | Seals several pipe sizes | Rigs using different drill pipe or tubing sizes |
| Integral Pipe Ram | Uses one-piece ram structure | Stable pipe sealing service in oilfield BOP stacks |
| Two-Piece Pipe Ram | Uses replaceable inserts | Easier maintenance and size change for oilfield service bases |
| Slip Ram | Holds or supports tubulars | Snubbing and well intervention work |
| Weight-Bearing Ram | Supports pipe load under specific conditions | Workover and special well service operations |
| H2S-Resistant Ram | Resists sour oil and gas service | H2S wells and sour gas fields |
If your oilfield project includes several ram types, SGPE can prepare a combined quotation for the complete BOP spare parts package.
Materials and Sealing Options
A BOP shear ram assembly faces high pressure, cutting force, mechanical impact and repeated closing movement in oilfield well control service. Material strength and sealing performance both affect field reliability.
SGPE selects suitable alloy steel and sealing materials according to working pressure, temperature class, well fluid, pipe data and sour service requirement. For H2S service, customers should clearly mention sour gas, H2S, NACE or end-user material requirements during the RFQ stage.
| Service Condition | Common Requirement |
| Standard Oilfield Service | Suitable material and seals for normal drilling or workover use |
| High-Temperature Service | Heat-resistant sealing material according to project requirement |
| Low-Temperature Service | Low-temperature sealing material according to field condition |
| H2S Service | Material and seal review for sour gas or H2S exposure |
| Sour Service | Material route and document package reviewed according to customer specification |
Common sealing parts include top seal, front seal, ram rubber, side sealing components, seal retaining parts and BOP ram seal kit. Since rubber parts age during storage and field operation, many customers order extra BOP ram seal kits together with the shear ram assembly.
Forged and Cast Ram Options
Different BOP ram products may use forged or cast structures according to pressure rating, BOP model, customer requirement and original design. For shear ram assemblies, many oilfield customers prefer high-strength forged material because the ram must handle cutting force and well control duty.
| Structure Option | Typical Selection Reason |
| Forged Ram Body | Preferred for high-strength replacement or demanding well control service |
| Cast Ram Body | Used when the original BOP design or customer requirement allows it |
| Customized Structure | Used when the buyer provides drawing, sample or exact replacement dimensions |
Quality Control and Inspection
BOP spare parts directly affect well control safety. For this reason, key dimensions and replacement features need careful review before shipment.
| Inspection Item | Purpose |
| Material Review | Confirms material direction according to order requirement |
| Dimension Inspection | Checks key sizes and replacement matching |
| Ram Block Profile Check | Confirms shape, guide surface and cavity fit |
| Sealing Groove Check | Reviews front seal and top seal installation areas |
| Cutting Area Check | Confirms machining quality of the cutting structure |
| Hardness Check | Provided when required by order or project specification |
| Visual Inspection | Checks surface quality before packing |
| Packing Inspection | Confirms export protection and item marking |
| Document Review | Confirms required certificates and reports before shipment |
For special oilfield projects, additional inspection requirements can be arranged according to the purchase order, technical agreement or end-user specification. Buyers may request material certificates, dimensional reports, photos, inspection records or third-party inspection support before delivery.
Documents Available for Oilfield Projects
SGPE can prepare documents according to project requirements and order scope.
| Document | Availability |
| Commercial Invoice | Available |
| Packing List | Available |
| Certificate of Conformity | Available when required |
| Material Certificate | Available when applicable |
| Dimensional Inspection Report | Available when required |
| Product Photos | Available before shipment |
| Packing Photos | Available before shipment |
| Operation or Maintenance Information | Available when applicable |
| Third-Party Inspection Support | Available according to project agreement |
If the end user requires MTC, hardness record, third-party inspection or a special oilfield document package, please send the document list before quotation. This helps SGPE include document requirements in the offer.
Packaging and Shipment
SGPE packs API 16A BOP Shear Ram Assembly with export protection. Since the ram assembly includes machined surfaces, cutting areas and rubber sealing parts, proper packing helps reduce collision, corrosion and deformation during transportation.
Common packing options include anti-rust protection for metal surfaces, plastic film wrapping, soft protection for machined areas, strong wooden case, clear item marking, project number marking, packing list support and export shipment support.
For heavy ram assemblies, SGPE can arrange reinforced wooden cases according to actual weight and dimensions. Customers may also request special shipping marks, item tags or warehouse labels for easy identification after arrival at the drilling base, oilfield warehouse or BOP repair workshop.
RFQ Information Required for Fast Quotation
To quote the correct API 16A BOP Shear Ram Assembly, the following information is helpful.
| Required Information | Why It Matters |
| BOP Model | Confirms ram cavity and structure |
| BOP Type | Confirms single, double or three ram BOP arrangement |
| Nominal Bore Size | Confirms basic BOP size |
| Working Pressure | Confirms pressure rating and material requirement |
| Required Ram Type | Confirms shear ram, blind shear ram, BSR or other ram type |
| Pipe OD | Confirms shearing and sealing requirement |
| Pipe Grade | Affects shear requirement |
| Pipe Wall Thickness | Affects shearing force and ram selection |
| Service Condition | Confirms standard, sour, high-temperature or low-temperature oilfield service |
| Quantity | Helps production and packing planning |
| Spare Seal Requirement | Helps prepare ram rubber, front seal and top seal together |
| Old Part Number | Speeds up matching if available |
| Nameplate Photo | Helps confirm BOP model and pressure rating |
| Old Ram Photo | Helps compare structure and dimensions |
| Delivery Destination | Helps estimate packing and shipping method |
| Required Documents | Helps prepare oilfield project document package |
If the exact model is unclear, photos and measurements can still help SGPE suggest a suitable quotation direction.
Common RFQ Terms and Matching Direction
Oilfield buyers use different terms when they look for a BOP shear ram assembly. The table below helps match common RFQ wording with the correct product direction.
| Buyer Search Term | What Buyers Usually Need |
| API 16A BOP Shear Ram Assembly | Complete shear ram assembly for API 16A ram BOP |
| BOP Shear Ram Assembly | Ram assembly used for pipe shearing inside oilfield BOP stack |
| Blowout Preventer Shear Ram | Shear ram for oilfield blowout preventer |
| Blind Shear Ram Assembly | Ram assembly that shears pipe and helps seal the bore |
| BSR Assembly | Blind shear ram assembly for ram BOP |
| Shear Ram for Blowout Preventer | Replacement shear ram for oilfield BOP |
| BOP Ram Assembly | Complete ram block and sealing assembly |
| API 16A Ram BOP Parts | Replacement ram parts for API 16A blowout preventer |
| Ram BOP Parts | Replacement parts for ram type blowout preventer |
| Ram BOP Spare Parts | Spare parts for BOP maintenance and replacement |
| BOP Shear Ram Block | Main ram block for shear ram assembly |
| BOP Shear Ram Replacement | Replacement shear ram for BOP repair or overhaul |
| BOP Ram Rubber | Rubber sealing element for ram assembly |
| BOP Ram Seal Kit | Front seal, top seal and ram rubber package |
| BOP Top Seal | Upper sealing part for the BOP ram |
| BOP Front Seal | Front sealing rubber for ram closure |
| U Type BOP Shear Ram | Shear ram for U type ram BOP structure |
| SH Type BOP Shear Ram | Shear ram for SH type ram BOP structure |
| H2S Resistant BOP Ram | Ram for sour oil and gas field service |
| Sour Service BOP Ram | BOP ram for H2S or sour gas well condition |
| BOP Replacement Ram | Replacement ram for oilfield BOP repair or maintenance |
| BOP Stack Spare Parts | Spare parts package for drilling BOP stack maintenance |
Why Choose SGPE
SGPE supplies oilfield well control equipment and API 16A ram BOP parts for drilling, workover, well testing, completion, well intervention, wellhead pressure control and BOP maintenance. For shear ram replacement projects, buyers need more than a product name. They need correct matching, stable quality, clear technical communication and reliable support before quotation.
SGPE can provide a full range of BOP ram assembly options for different ram BOP structures, bore sizes and pressure ratings. Before quotation, our team reviews the BOP model, drawing, sample, nameplate or old ram photos to help confirm the replacement direction. This technical review helps customers reduce the risk of wrong selection, field mismatch and unnecessary modification during BOP maintenance.
For different oilfield service conditions, SGPE can support standard service, H2S-resistant service and sour service requirements according to the project specification. In addition to API 16A BOP Shear Ram Assembly, we can also supply ram rubbers, top seals, front seals, BOP ram seal kits and other ram BOP spare parts as a package.
This helps drilling contractors, workover contractors, well testing companies, wellhead service providers, pressure control teams and oilfield spare parts distributors prepare compatible parts for repair, overhaul and field operation.
Frequently Asked Questions About API 16A BOP Shear Ram Assemblies
1. What is an API 16A BOP Shear Ram Assembly used for?
An API 16A BOP Shear Ram Assembly helps a ram type blowout preventer cut specified drill pipe, tubing or oilfield tubulars during emergency well control operations. Drilling contractors, workover teams and wellhead pressure control companies use it when the BOP stack needs fast closure and pressure isolation. It plays an important role in oil and gas drilling, workover, well testing, completion, well intervention and BOP stack maintenance.
2. What parts are included in a BOP shear ram assembly?
A BOP shear ram assembly usually includes the ram block, cutting structure, ram rubber, front seal, top seal and related retaining parts. The exact assembly scope depends on the BOP model, ram cavity and original structure.
Some customers need a complete shear ram assembly, while others only need replacement ram rubber, BOP front seal, BOP top seal or a shear ram block. SGPE can review old ram photos or drawings before confirming the supply scope.
3. What is the difference between a shear ram assembly and a blind shear ram assembly?
A shear ram assembly mainly cuts specified drill pipe, tubing or tubulars inside the BOP bore. By comparison, a blind shear ram assembly, also called a BSR assembly, cuts the tubular and also helps seal the bore after closure. Because blind shear rams need both cutting and sealing performance, buyers should confirm the BOP model, pressure rating, pipe data, sealing profile and service condition before ordering.
4. Can I select a BOP shear ram assembly only by bore size and pressure rating?
No. Bore size and pressure rating only provide the basic direction. A correct BOP shear ram replacement also needs the BOP model, ram cavity size, front seal profile, top seal groove, guide surface, closing direction and old ram structure. For example, two 13-5/8 inch 10,000 psi ram BOPs may use different ram cavities and sealing designs. SGPE recommends sending the BOP nameplate, old ram photos and key dimensions before quotation.
5. What pipe data should I provide for shear ram selection?
Please provide the pipe outside diameter, pipe grade, wall thickness and tubular type. These details help SGPE review the shearing condition and choose the proper BOP shear ram assembly.
If the application involves drill pipe, tubing, casing, heavy wall pipe, tool joint or a special upset area, please mention it clearly. Pipe grade and wall thickness can affect the required shearing force, so they should not be ignored in a shear ram RFQ.
6. What bore sizes and pressure ratings can SGPE supply?
SGPE supplies common BOP shear ram assembly options for 7-1/16 inch, 11 inch, 13-5/8 inch, 16-3/4 inch, 18-3/4 inch and 21-1/4 inch ram BOPs. Common pressure ratings include 2,000 psi, 3,000 psi, 5,000 psi, 10,000 psi and 15,000 psi. SGPE can also review old BOP models, special bore sizes and replacement shear ram requirements according to drawings, samples or nameplate information.
7. Can SGPE supply shear ram assemblies for U type and SH type BOP?
Yes. SGPE can supply compatible shear ram assembly options for U type BOP, SH type BOP and other common oilfield ram BOP structures. Since different BOP designs may use different ram widths, seal grooves and rubber profiles, SGPE checks the actual structure before confirming compatibility. For replacement orders, please send the BOP model, bore size, working pressure, old ram photos and required ram type.
8. Can SGPE provide H2S-resistant BOP shear ram assemblies?
Yes. SGPE can provide H2S-resistant BOP ram options for sour oil and gas field service. If the well contains H2S, sour gas or corrosive well fluids, please mention the sour service requirement during the RFQ stage.
Then, SGPE can review the material route, sealing material, service condition and document requirement according to the customer’s specification. Buyers may also request related ram rubber, front seal and top seal options for sour service.
9. Can SGPE supply BOP ram rubber, front seal and top seal separately?
Yes. SGPE can supply BOP ram rubber, front seal, top seal and BOP ram seal kits separately for oilfield BOP maintenance. Many customers order these parts together with a complete BOP shear ram assembly because rubber parts may age during storage or field operation.
If you only need sealing parts, please provide the BOP model, old seal photos, ram type and dimensions. This helps reduce the risk of wrong rubber or seal selection.
10. How does SGPE check compatibility for a BOP replacement ram?
SGPE checks the BOP nameplate, ram cavity, old ram assembly photos, seal groove, front seal shape, top seal profile and key dimensions. If the original part number is missing, SGPE can still review the old ram structure and suggest a practical replacement direction. This process helps drilling contractors, oilfield service bases and BOP repair workshops avoid field mismatch, delayed installation and unnecessary modification.
11. What documents can SGPE provide for API 16A BOP shear ram assembly orders?
SGPE can prepare project documents according to the order scope and customer requirement. Common documents include commercial invoice, packing list, certificate of conformity, material certificate when applicable, dimensional inspection report when required, product photos and packing photos. If the end user requires MTC, hardness record, inspection report, third-party inspection or a special oilfield document package, please send the document list before quotation.
12. What information should I send to get a fast quotation?
To get a faster and more accurate quotation, please send the BOP model, BOP type, nominal bore size, working pressure, required ram type, pipe OD, pipe grade, wall thickness, service condition, quantity and delivery destination.
For replacement projects, please also send the BOP nameplate, old shear ram assembly photos, seal photos, part number or drawing. With these details, SGPE can check the ram cavity, seal profile, pressure rating and replacement direction before offering a suitable API 16A BOP Shear Ram Assembly solution.
Request a Quote for API 16A BOP Shear Ram Assembly
For replacement orders, please also send the BOP nameplate, old ram photos, part number or drawing. SGPE will review the ram cavity, seal profile, pressure rating and replacement direction, then recommend a suitable BOP shear ram assembly solution for your drilling, workover, well testing, completion, well intervention or wellhead pressure control project.
E-Mail:
info@sgpe.com
