Description

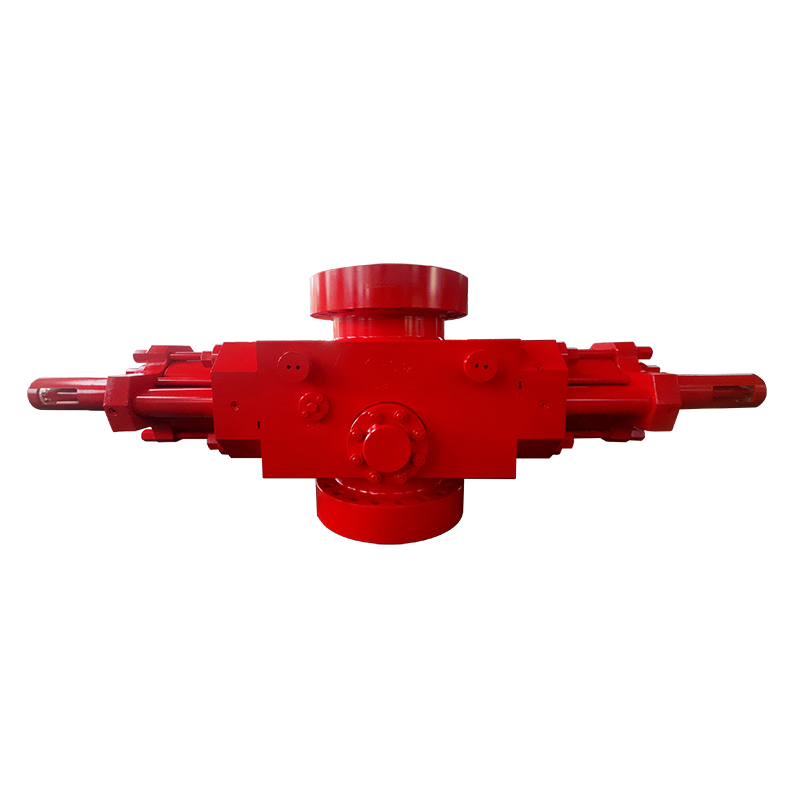

API 16A Single Ram BOP Blowout Preventer for Oilfield Well Control
SGPE API 16A Single Ram BOP Blowout Preventer is a compact ram-type device for oilfield well control and pressure control. It helps rig crews close around drill pipe, tubing or casing, seal an open bore, or provide one dedicated emergency barrier in a surface BOP stack.
A single ram BOP has one ram cavity inside the body. This cavity can be equipped with pipe rams, blind rams, variable bore rams, shear rams or blind shear rams according to the operation plan. Because of this one-ram structure, the FZ Single Ram BOP is a practical choice when a BOP stack needs one clear sealing or shearing function without adding unnecessary height.
Buyers may also describe this product as API 16A Single Ram BOP, FZ Single Ram BOP, Single Ram Blowout Preventer, Oilfield Single Ram BOP, Drilling Ram BOP, Workover Ram BOP, Pipe Ram BOP, Blind Ram BOP, Shear Ram BOP and BOP Stack Ram Preventer.
For replacement projects, SGPE can review the old BOP nameplate, stack drawing, connection photos and ram requirements before quotation. This helps buyers avoid wrong connections, incorrect ram selection and stack height problems before production starts.
Quick Specifications
| Item | SGPE Supply Range |
|---|---|
| Product Name | API 16A Single Ram BOP Blowout Preventer |
| BOP Type | FZ Single Ram BOP / Single Ram Blowout Preventer |
| Standard | API Spec 16A |
| Main Use | Drilling, workover, well testing, completion and wellhead control |
| Common Bore Size | 7-1/16 in, 9 in, 11 in, 13-5/8 in, 16-3/4 in, 18-3/4 in, 20-3/4 in, 21-1/4 in |
| Working Pressure | 2,000 psi, 3,000 psi, 5,000 psi, 10,000 psi, 15,000 psi |
| Ram Options | Pipe ram, blind ram, variable bore ram, shear ram, blind shear ram |
| Locking Type | Manual locking or hydraulic locking |
| Body Type | Forged body or casting body, depending on model and pressure rating |
| Hydraulic Control Rated Pressure | Commonly 3,000 psi / 20.7 MPa |
| Recommended Hydraulic Operating Pressure | Commonly 1,218–1,524 psi / 8.4–10.5 MPa |
| Service Condition | Standard service, sour service, H2S service after confirmation |
| Documents | MTC, pressure test report, dimensional report, COC, manual and inspection report |
What Is a Single Ram BOP?
A Single Ram BOP is a blowout preventer with one set of ram blocks inside the BOP body. When the BOP control unit sends hydraulic pressure to the closing chamber, the ram blocks move toward the bore center. Then the selected ram type closes around the tubular, seals the open bore or cuts the tubular according to the BOP configuration.
Compared with a double ram BOP, a single ram BOP has a simpler body structure and lower stack height. It also makes ram replacement, seal inspection and routine maintenance easier. In many surface well control systems, it works together with an annular BOP, double ram BOP, drilling spool, adapter spool, choke manifold, kill manifold, casing head or wellhead connector.
Because of its compact design, a single ram preventer often works as one dedicated barrier in the stack. It gives the system a defined function, such as pipe sealing, blind sealing, variable bore sealing or emergency shearing support.
When to Choose a Single Ram BOP
A single ram BOP is suitable when the BOP stack needs one specific ram function and the project does not require two ram cavities in the same body. It is often selected for compact workover stacks, well testing packages, wellhead service operations, replacement projects and pressure control packages where stack height matters.
| Selection Scenario | Why a Single Ram BOP Fits |
| One ram function is required | The BOP can carry pipe ram, blind ram, variable bore ram or shear ram according to the job |
| Stack height is limited | The one-cavity body helps keep the stack more compact |
| Workover or testing package needs one barrier | The design provides a defined sealing or shearing function |
| Existing BOP needs replacement | The single ram structure can match old stack height and connection layout more easily |
| Maintenance access needs to stay simple | One ram cavity makes inspection and ram replacement more direct |
For drilling stacks that require two ram functions in one body, a double ram BOP may be more suitable. SGPE can review the stack layout and recommend the right BOP type according to the actual operation plan.

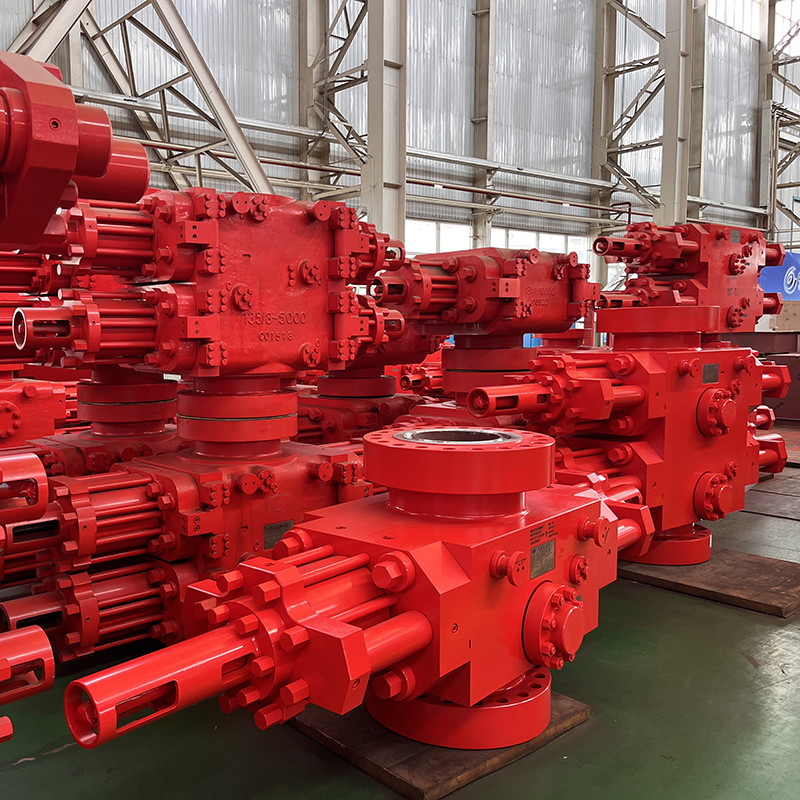

API 16A Single Ram BOP Blowout Preventer for Field Operations
Drilling and workover operations need reliable well control equipment because well conditions can change quickly. During drilling, the BOP stack helps control kicks, shut in the well and support circulation through choke and kill lines. During workover and completion, the BOP helps crews manage pressure while they run or pull tubing, casing, plugs, packers and downhole tools.
SGPE API 16A Single Ram BOP Blowout Preventer supports new BOP stacks, replacement BOP projects, wellhead service packages and pressure control equipment packages. In compact workover or testing stacks, the single ram design adds a useful barrier while keeping the stack arrangement simple.
Main Functions of SGPE Single Ram BOP
The selected ram assembly determines how the Single Ram BOP works in the field.
Pipe rams close around a specific drill pipe, tubing or casing size. They seal the annular space between the tubular and the BOP bore. This option suits drilling and workover jobs where the pipe size remains clear in the operation program.
Blind rams close and seal the bore when no pipe stays inside the BOP. Crews often use blind rams during open-bore wellhead work, BOP stack testing, pressure isolation and completion preparation.
Variable bore rams seal around a selected range of tubular sizes. They reduce ram changes when one job involves several drill pipe, tubing or casing sizes.
Shear rams or blind shear rams cut tubulars and help close the wellbore when the BOP body, ram assembly and hydraulic control system support the required shear capacity. SGPE checks pipe OD, pipe grade, wall thickness, tool joint details and available hydraulic pressure before confirming a shear ram BOP.
Available API 16A Single Ram BOP Models
| Model Direction | Bore Size | Working Pressure | Common Ram Options | Typical Oilfield Use |
| FZ18-21 | 7-1/16 in | 3,000 psi | Pipe ram, blind ram | Compact workover and wellhead service |
| FZ18-35 | 7-1/16 in | 5,000 psi | Pipe ram, blind ram, shear ram | Workover, well testing and pressure control |
| FZ18-70 | 7-1/16 in | 10,000 psi | Pipe ram, shear ram | High-pressure compact BOP stack |
| FZ18-105 | 7-1/16 in | 15,000 psi | Shear ram, blind shear ram | High-pressure pressure control service |
| FZ28-35 | 11 in | 5,000 psi | Pipe ram, blind ram, shear ram | Land drilling and wellhead control |
| FZ28-70 | 11 in | 10,000 psi | Pipe ram, shear ram | High-pressure drilling BOP stack |
| FZ28-105 | 11 in | 15,000 psi | Shear ram, blind shear ram | High-pressure petroleum projects |
| FZ35-35 | 13-5/8 in | 5,000 psi | Pipe ram, blind ram, shear ram | Standard drilling BOP stack |
| FZ35-70 | 13-5/8 in | 10,000 psi | Pipe ram, shear ram | Drilling and well control operations |
| FZ35-105 | 13-5/8 in | 15,000 psi | Shear ram, blind shear ram | Critical high-pressure drilling service |
| FZ43-35 | 16-3/4 in | 5,000 psi | Pipe ram, shear ram | Large-bore oilfield drilling |
| FZ54-35 | 21-1/4 in | 5,000 psi | Pipe ram, shear ram | Large wellhead and drilling service |
| FZ54-70 | 21-1/4 in | 10,000 psi | Pipe ram, shear ram | Large-bore high-pressure BOP stack |
Many RFQs mention model and specification together, such as 7-1/16 in 5000 psi Single Ram BOP, 11 inch 10000 psi FZ Ram BOP, 13-5/8 in 5000 psi Single Ram BOP or 13-5/8 in 10000 psi API 16A Ram BOP. Sending the model direction helps SGPE identify the correct pressure rating, bore size and ram configuration faster.
Common Bore Sizes and Pressure Ratings
| Common Bore Size | Typical Working Pressure Options | Application Direction |
| 7-1/16 in | 3,000 psi, 5,000 psi, 10,000 psi, 15,000 psi | Workover rigs, well testing packages and compact BOP stacks |
| 9 in | 3,000 psi, 5,000 psi, 10,000 psi | Drilling and workover pressure control |
| 11 in | 3,000 psi, 5,000 psi, 10,000 psi, 15,000 psi | Land drilling rigs, wellhead service and BOP stack systems |
| 13-5/8 in | 2,000 psi, 3,000 psi, 5,000 psi, 10,000 psi, 15,000 psi | Drilling BOP stacks and surface well control |
| 16-3/4 in | 5,000 psi | Large-bore drilling service |
| 18-3/4 in | 10,000 psi, 15,000 psi | High-pressure drilling BOP stacks |
| 20-3/4 in | 3,000 psi | Large-bore wellhead pressure control |
| 21-1/4 in | 2,000 psi, 5,000 psi, 10,000 psi | Large wellhead and drilling operations |
SGPE can also review special bore requirements. In some projects, the bore can increase according to operation needs, as long as the final design meets pressure rating, sealing performance and API 16A requirements.
Ram Type Selection Guide
The ram type determines how the Single Ram BOP works in the stack. Buyers should select the ram according to the pipe condition, sealing purpose and emergency control requirement.
| Ram Type | Main Function | Typical Use | Key Information to Confirm |
| Pipe Ram | Seals around a fixed pipe OD | Drilling, workover, tubing and casing operations | Pipe OD, pipe type, working pressure |
| Blind Ram | Seals the open bore | Open-bore wellhead work, BOP testing and isolation | Bore size, pressure rating, closing requirement |
| Variable Bore Ram | Seals around a selected pipe size range | Jobs with several drill pipe or tubing sizes | Minimum and maximum pipe OD, pressure rating |
| Shear Ram | Cuts tubulars after engineering confirmation | Emergency well control planning | Pipe OD, grade, wall thickness, hydraulic pressure |
| Blind Shear Ram | Cuts pipe and helps seal the bore | Critical high-pressure applications | Shear condition, well pressure, hydraulic capacity |
API 16A Design and Manufacturing Standard
SGPE API 16A Single Ram BOP Blowout Preventer follows API Spec 16A requirements for blowout prevention equipment. SGPE controls the BOP body, bonnet, ram blocks, sealing parts, operating system and pressure-containing components through defined manufacturing and inspection steps.
Temperature class also matters during selection. For many conventional ratings below 15,000 psi, projects often use T-20/250. For 15,000 psi and higher pressure service, some specifications require T-75/250 or another agreed class. SGPE confirms the final temperature class according to the contract, elastomer selection, working pressure and fluid condition.
Technical Configuration Options
Different projects may require different body types, locking methods, connection arrangements and service conditions. SGPE reviews these details before quotation.
| Configuration Item | Available or Common Options | Selection Note |
| Body Type | Forged body, casting body | Forged body is recommended for high-pressure or stricter service |
| Locking Type | Manual locking, hydraulic locking | Confirm according to rig operation and control system requirement |
| Top Connection | Flanged, studded, clamp hub or customized | Must match the upper stack component |
| Bottom Connection | Flanged, studded, clamp hub or customized | Must match wellhead, spool or adapter |
| Side Outlet | Available according to model | Confirm size, pressure and connection type |
| Service Condition | Standard, sour service, H2S service | Sour service requires material and document review |
| Temperature Class | T-20/250, T-75/250 or project-specific | Confirm according to operating condition and contract requirement |
| Documentation | Standard or project-specific package | Confirm API, MTC, test report, ITP and third-party inspection needs |

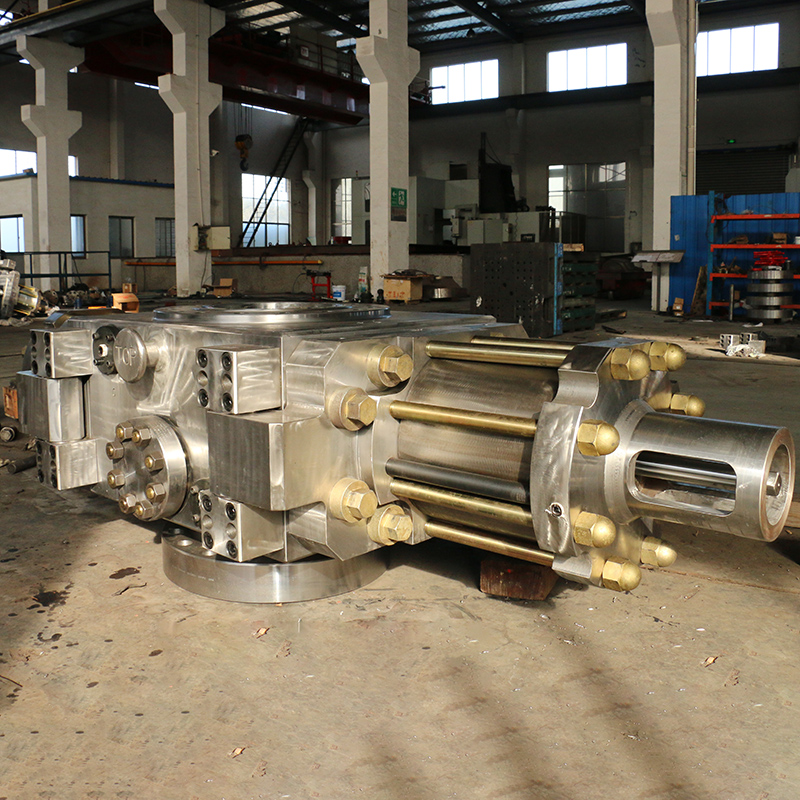

Forged Body and Casting Body Options
SGPE mainly recommends forged body Single Ram BOPs for high-pressure drilling, sour service and stricter well control projects. Forged pressure-containing parts provide strong mechanical performance and better suitability for demanding field service.
Casting body options can work for selected standard applications after technical confirmation. Before recommending the final body type, SGPE checks pressure rating, service condition, inspection level and end-user specification.
For high-pressure BOP stack projects, H2S service, 10,000 psi service or 15,000 psi service, buyers should send the full technical specification. SGPE can then confirm material, body structure, seal system and document scope before quotation.

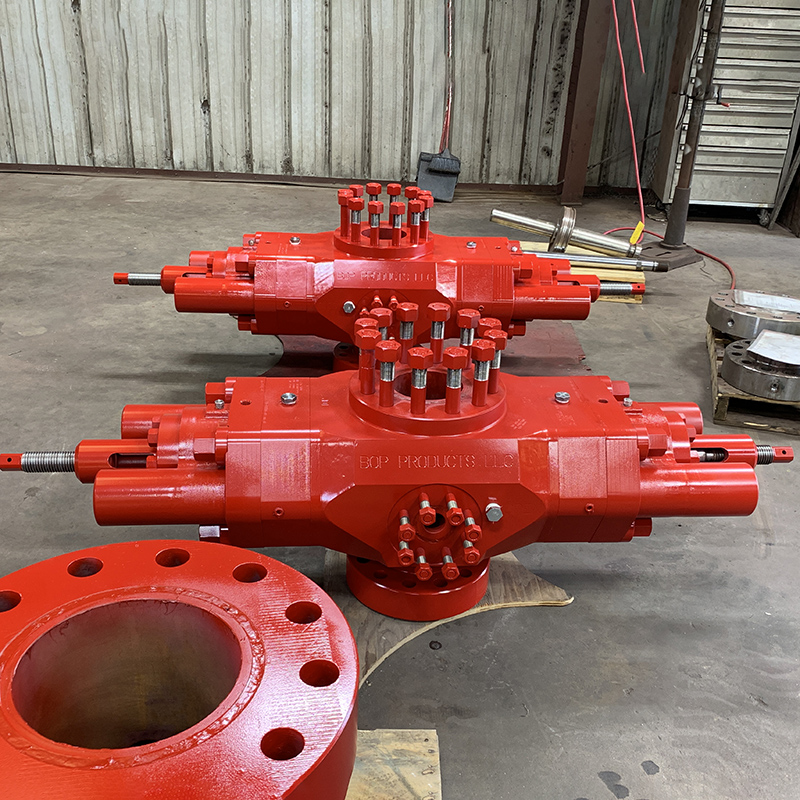

Ram Options for Oilfield Operations
Pipe Ram BOP
A pipe ram BOP closes around a defined pipe OD. It gives a reliable seal when drill pipe, tubing or casing stays in the wellbore. Buyers usually choose pipe rams for drilling, tubing workover, casing operations and well intervention jobs.
Blind Ram BOP
A blind ram BOP closes the open bore when no pipe passes through the BOP. Crews use blind rams during BOP stack testing, wellhead isolation, completion preparation and open-bore pressure control procedures.
Blind rams should not close on pipe unless the BOP uses a blind shear ram design. Therefore, buyers should confirm the actual field function before ordering.
Variable Bore Ram BOP
A variable bore ram BOP seals around a range of pipe sizes. This option helps reduce ram changes when the job involves different drill pipe, tubing or casing ODs.
However, the buyer still needs to confirm the pipe size range, pressure rating, sealing requirement and service condition. SGPE can review the operation program and recommend a suitable ram range.
Shear Ram BOP
A shear ram BOP cuts tubulars and helps seal the wellbore during emergency well control situations. This option requires careful engineering review.
SGPE must check pipe OD, pipe grade, wall thickness, tool joint limitation, available hydraulic pressure and expected shear condition before confirming the final proposal.
Oilfield Applications
SGPE API 16A Single Ram BOP Blowout Preventer mainly serves surface well control and pressure control environments.
| Application | How the Single Ram BOP Supports the Operation |
| Drilling | Helps shut in the well during kicks and supports surface BOP stack control |
| Workover | Helps manage pressure while crews run or pull tubing, tools and completion parts |
| Well Testing | Supports temporary pressure control packages and wellbore isolation |
| Completion | Helps maintain a controlled barrier during completion string and tubing operations |
| Wellhead Service | Supports casing head work, tubing head operations and field-site pressure control |
| Replacement Projects | Helps match existing stack height, connection dimensions and ram requirements |
Single Ram BOP vs Double Ram BOP
A Single Ram BOP has one ram cavity. It suits a stack that needs one dedicated function, such as pipe sealing, blind sealing or shearing. It also helps reduce stack height and simplify maintenance.
A Double Ram BOP has two ram cavities in one body. It suits a stack that needs two ram functions, such as pipe ram plus blind ram, pipe ram plus shear ram, or two different pipe ram sizes.
| Comparison Item | Single Ram BOP | Double Ram BOP |
| Ram Cavity | One ram cavity | Two ram cavities |
| Main Purpose | One dedicated ram function | Two ram functions in one body |
| Stack Height | Lower and more compact | Higher than single ram design |
| Maintenance Access | Easier access for one ram set | More parts to inspect and maintain |
| Typical Use | Workover, testing, replacement or one-function barrier | Drilling stack with multiple ram functions |
| Cost Direction | Usually more economical for one function | Higher cost but more functions |
For compact workover stacks, well testing packages and replacement projects, buyers often choose a single ram BOP when one ram function is enough. For drilling stacks with multiple barriers in one body, buyers may choose a double ram BOP. SGPE can review the stack layout and recommend the right BOP type.
Connection Options
A Single Ram BOP must match the wellhead, drilling spool, adapter spool, casing head or other stack components. Therefore, connection confirmation matters before production.
| Connection Item | What to Confirm | Why It Matters |
| Top Connection | Flange, studded or hub type | Must match the upper BOP stack component |
| Bottom Connection | Flange, studded or hub type | Must match wellhead, casing head or adapter spool |
| Ring Gasket Groove | RX, BX or project-specific groove | Prevents sealing mismatch |
| Bolt / Stud Size | Size, grade and quantity | Supports correct installation |
| Face-to-Face Dimension | Overall stack height requirement | Helps avoid rig-up problems |
| Side Outlet | Size, pressure and connection | Supports choke, kill or auxiliary lines if required |
For replacement projects, SGPE recommends sending the stack drawing or connection sketch. This helps the technical team avoid confusion between flanged, studded, hub and special connections.
Common Buyer Search Terms and RFQ Meanings
Oilfield buyers may describe the same product in different ways. The tables below help match common search terms, RFQ wording and specification-based inquiries with the correct API 16A Single Ram BOP direction.
General Product and Application Search Terms
| Buyer Search Term | What Buyers Usually Need |
|---|---|
| API 16A Single Ram BOP Blowout Preventer | API 16A ram-type BOP with one ram cavity for well control service |
| API 16A Single Ram BOP | Single ram preventer for drilling, workover or wellhead control |
| FZ Single Ram BOP | FZ type single ram blowout preventer with pipe, blind or shear ram option |
| Single Ram Blowout Preventer | Compact ram BOP with one dedicated ram function |
| Single Ram BOP Supplier | Supplier that can provide BOP model, ram type, connection and documents |
| API 16A BOP Manufacturer | Manufacturer or supplier of API 16A blowout prevention equipment |
| Oilfield Single Ram BOP | Single ram BOP for drilling, workover and testing service |
| Drilling Ram BOP | Ram BOP used in surface drilling BOP stacks |
| Workover Ram BOP | Compact BOP for workover rigs and well intervention operations |
| BOP Stack Ram Preventer | Ram-type BOP installed as part of a surface BOP stack |
| Well Control BOP | Blowout preventer used to control well pressure during field operations |
Ram Type, Size and Pressure RFQ Terms
| Buyer Search Term | What Buyers Usually Need |
| Pipe Ram BOP | BOP fitted with pipe rams to seal around drill pipe, tubing or casing |
| Blind Ram BOP | BOP fitted with blind rams to seal the open bore |
| Shear Ram BOP | BOP fitted with shear rams or blind shear rams after engineering review |
| Variable Bore Ram BOP | Ram BOP that seals around a selected range of pipe sizes |
| 7-1/16 in 5000 psi Single Ram BOP | FZ18-35 or similar compact BOP requirement |
| 7-1/16 in 10000 psi Single Ram BOP | FZ18-70 or similar high-pressure compact BOP requirement |
| 11 inch 5000 psi Single Ram BOP | FZ28-35 or similar land drilling and wellhead service requirement |
| 11 inch 10000 psi FZ Ram BOP | FZ28-70 or similar high-pressure drilling BOP requirement |
| 13-5/8 in 5000 psi Single Ram BOP | FZ35-35 or similar standard drilling stack requirement |
| 13-5/8 in 10000 psi API 16A Ram BOP | FZ35-70 or similar high-pressure drilling requirement |
| API 16A BOP Spare Parts | Ram blocks, ram rubbers, bonnet seals, piston seals and seal kits |
How to Select the Right API 16A Single Ram BOP Blowout Preventer
Start with bore size and working pressure. The BOP bore must match the wellhead or stack bore, while the pressure rating must meet the maximum expected well pressure and end-user requirement.
Next, choose the ram type. Pipe rams suit known drill pipe, tubing or casing sizes. Blind rams suit open-bore sealing. Variable bore rams support several tubular sizes. Shear rams suit emergency cutting and sealing requirements after engineering confirmation.
Then, confirm the connection. Top and bottom connections must match the existing stack. Side outlets also need review when the stack requires choke and kill connections or auxiliary pressure control lines.
After that, define the field condition. Sour service, H2S service, low-temperature service or high-temperature service can affect material selection, elastomer selection, testing scope and documentation.
Finally, confirm certificates and inspection documents. Many end users require API 16A compliance documents, MTC, hydrostatic pressure test report, NACE statement, dimensional report, assembly report and operation manual.
Suggested RFQ Information
To receive a faster and more accurate quotation from SGPE, please send the following details:
| RFQ Item | Information Needed |
| BOP Type | Single ram BOP, pipe ram BOP, blind ram BOP or shear ram BOP |
| Model | FZ18-35, FZ18-70, FZ28-35, FZ28-70, FZ35-35, FZ35-70 or other model |
| Bore Size | Such as 7-1/16 in, 11 in, 13-5/8 in or 18-3/4 in |
| Working Pressure | Such as 3,000 psi, 5,000 psi, 10,000 psi or 15,000 psi |
| Ram Requirement | Pipe ram size, blind ram, variable bore ram, shear ram or blind shear ram |
| Connection | Top connection, bottom connection, flange, studded or hub type |
| Side Outlet | Size, pressure rating and connection type if required |
| Service Condition | Standard service, sour service, H2S service, temperature class |
| Documents | API documents, MTC, pressure test report, COC, manual and ITP |
| Quantity | Required number of BOP units and spare ram sets |
| Destination | Delivery country, port or project site |
For shear ram selection, please also send pipe OD, pipe grade, wall thickness, tool joint information and expected shear condition. This information helps SGPE check whether the selected BOP and hydraulic system can meet the field requirement.
Inspection and Test Data
SGPE controls each API 16A Single Ram BOP Blowout Preventer through material inspection, machining control, dimensional inspection, assembly inspection and pressure testing. The inspection scope can follow the buyer’s ITP, contract requirement or end-user specification.
| Inspection / Test Item | Purpose | Typical Document |
| Material Review | Checks material grade and traceability | MTC / material certificate |
| Heat Treatment Review | Confirms heat treatment process and records | Heat treatment report |
| NDE Inspection | Checks critical pressure-containing parts | UT, MPI, LPI or related report |
| Dimensional Inspection | Confirms bore, connection and key dimensions | Dimensional report |
| Hydrostatic Body Test | Checks pressure-containing integrity | Pressure test report |
| Ram Sealing Test | Checks sealing performance of selected ram | Functional / sealing test report |
| Function Test | Confirms opening, closing and locking function | Functional test report |
| Final Visual Inspection | Checks appearance, marking and packing status | Final inspection report |
| Third-Party Inspection | Supports end-user or tender requirement | SGS, BV, TUV, DNV, ABS or other report |
Documents Available
SGPE can provide a document package according to the order requirement.
| Document | When Buyers Usually Need It |
| Material Test Certificate | For material traceability and technical review |
| Hydrostatic Pressure Test Report | For pressure-containing equipment acceptance |
| Functional Test Report | For opening, closing and ram function review |
| Dimensional Inspection Report | For connection and stack matching |
| NACE MR0175 / ISO 15156 Statement | For sour service or H2S service projects |
| Certificate of Conformity | For order delivery and project records |
| Operation and Maintenance Manual | For field operation and maintenance planning |
| Packing List and Commercial Documents | For shipping, customs and warehouse receiving |
| Third-Party Inspection Report | For projects requiring SGS, BV, TUV, DNV or ABS |
For tender projects, SGPE can also support technical data sheets, general arrangement drawings, spare parts lists and document review before production.
Spare Parts for API 16A Single Ram BOP
| Spare Part Category | Common Items | RFQ Information Needed |
| Ram Assembly Parts | Pipe ram blocks, blind ram blocks, shear ram blocks, variable bore ram blocks | BOP model, bore size, ram size |
| Sealing Parts | Ram rubbers, bonnet seals, piston seals, hydraulic seals | Seal type, quantity, service condition |
| Locking Parts | Locking screws, locking mechanism parts | Locking type and BOP model |
| Fasteners | Studs, nuts and related hardware | Size, grade, quantity |
| Maintenance Kits | Seal kits and repair kits | Model, pressure rating, required kit scope |
For spare parts inquiries, buyers should send the BOP model, bore size, working pressure, ram size, part name and quantity. When buyers need interchangeable parts for an existing BOP, photos, drawings and old part dimensions help SGPE check compatibility faster.
Operation and Maintenance Support
A Single Ram BOP needs regular inspection and correct maintenance to stay reliable in pressure control service. SGPE recommends checking ram blocks, ram rubbers, bonnet seals, hydraulic seals, locking parts, connection faces and pressure-containing areas according to the rig maintenance schedule.
Operators should clean the ram cavity after field operation, especially when the BOP contacts drilling mud, sand, cement, acid fluid, completion fluid or corrosive fluid. They should also inspect sealing surfaces before pressure testing or before moving the BOP to the next wellsite.
During storage, the BOP should stay clean, dry and protected from impact. Flange faces and sealing grooves need suitable protection. Hydraulic ports should remain capped to avoid contamination. Spare ram blocks and seal kits should stay in marked packages for quick field replacement.
SGPE Supply Capability
SGPE supplies API 16A Single Ram BOP Blowout Preventer units for drilling contractors, oilfield service companies, wellhead equipment suppliers, EPC contractors and petroleum equipment distributors. As an oilfield BOP manufacturer and supplier, SGPE can support standard product supply, tender support, replacement supply and complete BOP stack matching.
For standard products, SGPE can recommend common bore and pressure combinations. For special projects, SGPE can review customized bore size, pressure rating, connection type, side outlet, ram arrangement, sour service requirement and document scope.
SGPE can also help buyers match related well control equipment, including annular BOP, double ram BOP, drilling spool, adapter spool, choke manifold, kill manifold, BOP control unit, BOP test unit, high-pressure hoses, ring gaskets, stud bolts and BOP spare parts.
FAQ About API 16A Single Ram BOP Blowout Preventers
1. What is an API 16A Single Ram BOP Blowout Preventer?
An API 16A Single Ram BOP Blowout Preventer is a ram-type well control device with one ram cavity inside the BOP body. It helps rig crews close around drill pipe, tubing or casing. It can also seal an open bore when the correct ram type is installed.
In drilling, workover, well testing and completion operations, this equipment works as one dedicated pressure barrier in the surface BOP stack. SGPE supplies FZ Single Ram BOP models with pipe ram, blind ram, variable bore ram, shear ram and blind shear ram options.
2. Where can an API 16A Single Ram BOP Blowout Preventer be used?
SGPE API 16A Single Ram BOP Blowout Preventer suits land drilling rigs, workover rigs, well testing packages, completion operations, snubbing support units and wellhead service jobs. It can work with an annular BOP, double ram BOP, drilling spool, adapter spool, casing head, choke manifold and kill manifold. Buyers often choose a single ram BOP when the stack needs one clear function without adding unnecessary height.
3. What is the difference between a Single Ram BOP and a Double Ram BOP?
A Single Ram BOP has one ram cavity and normally provides one main ram function. A Double Ram BOP has two ram cavities in one body, so it can combine two functions, such as pipe ram plus blind ram, pipe ram plus shear ram, or two different pipe ram sizes.
A single ram BOP works well when the BOP stack already has enough barriers and only needs one extra sealing or shearing function.
4. Which ram types can SGPE supply for a Single Ram BOP?
SGPE can supply pipe rams, blind rams, variable bore rams, shear rams and blind shear rams for API 16A Single Ram BOP applications. Pipe rams close around a fixed drill pipe, tubing or casing size. Blind rams seal the open bore. Variable bore rams cover a selected pipe size range.
Shear rams or blind shear rams can cut tubulars and help close the wellbore after SGPE confirms pipe OD, pipe grade, wall thickness and hydraulic capacity.
5. How should I select the correct bore size and pressure rating?
Start with the wellhead or BOP stack bore size, then match the working pressure to the operation program and end-user specification. Common bore sizes include 7-1/16 in, 9 in, 11 in, 13-5/8 in, 16-3/4 in, 18-3/4 in, 20-3/4 in and 21-1/4 in.
Common pressure ratings include 2,000 psi, 3,000 psi, 5,000 psi, 10,000 psi and 15,000 psi. Typical RFQs include 7-1/16 in 5000 psi Single Ram BOP, 11 inch 10000 psi FZ Ram BOP and 13-5/8 in 10000 psi API 16A Ram BOP.
6. Can SGPE supply FZ Single Ram BOP models?
Yes. SGPE can supply common FZ Single Ram BOP models for well control projects. Typical model directions include FZ18-35, FZ18-70, FZ28-35, FZ28-70, FZ35-35, FZ35-70, FZ35-105, FZ43-35, FZ54-35 and FZ54-70. These models cover different bore sizes, pressure ratings and ram options. Final selection depends on bore size, working pressure, ram type, connection, side outlet, service condition and document requirement.
7. Can SGPE supply a shear ram Single Ram BOP?
Yes. SGPE can review shear ram and blind shear ram requirements for API 16A Single Ram BOP projects. However, shear performance depends on several details, so buyers should not select it by pressure rating alone. Please provide pipe OD, pipe grade, wall thickness, tool joint information, expected shear condition, available hydraulic pressure and required working pressure.
SGPE will then check whether the selected shear ram BOP, ram assembly and control system can meet the field requirement.
8. Can SGPE supply API 16A Single Ram BOP for sour service or H2S service?
Yes. SGPE can review sour service and H2S service requirements for API 16A Single Ram BOP Blowout Preventer orders. For wells with H2S, CO2, sour gas or corrosive fluids, wetted parts can meet NACE MR0175 / ISO 15156 requirements after technical confirmation. Buyers should share the fluid condition, temperature class, material class, pressure rating and end-user specification. SGPE can then confirm material selection, elastomer selection, inspection scope and NACE-related documents.
9. What connection types are available for SGPE Single Ram BOP?
SGPE can supply flanged, studded, clamp hub and customized connection options according to the BOP stack design. The Single Ram BOP must match the wellhead, casing head, drilling spool, adapter spool or other stack equipment. Therefore, buyers should confirm top connection, bottom connection, pressure rating, ring gasket groove, bolt size and face-to-face dimension before ordering. For replacement projects, SGPE recommends sending the old BOP nameplate, stack drawing and connection photos.
10. What documents can SGPE provide for API 16A Single Ram BOP orders?
SGPE can provide a document package according to the contract and end-user requirement. Common documents include Material Test Certificate, hydrostatic pressure test report, functional test report, dimensional inspection report, assembly inspection report, Certificate of Conformity, operation and maintenance manual, packing list and commercial documents.
For sour service projects, SGPE can also provide NACE MR0175 / ISO 15156 statements when applicable. SGPE can also coordinate SGS, BV, TUV, DNV, ABS or other third-party inspection according to the approved ITP.
11. Can SGPE supply spare parts for API 16A Single Ram BOP?
Yes. SGPE can supply spare parts for API 16A Single Ram BOP maintenance, repair and BOP stack refurbishment. Common parts include pipe ram blocks, blind ram blocks, shear ram blocks, variable bore ram blocks, ram rubbers, bonnet seals, piston seals, hydraulic seals, locking screws, studs, nuts and seal kits. For spare parts inquiries, please send the BOP model, bore size, working pressure, ram size, part name and quantity.
For interchangeable parts, photos, drawings and old part dimensions help SGPE check compatibility faster.
12. What information should I send to get a fast quotation?
To get a faster quotation for an API 16A Single Ram BOP Blowout Preventer, please send the BOP type, model if available, bore size, working pressure, ram type, connection details, side outlet requirement, service condition, document requirement, quantity and destination.
Useful examples include FZ18-35 7-1/16 in 5000 psi Single Ram BOP, FZ28-70 11 inch 10000 psi Single Ram BOP and FZ35-70 13-5/8 in 10000 psi API 16A Ram BOP. For shear ram, sour service or replacement projects, please also send the BOP stack drawing, tubular data, nameplate photos and end-user specification.
Request a Quote for API 16A Single Ram BOP Blowout Preventer
Send SGPE your RFQ for API 16A Single Ram BOP Blowout Preventer with the required bore size, working pressure, ram type and connection details. The SGPE technical team will review the field requirement and recommend a suitable single ram BOP solution for drilling, workover, well testing, completion or wellhead service.
For a faster quotation, please include the BOP model if available, such as FZ18-35, FZ18-70, FZ28-35, FZ28-70, FZ35-35 or FZ35-70. Also send the bore size, pressure rating, pipe ram size, blind ram requirement, shear ram requirement, top and bottom connection, side outlet details, service condition, required certificates, quantity and delivery destination.
E-Mail:
info@sgpe.com
