Description

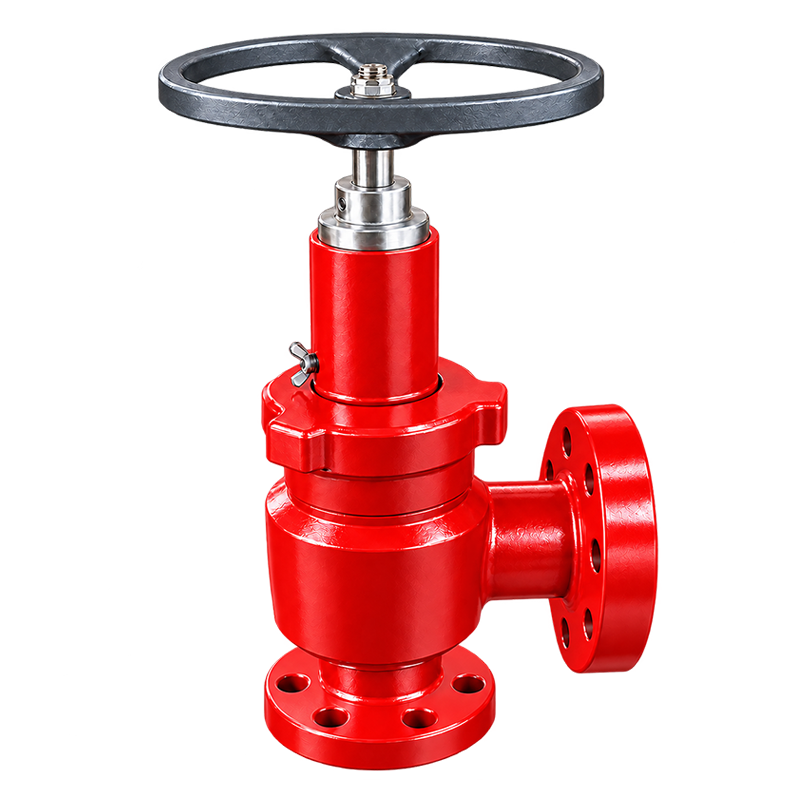

API 6A Choke Valve for Wellhead & Christmas Tree Flow Control

SGPE supplies API 6A Choke Valves for oil and gas wellheads, Christmas trees and surface production systems that require controlled pressure reduction and dependable production flow regulation.

Projects may require an adjustable or positive choke, manual or hydraulic operation, high-pressure service, sour-service review or replacement matching for existing wellhead equipment. The correct configuration depends on the actual operating conditions rather than pressure class or nominal size alone.

A production choke creates a controlled restriction in the flow path. By changing or fixing the available flow area, operators can regulate oil or gas production and manage the pressure drop between the wellhead and downstream equipment.

This gives the choke a different role from an API 6A gate valve. Gate valves normally provide isolation, while wellhead choke valves handle controlled throttling during production.

Important selection data includes upstream and downstream pressures, production rate, operating temperature, fluid composition, water cut, gas content, sand production, choke trim, end connections and operating method.

Typical applications include oil and gas wellheads, production Christmas trees, high-pressure gas wells, surface well testing, flowback, well cleanup, early production, mature wells and replacement projects.

For new equipment, customers can send a choke datasheet, Christmas tree drawing, wellhead specification or available operating data. For replacement work, the existing valve nameplate, photographs, drawings, dimensions, trim information and current well conditions provide a practical starting point for technical review and quotation.

---

Product Overview

An API 6A Choke Valve regulates production by restricting the available flow area through the choke trim.

Reducing the opening increases flow restriction and normally increases the pressure drop. Increasing the opening provides a larger flow area and reduces the restriction.

This function makes the choke an important component for wellhead pressure control, Christmas tree flow control and surface production regulation.

Produced fluids may include crude oil, natural gas, produced water and multiphase oil-gas-water mixtures. Some wells also carry sand, scale or other solids.

These solids pass through the same restricted flow area and can accelerate trim wear, particularly when differential pressure and fluid velocity remain high. Choke selection should therefore start with the complete operating envelope rather than nominal valve size alone.

SGPE reference information includes a 2-inch choke configuration, PU temperature service from approximately -29°C to 121°C, adjustable flow area and wear-resistant choke trim.

Other nominal sizes, pressure classes, materials, trim arrangements, end connections and special-service requirements require confirmation against the approved choke configuration and project specification.

---

API 6A Choke Valve Technical Parameters

Core Configuration and Operating Parameters

The following parameters provide a practical reference for preliminary API 6A Choke Valve selection, pressure-class comparison and operating-condition review.

Final choke sizing should consider actual upstream and downstream pressures, production rate, temperature and produced-fluid conditions rather than nominal size alone.

---

Materials, Connections, Testing and Project Requirements

Final configuration also depends on service environment, installation interface, inspection requirements and documentation specified by the operator, EPC contractor or end user.

These values provide a purchasing and engineering reference. Final materials, connections, testing scope and documentation should be confirmed against the approved choke design and actual project requirements.

---

2K, 3K, 5K, 10K and 15K Choke Valve Requirements

Working pressure is one of the first items buyers define when sourcing a high pressure wellhead choke valve.

SGPE can review 2K, 3K, 5K, 10K and 15K choke valve RFQs according to the applicable product configuration.

Pressure rating alone, however, does not describe the actual throttling duty.

Two 10K production systems may expose their chokes to very different conditions. One might handle a moderate pressure reduction, while another reduces high wellhead pressure to a much lower downstream pressure.

The second condition can create greater local velocity and more severe trim loading even though both systems carry the same nominal pressure rating.

A useful RFQ should therefore include the required pressure class together with normal and maximum upstream and downstream pressures.

---

Adjustable, Positive and Fixed Choke Valve Options

The correct choke type depends mainly on how production needs to be controlled.

Adjustable Choke Valve

An API 6A Adjustable Choke Valve provides a variable opening, allowing operators to respond as reservoir pressure, production rate, water cut, gas volume or downstream conditions change.

Instead of replacing a fixed restriction whenever the well condition changes, field personnel can adjust the choke within its approved operating range.

Common purchasing terms include Wellhead Adjustable Choke Valve, Christmas Tree Adjustable Choke, High Pressure Adjustable Choke Valve, Oil Well Adjustable Choke and Gas Well Adjustable Choke.

A suitable adjustable choke should provide useful control under both normal and peak production conditions rather than spending most of its operating time close to either end of the adjustment range.

Positive and Fixed Choke Valves

A Positive Choke Valve, also called a Fixed Choke Valve, uses a predetermined flow restriction.

Depending on the approved design, that restriction may use a replaceable choke bean or another fixed-orifice arrangement.

Positive chokes can suit wells with relatively stable production targets. When operating requirements change, field personnel can change the approved restriction according to the well operating procedure.

---

Choke Trim Terminology: Needle, Cage and Choke Bean

Oilfield specifications do not always use identical terminology for choke trim.

An RFQ may refer to a needle choke valve, needle-and-seat choke, cage-type choke, bean-type choke, positive choke or fixed-orifice choke.

These descriptions can represent different internal geometries, so similar product names do not guarantee identical dimensions, trim parts or operating mechanisms.

For replacement projects, the existing datasheet, drawing, part number, trim description or choke bean information usually provides a stronger basis for technical matching than the product name alone.

---

How a Wellhead Choke Controls Pressure and Flow

Produced fluid enters from the upstream side and passes through a restricted trim area before reaching the downstream production line.

The restriction creates the required pressure drop.

With an adjustable choke, the operating mechanism changes the trim position and available flow area. With a positive choke, a fixed restriction or choke bean determines the opening.

As differential pressure rises, local fluid velocity can also increase. This becomes particularly important in high-pressure gas production, sand-producing wells and flowback operations.

Operating Data for Choke Selection

These values help define the real choke duty and reduce uncertainty during technical review and quotation.

---

Choke Size, Orifice and Flow Capacity Selection

Nominal size is only one part of choke selection.

An oversized choke may spend much of its normal operating time close to the minimum opening. This can reduce control resolution and concentrate the pressure reduction across a small area of the trim.

An undersized choke creates the opposite problem because it may restrict the required peak production rate.

A useful sizing review should therefore consider normal and maximum oil or gas production rates together with actual upstream and downstream pressures.

Where available, buyers can also provide the existing or required choke bean size, orifice, expected operating opening, flow coefficient, original datasheet and well-test information.

SGPE reference information includes a 2-inch choke configuration. Other sizes require confirmation against the approved design and actual production duty.

---

Choke Valve vs API 6A Gate Valve

Choke valves and gate valves often operate on the same wellhead or Christmas tree, but they perform different functions.

A gate valve normally provides isolation.

If operators keep it partly open for prolonged production throttling, concentrated high-velocity flow can accelerate wear around the gate and seat.

Where routine production regulation is required, a properly selected Production Choke Valve or Wellhead Choke Valve should handle the throttling duty.

---

Sand-Producing Wells and Wear-Resistant Choke Trim

Sand-producing wells place additional demands on the trim because abrasive particles pass through the pressure-reduction area at relatively high velocity.

SGPE reference information includes wear-resistant choke trim.

Trim life depends on more than sand concentration alone. Differential pressure, production rate, particle characteristics, choke opening and operating time all influence service severity.

A large pressure drop can increase velocity through the restriction, while higher production rates increase the total volume of fluid and solids passing across the trim.

Operating continuously at a very small choke opening can further concentrate the flow through a limited area.

For a choke valve for sand-producing wells, buyers should provide available solids information together with upstream and downstream pressures, maximum production rate, temperature and produced-fluid composition.

Actual operating data provides a better basis for trim review than a general request for a “heavy-duty” or “erosion-resistant” choke.

---

Manual and Hydraulic Wellhead Choke Options

A Manual Choke Valve suits many accessible onshore wellheads and production trees. Field personnel adjust the opening locally, so the valve does not require a separate hydraulic operating circuit.

A Hydraulic Choke Valve can support remote or frequent adjustment and may suit high-pressure well testing, remote wellheads, offshore surface packages and selected production systems.

For hydraulic operation, the project should define the required control pressure, actuator concept, operating range, position indication and control philosophy.

If the choke requires a specified fail position or must interface with an existing hydraulic system, the RFQ should identify these requirements as well.

The choke and control interface should be reviewed together so the final arrangement matches the operating philosophy of the project.

---

Oil Well, Gas Well and Christmas Tree Choke Applications

An Oil Well Choke Valve regulates crude oil and associated produced fluids as they leave the wellhead or production tree.

Well conditions change throughout field life. Reservoir pressure can decline, water cut can increase, gas-oil ratio can shift and sand production may become more severe.

These changes can affect both the required choke opening and the expected trim wear rate. An adjustable production choke can provide useful flexibility as the operating envelope changes.

Gas wells introduce a different challenge. A High Pressure Gas Well Choke Valve may handle a large pressure reduction and correspondingly high local gas velocity.

A gas-well RFQ should identify upstream and downstream pressures, normal and maximum gas rates, temperature, gas composition and any expected water or solids.

Sour gas projects should also include available H2S and CO2 data.

On a production tree, an API 6A Christmas Tree Choke Valve or Xmas Tree Choke Valve controls flow through the production outlet. The master and wing valves normally provide isolation, while the choke performs throttling and pressure regulation.

A Christmas tree choke inquiry should identify the tree pressure class, production outlet interface, operating pressures, flow rate, temperature and produced-fluid conditions.

---

Surface Well Testing, Flowback and Early Production

Surface well testing, well cleanup, flowback and early production can expose a choke to rapidly changing pressure, flow and solids conditions.

During initial cleanup, produced fluid may contain oil, gas, water, completion fluid, sand and debris. The choke can therefore experience a broader operating envelope than it would during stable production.

An API 6A Well Test Choke Valve can regulate changing test flow before produced fluids enter downstream surface equipment.

A Flowback Choke Valve controls returning fluids and solids during post-completion cleanup.

For severe service, spare trim and maintenance access are worth considering during procurement rather than after the first wear issue appears.

---

Sour Service and H2S Choke Requirements

Sour oil and gas wells require additional material review. A standard-service choke should not automatically enter an H2S environment.

For a Sour Service Choke Valve, H2S Choke Valve, Sour Gas Choke Valve or NACE Choke Valve, the RFQ should include available H2S and CO2 information together with pressure, temperature, water phase and produced-fluid conditions.

If the project requires NACE MR0175 / ISO 15156, include that requirement in the technical specification.

Sour service can influence pressure-containing materials, choke trim, hardness control, bolting, sealing materials, manufacturing requirements and documentation.

The actual service environment should therefore be reviewed before confirming the final sour-service configuration.

---

Material Class, Temperature Class, PSL and PR

API 6A choke procurement can include requirements for Material Class, Temperature Class, Product Specification Level and Performance Requirement.

When the operator or EPC has already defined these requirements, buyers should include the applicable datasheet or purchase specification with the inquiry.

Where some values remain open, the available operating conditions provide the starting point for technical review.

---

Replacement API 6A Choke Valve and Connection Matching

Replacement work requires more than matching nominal size and working pressure.

Different choke designs can use different body dimensions, trim arrangements, operating mechanisms and connection interfaces. A new valve may also need to fit existing piping without costly field modification.

SGPE can review Replacement API 6A Choke Valves, Replacement Wellhead Chokes and Replacement Christmas Tree Choke Valves using the available original equipment information.

Current operating data becomes especially important on mature installations. A replacement valve may match the original dimensions while the well itself now operates under very different pressure, flow or solids conditions.

---

API 6A Production Choke vs API 16C Drilling Choke

An API 6A production choke and an API 16C drilling choke can both regulate pressure and flow, but they normally belong to different systems.

When a project involves a drilling choke manifold or BOP well-control system, buyers should identify the applicable API 16C requirements.

When the choke regulates production from a surface wellhead or Christmas tree, the inquiry should focus on the applicable API 6A configuration.

---

Testing, Inspection and Project Documentation

SGPE reviews inspection and documentation requirements together with the approved choke configuration, material requirement and purchase specification.

The project scope can include material verification, dimensional inspection, pressure testing and functional checks. Where required, additional inspection may include NDT, PMI, hardness testing and third-party witnessing.

Customers with an MDR, ITP, FAT requirement, vendor document register, end-user specification or third-party inspection requirement should provide it during quotation.

Defining the document scope early helps avoid a common procurement problem: receiving technically acceptable equipment without the complete documentation required for EPC or end-user acceptance.

---

Maintenance, Choke Trim and Spare Parts

Because choke trim operates directly in the pressure-reduction zone, changes in operating behavior can provide useful signs of wear.

During production, operators should monitor choke position, production rate, upstream and downstream pressures, adjustment force, leakage, vibration, unusual noise and changes in flow response.

A noticeable change between choke position and actual well performance may indicate trim wear or another flow-control issue.

Sand-producing wells and high differential-pressure applications can require more frequent inspection than cleaner, lower-severity service.

Before maintenance, field personnel should isolate and fully depressurize the relevant wellhead equipment according to the approved site procedure.

After replacing trim or working on pressure-containing components, the valve should complete the required inspection and testing before returning to service.

Remote fields, offshore installations, abrasive production and high-pressure gas wells can also justify spare-parts planning during the original purchase.

Depending on the supplied configuration, the spare scope may include choke trim, choke beans, sealing components and other maintainable parts.

---

API 6A Choke Valve Price and Quotation Factors

Buyers searching for an API 6A Choke Valve price, cost, quote or quotation should compare the complete technical scope rather than nominal size alone.

For this reason, quotations from different suppliers should be compared only after the technical scope is reasonably aligned.

A choke datasheet, pressure requirement, operating conditions, connection information and inspection scope usually provide enough information to begin a meaningful technical and commercial review.

---

Choosing an API 6A Choke Valve Manufacturer and Supplier

When procurement teams compare an API 6A Choke Valve manufacturer or supplier, quoted price is only one part of the purchasing decision.

The supplier also needs to understand the actual choke duty, well conditions, installation interface, inspection scope and documentation requirements.

SGPE combines choke-valve review with related API 6A wellhead, valve and Christmas tree equipment support.

This can be particularly useful when the choke forms part of a larger wellhead package or when a customer needs to match equipment already installed on an existing production tree.

---

API 6A Choke Valve RFQ Guide

A useful RFQ allows the supplier to compare the pressure rating with the actual operating duty and installation interface.

Not every RFQ arrives with every value confirmed.

Customers can send the available information first. The remaining points can then be clarified during the technical review before final configuration and quotation.

---

Why Source Wellhead Choke Valves from SGPE?

A production choke needs to match more than nominal size and pressure rating. It also needs to suit the actual pressure reduction, flow range, produced-fluid environment, trim duty and mechanical interface.

SGPE supports new wellhead projects, production Christmas trees, surface well testing, flowback systems and replacement choke requirements.

For new projects, a choke datasheet, Christmas tree drawing, wellhead specification, operating data or purchase specification can provide the basis for reviewing choke type, pressure requirement, operating conditions, connections, operating method, inspection scope and documentation.

Replacement projects can start from the existing nameplate, photographs, drawings, face-to-face dimension, connection details, trim information and current production conditions.

Inspection and documentation can also be aligned with the proposed equipment configuration before ordering, helping procurement teams avoid late changes to FAT requirements or document packages.

The objective is practical: reduce the risk of incorrect choke selection, unsuitable operating range, premature trim wear, connection mismatch and incomplete project documentation.

---

Related SGPE API 6A Wellhead Equipment

An API 6A production choke often works together with other wellhead and Christmas tree components.

Related SGPE equipment can include API 6A Gate Valves, API 6A Forged Gate Valves, API 6A Check Valves, API 6A Wellhead Christmas Trees, API 6A Casing Heads, API 6A Casing Spools, API 6A Tubing Head Spools, API 6A Tubing Hangers, API 6A Casing Hangers and API 6A Wellhead Spacer Spools.

For drilling well-control applications, buyers can review SGPE API 16C Choke Manifold and API 16C Choke and Kill Manifold equipment separately.

This separation keeps production wellhead flow-control equipment clearly distinguished from drilling choke-manifold applications.

---

Frequently Asked Questions About API 6A Choke Valves

1. What is an API 6A Choke Valve used for in oil and gas production?

An API 6A Choke Valve regulates oil or gas production by creating a controlled restriction between the wellhead or Christmas tree and downstream surface equipment. Operators use wellhead choke valves to manage production rate, downstream pressure and the pressure drop across the production system.

Typical applications include oil wells, high-pressure gas wells, production Christmas trees, surface well testing, flowback, well cleanup and early production systems. Unlike an API 6A gate valve, which normally provides isolation, a production choke is specifically selected to handle controlled throttling during normal operation.

2. What is the difference between an Adjustable Choke Valve and a Positive Choke Valve?

An Adjustable Choke Valve provides a variable flow opening, allowing operators to change the restriction as reservoir pressure, production rate, water cut or downstream conditions change. This makes an adjustable wellhead choke useful for oil and gas wells that need operating flexibility over time.

A Positive Choke Valve, also known as a Fixed Choke Valve, uses a predetermined restriction and may incorporate a replaceable choke bean. Positive chokes are often considered where the required flow restriction remains relatively stable, while adjustable chokes are better suited to changing production or well-testing conditions.

3. What do needle choke, cage choke and choke bean mean?

Needle choke, cage choke and choke bean are terms used to describe different choke trim or flow-restriction concepts. A needle-and-seat choke regulates flow by changing the position of a needle relative to its seat, while a cage-type arrangement uses a different internal flow-control geometry.

A choke bean normally provides a fixed restriction in a positive or fixed choke configuration. Because internal designs, dimensions and replacement parts can vary, buyers should provide the original datasheet, valve drawing, part number or trim details when replacing an existing Christmas tree or wellhead choke.

4. How do I select a 5K, 10K or 15K API 6A Choke Valve?

Selecting a 5K, 10K or 15K API 6A Choke Valve requires more than matching the nominal working-pressure class. The supplier should also review actual upstream pressure, downstream pressure, maximum differential pressure, normal and peak production rates, temperature and produced-fluid conditions.

For example, two 10K wellhead choke valves may operate under very different pressure drops and therefore experience different trim-loading and erosion conditions. SGPE reference information includes a 2-inch choke configuration, while other nominal sizes and project-specific pressure requirements should be confirmed against the approved design.

5. Can an API 6A Gate Valve be used instead of a Wellhead Choke Valve?

Normally, an API 6A Gate Valve should not replace a properly selected Wellhead Choke Valve for routine throttling service. A gate valve generally provides pressure isolation and normally operates fully open or fully closed, while a choke valve intentionally restricts flow to regulate production and pressure.

Prolonged throttling with a partly open gate valve can concentrate high-velocity flow around the gate and seat and may accelerate wear. On a production Christmas tree, the master and wing valves normally provide isolation while the production choke performs the flow-control function.

6. Should I choose a Manual Choke Valve or a Hydraulic Choke Valve?

A Manual Choke Valve works well on many accessible onshore oil and gas wellheads where field personnel can adjust production locally. A Hydraulic Choke Valve is more suitable when the project requires remote operation, frequent adjustment or integration with an existing hydraulic control system.

Hydraulic choke applications can include high-pressure surface well testing, remote wellheads, offshore surface packages and selected production systems. The final choice should consider accessibility, operating frequency, required control pressure, actuator arrangement, position indication and the overall operating philosophy of the wellhead or test package.

7. What should I consider when selecting a choke valve for a sand-producing well?

A choke valve for a sand-producing well should be selected with particular attention to differential pressure, production rate, choke opening, solids loading and expected operating time. Sand and other abrasive particles pass through the restricted flow area at relatively high velocity and can accelerate trim erosion.

SGPE reference information includes wear-resistant choke trim, but actual service life still depends on the complete operating environment. For oil wells, gas wells and flowback applications with solids, buyers should provide upstream and downstream pressures, maximum flow rate, available sand or particle information, temperature and produced-fluid composition.

8. Can SGPE review H2S, NACE or sour-service choke valve requirements?

Yes. SGPE can review Sour Service Choke Valve, H2S Choke Valve, Sour Gas Choke Valve and NACE Choke Valve requirements according to the available project information. Buyers should provide H2S and CO2 data together with working pressure, operating temperature, water phase and produced-fluid conditions.

When the project specifies NACE MR0175 / ISO 15156, that requirement should be included in the RFQ or purchase specification. Sour-service conditions can influence pressure-containing materials, choke trim, hardness control, bolting, sealing materials, inspection and documentation, so the final configuration should be confirmed against the actual service environment.

9. What information is required for a Replacement API 6A or Christmas Tree Choke Valve?

For a Replacement API 6A Choke Valve or Replacement Christmas Tree Choke Valve, buyers should provide the existing valve nameplate, manufacturer, model, pressure rating, nominal size, choke type, inlet and outlet connections and face-to-face dimension whenever available. Photographs, drawings, part numbers, choke bean or trim details and installation information can significantly improve replacement matching.

Current well conditions are also valuable because an older valve may still match the original dimensions while the well now operates at different pressures, flow rates or sand levels. Reviewing both the mechanical interface and current choke duty helps reduce replacement risk.

10. What determines API 6A Choke Valve price and quotation?

API 6A Choke Valve price depends on the complete technical and commercial scope rather than nominal size alone. Important factors include choke type, working-pressure class, size, trim configuration, differential pressure, sand or sour service, end connections, manual or hydraulic operation, material requirements, PSL, PR, inspection scope and documentation.

A 5K adjustable choke for a standard production well can therefore have a very different quotation basis from a 10K or 15K high-pressure gas-well choke requiring sour-service review, hydraulic actuation or third-party inspection. Replacement matching and spare trim requirements can also affect the final supply scope.

11. What testing, inspection and documentation can be supplied with an API 6A Choke Valve?

The testing and documentation package depends on the approved choke configuration and purchase specification. Requirements can include pressure testing, functional checks, dimensional inspection, NDT, PMI, hardness verification and third-party inspection where applicable.

Typical project documentation can include the product datasheet, General Arrangement drawing, Material Test Certificate, hydrostatic test report, dimensional inspection report, applicable NDT or PMI records, Certificate of Conformity and O&M information. EPC contractors and end users with FAT, ITP, MDR or vendor-document requirements should identify them during the quotation stage so the documentation scope can be aligned before production.

12. How do I request an API 6A Choke Valve quotation from SGPE?

To request an API 6A Choke Valve quotation, provide the required choke type, quantity, nominal size, pressure class, upstream and downstream pressures, production rate and operating temperature. For high-pressure gas wells, sand-producing wells, sour-service applications, surface well testing or flowback projects, additional information such as gas composition, water cut, sand conditions, H2S, CO2 and maximum differential pressure can improve the technical review.

For replacement equipment, include the existing nameplate, photographs, drawings, connection details, face-to-face dimension and trim information. Customers can send the available data first, and SGPE can identify any remaining information required before confirming the final configuration and quotation.

---

Request an API 6A Choke Valve Price and Quotation from SGPE

For a new project, please provide the choke type, nominal size, pressure class, upstream and downstream pressures, production rate, operating temperature, fluid conditions and end connections.

For a Replacement API 6A Choke Valve, send the existing nameplate, manufacturer/model, photographs, connection details, face-to-face dimensions, trim information or available drawings.

SGPE supplies API 6A Choke Valves for oil and gas wellheads, Christmas trees, production systems, surface well testing, flowback and replacement projects. Available requirements can include adjustable, positive/fixed, manual, hydraulic, high-pressure and sour-service configurations, subject to technical confirmation. SGPE will review the operating conditions, installation interface, testing and documentation requirements, then recommend a suitable choke configuration and provide the corresponding technical proposal and commercial quotation.

E-Mail:
info@sgpe.com
