Description

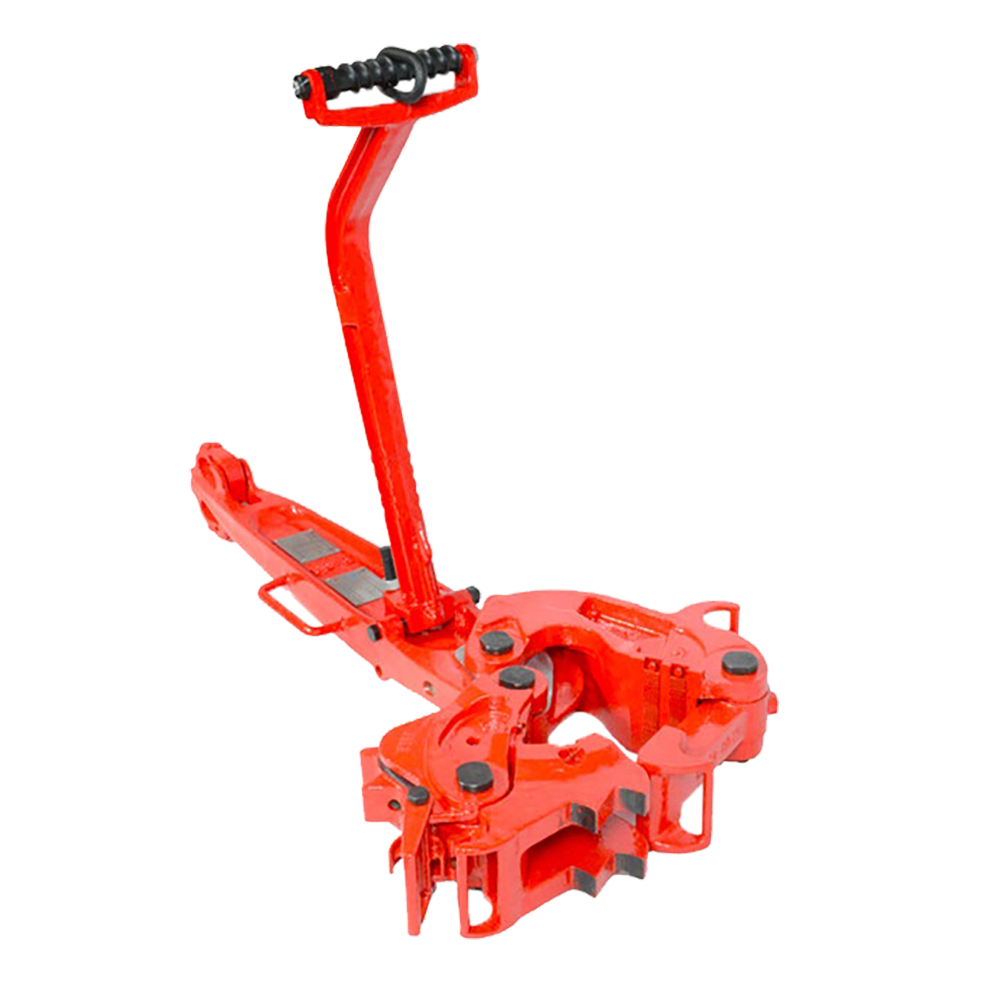

API 7K Manual Tong for Drill Pipe, Tubing, Casing and Oilfield Rig Floor Operations
SGPE provides API 7K Manual Tong solutions for making up and breaking out threaded connections on drill pipe, tubing, casing, drill collars, drilling subs and selected bottom-hole assembly components.
The available range includes Type MS, Type LF, Type C, Type B, Type DB, Type AAX, Type H, Type SDD, Type WWB and large-diameter casing manual tongs. Each model covers a defined gripping diameter and torque range. By changing the lug jaw, latch jaw, hinge jaw or tong dies, operators can adapt one tong body to several approved tool joint, coupling or tubular diameters.
These oilfield manual tongs support land drilling rigs, offshore platforms, workover rigs, well servicing units, casing running operations and petroleum equipment maintenance bases. Drilling contractors also keep them as backup rig floor tools when a hydraulic power tong or iron roughneck requires inspection, repair or scheduled maintenance.
Depending on the selected model and jaw arrangement, SGPE can offer configurations for production tubing, standard drill pipe, heavy drill pipe, drill collars, casing couplings and conductor pipe. Typical torque ratings range from approximately 6,500 ft-lb for light well servicing to 100,000 ft-lb for demanding drilling and casing work.
Product Short Description
SGPE API 7K Manual Tong is a mechanical rig floor tool for drill pipe, tubing, casing, drill collar and drilling tool connection makeup or breakout.
Available options include Type B, Type DB, Type C, Type LF, Type SDD, Type AAX, Type H, Type MS, Type WWB and casing tong models. Interchangeable jaws and tong dies allow the selected tong to match different tool joint, coupling and tubular outside diameters.
SGPE supplies complete drilling manual tongs, custom jaw packages and replacement parts for drilling, workover, casing running and well servicing operations.
API 7K Manual Tong Technical Specifications
| Item | Typical SGPE Supply Range |
| Product Name | API 7K Manual Tong |
| Related Product Names | Oilfield Manual Tong, Drilling Manual Tong, Oilfield Hand Tong, Manual Rig Tong, Rotary Manual Tong |
| Application Names | Drill Pipe Tong, Tubing Manual Tong, Casing Manual Tong, Workover Manual Tong |
| Main Function | Makeup and breakout of threaded oilfield tubular connections |
| Applicable Tubulars | Drill pipe, tubing, casing, drill collar, drilling sub and selected BHA components |
| Common Models | Type MS, LF, C, B, DB, AAX, H, SDD, WWB and casing tong |
| Typical Gripping Range | Approximately 1.900–30 in, depending on model and jaw |
| Typical Torque Range | Approximately 6,500–100,000 ft-lb / 8.8–135.6 kN·m |
| Main Construction | High-strength alloy steel |
| Manufacturing Process | According to the confirmed model and manufacturing specification |
| Heat Treatment | Selected to meet the required strength, hardness and mechanical properties |
| Gripping System | Interchangeable lug jaws, latch jaws, hinge jaws and tong dies |
| Lever Options | Standard or extended lever |
| Suspension | Hanger eye, suspension ring or rig-specific tong hanger |
| Operating Method | Rig catline, pull line or approved mechanical pulling system |
| Surface Protection | Oilfield industrial coating or project-specific paint system |
| Inspection Options | Visual, dimensional, hardness, MPI, assembly and functional inspection |
| Available Documents | COC, MTC, dimensional report, MPI report, functional record and O&M manual |
| Spare Parts | Jaws, dies, pins, springs, latch parts, lever parts and retaining hardware |
| Packing | Export plywood case or seaworthy wooden case |
| Custom Options | Jaw range, lever length, marking, coating, documents and spare-part package |
These specifications describe the complete manual tong family rather than one universal configuration. Final ratings depend on the selected model, gripping diameter, installed jaw, lever arrangement and approved jaw and torque chart.
Manual Tong Size and Torque Chart
A suitable oilfield hand tong must match both the actual gripping diameter and the required connection torque. Nominal pipe size alone does not provide enough information for accurate selection.
| Manual Tong Model | Typical Gripping Range | Typical Maximum Torque | Common Oilfield Application |
| Type MS Manual Tong | 1.900–6-1/8 in | 6,500 ft-lb / 8.8 kN·m | Small tubing and light well servicing |
| Type LF Manual Tong | 2-3/8–8-5/8 in | 16,000 ft-lb / 21.7 kN·m | Tubing, small drill pipe and workover |
| Type C Manual Tong | 2-3/8–10-3/4 in | 35,000 ft-lb / 47.5 kN·m | Tubing, small drill pipe and light casing |
| Type B Manual Tong | 3-1/2–13-3/8 in | Up to 55,000 ft-lb / 74.6 kN·m | General drill pipe and casing connections |
| Type AAX Manual Tong | 2-7/8–13-3/8 in | Up to 55,000 ft-lb / 74.6 kN·m | Drilling, workover and casing service |
| Type DB Manual Tong | 3-1/2–17 in* | Up to 65,000 ft-lb / 88.1 kN·m | Heavy drill pipe, drill collars and casing |
| Type H Manual Tong | 3-1/2–13-3/8 in | Up to 80,000 ft-lb / 108.5 kN·m | Higher-torque tubular connections |
| Type SDD Manual Tong | 4–17 in* | Up to 100,000 ft-lb / 135.6 kN·m | Heavy-duty drill pipe and casing work |
| Type B Casing Tong | 13-3/8–30 in | Up to 25,000 ft-lb / 33.9 kN·m | Large casing and conductor pipe |
| Type WWB Manual Tong | 2-3/8–10-3/4 in | Up to 35,400 ft-lb / 48 kN·m | Drilling, workover and well servicing |
*Selected variants, hinge jaws or special tong heads may cover different diameters. One standard jaw set does not cover the complete model range.
The maximum allowable torque may change with the installed jaw and gripping diameter. For that reason, SGPE confirms the applicable jaw number and torque limit for the offered configuration before production.
Manual Tong Application Selection Guide
| Oilfield Operation | Common Tong Options | Main Selection Data |
| Drill pipe makeup and breakout | Type B, AAX, DB, H or SDD | Tool joint OD, connection and torque |
| Production tubing work | Type MS, LF or C | Tubing OD, coupling OD and makeup torque |
| Workover operations | Type LF, C, AAX or WWB | Tubular size, floor clearance and operating frequency |
| Light casing work | Type C, B or AAX | Casing OD, coupling OD and torque |
| Heavy casing running | Type DB, SDD or dedicated casing tong | Coupling OD, torque and suspension |
| Drill collar connections | Type DB, H or SDD | Drill collar OD and breakout torque |
| BHA assembly | Type DB, H or SDD | Component OD, connection and torque |
| Large conductor pipe | Type B Casing Tong or special casing tong | Pipe OD, coupling OD and rig layout |
| Emergency backup service | Based on the current tubular program | Size range, torque and pulling system |
Type B Manual Tong for Drill Pipe and Casing
The Type B Manual Tong remains one of the most common manual rig tongs for drilling and workover operations. Its broad gripping range and practical torque capacity make it suitable for many routine tubular connections.
Typical configurations grip drill pipe tool joints, casing couplings, drilling subs and other approved tong areas from approximately 3-1/2 to 13-3/8 inches. However, the full range requires several lug jaw options. Crews must install the correct jaw for each tool joint or coupling OD.
The allowable torque also changes with the gripping diameter and jaw arrangement. A larger jaw does not always carry the same rating as a smaller one. Operators should therefore follow the confirmed jaw and torque chart for each setup.
Type B tongs commonly support drill pipe makeup and breakout, casing coupling connections, drilling sub assembly and workover rig tubular handling. They also provide practical backup when powered rig floor equipment becomes unavailable.
Buyers can choose a standard or extended lever. An extended lever may reduce the required line pull, but it needs more floor clearance. It does not increase the rated capacity of the tong body, installed jaw or suspension system.
Type DB Manual Tong for Heavy Tubulars
The Type DB Manual Tong offers a larger gripping range and higher torque capacity than a standard Type B model. Drilling contractors often select it for heavier tubulars and connections that need more breakout force.
Common applications include heavy drill pipe, drill collars, casing couplings, crossover subs and selected bottom-hole assembly components. Depending on the chosen configuration, Type DB tongs may cover gripping diameters up to approximately 17 inches.
The Type DB family uses several lug jaw, latch jaw and hardware combinations. As a result, one tong fitted with one jaw set cannot handle every listed diameter. The crew must use the correct jaw arrangement for each tool joint, coupling or drilling tool.
For accurate selection, state the actual gripping OD, connection type, makeup torque and expected breakout torque. The nominal pipe size does not identify the correct jaw or confirm the allowable operating load.
Type C and Type LF Workover Manual Tongs
Type C and Type LF Manual Tongs suit small and medium tubulars on workover rigs, well servicing units and compact drilling floors.
The Type LF Manual Tong works well with production tubing, small drill pipe and lower-torque workover connections. Its compact structure also helps where limited floor space restricts lever movement.
The Type C Manual Tong covers a broader gripping and torque range. It can handle tubing, small drill pipe, light casing and selected service tools. This flexibility makes it useful for contractors who want one tong body for several workover applications.
Typical jobs include production tubing installation, tubing pulling, completion string assembly, downhole pump service and light casing work.
For tubing selection, send both the tubing body OD and coupling OD. The coupling usually has a larger outside diameter and often determines the required jaw.
Type H and Type SDD Higher-Torque Manual Tongs
Type H and Type SDD Manual Tongs serve connections that need more torque than standard general-purpose models.
The Type H Manual Tong handles selected drill pipe, tubing and casing connections. Its allowable torque changes with the installed lug jaw and gripping diameter, so crews must follow the correct jaw chart for each application.
The Type SDD Manual Tong supports larger drill pipe, heavy casing, drill collars and drilling tools. Selected configurations can reach a maximum rated torque of 100,000 ft-lb.
Because these tongs transfer substantial force, operators must review the complete rig floor arrangement. The tong body, jaw, lever, hanger, pull line, snub line and torque-measuring system must have compatible ratings. The lowest-rated component sets the operating limit.
Typical applications include high-torque drill pipe makeup, difficult breakout work, heavy casing connections, drill collar handling, stabilizer connections, drilling jars and heavyweight drill pipe.
Type AAX, WWB and Web Wilson Style Manual Tongs
Type AAX, Type WWB and related Web Wilson Style Manual Tongs provide additional options for drilling, workover and casing operations.
The Type AAX model commonly handles drill pipe, casing joints and couplings. Operators adjust its gripping range by changing the lug and latch jaw arrangement.
The Type WWB Manual Tong suits drill pipe, tubing and casing within its confirmed size and torque limits. It offers a practical choice for many workover rigs and well servicing units.
Jaw dimensions, pin locations and part numbers may vary between manufacturers. Buyers should therefore avoid ordering replacement jaws from the model name alone. The existing nameplate, part number, dimensions and clear photographs allow a more reliable compatibility check.
Large-Diameter Casing Manual Tong
A large-diameter casing manual tong uses a dedicated tong head and jaw arrangement for casing couplings, large casing strings and conductor pipe.
A standard drill pipe tong may physically close around a large tubular. However, that does not confirm suitable jaw geometry, load transfer or torque capacity. Large casing operations usually require a purpose-built casing tong that grips the coupling correctly.
SGPE can review requirements for surface casing, intermediate casing, production casing, conductor pipe, casing repair and tubular recovery work.
For model selection, send the casing body OD, coupling OD, required makeup and breakout torque, available floor space and suspension arrangement. These details allow SGPE to check the tong head, jaw package, lever length and rated capacity.
How Does a Manual Drilling Tong Work?
A manual drilling tong converts pull-line force into rotational torque.
First, the crew installs the correct jaw set and positions the tong around the approved gripping area. The latch closes the tong head and keeps the jaws engaged.
Next, a rig catline or controlled pull line applies force to the lever. A backup tong or another approved holding device secures the opposite side of the connection. This arrangement allows the tong to apply makeup or breakout torque.
The effective lever length, line pull and pull angle all affect the final torque. Operators must also follow the tong rating, jaw limit, connection torque recommendation and rig procedure.
Unlike a hydraulic power tong, an oilfield hand tong does not use a hydraulic motor or powered gearbox. Its straightforward mechanical structure makes it useful on conventional rigs, at remote drilling locations and as emergency backup equipment.
Typical Torque and Line-Pull Relationship
The following values assume that the pull line remains perpendicular to the tong lever.
| Effective Lever Length | Line Pull | Theoretical Torque |
| 3 ft | 5,000 lbf | 15,000 ft-lb |
| 3 ft | 10,000 lbf | 30,000 ft-lb |
| 4 ft | 5,000 lbf | 20,000 ft-lb |
| 4 ft | 10,000 lbf | 40,000 ft-lb |
| 5 ft | 5,000 lbf | 25,000 ft-lb |
| 5 ft | 10,000 lbf | 50,000 ft-lb |
The general relationship is:
Torque = line pull × effective lever length × sin θ
Here, θ represents the angle between the lever and the pull line. At 90 degrees, sin θ equals 1. As the angle moves away from 90 degrees, the effective torque decreases.
This calculation does not increase the approved rating of the tong, jaw, pull line, hanger or suspension system. Always operate within the limit of the lowest-rated component.
Main Oilfield Applications
Drill Pipe Makeup and Breakout
A drill pipe manual tong tightens or loosens rotary-shouldered connections during drilling, tripping and stand-building operations.
The tong should grip the approved tool joint area rather than the thinner drill pipe body. Correct positioning improves grip and reduces the risk of surface damage.
Tubing Running and Pulling
A tubing manual tong supports production tubing installation, tubing pulling, completion work and well servicing.
Type MS, LF and C tongs often suit smaller tubing connections. However, final selection still depends on the coupling OD, thread type and required makeup torque.
Casing Running
A manual casing tong handles casing couplings during surface, intermediate and production casing operations.
Large casing sizes usually require a dedicated casing tong head rather than a standard drill pipe tong.
Drill Collar and BHA Connections
Type DB, H and SDD tongs can handle selected drill collars, heavyweight drill pipe, stabilizers, drilling jars, crossover subs and other BHA components.
These connections may require high torque. Therefore, buyers should state both the actual gripping OD and the required connection torque.
Workover and Well Servicing
A workover manual tong supports tubing pulling, downhole pump service, completion string work, fishing operations and production equipment maintenance.
Its mechanical design also allows service crews to replace jaws, dies, pins and springs at the rig or maintenance base.
Backup Rig Floor Service
Many drilling contractors keep an oilfield manual tong as backup for a hydraulic power tong or iron roughneck.
Before use, the operator must confirm that the tong, pulling lines, suspension and operating procedure suit the required torque.
Manual Tong Main Components
| Component | Main Function |
| Tong Head | Carries the jaws and surrounds the tubular |
| Lever | Converts line pull into rotational torque |
| Long Jaw | Supports gripping and load transfer |
| Short Jaw | Supports tong closing and reaction |
| Lug Jaw | Adapts the tong to a defined gripping range |
| Latch Jaw | Closes and secures the tong around the tubular |
| Hinge Jaw | Extends the size range on selected models |
| Tong Dies | Provide gripping contact on the approved tong area |
| Latch Assembly | Keeps the tong engaged during operation |
| Hinge Pins | Connect moving tong and jaw components |
| Springs and Plungers | Support jaw and latch movement |
| Hanger Eye | Connects the tong to the suspension system |
| Balance Screw | Helps level selected tong configurations |
| Pull-Line Point | Connects the lever to the pulling system |
| Snub-Line Point | Supports reaction control and torque measurement |
Manual Tong Jaw Selection
| Selection Item | Why It Matters |
| Nominal Pipe Size | Identifies the tubular family |
| Actual Tool Joint OD | Determines the drill pipe jaw size |
| Coupling OD | Often determines the tubing or casing jaw |
| Gripping Surface | Identifies the approved tong area |
| Makeup Torque | Helps confirm tong and jaw capacity |
| Breakout Torque | Defines the expected maximum operating load |
| Tong Model | Determines compatible jaw geometry |
| Existing Jaw Number | Helps match replacement parts |
| Lever Length | Affects line pull and floor clearance |
| Rig Floor Space | Limits the practical tong arrangement |
Manual Tong Jaws and Tong Dies
Interchangeable manual tong jaws allow one tong body to handle several tubular sizes. However, changing the gripping diameter may require more than a new set of tong dies.
Depending on the model and target diameter, the crew may need to change the lug jaw, latch jaw, hinge jaw, long jaw or short jaw. Some configurations also require different jaw pins, latch hardware or hinge positions.
Larger jaws may carry lower torque limits because the load path changes with the gripping diameter. For this reason, operators should check the confirmed jaw and torque chart before use.
For replacement parts, send SGPE the tong manufacturer, model, serial number or nameplate. The current jaw number, part number, actual gripping OD and clear photographs will help our technical team check compatibility.
API 7K Manual Tong Spare Parts
| Spare Part | Main Function | Typical Supply Form |
| Lug Jaw | Changes the gripping diameter range | Individual part or jaw set |
| Latch Jaw | Closes the tong around the tubular | Individual part or assembly |
| Hinge Jaw | Extends the range on selected models | Model-specific component |
| Long Jaw | Supports grip and load transfer | Replacement component |
| Short Jaw | Supports closing and reaction | Replacement component |
| Tong Die | Provides gripping contact | Set or bulk quantity |
| Hinge Pin | Connects moving components | Individual part or pin kit |
| Latch Pin | Secures the latch mechanism | Individual part or pin kit |
| Latch Spring | Supports latch engagement | Individual part or spring kit |
| Plunger | Controls jaw or latch movement | Individual part or repair kit |
| Hanger Bolt | Connects the suspension arrangement | Individual component |
| Balance Screw | Supports tong leveling | Individual component |
| Lever Assembly | Transfers pull-line force | Complete assembly |
| Retaining Hardware | Secures removable components | Hardware kit |
| Bolt and Nut Kit | Supports field maintenance | Maintenance kit |
Manual Tong vs. Hydraulic Power Tong vs. Iron Roughneck
| Comparison | Manual Tong | Hydraulic Power Tong | Iron Roughneck |
| Drive Method | Catline or pull line | Hydraulic motor | Hydraulic and automated mechanisms |
| Main Function | Makeup or breakout | Powered tubular makeup and breakout | Clamp, spin and torque |
| Operating Speed | Lower | Medium to high | High |
| Structure | Straightforward mechanical design | Motor, gearbox and hydraulic system | Integrated powered rig floor system |
| Torque Control | External arrangement | Integrated or optional | Usually integrated |
| Best Application | Conventional, backup or occasional work | Repetitive tubing and casing running | High-volume drill pipe handling |
| Field Maintenance | Relatively straightforward | Requires hydraulic service | Requires hydraulic, electrical and control support |
| Initial Investment | Lower | Medium | Higher |
| Space Requirement | Lever swing and line clearance | Tong and hose clearance | Larger dedicated rig floor area |
| Backup Value | High | Medium | Usually supported by separate backup tools |
A manual tong suits conventional rigs, remote oilfields and backup service. A hydraulic power tong improves speed during repetitive tubing or casing running. Meanwhile, an iron roughneck offers a higher level of drill pipe handling and automation.
How to Select the Right API 7K Manual Tong
1. Identify the tubular
Confirm whether the tong will handle drill pipe, tubing, casing, drill collars, drilling subs or another oilfield component.
2. Measure the actual gripping OD
For drill pipe, use the tool joint OD. For tubing and casing, confirm the coupling OD or another approved gripping diameter.
3. Confirm the connection
State the thread or connection designation, such as NC50, 4-1/2 IF or another applicable connection.
4. Define the torque requirement
Confirm the recommended makeup torque and expected breakout torque. Similar outside diameters may use different connections and torque values.
5. Match the tong model
SGPE compares the required size and torque with Type MS, LF, C, B, DB, AAX, H, SDD, WWB or casing tong configurations.
6. Review the lever and pulling arrangement
Lever length affects the required line pull and available floor clearance. However, it does not increase the approved capacity of the tong body or jaw.
7. Select the jaw package
List every tool joint, coupling and tubular OD. SGPE will identify the required lug jaws, latch jaws, hinge jaws and tong dies.
8. Confirm the rig layout
Share the available operating space and suspension arrangement, especially for large casing or extended-lever models.
9. Define inspection and documentation
State whether the order requires API conformity, API Monogram marking, MTCs, MPI, an inspection and test plan or third-party inspection.
Information Required for Quotation
| RFQ Item | Example |
| Product | API 7K Type B Manual Tong |
| Tubular Type | Drill pipe tool joint |
| Nominal Pipe Size | 5 in drill pipe |
| Actual Gripping OD | 6-5/8 in |
| Connection | NC50 / 4-1/2 IF |
| Makeup Torque | According to connection specification |
| Breakout Torque | Buyer or end-user requirement |
| Preferred Model | Type B, DB, SDD or open to recommendation |
| Required Jaw Sizes | List each actual gripping OD |
| Lever | Standard or extended |
| Quantity | Complete tongs and spare jaw packages |
| API Requirement | API Spec 7K conformity or API Monogram |
| Inspection | Manufacturer or third-party inspection |
| Documents | COC, MTC, MPI report, functional record and O&M manual |
| Delivery Destination | Port, city and country |
Quality Control and Available Documents
| Inspection or Document | Typical Scope |
| Material Control | Material grade and heat traceability |
| Dimensional Inspection | Tong body, jaws, pins and critical dimensions |
| Heat Treatment Review | Heat-treatment records and hardness |
| Visual Inspection | Surface condition and workmanship |
| Magnetic Particle Inspection | Agreed load-carrying components |
| Assembly Inspection | Jaw movement, latch engagement and fit |
| Functional Verification | Tong movement and operating function |
| Marking Review | Model, serial number, size range and rating |
| Certificate of Conformity | Available as agreed |
| Material Test Certificate | Available for agreed components |
| Dimensional Report | Available |
| Hardness Report | Available when required |
| MPI Report | Available when required |
| Jaw and Torque Chart | Available for the selected configuration |
| Operation and Maintenance Manual | Available |
| Spare-Parts List | Available |
| Packing Photographs | Available |
| Third-Party Release Note | Available when inspection applies |
The final inspection plan and document package depend on the purchase order and end-user specification.
API Monogram marking requires an active and applicable licensing scope for the selected product and manufacturing source.
Operation and Safety Checks
Before each operation, inspect the tong body, installed jaw, lever, hanger and line arrangement.
| Check Point | What to Confirm |
| Jaw Size | Matches the actual gripping OD |
| Tong Rating | Meets the required torque |
| Latch | Engages fully and moves smoothly |
| Tong Dies | Show no excessive wear or damage |
| Pins and Retainers | Remain secure and undamaged |
| Hanger Eye | Shows no crack or deformation |
| Pull Line | Has the correct rating and position |
| Snub Line | Has the correct rating and attachment |
| Lever Clearance | Allows safe movement |
| Gripping Position | Matches the approved tong area |
Keep hands away from jaws, latches and hinge points during operation. Avoid shock loading and stop work if the tong slips, fails to latch or shows visible damage.
Never use a manual tong as a hoisting device.
Manual Tong Maintenance Schedule
| Maintenance Interval | Recommended Action |
| Before Each Use | Check jaws, dies, latch, pins, hanger and markings |
| After Each Job | Remove drilling mud, oil and debris |
| Weekly or Based on Use | Lubricate approved pivot points |
| During Jaw Change | Inspect jaw pockets, pins and latch hardware |
| Scheduled Rig Maintenance | Check wear, dimensions, cracks and deformation |
| After Overload or Impact | Remove the tong from service and arrange inspection |
| Before Long-Term Storage | Clean, lubricate and apply corrosion protection |
| Before Returning to Service | Confirm movement, markings and jaw installation |
Maintenance frequency should follow the actual operating conditions, rig procedures and supplied operation manual.
Why Choose SGPE?
SGPE supplies API 7K manual tongs and related rig floor handling tools for drilling contractors, workover companies, oilfield service providers, equipment distributors and petroleum equipment maintenance bases.
Our team checks the actual tool joint or coupling OD, makeup and breakout torque, jaw arrangement, lever length and spare-part compatibility before confirming the proposal. We also review inspection requirements, manufacturing documents, export packing and delivery details.
This product range helps buyers simplify technical matching, inspection planning and international delivery for drilling, workover, casing running and well servicing projects.
Frequently Asked Questions About API 7K Manual Tongs
1. What information should I provide when requesting an API 7K Manual Tong quotation?
State the tubular type, nominal size and actual gripping OD. For drill pipe, use the tool joint OD. For tubing or casing, confirm whether the tong will grip the pipe body, coupling or another approved area.
You should also include the connection type, makeup torque, expected breakout torque, required jaw sizes, lever preference and quantity. Add any API, inspection, documentation and delivery requirements.
For replacement work, send the existing nameplate, jaw number, part number, photographs and critical dimensions.
2. How do I choose the correct manual tong size for drill pipe?
Select a drill pipe tong from the actual tool joint OD rather than the nominal drill pipe body size. Two pipes with the same nominal diameter may use different tool joints, connections and torque values.
Type B and Type AAX tongs often suit standard drill pipe. Type DB, H and SDD models cover larger tool joints or higher-torque connections.
Share the drill pipe size, tool joint OD, connection, makeup torque and expected breakout torque so SGPE can match the correct model and jaw package.
3. What is the difference between Type B and Type DB Manual Tongs?
Type B Manual Tongs serve general drill pipe, casing coupling and drilling sub connections. They offer a practical range for conventional drilling and workover operations.
Type DB models provide a larger gripping range and higher torque capacity. Contractors often use them for heavy drill pipe, drill collars, larger casing couplings and selected BHA components.
The installed jaw and gripping diameter still determine the final torque limit. For that reason, buyers should compare the complete configuration rather than the model name alone.
4. Which manual tong suits tubing and workover operations?
Type MS, LF and C Manual Tongs commonly suit production tubing, completion work and light workover service.
Type MS and LF models cover smaller diameters and lower torque requirements. Type C offers a wider gripping range for tubing, small drill pipe, light casing and selected service tools.
Confirm the tubing body OD, coupling OD, thread type, makeup torque and available floor space. In many cases, the coupling OD determines the required jaw.
5. Can SGPE supply a manual tong for casing and conductor pipe?
Yes. SGPE can supply casing manual tongs for surface casing, intermediate casing, production casing and conductor pipe.
Large sizes usually require a dedicated casing tong head. A standard drill pipe tong may close around a coupling, but that does not confirm suitable jaw geometry, load transfer or torque capacity.
Send the casing body OD, coupling OD, required torque, floor clearance and suspension details for technical review.
6. Can one API 7K Manual Tong handle several tubular sizes?
One tong body can often handle several diameters by using different lug jaws, latch jaws, hinge jaws and tong dies.
However, one jaw set cannot cover the complete model range. Some size changes also require different pins, latch hardware or hinge positions. Larger jaws may also carry lower torque limits.
List every required gripping OD so SGPE can prepare the correct multi-size jaw package.
7. Why is the actual gripping OD more important than the nominal pipe size?
A manual tong often grips a tool joint or coupling rather than the tubular body. These sections usually have a larger outside diameter.
For example, a 5-inch drill pipe may use a much larger tool joint. Tubing and casing couplings also exceed the pipe body OD.
Measure the exact gripping surface and identify whether it is a tool joint, coupling, drill collar or pipe body. This information helps prevent jaw fitment errors.
8. How do lever length, line pull and pull angle affect torque?
A manual tong converts line pull into torque through its lever. A longer lever can reduce the pull force required for a given theoretical torque, but it also needs more floor clearance.
The highest theoretical torque occurs when the pull line remains perpendicular to the lever. As the angle changes, the effective torque decreases.
An extended lever does not raise the rated capacity of the tong body, jaw, hanger or suspension system.
9. Can SGPE supply manual tong jaws, dies and replacement parts?
Yes. SGPE supplies lug jaws, latch jaws, hinge jaws, long jaws, short jaws, tong dies, pins, springs, plungers, hanger components, lever parts and retaining hardware.
For accurate matching, send the manufacturer, model, serial number, nameplate and existing part number. Clear photographs and actual dimensions help when the original identification is missing.
Different manufacturers may use different jaw profiles and pin positions, even when the model names appear similar.
10. What is the difference between a manual tong, hydraulic power tong and iron roughneck?
A manual tong uses a catline or mechanical pull line. Its straightforward structure suits conventional rigs, occasional use and backup service.
A hydraulic power tong uses a hydraulic motor and gearbox. It operates faster during repetitive tubing or casing running.
An iron roughneck combines clamping, spinning and torquing in one powered system. It suits high-volume drill pipe handling but requires more floor space and technical support.
11. Does every API 7K Manual Tong carry an API Monogram?
No. API Spec 7K includes manual tongs, but the product name does not confirm API Monogram marking.
Monogram eligibility depends on the selected product, manufacturing source and active licence scope. State the required API marking in both the RFQ and purchase order.
SGPE will review the requirement before order confirmation and align the marking and document package with the agreed scope.
12. What inspection documents and export services can SGPE provide?
SGPE can provide an agreed package with a COC, MTCs, dimensional reports, hardness results, MPI reports, functional records, data sheets, jaw charts, torque charts and operation manuals.
We can also coordinate third-party inspection according to an approved inspection and test plan. Buyers should confirm the inspection agency and hold points before production.
For export orders, SGPE can arrange corrosion protection, project marking, plywood cases, seaworthy packing and packing photographs.
Request an API 7K Manual Tong Price
Send SGPE your RFQ for an API 7K Manual Tong, drill pipe tong, tubing tong, casing manual tong, workover manual tong or replacement jaw package.
To recommend the correct model, please provide the tubular type, nominal pipe size and actual gripping OD. For drill pipe, include the tool joint OD. For tubing and casing, confirm the coupling OD or approved gripping area. Please also state the connection type, required makeup torque and expected breakout torque.
List all required jaw sizes, quantities of complete tongs and spare parts, such as lug jaws, latch jaws, hinge jaws, tong dies, pins and springs. Please specify any requirements for API Spec 7K conformity, API Monogram marking, third-party inspection, material certificates or other manufacturing documents.
For replacement or overhaul enquiries, send the existing nameplate, model, part number, jaw number, clear photographs and key dimensions.
E-Mail:
info@sgpe.com
