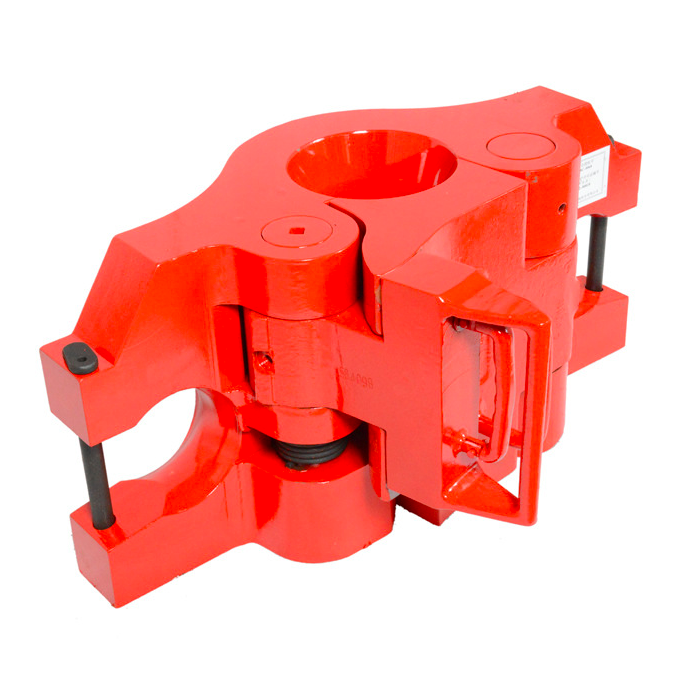

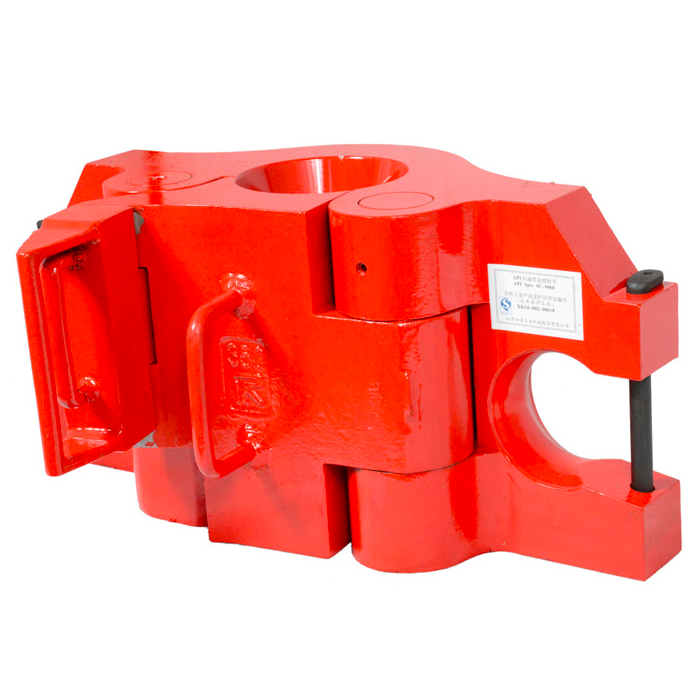

CDZ Anti-Drop Elevator API 8C Oilfield Elevator | SGPE
The SGPE CDZ Anti-Drop Elevator is a heavy-duty API 8C oilfield elevator for drill pipe, casing, tubing and pipe string handling in petroleum drilling, workover and well servicing operations. As an upgraded CDZ elevator, it uses an automatic resetting ring stop to simplify the locking process, reduce manual pin handling and improve lifting safety on the rig floor.
Drilling and workover crews move tubular goods throughout daily field operations. Every lift requires secure locking, smooth movement and reliable load performance. The CDZ Anti-Drop Elevator helps crews lift, hold and position pipe strings with fewer manual steps, making it a practical choice for drilling contractors, rig operators, well servicing teams and oilfield equipment distributors.
SGPE supplies CDZ Anti-Drop Elevators in rated capacities from 150 short tons to 500 short tons. Each model covers specific pipe size ranges, so buyers can choose the right elevator according to pipe OD, tubular type, rated load and field application. SGPE manufactures this oilfield lifting tool according to API Spec 8C requirements for drilling and production hoisting equipment.
What Is a CDZ Anti-Drop Elevator?
A CDZ Anti-Drop Elevator is an oilfield tubular handling tool used in drilling and workover hoisting systems. Rig crews use it to lift, hold and handle drill pipe, casing, tubing and other pipe strings on the rig floor.
Compared with a conventional CDZ elevator, this anti-drop model adds an automatic resetting ring stop. This design reduces repeated safety pin handling and gives crews a safer, faster way to manage pipe lifting tasks.
In daily oilfield work, pipe handling includes lifting, lowering, positioning, connecting and controlling tubulars during drilling, casing running support, well repair and service operations. The automatic ring stop removes one repeated manual step, so workers can focus on controlled pipe movement and safer hoisting practice.
For oilfield buyers, the CDZ Anti-Drop Elevator is more than a basic lifting tool. It works as a practical rig floor tubular handling solution for improving workflow, reducing hands-on intervention and supporting efficient lifting in demanding drilling and workover environments.
Key Features of SGPE CDZ Anti-Drop Elevator
API 8C Oilfield Elevator Design
SGPE manufactures the CDZ Anti-Drop Elevator according to API Spec 8C requirements for oilfield lifting and hoisting equipment. This makes the elevator suitable for petroleum drilling rigs, workover rigs and well servicing units that need dependable pipe handling tools.
Depending on the selected model, buyers can use it as a drilling rig elevator, workover elevator, well servicing elevator or general oilfield tubular handling elevator. It handles drill pipe, casing, tubing and pipe strings during rig floor lifting operations.
For buyers searching for an API 8C oilfield elevator for petroleum drilling or workover projects, the CDZ Anti-Drop Elevator combines recognized manufacturing requirements, an anti-drop safety structure and heavy-duty rated capacity.
Automatic Resetting Ring Stop
The automatic resetting ring stop gives this model its main safety advantage. It reduces repeated pin insertion and removal during lifting work, so crews can complete pipe handling tasks with fewer locking actions.
This structure lowers the chance of incorrect pin operation, especially during high-frequency lifting cycles. It also keeps rig floor workflow smoother when crews lift, lower and position pipe strings many times during one job.
For drilling rigs, workover rigs and well servicing units, this anti-drop design improves daily operation safety while keeping the tool simple to operate.
Heavy-Duty Rated Capacity
SGPE offers CDZ Anti-Drop Elevators with rated capacities of 150 short tons, 250 short tons, 350 short tons and 500 short tons. This model range gives buyers more flexibility when selecting oilfield lifting equipment for different pipe sizes and load requirements.
The 150-ton and 250-ton models fit many standard drill pipe and tubing handling jobs. The 350-ton model covers a wider size range and supports larger tubular handling requirements. The 500-ton model suits heavier oilfield lifting applications where higher rated capacity matters.
With this range, customers can match the elevator to real field conditions instead of relying on one general-purpose model.
Stable Pipe Handling Performance
Oilfield equipment must withstand repeated use, tough site conditions and heavy lifting cycles. The CDZ Anti-Drop Elevator uses a strong body structure to support stable gripping, lifting and positioning during pipe string handling.
It fits common rig floor tasks such as drill pipe handling, tubing movement, casing handling support and general tubular lifting. Stable operation reduces delays, improves crew confidence and supports safer hoisting work.
For procurement teams, one elevator series can cover several common oilfield lifting needs while keeping model selection clear.
Suitable for Drill Pipe, Casing and Tubing
The SGPE CDZ Anti-Drop Elevator covers different pipe size ranges and works with multiple tubular types. Depending on the selected model, buyers can use it as a drill pipe elevator, casing elevator, tubing handling elevator or general pipe string lifting tool.
This flexibility helps oilfield companies manage different projects more efficiently. A drilling job may focus on drill pipe handling, while a workover or service job may require frequent tubing movement. Some field applications may also require casing handling support. The CDZ Anti-Drop Elevator gives buyers practical model choices for these needs.
Field-Friendly Rig Floor Operation
SGPE develops this elevator for real rig floor use. The automatic ring stop reduces unnecessary manual actions, while the heavy-duty structure supports long-term operation in drilling and workover environments.
For rig crews, practical operation matters. A convenient elevator can reduce downtime during pipe handling, improve daily lifting efficiency and make field acceptance easier for operators.
Applications of CDZ Anti-Drop Elevator in Oilfield Operations
Petroleum Drilling Operations
Drilling crews use the CDZ Anti-Drop Elevator to lift and handle drill pipe, casing, tubing and other tubular strings on petroleum drilling rigs. During drilling operations, workers frequently lift, position and connect pipe strings. A reliable oilfield elevator keeps these tasks safer and more organized.
The automatic resetting ring stop reduces pin handling during repeated pipe movement. As a result, drilling contractors can improve rig floor safety while maintaining efficient tubular handling.
Workover Rig Operations
Workover crews often lift and reposition tubing, drill pipe and workover strings during well repair, maintenance and intervention jobs. The SGPE CDZ Anti-Drop Elevator gives crews a secure tool for handling tubulars on the workover rig floor.
Workover projects often require frequent pipe movement. Because of this, the anti-drop structure gives crews a practical advantage. It reduces locking actions and keeps lifting tasks more consistent.
Well Servicing Operations
Well servicing jobs may involve tubing handling, pipe string movement and service tool support. Crews need equipment that can handle repeated lifting, lowering and positioning during routine field maintenance.
The CDZ Anti-Drop Elevator gives service crews a safer and more efficient way to manage pipe handling tasks. Its model range also allows buyers to select a suitable rated capacity for different service conditions.
Casing Handling and Casing Running Support
Casing handling requires careful lifting because casing strings can be heavy and must stay properly positioned during rig floor operations. The CDZ Anti-Drop Elevator can support casing handling when the selected model matches the pipe OD and rated load.
For casing running support, the elevator helps crews lift and control casing strings as part of the hoisting and pipe handling process. The automatic ring stop adds convenience during repeated handling tasks and reduces pin-related risks.
Tubing Handling Operations
Tubing handling plays an important role in workover and well servicing operations. Crews often lift, lower and reposition tubing during well repair, maintenance and service work.
The CDZ Anti-Drop Elevator handles tubing movement when buyers choose the correct size range and capacity. Its automatic resetting ring stop reduces repeated pin handling and improves efficiency during frequent pipe movement.
Drill Pipe Handling
Drill pipe handling requires secure lifting, stable positioning and reliable equipment performance. The SGPE CDZ Anti-Drop Elevator allows crews to lift and handle drill pipe during petroleum drilling and workover operations.
For rig operators who need a dependable drill pipe elevator with an anti-drop structure, this model provides a practical option for daily rig floor lifting work.
General Rig Floor Pipe Handling
The CDZ Anti-Drop Elevator suits demanding rig floor environments where crews need secure lifting, stable operation and efficient pipe handling. It supports oilfield tubular goods handling on drilling rigs, workover rigs and well servicing units.
Whether the job involves drill pipe, casing, tubing or mixed tubular strings, the elevator allows crews to complete hoisting tasks with fewer manual steps and better operational control.
Why Choose SGPE CDZ Anti-Drop Elevator?
Safer Rig Floor Operation
The automatic resetting ring stop reduces repeated safety pin handling. Instead of inserting and removing pins again and again, crews complete lifting tasks with fewer locking actions. This lowers the risk of incorrect operation during pipe lifting.
For drilling, workover and well servicing teams, better rig floor safety means more confidence during repeated tubular handling jobs.
Faster Pipe Handling Workflow
Pin handling can slow down pipe movement, especially during jobs with frequent lifting cycles. The anti-drop design allows crews to move faster while maintaining safe handling practice.
This advantage matters in drilling, workover and well servicing operations because crews often need to lift, lower and position pipe strings many times during one project.
Practical Model Selection
SGPE offers CDZ Anti-Drop Elevators in several rated capacities and pipe size ranges. Buyers can choose the right model according to pipe OD, rated load, tubular type and working conditions.
This model coverage helps drilling contractors, oilfield service companies and equipment distributors match the elevator to specific job requirements.
Durable Structure for Oilfield Use
Oilfield lifting equipment must handle tough field environments and repeated hoisting cycles. The CDZ Anti-Drop Elevator uses a strong body structure for long-term use on drilling sites, workover locations and service units.
Durable equipment reduces downtime, lowers maintenance pressure and extends service value. Therefore, it benefits both rig operators and procurement teams.
Strong Fit for B2B Oilfield Procurement
The SGPE CDZ Anti-Drop Elevator gives oilfield buyers a useful combination of API 8C manufacturing requirements, anti-drop safety design, heavy-duty load capacity and wide pipe handling coverage.
It fits buyers who need oilfield elevators for project supply, rig maintenance, equipment replacement, distributor inventory or direct field use.
Main Technical Parameters
| Model | Size Range | Rated Capacity | Typical Application |
|---|---|---|---|
| CDZ-150 | 2 3/8–5 1/2 in | 150 short tons | Drill pipe and tubing handling |
| CDZ-250 | 2 3/8–5 1/2 in | 250 short tons | Drill pipe and tubing handling |
| CDZ-350 | 2 7/8–20 in | 350 short tons | Drill pipe, casing and tubular handling |
| CDZ-500 | 3 1/2–5 1/2 in | 500 short tons | Heavy-duty oilfield tubular lifting |
Need Help Choosing a Model?
Selecting the right CDZ Anti-Drop Elevator depends on pipe OD, rated capacity, tubular type and field application. Send SGPE your operation details, and our team will recommend a suitable model for your drilling, workover or well servicing project.
How to Select the Right CDZ Anti-Drop Elevator
Choosing the right elevator improves safety, handling efficiency and equipment compatibility. Before ordering, buyers should confirm several key details.
Confirm Pipe Size Range
Start with the outside diameter of the pipe. Each CDZ Anti-Drop Elevator model covers a specific size range, so buyers should match the elevator with the required drill pipe, casing or tubing OD.
Confirm Rated Capacity
The rated capacity must match the lifting requirement of the job. SGPE supplies models from 150 short tons to 500 short tons. Buyers should choose a capacity that fits the planned drilling, workover or well servicing operation.
Confirm Tubular Type
Different jobs may involve drill pipe, casing, tubing or mixed tubular strings. The correct elevator model depends on both pipe size and tubular type. This step helps avoid mismatch during field operation.
Confirm Rig Type and Working Conditions
The elevator may work on a drilling rig, workover rig or well servicing unit. Buyers should consider operation frequency, rig floor workflow, field conditions and handling requirements before selecting a model.
Ask SGPE for Model Recommendation
If you need help with selection, SGPE can review your pipe OD, rated load, tubular type and application. Then our team can recommend a suitable CDZ Anti-Drop Elevator for your project.
Product Advantages for Oilfield Buyers
The SGPE CDZ Anti-Drop Elevator solves several practical lifting challenges for oilfield buyers. It improves pipe handling safety, reduces repeated pin handling and gives crews a dependable tool for daily rig floor work.
Key advantages include:
- API Spec 8C manufacturing requirements for oilfield hoisting applications
- Automatic resetting ring stop for safer rig floor operation
- Fewer locking actions during repeated pipe lifting
- Rated capacities from 150 to 500 short tons
- Model options for drill pipe, casing and tubing handling
- Application fit for drilling, workover and well servicing operations
- Strong body structure for demanding oilfield environments
- Practical selection support for different pipe sizes and rated loads
- Procurement support for contractors, service companies and distributors
Quality and Supply Support
SGPE supplies oilfield tools and handling equipment for petroleum drilling, workover and well servicing applications. For CDZ Anti-Drop Elevators, our team can support model selection, technical parameter confirmation and quotation preparation.
Oilfield equipment buyers often need more than a product name. They need clear specifications, suitable model recommendations and fast communication before placing an order. SGPE helps customers confirm pipe size range, rated capacity, tubular type, field use and quantity, so the quotation can match the actual project requirement.
Customers can send the required pipe OD, load requirement, rig application and order quantity. SGPE will review the information and provide a suitable recommendation.
Frequently Asked Questions About CDZ Anti-Drop Elevator
1. What is a CDZ Anti-Drop Elevator?
A CDZ Anti-Drop Elevator is an oilfield elevator for lifting drill pipe, casing, tubing and other pipe strings on drilling rigs, workover rigs and well servicing units. SGPE designs this upgraded CDZ model with an automatic resetting ring stop to reduce pin handling during rig floor lifting work.
This API 8C oilfield elevator gives drilling contractors and oilfield service companies a safer way to handle tubular goods during daily hoisting operations.
2. What is the CDZ Anti-Drop Elevator used for?
Crews use the CDZ Anti-Drop Elevator for drill pipe handling, casing handling, tubing handling and general pipe string lifting. It works on petroleum drilling rigs, workover rigs and well servicing units.
It suits projects that require frequent lifting cycles, safer operation and dependable tubular handling equipment.
3. How does the automatic resetting ring stop improve safety?
The automatic resetting ring stop reduces traditional safety pin handling. Crews no longer need to rely on repeated pin insertion and removal during every lifting task.
This design lowers the risk of incorrect pin operation during repetitive pipe lifting. It also supports smoother oilfield hoisting work on the rig floor.
4. Does SGPE manufacture the CDZ Anti-Drop Elevator according to API Spec 8C?
Yes. SGPE manufactures the CDZ Anti-Drop Elevator according to API Spec 8C requirements for oilfield lifting and hoisting equipment.
Buyers who need an API 8C elevator for drill pipe, casing or tubing handling can use this model for petroleum drilling, workover and well servicing applications.
5. What rated capacities are available?
SGPE supplies CDZ Anti-Drop Elevators in 150 short tons, 250 short tons, 350 short tons and 500 short tons. These options help buyers match the elevator with pipe size, lifting load, rig type and field application.
The model range covers standard pipe handling as well as heavier oilfield lifting tasks.
6. Can the CDZ Anti-Drop Elevator handle drill pipe?
Yes. The CDZ Anti-Drop Elevator can work as a drill pipe elevator when the selected model matches the required pipe size and rated capacity.
It allows crews to lift and position drill pipe during petroleum drilling and workover operations. For rig floor drill pipe handling, the anti-drop design offers better convenience than traditional manual pin structures.
7. Can the CDZ Anti-Drop Elevator handle casing?
Yes. The CDZ Anti-Drop Elevator can support casing handling when the pipe OD and lifting requirement match the selected model.
Buyers should confirm casing size, rated load and field conditions before choosing a casing elevator model. SGPE can recommend a suitable option based on your actual requirement.
8. Can the CDZ Anti-Drop Elevator handle tubing?
Yes. The CDZ Anti-Drop Elevator can handle tubing in workover and well servicing operations when buyers choose the correct size range.
Crews often lift, lower and reposition tubing during well repair, maintenance and service work. The automatic resetting ring stop reduces pin handling during these frequent movements.
9. Where do crews commonly use the CDZ Anti-Drop Elevator?
Crews commonly use the CDZ Anti-Drop Elevator on petroleum drilling rigs, workover rigs and well servicing units. It supports drill pipe handling, casing running support, tubing handling and general rig floor pipe lifting.
It also fits oilfield service companies, drilling contractors and equipment distributors that need API 8C lifting tools for oilfield tubular handling projects.
10. How do I choose the right CDZ Anti-Drop Elevator model?
To choose the right model, confirm four details first: pipe OD, tubular type, rated capacity and field application. These details help determine whether the project needs a 150-ton, 250-ton, 350-ton or 500-ton elevator.
For example, smaller drill pipe or tubing may require a different model from larger casing. SGPE can review your pipe size and lifting requirement, then recommend a suitable model.
11. What information should I provide when requesting a quotation?
Please provide the pipe size, tubular type, rated capacity, quantity and application conditions. You can also share the rig type, operating environment and project location if available.
These details help SGPE recommend the correct anti-drop elevator and prepare a more accurate quotation for your drilling, workover or well servicing project.
12. Why should oilfield buyers choose SGPE CDZ Anti-Drop Elevator?
Oilfield buyers choose SGPE CDZ Anti-Drop Elevator because it combines API 8C manufacturing requirements, automatic resetting ring stop, heavy-duty rated capacity and practical model coverage.
For drilling contractors, workover companies, well servicing teams and oilfield equipment distributors, this elevator offers a dependable solution for drill pipe, casing, tubing and pipe string handling on the rig floor.
Get a Quote for CDZ Anti-Drop Elevator
Looking for a reliable API 8C CDZ Anti-Drop Elevator for petroleum drilling, workover or well servicing operations?
SGPE supplies oilfield elevators for drill pipe, casing, tubing and pipe string handling. Whether you need a drill pipe elevator, casing elevator, tubing handling elevator or general oilfield tubular handling tool, our team can help you select the proper model according to your field requirements.
