Description

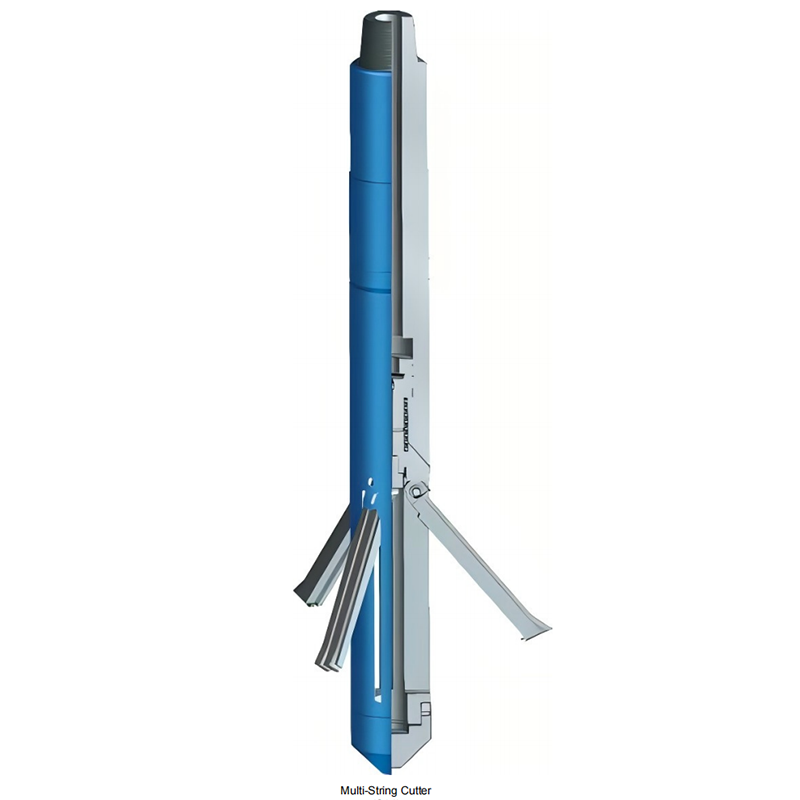

Multi-String Cutter for Oilfield Casing, Conductor Pipe and Well Abandonment Cutting | SGPE
The SGPE Multi-String Cutter helps oilfield crews cut multiple casing strings, conductor pipes and uncentralized tubulars in demanding downhole conditions. It gives P&A contractors, offshore decommissioning teams, drilling contractors and workover crews a compact yet powerful cutting tool for eccentric pipe strings and large conductor pipes up to 60 in.
Many oilfield cutting jobs involve more than a simple single-string cut. Casing may sit off-center, conductor pipe may carry heavy wall thickness, and old wells may contain hard spots, damaged tubulars or irregular cutting contact. These conditions create vibration, interrupted cuts and high shock loads.
SGPE builds this oilfield multi-string cutter with rugged cutter arms, wide blade expansion and a strong 3-bladed cutting structure. The tool helps crews keep better control when a standard casing cutter cannot handle eccentric pipe positions, large cutting ranges or unstable wellbore conditions.
The cutter arms can expand up to 5 times the tool body diameter. This design allows a compact tool body to pass through restricted wellbore sections and then cut much larger casing or conductor pipe downhole. For example, the GD298 model has an 11 3/4 in body O.D., yet it can cut pipe ranges up to 60 in with the correct optional knives.
SGPE offers several models, top connections and knife options to match different casing programs, conductor pipe sizes and wellsite requirements. Customers can select the right tool according to cutting range, maximum body O.D., pipe condition and operation type.
Quick Highlights
| Key Item | Description |
|---|---|
| Product Name | SGPE Multi-String Cutter |
| Main Use | Cutting multiple casing strings, conductor pipes and uncentralized tubulars |
| Cutting Range | 5 in to 60 in, depending on model and knife selection |
| Max Blade Expansion | Up to 5 times the tool body diameter |
| Structure | Rugged 3-bladed cutter arm design |
| Suitable Operations | P&A, offshore decommissioning, casing recovery, conductor cutting, workover and well intervention |
| Field Convenience | Cutter arms can be changed on the rig floor |
| Ordering Data Needed | Casing range, top connection, maximum body O.D. and pipe condition |
What Is a Multi-String Cutter?
A multi-string cutter is a downhole oilfield cutting tool used to cut more than one tubular string inside a wellbore. Operators use it to cut casing, conductor pipe, surface casing, intermediate casing, production casing and other tubulars when the strings do not share the same centerline.
Unlike a standard casing cutter, a multi-string cutter provides wider blade expansion and stronger cutting stability. It works well in complex wells with eccentric casing, poor centralization, deformed tubulars, heavy wall sections or uneven cutting contact.
SGPE Multi-String Cutter supports:
- Plug and abandonment operations
- Offshore well decommissioning
- Conductor pipe cutting
- Multi-string casing cutting
- Casing recovery and pipe removal
- Workover and well intervention
- Section cutting before fishing or retrieval
- Surface casing and intermediate casing cutting
- Large-diameter oilfield tubular cutting
Key Advantages of SGPE Multi-String Cutter
1. Wide Expansion for Large Oilfield Pipe Sizes
The cutter arms can expand up to 5 times the tool body diameter. This allows crews to run a compact tool through a restricted section and then cut larger casing or conductor pipe after deployment.
This feature works well in old wells, offshore wells and abandonment projects where crews often face both limited access and large pipe diameters.
2. Stable Cutting for Eccentric Casing and Conductor Pipe
Many oilfield wells contain pipe strings that no longer stay centered. This condition often appears in aging wells, abandoned wells, damaged wellbores and multi-string conductor sections.
SGPE’s cutter arm structure helps the tool maintain steady contact during eccentric casing cutting. As a result, crews can reduce instability and complete complex cuts with greater confidence.
3. Reliable Performance in High-Shock Downhole Conditions
The SGPE Multi-String Cutter handles hard spots, uneven pipe wall contact, interrupted cuts, vibration and heavy cutting loads. Its robust structure supports demanding jobs where pipe condition and wellbore geometry may change during operation.
This makes the tool suitable for P&A contractors, workover crews and offshore decommissioning teams that need dependable cutting performance in unpredictable well conditions.
4. Rugged 3-Bladed Cutting Structure
The 3-bladed design supports fast, balanced and stable cutting. It helps distribute cutting force around the pipe wall and reduces excessive vibration during operation.
This structure gives the tool strong value in multi-string casing cutting, large-diameter conductor pipe cutting and other high-load downhole cutting jobs.
5. Strong Coverage for Large-Diameter Conductor Pipe Cutting
Large conductor pipe cutting requires wide blade reach, strong cutter arms and stable tool response. SGPE offers models that cover casing and conductor pipe ranges up to 60 in.
This makes the tool suitable for offshore platforms, jack-up drilling projects, onshore conductor removal and heavy-duty well abandonment programs.
6. Rig-Floor Cutter Arm Replacement
Field crews can change cutter arms on the rig floor. This design helps reduce preparation time, improve job flexibility and support different casing cutting ranges at the wellsite.
For contractors handling several pipe sizes in one project, this feature helps improve efficiency and reduce unnecessary downtime.
Product Features
- Cuts multiple oilfield pipe strings, even when the strings are not concentric
- Expands up to 5 times the tool body diameter
- Handles casing, conductor pipe, surface casing and intermediate casing cutting
- Performs well in eccentric pipe, hard spots, interrupted cuts and high-shock conditions
- Covers pipe cutting ranges from 5 in to 60 in depending on model and knife selection
- Uses a rugged 3-bladed structure for stable cutting performance
- Allows cutter arm replacement on the rig floor
- Offers multiple body O.D., top connection and optional knife combinations
- Supports P&A, casing recovery, workover and offshore decommissioning work
- Helps crews improve cutting efficiency in complex wellbore conditions
Oilfield Applications
Plug and Abandonment Operations
During plug and abandonment work, crews often need to cut casing strings, conductor pipes or multiple tubular layers before retrieval, isolation or wellhead removal. The SGPE Multi-String Cutter helps P&A crews complete stable cuts in old wells, depleted wells and complex wellbore structures.
Its wide expansion range works well when operators need to pass through a restricted section and then cut a larger pipe size downhole.
Offshore Well Decommissioning
Offshore wells often contain large conductor pipes and multiple casing strings. After years of service, these strings may shift, deform or become eccentric. This creates a difficult cutting environment for standard casing cutters.
SGPE Multi-String Cutter supports offshore decommissioning tasks such as conductor pipe cutting, casing removal, wellhead removal preparation and subsea abandonment support.
Conductor Pipe Cutting
Large conductor pipe cutting requires strong cutter arms, wide blade reach and stable cutting contact. SGPE provides models that cover conductor and casing sizes up to 60 in.
This makes the tool suitable for offshore platforms, jack-up drilling projects, conductor removal jobs and heavy-duty abandonment programs.
Multi-String Casing Cutting
Some oil wells contain several casing strings in non-concentric positions. A standard casing cutter may struggle to maintain contact or complete a clean cut in this condition.
The SGPE Multi-String Cutter provides wide blade expansion and rugged cutting contact, helping crews cut multiple oilfield tubular strings more smoothly.
Casing Recovery and Pipe Removal
Before casing pulling, fishing or retrieval work, operators often need to cut casing sections at a planned depth. SGPE Multi-String Cutter supports casing recovery by cutting casing strings, damaged tubulars or pipe sections in demanding wellbore conditions.
This helps service companies prepare the well for recovery, fishing or remedial work.
Workover and Well Intervention
In workover and well intervention operations, crews may need to remove damaged casing, cut stuck tubulars or prepare the well for further repair work. The SGPE Multi-String Cutter gives workover teams a practical cutting solution for downhole tubular removal.
Surface Casing and Intermediate Casing Cutting
The tool supports cutting operations on surface casing, intermediate casing and other large casing sections. Its model range allows operators to select the right body O.D. and knife combination according to the well program.
Eccentric Wellbore Pipe Cutting
Older wells, offshore wells and previously worked-over wells often contain eccentric or poorly centralized pipe strings. SGPE Multi-String Cutter helps maintain cutting stability when pipe position, wall thickness or tool contact changes during the job.
Technical Specifications of SGPE Multi-String Cutter
| Model | Body O.D. | Connection | Casing Range | Optional Knives |
|---|---|---|---|---|
| GD127 | 4 in | 2-7/8 REG | 5 in – 9 5/8 in | 5 in; 5 in – 7 in; 5 in – 9 5/8 in |
| GD140 | 4 3/8 in | 3-1/2 REG | 5 1/2 in – 9 5/8 in | 5 1/2 in; 5 1/2 in – 7 in; 5 1/2 in – 9 5/8 in |
| GD178 | 5 3/4 in | NC38 | 7 in – 16 in | 7 in; 7 5/8 in – 8 5/8 in; 8 5/8 in – 11 3/4 in; 11 3/4 in – 16 in |
| GD210 | 8 1/4 in | 6 5/8 REG | 9 5/8 in – 30 in | 9 5/8 in; 10 3/4 in – 13 3/8 in; 10 3/4 in – 16 in; 13 3/8 in – 20 in; 20 in – 30 in |
| GD298 | 11 3/4 in | 6 5/8 REG | 13 3/8 in – 60 in | 13 3/8 in – 16 in; 13 3/8 in – 20 in; 13 3/8 in – 30 in; 20 in – 30 in; 20 in – 36 in; 30 in – 60 in |
Model Selection Guide
| Model | Best-Fit Cutting Range | Recommended Use |
|---|---|---|
| GD127 | 5 in – 9 5/8 in | Smaller casing strings, restricted wellbores and well intervention cutting jobs |
| GD140 | 5 1/2 in – 9 5/8 in | Common oilfield casing cutting where a compact body and wider reach matter |
| GD178 | 7 in – 16 in | Workover, casing recovery, well intervention and medium-size abandonment operations |
| GD210 | 9 5/8 in – 30 in | Larger casing cutting, conductor pipe cutting and pipe recovery projects |
| GD298 | 13 3/8 in – 60 in | Large conductor pipe cutting, offshore decommissioning and heavy-duty P&A work |
How to Select the Right Multi-String Cutter
Choosing the correct cutter depends on the casing program, wellbore restriction and cutting target. Before ordering, operators should confirm the following details:
| Selection Factor | Why It Matters |
|---|---|
| Casing or conductor size | Determines the required cutting range and optional knives |
| Maximum tool O.D. | Ensures the tool can pass through the running string or restricted section |
| Top connection | Matches the tool with the work string or drill string connection |
| Pipe condition | Helps SGPE evaluate eccentric, damaged, uncentralized or multi-string conditions |
| Operation type | P&A, workover, casing recovery and offshore decommissioning may require different tool choices |
| Spare parts demand | Optional knives and spare cutter arms help support field replacement |
If the well contains eccentric strings or uncertain pipe conditions, operators should share more well data before final model selection. SGPE can help match the tool body, connection and knife range to the cutting target.
Why Choose SGPE Multi-String Cutter?
SGPE focuses on practical oilfield equipment for drilling, workover, well intervention and well abandonment operations. The company understands that downhole cutting jobs often involve restricted access, unstable pipe position, high shock loads and large pipe diameters.
SGPE helps customers select the right downhole multi-string cutter according to casing range, conductor size, top connection and body O.D. requirements. The team can also provide optional knives, spare cutter arms, technical communication and export-ready supply support for field projects.
Oilfield contractors choose SGPE Multi-String Cutter because it offers:
- Strong cutter arms for high-shock cutting conditions
- Wide expansion range for large casing and conductor pipe sizes
- Practical model selection for different wellbore programs
- Optional knives for different casing and conductor pipe ranges
- Spare cutter arms for field replacement
- Rig-floor cutter arm replacement
- Stable performance during interrupted and eccentric cuts
- Reliable structure for drilling, workover, intervention and abandonment environments
- Technical support before order confirmation
This design helps oilfield service companies reduce cutting uncertainty, improve job efficiency and support safer pipe removal operations.
Ordering Information
To help SGPE recommend the correct multi-string cutter model, please provide the following details when requesting a quote:
| Required Information | Details to Provide |
|---|---|
| Casing size or cutting range | Example: 13 3/8 in – 30 in, 20 in – 36 in or 30 in – 60 in |
| Top connection | Example: 2-7/8 REG, 3-1/2 REG, NC38 or 6 5/8 REG |
| Body O.D. requirement | Confirm the maximum tool O.D. allowed by the wellbore or running string |
| Pipe condition | Concentric, eccentric, uncentralized, damaged or multi-string condition |
| Operation type | Plug and abandonment, conductor cutting, casing recovery, workover or offshore decommissioning |
| Special requirements | Optional knives, spare cutter arms, connection customization or packaging needs |
Frequently Asked Questions About SGPE Multi-String Cutter
1. What is a Multi-String Cutter used for in oilfield operations?
A Multi-String Cutter cuts multiple casing strings, conductor pipes and uncentralized tubulars inside a wellbore. Oilfield crews use it for plug and abandonment, offshore decommissioning, casing recovery, workover and well intervention operations. It works especially well when the well contains eccentric casing, damaged pipe or several tubular layers that do not share the same centerline.
2. How does SGPE Multi-String Cutter differ from a standard casing cutter?
A standard casing cutter usually cuts one pipe string within a limited diameter range. The SGPE Multi-String Cutter offers a much wider blade expansion range, so it can cut multiple casing strings or large conductor pipes with a compact tool body. It also provides stronger stability during eccentric casing cutting, interrupted cuts and high-shock downhole conditions.
3. Can this tool cut eccentric or uncentralized casing strings?
Yes. SGPE designs this oilfield multi-string cutter for wells where casing strings, conductor pipes or tubulars do not stay concentric. Its rugged cutter arms help maintain steady cutting contact when the pipe sits off-center. This makes the tool suitable for old wells, abandoned wells, offshore wells, damaged wellbores and multi-string conductor sections.
4. What is the maximum cutting range of SGPE Multi-String Cutter?
The SGPE Multi-String Cutter covers pipe cutting ranges from 5 in to 60 in, depending on the model and knife selection. The largest model, GD298, has an 11 3/4 in body O.D. and can cut casing or conductor pipe ranges up to 60 in with the correct optional knives.
5. What does blade expansion up to 5 times the body diameter mean?
Blade expansion up to 5 times the tool body diameter means the cutter arms can open far beyond the tool body size. This allows operators to run a compact tool through a restricted section and then cut larger casing or conductor pipe downhole. This feature gives the tool strong value in P&A, offshore decommissioning and large-diameter conductor pipe cutting jobs.
6. Which oilfield applications suit SGPE Multi-String Cutter?
SGPE Multi-String Cutter suits plug and abandonment, offshore well decommissioning, conductor pipe cutting, multi-string casing cutting, casing recovery, pipe removal, workover and well intervention. These applications often involve harsh wellbore conditions, eccentric pipe positions or large pipe sizes.
7. Can SGPE Multi-String Cutter handle large-diameter conductor pipe cutting?
Yes. SGPE offers models and optional knives for large-diameter conductor pipe cutting. The GD298 model can cover pipe ranges up to 60 in, which makes it suitable for offshore platforms, jack-up drilling projects, onshore conductor removal and heavy-duty well abandonment programs.
8. Can operators change the cutter arms on the rig floor?
Yes. Field crews can change the cutter arms on the rig floor. This design helps crews adapt the tool to different casing ranges, reduce preparation time and improve job flexibility at the wellsite. It also helps contractors handle several pipe sizes within one abandonment, recovery or workover project.
9. Which model should I choose for 20 in to 30 in pipe cutting?
For 20 in to 30 in oilfield pipe cutting, the GD210 Multi-String Cutter usually fits the job when operators select the correct optional knives. If the cutting range goes above 30 in, the GD298 model may provide a better option. SGPE can recommend the right model after reviewing the casing size, conductor pipe range, body O.D. limit and top connection.
10. What information should I provide before requesting a quote?
To help SGPE select the right downhole multi-string cutter, please provide the casing size or conductor pipe cutting range, required top connection, maximum tool body O.D., pipe condition, operation type and spare part requirements. Clear well data helps SGPE match the tool body, knife range and connection more accurately.
11. Can SGPE provide optional knives and spare cutter arms?
Yes. SGPE offers optional knives for different casing and conductor pipe ranges. Customers can also request spare cutter arms to support field replacement and reduce downtime during oilfield cutting operations. This helps service companies prepare for different pipe sizes and changing wellsite conditions.
12. Why should oilfield contractors choose SGPE Multi-String Cutter?
Oilfield contractors choose SGPE Multi-String Cutter because it combines wide blade expansion, rugged cutter arms, stable 3-bladed construction and practical model selection. It helps crews cut eccentric casing strings, conductor pipes and multiple tubular layers in demanding wellbore conditions. SGPE also supports model selection based on casing range, top connection, body O.D., pipe condition and project requirements.
Request a Quote from SGPE
Need a Multi-String Cutter for oilfield casing cutting, conductor pipe cutting, plug and abandonment or offshore decommissioning operations?
Send SGPE your casing size, required cutting range, top connection, maximum tool O.D. and pipe condition. Our team will help you select the right Multi-String Cutter model, optional knives and spare cutter arms for your well abandonment, casing recovery or conductor pipe cutting project.
