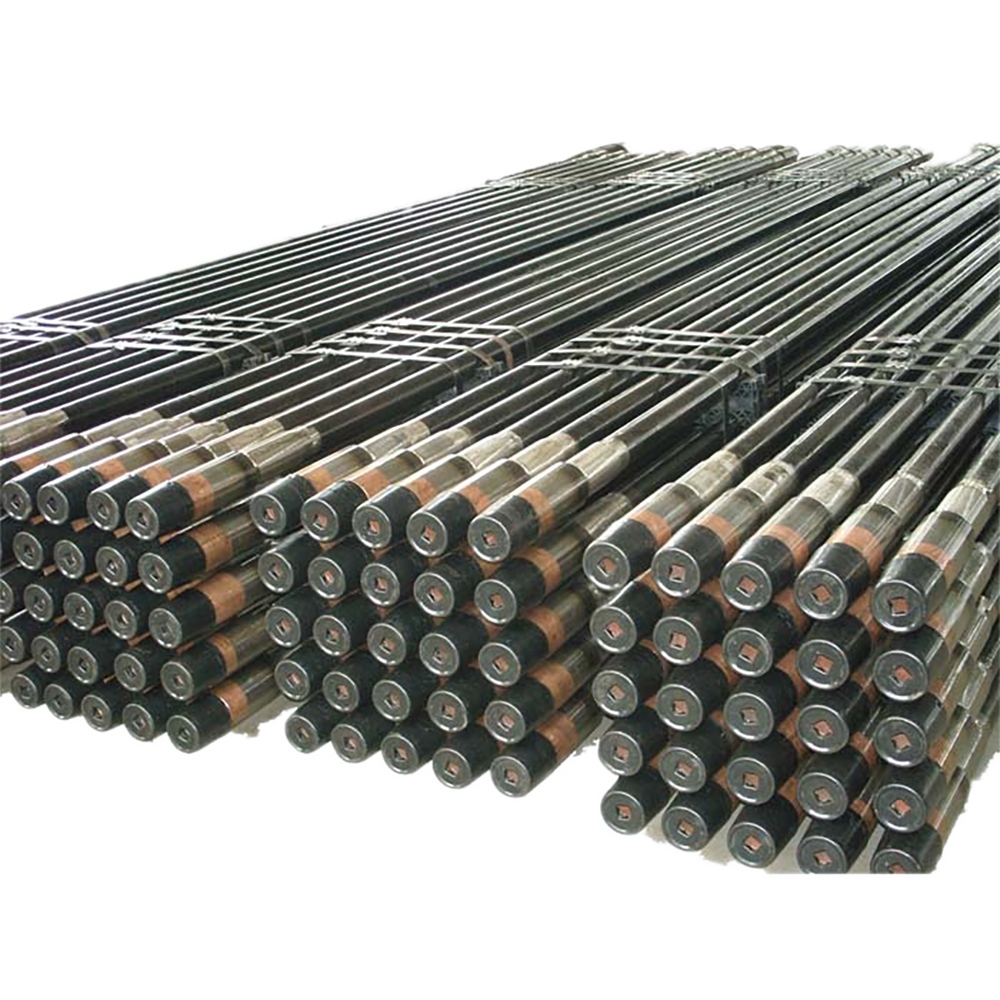

Oilfield Drill Pipe Manufacturer for Oilfield Drilling Workover Rig
SGPE supplies oilfield drill pipe for land rigs, offshore drilling units, directional wells, horizontal wells, deep wells, extended-reach drilling, workover operations and drill-string replacement projects.
The standard supply range covers common sizes from 2-3/8 to 5-1/2 inches. Selected 6-5/8 inch configurations are also available subject to technical review. Steel-grade options include E75, X95, G105 and S135, while available upset designs include IU, EU and IEU. Customers can specify NC, selected IF or FH connections, as well as selected high-torque and double-shoulder designs.

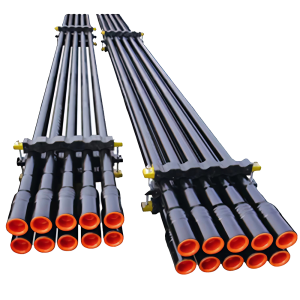

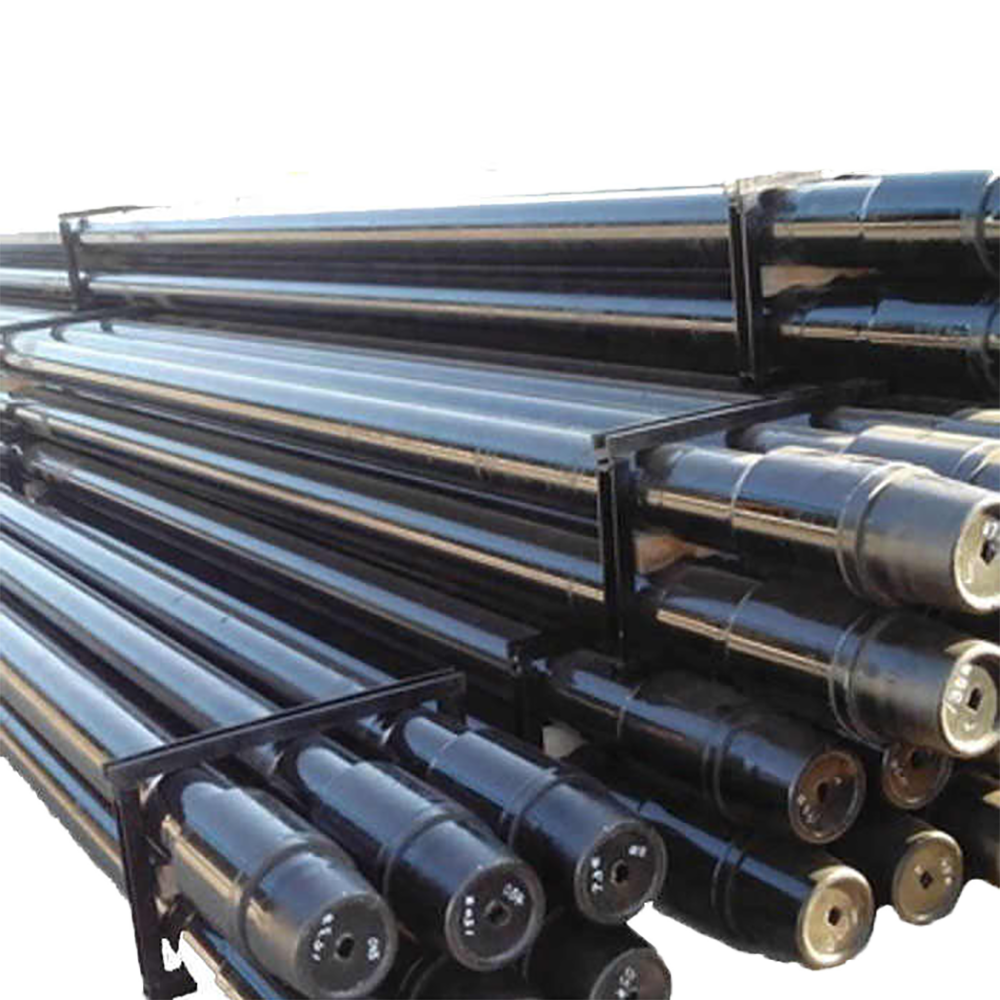

Each joint combines a seamless steel pipe body with friction-welded pin and box tool joints. The pipe body carries tension, compression, torque, bending and internal pressure. The tool joints connect the drill string and transfer rotary power from the top drive or rotary table to the bottom-hole assembly.
A complete drill pipe specification requires more than an outside diameter and steel grade. Before quotation, our technical team checks the nominal weight, upset, connection, tool-joint OD and ID, length range, rig equipment, well profile and operating conditions. This review helps identify missing data and reduces the risk of hydraulic, connection or handling-equipment mismatches.
Oilfield Drill Pipe at a Glance
| Item | Available Options |
|---|---|
| Product | Oilfield Drill Pipe |
| Supply Scope | New joints, partial strings, complete drill strings and replacement pipe |
| Common Sizes | 2-3/8 to 5-1/2 in. |
| Selected Large Size | 6-5/8 in., subject to technical review |

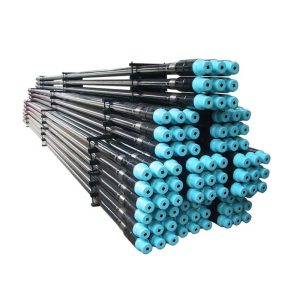

| Steel Grades | E75, X95, G105 and S135 |
| Construction | Seamless steel pipe body with friction-welded tool joints |
| Upset Types | IU, EU and IEU |
| Length Ranges | Range 1, Range 2 and Range 3 |
| Connection Families | NC, selected IF, selected FH and high-torque connections |
| Common NC Connections | NC26, NC31, NC38, NC40, NC46 and NC50 |
| Optional Features | Hardbanding, internal coating, thread treatment and sour-service configurations |
| Applications | Land, offshore, directional, horizontal, deep-well, extended-reach and workover drilling |
| Inspection | Dimensional inspection, mechanical testing, NDT and thread gauging |
| Documentation | MTC, dimensional reports, NDT records and agreed quality documents |

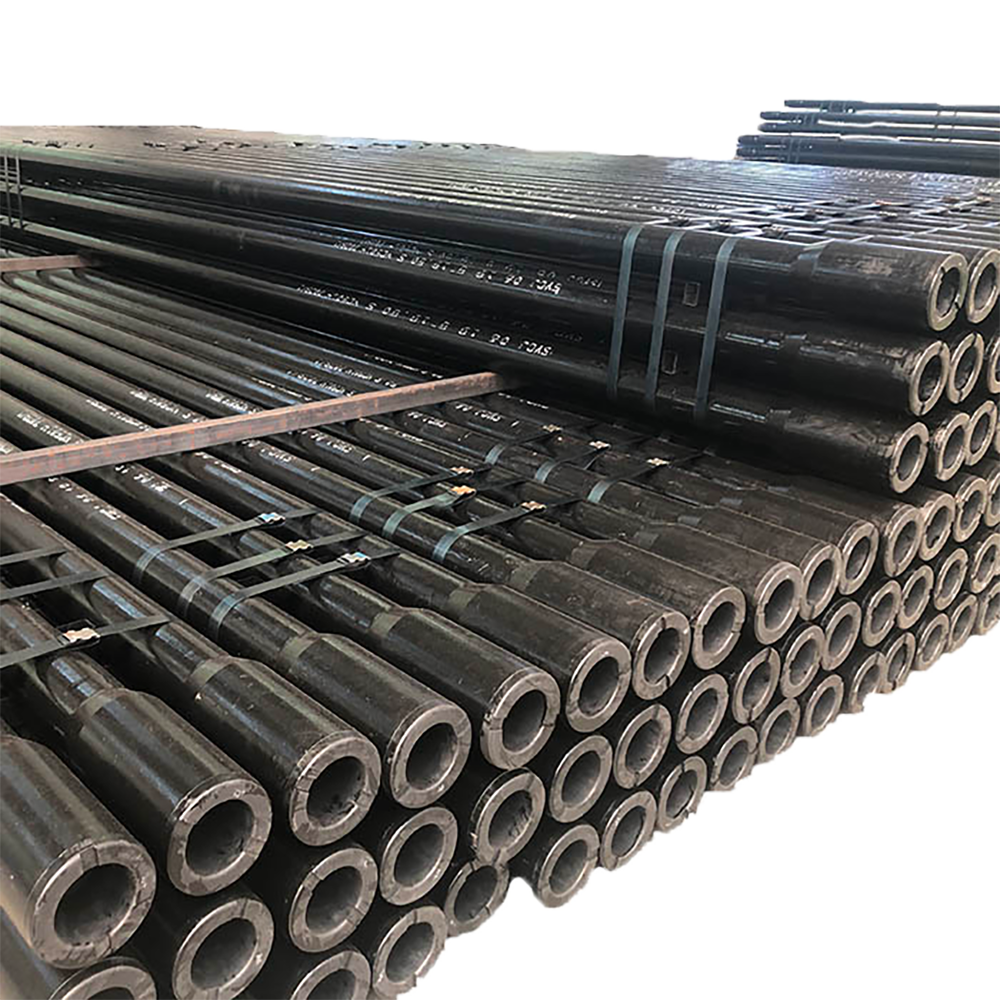

| Packing | Bundled export packing, lifting-friendly packing and project-specific preservation |
Need a quotation? Send the pipe OD, nominal weight, grade, upset, connection, tool-joint OD and ID, length range and quantity.
Oilfield Drill Pipe Supply Options
SGPE supports drilling contractors, oilfield service companies, workover operators, EPC contractors and international oil and gas projects with several supply models.
| Supply Requirement | Typical Customer Need | Main Information Required |
| Individual replacement joints | Replace damaged, worn or rejected pipe | Markings, grade, weight, connection and tool-joint dimensions |
| Partial drill string | Extend or repair an existing string | Tally sheet, quantity, connection and length range |
| Complete drill string | Equip a new rig or drilling program | Rig data, well profile, calculated loads and string requirements |
| Multi-size project package | Supply several hole sections or multiple rigs | Size schedule, grades, connections and delivery sequence |
| Offshore supply package | Support offshore or platform drilling | Traceability, inspection, preservation and sea packing |
| Workover drill pipe package | Support cleanout, milling or well re-entry | Rig capacity, clearance, connection and handling limits |
The available range covers seamless drill pipe in E75, X95, G105 and S135 grades. Configurations may combine IU, EU or IEU upsets with NC, selected IF, selected FH or high-torque connections.
Optional requirements can include hardbanding, internal coating, special thread treatment, offshore preservation, joint-level traceability or a separately reviewed sour-service configuration.
Complete drill-string packages can also include matching Heavy Weight Drill Pipe, Drill Collars, Non-Magnetic Drill Collars, Stabilizers, Reamers, Saver Subs, Crossover Subs, Kelly Valves, Upper and Lower IBOPs, Lift Plugs and Thread Protectors.
How Oilfield Drill Pipe Works
Oilfield drill pipe forms the main load-carrying section of a rotary drill string. It connects the surface rotary system to the bottom-hole assembly and drill bit.
During drilling, the pipe transfers torque from the top drive or rotary table to the bit. It also carries the suspended weight of the string. In directional and horizontal sections, some joints may experience compression.
The string rotates through straight and curved wellbore sections, so the pipe must tolerate repeated bending, vibration, changing torque and internal-pressure cycles.
Its internal bore carries drilling fluid from the mud pumps to the bottom-hole assembly. The fluid exits through the bit nozzles, cools and cleans the bit, and transports cuttings back to the surface through the annulus.
Because these mechanical and hydraulic loads act together, buyers should not choose drill pipe from OD alone. Nominal weight, wall thickness, bore, grade, upset, tool-joint dimensions and connection design all influence performance.
Drill Pipe Construction
| Component | Main Function | Key Selection Point |
| Seamless Pipe Body | Carries axial, torsional, bending and pressure loads | OD, nominal weight, wall thickness, ID and grade |
| Upset End | Adds material near the weld transition | IU, EU or IEU |
| Pin Tool Joint | Forms the male rotary-shouldered connection | Thread type, OD, ID and makeup torque |
| Box Tool Joint | Forms the female rotary-shouldered connection | Thread type, OD, ID and wear allowance |
| Friction-Weld Area | Joins the tool joint to the upset pipe body | Weld quality, heat treatment and transition profile |
| Internal Bore | Carries drilling fluid | Flow area, pressure loss and drift |
| Connection Shoulder | Transfers load and forms the circulation seal | Shoulder condition and makeup torque |
| Hardbanding | Limits tool-joint OD wear | Material, width and casing-wear policy |
| Internal Coating | Supports corrosion control and smoother flow | Mud chemistry, temperature and holiday test |
Seamless Steel Pipe Body
The seamless pipe body carries most of the axial, torsional and bending loads.
Outside diameter and nominal weight establish the basic geometry. Wall thickness then affects both mechanical capacity and internal flow area.
A larger bore can reduce drilling-fluid pressure loss and support higher circulation rates. However, it also leaves less steel cross-sectional area for tension and torque. The final configuration must therefore balance hydraulics with mechanical strength.
IU, EU and IEU Upsets
The upset adds material near each pipe end and supports the transition between the pipe body and tool joint.
An IU, or internal upset, adds material mainly toward the bore. An EU, or external upset, adds material mainly toward the outside diameter. An IEU, or internal-external upset, increases the section in both directions.
The correct upset depends on the pipe size, nominal weight, tool-joint profile, connection and required flow area.
Pin and Box Tool Joints
Pin and box tool joints connect individual joints into a continuous drill string.
Their OD, ID and thread design affect torque capacity, hydraulic flow, casing clearance, wear allowance and handling-tool compatibility.
Replacement orders should include the actual tool-joint OD and ID. A general connection name may not identify the complete configuration.
Friction-Weld Transition
Friction welding joins each tool joint to the upset pipe body.
After welding, the production process removes the internal and external flash, then heat-treats and inspects the weld zone.
A smooth transition helps transfer loads between the tool joint and pipe body while controlling stress concentration near the weld.
Applicable Drill Pipe Standards
| Standard | Main Relevance |
| API Spec 5DP | Technical requirements for steel drill pipe |
| ISO 11961 | Technical delivery conditions for steel drill pipe |
| API Spec 7-2 | Threading and gauging of applicable rotary-shouldered connections |
| Proprietary Connection Specification | Dimensions, gauges, torque and manufacturing requirements |
| Customer Specification | Additional material, inspection, marking, preservation and documentation |
The purchase order should identify the required standard edition, Product Specification Level (PSL), connection specification and any project-specific additions.
Representative Drill Pipe Body Configurations
The values below represent commonly published API-type pipe-body configurations for preliminary selection. Final dimensions, tool-joint combinations and performance ratings must follow the approved manufacturer datasheet and purchase specification.
| Nominal Size | Nominal Weight | Wall Thickness | Approx. Pipe-Body ID | Typical Upset | Example Connection Family |
| 2-3/8 in. | 6.65 lb/ft | 0.280 in. | 1.815 in. | EU | NC26 |
| 2-7/8 in. | 10.40 lb/ft | 0.362 in. | 2.151 in. | EU | NC31 |
| 3-1/2 in. | 9.50 lb/ft | 0.254 in. | 2.992 in. | EU | NC38 |
| 3-1/2 in. | 13.30 lb/ft | 0.368 in. | 2.764 in. | EU | NC38 |
| 3-1/2 in. | 15.50 lb/ft | 0.449 in. | 2.602 in. | EU | NC38 or NC40 |
| 4 in. | 14.00 lb/ft | 0.330 in. | 3.340 in. | EU or IU | NC40 or NC46 |
| 4-1/2 in. | 13.75 lb/ft | 0.271 in. | 3.958 in. | EU | NC50 |
| 4-1/2 in. | 16.60 lb/ft | 0.337 in. | 3.826 in. | EU or IEU | NC46 or NC50 |
| 4-1/2 in. | 20.00 lb/ft | 0.430 in. | 3.640 in. | EU or IEU | NC46 or NC50 |
| 5 in. | 19.50 lb/ft | 0.362 in. | 4.276 in. | IEU | NC50 or selected FH |
| 5 in. | 25.60 lb/ft | 0.500 in. | 4.000 in. | IEU | NC50 or selected FH |
| 5-1/2 in. | 21.90 lb/ft | 0.361 in. | 4.778 in. | IEU | Selected FH |
| 5-1/2 in. | 24.70 lb/ft | 0.415 in. | 4.670 in. | IEU | Selected FH |
Dimensions may vary with the producer, upset design, tool-joint profile and connection. An inquiry such as “5 inch S135 drill pipe” remains incomplete until the purchaser confirms the nominal weight, upset, tool-joint OD and ID, connection and length range.
Selecting Oilfield Drill Pipe by Size
| Drill Pipe Size | Common Application Area | Main Review Points |
| 2-3/8 in. | Light workover and selected slim-hole service | Rig capacity, clearance and connection compatibility |
| 2-7/8 in. | Workover, well re-entry and shallow drilling | Required torque, length and existing workover string |
| 3-1/2 in. | Land rigs, directional sections and medium-depth wells | Hydraulics, total string weight and connection |
| 4 in. | Directional drilling and sidetracking | Casing clearance, torque and handling equipment |
| 4-1/2 in. | Land, offshore, directional and extended-reach drilling | Weight, grade, NC46 or NC50 and tool-joint dimensions |
| 5 in. | Deep wells, high-flow drilling and long horizontal sections | Hook load, bore, NC50 or high-torque connection |
| 5-1/2 in. | Selected large-hole and high-flow programs | Mast, handling tools, elevators, slips and circulation rate |
| Selected 6-5/8 in. | Project-specific large-hole applications | Full technical review of rig and string compatibility |
Small-Diameter Drill Pipe
The 2-3/8 and 2-7/8 inch sizes can support light workover, well cleanout, well re-entry and selected slim-hole operations.
They may suit rigs with limited hook load, mast height or pipe-handling capacity. The required torque, wellhead clearance and existing connection still need confirmation before supply.
3-1/2 and 4 Inch Drill Pipe
The 3-1/2 and 4 inch sizes offer a practical balance between string weight, flow area and torque capacity.
Operators may use them on land rigs, medium-depth wells, sidetracks and directional sections. Nominal weight, tool-joint dimensions and expected drilling loads determine the final configuration.
4-1/2 Inch Drill Pipe
The 4-1/2 inch size suits a wide range of land, offshore, directional and extended-reach drilling programs.
Representative pipe-body weights include 13.75, 16.60 and 20.00 lb/ft. Available configurations may combine G105 or S135 grades with NC46 or NC50 connections, hardbanding and internal coating.
Each weight has a different wall thickness and bore. Buyers should therefore compare pipe-body capacity, hydraulic flow and connection performance before selection.
5 Inch Drill Pipe
The 5 inch size provides a larger internal flow area for high drilling-fluid circulation rates.
Representative weights include 19.50 and 25.60 lb/ft. The 19.50 lb/ft configuration provides a larger bore, while the 25.60 lb/ft configuration provides a thicker wall.
Operators may consider 5 inch drill pipe for deep wells, offshore wells, horizontal sections and extended-reach drilling. The top drive, iron roughneck and handling system must support the selected tool-joint profile and makeup torque.
Large-Diameter Configurations
The 5-1/2 inch size and selected 6-5/8 inch configurations may support large-hole or high-flow drilling programs.
The derrick, setback capacity, elevators, slips, iron roughneck, pipe racks and lifting equipment must suit the selected dimensions and joint weight.
Selecting E75, X95, G105 or S135 Drill Pipe
| Grade | Minimum Yield Strength | Maximum Yield Strength | Minimum Tensile Strength | Typical Selection Position |
| E75 | 75 ksi / 517 MPa | 105 ksi / 724 MPa | 100 ksi / 689 MPa | Moderate drilling loads and workover |
| X95 | 95 ksi / 655 MPa | 125 ksi / 862 MPa | 105 ksi / 724 MPa | Medium-depth and directional drilling |
| G105 | 105 ksi / 724 MPa | 135 ksi / 931 MPa | 115 ksi / 793 MPa | Deeper wells and higher string loads |
| S135 | 135 ksi / 931 MPa | 165 ksi / 1,138 MPa | 145 ksi / 1,000 MPa | Deep, horizontal and high-torque drilling |
These values describe material strength levels. They do not represent the allowable load of a complete drill pipe joint.
E75 can suit moderate drilling loads and selected workover operations. X95 provides an intermediate strength level. G105 supports higher loads in many land and directional drilling programs. S135 can support demanding deep, horizontal and extended-reach wells after a complete drill-string review.
Actual capacity also depends on pipe-body dimensions, tool-joint design, connection strength, wear condition, fatigue exposure and operating environment. Well depth alone should not determine the steel grade.
Rotary-Shouldered Connection Options
| Selection Item | Available Options | Why It Matters |
| Upset Type | IU, EU or IEU | Controls the pipe-end and weld-transition profile |
| Standard Connections | NC, selected IF and selected FH | Must match pipe and tool-joint dimensions |
| High-Torque Connections | Selected proprietary designs | Can increase torque capacity or improve bore efficiency |
| Tool-Joint OD | Project-specific | Affects casing clearance, wear allowance and handling |
| Tool-Joint ID | Project-specific | Affects hydraulic flow and connection strength |
| Makeup Torque | Connection-specific | Controls shoulder contact and load transfer |
| Thread Treatment | Phosphate, copper plate or agreed treatment | Supports makeup and surface protection |
| Gauge Requirements | API or proprietary gauges | Confirms connection geometry |
Illustrative NC Connection Families
| Connection | Commonly Associated Pipe Sizes | Main Review Point |
| NC26 | Selected 2-3/8 and 2-7/8 in. configurations | Tool-joint OD, bore and workover compatibility |
| NC31 | Selected 2-7/8 and 3-1/2 in. configurations | Weight, dimensions and torque |
| NC38 | Selected 3-1/2 in. configurations | Casing clearance and wear allowance |
| NC40 | Selected 3-1/2 and 4 in. configurations | Upset, bore and rig equipment |
| NC46 | Selected 4 and 4-1/2 in. configurations | Tool-joint OD and ID |
| NC50 | Selected 4-1/2 and 5 in. configurations | Makeup torque, bore and top-drive capacity |
These pairings provide preliminary guidance only. Final compatibility depends on the complete pipe-body and tool-joint configuration.
High-Torque and Double-Shoulder Connections
High-torque connections may suit directional wells, long horizontal sections, extended-reach wells and high-torque top-drive operations.
Many designs use a secondary shoulder. However, every proprietary connection has its own dimensions, gauges, makeup procedure and manufacturing requirements.
Customers should provide the exact connection name and technical specification. The technical review can then confirm tool-joint dimensions, makeup torque, top-drive capacity, iron-roughneck range, torque-turn requirements and compatibility with the existing string.
Drill Pipe Length Ranges
| Length Range | Approximate Joint Length | Typical Selection Consideration |
| Range 1 | 18 to 22 ft | Selected workover and space-limited operations |
| Range 2 | 27 to 30 ft | Common land-rig and workover applications |
| Range 3 | 38 to 45 ft | Fewer connections but greater handling requirements |
Range 2 suits many land drilling and workover operations.
Range 3 reduces the number of tool-joint connections in the string. However, it requires suitable derrick height, setback capacity, transport planning and pipe-handling equipment.
The approved purchase specification must define the final finished length.
Oilfield Drill Pipe Applications
| Drilling Environment | Main Operating Challenge | Main Selection Focus |
| Conventional Land Drilling | Repeated tension, torque and handling | Size, grade, weight and connection |
| Offshore Drilling | Corrosion exposure, traceability and logistics | Preservation, NDT, documentation and sea packing |
| Directional Drilling | Repeated bending, torque, drag and fatigue | Connection torque, tool-joint OD and grade |
| Horizontal and Shale Wells | Long laterals, friction and elevated torque | High-torque connection, hardbanding and bore |
| Deep Wells | High hook load and long tripping cycles | Grade, wall thickness and string weight |
| Extended-Reach Drilling | Torque, drag, fatigue and hydraulic loss | Tool-joint profile, bore, hardbanding and coating |
| HPHT Wells | Temperature, pressure and material control | Grade, connection performance and inspection |
| Sour Service | Sulfide stress cracking risk | Qualified material and hardness control |
| Workover and Re-Entry | Limited clearance and smaller rig capacity | Smaller OD, shorter length and connection matching |
| Replacement Projects | Compatibility with existing equipment | Markings, OD, ID, grade, weight and connection |
Land and Offshore Drilling
Land drilling contractors need pipe that matches the hook load, rotary system, top drive, iron roughneck, elevators and slips. Common applications include exploration, appraisal, development, production and injection wells, as well as desert drilling and multi-well pad programs.
Offshore projects add stricter traceability, preservation and documentation requirements. SGPE supports inquiries for jack-up rigs, platform rigs, semi-submersible units, drillships and offshore workover units.
Depending on the project, an offshore package may include joint-level identification, additional NDT, third-party inspection, approved hardbanding, internal coating, manufacturing record books and sea-transport packing.
Directional, Horizontal and Extended-Reach Wells
Directional and horizontal wells expose the drill string to repeated bending, torque, drag and fatigue.
Build sections may create high cyclic bending, while long laterals increase friction, compression and buckling risk. Extended-reach wells also increase hydraulic pressure loss.
The technical review should cover dogleg severity, measured depth, true vertical depth, horizontal departure, lateral length, maximum torque, maximum tension, tool-joint OD, casing clearance and connection capacity.
Deep and HPHT Wells
Deep wells increase suspended string weight, while HPHT wells require careful material, connection and inspection review.
The selection process should compare pipe-body weight, grade, internal bore, tool-joint profile, connection capacity, hardbanding and internal coating.
A stronger grade alone may not solve the complete design problem. The string must also control fatigue exposure, hydraulic loss and connection loading.
Workover and Well Re-Entry
Workover rigs often require smaller pipe sizes and shorter handling lengths.
Typical operations include well cleanout, plug milling, cement drilling, sidetracking, fishing, casing repair, recompletion and scale removal.
The selected pipe must match the rig capacity, wellhead clearance, downhole tubulars and existing connection system.
Hardbanding, Internal Coating and Service Options
| Option | Main Purpose | Information Required |
| Hardbanding | Protects the tool-joint OD from wear | Material, width, location and casing-wear requirement |
| Casing-Friendly Hardbanding | Balances tool-joint and casing protection | Operator approval and existing hardbanding program |
| Internal Coating | Supports corrosion control and smoother flow | Mud type, temperature, chemistry and holiday test |
| Thread Treatment | Supports makeup and surface protection | Connection specification and customer requirement |
| Sour-Service Configuration | Controls material and hardness for H₂S exposure | H₂S, CO₂, chlorides, pH and temperature |
| Offshore Preservation | Protects pipe during storage and shipment | Storage period, shipping route and packing method |
| Joint-Level Traceability | Links each joint to inspection records | Marking and document requirements |
Hardbanded Drill Pipe
Hardbanding protects the tool-joint OD during rotation and tripping. It can support abrasive open-hole drilling, high-dogleg sections, cased-hole rotation and long horizontal intervals.
The inquiry should identify the approved material, application width, location, inspection method and repair procedure. The selected system should also match the operator’s casing-wear policy and existing hardbanding program.
Internally Coated Drill Pipe
An internal coating can create a smoother flow surface and support internal corrosion control.
The coating review should consider the mud type, operating temperature, chemical additives, H₂S, CO₂, chlorides, solids content and holiday-testing requirements.
The selected coating must match the actual drilling-fluid and temperature conditions.
Sour-Service Drill Pipe
Standard E75, X95, G105 or S135 selection does not automatically confirm sour-service suitability.
H₂S-containing service may require a dedicated sour-service grade, controlled hardness, additional material qualification and specified sulfide stress cracking tests.
Customers should provide the H₂S partial pressure or concentration, CO₂ content, chloride level, fluid pH, temperature, mud chemistry and operator specification.
Inspection and Documentation
| Inspection or Document | Main Purpose | Supply Basis |
| Material Test Certificate | Confirms chemistry and mechanical properties | Standard or project requirement |
| Dimensional Report | Records pipe and tool-joint dimensions | As agreed |
| Visual Inspection | Checks marking, workmanship and surface condition | Standard |
| Ultrasonic Testing | Checks applicable pipe-body or weld-zone areas | Standard, PSL or project requirement |
| Magnetic-Particle Inspection | Checks applicable surface areas | Inspection plan |
| Mechanical-Test Report | Records yield, tensile and elongation results | Standard and lot basis |
| Hardness Report | Records pipe, tool-joint or weld-zone hardness | As required |
| Thread-Gauge Record | Confirms connection geometry | As agreed |
| Hardbanding Report | Records material and application | Optional |
| Internal-Coating Report | Records coating thickness and holiday test | Optional |
| Traceability List | Links joints to heats and inspection records | Project-specific |
| Manufacturing Record Book | Compiles agreed quality documentation | Project-specific |
| Third-Party Release | Records witness or document review | Optional |
Customer inspection points and third-party attendance can be coordinated according to the approved inspection and test plan.
Replacement Drill Pipe Matching
Replacement orders require more information than a general size and connection name.
| Matching Item | Why It Matters |
| Pipe Marking Photograph | Helps identify size, weight, grade and original marking |
| Drill-String Tally | Confirms the current string configuration |
| Original Purchase Specification | Provides ordered dimensions and connection |
| Tool-Joint Drawing | Confirms OD, ID, bevel and connection geometry |
| Connection Gauge Designation | Helps verify thread compatibility |
| Tool-Joint OD and ID | Confirms clearance and flow area |
| Existing Hardbanding | Supports compatibility and repair review |
| Pin and Box Photographs | Helps identify visible connection features |
| Rejection or Inspection Report | Shows why the joint needs replacement |
| Rig-Floor Equipment Data | Confirms handling and makeup compatibility |
SGPE compares these details before recommending a replacement configuration. This approach helps reduce the risk of supplying a joint that cannot connect to the existing drill string or fit the rig-floor equipment.
Need replacement drill pipe? Send the tally sheet, pipe markings, connection drawing and clear pin and box photographs for matching review.
Information Required for a Drill Pipe Quotation
| RFQ Category | Information Required |
| Pipe Body | OD, nominal weight or wall thickness, grade and upset |
| Tool Joint | Connection, tool-joint OD, tool-joint ID and makeup torque |
| Length and Quantity | Length range, number of joints or total length |
| Rig Information | Rig type, rotary system, hook load and iron-roughneck range |
| Well Information | Well type, MD, TVD, trajectory, departure and lateral length |
| Operating Environment | Mud type, temperature, pressure, H₂S, CO₂ and chlorides |
| Optional Features | Hardbanding, internal coating, thread treatment and sour grade |
| Quality Requirements | PSL, NDT, third-party inspection and documentation |
| Logistics | Packing, destination and required delivery sequence |
A previous purchase specification, tool-joint drawing, tally sheet or pipe-marking photograph can significantly speed up the technical review.
Why Choose SGPE for Oilfield Drill Pipe Supply?
Application-Based Technical Review
The review covers the rig, well profile, nominal weight, grade, upset, connection, tool-joint dimensions and inspection scope rather than relying on pipe OD alone.
Replacement Matching Support
Our team can compare new pipe with existing markings, drawings, tally sheets and tool-joint measurements. This approach helps reduce connection mismatches and rig-floor handling problems.
Complete Drill-String Support
SGPE can coordinate oilfield drill pipe with Heavy Weight Drill Pipe, Drill Collars, Stabilizers, Reamers, Saver Subs, Crossover Subs, Kelly Valves and IBOPs.
Inspection and Documentation Coordination
Inspection points, NDT, document review, third-party attendance and manufacturing records can be coordinated according to the approved order scope.
Export Packing
Preservation and packing can be arranged for truck, container and sea transport according to the shipping route, storage period and project requirements.
Frequently Asked Questions About Oilfield Drill Pipes
1. What information defines a complete oilfield drill pipe specification?
A complete oilfield drill pipe specification requires more than the outside diameter and steel grade. Buyers should identify the nominal weight, wall thickness, pipe-body ID, upset type, connection, tool-joint OD and ID, length range and required quantity.
The inquiry should also state the applicable standard, Product Specification Level, inspection scope, hardbanding, internal coating, thread treatment and documentation requirements. Rig type, well profile and operating conditions are equally important when the drill pipe will be used for offshore drilling, directional wells, extended-reach drilling or workover operations.
For example, a request for “5 inch S135 drill pipe” is incomplete because the same size and grade may use different weights, bores, upsets and tool-joint configurations.
2. What is the difference between oilfield drill pipe and API 5DP drill pipe?
Oilfield drill pipe describes the tubular product used to transfer torque, carry axial load and circulate drilling fluid between the rig and the bottom-hole assembly. It can be used on land rigs, offshore drilling units, directional wells, horizontal wells, deep wells and workover rigs.
In other words, API 5DP defines the technical framework, while the purchase specification defines the actual drill pipe configuration required for the project.
3. Which oilfield drill pipe sizes are commonly requested?
Common oilfield drill pipe sizes include 2-3/8, 2-7/8, 3-1/2, 4, 4-1/2, 5 and 5-1/2 inches. Selected 6-5/8 inch configurations may also be available after a full technical review.
The 2-3/8 and 2-7/8 inch sizes are often considered for workover, well cleanout, well re-entry and selected slim-hole operations. The 3-1/2 and 4 inch sizes can support land drilling, sidetracking and directional sections. The 4-1/2 and 5 inch sizes are widely used in offshore drilling, deep wells, horizontal wells and extended-reach drilling.
Final size selection should consider rig capacity, hook load, circulation rate, casing clearance, connection type and handling-equipment compatibility.
4. How should operators choose between E75, X95, G105 and S135 drill pipe?
The drill pipe grade should be selected according to calculated tension, torque, bending, fatigue exposure and operating conditions rather than well depth alone.
E75 can suit moderate drilling loads and selected workover applications. X95 provides an intermediate strength level for land and directional drilling. G105 supports higher string loads in many deeper wells, while S135 may suit demanding horizontal, deep-well and extended-reach drilling programs.
Grade selection must also account for wall thickness, connection strength, tool-joint design, wear condition, dogleg severity and expected fatigue life. A higher steel grade does not automatically improve every aspect of drill-string performance.
5. Can 4-1/2 and 5 inch drill pipe use an NC50 connection?
Selected 4-1/2 and 5 inch drill pipe configurations can use an NC50 rotary-shouldered connection.
However, the nominal pipe size does not define the complete connection arrangement. The buyer must also confirm the nominal weight, upset, tool-joint OD, tool-joint ID, bevel diameter, makeup torque and required flow area.
The same pipe size may use another connection when the tool-joint profile, torque requirement, hydraulic bore or casing-clearance limitation changes. The top drive, iron roughneck and torque-turn system must also support the selected NC50 configuration.
6. What is the difference between IU, EU and IEU drill pipe?
IU, EU and IEU describe how the pipe end is upset before the tool joint is friction welded to the pipe body.
An internal upset adds material mainly toward the internal bore. An external upset adds material mainly toward the outside diameter. An internal-external upset increases the section in both directions.
The upset affects the pipe-end geometry, internal flow area, weld transition and compatibility with the selected tool joint. The correct option depends on the drill pipe size, nominal weight, connection, tool-joint dimensions and hydraulic requirements.
7. Can SGPE supply high-torque or double-shoulder drill pipe?
SGPE can review selected high-torque and double-shoulder drill pipe connection requirements for directional drilling, horizontal wells, extended-reach drilling and other high-torque applications.
These connections may provide higher torsional capacity, a larger internal bore or improved torque efficiency compared with some standard rotary-shouldered connections. Many designs use a secondary shoulder, but each proprietary connection has its own dimensions, gauges, makeup procedure and manufacturing requirements.
The inquiry should identify the exact connection name and include the connection specification or drawing. SGPE can then review tool-joint dimensions, makeup torque, authorization requirements, top-drive capacity and iron-roughneck compatibility.
8. Can SGPE match new drill pipe to an existing drill string?
Yes. SGPE can review replacement drill pipe requirements when sufficient information about the existing string is available.
Useful reference data includes the original purchase specification, drill-string tally, pipe markings, connection drawing, tool-joint OD and ID, gauge designation, hardbanding details and clear photographs of the pin and box ends. An inspection or rejection report can also help identify why the original joint requires replacement.
This matching process is especially important when replacing only a few joints in an existing land, offshore or workover drill string. It helps reduce the risk of connection mismatch, insufficient bore, casing-clearance problems or incompatibility with rig-floor handling equipment.
9. When should a customer specify hardbanding on drill pipe?
Hardbanding can help protect the tool-joint OD during rotation, tripping and repeated contact with casing or open-hole formations.
It may be useful in abrasive drilling environments, high-dogleg sections, cased-hole rotation, directional wells and long horizontal laterals. Casing-friendly hardbanding may also be considered when the operator needs to balance tool-joint protection with casing-wear control.
The inquiry should identify the approved hardbanding material, application width, location, inspection method, repair procedure and casing-wear policy. New drill pipe should also remain compatible with the existing hardbanding program.
10. When should internal coating be specified for oilfield drill pipe?
Internal coating may support corrosion control, reduce internal surface roughness and improve drilling-fluid flow through the drill pipe bore.
It can be considered for offshore drilling, high-flow circulation, extended-reach wells and drilling programs where internal corrosion or hydraulic pressure loss is a concern.
The coating system must match the mud type, operating temperature, chemical additives, H₂S, CO₂, chlorides and solids content. Customers should also specify coating-thickness requirements, holiday testing and any repair or acceptance criteria.
11. Can standard S135 drill pipe be used in H₂S sour service?
Standard S135 drill pipe should not be assumed to be suitable for H₂S service based on grade alone.
Sour-service drilling may require a dedicated material specification, controlled hardness, additional material qualification and specified sulfide stress cracking tests. The acceptable configuration depends on the H₂S partial pressure or concentration, CO₂ content, chloride level, fluid pH, temperature and drilling-fluid chemistry.
The operator’s sour-service specification should be included with the RFQ. SGPE can then review the required grade, hardness limits, inspection scope and documentation before confirming a suitable configuration.
12. What should customers include in an oilfield drill pipe RFQ?
A drill pipe RFQ should identify the pipe OD, nominal weight or wall thickness, steel grade, upset, connection, tool-joint OD and ID, length range and quantity.
The inquiry should also include the rig type, rotary system, hook-load capacity, iron-roughneck range, well type, measured depth, true vertical depth, trajectory, lateral length, mud system, temperature and expected H₂S or CO₂ exposure.
Customers should state any requirements for hardbanding, internal coating, sour service, NDT, third-party inspection, documentation, packing and delivery destination. Replacement drill pipe orders should also include the drill-string tally, connection drawing, pipe-marking photographs and clear pin and box images.
Oilfield Drill Pipe Ordering Example
A complete RFQ may read:
Oilfield Drill Pipe, 5 in. OD, 19.50 lb/ft nominal weight, Grade S135, IEU, Range 3, NC50 connection, specified tool-joint OD and ID, approved hardbanding, internal coating, agreed PSL and NDT, quantity 500 joints, for an onshore horizontal well.
This description provides enough information to begin the technical review and confirm the product configuration, inspection scope, documentation and commercial terms.
Request an Oilfield Drill Pipe Quote
E-Mail:
info@sgpe.com
