Description

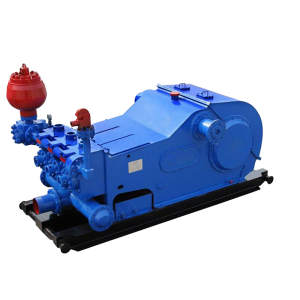

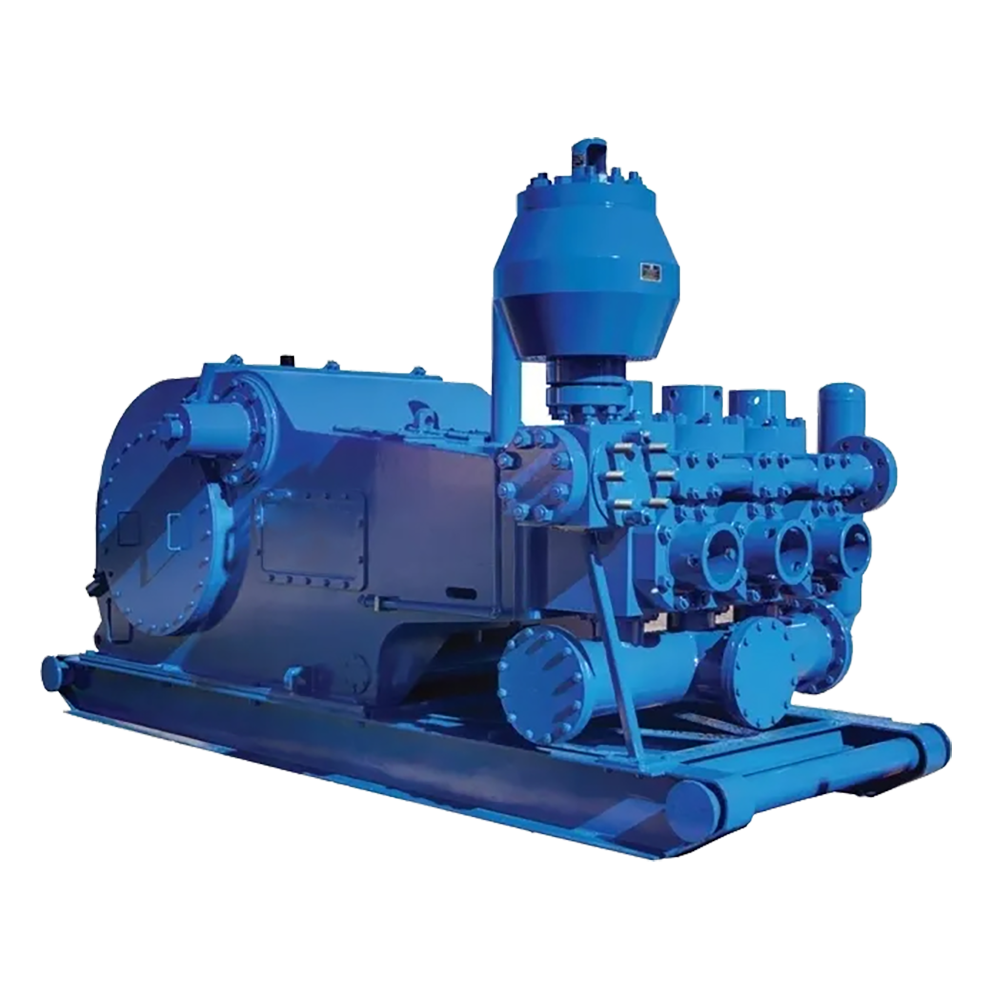

Oilfield Triplex Mud Pump for Land and Offshore Drilling Rigs
SGPE supplies heavy-duty oilfield mud pumps for land rigs, offshore drilling units, directional wells, horizontal drilling, extended-reach programs and selected workover operations. The F-Series range covers F500 through F2200HL triplex mud pumps, with rated input power from approximately 500 to 2,200 HP.
These high-pressure drilling fluid pumps maintain continuous mud circulation during oil and gas well construction. Standard configurations commonly serve operating ranges from approximately 3,800 to 5,000 psi. For drilling programs with higher standpipe pressure, selected F1600HL and F2200HL packages can support applications up to approximately 7,500 psi after technical confirmation.
Product Overview
| Item | Available Specification |
|---|---|
| Product Name | Oilfield Mud Pump |
| Alternative Names | Drilling Mud Pump, Triplex Mud Pump, Drilling Rig Mud Pump, Drilling Fluid Pump, Mud Circulation Pump |
| Pump Design | Horizontal, reciprocating, single-acting triplex piston pump |
| Main Models | F500, F800, F1000, F1300, F1600, F1600HL, F2200 and F2200HL |
| Rated Input Power | Approximately 500–2,200 HP |
| Common Pressure Range | Approximately 3,800–5,000 psi, depending on model and liner size |
| High-Pressure Options | Up to approximately 7,500 psi for selected HL configurations |
| Main Function | Continuous high-pressure drilling fluid circulation |
| Drive Options | AC motor, DC motor, diesel engine or mechanical rig drive |
| Supply Form | Bare pump, skid-mounted unit or complete pump package |
| Main Applications | Land drilling, offshore drilling, directional wells, horizontal wells, extended-reach wells and rig upgrades |
| Fluid End Options | Standard-pressure, high-pressure and replacement fluid ends |
| Spare Parts | Fluid end, power end, expendables and auxiliary equipment |
| Documentation | Datasheets, drawings, inspection records, test reports and manuals |
| Supplier | SGPE Oil Machinery |
What Is an Oilfield Mud Pump?
An oilfield mud pump is a high-pressure reciprocating piston pump that circulates drilling fluid through the surface equipment and downhole drilling system.
The pump draws mud from the active tank and sends it through the discharge manifold, standpipe, rotary hose, swivel or top drive, drill string and bit nozzles. After the fluid passes through the bit, it returns through the annulus and carries drilled cuttings to the surface solids control equipment.
During drilling, the pump cleans the bottom of the wellbore and transports cuttings to the surface. It also cools and lubricates the drill bit while supplying hydraulic energy to the bit nozzles.
Directional and horizontal drilling programs place additional demands on the circulation system. The pump must provide enough pressure and flow to operate mud motors, MWD tools and LWD equipment. Stable circulation also improves hole cleaning in deviated sections and helps move cuttings through long horizontal intervals.
In addition, the pump supports the planned hydrostatic and circulating pressure program by maintaining the required drilling fluid flow. However, it forms only one part of the complete drilling circulation and well control system.
Mud pump performance directly affects bit hydraulics, standpipe pressure, hole cleaning, rate of penetration and rig uptime. Therefore, drilling contractors should select the pump according to the required pressure, flow rate, drilling fluid properties, well design and operating duty rather than horsepower alone.
Triplex Mud Pump vs Duplex Mud Pump
A triplex mud pump uses three single-acting pistons to move drilling fluid through the circulation system. A traditional duplex mud pump normally uses two double-acting pistons.
Triplex drilling pumps generally provide a more compact footprint, smoother discharge flow and a favorable power-to-weight ratio. Their liner and speed options also give engineers greater flexibility when balancing pressure and displacement.
| Comparison Item | Triplex Mud Pump | Traditional Duplex Mud Pump |
| Piston Arrangement | Three single-acting pistons | Two double-acting pistons |
| Footprint | Generally more compact | Usually larger for similar power |
| Discharge Flow | Smoother | Greater flow variation |
| Typical Use | Modern land rigs, offshore units and high-capacity drilling systems | Older rigs and selected workover units |
| Maintenance Focus | Liners, pistons, valves and valve seats | Double-acting seals and fluid end components |
| Pressure and Flow Selection | Broad liner and speed options | More limited on many older designs |
A correctly selected discharge pulsation dampener can further stabilize standpipe pressure and reduce vibration in the high-pressure piping.
F-Series Triplex Mud Pump Range
The F-Series range supports different rig sizes, well depths and hydraulic programs. It starts with compact 500 HP pumps and extends to 2,200 HP units for deep, offshore and high-capacity drilling.
| Model | Rated Input Power | Hydraulic Direction | Typical Application |
| F500 | Approximately 500 HP | Compact, lower-capacity circulation | Shallow wells, smaller land rigs and selected workover service |
| F800 | Approximately 800 HP | Moderate pressure and displacement | Medium-size rigs, workover operations and replacement projects |
| F1000 | Approximately 1,000 HP | Balanced hydraulic capacity | Medium-depth wells, directional drilling and rig modernization |
| F1300 | Approximately 1,300 HP | Higher flow and pressure demand | Deeper wells, larger hole sections and high-density mud |
| F1600 | Approximately 1,600 HP | High-power drilling circulation | Deep wells, horizontal drilling, shale development and offshore rigs |
| F1600HL | Approximately 1,600 HP | Selected high-pressure service | Extended-reach and high-pressure drilling programs |
| F2200 | Approximately 2,200 HP | High-capacity circulation | Deep and ultra-deep wells requiring high displacement |
| F2200HL | Approximately 2,200 HP | High-pressure and high-capacity service | Offshore, long-lateral and demanding extended-reach wells |
Final pressure and displacement depend on liner diameter, pump speed, mud density, volumetric efficiency and available drive power. The model-specific technical proposal will confirm the selected operating points.
F500 Mud Pump
The F500 mud pump provides a compact circulation solution for shallow wells, smaller land rigs and selected workover operations.
Its moderate power demand suits rigs with limited installation space or lower hydraulic requirements. It can also serve as an auxiliary mud circulation pump when the required pressure and displacement remain within the confirmed operating range.
F800 Mud Pump
The F800 triplex mud pump delivers more hydraulic capacity than the F500 while retaining a relatively compact footprint.
It suits medium-size land rigs, mobile workover units and drilling programs with moderate pressure and flow requirements. The F800 can also replace an older drilling pump after the engineering team checks the foundation, shaft position, rotation direction and connection dimensions.
F1000 Mud Pump
The F1000 mud pump offers a practical balance between hydraulic output, installation size and drive power.
Drilling contractors often select this model for medium-depth wells, directional drilling and land rig upgrades. It also suits projects where an F800 does not provide enough capacity but an F1300 would exceed the available drive power or installation space.
F1300 Mud Pump
The F1300 drilling mud pump supports deeper wells, larger hole sections and higher circulation requirements.
Its long-stroke triplex design provides useful displacement at a moderate stroke rate. Correct liner and speed selection can also help control wear on pistons, liners, valves and valve seats during continuous drilling service.
F1600 Mud Pump
The F1600 mud pump remains a common 1,600 HP option for modern land and offshore drilling rigs.
Typical applications include deep wells, directional drilling, horizontal sections, shale development, high-density mud circulation and replacement of existing 1,600 HP pumps.
Although compatible F1600 fluid end and power end parts are widely available, buyers should still confirm the original manufacturer, design revision, part number and critical dimensions before ordering replacement components.
F1600HL High-Pressure Mud Pump
The F1600HL combines a 1,600 HP power range with a high-pressure fluid end.
Selected configurations can support applications up to approximately 7,500 psi after the engineering team checks the liner size, fluid end rating and complete discharge system.
This high-pressure drilling mud pump suits selected extended-reach wells, deep directional wells, long horizontal sections, high-density drilling mud and operations with increased drill string pressure loss.
The pump alone does not determine the final system pressure. The liners, pistons, valves, seats, discharge manifold, pulsation dampener, safety valve, standpipe piping and rotary hose must all match the required working pressure.
F2200 Mud Pump
The F2200 is a high-capacity 2,200 HP drilling pump for deep wells, ultra-deep wells, large hole sections and demanding offshore programs.
Its long stroke supports high drilling fluid displacement without relying on excessive pump speed. Therefore, the F2200 suits operations that require continuous high-volume circulation and strong hole-cleaning performance.
F2200HL High-Pressure Mud Pump
The F2200HL combines the F2200 power end with a high-pressure fluid end.
It targets drilling programs that require high horsepower, high displacement and pressure above the common 5,000 psi range. Selected configurations can support applications up to approximately 7,500 psi after a complete technical review.
A larger liner increases displacement but reduces the pressure available within the same horsepower limit. By contrast, a smaller liner supports higher pressure but delivers less fluid. Engineers must therefore match the liner diameter and pump speed to the required pressure-flow curve.
Main Design Features
Heavy-Duty Triplex Structure
The horizontal, single-acting triplex design uses three fluid cylinders to maintain continuous drilling fluid circulation.
Its compact structure provides smoother discharge characteristics and a favorable power-to-weight ratio compared with many older duplex designs.
Long-Stroke Operation
F-Series pumps use relatively long strokes, which allow them to deliver useful displacement at moderate speed.
Lower operating speed can reduce mechanical shock and fluid end wear. However, actual service life still depends on mud abrasiveness, solids content, cooling, alignment and maintenance quality.
Reinforced Power End
The power end converts rotary input from an electric motor, diesel engine or mechanical rig drive into reciprocating piston movement.
Its main components include the frame, pinion shaft, crankshaft, bull gear, connecting rods, crossheads, crosshead guides, extension rods and bearings. A properly maintained lubrication system supplies clean oil to these components and helps control friction and operating temperature.
Replaceable Fluid End
The fluid end contains the pressure-bearing and wearing components that contact the drilling fluid.
Because mud may contain barite, sand and formation solids, operators must inspect the fluid end regularly. The available supply scope includes complete fluid end assemblies as well as modules, liners, pistons, valves, valve seats, cylinder heads, valve covers, piston rods, clamps, seals and gaskets.
Lubrication and Liner Cooling
The power end can use splash lubrication together with forced lubrication. Depending on the package scope, the system may include an oil pump, filters, pressure indicators, temperature monitoring devices and alarm interfaces.
A separate liner spray system cools and lubricates the piston and liner area. Stable cooling helps control elastomer temperature and supports longer piston and liner life.
Suction and Pressure Protection
A reciprocating drilling pump requires stable suction conditions to fill each cylinder correctly. The suction line should remain short, straight and airtight, while the charging pump must provide adequate inlet flow.
On the discharge side, a pulsation dampener helps control pressure fluctuation. A correctly set safety valve protects the fluid end and downstream piping from excessive pressure.
Typical Technical Specifications
| Parameter | Typical Available Range |
| Pump Design | Horizontal, reciprocating, single-acting triplex piston pump |
| Model Range | F500–F2200HL |
| Rated Input Power | Approximately 500–2,200 HP |
| Common Working Pressure | Approximately 3,800–5,000 psi |
| Selected HL Applications | Up to approximately 7,500 psi |
| Stroke Length | Model-specific; confirmed in the final technical datasheet |
| Liner Diameter | Selected according to pressure and displacement |
| Pump Speed | Model- and drive-dependent |
| Suction Connection | Confirmed according to the selected fluid end |
| Discharge Connection | Confirmed according to pressure and package design |
| Lubrication | Splash and forced lubrication options |
| Liner Cooling | Spray cooling and lubrication system |
| Drive Options | AC motor, DC motor, diesel engine or mechanical drive |
| Mounting | Bare pump or structural oilfield skid |
| Installation | Land rig, offshore rig, selected workover rig or service base |
| Coating | Standard industrial or project-specific offshore coating |
| Documentation | Datasheets, drawings, inspection records and manuals |
These values describe the general product range. The final technical datasheet will confirm pressure, displacement, dimensions, weight, connections, drive details and accessories.
Pressure and Displacement Selection
Horsepower alone does not determine whether a drilling mud pump can meet the required hydraulic program.
The engineering review considers continuous flow, normal operating pressure, maximum standpipe pressure, hole size, drill string configuration, bottom-hole assembly, bit nozzles, mud density, downhole tools and available drive power.
| Selection Change | Effect on Flow | Effect on Available Pressure | Main Consideration |
| Increase Liner Diameter | Increases displacement per stroke | Reduces available pressure within the same horsepower limit | Increases piston load |
| Reduce Liner Diameter | Reduces displacement | Supports higher pressure | May require higher speed to reach target flow |
| Increase Pump Speed | Increases flow | Raises power demand | May accelerate wear |
| Reduce Pump Speed | Reduces flow | Lowers mechanical loading | May extend expendable life |
| Increase Mud Density | Increases hydraulic load | Reduces operating margin | Requires a new pressure-flow review |
| Improve Volumetric Efficiency | Improves actual output | Supports stable performance | Requires sound valves, seats and suction conditions |
A correctly selected pump should meet the required operating points without running continuously at its mechanical or pressure limit.
Information Used for Model Selection
A proper mud pump selection starts with the required hydraulic performance. The technical review should include the continuous and maximum flow rate, normal operating pressure and maximum expected standpipe pressure.
Well data also plays an important role. The engineering team reviews vertical depth, measured depth, hole size and the casing program because these factors influence circulation demand and pressure loss.
The team also checks the drill string internal diameter, bottom-hole assembly pressure loss and bit nozzle configuration. If the drilling program uses a mud motor, MWD tools or LWD equipment, their hydraulic requirements should be included as well.
Drilling fluid properties can significantly affect performance and component life. Buyers should therefore provide the mud density, viscosity, operating temperature, solids content and abrasiveness.
The available motor or engine power, maximum allowable stroke rate, suction tank layout and charging pump arrangement must also match the selected model. In addition, land and offshore installations may require different skid layouts, coating systems, controls and auxiliary equipment.
These details allow the engineering team to compare the required operating points with the available horsepower, liner range and pump speed before recommending a suitable configuration.
Available Package Configurations
| Configuration | Main Supply Scope | Typical Project |
| Bare Mud Pump | Power end and fluid end | Rig builders, workshops and buyers with an existing drive |
| Skid-Mounted Unit | Pump, skid, guards and selected auxiliary equipment | Rig upgrades and replacement projects |
| Electric Mud Pump Package | Pump, AC or DC motor, skid, controls and instruments | Electric land rigs and offshore drilling units |
| Diesel-Driven Package | Pump, diesel engine, transmission, cooling and skid | Remote drilling and workover locations |
| Mechanical-Drive Pump | Pump matched to a belt, chain or rig transmission | Existing mechanical rigs |
| Replacement Mud Pump | Model-matched pump for an existing installation | Drilling contractors replacing an old unit |
| High-Pressure Package | HL fluid end and matching high-pressure equipment | Extended-reach and high-pressure drilling |
Bare Mud Pump
A bare mud pump normally includes the complete power end and fluid end, but it does not include a structural skid, drive system or major auxiliary equipment. This option suits rig manufacturers, oilfield equipment contractors and repair workshops that already have a compatible motor, transmission, foundation and piping system.
Before placing an order, the buyer should confirm the input shaft direction, shaft height and rated input speed. Foundation dimensions and the current coupling, pulley or sheave arrangement also help the engineering team check installation compatibility.
The suction and discharge connection sizes, types, orientations and pressure ratings are equally important. After reviewing these details, the team can confirm the suitable model, shaft arrangement and connection configuration.
Skid-Mounted Mud Pump
SGPE can install the pump, drive support, guards, lubrication equipment, liner spray system and selected piping on a structural oilfield skid.
This arrangement simplifies transportation, alignment and rig installation. It can also reduce field assembly work during replacement or modernization projects.
Electric Mud Pump Package
An electric mud pump package can use an AC or DC motor.
The supply scope may include the pump, electric motor, variable-frequency drive, motor control equipment, structural skid, coupling or belt drive, guards, emergency stop system, lubrication equipment and pressure instruments.
For accurate selection, buyers should provide the voltage, frequency, motor power, hazardous-area classification, starting method and control requirements.
Diesel-Driven Mud Pump Package
A diesel-driven package combines the drilling pump with an engine and a suitable transmission or drive arrangement.
It suits remote oilfields, mobile workover units and locations without a stable electrical power supply. The technical team reviews horsepower, altitude, ambient temperature, fuel specification, emission requirements, cooling method and duty cycle before selecting the engine.
Mechanical-Drive Mud Pump
A mechanical-drive pump connects to the rig power system through a belt drive, chain drive, transmission or another mechanical arrangement.
The buyer should provide the available power, input speed, shaft rotation direction and existing drive dimensions.
Replacement Mud Pump
The same model designation does not always guarantee identical installation dimensions or spare-parts compatibility. Different manufacturers, production years and design revisions may use different frames, fluid ends, input shafts, foundations or connection arrangements.
For an accurate replacement proposal, please provide the existing manufacturer, model and serial number. A clear nameplate photograph and general arrangement drawing will help identify the original configuration.
Foundation dimensions, input shaft height, shaft rotation direction and suction and discharge connection details are also essential. Please describe the existing electric, diesel, belt, chain or mechanical drive arrangement.
If the new pump must use the existing spare-parts inventory, state the required level of interchangeability. The engineering team will compare the structure, dimensions, connections and drive requirements before recommending a model-matched replacement pump.
High-Pressure Mud Pump Package
For applications above the common 5,000 psi range, SGPE can evaluate an F1600HL or F2200HL high-pressure mud pump package.
The technical review covers the complete pressure-containing system, including the fluid end, liners, pistons, valves, seats, discharge manifold, pulsation dampener, safety valve, piping, standpipe manifold, rotary hose and swivel or top drive connection.
Every pressure-containing item must meet the required working pressure.
Oilfield Drilling Applications
| Application | Main Hydraulic Requirement | Typical Model Direction |
| Shallow Land Drilling | Moderate pressure and compact installation | F500–F1000 |
| Medium-Depth Wells | Balanced pressure and displacement | F800–F1300 |
| Deep Land Drilling | Higher standpipe pressure and continuous duty | F1300–F2200 |
| Directional Drilling | Stable pressure for mud motors and directional tools | F1000–F2200 |
| Horizontal and Shale Wells | Higher friction loss and strong hole cleaning | F1300–F2200HL |
| Extended-Reach Drilling | High pressure and a long circulation path | F1600HL–F2200HL |
| Offshore Drilling | Continuous duty, compact layout and corrosion protection | F1600–F2200HL |
| Selected Workover Service | Flexible drive and moderate circulation | F500–F800 |
| Rig Upgrade Projects | Increased hydraulic capacity and matched installation | Model-dependent |
Land Drilling
F500, F800 and F1000 pumps suit many shallow and medium-depth drilling programs. F1300, F1600 and F2200 models provide greater hydraulic capacity for deep wells, larger hole sections and high-density drilling fluids.
Offshore Drilling
Offshore operations require continuous-duty performance, compact package design and suitable corrosion protection.
The project scope may include marine coating systems, certified lifting arrangements, stainless-steel instruments, drip trays and hazardous-area electrical equipment.
Directional and Horizontal Drilling
Mud motors, MWD tools and bottom-hole assemblies create additional pressure loss through the drill string.
The pump must maintain enough pressure to operate these tools while supplying sufficient flow for hole cleaning. Long horizontal sections also require closer review of friction loss, drilling fluid properties and annular transport.
Deep and Extended-Reach Wells
Deep and extended-reach wells create pressure losses through the surface piping, drill string, bottom-hole tools and bit nozzles.
F1600HL and F2200HL configurations can support selected high-pressure applications after the engineering team reviews the complete hydraulic program and discharge system.
Selected Workover Operations
Smaller F-Series pumps can support selected well cleanout, circulation and workover operations.
The required pressure, flow rate, fluid type and well condition will determine whether a particular model suits the service.
Mud Pump Spare Parts and Expendables
| Category | Main Products |
| Fluid End Modules | Suction modules, discharge modules and complete fluid ends |
| Liners | Bi-metal, zirconia ceramic and chrome-plated liners |
| Pistons | Piston assemblies, piston rubbers and piston hubs |
| Valves and Seats | Valves, inserts, valve seats, springs and guides |
| Rod Components | Piston rods, extension rods and rod clamps |
| Power End Components | Crankshafts, pinion shafts, bull gears, connecting rods and crossheads |
| Bearings and Lubrication | Main bearings, pinion bearings, oil pumps, filters and piping |
| Pressure Accessories | Pulsation dampeners, bladders, safety valves and gauges |
| Auxiliary Equipment | Charging pumps, liner spray pumps, manifolds, couplings and guards |
Liner Options
Bi-metal liners provide a practical balance between cost, strength and wear resistance for general drilling service.
Zirconia ceramic liners offer a smooth working surface and high wear resistance. They may support longer service intervals in abrasive drilling mud when the piston material and cooling system match the application.
Chrome-plated liners provide another option for selected replacement and maintenance requirements.
The final liner material should match mud abrasiveness, operating pressure, temperature and the planned service interval.
Piston Selection
Piston selection depends on liner material, drilling fluid type, temperature, solids content, chemical exposure, operating pressure and pump speed.
Stable liner cooling also plays an important role because excess heat can shorten elastomer life.
Valve and Seat Selection
Valves and valve seats control fluid entry and discharge in each cylinder.
Worn components reduce volumetric efficiency and can increase pressure fluctuation. Damaged seats may also harm the fluid end module.
When ordering replacement valves and seats, buyers should provide the pump model, part number, dimensions, operating pressure and drilling fluid details.
Drilling Fluid Compatibility
| Fluid Type | Main Selection Consideration |
| Water-Based Mud | Solids content, abrasiveness and temperature |
| Oil-Based Mud | Chemical compatibility and elastomer selection |
| Synthetic-Based Mud | Seal, piston and insert compatibility |
| Weighted Mud | Barite content and abrasive wear |
| High-Density Mud | Increased hydraulic and fluid end loading |
| Saltwater Drilling Fluid | Corrosion and elastomer compatibility |
| Brine | Chemical composition and material selection |
| Completion Fluid | Cleanliness, density and chemical exposure |
| Workover Fluid | Pressure, temperature and chemical compatibility |
Mud properties directly affect piston, liner, valve and seal life.
High solids content, abrasive weighting materials and poor solids control can accelerate fluid end wear. Please provide the fluid type, density, viscosity, operating temperature, solids content and chemical environment before the engineering team confirms piston rubber, valve insert and seal materials.
Installation and Routine Maintenance
Correct installation has a major effect on operating stability, component wear and service life.
The rig team should verify the foundation, drive alignment, input shaft position, suction pipe diameter, charging pump capacity, discharge piping rating, pulsation dampener pre-charge, safety valve setting, lubrication oil level and liner cooling flow.
The suction line should remain as short and straight as practical. Undersized piping, sharp elbows, air leakage and low charging pressure can reduce cylinder filling and cause cavitation.
Maintenance Schedule Reference
| Inspection Frequency | Main Checks |
| Before Start-Up | Oil level, guards, cooling flow, visible leakage and safety devices |
| During Each Shift | Oil pressure, bearing temperature, noise, vibration and standpipe pressure |
| Daily | Rod clamps, liner cooling, suction performance and dampener condition |
| Planned Maintenance | Liners, pistons, valves, seats, filters and lubrication piping |
| Major Overhaul | Bearings, gears, crankshaft, connecting rods, crossheads and fluid end modules |
Daily Inspection
During each shift, drilling crews should check lubrication oil pressure and level to ensure that the power end receives adequate lubrication. They should also monitor bearing temperature and listen for abnormal noise that may indicate poor lubrication, misalignment or internal wear.
The crew should observe the pump for excessive vibration and inspect the fluid end, piping and rod area for mud leakage. Suction pressure, discharge pressure and standpipe pressure should remain stable. Unusual pressure fluctuation may indicate worn valves, damaged valve seats, poor suction conditions or a pulsation dampener problem.
Operators should also confirm that the piston and liner cooling system provides sufficient flow. At the same time, they should check rod clamp tightness and inspect the safety valve and dampener for visible damage or abnormal operation.
Finally, the crew should verify piston rod and extension rod alignment. Correct alignment helps reduce uneven wear, leakage and premature damage to liners, packing and crosshead components.
Recommended Spare Inventory
A drilling rig should keep a planned stock of high-consumption expendables, including liners, pistons, valves, valve seats, seals and rod clamps.
Critical spare planning may also include piston rods, extension rods, pulsation dampener bladders, safety valve parts, oil filters and selected bearings.
SGPE can prepare commissioning spares, operating spares, one-year spare-parts packages or project-specific overhaul kits.
Quality Control and Documentation
SGPE can arrange inspection and documentation according to the confirmed purchase order and end-user specification.
| Document or Inspection Item | Typical Availability |
| Product Datasheet | According to the confirmed model |
| General Arrangement Drawing | For the selected configuration |
| Foundation Drawing | For installation planning |
| Connection Drawing | For suction and discharge interfaces |
| Material Certificates | According to the contract scope |
| Dimensional Inspection Report | Available when required |
| Nondestructive Examination Records | According to the approved inspection plan |
| Fluid End Pressure Test Report | According to the confirmed test scope |
| Mechanical Running Test Report | Available when included in the order |
| Motor and Electrical Documents | For electric packages |
| Coating Inspection Report | For project-specific coating systems |
| Operation and Maintenance Manual | According to the supply scope |
| Certificate of Conformity | According to the final contract |
| Third-Party Inspection | SGS, BV, DNV, ABS, TÜV or another nominated organization |
Selected mud pump components and pressure-relieving equipment can follow applicable API Spec 7K requirements, subject to the confirmed product scope, manufacturing source and certification requirements.
API Monogram eligibility depends on the selected product and manufacturing source. Buyers should state all API, inspection, testing and marking requirements in the RFQ before order confirmation.
Why Choose SGPE?
Customers can choose from several supply configurations, including bare pumps, skid-mounted units, electric mud pump packages, diesel-driven packages, mechanical-drive pumps and model-matched replacement units. As a result, SGPE can support new rig construction, equipment replacement, workshop overhaul and drilling rig modernization projects.
Before recommending a configuration, the engineering team reviews the required operating pressure, flow rate, liner size, drilling fluid properties, pump speed and available drive power. This selection process helps ensure that the proposed pump can meet the hydraulic program without operating continuously near its mechanical or pressure limit.
For replacement and rig upgrade projects, SGPE also checks the existing foundation, input shaft position, rotation direction, connection orientation and drive arrangement. The team then compares these details with the required hydraulic improvement to reduce installation changes and compatibility risks.
In addition to complete mud pumps, customers can source fluid end assemblies, power end components, liners, pistons, valves, valve seats, rods, crossheads, pulsation dampeners, safety valves and other expendables through one supplier. SGPE can also prepare commissioning spares, operating spares and project-specific overhaul packages.
Furthermore, SGPE supports technical documentation, third-party inspection, export packing and international shipping coordination according to the confirmed contract. This integrated support helps drilling contractors, rig manufacturers and oilfield service companies manage technical, quality and delivery requirements more efficiently.
Frequently Asked Questions About Oilfield Mud Pumps
1. What does an oilfield mud pump do on a drilling rig?
An oilfield mud pump circulates drilling fluid from the active mud tank through the standpipe, rotary hose, swivel or top drive, drill string and bit nozzles. The mud then returns through the annulus and carries drilled cuttings to the surface solids control equipment.
This continuous circulation cools and lubricates the drill bit. It also supplies hydraulic energy for bit cleaning, downhole mud motors, MWD tools and LWD equipment. As a result, the pump directly affects hole cleaning, standpipe pressure stability, drilling efficiency and rig uptime.
2. What is the difference between a triplex mud pump and a duplex mud pump?
A triplex mud pump uses three single-acting pistons, while a duplex mud pump normally uses two double-acting pistons.
Triplex drilling mud pumps usually provide a more compact footprint, smoother discharge flow and a favorable power-to-weight ratio. They also allow operators to adjust pressure and displacement through different liner sizes and pump speeds.
For this reason, modern land rigs and offshore drilling units commonly use triplex mud pumps. Duplex pumps still operate on some older rigs and selected workover units.
3. How do I choose the correct F-Series mud pump model?
The correct F-Series mud pump depends on the required pressure, flow rate, well depth, hole size, drilling fluid density and available drive power.
F500 and F800 pumps often suit shallow wells, compact land rigs and selected workover applications. F1000 and F1300 models provide more hydraulic capacity for medium-depth wells, directional drilling and rig upgrades. F1600 and F2200 pumps serve many deep-well, offshore and horizontal drilling programs.
For higher-pressure service, SGPE can review F1600HL and F2200HL configurations. However, the final selection must follow the complete pressure-flow requirement rather than model horsepower alone.
4. What working pressure can an F-Series drilling mud pump provide?
Standard F-Series drilling mud pumps commonly serve applications from approximately 3,800 to 5,000 psi. The actual operating pressure depends on the pump model, liner size, pump speed, available horsepower and drilling fluid properties.
Selected F1600HL and F2200HL high-pressure configurations can support applications up to approximately 7,500 psi after engineering review.
Before confirming a high-pressure package, the technical team checks the fluid end, liners, pistons, valves, valve seats, discharge manifold, safety valve, pulsation dampener, standpipe piping and rotary hose. Every pressure-containing component must match the required working pressure.
5. How do liner size and pump speed affect mud pump pressure and flow?
Liner diameter and pump speed directly affect mud pump output.
A larger liner moves more drilling fluid during each stroke, so it increases displacement. However, it also reduces the pressure available within the same horsepower limit. A smaller liner supports higher discharge pressure but delivers less flow.
Increasing pump speed raises the flow rate, although it also increases power demand, heat and wear. Therefore, the best operating point balances liner size, stroke rate, standpipe pressure and required circulation volume.
6. Can SGPE supply electric and diesel-driven mud pump packages?
Yes. SGPE supplies both electric mud pump packages and diesel-driven mud pump packages.
An electric package may include an AC or DC motor, structural skid, coupling or belt drive, variable-frequency drive, motor controls, emergency stop system, lubrication equipment and pressure instruments. Buyers should provide the voltage, frequency, motor power and hazardous-area requirements.
A diesel-driven package may include the engine, transmission, cooling system, fuel system, skid and local controls. The engineering team selects the engine according to horsepower, altitude, ambient temperature, fuel specification, emission requirements and operating duty.
7. What is the difference between a bare mud pump and a skid-mounted package?
A bare mud pump normally includes the complete power end and fluid end. It usually does not include the structural skid, motor, diesel engine, drive system or major auxiliary equipment.
This option suits rig manufacturers, repair workshops and drilling contractors that already have a compatible drive and foundation.
A skid-mounted mud pump package includes the pump and structural skid. Depending on the order scope, it may also include the drive support, guards, lubrication equipment, liner spray system, instruments and connecting piping.
Before ordering either configuration, the buyer should confirm the shaft position, rotation direction, foundation dimensions and connection details.
8. Can SGPE provide a replacement mud pump for another manufacturer’s model?
SGPE can evaluate a model-matched replacement mud pump for an existing land rig, offshore drilling unit or workover rig.
However, the same model designation does not always guarantee identical dimensions or spare-parts compatibility. Different manufacturers and design revisions may use different foundations, input shafts, fluid ends or connection arrangements.
For an accurate replacement proposal, buyers should provide the existing manufacturer, model, serial number, nameplate photograph and general arrangement drawing. SGPE also needs the foundation dimensions, input shaft height, rotation direction, suction and discharge connections and drive arrangement.
If the new pump must use existing F-Series spare parts, please state the required interchangeability.
9. Which drilling fluids can an oilfield mud pump handle?
A correctly configured oilfield mud pump can circulate water-based mud, oil-based mud, synthetic-based mud, weighted drilling mud, high-density mud, brine and selected completion or workover fluids.
However, fluid properties affect the fluid end materials and expendable life. High solids content and abrasive weighting materials can accelerate wear on liners, pistons, valves and valve seats. High temperature and chemical exposure can also shorten elastomer life.
Therefore, buyers should provide the fluid type, density, viscosity, operating temperature, solids content and chemical environment. The engineering team can then review the piston rubber, valve insert and seal materials.
10. Which mud pump spare parts does SGPE supply?
SGPE supplies mud pump spare parts for routine maintenance, emergency repair, workshop overhaul and distributor stock.
The available range includes fluid end modules, bi-metal liners, zirconia ceramic liners, pistons, piston rubbers, valves, valve seats, piston rods, extension rods, rod clamps, crossheads, bearings, oil pumps and filters.
SGPE also supplies pulsation dampener bladders, safety valves, charging pumps, liner spray pumps, manifolds, couplings and guards.
To check compatibility, buyers should provide the pump manufacturer, model, part number, photographs and critical dimensions. This information becomes especially important for F1600 mud pump parts and other widely produced F-Series designs.
11. What causes mud pump pressure fluctuation, vibration or low output?
Pressure fluctuation may come from worn valves, damaged valve seats, leaking pistons, poor suction conditions or an incorrectly charged pulsation dampener.
Excessive vibration can also result from shaft misalignment, loose rod clamps, unstable foundations, air entering the suction line or insufficient charging pump pressure.
Low output often indicates incomplete cylinder filling, worn fluid end components or reduced volumetric efficiency. Therefore, the crew should check suction pressure, standpipe pressure, liner cooling, valve condition and mud tank level before increasing pump speed.
Regular inspection helps operators identify these problems early and reduce unplanned drilling downtime.
12. What quality documents, API requirements and inspection services are available?
SGPE can prepare a documentation package according to the confirmed pump configuration and purchase order.
The package may include the product datasheet, general arrangement drawing, foundation drawing, connection drawing, material certificates, dimensional inspection report, pressure test report, mechanical running test report, coating report, operation manual and certificate of conformity.
SGPE can also coordinate third-party inspection through SGS, Bureau Veritas, DNV, ABS, TÜV or another nominated organization.
Selected mud pump components and pressure-relieving equipment can follow applicable API Spec 7K requirements. However, API Monogram eligibility depends on the selected product, manufacturing source and certification scope. Buyers should therefore state all API, testing, inspection and marking requirements in the RFQ.
Request an Oilfield Mud Pump Price
Technical Information for Mud Pump Selection
To help the engineering team select the correct model, please state the required pump model or the model currently installed on your rig. You should also provide the normal operating pressure, maximum standpipe pressure, continuous flow rate and maximum required flow.
Please confirm the existing liner size or preferred liner range together with the required pump speed. In addition, specify the available drive power and whether the unit will use an electric motor, diesel engine or existing mechanical drive.
Well data also plays an important role in model selection. Please include the vertical depth, measured depth, hole size and any available drilling program information. The drilling fluid type, density, viscosity, operating temperature, solids content and abrasiveness will help the team review hydraulic performance and fluid end materials.
Please also identify whether the pump will operate on a land drilling rig, offshore drilling unit or selected workover rig. Then confirm the required supply scope, such as a bare mud pump, skid-mounted unit, electric mud pump package, diesel-driven package or mechanical-drive pump.
Replacement, Documentation and Delivery Requirements
For a replacement mud pump project, send the existing manufacturer, model, serial number, nameplate photograph and general arrangement drawing. Foundation dimensions, input shaft height, shaft rotation direction and suction and discharge connection details will help the engineering team check installation compatibility.
Please also describe the existing electric, diesel, belt, chain or mechanical drive arrangement. If the new pump must use the current spare-parts inventory, state the required level of component interchangeability.
If the order includes mud pump spare parts, identify the required fluid end modules, liners, pistons, valves, valve seats, rods, crossheads, pulsation dampeners, safety valves or other components.
Please state any requirements for third-party inspection, API documentation, pressure testing, mechanical running tests, material certificates, coating reports or certificates of conformity. Finally, confirm the required quantity, delivery destination and preferred shipping terms.
E-Mail:
info@sgpe.com
