Description

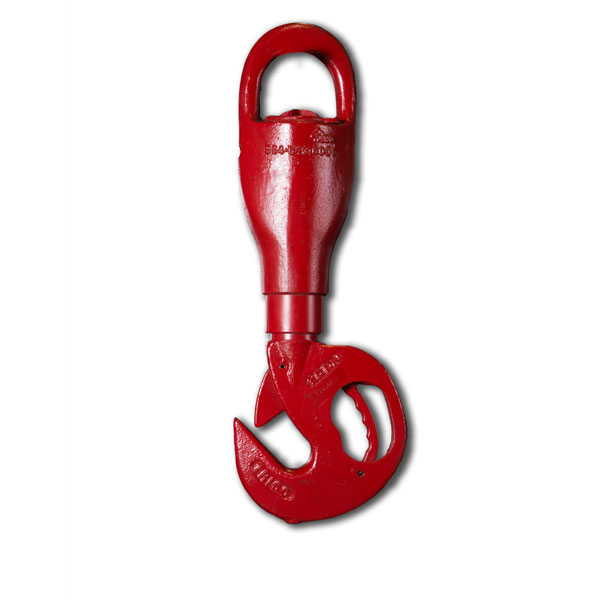

Sucker Rod Lifting Hook
API 8C Sucker Rod Lifting Hook for Petroleum Well Service and Oilfield Rod Handling
SGPE Sucker Rod Lifting Hook is an oilfield lifting tool used to connect and lift sucker rod elevators during petroleum well service, oilfield workover, sucker rod pulling, rod running, production well maintenance, and artificial lift operations. It gives field crews a fast and secure way to handle sucker rod elevators around the well site.
In daily oilfield service, crews need lifting tools that engage quickly, lock firmly, and perform through repeated operating cycles. A sucker rod lifting hook may look small compared with major rig equipment, but it plays an important role in rod handling. It connects with the lifting ring of the sucker rod elevator, keeps the lifting point controlled, and helps crews complete rod service work with fewer delays.
SGPE designs this sucker rod hook with a hook body, bail, and spring-assisted safety locking device. During operation, the lifting ring of the sucker rod elevator enters the hook directly. Workers do not need to open the locking arm by hand. Once the ring reaches the correct position, the locking arm returns automatically under spring action and secures the ring in place.
SGPE manufactures this Sucker Rod Lifting Hook in accordance with API Spec 8C requirements for oilfield hoisting and lifting equipment. For buyers searching for an API 8C sucker rod hook, sucker rod elevator hook, oilfield lifting hook, petroleum rod handling tool, or sucker rod handling equipment supplier, this product offers a focused solution for demanding oilfield conditions.
Built for Petroleum Well Service and Oilfield Workover
Sucker rod handling happens every day in oil production fields, well service yards, workover rigs, and artificial lift maintenance sites. During rod pulling or rod running, crews must connect and lift sucker rod elevators quickly while keeping the operation safe and controlled.
A slow hook can interrupt the job. A poorly locking hook can increase risk around the wellhead. SGPE Sucker Rod Lifting Hook addresses these field concerns with direct elevator ring entry, automatic locking action, and a simple operating process. Its structure suits frequent use in petroleum well service, oilfield workover, rod pump maintenance, and production well repair.
Oilfield buyers usually need dedicated tools rather than general industrial lifting hooks. This sucker rod hook focuses on petroleum rod handling. It works for sucker rod elevator connection, oilfield rod lifting, artificial lift maintenance, and routine well service. That clear application focus helps contractors, distributors, and petroleum equipment buyers choose the right hook for real field use.
What Is a Sucker Rod Lifting Hook?
A Sucker Rod Lifting Hook is a special oilfield lifting tool used with sucker rod elevators. It connects with the elevator lifting ring and allows crews to lift, move, and handle sucker rods during well service and workover operations.
Unlike a general lifting hook, this tool works in petroleum field environments where crews frequently handle sucker rod strings, rod pumps, and artificial lift equipment. In many oil and gas production wells, sucker rods connect surface pumping units with downhole rod pumps. Over time, crews need to pull, inspect, repair, replace, or run rods back into the well.
During these jobs, the sucker rod elevator and lifting hook help manage the rod string more efficiently. SGPE Sucker Rod Lifting Hook allows faster elevator connection, reduces unnecessary manual steps, and gives crews better control during repeated rod service work.
For companies involved in petroleum well service, oilfield workover, production well maintenance, and artificial lift service, this hook becomes a useful part of the sucker rod handling equipment package.
Key Features of SGPE Sucker Rod Lifting Hook
Spring-Assisted Safety Locking
The hook uses a spring-assisted safety locking device. During normal operation, the lifting ring of the sucker rod elevator enters the hook directly. Once the ring reaches the correct position, the locking arm resets automatically and holds the ring securely.
This structure reduces manual steps and improves elevator connection during petroleum well service, oilfield workover, sucker rod pulling, rod running, and rod pump maintenance.
Direct Elevator Ring Entry
Workers can guide the elevator lifting ring into the hook without opening the locking arm by hand. This direct-entry structure saves time when crews repeat lifting actions during rod handling work.
In workover operations, smooth connection matters. When a crew handles long rod strings, faster hook engagement can improve workflow and reduce unnecessary hand movement around lifting equipment.
Simple Field Operation
Oilfield crews need tools that stay simple, strong, and easy to use under demanding conditions. SGPE Sucker Rod Lifting Hook keeps the connection process straightforward. Workers guide the elevator lifting ring into the hook, allow the locking arm to return, and continue the lifting operation.
This workflow suits daily petroleum field use and gives crews better control during repeated service work.
API 8C-Based Design
SGPE designs and manufactures this sucker rod lifting hook in accordance with API Spec 8C requirements for oilfield hoisting and lifting equipment. This standard-based design gives buyers more confidence when sourcing sucker rod handling tools for petroleum well service, workover, and artificial lift applications.
For oilfield equipment buyers, API 8C-related design matters because lifting equipment must match demanding operating conditions. SGPE treats this requirement as an important part of product design and manufacturing.
Compact Working Structure
The hook body, bail, and locking device form a compact working structure. The design keeps operation simple while maintaining secure elevator connection. It also makes the hook suitable for repeated sucker rod lifting tasks in well service and workover environments.
Multiple Model Options
SGPE offers several sucker rod lifting hook models with different rated capacities and hook lengths. Customers can choose the proper model according to lifting load, sucker rod elevator connection requirements, well service setup, workover rig arrangement, and field working conditions.
Available models include RH20, RH25, RH25L, and RH35. These options allow buyers to match the hook to different oilfield rod handling needs.
Designed for Daily Oilfield Use
This sucker rod hook works in petroleum well service, oilfield workover, sucker rod pulling and running, rod pump maintenance, artificial lift field service, and production well maintenance. It also serves contractors, equipment distributors, and oilfield service companies that need a dedicated sucker rod elevator hook for regular field operations.
Petroleum Industry Applications
Petroleum Well Service
SGPE Sucker Rod Lifting Hook works in petroleum well service operations where crews connect and lift sucker rod elevators during production well maintenance, routine service work, and rod handling jobs. It gives field teams a smoother way to handle sucker rods around the well site.
Oilfield Workover
During oilfield workover, crews often pull, run, inspect, and replace sucker rods. This hook allows operators to connect the sucker rod elevator quickly and maintain better control during lifting work. It suits workover rigs, well service units, and field maintenance teams that handle sucker rod strings in oil and gas production wells.
Sucker Rod Pulling
Sucker rod pulling requires frequent lifting and connection work. The hook connects with the lifting ring of the sucker rod elevator and allows crews to manage rod strings during pulling operations. A smooth and secure hook connection can reduce delays on the workover site.
Sucker Rod Running
During rod running, crews need stable lifting tools to guide sucker rods back into the well. SGPE Sucker Rod Lifting Hook improves the elevator connection process and allows workers to handle rods more efficiently during artificial lift installation, maintenance, and production well service.
Rod Pump Maintenance
Sucker rod pumping systems require regular inspection, repair, and replacement. During rod pump maintenance, crews often lift and handle sucker rods, rod elevators, and related artificial lift equipment. This hook fits lifting tasks around rod pump service and production well maintenance sites.
Artificial Lift Operations
In oilfields that use sucker rod pumping systems, artificial lift maintenance plays an important role in production stability. SGPE Sucker Rod Lifting Hook works for sucker rod elevator connection, rod handling, and lifting work during artificial lift field operations.
Oilfield Rod Handling Equipment
The hook can work as part of an oilfield rod handling equipment package. It serves well service companies, workover contractors, petroleum equipment suppliers, and production maintenance teams that need sucker rod lifting equipment for repeated field use.
Product Benefits for Operators and Buyers
Secure Elevator Connection
The automatic locking arm secures the lifting ring of the sucker rod elevator after engagement. This improves lifting control during petroleum rod service operations.
Faster Hook Engagement
Workers do not need to open the locking arm manually during normal use. This shortens connection time and improves work efficiency during well service, workover, sucker rod pulling, and rod running jobs.
Less Manual Handling
The spring-assisted locking design reduces unnecessary hand movement. It makes daily sucker rod lifting work easier for field crews and improves workflow during repeated rod handling operations.
Reliable Oilfield Performance
SGPE designs the hook for repeated lifting tasks in petroleum environments. Its compact structure provides stable operation during rod pulling, rod running, production well service, and artificial lift maintenance.
Better Model Selection
Different field operations require different rated capacities and hook lengths. SGPE provides RH20, RH25, RH25L, and RH35 models, so buyers can select a hook according to actual lifting requirements, equipment setup, and working conditions.
Stronger Purchasing Confidence
With API 8C-based design, multiple model options, technical support, and application-focused product development, SGPE offers a suitable lifting tool for oilfield contractors, well service companies, workover crews, petroleum equipment distributors, and project buyers.
Technical Overview
| Item | Description |
|---|---|
| Product Name | Sucker Rod Lifting Hook |
| Product Type | Oilfield lifting tool / sucker rod elevator hook |
| Standard | Designed and manufactured in accordance with API Spec 8C requirements |
| Main Use | Connecting and lifting sucker rod elevators |
| Locking Type | Spring-assisted automatic safety locking |
| Main Structure | Hook body, bail, and safety locking device |
| Main Applications | Petroleum well service, oilfield workover, sucker rod pulling, rod running, rod pump maintenance, artificial lift operations |
| Suitable Users | Well service companies, workover contractors, oilfield crews, petroleum equipment suppliers, production well maintenance teams |
| Related Applications | Sucker rod elevator connection, oilfield rod handling, production well service, rod pump maintenance, artificial lift field service |
Main Technical Parameters
| Model | Rated Capacity | Length |
|---|---|---|
| RH20 | 20 short tons | 488 mm |
| RH25 | 25 short tons | 494 mm |
| RH25L | 25 short tons | 798 mm |
| RH35 | 35 short tons | 960 mm |
These model options help customers choose a suitable sucker rod lifting hook according to lifting capacity, hook length, sucker rod elevator connection requirements, well service setup, and petroleum field working conditions.
Model Selection Guide
Choosing the right Sucker Rod Lifting Hook improves safety, compatibility, and field efficiency. Buyers should review rated capacity, hook length, elevator connection requirements, and working conditions before placing an order.
RH20 Sucker Rod Lifting Hook
RH20 has a rated capacity of 20 short tons and a length of 488 mm. It suits field operations that need a compact hook for lower-capacity sucker rod handling. Buyers can consider this model for daily petroleum well service, light workover tasks, and rod handling jobs where the working load fits the rated capacity.
RH25 Sucker Rod Lifting Hook
RH25 has a rated capacity of 25 short tons and a length of 494 mm. It works for common oilfield rod handling jobs that require a 25 short ton lifting hook. This model fits well service crews, workover contractors, and equipment buyers who need a standard-capacity sucker rod elevator hook.
RH25L Sucker Rod Lifting Hook
RH25L also has a rated capacity of 25 short tons, but its length reaches 798 mm. The longer structure can support special lifting arrangements or field setups where crews need additional hook length. Buyers should consider RH25L when hook length matters more than capacity difference.
RH35 Sucker Rod Lifting Hook
RH35 has a rated capacity of 35 short tons and a length of 960 mm. This model supports heavier oilfield rod handling jobs and demanding workover conditions. Buyers can choose RH35 when the operation requires a higher rated capacity and a longer hook structure.
How the SGPE Sucker Rod Lifting Hook Works
SGPE designed this sucker rod hook for simple and efficient field operation.
First, the operator guides the lifting ring of the sucker rod elevator toward the hook. Then, the lifting ring enters the hook directly without manual opening of the locking arm. After the ring reaches the correct position, the spring-assisted locking arm returns automatically. Finally, the hook secures the lifting ring and supports the lifting operation.
This working mechanism reduces unnecessary handling steps, improves hook engagement speed, and allows safer sucker rod elevator connection during petroleum well service, oilfield workover, rod pump maintenance, and artificial lift operations.
The simple operation also helps new crews understand the tool quickly. In busy well service environments, workers need lifting tools that do not require complicated steps. SGPE Sucker Rod Lifting Hook meets that need by combining direct ring entry with automatic locking action.
Why Sucker Rod Elevator Connection Matters
Sucker rod elevator connection affects the speed, safety, and consistency of many oilfield operations. When crews pull or run rods, they repeat lifting and connection work many times. A smooth hook connection reduces delays and keeps the workflow stable.
A proper sucker rod lifting hook also gives crews better control over elevator handling. The lifting ring must enter the hook correctly, and the locking arm must return to secure the connection. SGPE’s spring-assisted design supports this process and gives field crews an efficient way to manage rod handling work.
For well service companies and workover contractors, tool reliability can affect job efficiency. A hook that matches the operation helps crews complete rod service work with fewer interruptions. This makes the sucker rod hook an important part of petroleum well service equipment.
Why Choose SGPE as Your Sucker Rod Hook Supplier
SGPE supplies oilfield tools and lifting equipment for petroleum drilling, well service, workover, and production maintenance applications. Buyers need more than a basic product description. They need equipment that matches real field conditions, supports safe operation, and comes from a supplier with practical oilfield experience.
SGPE provides sucker rod lifting hooks for petroleum field applications and designs the product in accordance with API Spec 8C requirements for oilfield hoisting and lifting use. With multiple models available, customers can choose the right hook according to rated capacity, hook length, sucker rod elevator connection requirements, and working conditions on site.
SGPE also supports well service contractors, oilfield workover crews, equipment distributors, and petroleum project buyers with model selection, technical communication, and quotation support. Our team can help buyers review rated capacity, hook length, elevator connection requirements, application conditions, and delivery needs before order confirmation.
For customers searching for a sucker rod hook manufacturer, sucker rod hook supplier, API 8C lifting hook supplier, sucker rod elevator hook supplier, oilfield lifting equipment manufacturer, or petroleum rod handling tool supplier, SGPE offers a dependable and competitive choice for oilfield applications.
Buying Guide: How to Choose the Right Sucker Rod Lifting Hook
1. Check the Rated Capacity
Start with the actual lifting load and field requirement. Select a model that fits the sucker rod handling task and petroleum field operating condition. Do not choose a hook only by size or appearance. Rated capacity should match the planned lifting work.
2. Confirm the Required Hook Length
Different well service and workover setups may require different hook lengths. SGPE provides RH20, RH25, RH25L, and RH35 models to support different lifting arrangements. If the field setup requires more clearance or a longer hook body, RH25L or RH35 may provide a better fit.
3. Review the Oilfield Application
Confirm whether the hook will work in petroleum well service, oilfield workover, sucker rod pulling, rod running, rod pump maintenance, artificial lift field operations, or production well repair. A clear application helps SGPE recommend the right model faster.
4. Confirm Sucker Rod Elevator Compatibility
Make sure the hook matches the lifting ring of your sucker rod elevator and works properly with other related oilfield lifting equipment. Elevator connection requirements can affect model selection and field performance.
5. Consider Working Conditions
Oilfield environments often include mud, oil, repeated lifting, tight rig floor space, and fast-paced service work. Share your working conditions when requesting a quotation so SGPE can better understand your operation.
6. Prepare Order Details
To receive a faster quotation, please confirm the required model, quantity, application, and delivery destination before sending your inquiry. You can also share rated capacity, hook length preference, sucker rod elevator type, and project schedule.
If you are not sure which sucker rod lifting hook model fits your operation, SGPE can help you select the right option according to your field requirements.
Frequently Asked Questions About Sucker Rod Lifting Hook
1. What is a Sucker Rod Lifting Hook used for?
A Sucker Rod Lifting Hook connects and lifts sucker rod elevators during petroleum well service, oilfield workover, rod pulling, rod running, and production well maintenance. Crews use it to handle sucker rod elevators more smoothly around the well site and improve daily oilfield rod handling.
2. How does the SGPE Sucker Rod Lifting Hook connect with a sucker rod elevator?
The operator guides the lifting ring of the sucker rod elevator into the hook. The ring enters directly, and the spring-assisted locking arm returns after the ring reaches the correct position. This process improves hook engagement speed during sucker rod handling, well service, and workover operations.
3. Does the operator need to open the locking arm by hand?
No. During normal use, the operator does not need to open the locking arm manually. The lifting ring enters the hook directly, and the locking arm resets under spring action. This design reduces hand movement and allows faster elevator connection during rod pulling and rod running.
4. Which oilfield operations commonly use this sucker rod hook?
Crews commonly use this sucker rod hook for petroleum well service, oilfield workover, sucker rod pulling, rod running, rod pump maintenance, artificial lift service, and production well repair. It fits jobs that require frequent connection and lifting of sucker rod elevators.
5. Why do buyers choose an API 8C sucker rod lifting hook?
Buyers choose an API 8C sucker rod lifting hook because API Spec 8C relates to oilfield hoisting and lifting equipment. SGPE follows API Spec 8C requirements during design and manufacturing, which gives buyers more confidence when they source lifting tools for petroleum well service, workover rigs, and oilfield rod handling.
6. What models and rated capacities does SGPE offer?
SGPE offers four main Sucker Rod Lifting Hook models: RH20, RH25, RH25L, and RH35. RH20 has a rated capacity of 20 short tons and a length of 488 mm. RH25 has a rated capacity of 25 short tons and a length of 494 mm. RH25L has the same 25 short ton capacity but a longer 798 mm body. RH35 has a rated capacity of 35 short tons and a length of 960 mm.
7. How do I choose the right Sucker Rod Lifting Hook model?
Choose the model according to lifting load, hook length, sucker rod elevator connection requirements, and field working conditions. RH20 suits lower-capacity rod handling. RH25 fits common 25 short ton jobs. RH25L gives users a longer hook body for special lifting arrangements. RH35 supports heavier oilfield rod handling work.
8. Can this hook support sucker rod pulling and rod running operations?
Yes. Crews can use SGPE Sucker Rod Lifting Hook during sucker rod pulling and rod running in oil and gas production wells. The hook connects with the lifting ring of the sucker rod elevator and allows crews to manage rod strings during workover, well intervention, and artificial lift maintenance.
9. Is this sucker rod hook suitable for rod pump maintenance?
Yes. This hook works well in rod pump maintenance because sucker rod pumping systems require regular inspection, pulling, running, and replacement work. During rod pump service, crews can use the hook to handle sucker rod elevators and lifting tasks around artificial lift wells and production well service sites.
10. What are the main advantages of the spring-assisted locking design?
The spring-assisted locking design improves connection speed and reduces manual steps. After the lifting ring enters the hook, the locking arm returns automatically and secures the ring. This structure improves operating convenience during oilfield workover, sucker rod handling, and petroleum well service.
11. What information should I provide when requesting a quotation?
Please provide the product name, required model, quantity, application, and delivery destination. You can also share the rated capacity requirement, hook length preference, sucker rod elevator type, and working environment. These details help SGPE recommend a suitable Sucker Rod Lifting Hook and prepare a faster quotation.
12. Why choose SGPE as a Sucker Rod Lifting Hook supplier?
SGPE supplies oilfield lifting tools for petroleum well service, workover, rod handling, and artificial lift applications. The company offers API 8C-based sucker rod hook designs, multiple model options, and support for contractors, distributors, service companies, and petroleum equipment buyers. If you need a Sucker Rod Lifting Hook manufacturer or supplier for oilfield rod handling equipment, SGPE can provide product and quotation support for your project.
Conclusion
SGPE Sucker Rod Lifting Hook is a practical oilfield lifting tool for petroleum well service, oilfield workover, sucker rod pulling, rod running, rod pump maintenance, and artificial lift operations. Its spring-assisted safety locking design, direct elevator ring entry, API 8C-based manufacturing, and multiple model options make it a suitable choice for well service companies, workover crews, oilfield contractors, petroleum equipment distributors, and production maintenance teams.
If you need a sucker rod lifting hook, API 8C sucker rod hook, sucker rod elevator hook, oilfield lifting hook, petroleum rod handling tool, or sucker rod handling equipment for demanding field conditions, SGPE can provide the right product support.
Request a Quote
Looking for a reliable Sucker Rod Lifting Hook supplier for your petroleum well service or oilfield workover project? SGPE is ready to support your sucker rod handling and oilfield lifting equipment needs with suitable products, model selection support, and responsive quotation service.
To receive a fast quotation, please tell us that you need a Sucker Rod Lifting Hook and share the required model, order quantity, application, and destination port or delivery address. If you are not sure which model fits your operation, you can also send your rated capacity requirement, sucker rod elevator connection details, hook length preference, and working conditions.
