Description
Downhole Casing Scraper for Oilfield Casing Cleaning, Wellbore Preparation and Workover Operations
SGPE Downhole Casing Scraper is a mechanical oilfield casing cleaning tool for petroleum drilling, oil and gas well completion, workover, well servicing, oilfield fishing and wireline intervention. It removes rust, scale, cement residue, drilling mud, hard mud cake, paraffin, perforation burrs, perforating gun marks and other foreign materials from the inside wall of oilfield casing.
A clean casing bore helps packers, casing patches, bridge plugs, spears, overshots, fishing tools, completion tools and wireline tools pass, set, grip and seal more reliably. If cement residue, corrosion scale, paraffin or burrs remain inside the casing, these tools may hang up, lose sealing performance, fail to reach the target depth or become difficult to retrieve.
SGPE supplies downhole casing scraper models for common oilfield casing sizes from 4 1/2 in to 20 in. Each model helps improve casing ID condition before critical petroleum operations and supports smoother wellbore preparation for drilling support, completion, fishing, workover and well servicing projects.
With durable cast steel blades, 360-degree scraping coverage and a long tapered blade design, this oilfield casing scraper delivers reliable cleaning performance while reducing the risk of hanging up at casing connections. Customers can select the right model according to casing size, casing weight, casing ID, scraping range, connection type and field operation requirements.
What Is a Downhole Casing Scraper?
A downhole casing scraper cleans the internal wall of casing in oil and gas wells. Crews run it into the casing on a work string. As the string rotates, reciprocates or spuds, the scraper blades contact the casing wall and remove unwanted deposits.
The tool prepares a clean casing ID before close-tolerance downhole tools enter the well. It helps remove materials that may affect tool passage, setting, anchoring, sealing or gripping performance.
In petroleum wells, the casing inner wall may contain cement residue after cementing, hard mud cake after drilling, rust and corrosion scale in mature wells, paraffin buildup in production wells, perforation burrs after perforating and debris from intervention work. These materials create rough surfaces, local restrictions and unnecessary drag inside the casing.
A properly selected scraper restores a cleaner internal surface before the next oilfield operation. For this reason, many crews use it for casing ID cleaning, wellbore preparation, completion reliability and workover efficiency.
Why Oilfield Casing Cleaning Matters
Casing cleaning directly affects petroleum drilling, completion, workover and well servicing jobs. A dirty or restricted casing bore can cause high drag, tool sticking, poor sealing, incomplete setting and extra rig time.
During oil and gas well completion, packers need a clean casing wall to set and seal correctly. If scale, rust, paraffin or cement residue remains on the casing ID, the packer element may not contact the casing evenly. This problem can reduce sealing reliability and affect well integrity.
During workover and well servicing, casing patches, bridge plugs, spears, overshots and fishing tools also need a clean and consistent bore. Hard deposits, burrs or casing wall obstructions may stop the tool string, damage sealing elements or affect fishing engagement.
Wireline intervention also requires a clean path. Wireline tools often have limited clearance, so small burrs, scale rings or paraffin deposits may increase drag and prevent the tool from reaching the planned depth. Therefore, many crews run a casing scraper before wireline, completion, fishing or workover operations.
SGPE Downhole Casing Scraper for Petroleum Wellbore Preparation
SGPE supplies downhole casing scrapers for demanding petroleum industry environments. The tool body provides strength for downhole service, while the scraper blades clean the casing wall. The spring-supported blade structure keeps proper blade contact within the designed scraping range.
The tool has two sets of scraper blades. Each blade uses high-quality cast steel to provide strong scraping performance and long service life. The blade arrangement supports full-circumference scraping, so the tool can clean the internal casing wall more evenly.
The long tapered blade design helps the scraper pass through casing connections, couplings and minor ID changes more smoothly. This feature reduces the risk of hanging up during oilfield downhole operations.
Crews can run the tool with rotation, reciprocation or spudding. Because the operating method is simple and reliable, it works well on petroleum drilling rigs, workover rigs and well servicing units.
Main Oilfield Applications of Downhole Casing Scraper
This casing cleaning tool suits petroleum industry applications where casing cleanliness affects operation success. It supports petroleum drilling wellbore preparation, oil and gas well completion preparation, workover casing cleaning, fishing operation support, well servicing cleanout and wireline intervention preparation.
Crews also use it before packer setting, casing patch running, bridge plug running, spear operation, overshot operation and other close-tolerance downhole jobs. In addition, the scraper helps remove perforation burrs, cement residue, corrosion scale, rust, mud cake and paraffin from the casing ID.
In petroleum drilling projects, crews can clean the casing before running completion tools or downhole assemblies. In completion operations, the scraper helps prepare a cleaner surface for packers, plugs and sealing tools. In fishing operations, it removes restrictions that may affect tool entry, movement and engagement.
For mature oil and gas wells, scale, rust and paraffin may build up inside the casing over time. These deposits reduce clearance and make downhole tool running more difficult. A suitable oilfield casing scraper helps remove these materials and supports smoother workover and well servicing operations.
Key Features and Benefits of SGPE Downhole Casing Scraper
SGPE Downhole Casing Scraper removes rust, scale, cement residue, drilling mud, paraffin, perforation burrs, perforating gun marks and other foreign materials from the inner wall of oilfield casing. It helps maintain a cleaner casing bore before drilling support, completion, fishing, workover and well servicing jobs.
The 360-degree scraping structure improves cleaning coverage around the full casing ID. Because the blades contact the casing wall from different directions, the tool reduces untreated areas and improves casing wall cleaning consistency.
High-quality cast steel scraper blades provide strong cutting and scraping performance. These blades handle hard deposits commonly found in petroleum wells, including cement residue, corrosion scale, compacted mud cake and paraffin buildup.
The long tapered blade profile helps the tool pass through casing connections with less hanging risk. This feature works well in wells where casing joints, coupling areas or internal restrictions may affect tool movement.
The spring-supported blade system keeps the scraper in proper contact with the casing wall. As a result, the tool can scrape efficiently within the applicable casing size and casing weight range.
SGPE offers multiple casing scraper models for different oilfield casing sizes. Customers can choose the correct tool according to casing size, casing weight, body OD, cutter extension range, scraping range and connection type.
How the Downhole Casing Scraper Works in Oilfield Casing Cleaning
Crews normally connect the scraper to the work string. In many petroleum well operations, they attach a drill bit or guide tool below the scraper. Then they run the tool into the casing to the required depth.
During operation, the crew rotates the string, reciprocates the tool or uses spudding action. The scraper blades contact the casing wall and remove rust, scale, cement residue, paraffin, mud cake, burrs and other obstructions. This process cleans the internal casing surface and prepares the wellbore for the next oilfield operation.
The tool performs best when the selected model matches the casing size and casing weight. Correct model selection allows the blades to work within the proper scraping range and maintain effective contact with the casing wall.
Downhole Casing Scraper for Packers, Casing Patches, Bridge Plugs and Wireline Tools
Many petroleum downhole tools need a clean casing wall to operate correctly. Packers need a clean internal surface to set, seal and hold pressure. If cement residue, rust, paraffin or scale remains on the casing wall, the packer element may not seal evenly.
Casing patches also require clean casing surfaces. A rough or contaminated casing wall may reduce patch performance or make the patch difficult to run. Bridge plugs and other completion tools also benefit from a clean bore because casing restrictions can interfere with setting accuracy.
In oilfield fishing operations, spears, overshots and related retrieving tools need enough clearance to reach and engage the target. A dirty casing ID may increase friction and prevent proper tool movement.
In wireline intervention, tool clearance can be very tight. Burrs, paraffin, scale or hard debris may stop wireline tools or cause unnecessary drag. Running a downhole casing scraper before these operations helps improve tool passage and reduce operation risk.

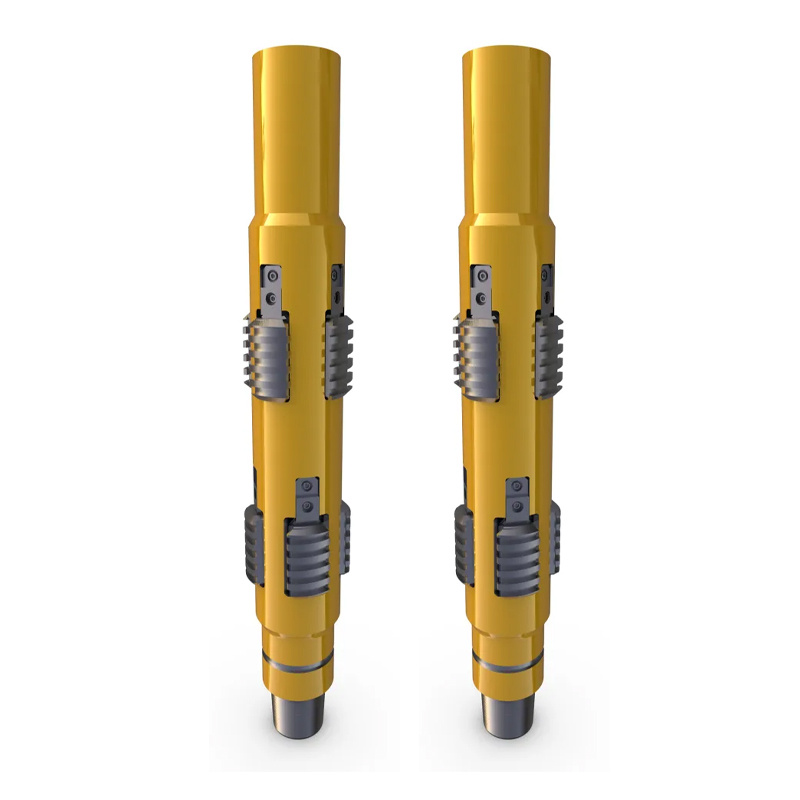

Structure of SGPE Downhole Casing Cleaning Tool
SGPE Downhole Casing Scraper consists of a strong tool body, scraper blades, springs and connection ends. The body carries the main downhole load. The scraper blades remove deposits from the casing wall. The springs help the blades maintain outward contact during operation.
Each model has a specific body OD, cutter extension range, inner diameter, scraping range, connection and blade quantity. SGPE provides standard and optional connections for many models, including REG and IF connections. This helps customers match the tool with different oilfield work strings.
The blade arrangement supports full-circumference scraping. Meanwhile, the tapered blade profile helps the tool move through casing joints and coupling areas more smoothly. This structure gives the scraper a practical balance between scraping performance, durability and pass-through ability.
Model Selection Guide for Downhole Casing Scraper
Correct model selection is important for successful oilfield casing cleaning. Customers should confirm casing size, casing weight, casing ID, connection type and scraping range before ordering.
For 4 1/2 in casing, customers may choose GX114 or GX114A according to casing weight and internal diameter. For 7 in casing, GX178 is a common choice. For larger oilfield casing sizes such as 13 3/8 in, 18 5/8 in and 20 in, SGPE offers GX340, GX473 and GX508 models.
If the work string uses a non-standard connection, SGPE can review the requirement and recommend a suitable option. Customers can also provide the well program, casing specification, operating condition and required connection for more accurate model selection.
To select the right downhole casing scraper, please confirm casing size, casing weight, casing ID, work string connection, well condition, operation type and required quantity. These details help SGPE recommend a suitable model and prepare an accurate quotation.
SGPE Downhole Casing Scraper Specifications and Model List
The following tables list common SGPE Downhole Casing Scraper models for petroleum drilling, oil and gas well completion, oilfield fishing, workover, well servicing and wireline intervention applications. Final selection should match casing size, casing weight, scraping range, connection compatibility and oilfield operating condition.
Small and Medium Downhole Casing Scraper Models for 4 1/2 in to 8 5/8 in Casing
This table includes SGPE Downhole Casing Scraper models for common small and medium oilfield casing sizes. These models are suitable for casing ID cleaning, wellbore preparation, completion support, fishing operations, workover jobs and wireline intervention preparation.
| Model | Applicable Casing Size / Weight | Body OD mm | Max Cutter OD mm | Min Cutter OD mm | ID mm | Scraping Range mm | Standard Connection | Optional Connection | Cutter Qty | Spring Qty | Product Code Standard | Product Code Optional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GX114 | 4 1/2 in, 9.5–15.1 lb/ft | 90.5 | 106 | 92 | 20 | 97–104 | 2 3/8 REG | 2 3/8 IF | 2×3 | 30 | X01-01010 | X01-01020 |
| GX114A | 4 1/2 in, 13.5–18.8 lb/ft | 89 | 102 | 89 | 20 | 92.4–99.5 | 2 3/8 REG | 2 3/8 IF | 2×3 | 30 | X01-01030 | X01-01040 |
| GX127 | 5 in, 11.5–18 lb/ft | 100 | 118 | 100 | 20 | 108.6–116 | 2 3/8 REG | 2 3/8 IF | 2×3 | 30 | X01-02010 | X01-02020 |
| GX140 | 5 1/2 in, 14–23 lb/ft | 110 | 130 | 112 | 24 | 118.6–128 | 2 7/8 REG | 2 7/8 IF | 2×3 | 36 | X01-03010 | X01-03020 |
| GX146 | 5 3/4 in, 14–25.2 lb/ft | 110 | 138 | 118 | 24 | 124–135 | 2 7/8 REG | 2 7/8 IF | 2×3 | 36 | X01-04010 | X01-04020 |
| GX168 | 6 5/8 in, 20–32 lb/ft | 130 | 158 | 135 | 24 | 144–154 | 3 1/2 REG | 3 1/2 IF | 2×4 | 48 | X01-05010 | X01-05020 |
| GX178 | 7 in, 17–38 lb/ft | 136 | 167 | 146 | 30 | 150–166 | 3 1/2 REG | 3 1/2 IF | 2×3 | 30 | X01-06010 | X01-06020 |
| GX194 | 7 5/8 in, 24–45.3 lb/ft | 136 | 180 | 159 | 30 | 163.5–179 | 3 1/2 REG | 3 1/2 IF | 2×3 | 30 | X01-07010 | X01-07020 |
| GX219 | 8 5/8 in, 24–52 lb/ft | 175 | 208 | 183 | 30 | 188–206 | 4 1/2 REG | 4 1/2 IF | 2×4 | 40 | X01-08010 | X01-08020 |
Large Downhole Casing Scraper Models for 9 5/8 in to 20 in Casing
This table includes SGPE Downhole Casing Scraper models for large oilfield casing sizes. These models are used for large-bore casing cleaning, workover casing preparation, well servicing cleanout, completion preparation and heavy-duty petroleum wellbore cleaning applications.
| Model | Applicable Casing Size / Weight | Body OD mm | Max Cutter OD mm | Min Cutter OD mm | ID mm | Scraping Range mm | Standard Connection | Optional Connection | Cutter Qty | Spring Qty | Product Code Standard | Product Code Optional |
| GX245 | 9 5/8 in, 32.3–61.1 lb/ft | 200 | 230 | 209 | 57 | 212.7–230 | 4 1/2 REG | 4 1/2 IF | 2×5 | 50 | X01-09010 | X01-09020 |
| GX273 | 10 3/4 in, 32.75–71.1 lb/ft | 228 | 262 | 233 | 57 | 240–260 | 6 5/8 REG | 4 1/2 IF | 2×5 | 50 | X01-10010 | X01-10020 |
| GX340 | 13 3/8 in, 48–72 lb/ft | 286 | 326 | 304 | 71 | 313.6–323 | 6 5/8 REG | 4 1/2 IF | 2×6 | 60 | X01-11010 | X01-11020 |
| GX473 | 18 5/8 in, 73.09–109 lb/ft | 420 | 460 | 438 | 76 | 444.2–454 | 7 5/8 REG | 6 5/8 REG | 2×8 | 80 | X01-12010 | X01-12020 |
| GX508 | 20 in, 84.75–133 lb/ft | 443 | 493 | 466 | 76 | 475–487 | 7 5/8 REG | / | 2×8 | 80 | X01-13010 | X01-13020 |
Quality, Connection Options and Custom Support
SGPE focuses on practical oilfield performance, stable structure and reliable model selection. Each downhole casing scraper model matches a defined casing size and scraping range, helping customers choose suitable tools for petroleum drilling, completion, workover and well servicing requirements.
The scraper blades use durable cast steel to handle casing wall deposits such as rust, scale, cement residue, mud cake and paraffin. The spring-supported blade system helps maintain proper contact during cleaning, while the tapered blade profile improves pass-through performance at casing joints.
SGPE can provide standard and optional connections for many models. Customers can also request support for non-standard connection requirements. When you provide casing data, work string details and application information, SGPE can help review the suitable model and connection option.
Before delivery, SGPE can help confirm model specifications, connection requirements, product codes and packing details according to the order. For international oilfield supply projects, SGPE supports technical communication, quotation preparation, export packaging and shipping coordination.
Advantages of Choosing SGPE Downhole Casing Scraper
SGPE understands the working conditions of petroleum drilling rigs, oilfield workover rigs and well servicing units. A downhole scraper must clean the casing wall effectively, pass through casing connections smoothly and withstand downhole operating demands.
This casing cleaning tool offers strong scraping ability, durable blades, a practical structure and multiple model choices. It helps oilfield crews reduce casing obstructions before running packers, casing patches, bridge plugs, spears, overshots, fishing tools, wireline tools and other close-tolerance petroleum downhole tools.
SGPE can also support customers with model selection. When you provide casing size, casing weight, connection and operation details, SGPE can recommend a suitable downhole casing scraper and prepare a quotation quickly.
Ordering Information for SGPE Downhole Casing Scraper
When ordering SGPE Downhole Casing Scraper, please provide the required model if available. If you do not know the exact model, please send the casing size and casing weight. These details help SGPE confirm the correct scraping range.
Please also specify the connection requirement if you need a non-standard connection. SGPE can review standard and optional connection choices according to your oilfield work string.
For faster quotation and technical support, customers can provide quantity, destination port, well type, operation type and any special requirements for packaging, inspection or documentation.
Frequently Asked Questions About Downhole Casing Scraper
1. What does a Downhole Casing Scraper do in oil and gas wells?
A Downhole Casing Scraper cleans the inside wall of oilfield casing before important downhole operations. It removes rust, scale, cement residue, drilling mud, paraffin, perforation burrs, perforating gun marks and other casing wall obstructions. After cleaning, the casing bore gives packers, bridge plugs, casing patches, fishing tools and wireline tools better clearance.
2. Why do operators use a Downhole Casing Scraper before completion or workover?
Operators use a Downhole Casing Scraper before completion or workover because many tools need a clean casing ID to pass, set, grip or seal correctly. Cement residue, corrosion scale, hard mud cake and paraffin buildup can create rough spots inside the casing. These restrictions may stop packers, bridge plugs, casing patches or wireline tools from reaching the target depth.
3. What materials can SGPE Downhole Casing Scraper remove from the casing wall?
SGPE Downhole Casing Scraper can remove rust, corrosion scale, cement residue, drilling mud, compacted mud cake, paraffin, perforation burrs, perforating gun marks, bullet marks and other foreign materials from the casing inner wall. This makes the tool suitable for casing ID cleaning, wellbore preparation, completion support and workover casing cleaning.
4. How does a Downhole Casing Scraper work during oilfield casing cleaning?
Crews connect the Downhole Casing Scraper to the work string and run it into the casing to the required depth. Then they rotate the string, reciprocate the tool or use spudding action. The scraper blades contact the casing wall and scrape away unwanted deposits. Meanwhile, the long tapered blade design helps the tool pass casing connections more smoothly.
5. When should crews run a Downhole Casing Scraper in petroleum well operations?
Crews often run a Downhole Casing Scraper before packer setting, bridge plug running, casing patch installation, oilfield fishing, wireline intervention, well completion and workover operations. They also use it after cementing, perforating or long-term production when the casing ID may contain cement residue, burrs, scale or paraffin.
6. Can a Downhole Casing Scraper improve packer setting and sealing performance?
Yes. A Downhole Casing Scraper can improve packer setting and sealing performance by cleaning the casing wall before the packer enters the well. Packers need a clean and consistent internal casing surface to set, seal and hold pressure. By removing rust, scale, cement residue and paraffin, the scraper helps create a better sealing surface.
7. Why should crews use a Downhole Casing Scraper before running casing patches or bridge plugs?
Casing patches and bridge plugs need a clean bore and a stable casing surface to run and set correctly. If the casing wall contains hard deposits, burrs or scale rings, the tool may drag, hang up or fail to reach the required depth. A downhole casing scraper helps remove these restrictions before patch, plug, isolation or well intervention operations.
8. How does a Downhole Casing Scraper support oilfield fishing operations?
Oilfield fishing tools, such as spears, overshots and related retrieving tools, need enough clearance to reach and engage the target. Rust, scale, mud cake, perforation burrs or casing wall debris can increase friction and block the tool path. A casing scraper clears the casing ID before fishing operations and helps the fishing string move more smoothly.
9. Can SGPE Downhole Casing Scraper work for wireline intervention preparation?
Yes. SGPE Downhole Casing Scraper works well for wireline intervention preparation in oil and gas wells. Wireline tools often have limited clearance, so even small burrs, scale rings or paraffin deposits can create drag or stop the tool from reaching the planned depth. Cleaning the casing ID helps improve tool passage and reduce sticking risk.
10. How do I choose the right SGPE Downhole Casing Scraper model?
To choose the right model, customers should confirm casing size, casing weight, casing ID, scraping range and work string connection. The selected tool must match the actual casing condition so the scraper blades can contact the casing wall properly. SGPE can review your casing data, connection requirement and operation type, then recommend a suitable downhole casing scraper.
11. What casing sizes does SGPE Downhole Casing Scraper cover?
SGPE supplies Downhole Casing Scraper models for common oilfield casing sizes from 4 1/2 in to 20 in. The model range includes GX114, GX114A, GX127, GX140, GX146, GX168, GX178, GX194, GX219, GX245, GX273, GX340, GX473 and GX508. These models cover different casing weights, body OD values, cutter extension ranges and scraping ranges.
12. What information should I provide when requesting a Downhole Casing Scraper quotation?
When requesting a Downhole Casing Scraper quotation, please provide casing size, casing weight, casing ID, required scraping range, work string connection, operation type and quantity. If you already know the model, you can send the model number directly. You can also provide well type, job purpose, destination port and packaging or documentation requirements for faster quotation.
