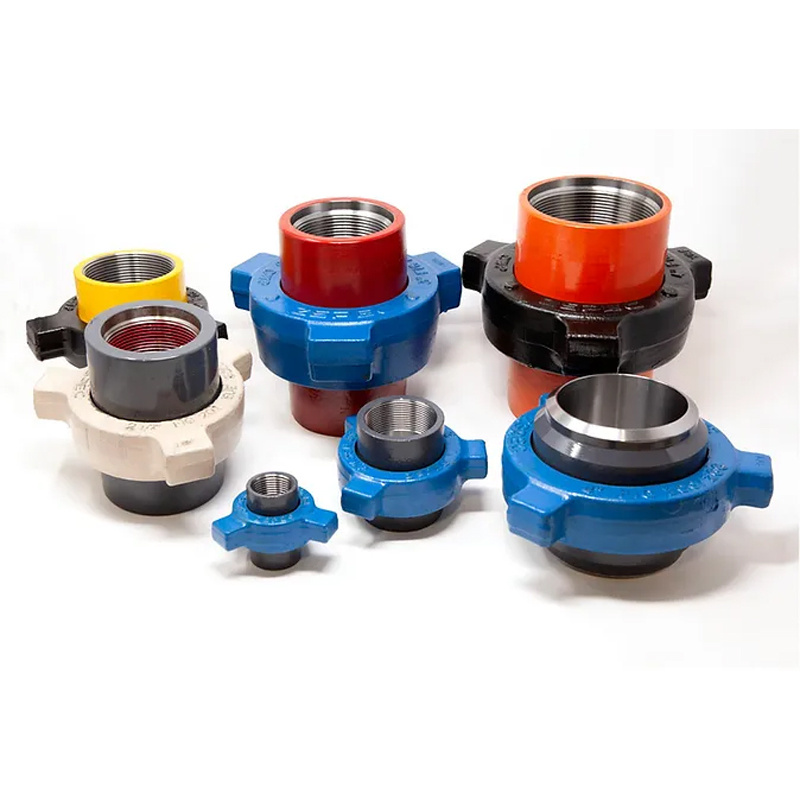

Hammer Union for Oilfield High Pressure Flowline Service
SGPE supplies hammer unions for oilfield high pressure flowline connection, cementing service, fracturing operation, acidizing treatment, well testing, drilling manifold connection, workover service, flowback operation and pressure control equipment. These quick connection fittings help field crews make up and break out pressure lines efficiently during drilling, completion, well stimulation and well servicing operations.
SGPE provides threaded hammer unions, butt-weld hammer unions and H2S service hammer unions. The available size range covers 1 inch to 4 inches, and the working pressure range covers 1,000 psi to 20,000 psi, equal to 7 MPa to 140 MPa. Common models include FIG 100, FIG 200, FIG 206, FIG 400, FIG 402, FIG 602, FIG 1002, FIG 1502, FIG 2002 and FIG 2202.
These unions are used with cementing trucks, fracturing units, acidizing units, pressure pumping equipment, treating iron, high pressure manifolds, drilling fluid systems, well testing lines, choke and kill manifold systems, flowback lines and other surface pressure equipment. They help transfer cement slurry, fracturing fluid, drilling fluid, completion fluid, water, oil, acidizing fluid, produced fluid and mixed well service fluids.
SGPE manufactures hammer unions from selected alloy steel through forging, heat treatment, precision machining and strict inspection. The forged structure improves strength and toughness, while precision-machined sealing surfaces support reliable pressure connection. Clear forged marks and pressure color identification also help rig-site crews choose the correct union faster during field operation.
Quick Overview of SGPE Hammer Unions
| Item | SGPE Supply Range |
|---|---|
| Product Type | Hammer Union, Weco Type Hammer Union |
| Connection Options | Threaded, Butt-Weld, H2S Service |
| Common Figure Numbers | FIG 100, FIG 200, FIG 206, FIG 400, FIG 402, FIG 602, FIG 1002, FIG 1502, FIG 2002, FIG 2202 |
| Size Range | 1 in to 4 in |
| Working Pressure | 1,000 psi to 20,000 psi / 7 MPa to 140 MPa |
| Main Applications | Cementing, Fracturing, Acidizing, Well Testing, Workover, Flowback, Manifold Connection |
| Common Equipment | Cementing Trucks, Frac Units, Treating Iron, Choke and Kill Manifolds, Flowline Packages |
| Service Options | Standard Service, Sour Service, H2S Service |
| Equivalent Matching | FMC Equivalent, SPM Equivalent, Weco Type Flowline Union |
What Is a Hammer Union?
A hammer union is a quick connection fitting for high pressure flowline service. It normally includes a male sub, female sub, wing nut and seal ring. During operation, the crew aligns the two subs and tightens the wing nut with a hammer. Then the rigid ACME thread and sealing structure create a strong pressure connection.
Field crews often need to install, remove and reposition pressure lines during cementing, fracturing, acidizing, well testing, drilling fluid circulation and workover operations. A hammer union gives them a practical way to complete these connections without complex tools. Because of this, Weco type hammer unions remain common parts in pressure pumping packages, treating iron systems, manifold assemblies and temporary flowline layouts.
SGPE hammer unions follow common international oilfield connection practices. English system dimensions help customers match many equivalent products used in the global petroleum market. When the figure number, size, pressure rating and sealing structure match correctly, SGPE seal rings can interchange with SPM or FMC equivalent products.
Oilfield Applications of SGPE Hammer Unions
Oilfield Pressure Pumping and Well Stimulation Applications
SGPE hammer unions support many surface flowline and pressure control applications. They connect pressure lines, manifold equipment and well service systems in drilling, completion, stimulation, testing and intervention environments.
In cementing service, hammer unions connect cementing trucks, cement heads, treating lines, high pressure hoses, plug valves and cementing manifolds. They help crews complete rig-up and rig-down during primary cementing, remedial cementing and squeeze cementing operations.
In hydraulic fracturing service, FIG 1002, FIG 1502 and FIG 2002 hammer unions connect treating iron, frac manifolds, high pressure elbows, plug valves, check valves, swivel joints and pumping units. These unions help move fracturing fluid from pressure pumping equipment to the wellhead system under high pressure.
In acidizing service, hammer unions connect acidizing units, treating lines, manifolds and wellhead pressure equipment. The right material and seal selection helps the union handle acidizing fluid, pressure fluctuation and harsh well stimulation conditions.
Drilling, Well Testing, Workover and Sour Service Applications
In well testing and flowback operations, hammer unions connect test lines, flowback lines, surface testing manifolds, separators, choke manifolds and temporary production flowlines. These connections help operators control and transfer well fluids during testing, cleanup and flowback service.
In drilling fluid and manifold systems, hammer unions connect high pressure mud lines, standpipe manifolds, choke and kill lines, drilling manifolds and pressure control equipment. Their quick connection design helps drilling crews adjust pipe layouts around the rig floor and drilling package.
In workover and well servicing operations, hammer unions connect pressure pumping lines, circulating lines, tubing service equipment, temporary flowline systems and intervention tools. They help crews move service fluids safely during repair, stimulation, circulation and well maintenance work.
For sour gas environments, SGPE provides H2S service hammer unions. These unions suit operations where hydrogen sulfide may appear in well fluids, produced fluids or service fluids. SGPE controls material selection, hardness, machining, sealing and inspection according to sour service requirements.
Main Features of SGPE Hammer Unions
Fast Installation on Oilfield Sites
SGPE hammer unions use wing nuts and rigid ACME threads. Field crews can install or remove them quickly with common rig-site tools. This helps save time during cementing line connection, fracturing spread layout, well testing flowline assembly, workover equipment mobilization and manifold maintenance.
Reliable Performance for High Pressure Flowlines
The forged alloy steel body gives the union high strength and good impact resistance. Machined sealing surfaces and quality seal rings help improve sealing performance under pressure fluctuation, vibration and repeated assembly.
High Interchangeability in the Oilfield Market
SGPE manufactures hammer unions in the English system. The size, figure number and seal ring design can match many common oilfield equivalents when customers confirm the specifications correctly. This helps drilling contractors, oilfield service companies, pressure pumping companies and equipment suppliers reduce inventory complexity.
Clear Pressure Identification
Different pressure ratings use different paint colors for easier identification. SGPE also marks size, connection type and pressure rating on the wing nuts. These clear marks help crews choose the right union during fast-paced rig-site operations.
Quality Seal Rings
SGPE uses quality rubber compound for seal rings. The seal rings improve load-bearing capacity, sealing performance and erosion resistance around the connector. Different pressure ratings and fluid conditions require different sealing methods. Therefore, SGPE can help customers select the correct seal ring according to pressure, temperature, medium and H2S condition.
Precision Machining
SGPE machines spherical adapters with precision NC machine tools. Special cutting tools machine LP threads to improve thread accuracy and sealing performance. NC-machined wing nuts provide high strength and stable load-bearing capacity for pressure line service.
API 16C-Related Welding Groove Control
For relevant welded hammer union applications, SGPE can control welding materials and welding grooves according to project requirements and API 16C-related flowline practices. This helps customers integrate the unions into cementing manifolds, fracturing manifolds, choke and kill systems, well testing skids and pressure control assemblies.
Sour Service Manufacturing Control
For H2S hammer unions, SGPE controls material selection, hardness, machining and inspection according to NACE MR0175 requirements where applicable. For high velocity flow conditions, SGPE can also consider erosion-related service requirements with reference to API RP 14E where applicable.
Available Connection Types

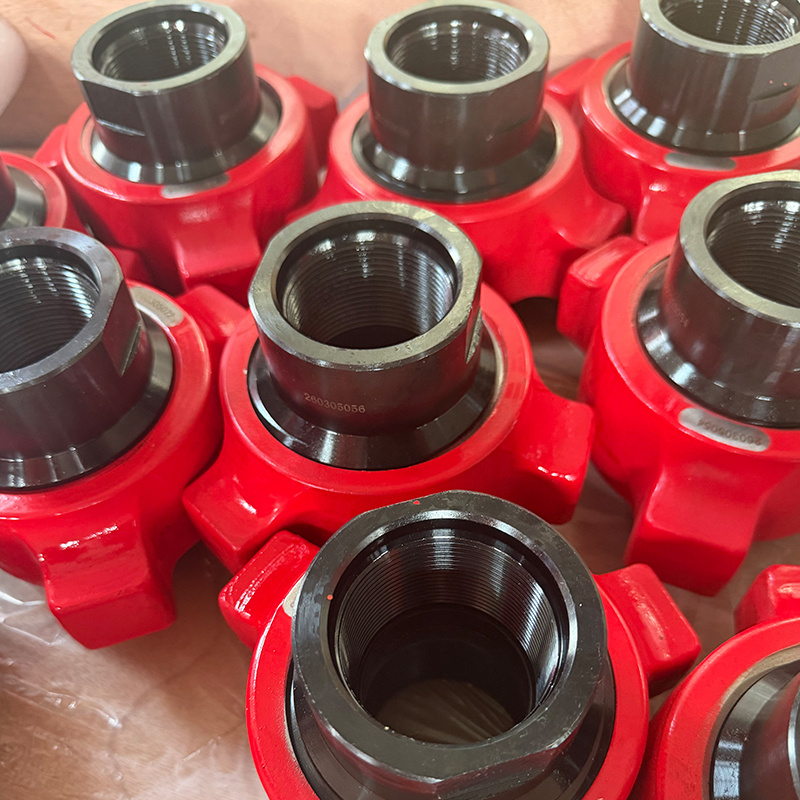

Threaded Hammer Union
Threaded hammer unions suit pressure lines that need fast assembly with pipeline thread, tubing thread or other specified thread ends. SGPE supplies threaded unions for cementing trucks, drilling manifolds, well service lines, pressure pumping equipment and temporary flowline systems.
These unions help crews connect and disconnect surface pressure equipment quickly during field operations. Customers can choose the suitable figure number according to working pressure, pipe size, service fluid and connection requirement.
Butt-Weld Hammer Union
Butt-weld hammer unions suit fixed or semi-fixed pressure piping systems. Customers often use them in fracturing manifolds, cementing manifolds, choke and kill manifolds, well testing skids, high pressure flowline packages and pressure control assemblies.
The butt-weld design allows equipment manufacturers to integrate the union into welded pressure piping. SGPE can provide welding end configurations according to project drawings and service requirements.

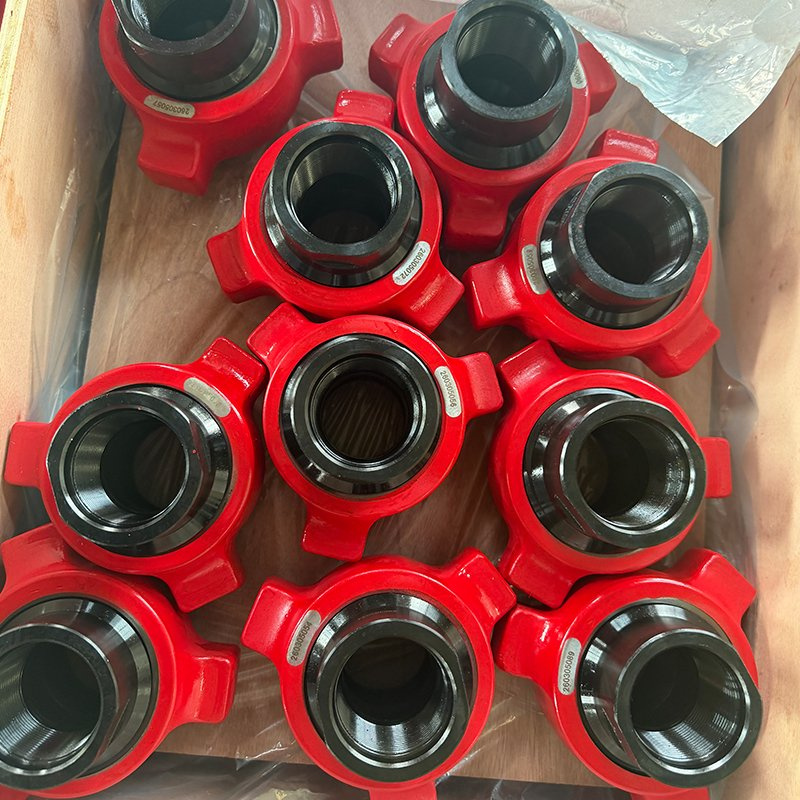

H2S Service Hammer Union
H2S service hammer unions suit sour oilfield environments. These unions support applications where hydrogen sulfide may contact pressure equipment. SGPE controls material selection, hardness, machining, sealing and inspection according to sour service requirements.
Customers commonly use H2S hammer unions in sour gas wells, sour oil wells, sour service well testing, high pressure sour gas flowlines, sour service manifolds and pressure pumping operations in H2S environments.
Main Technical Specifications for SGPE Hammer Unions
The following tables cover common SGPE hammer union models for standard service and H2S sour service applications. Final selection should match working pressure, test pressure, size, end connection, service fluid, temperature, H2S condition and project standard.
Standard Threaded and Welding Hammer Union Specifications
| Type | Model | Rated Working Pressure | Available Size |
|---|---|---|---|
| Thread Connection Union | FIG 100 | 1,000 psi / 7 MPa | 2 in |
| Thread Connection Union | FIG 200 | 2,000 psi / 14 MPa | 1 in, 2 in |
| Thread Connection Union | FIG 206 | 2,000 psi / 14 MPa | 4 in |
| Thread Connection Union | FIG 400 | 4,000 psi / 28 MPa | 1 in |
| Thread Connection Union | FIG 402 | 4,000 psi / 28 MPa | 3 in |
| Thread Connection Union | FIG 602 | 6,000 psi / 42 MPa | 1 in, 1-1/2 in, 2 in, 3 in, 4 in |
| Thread Connection Union | FIG 1002 | 10,000 psi / 70 MPa | 1 in, 1-1/2 in, 2 in, 3 in, 4 in |
| Thread Connection Union | FIG 1502 | 15,000 psi / 105 MPa | 1 in, 1-1/2 in, 2 in, 3 in |
| Welding Union | FIG 206 | 2,000 psi / 14 MPa | 2 in, 3 in, 4 in |
| Welding Union | FIG 602 | 6,000 psi / 42 MPa | 2 in, 3 in, 4 in |
| Welding Union | FIG 1002 | 10,000 psi / 70 MPa | 2 in, 3 in, 4 in |
| Welding Union | FIG 1502 | 15,000 psi / 105 MPa | 2 in, 3 in |
| Welding Union | FIG 2002 | 20,000 psi / 140 MPa | 2 in, 3 in |
H2S Sour Service Hammer Union Specifications
| Type | Model | Rated Working Pressure | Available Size |
| H2S Welding Union | FIG 602 | 5,000 psi / 35 MPa | 2 in, 3 in, 4 in |
| H2S Welding Union | FIG 602 | 6,000 psi / 42 MPa | 2 in, 3 in |
| H2S Welding Union | FIG 1002 | 7,500 psi / 53 MPa | 2 in, 3 in, 4 in |
| H2S Welding Union | FIG 1502 | 10,000 psi / 70 MPa | 2 in, 3 in, 4 in |
| H2S Welding Union | FIG 2202 | 15,000 psi / 105 MPa | 2 in, 3 in, 4 in |
| H2S Welding Union | Tr120×6 | 5,000 psi / 35 MPa | 2 in |
| H2S Welding Union | Tr150×6 | 5,000 psi / 35 MPa | 3 in |
| H2S Welding Union | Tr180×8 | 5,000 psi / 35 MPa | 4 in |
Popular Hammer Union Models for Petroleum Service
FIG 602 Hammer Union
SGPE FIG 602 hammer union works well in medium and high pressure petroleum service. It supports cementing flowlines, well service manifolds, drilling fluid systems, pressure pumping lines and temporary flowline connection.
The standard FIG 602 model provides a 6,000 psi working pressure. H2S service options can support 5,000 psi or 6,000 psi according to the application. Customers often select FIG 602 when they need a reliable union for common pressure pumping and manifold connection.
FIG 1002 Hammer Union
SGPE FIG 1002 hammer union provides a 10,000 psi working pressure for high pressure service. It suits well stimulation lines, high pressure cementing systems, fracturing support lines, well testing manifolds and pressure control equipment.
SGPE offers FIG 1002 in threaded and welded types. H2S service FIG 1002 unions can support 7,500 psi sour service applications. Customers should confirm the well fluid, H2S condition and temperature before final selection.

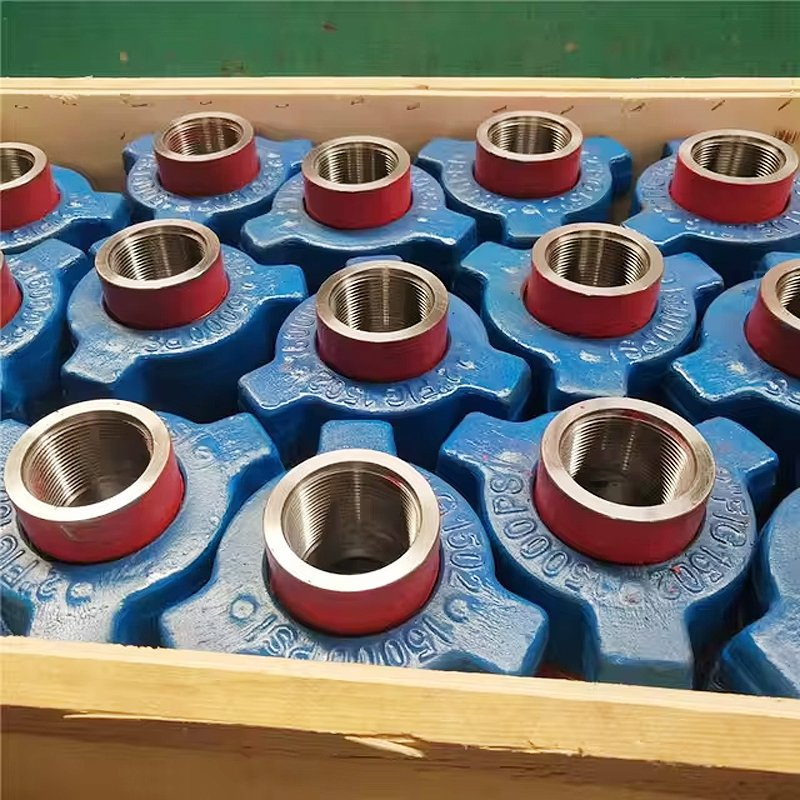

FIG 1502 Hammer Union
SGPE FIG 1502 hammer union is one of the most common high pressure unions in oilfield service. It supports fracturing, acidizing, high pressure cementing, treating lines, wellhead pressure lines and manifold systems.
Standard threaded and welded FIG 1502 hammer unions can reach 15,000 psi. H2S service FIG 1502 unions support 10,000 psi sour service applications. This model suits demanding operations that require high pressure capability and fast field connection.
FIG 2002 Hammer Union
SGPE FIG 2002 hammer union supports 20,000 psi high pressure applications in suitable welded configurations. Customers use this model in special treating lines, pressure test lines, high pressure fracturing equipment and heavy-duty pressure systems.
Before ordering FIG 2002 hammer unions, customers should confirm size, working pressure, test pressure, welding end, service fluid and inspection requirement.
FIG 2202 H2S Hammer Union
SGPE FIG 2202 H2S hammer union supports 15,000 psi sour service in petroleum field operations. It suits sour gas wells, high pressure sour service flowlines, well testing equipment and sour service manifold systems.
SGPE manufactures this model with strict sour service control. Customers should provide H2S concentration, operating temperature, working pressure, fluid medium and applicable project standard for model confirmation.
Materials and Manufacturing Process
SGPE uses selected alloy steel for hammer union bodies, wing nuts and subs. The production process starts with forging. Forging improves strength, toughness and structural reliability. After forging, SGPE conducts heat treatment to obtain the required mechanical properties for pressure service.
Then, SGPE machines critical surfaces with NC equipment. Precision machining improves thread accuracy, contact surface quality and sealing stability. Special cutting tools machine LP threads to support better pressure sealing. NC machining also gives wing nuts accurate dimensions and reliable load-bearing capacity.
For butt-weld hammer unions, SGPE controls welding grooves and welding materials according to project requirements. This helps equipment manufacturers weld the unions into cementing manifolds, fracturing manifolds, choke and kill manifolds, well testing skids and other pressure assemblies.
For H2S hammer unions, SGPE controls material selection, hardness and inspection according to sour service requirements. This helps the product suit sour environments and demanding pressure service.
Seal Ring and Sealing Performance
The seal ring directly affects hammer union performance. SGPE uses quality rubber compound to improve sealing stability and load-bearing capacity. The seal ring also helps protect the connector from erosion caused by high velocity service fluids.
Different pressure ratings and applications need different sealing methods. Cement slurry, fracturing fluid, acidizing fluid, drilling fluid, produced fluid and sour service fluids may require different seal materials or sealing structures. SGPE can recommend a suitable seal ring after reviewing pressure, temperature, medium and H2S condition.
Customers can also order spare seal rings together with hammer unions. This helps field crews complete maintenance faster during long-term operation.
How to Select the Right Hammer Union
A correct hammer union improves safety, connection efficiency and equipment service life. SGPE recommends confirming several details before order placement.
First, confirm the working pressure. The union pressure rating must match the operating condition. Common pressure ratings include 1,000 psi, 2,000 psi, 4,000 psi, 5,000 psi, 6,000 psi, 7,500 psi, 10,000 psi, 15,000 psi and 20,000 psi.
Second, confirm the nominal size. SGPE provides common sizes from 1 inch to 4 inches. The selected size should match the flowline, manifold, treating iron or equipment port.
Third, choose the connection type. Threaded hammer unions suit temporary pressure lines and fast field connection. Butt-weld hammer unions suit fabricated pressure systems and manifold assemblies. H2S service hammer unions suit sour environments.
Fourth, confirm the service fluid. Common service fluids include cement slurry, fracturing fluid, acidizing fluid, drilling fluid, completion fluid, produced fluid, water and mixed well service fluids. The fluid type affects seal ring selection and service design.
Fifth, confirm the working environment. Sour gas, high temperature, erosion, vibration and frequent make-up can affect union service life. For H2S environments, customers should choose sour service hammer unions.
Finally, confirm interchangeability. If customers need compatibility with SPM or FMC equivalent hammer unions, SGPE can review the figure number, size, pressure rating, seal ring and connection type before production.
Quality Inspection
SGPE controls quality through material inspection, forging inspection, heat treatment control, dimensional inspection, thread inspection, seal surface inspection, marking inspection and final assembly check.
During production, SGPE checks thread accuracy, sealing surface finish, wing nut dimensions, forged marks and product appearance. For welding unions, SGPE also checks welding groove dimensions and related manufacturing requirements. For H2S unions, SGPE adds stricter sour service material and process control.
This inspection process helps SGPE supply stable hammer unions for oilfield service companies, drilling contractors, pressure pumping companies, well testing contractors, manifold manufacturers and petroleum equipment suppliers.
Why Choose SGPE Hammer Unions?
SGPE understands the requirements of oilfield pressure service. The company supplies hammer unions for cementing, fracturing, acidizing, drilling, workover, well testing, flowback and manifold systems. Customers can select threaded unions, butt-weld unions and H2S service unions from one supplier.
SGPE offers a broad range of figure numbers and pressure ratings. This helps procurement teams match different field applications more easily. Clear marking, color identification and interchangeable design also help operators manage inventory and reduce selection mistakes.
SGPE focuses on forged alloy steel structure, precision machining, reliable sealing and practical field performance. Whether customers need FIG 602 hammer unions, FIG 1002 hammer unions, FIG 1502 hammer unions, FIG 2002 welding hammer unions or FIG 2202 H2S service unions, SGPE can provide model selection support and suitable supply solutions.
Frequently Asked Questions About Hammer Union Products
1. What is a Weco type hammer union?
A Weco type hammer union is a quick connection fitting for high pressure flowline service. It normally includes a male sub, female sub, wing nut and seal ring. Field crews use it to connect and disconnect pressure lines on cementing trucks, fracturing units, drilling manifolds, well testing lines, flowback systems and workover equipment.
The wing nut and ACME thread design help crews complete fast make-up and break-out on the rig site. This makes the hammer union a practical choice for pressure pumping service, treating iron connection, temporary flowline systems and manifold packages. SGPE supplies Weco type hammer unions in threaded, butt-weld and H2S service configurations for different pressure requirements.
2. What are hammer unions used for in oilfield service?
Field crews use hammer unions for high pressure flowline connection in cementing, fracturing, acidizing, drilling fluid circulation, well testing, flowback and workover operations. These unions connect pressure lines, manifolds, treating iron, plug valves, check valves, swivel joints, elbows and well service equipment.
In cementing service, hammer unions help connect cementing trucks, cement heads and cementing manifolds. In fracturing service, they connect high pressure treating lines, frac manifolds and pressure pumping equipment. In well testing and flowback service, they connect test lines, choke manifolds, surface testing equipment and temporary production flowlines. For sour environments, SGPE also supplies H2S service hammer unions for applications where hydrogen sulfide may appear in the fluid system.
3. Which hammer union figure number should I choose?
The correct figure number depends on working pressure, nominal size, connection type, service fluid and field condition. Lower pressure systems may use FIG 100, FIG 200, FIG 206, FIG 400 or FIG 402 hammer unions. Medium and high pressure systems often use FIG 602, FIG 1002 and FIG 1502 hammer unions. Special high pressure applications may require FIG 2002 or FIG 2202 hammer unions.
For example, many crews choose FIG 602 hammer unions for common pressure pumping and manifold service. They use FIG 1002 hammer unions for higher pressure cementing, well stimulation and testing lines. They select FIG 1502 hammer unions for demanding fracturing, acidizing and high pressure treating lines. SGPE can help confirm the right model after reviewing the pressure rating, size, medium, temperature and H2S condition.
4. What is the difference between FIG 602, FIG 1002 and FIG 1502 hammer unions?
FIG 602, FIG 1002 and FIG 1502 hammer unions serve different pressure levels. FIG 602 hammer unions commonly support 6,000 psi working pressure in standard service. They suit cementing flowlines, well service manifolds, drilling fluid systems and pressure pumping lines.
FIG 1002 hammer unions commonly support 10,000 psi working pressure. They suit high pressure cementing systems, well stimulation lines, well testing manifolds and pressure control equipment. FIG 1502 hammer unions commonly support 15,000 psi working pressure in standard threaded or welded configurations.
They suit fracturing, acidizing, high pressure treating iron, wellhead pressure lines and heavy-duty manifold systems. The final selection should match working pressure, test pressure, service fluid, seal ring type and operating environment.
5. What is the difference between threaded hammer unions and butt-weld hammer unions?
Threaded hammer unions connect with pipeline thread, tubing thread or other specified thread ends. They suit temporary pressure lines, cementing truck connections, drilling manifolds, well service lines and pressure pumping equipment that require fast assembly and removal.
Butt-weld hammer unions connect directly to welded piping. They suit fixed or semi-fixed pressure systems such as fracturing manifolds, cementing manifolds, choke and kill manifolds, well testing skids, high pressure flowline packages and pressure control assemblies. Equipment manufacturers often choose butt-weld unions when they build compact manifold packages or welded flowline systems. SGPE can provide threaded or butt-weld hammer unions according to the drawing, working pressure, size and field application.
6. Which hammer union should I choose for H2S sour service?
For sour environments, customers should choose H2S service hammer unions. These unions suit applications where hydrogen sulfide may contact well fluids, produced fluids or service fluids. SGPE supplies H2S service options for common models such as FIG 602, FIG 1002, FIG 1502 and FIG 2202.
H2S service requires careful material selection, hardness control, machining control, sealing consideration and inspection. SGPE controls H2S hammer unions according to sour service requirements, including NACE MR0175-related material requirements when applicable. Before ordering, customers should provide H2S concentration, working pressure, temperature range, fluid medium, required size and connection type. This information helps SGPE recommend a suitable sour service hammer union for the project.
7. Can SGPE hammer unions interchange with FMC or SPM equivalent products?
SGPE hammer unions can match many common international equivalents when the figure number, size, pressure rating, connection type and sealing structure match correctly. Customers often ask for FMC equivalent hammer unions, SPM equivalent hammer unions or Weco type flowline unions for replacement, repair or spare parts programs.
To confirm interchangeability, SGPE recommends checking the existing model, nominal size, pressure rating, thread type, seal ring design and service condition. Photos, drawings and old part markings can also help. SGPE can also supply seal rings that match suitable FMC or SPM equivalent products. This helps service companies reduce downtime, simplify inventory and keep field equipment running with compatible spare parts.
8. What sizes and pressure ratings does SGPE supply?
SGPE supplies Weco type hammer unions in common sizes from 1 inch to 4 inches. The available working pressure range covers 1,000 psi to 20,000 psi, equal to 7 MPa to 140 MPa. Common models include FIG 100, FIG 200, FIG 206, FIG 400, FIG 402, FIG 602, FIG 1002, FIG 1502, FIG 2002 and FIG 2202.
Different models support different sizes and connection types. For example, SGPE supplies FIG 602, FIG 1002 and FIG 1502 hammer unions for many high pressure flowline applications. It also supplies H2S welding unions for sour service flowlines and pressure pumping systems. Customers can send the required figure number, size, working pressure, end connection and service medium for accurate model confirmation.
9. How do hammer union seal rings affect sealing performance?
The seal ring plays a key role in hammer union performance. A suitable seal ring helps the union hold pressure, reduce leakage risk and protect the connector from erosion caused by high velocity fluids. SGPE uses quality rubber compound for seal rings to improve sealing stability, load-bearing capacity and field service reliability.
Different pressure ratings and service fluids may require different sealing methods. Cement slurry, fracturing fluid, acidizing fluid, drilling fluid, completion fluid, produced fluid and sour service fluids can create different requirements for seal material and structure. Customers should confirm working pressure, temperature, medium and H2S condition before selecting spare seal rings. SGPE can recommend suitable seal rings for compatible Weco type hammer union models.
10. How do color coding and forged marks help field crews?
Color coding and forged marks help field crews identify hammer unions faster on busy rig sites. Different pressure ratings use different paint colors, while the wing nut carries clear marks for size, connection type and pressure rating. This helps crews choose the correct union during rig-up, rig-down, manifold maintenance and pressure line replacement.
Fast identification matters in cementing, fracturing, well testing and workover service because many pressure lines and fittings may look similar during field operation. Clear marking reduces the risk of mixing pressure ratings or using the wrong connection. It also helps warehouse teams manage inventory for FIG 602, FIG 1002, FIG 1502, FIG 2002 and H2S service hammer unions.
11. What quality controls does SGPE use for hammer unions?
SGPE controls hammer union quality through material inspection, forging inspection, heat treatment control, dimensional inspection, thread inspection, seal surface inspection, marking check and final assembly inspection. These steps help confirm strength, fit-up, sealing surface quality and product consistency.
For butt-weld hammer unions, SGPE checks welding groove dimensions and related manufacturing requirements. For H2S service hammer unions, SGPE adds stricter control for material selection, hardness and inspection. SGPE also uses precision machining for critical surfaces and threads to improve connection reliability. These controls help the unions perform in high pressure flowline service, pressure pumping systems, cementing manifolds, fracturing manifolds and sour service flowline applications.
12. What information should I provide before ordering hammer unions?
To help SGPE recommend the right hammer union, customers should provide the figure number, nominal size, working pressure, test pressure, connection type, service fluid, temperature range, H2S requirement, quantity and destination port. If the union needs to match an existing FMC or SPM equivalent product, customers should also provide photos, drawings, old part markings or seal ring details.
For field projects, more complete information usually leads to faster model confirmation and a more accurate quotation. Customers can also describe the application, such as cementing truck connection, fracturing manifold, well testing flowline, choke and kill system, drilling manifold, workover service line or sour service pressure pumping system. SGPE will review the working condition and provide suitable hammer union selection support.
