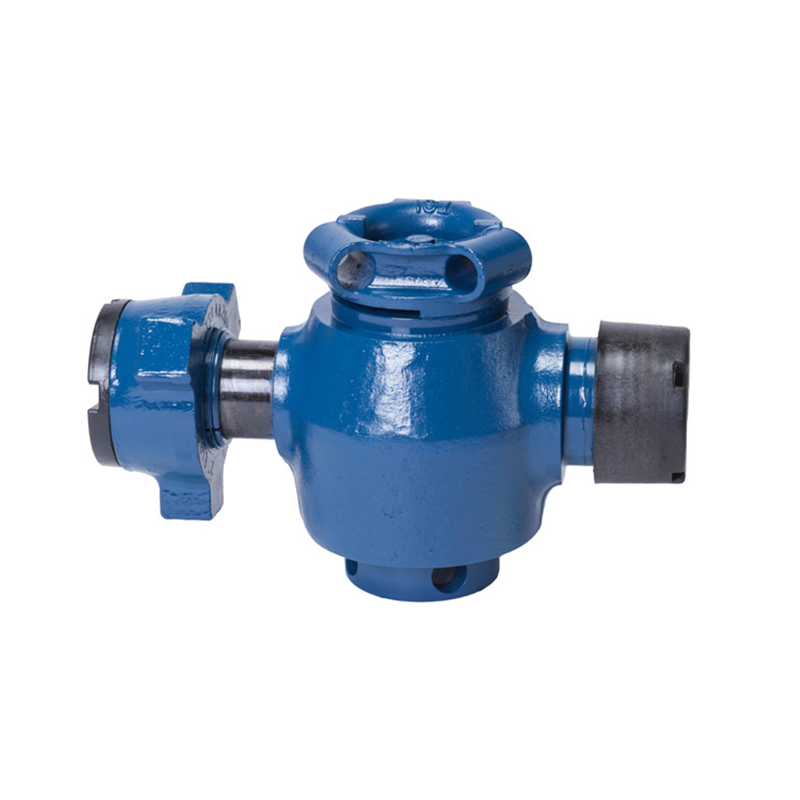

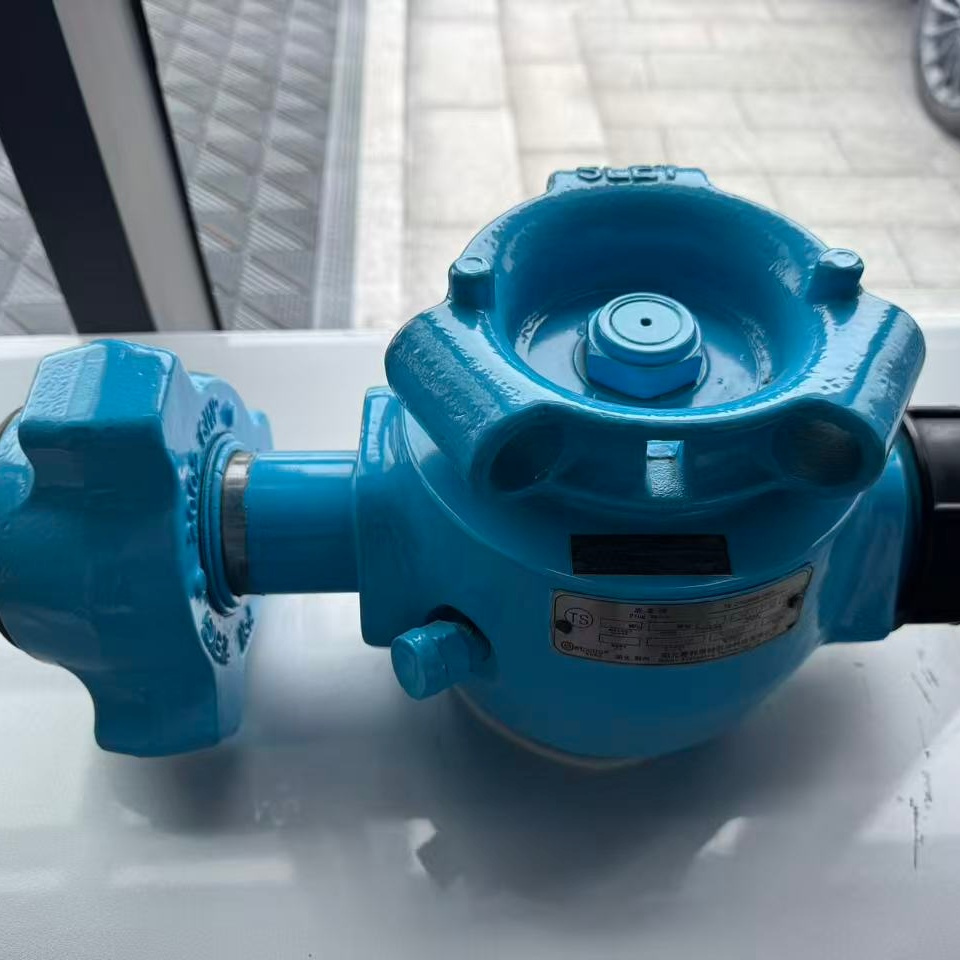

Oilfield Plug Valve for High Pressure Flowline Service
SGPE supplies oilfield plug valves for high-pressure flowline control in cementing, fracturing, acidizing, well testing, flowback, pressure pumping, drilling support, wellhead service, and treating iron systems. These quarter-turn shut-off valves help field crews isolate pressure, switch flow paths, and control oilfield fluids in demanding surface flowline operations.
Our plug valve range covers standard and project-specific high pressure flowline valves with hammer union, threaded, flanged, manual, gear, hydraulic, pneumatic, low torque, lubricated, full bore, sour service, H2S service, and NACE-related configurations when project conditions are clearly specified. Each requirement is reviewed according to size, pressure rating, Fig connection, end connection, service medium, operation method, replacement need, documentation, and site working conditions.
Common sizes include 1 inch, 2 inch, and 3 inch. Standard working pressure options include 6,000 psi, 10,000 psi, and 15,000 psi cold working pressure. Common connection classes include Fig 602, Fig 1002, and Fig 1502. For special high-pressure projects, Fig 2002 plug valve and Fig 2202 plug valve requirements can be reviewed according to drawings, datasheets, pressure class, material requirements, service medium, and connection details.
For replacement orders, SGPE can support top entry plug valves for common FMC/SPM-style flowline systems and bottom entry plug valves for common Halliburton/MSI/TSI/NOV/CSCC-style treating iron systems when interface dimensions match. Buyers can provide drawings, photos, nameplate details, old part numbers, connection measurements, or valve samples for compatibility review before ordering.
Product Highlights
| Item | Supply Range |
|---|---|
| Product Name | Oilfield Plug Valve / High Pressure Plug Valve / Flowline Plug Valve |
| Also Called | High Pressure Flowline Plug Valve, Hammer Union Plug Valve, Union Plug Valve, Treating Iron Plug Valve |
| Common Sizes | 1 inch, 2 inch, 3 inch |
| Bore Options | 1” x 2”, 2” x 2”, 3” x 3”, selected full bore or project bore on request |
| Working Pressure | 6,000 psi, 10,000 psi, 15,000 psi |
| Approx. MPa Rating | 42 MPa, 70 MPa, 105 MPa |
| Common Fig Options | Fig 602 Plug Valve, Fig 1002 Plug Valve, Fig 1502 Plug Valve |
| Special Fig Options | Fig 2002 Plug Valve, Fig 2202 Plug Valve on project review |
| End Connections | Weco-style hammer union, threaded, flanged, male/female connection |
| Operation | Manual, handwheel, gear, hydraulic actuator, pneumatic actuator |
| Structure | Top entry plug valve, bottom entry plug valve |
| Features | Low torque design, lubricated sealing support, full bore options on request |
| Service | Standard service, low temperature service, sour service, H2S service |
| Common Medium | Oil, gas, water, cement slurry, drilling fluid, acid fluid, treating fluid, flowback fluid |

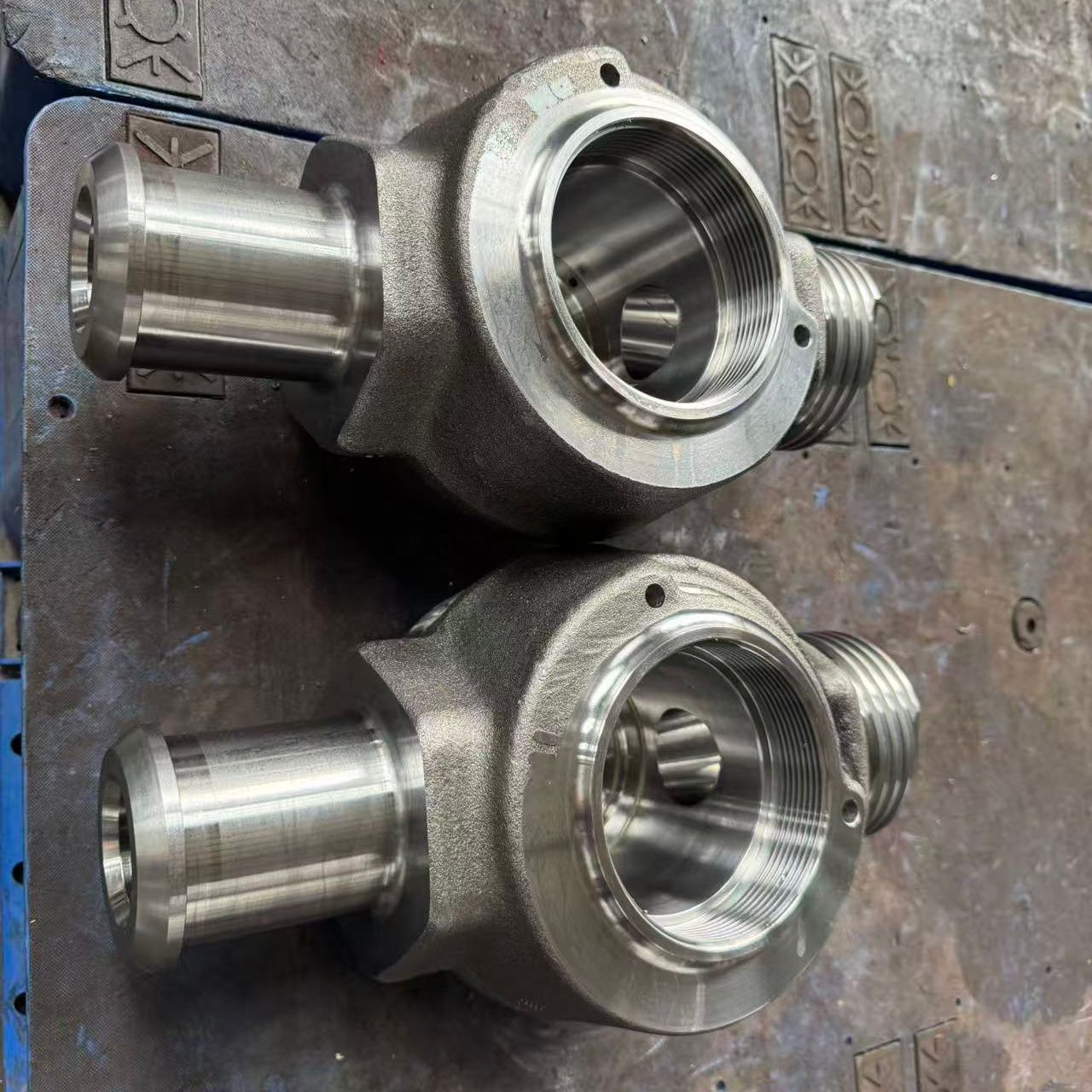

| Spare Parts | Plug valve repair kits, sealing parts, grease nipples, O-rings, backup rings |
Product Short Description
SGPE oilfield plug valves are forged quarter-turn valves for pressure pumping manifolds, cementing lines, fracturing lines, acidizing packages, well testing systems, flowback lines, choke and kill line support, wellhead service lines, and treating iron assemblies. The compact design supports fast operation, reliable sealing, low operating torque, easy lubrication, and practical field maintenance.
What Is an Oilfield Plug Valve?
An oilfield plug valve is a compact shut-off valve used in high-pressure surface flowline systems. The plug rotates 90 degrees to open or close the flow path, which allows crews to isolate pressure, redirect flow, and control oilfield fluids quickly during well service operations.
Service companies often install plug valves on treating lines, pump discharge lines, frac manifolds, cementing manifolds, acidizing lines, well testing lines, flowback packages, temporary flowlines, and skid-mounted oilfield equipment. Because the valve has a compact body and fast operating action, it works well where space, response speed, and sealing reliability matter.
A properly selected oilfield high pressure plug valve can reduce leakage risk, simplify site operation, and improve maintenance efficiency. Before selection, buyers should confirm pressure rating, bore size, Fig connection, end connection, service medium, temperature range, operation method, and replacement requirement.
Why Choose SGPE Oilfield Plug Valves?
Oilfield valves must handle pressure cycling, vibration, abrasive fluids, frequent operation, and harsh outdoor conditions. SGPE focuses on stable sealing, practical maintenance, correct connection matching, and project-based technical review.
Key advantages include:
- Forged high-strength alloy steel body for demanding oilfield pressure service
- Quarter-turn operation for fast shut-off and flowline switching
- Low torque plug valve design for easier field handling
- Lubricated plug valve structure for smoother movement and sealing support
- Full bore plug valve options for selected flowline requirements
- Top entry and bottom entry structures for different replacement needs
- 1 inch, 2 inch, and 3 inch common size options
- 6,000 psi, 10,000 psi, and 15,000 psi working pressure options
- Fig 602, Fig 1002, Fig 1502, Weco-style union, threaded, and flanged end options
- Fig 2002 and Fig 2202 project-specific review when required
- Manual, handwheel, gear, hydraulic, and pneumatic operation choices
- Standard service, low temperature service, sour service, and H2S service configurations
- Visible open-close position indicator for safer field operation
- Brake spring position limit for controlled valve movement
- Plug valve repair kits and spare parts available for maintenance
These features make the valves suitable for pressure pumping contractors, cementing service companies, fracturing fleets, well testing companies, flowback service providers, drilling contractors, oilfield rental companies, EPC buyers, and spare parts distributors.
Quick Pressure and Size Reference
| Common Valve Size | Typical Bore Configuration | Common Working Pressure | Approx. MPa | Typical Oilfield Use |
| 1 inch | 1” x 2” | 6,000 / 10,000 / 15,000 psi | 42 / 70 / 105 MPa | Compact treating lines, test lines, service skids |
| 2 inch | 2” x 2” | 6,000 / 10,000 / 15,000 psi | 42 / 70 / 105 MPa | Cementing lines, frac lines, pump discharge lines |
| 3 inch | 3” x 3” | 6,000 / 10,000 / 15,000 psi | 42 / 70 / 105 MPa | Larger flowline packages, manifolds, pressure pumping systems |
| Special size | Project bore | Project-specific | Project-specific | Custom high-pressure flowline or manifold projects |
Pressure Class and Fig Connection Options
| Buyer Requirement | Common Pressure Level | Typical Use | Selection Note |
| Fig 602 Plug Valve | Common 6,000 psi class | General high-pressure service lines | Confirm size, union profile, seal type, and service medium |
| Fig 1002 Plug Valve | Common 10,000 psi class | Cementing, testing, and treating lines | Confirm working pressure and connection gender |
| Fig 1502 Plug Valve | Common 15,000 psi class | Fracturing, acidizing, pump discharge lines | Common choice for high-pressure pressure pumping service |
| Fig 2002 Plug Valve | Project-specific high-pressure class | Special pressure pumping or flowline projects | Review datasheet, pressure class, and connection standard first |
| Fig 2202 Plug Valve | Project-specific high-pressure class | Special high-pressure treating iron requirements | Confirm drawings, pressure rating, and end connection details |
| Hammer Union Plug Valve | Depends on union figure | Temporary flowlines and treating iron assemblies | Confirm Fig number and union gender |
| Union Plug Valve | Depends on connection design | Fast makeup and breakout flowline systems | Confirm F x M, M x M, or F x F ends |
Oilfield Plug Valve Types
Plug Valve Types by Pressure, Connection, and Operation
| Plug Valve Type | Oilfield Use | Main Advantage |
|---|---|---|
| High Pressure Plug Valve | 6,000 psi, 10,000 psi, 15,000 psi oilfield service | Handles demanding pressure control points |
| Flowline Plug Valve | Temporary or fixed oilfield flowline systems | Supports line isolation and flow switching |
| High Pressure Flowline Plug Valve | Treating lines, pump discharge lines, manifolds | Matches high-pressure surface flowline service |
| Hammer Union Plug Valve | Treating iron assemblies and temporary flowlines | Supports fast field makeup and breakout |
| Union Plug Valve | Flowline systems with wing union connections | Helps match common oilfield connection layouts |
| Treating Iron Plug Valve | Cementing, fracturing, acidizing, and well service iron | Matches temporary high-pressure treating iron assemblies |
| Manual Plug Valve | Standard oilfield shut-off and isolation service | Simple, economical, and easy to operate |
| Gear Operated Plug Valve | Larger size or higher torque point | Reduces operator effort |
| Hydraulic Plug Valve | Remote operation on manifolds and skids | Reduces manual operation and improves response |
| Pneumatic Plug Valve | Air-operated skid or manifold package | Supports remote switching when air supply is available |
Plug Valve Types by Performance, Service Condition, and Structure
| Plug Valve Type | Oilfield Use | Main Advantage |
| Low Torque Plug Valve | Frequent operation or high-pressure service | Reduces field operating effort |
| Lubricated Plug Valve | Flowline systems requiring smoother movement | Supports sealing and lower operating torque |
| Full Bore Plug Valve | Selected flowline projects needing larger flow passage | Helps reduce restriction when the design allows |
| Sour Service Plug Valve | H2S-containing oilfield service | Supports sour service review and material selection |
| H2S Service Plug Valve | Flowlines with H2S-containing fluids | Requires service data and material review |
| NACE Plug Valve | Projects requiring NACE-related material review | Helps meet sour service project requirements |
| Top Entry Plug Valve | Flowline systems requiring upper access maintenance | Helps technicians inspect internal parts from the top side |
| Bottom Entry Plug Valve | Treating iron systems requiring bottom entry replacement style | Fits many established oilfield service packages |
Main Technical Specifications
The following specifications cover common oilfield plug valve requirements. Final dimensions, material class, pressure test, and documentation should follow the confirmed datasheet or purchase order.
| Item | Available Options |
| Product Name | Oilfield Plug Valve / High Pressure Plug Valve / Flowline Plug Valve |
| Extended Names | High Pressure Flowline Plug Valve / Oilfield High Pressure Plug Valve / Hammer Union Plug Valve |
| Common Size Range | 1 inch, 2 inch, 3 inch |
| Bore Size | 1” x 2”, 2” x 2”, 3” x 3”, selected full bore or project bore on request |
| Working Pressure | 6,000 psi, 10,000 psi, 15,000 psi |
| Common Pressure Class | Fig 602, Fig 1002, Fig 1502 |
| Special Pressure Class | Fig 2002, Fig 2202 on project review |
| Material Class | AA, BB, CC, DD, EE, FF, HH when required by project specification |
| Temperature Class | PU, LU, PX, KU when required by project specification |
| Product Specification Level | PSL1 to PSL4 when required by project specification |
| Performance Rating | PR1 and PR2 when required by project specification |
| End Connections | Weco-style hammer union, LP thread, TBG thread, male/female thread, flanged connection |
| Operation | Manual, handwheel, gear operated, hydraulic actuated, pneumatic actuated |
| Oilfield Medium | Oil, gas, water, cement slurry, drilling fluid, acid fluid, treating fluid, flowback fluid |
| Service Condition | Standard service, low temperature service, sour service, H2S service |
| Structure | Top entry plug valve, bottom entry plug valve |
| Main Sealing Parts | Plug, sealing segment, side segment, O-rings, backup rings |
| Repair Support | Plug valve repair kits and spare parts available |
Common Models and Pressure Ratings
| Typical Model | Description | Rated Working Pressure | Approx. MPa | Common End Connection |
| SF42-1” x 2” | 1 inch oilfield plug valve | 6,000 psi | 42 MPa | 2 inch male LP |
| SF70-1” x 2” | 1 inch high pressure plug valve | 10,000 psi | 70 MPa | 2 inch male LP |
| SF105-1” x 2” | 1 inch Fig 1502 style plug valve | 15,000 psi | 105 MPa | 2 inch male LP or 2 inch union F x M |
| SF42-2” x 2” | 2 inch oilfield plug valve | 6,000 psi | 42 MPa | 2 inch female LP or 2 inch union F x M |
| SF70-2” x 2” | 2 inch high pressure plug valve | 10,000 psi | 70 MPa | 2 inch female LP |
| SF105-2” x 2” | 2 inch Fig 1502 plug valve | 15,000 psi | 105 MPa | 2 inch union F x M |
| SF42-3” x 3” | 3 inch flowline plug valve | 6,000 psi | 42 MPa | 3 inch female LP |
| SF70-3” x 3” | 3 inch high pressure plug valve | 10,000 psi | 70 MPa | 3 inch female LP |
| SF105-3” x 3” | 3 inch Fig 1502 plug valve | 15,000 psi | 105 MPa | 3 inch union F x M |
End Connection Options for Oilfield Flowlines
End connection selection affects installation, pressure rating, replacement accuracy, and flowline compatibility. A correct connection choice helps avoid site mismatch, leakage risk, and urgent modification.
Weco Style Hammer Union Connection
Weco-style hammer union connections allow quick makeup and breakout of high-pressure flowline sections. Crews often use this connection on treating iron, cementing lines, fracturing lines, acidizing packages, well testing lines, flowback lines, and pressure pumping manifolds.
Common options include Fig 602, Fig 1002, Fig 1502, and project-specific high-pressure figures. Buyers should select the correct figure according to pressure class, job type, flowline layout, and existing equipment standard.

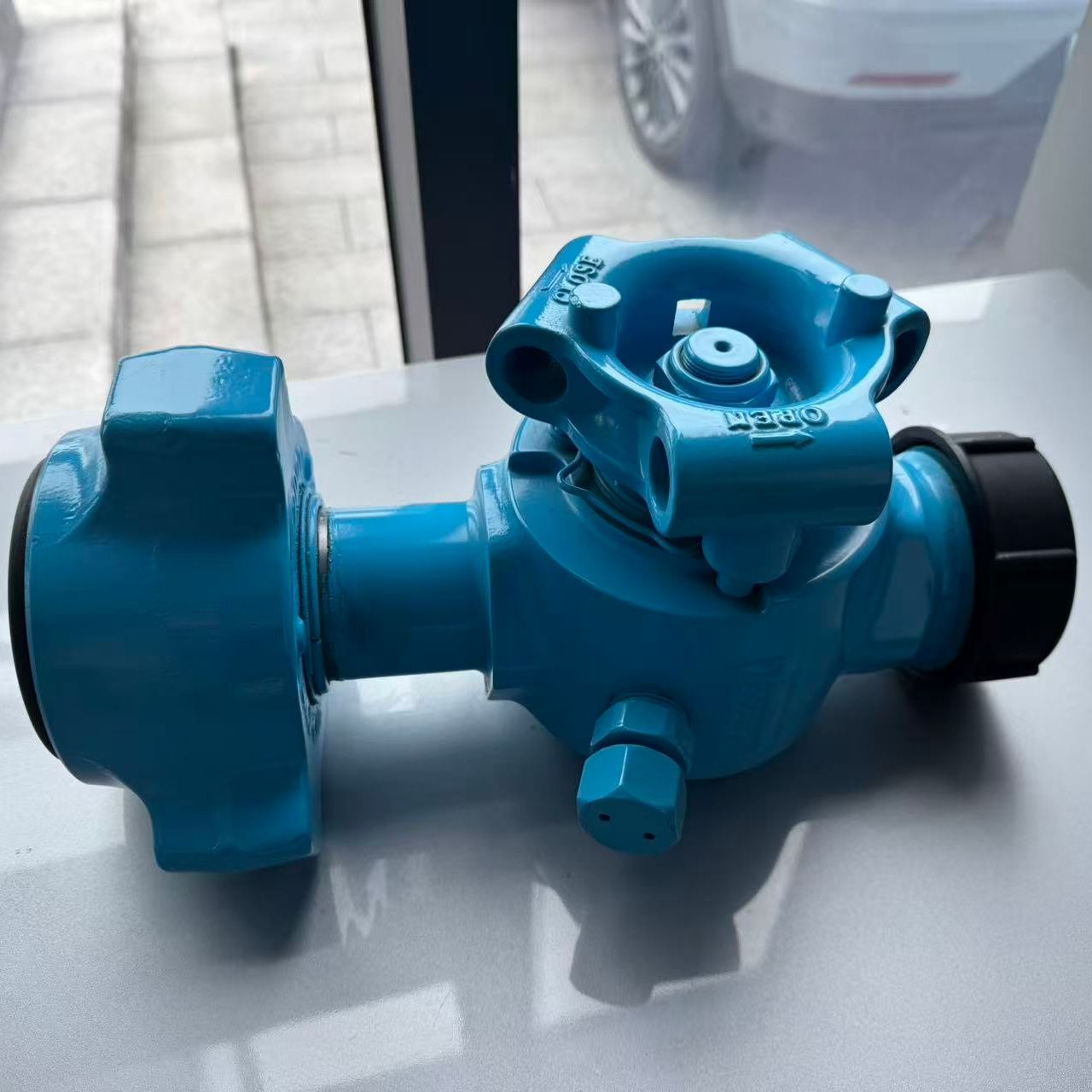

Fig 1502 Plug Valve Connection
A Fig 1502 plug valve suits 15,000 psi oilfield pressure pumping service. Crews often use 2 inch Fig 1502 plug valves and 3 inch Fig 1502 plug valves in cementing operations, hydraulic fracturing lines, acidizing packages, high-pressure treating manifolds, pump discharge lines, and well testing packages.
Before quotation, buyers should confirm bore size, pressure rating, connection gender, service condition, and interchange requirement.
Fig 2002 and Fig 2202 Plug Valve Requirements
Some projects may ask for Fig 2002 plug valves or Fig 2202 plug valves for special high-pressure treating iron or pressure pumping systems. These requirements need a careful review of pressure rating, union profile, material class, sealing design, temperature range, service medium, and project datasheet.
SGPE can review Fig 2002 and Fig 2202 requirements on a project basis. Buyers should provide drawings, connection photos, old part numbers, or samples before final confirmation.
Threaded Connection
Threaded plug valves can use male thread, female thread, LP thread, or TBG thread connections. These options help connect the valve with well service equipment, drilling support lines, pressure test packages, and special flowline assemblies.
Flanged Connection
Some fixed manifolds, skid-mounted packages, wellhead support lines, and drilling control systems require flanged plug valves. Our team can review flange size, pressure class, face type, ring gasket requirement, and project drawing before quotation.
Connection Selection Guide
| Connection Type | Common Pressure Level | Best Fit For | Buyer Should Confirm |
| Fig 602 Union | Common 6,000 psi class | General high-pressure service lines | Size, gender, seal type, matching union profile |
| Fig 1002 Union | Common 10,000 psi class | Cementing, testing, and treating lines | Working pressure, flowline standard, existing union type |
| Fig 1502 Union | Common 15,000 psi class | Fracturing, acidizing, high-pressure pumping lines | Bore size, F x M / M x M / F x F, replacement dimensions |
| Fig 2002 Union | Project-specific | Special high-pressure pressure pumping systems | Datasheet, pressure rating, material class, union profile |
| Fig 2202 Union | Project-specific | Special high-pressure treating iron requirements | Drawing, connection dimensions, service condition |
| LP / TBG Thread | Project-specific | Threaded service equipment and test lines | Thread type, thread direction, male/female end |
| Flanged End | Project-specific | Fixed manifolds, skid systems, wellhead support lines | Flange size, pressure class, face type, ring gasket |
Top Entry Plug Valve and Bottom Entry Plug Valve
A top entry plug valve allows access from the upper side of the valve. This structure helps technicians inspect or replace internal parts more conveniently in many well service situations. Buyers often choose this design when they need a replacement-style valve for common FMC/SPM-style pressure pumping systems.
A bottom entry plug valve uses a different access structure and fits many established treating iron systems. Buyers often choose this design when they need replacement-style plug valves for common Halliburton/MSI/TSI/NOV/CSCC-style flowline systems.
Since different brands, production years, and pressure classes may use different dimensions, buyers should provide drawings, photos, nameplate details, connection measurements, or old valve samples before confirming interchangeability. This step helps reduce installation risk and ensures the correct valve and repair kits.
Top Entry vs Bottom Entry Plug Valve
| Comparison Item | Top Entry Plug Valve | Bottom Entry Plug Valve |
| Maintenance Access | Upper side access | Bottom side access |
| Common Replacement Style | FMC/SPM-style systems when dimensions match | Halliburton/MSI/TSI/NOV/CSCC-style systems when dimensions match |
| Typical Use | Flowline packages requiring easier upper inspection | Established treating iron and pressure pumping packages |
| RFQ Requirement | Drawing, photos, nameplate, connection details | Drawing, photos, old part number, sample if available |
| Compatibility Note | Confirm interface dimensions before ordering | Confirm structure and connection profile before ordering |
Manual, Gear, Hydraulic, and Pneumatic Operation Options
Manual plug valves suit standard shut-off service in oilfield flowlines. The operator can open or close the valve with a simple quarter-turn movement, so this option works well for common treating lines and temporary flowline packages.
Handwheel and gear operated plug valves help reduce operating effort when valve size, pressure rating, temperature, or jobsite conditions increase torque demand. These options suit manifolds, larger flowline packages, and frequent operation points.
Hydraulic plug valves support remote operation on pressure pumping manifolds, cementing skids, fracturing packages, and automated well service systems. Pneumatic actuated plug valves suit skid-mounted equipment and controlled flowline packages when compressed air supply is available.
Operation Method Selection Table
| Operation Method | Main Use | Advantage | Typical Buyer |
| Manual Plug Valve | Standard field shut-off | Simple structure and economical selection | Oilfield service company, rental company |
| Handwheel Plug Valve | Frequent operation or low temperature service | Better control and easier handling | Well service crew, maintenance team |
| Gear Operated Plug Valve | Larger size or higher torque point | Reduces manual force | Manifold package buyer, EPC contractor |
| Hydraulic Plug Valve | Remote or automated operation | Fast response and reduced manual work | Pressure pumping package, cementing skid |
| Pneumatic Plug Valve | Air-operated control package | Supports remote switching | Skid-mounted service equipment buyer |
Oilfield Application Scenarios
SGPE plug valves serve high-pressure oilfield environments where fast shut-off, reliable sealing, and correct connection matching matter.
Plug Valve for Cementing
Cementing units and cement manifolds need reliable valves to control cement slurry, displacement fluid, and high-pressure flowline routing. A plug valve for cementing helps crews isolate lines, switch flow paths, and control cementing jobs with fast quarter-turn movement.
Plug Valve for Fracturing
Hydraulic fracturing places heavy demands on flowline valves because the operation may involve high pressure, high flow rate, vibration, and abrasive fluid. A plug valve for fracturing can work on frac manifolds, treating lines, pump discharge systems, and temporary frac flowlines.
Plug Valve for Acidizing
Acidizing service requires careful review of fluid compatibility, sealing material, pressure rating, temperature range, connection type, and sour service condition. A plug valve for acidizing should match the acid fluid, pressure class, and sealing requirements before production.
Plug Valve for Well Testing
Well testing packages often need compact shut-off valves for pressure isolation, flowline control, and manifold switching. A plug valve for well testing supports well testing lines, test manifolds, surface testing equipment, and flowback packages.
Pressure Pumping Plug Valve
Well Service Plug Valve
A well service plug valve works in temporary flowlines, pump discharge lines, treating iron assemblies, well cleanup packages, and surface service equipment. Buyers often choose this valve type when they need fast operation, union connection, and repairable internal parts.
Sour Service and H2S Service Applications
Sour service plug valves and H2S service plug valves require careful material and sealing review. For NACE plug valve requirements, buyers should provide H2S condition, CO2 condition, NACE requirement, material class, temperature range, pressure rating, and fluid composition before quotation.
Oilfield Treating Iron Assemblies
Treating iron assemblies often combine plug valves with pup joints, swivel joints, elbows, tees, crosses, check valves, relief valves, and unions. SGPE can help buyers match plug valves with existing flowline components and support complete oilfield flowline package requirements.
Application Matching Table
| Application Area | Common Valve Requirement | Useful Buyer Term |
| Cementing line | Fast shut-off, cement slurry control, manifold routing | Plug Valve for Cementing |
| Hydraulic fracturing line | High pressure, durable sealing, Fig 1502 connection | Plug Valve for Fracturing |
| Acidizing package | Fluid compatibility, sealing review, corrosion consideration | Plug Valve for Acidizing |
| Well testing package | Pressure isolation and flowline switching | Plug Valve for Well Testing |
| Flowback line | Produced fluid, gas, sand-laden flow, pressure fluctuation | Flowback Plug Valve |
| Pressure pumping manifold | Pump discharge control and line isolation | Pressure Pumping Plug Valve |
| Well service flowline | Temporary flow control, union connection, easy repair | Well Service Plug Valve |
| Treating iron assembly | Union connection and replacement compatibility | Hammer Union Plug Valve / Flowline Plug Valve |
| Sour service flowline | H2S service review and material selection | Sour Service Plug Valve / H2S Service Plug Valve / NACE Plug Valve |
Service Conditions: Standard, Low Temperature, Sour Service, and H2S Service
Oilfield plug valves may work in standard service, low temperature service, sour service, or H2S service. Each condition requires a different selection focus.
For standard oilfield service, buyers usually focus on valve size, working pressure, bore size, end connection, operation method, and delivery time. This configuration often suits cementing, fracturing, pressure testing, well testing, and general flowline control.
For low temperature service, buyers should confirm the minimum ambient temperature, operating temperature, sealing material, and temperature class. SGPE can discuss suitable configurations for cold regions and winter well service operations.
For sour service or H2S service, buyers should clearly state H2S condition, CO2 condition, NACE requirement, material class, temperature range, pressure rating, and fluid composition. A full technical review helps reduce corrosion risk and improve reliability in H2S-containing environments.
Service Condition Selection Guide
| Service Condition | Buyer Should Provide | Review Focus |
| Standard Service | Pressure, size, medium, connection | Valve model, connection, operation method |
| Low Temperature Service | Minimum ambient temperature, working temperature, sealing material request | Temperature class, seal selection, operation comfort |
| Sour Service Plug Valve | H2S, CO2, sour service requirement | Material class, sealing parts, corrosion risk |
| H2S Service Plug Valve | H2S level, fluid composition, temperature, pressure | Material review and sealing compatibility |
| NACE Plug Valve | NACE requirement, material class, sour service data | NACE-related material and document review |
| Abrasive Flow Service | Sand content, cement slurry, frac fluid, flow rate if available | Sealing area, maintenance plan, repair kit recommendation |
| Replacement Service | Photos, drawings, nameplate, old part number | Interchangeability, dimensions, end connection profile |
Low Torque, Lubricated, and Full Bore Plug Valve Features
Low torque plug valves help crews operate valves under harsh jobsite conditions. Workers may face high pressure, cold weather, mud, sand, vibration, limited space, and urgent operating steps. A low torque design can reduce operating effort and improve field efficiency.
Lubricated plug valves use grease injection support to maintain smoother movement and assist the sealing structure. Proper lubrication also protects the plug, sealing segment, side segment, and other internal parts. Regular grease injection helps the valve maintain steady performance during cementing, fracturing, acidizing, well testing, flowback, and pressure pumping jobs.
Full bore plug valve requirements should follow project flowline design. When the design allows a larger flow passage, a full bore configuration can help reduce flow restriction. Buyers should confirm bore size, pressure rating, end connection, and application area before quotation.
Visible Position Indicator for Safer Field Control
A visible valve position indicator helps operators identify whether the valve is open or closed. This feature becomes important when several valves sit close to each other on a high-pressure manifold or temporary flowline package.
SGPE plug valves can include a visible positioner for quick status checks. In addition, the brake spring helps limit valve position and supports safer operation. Clear valve status reduces misoperation risk and improves field control during high-pressure well service.
Plug Valve Repair Kits and Spare Parts
| Repair Kit Item | Function |
| Grease Nipple | Supports lubrication and pressure-assisted sealing |
| O-ring for Plug | Helps seal the plug area |
| Backup Ring for Plug | Supports O-ring stability under pressure |
| Plug | Main rotating shut-off component |
| O-ring for Valve Cover | Helps seal the valve cover area |
| Backup Ring for Valve Cover | Supports cover sealing under pressure |
| Square Seal Ring | Helps improve sealing performance |
| Sealing Segment | Main sealing element around the plug |
| Side Segment | Supports sealing structure and valve operation |
To avoid wrong spare parts, buyers should provide valve size, pressure rating, structure type, end connection, brand interchange requirement, photos, drawings, or part numbers before ordering plug valve repair kits.
Maintenance and Operation Guide
Proper maintenance helps oilfield plug valves last longer and operate more smoothly. SGPE recommends inspection before each major pressure pumping or well service job.
Before installation, crews should check the valve nameplate, working pressure, bore size, connection type, and flowline compatibility. They should also inspect the hammer union, threads, flange face, sealing surface, and grease fittings. If the valve uses a union connection, crews should confirm that the wing nut, thread, and seal ring match the connected flowline component.
During operation, operators should open and close the valve fully. Partial operation may increase erosion on the sealing area and shorten service life. Crews should avoid extra-long force arms unless the maintenance manual allows them, because excessive force may damage the operating mechanism or internal parts.
After operation, crews should flush the valve when the service medium contains cement slurry, acid fluid, sand, drilling fluid, or other solids. Clean flushing helps prevent buildup around the plug and sealing segment. Regular grease injection also reduces torque and protects the sealing system.
During repair, technicians should inspect the plug, sealing segment, side segment, O-rings, backup rings, cover, and grease nipple. If parts show wear, cuts, hardening, deformation, or corrosion, the team should replace them with suitable repair kit parts.
Maintenance Data Reference
| Maintenance Point | Recommended Check |
| Before installation | Check nameplate, pressure rating, bore size, connection type, and seal area |
| Before pressure job | Check open-close movement, visible position, grease fitting, and union condition |
| After cementing or acidizing | Flush the valve and check sealing area for buildup or chemical residue |
| During routine service | Inject suitable grease and inspect operating torque |
| During repair | Check plug, sealing segment, side segment, O-rings, backup rings, and cover parts |
| Before spare parts order | Confirm valve size, pressure rating, structure type, connection, and brand style |
Quality Control, Testing, and Documents
Oilfield plug valves work in high-risk pressure environments, so each order needs careful inspection according to the confirmed requirement.
Typical quality control items may include:
- Material inspection
- Forging quality review
- Dimensional inspection
- Connection inspection
- Hardness inspection when required
- Visual inspection
- Assembly inspection
- Hydrostatic pressure test
- Sealing performance check
- Operation torque check
- Marking and nameplate check
- Painting and packing inspection
- Documentation review
Document Support Table
| Document | Purpose |
| Quotation Datasheet | Confirms size, pressure, connection, operation method, and service condition |
| Product Drawing | Helps confirm dimensions and replacement compatibility when available |
| Material Certificate | Supports material traceability according to order requirement |
| Hydrostatic Test Report | Confirms pressure test record according to agreed test requirement |
| Dimensional Inspection Report | Confirms key dimensions and connection details |
| Certificate of Conformity | Supports project documentation and delivery acceptance |
| Operation and Maintenance Manual | Guides installation, operation, grease injection, and repair |
| Packing List | Supports shipment checking and customs clearance |
| Third-Party Inspection Report | Applies when buyer requests SGS, BV, ABS, DNV, TUV, or other TPI |
How to Select the Right Oilfield Plug Valve
A correct valve selection starts with the actual working condition. Buyers should not choose only by size or price. A suitable configuration can reduce leakage risk, installation problems, maintenance cost, and delivery delay.
| Selection Item | What Buyer Should Confirm |
| Valve Size | 1 inch, 2 inch, 3 inch, or special size |
| Bore Size | 1” x 2”, 2” x 2”, 3” x 3”, full bore, or project bore |
| Working Pressure | 6,000 psi, 10,000 psi, 15,000 psi, or project-specific pressure |
| Fig Connection | Fig 602, Fig 1002, Fig 1502, Fig 2002, Fig 2202 |
| End Connection | Hammer union, thread, flange, male/female connection |
| Connection Gender | Male, female, F x M, M x M, F x F |
| Structure Type | Top entry or bottom entry |
| Operation Type | Manual, handwheel, gear, hydraulic, pneumatic |
| Oilfield Medium | Oil, gas, water, cement slurry, acid fluid, drilling fluid, treating fluid, flowback fluid |
| Service Condition | Standard, low temperature, sour service, H2S service, NACE requirement |
| Temperature Range | Normal temperature or low temperature |
| Interchange Requirement | FMC/SPM-style or Halliburton/MSI/TSI/NOV/CSCC-style |
| Application Area | Cementing, fracturing, acidizing, well testing, well service, flowback, pressure pumping |
| Quantity | Pieces, sets, or repair kits |
| Documents | MTC, hydrostatic test report, COC, manual, datasheet, inspection report |
| Delivery Requirement | Urgent replacement, project order, stock planning |
RFQ Quick Checklist
To help SGPE quote faster, please include the following details in your inquiry:
| RFQ Item | Example Information |
| Product Type | Oilfield plug valve, high pressure plug valve, flowline plug valve, hammer union plug valve |
| Fig Type | Fig 602, Fig 1002, Fig 1502, Fig 2002, Fig 2202 |
| Size and Bore | 2 inch, 3 inch, 2” x 2”, 3” x 3”, full bore request |
| Working Pressure | 6,000 psi, 10,000 psi, 15,000 psi, project-specific pressure |
| End Connection | Fig union, LP thread, TBG thread, flange, male/female connection |
| Connection Gender | F x M, M x M, F x F, male thread, female thread |
| Operation Method | Manual plug valve, hydraulic plug valve, handwheel, gear, pneumatic actuator |
| Service Medium | Cement slurry, frac fluid, acid fluid, drilling fluid, produced fluid, flowback fluid |
| Service Condition | Standard, low temperature, sour service, H2S service, NACE requirement |
| Application | Cementing, fracturing, acidizing, well testing, pressure pumping, well service |
| Replacement Information | Photos, drawings, nameplate, old part number, sample, connection dimensions |
| Required Documents | MTC, hydrostatic test report, COC, datasheet, manual, inspection report |
| Quantity and Delivery | Pieces, sets, repair kits, urgent replacement, project schedule |
Common RFQ Terms for Oilfield Plug Valves
Buyers may use different names for similar flowline valve requirements. The tables below help match common RFQ wording with the correct product direction.
RFQ Terms by Product Type, Pressure Class, and Connection
| Buyer Term | What Buyers Usually Need |
|---|---|
| Oilfield Plug Valve | Plug valve for oilfield flowline and well service applications |
| High Pressure Plug Valve | Plug valve for 6,000 psi, 10,000 psi, or 15,000 psi service |
| Flowline Plug Valve | Valve used in temporary or fixed high-pressure oilfield flowlines |
| High Pressure Flowline Plug Valve | Plug valve for treating lines, pump discharge lines, and manifolds |
| Oilfield High Pressure Plug Valve | Oilfield valve for pressure pumping and well service environments |
| Treating Iron Plug Valve | Plug valve used with temporary or skid-mounted treating iron systems |
| Fig 602 Plug Valve | Common 6,000 psi class plug valve |
| Fig 1002 Plug Valve | Common 10,000 psi class plug valve |
| Fig 1502 Plug Valve | Common 15,000 psi class plug valve |
| Fig 2002 Plug Valve | Project-specific high-pressure plug valve requirement |
| Fig 2202 Plug Valve | Project-specific high-pressure treating iron valve requirement |
| Hammer Union Plug Valve | Plug valve with hammer union end connection |
| Union Plug Valve | Plug valve with union connection for flowline service |
RFQ Terms by Operation, Service Condition, Application, and Supply Request
| Buyer Term | What Buyers Usually Need |
| Low Torque Plug Valve | Plug valve designed for easier field operation |
| Manual Plug Valve | Hand-operated quarter-turn plug valve |
| Gear Operated Plug Valve | Plug valve selected for smoother manual operation |
| Hydraulic Plug Valve | Plug valve with hydraulic actuator for remote operation |
| Pneumatic Plug Valve | Air-actuated plug valve for controlled skid or manifold packages |
| Full Bore Plug Valve | Plug valve selected for larger flow passage requirements |
| Lubricated Plug Valve | Plug valve using grease support for smoother operation |
| Sour Service Plug Valve | Plug valve selected for sour oilfield service |
| H2S Service Plug Valve | Plug valve reviewed for H2S-containing fluid conditions |
| NACE Plug Valve | Plug valve requiring NACE-related material review |
| Plug Valve for Cementing | Plug valve used on cementing units and cement manifolds |
| Plug Valve for Fracturing | Plug valve used on frac manifolds and high-pressure treating lines |
| Plug Valve for Acidizing | Plug valve used in acidizing lines and acid pumping packages |
| Plug Valve for Well Testing | Plug valve used in well testing and surface testing packages |
| Pressure Pumping Plug Valve | Valve used on pump discharge lines and treating manifolds |
| Well Service Plug Valve | Plug valve used in oilfield well service flowline systems |
| Oilfield Plug Valve Supplier | Supplier for oilfield plug valves and repair kits |
| Oilfield Plug Valve Manufacturer | Manufacturer for high-pressure oilfield plug valve requirements |
Why Choose SGPE
For replacement orders, photos, drawings, nameplate information, size markings, connection details, and old part numbers help us confirm the correct valve. For new flowline packages, we can help match plug valves with pup joints, swivel joints, elbows, tees, crosses, check valves, relief valves, unions, and other treating iron components.
For actuated plug valves, our team can review actuator type, control method, air supply, hydraulic pressure, position feedback, fail-safe requirement, and installation space. For sour service, H2S service, NACE requirements, or low temperature service, we can also review material and sealing requirements before production.
Packing and Delivery
SGPE packs plug valves according to product size, weight, shipping method, and customer requirement. For export orders, we can use wooden cases or suitable protective packing. Before shipment, the valve surface, connection area, thread, seal face, and nameplate receive suitable protection to reduce shipping damage.
For urgent replacement orders, please provide the required delivery time at the RFQ stage. Our team will check production schedule, stock availability, and repair kit status as early as possible.
FAQ About Oilfield Plug Valves
1. What is an oilfield plug valve used for?
An oilfield plug valve is a quarter-turn shut-off valve used in high-pressure flowline systems. Field crews use it to control or isolate flow in cementing lines, fracturing lines, acidizing packages, well testing systems, flowback lines, pressure pumping manifolds, pump discharge lines, and treating iron assemblies.
The valve opens and closes through a 90-degree movement, so operators can switch flow paths quickly during well service operations. Because it has a compact body, strong sealing structure, and fast operating design, it works well in temporary flowlines, skid-mounted equipment, high-pressure manifolds, and wellhead service lines.
2. What sizes and pressure ratings can SGPE provide?
SGPE commonly supplies 1 inch, 2 inch, and 3 inch oilfield plug valves. Standard working pressure options include 6,000 psi, 10,000 psi, and 15,000 psi cold working pressure. Common configurations include 1” x 2”, 2” x 2”, and 3” x 3”.
For high-pressure oilfield projects, buyers often request Fig 602 plug valves, Fig 1002 plug valves, and Fig 1502 plug valves. Fig 2002 plug valve and Fig 2202 plug valve requirements can also be reviewed for special projects when drawings and datasheets are available.
3. What is a Fig 1502 plug valve?
A Fig 1502 plug valve is a high-pressure plug valve commonly used for 15,000 psi oilfield flowline service. It usually comes with a Fig 1502 hammer union connection, which allows quick makeup and breakout in pressure pumping and treating iron systems.
Oilfield crews often use 2 inch Fig 1502 plug valves and 3 inch Fig 1502 plug valves in cementing operations, hydraulic fracturing lines, acidizing packages, well testing manifolds, pump discharge lines, and temporary high-pressure flowlines. When sending an RFQ, buyers should confirm size, pressure rating, connection gender, bore size, and service condition.
4. Can SGPE supply hammer union plug valves?
Yes. SGPE can supply hammer union plug valves and Weco style plug valves for high-pressure oilfield flowline service. These valves suit treating iron assemblies, cementing units, frac manifolds, well testing packages, acidizing lines, flowback lines, and pressure pumping systems.
Common connection options include Fig 602, Fig 1002, and Fig 1502. Project-specific Fig 2002 and Fig 2202 requirements need further technical review. Because different flowline systems may use different union profiles, buyers should provide photos, drawings, nameplate details, or old valve information when they need replacement valves.
5. What end connections are available for oilfield plug valves?
SGPE can provide several end connection options, including Weco-style hammer union, Fig 1502 union, Fig 1002 union, Fig 602 union, LP thread, TBG thread, male thread, female thread, and flanged connection.
The correct connection depends on existing flowline layout, working pressure, valve size, connection gender, and field installation requirement. For replacement projects, buyers should confirm whether they need F x M, M x M, F x F, threaded ends, or flanged ends before production.
6. What is the difference between top entry and bottom entry plug valves?
A top entry plug valve allows maintenance access from the upper side of the valve. This design helps technicians inspect or replace internal parts more conveniently in many high-pressure oilfield flowline systems. Buyers often choose this type when they need a replacement-style valve for common FMC/SPM-style systems.
A bottom entry plug valve uses a different access structure and fits many established treating iron and pressure pumping systems. Buyers often choose this type when they need replacement-style valves for common Halliburton/MSI/TSI/NOV/CSCC-style flowline systems. Since dimensions may vary by brand, year, and pressure class, SGPE should check drawings, photos, samples, or connection details before confirming interchangeability.
7. What operation methods can SGPE provide?
SGPE can provide manual plug valves, handwheel plug valves, gear operated plug valves, hydraulic plug valves, and pneumatic actuated plug valves.
Manual operation suits standard shut-off service in oilfield flowlines. Handwheel or gear operation helps reduce operating effort when valve size, pressure rating, or field condition increases torque demand. Hydraulic plug valves support remote control on cementing skids, fracturing packages, pressure pumping manifolds, and automated oilfield service systems.
8. Can SGPE plug valves work in sour service, H2S service, or NACE projects?
SGPE can discuss sour service plug valve, H2S service plug valve, and NACE plug valve requirements according to the project standard. Buyers should provide H2S condition, CO2 condition, NACE requirement, material class, temperature range, pressure rating, and fluid composition.
Sour service oilfield plug valves need careful material and sealing selection. Therefore, SGPE reviews the actual working condition before confirming the final configuration. This step helps reduce corrosion risk and improves service reliability in demanding oilfield environments.
9. What media can an oilfield plug valve handle?
SGPE oilfield plug valves can handle common oilfield media such as oil, gas, water, cement slurry, drilling fluid, acid fluid, treating fluid, and flowback fluid when the selected configuration matches the service condition.
Different fluids create different challenges. Cement slurry and sand-laden flow may increase abrasion. Acid fluid may require special review of sealing material and corrosion conditions. Flowback fluid may contain gas, produced water, sand, and pressure fluctuation. Therefore, buyers should clearly state the medium before quotation.
10. How should I select the right plug valve for cementing, fracturing, acidizing, or well testing?
The selection should start with the actual oilfield job. Cementing service usually focuses on cement slurry control, displacement fluid, and manifold routing. Fracturing service often requires high-pressure resistance, strong sealing, and durable flowline connections. Acidizing service needs review of fluid compatibility, sealing material, and corrosion condition. Well testing and flowback service require reliable pressure isolation and quick flowline switching.
Before ordering, buyers should confirm valve size, bore size, working pressure, Fig connection, end connection, connection gender, operation method, service medium, temperature range, sour service requirement, and required documents. This information helps SGPE recommend the correct oilfield plug valve and avoid installation problems.
11. Does SGPE supply plug valve repair kits and spare parts?
Yes. SGPE supplies plug valve repair kits and spare parts for common 1 inch x 2 inch, 2 inch x 2 inch, and 3 inch x 3 inch oilfield plug valves in 6,000 psi, 10,000 psi, and 15,000 psi pressure ratings.
Common repair kit parts include plug, sealing segment, side segment, O-rings, backup rings, square seal ring, grease nipple, and valve cover sealing parts. To avoid wrong spare parts, buyers should provide valve size, pressure rating, structure type, end connection, brand interchange requirement, photos, drawings, or old part numbers.
12. What information should I provide to get a fast quotation?
To receive an accurate quotation, please provide valve size, bore size, working pressure, Fig type, end connection, connection gender, structure type, operation method, oilfield medium, service condition, application area, quantity, and required documents.
For replacement plug valves, please also provide nameplate photos, connection photos, drawings, samples, or old part numbers. For project orders, please share the datasheet, hydrostatic test requirement, material certificate requirement, third-party inspection request, delivery schedule, and packing requirement. With complete information, SGPE can check the specification faster and offer a suitable oilfield plug valve solution.
Request a Quotation from SGPE
SGPE supplies oilfield plug valves for high-pressure flowline service, pressure pumping systems, cementing units, fracturing manifolds, acidizing packages, well testing systems, flowback lines, drilling support systems, wellhead service lines, and oilfield treating iron assemblies.
Whether you need a high pressure plug valve, flowline plug valve, Fig 1502 plug valve, Fig 1002 plug valve, Fig 602 plug valve, hammer union plug valve, manual plug valve, hydraulic plug valve, low torque plug valve, lubricated plug valve, sour service plug valve, H2S service plug valve, NACE plug valve, pressure pumping plug valve, treating iron plug valve, or well service plug valve.
SGPE can review your technical requirement and provide a practical quotation.
E-Mail:
info@sgpe.com
