Description

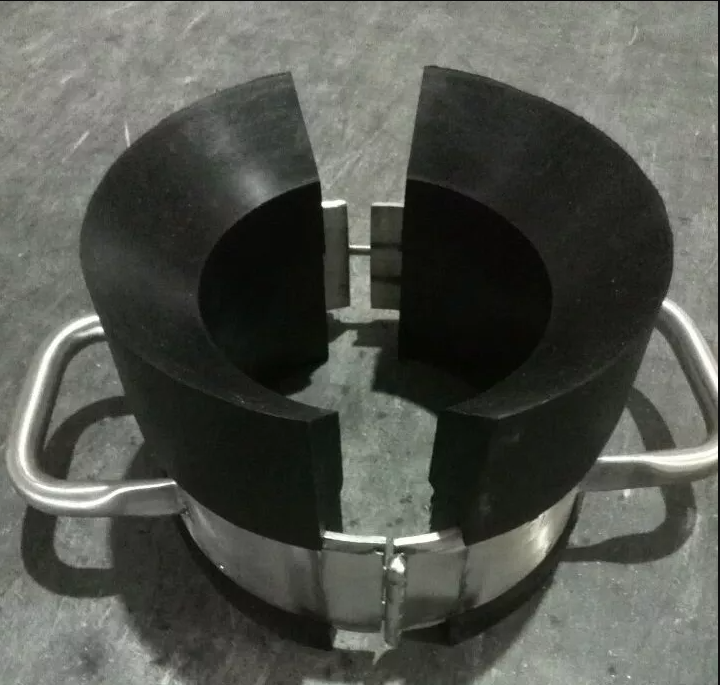

SG Stabbing Guides for Oilfield Tubing and Casing Thread Protection

SGPE SG Stabbing Guides help oilfield crews control pipe entry during tubing, casing and petroleum tubular make-up operations. Crews use these oilfield stabbing guides on drilling rigs, workover rigs and well service units to keep pipe joints aligned, reduce thread impact and make rig floor connection work smoother.

In petroleum drilling and workover service, tubing and casing threads need accurate alignment before make-up. If the pin end enters the box connection or coupling at the wrong angle, the connection may suffer from cross-threading, galling, deformation or poor make-up quality. These problems can slow the job, increase inspection time and raise tubular replacement costs.

The SG model provides simple operation and practical screw thread protection for oilfield tubular handling. It controls pipe entry before thread engagement, so operators can handle pipe stabbing with better stability. SGPE supplies SG Stabbing Guides for common tubing and casing sizes, covering tubing from 2-3/8 inch to 4-1/2 inch and casing from 4-1/2 inch to 20 inch.

These models fit many petroleum field operations, including drilling, casing running, tubing running, oilfield workover, well service, completion work and rig floor pipe connection handling.

SG Oilfield Stabbing Guide for Tubing and Casing Make-Up

An oilfield stabbing guide is a tubular alignment tool used during pipe connection make-up. Operators place it around the box end, coupling or connection area before lowering the next joint. As the pin end enters the connection, the SG model controls the stabbing angle and keeps the tubular centered.

This process reduces hard metal-to-metal contact between the pipe end and the connection shoulder. It also gives the crew better control during one of the most sensitive stages of tubing or casing make-up. On a busy rig floor, the right stabbing guide can make pipe handling steadier, especially when crews run many joints under time pressure.

SGPE SG Stabbing Guides suit both oilfield tubing and petroleum casing applications. The model code shows the applicable tubular size and use type. Models ending with T apply to tubing, while models ending with C apply to casing. This clear model structure allows drilling contractors, workover companies, well service providers and procurement teams to choose the correct model more efficiently.

Why Thread Protection Matters in Petroleum Tubular Operations

Tubing and casing connections play an important role in oil and gas well integrity. Every threaded connection needs accurate alignment before make-up. Once the thread gets damaged during stabbing, the connection may fail to seal correctly or may not reach the required make-up quality.

In field operations, thread damage can lead to cross-threading, galling on pin or box threads, poor connection performance, coupling damage, thread shoulder wear, rejected tubing or casing joints, longer rig downtime and higher replacement costs. Because of these risks, many oilfield crews use a stabbing guide as a practical thread protection tool during tubular running operations.

Connection protection becomes especially important during casing running. Casing joints are heavy, large and harder to control on the rig floor. Large-diameter casing may swing during handling, and even slight misalignment can damage the coupling, box thread or connection shoulder. A casing stabbing guide creates a more controlled entry path and improves the stability of casing make-up.

Tubing running and workover service also require careful thread control. Crews often handle many tubing joints in one operation, and repeated connection work increases the risk of thread wear, rough stabbing and impact damage. A tubing stabbing guide helps maintain connection quality during tubing running, tubing pulling, tubing re-running, production well maintenance and well service tubular handling.

Key Features of SGPE SG Stabbing Guides

Easy Rig Floor Operation

SGPE SG Stabbing Guides use a practical structure that allows quick placement and removal during oilfield tubular handling. Crews can use the tool during tubing running, casing running and rig floor pipe connection work without adding complicated operating steps.

Practical Screw Thread Protection

The SG model controls the pipe entry angle before thread engagement. This design reduces direct contact between the pin end, coupling, box thread and connection shoulder, which lowers the chance of thread damage during make-up.

Better Tubular Alignment

A stable alignment tool keeps the pipe centered as the joint enters the connection. Better alignment allows smoother make-up and reduces the risk of cross-threading during tubing and casing operations.

Wide Tubing and Casing Size Range

SGPE supplies SG Stabbing Guides for many common petroleum tubular sizes. The product range covers small oilfield tubing, standard casing and large-diameter casing used in drilling, workover and well service projects.

Clear Model Selection

Customers can choose T models for tubing and C models for casing according to the tubular size used on the rig. This model structure makes selection easier for equipment buyers, field service teams and oilfield procurement departments.

Useful in Daily Oilfield Operations

The SG model works well in petroleum drilling, casing running, tubing running, workover service, well maintenance and completion operations. It gives crews a simple way to reduce connection rework and improve rig floor handling efficiency.

Main Technical Parameters for SG Stabbing Guides

Not sure which SG model fits your tubular size? Send SGPE your pipe outside diameter, tubing or casing application and required quantity. Our team can confirm a suitable SG stabbing guide for your oilfield project.

Tubing Stabbing Guides for Oilfield Workover Service

SGPE tubing stabbing guides serve tubing connection work in oilfield workover, well service, production well maintenance and completion tubing operations. Tubing strings often require repeated running, pulling and re-running, so every threaded connection must stay in good condition for reliable make-up and stable well service work.

The SG tubing model centers the pin end before the thread engages. This improves tubing alignment, reduces rough entry and allows crews to complete tubing make-up more smoothly. SGPE offers tubing stabbing guide models for common oilfield tubing sizes, including 2-3/8 inch, 2-7/8 inch, 3-1/2 inch, 4 inch and 4-1/2 inch tubing.

During workover service, crews need both speed and control because tubing operations often involve many repeated connections in a short time. A tubing stabbing guide protects pin threads, box threads and connection shoulders while keeping the job moving. It also reduces connection rework caused by misalignment, rough pipe stabbing or unstable tubular handling.

These tubing guide models suit workover tubing running, tubing pulling, production tubing re-running, rod pump well maintenance, well service tubular handling, completion tubing installation and tubing string make-up operations. They provide a practical thread protection solution for oilfield crews who need smoother tubing connection work and more reliable rig floor handling.

Casing Stabbing Guides for Petroleum Drilling Operations

SGPE casing stabbing guides support casing running in petroleum drilling and oil and gas well construction operations. Compared with tubing, casing joints are heavier, larger and harder to control during rig floor handling. Therefore, their threaded connections require accurate alignment before make-up. As the casing size increases, controlled stabbing becomes even more important for connection protection and running efficiency.

The SG casing model protects casing threads, couplings and connection shoulders during make-up. It lowers the risk of pin-end impact and gives the rig crew a more stable way to place the casing joint into position before the threads engage. As a result, the tool supports smoother casing running and better protection for valuable petroleum tubular assets.

SGPE offers casing stabbing guides for many standard petroleum casing sizes, including 4-1/2 inch, 5 inch, 5-1/2 inch, 7 inch, 7-5/8 inch, 8-5/8 inch, 9-5/8 inch, 10-3/4 inch, 13-3/8 inch, 16 inch, 18-5/8 inch and 20 inch casing.

These models suit surface casing running, intermediate casing running, production casing running and large-diameter casing handling in oil and gas well construction. They also assist with casing coupling protection, casing connection make-up and petroleum drilling rig floor operations.

Benefits for Oilfield Contractors and Service Companies

SGPE SG Stabbing Guides bring practical value to drilling contractors, workover contractors, casing running service providers, well service companies and petroleum equipment distributors. The tool creates a controlled entry path for tubing and casing, which lowers the chance of the pin end striking the box thread, coupling or connection shoulder.

Better pipe alignment allows crews to connect joints more smoothly and reduces the risk of cross-threading during tubing running and casing running. When crews face fewer thread problems, they spend less time on inspection, repair and tubular replacement. This can reduce avoidable delays during drilling, workover and well service operations.

From a procurement point of view, SGPE offers models for both tubing and casing. Buyers can source multiple stabbing guide sizes from one supplier and match different well programs more easily. For daily rig floor handling, the SG model helps keep tubing, casing, couplings and threaded connections in better condition.

How to Select the Right SG Stabbing Guide

Selecting the correct SG stabbing guide mainly depends on the tubular outside diameter and the application type. Before placing an order, buyers should confirm the pipe size, tubing or casing type and operating condition.

For tubing operations, choose a model ending with T. For casing operations, choose a model ending with C. For example, SG2-7/8T applies to 2-7/8 inch oilfield tubing, SG9-5/8C applies to 9-5/8 inch petroleum casing, SG13-3/8C applies to 13-3/8 inch casing running operations, and SG20C applies to 20 inch large-diameter casing.

When checking the model, buyers should prepare the tubular outside diameter, tubing or casing application, job type, required quantity and any special field requirement from the rig site. SGPE can support model confirmation for oilfield projects. If you are not sure which stabbing guide fits your tubular size, send SGPE your pipe specification and application details.

Operating Notes for Rig Floor Use

Before using a stabbing guide, the crew should confirm that the selected model matches the tubing or casing size. A tool that does not match the pipe size may not provide proper alignment or thread protection.

During operation, place the guide correctly on the box end, coupling or connection area before stabbing the next joint. Keep the tubular stable and avoid sudden impact. After the pin end enters the connection smoothly, remove the guide according to the rig floor procedure.

Good operating habits improve the service life of the tool and give tubing and casing threads better protection during repeated oilfield tubular handling.

Applications in Petroleum Drilling, Workover and Well Service

SGPE Stabbing Guides work across many petroleum industry operations. In drilling projects, casing stabbing guides support surface casing running, intermediate casing running and production casing running. They allow crews to control the casing entry angle and protect threads during well construction.

In workover projects, tubing stabbing guides assist with production well repair, tubing replacement, rod pump service and well maintenance. A reliable tubing guide keeps connection work more stable during repeated running and pulling operations.

In well completion projects, proper tubing and casing alignment supports connection quality and well integrity. SGPE stabbing guides allow crews to maintain cleaner and more controlled connections during completion tubing installation and production string handling.

Oilfield service companies can also use these products in tubular running services, casing running support, well service equipment packages and rig floor handling tool packages.

Why Choose SGPE Stabbing Guides?

SGPE supplies oilfield tools and petroleum machinery for drilling, workover and well service applications. The company focuses on practical equipment that supports real rig site operations and helps crews handle tubing and casing connections more efficiently.

SGPE Stabbing Guides cover a wide model range for both oilfield tubing and petroleum casing. Customers can choose suitable models according to tubular size, which makes model selection easier for drilling contractors, workover contractors, well service companies and petroleum equipment distributors.

During rig floor operations, these stabbing guides provide simple handling and reliable guidance for tubing running, casing running and well service jobs. They assist crews in protecting pin threads, box threads, casing couplings and connection shoulders during tubular make-up.

SGPE also supports project-based procurement. If customers need help choosing the right guide, SGPE can recommend a suitable model according to tubing size, casing size and oilfield application. By choosing SGPE, customers can source stabbing guides together with other oilfield handling tools and petroleum rig equipment, which simplifies supplier management and improves equipment matching for drilling, workover and well service projects.

Ordering Information

To request a quotation for SGPE Stabbing Guides, please provide your required model or tubular size, confirm whether the guide will serve tubing or casing operations, and share the required quantity. It is also helpful to tell SGPE the oilfield operation type, such as tubing running, casing running, drilling, workover, well service or completion operations, so our team can better understand your project requirements.

If you do not know the exact model, SGPE can select a suitable stabbing guide according to your tubing or casing diameter and field application. This makes procurement easier, reduces the risk of incorrect model selection and helps you choose a guide that matches your oilfield tubular handling needs.

Frequently Asked Questions About stabbing guide

1. What does an oilfield stabbing guide do?

An oilfield stabbing guide directs tubing or casing into the correct position before thread make-up. It keeps the pin end better aligned with the box end or coupling, so the connection enters more smoothly.

During rig floor tubular handling, even a small angle error can damage the thread. A stabbing guide reduces this risk and gives crews better control over tubing threads, casing threads, couplings and connection shoulders during petroleum drilling, workover and well service operations.

2. Why do drilling and workover crews need stabbing guides?

Drilling and workover crews handle many threaded tubular connections every day. Without proper guidance, the pin end may strike the box thread, hit the coupling face or enter the connection at the wrong angle. This can lead to thread damage, cross-threading, galling and extra repair work.

A stabbing guide gives the crew more control during pipe stabbing. It improves tubular alignment, limits screw thread damage and reduces avoidable downtime during tubing running, casing running and oilfield well service jobs.

3. What is the difference between a tubing stabbing guide and a casing stabbing guide?

A tubing stabbing guide fits oilfield tubing sizes, while a casing stabbing guide fits petroleum casing sizes. SGPE marks tubing models with T and casing models with C, so buyers can identify the right type more easily.

For example, SG2-7/8T matches 2-7/8 inch tubing, while SG9-5/8C matches 9-5/8 inch casing. This model structure helps drilling contractors, workover contractors and oilfield service companies choose a suitable guide according to the tubular outside diameter.

4. Which tubing sizes do SGPE Stabbing Guides cover?

SGPE provides tubing stabbing guides for common oilfield tubing sizes, including 2-3/8 inch, 2-7/8 inch, 3-1/2 inch, 4 inch and 4-1/2 inch tubing.

These tubing guide models support workover tubing running, tubing pulling, production tubing re-running, completion tubing installation and well service tubular handling. They also protect threaded connections during repeated make-up operations in oil and gas well maintenance.

5. Which casing sizes do SGPE Stabbing Guides cover?

SGPE offers casing stabbing guides for petroleum casing sizes from 4-1/2 inch to 20 inch. Common models include SG5-1/2C, SG7C, SG7-5/8C, SG9-5/8C, SG13-3/8C, SG16C, SG18-5/8C and SG20C.

These casing guide models suit surface casing, intermediate casing, production casing and large-diameter casing running operations. They also reduce rough contact around casing couplings and threaded connections during oil and gas well construction.

6. Can a stabbing guide reduce tubing and casing thread damage?

Yes. A properly selected stabbing guide reduces thread damage by improving pipe alignment before the pin end enters the connection. It limits direct impact on the box thread, coupling and connection shoulder.

Although it cannot replace proper rig floor handling, it gives crews a simple and practical way to lower the risk of cross-threading, galling, rejected joints and connection rework. This makes it useful for oilfield tubular make-up, casing running and workover tubing service.

7. How do I choose the correct SG stabbing guide model?

First, confirm the tubular outside diameter. Then check whether the operation uses tubing or casing. Choose a model ending with T for tubing and a model ending with C for casing.

For example, choose SG3-1/2T for 3-1/2 inch tubing and SG13-3/8C for 13-3/8 inch casing. If your project involves several pipe sizes, prepare a size list before ordering. SGPE can check the model selection according to your tubing size, casing size and oilfield application.

8. Where can SGPE Stabbing Guides be used?

SGPE Stabbing Guides work in many petroleum industry operations, including drilling rig tubular handling, casing running, workover tubing running, well service operations, completion tubing installation and production well maintenance.

They suit oilfield contractors, casing running service companies, workover rig operators, well service providers and petroleum equipment distributors. Crews can use them on the rig floor whenever tubing or casing connections need controlled stabbing and thread protection.

9. Are SGPE Stabbing Guides suitable for large-diameter casing?

Yes. SGPE supplies casing stabbing guides for large casing sizes such as 13-3/8 inch, 13-5/8 inch, 14 inch, 16 inch, 18-5/8 inch and 20 inch.

Large-diameter casing requires careful alignment because the pipe is heavier and harder to control. A casing stabbing guide allows the crew to guide the joint into the coupling more steadily. As a result, it improves handling efficiency during large casing running operations and reduces the chance of thread impact.

10. What information should I provide when requesting a quotation?

To receive a more accurate quotation, provide the required model or tubular size, tubing or casing type, order quantity and application environment. For example, you can tell SGPE whether the guide will support tubing running, casing running, workover service or drilling rig floor operations.

If you do not know the exact model, send the pipe outside diameter and job type. SGPE can match the suitable SG stabbing guide model for your oilfield project.

11. How should crews use a stabbing guide on the rig floor?

Before operation, crews should confirm that the guide matches the tubing or casing size. Then they should place the guide correctly on the box end, coupling or connection area before lowering the next joint.

During stabbing, the crew should keep the tubular stable and avoid sudden impact. After the pin end enters the connection smoothly, operators can remove the guide according to the rig floor procedure. Good handling habits improve thread protection and extend the service life of the guide.

12. Why choose SGPE for oilfield stabbing guides?

SGPE supplies oilfield tools and petroleum machinery for drilling, workover and well service operations. The company offers SG Stabbing Guides in a wide size range for both tubing and casing, so buyers can source multiple models from one supplier.

SGPE also supports model selection for project-based procurement. Whether you need tubing stabbing guides, casing stabbing guides, pipe stabbing guides or thread protection tools for oilfield tubular handling, SGPE can help you choose suitable models according to your pipe size and operating requirements.

Order SGPE Stabbing Guides for Your Oilfield Project

SGPE Stabbing Guides provide a simple and effective way to protect tubing and casing threads during petroleum tubular handling. They improve pipe alignment, reduce thread impact and keep drilling, workover, casing running and well service operations moving smoothly.

If your oilfield project requires tubing stabbing guides, casing stabbing guides, pipe stabbing guides or petroleum thread protection tools, SGPE can supply suitable SG models according to your tubular size and job requirements.

Contact SGPE today to request product details, model selection support and a quotation for your next oilfield drilling, workover or well service project.
