Description

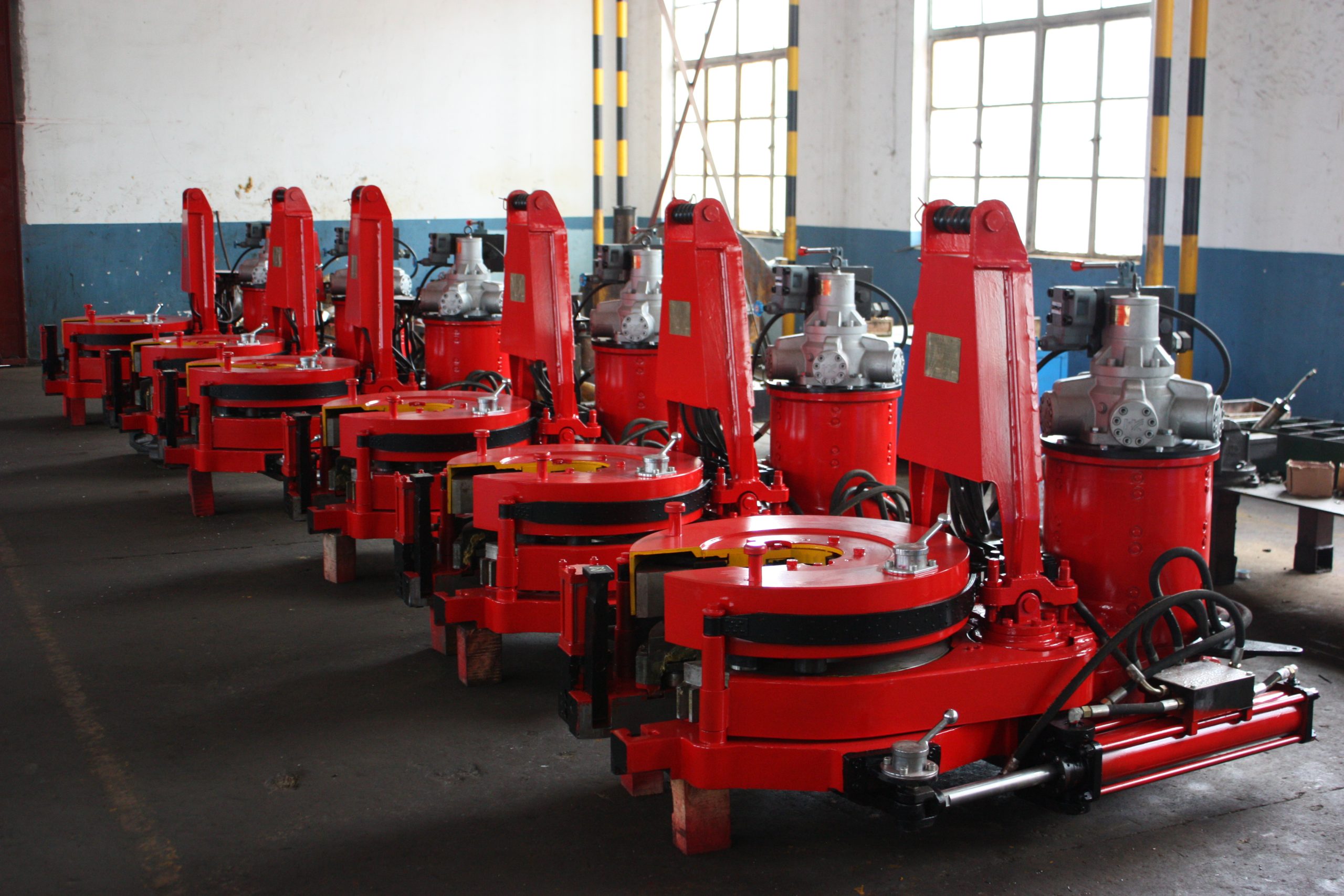

ZQ203-100 Hydraulic Drill Pipe Power Tong
High-Torque Hydraulic Power Tong for Oil and Gas Drilling, Workover and Rig Floor Operations
SGPE supplies the ZQ203-100 Hydraulic Drill Pipe Power Tong for oil and gas drilling, workover, well servicing, well repair and drill string maintenance operations. As a professional hydraulic drill pipe power tong supplier, SGPE offers this high-torque rig floor tong for crews that need stable clamping, accurate torque control, safer thread protection and easier pipe handling in demanding oilfield conditions.
The ZQ203-100 improves the traditional drill pipe power clamp with stronger torque capacity, smoother mechanized operation and easier height adjustment. Its hydraulic lifting system helps crews raise, lower and position the tong body with less manual effort. As a result, drilling and workover teams can complete repeated drill pipe make-up and break-out work with higher efficiency and better control.
With a maximum torque of 100,000 N·m / 73,800 ft-lbs, this high-torque oilfield power tong handles demanding tubular connections in petroleum field operations. It works with 3 1/2 in to 5 1/2 in drill pipe, 8 in drill collar, and casing pipe up to 7 in. The reinforced tong body, automatic centering mechanism and hydraulic-pneumatic control system help operators achieve safer, steadier and more consistent drill string connection performance.
Key Benefits for Rig Floor Operations
The ZQ203-100 Hydraulic Drill Pipe Power Tong gives drilling crews a practical solution for high-torque drill pipe make-up and break-out operations. With torque output up to 100,000 N·m, it supports heavy-duty tubular connection work on drilling rigs, workover rigs and oilfield service units.
For daily rig floor operation, this SGPE power tong improves pipe handling efficiency. It grips drill pipe, drill collar and casing pipe securely, while the hydraulic boom and moving cylinder make height adjustment and tong positioning easier. Crews can align the tong faster, reduce manual pushing and keep connection work more stable.
The upper and lower tong structure improves clamping reliability under high torque. Meanwhile, the floating tong head and automatic centering mechanism make pipe alignment easier, especially when crews handle both new and worn joints.
The pneumatic tire clutch with non-stop shifting allows operators to control torque and speed in forward and reverse directions. In addition, the automatic unloading function protects drill pipe threads from over-torque damage, helping reduce connection wear, maintenance cost and operating risk.
Product Overview
The ZQ203-100 Hydraulic Drill Pipe Power Tong helps rig crews make up and break out drill pipe joints quickly, safely and efficiently. It combines hydraulic drive, pneumatic control, upper and lower tong clamping, hydraulic lifting, a floating tong head and a non-stop shifting mechanism.
During oilfield drilling and workover operations, crews need accurate torque, secure clamping and reliable thread protection. SGPE designed this power tong with a reinforced tong body, safety door, automatic centering system and pressure regulating valve to meet those working needs.
This oilfield hydraulic power tong suits drilling rigs, workover rigs, well service units, repair wells and drill string maintenance jobs. It reduces drill string bending, prevents pipe slipping, protects connections and improves rig floor efficiency.
For contractors looking for a drill pipe power tong for sale, a hydraulic power tong for workover rigs, a rig floor tubular handling tool, or a high-torque hydraulic tong manufacturer, the ZQ203-100 offers a dependable solution for demanding oil and gas field operations.
Key Features of ZQ203-100 Hydraulic Drill Pipe Power Tong
1. Hydraulic and Pneumatic Control for Reliable Operation
The ZQ203-100 hydraulic drill pipe power tong uses a combined hydraulic and pneumatic control system. The hydraulic system provides strong driving power, while the pneumatic system supports clutch shifting and operation control.
This combination keeps the tong running smoothly during drill pipe make-up, break-out, workover and well service operations. When crews need large torque and stable rotation, the system gives operators easier control and more reliable performance.
2. Upper and Lower Tong Structure for Secure Clamping
SGPE ZQ203-100 power tong uses an upper and lower clamp structure to hold the drill pipe securely during high-torque operation.
The upper tong works with the lower tong to reduce drill pipe bending. This structure also helps prevent slipping during make-up and break-out. For drill string connections that require high torque and accurate control, stable clamping gives rig crews more confidence on the rig floor.
3. Floating Tong Head for Easier Alignment
The tong adopts a light and flexible floating tong head. This structure simplifies hoisting, positioning and alignment around the drill pipe connection.
Its automatic centering and clamping mechanism grips both new and worn joints reliably. Crews can reduce adjustment time, improve connection efficiency and handle different pipe conditions more easily.
4. Reinforced Tong Body and Safety Door
High-torque operation places strong force on the tong head and tong body. SGPE strengthens the tong body to support heavy-duty oilfield use and improve structural stability.
The safety door helps limit tong head deformation during large-torque operation. This structure improves operating safety, extends service life and supports steady performance in harsh oil and gas field conditions.
5. Easy Maintenance with Ramp Plate and Wedge Block Structure
The tong head uses a special ramp plate and wedge block connection structure. This design makes disassembly, inspection and maintenance more convenient.
Rig crews can service the tong head faster, which helps reduce downtime. For drilling contractors, workover companies and oilfield service teams, easier maintenance means faster turnaround and lower operating cost.
6. Pneumatic Tire Clutch with Non-Stop Shifting
The hydraulic power tong uses a pneumatic tire clutch and non-stop shifting mechanism. Operators can adjust speed and torque without complicated manual steps.
The tong delivers high speed and high torque in both clockwise and counter-clockwise directions. This feature supports efficient drill pipe make-up and break-out on drilling rigs, workover rigs and well service units.
7. Large-Diameter Reversing and Pressure Regulating Valve
SGPE equips this drill pipe power tong with a large-diameter manual reversing and pressure regulating valve. The system supports automatic unloading during large-torque operation.
This function controls torque and protects drill pipe joint threads from over-torque damage. It also improves operating safety when crews handle valuable drill pipe, drill collar and casing connections.
8. Hydraulic Boom and Moving Cylinder for Labor-Saving Operation
The hydraulic boom raises or lowers the tong body according to the working position. The moving cylinder adjusts the tong position without heavy manual movement.
In daily rig floor operation, this structure helps crews align the tong with the drill pipe faster. It also reduces labor intensity and saves time during repeated tubular connection work.
Main Applications in Oil and Gas Field Operations
The SGPE ZQ203-100 Hydraulic Drill Pipe Power Tong supports a wide range of petroleum drilling, workover and oilfield service operations. Rig crews can use it for drill pipe make-up and break-out on drilling rigs, as well as drill string connection handling on the rig floor.
This hydraulic power tong also performs well in workover rig pipe handling, well repair operations and drill collar connection work. When oilfield service teams need to handle casing pipe, complete heavy-duty tubular connection work or perform high-torque drill pipe thread make-up, the ZQ203-100 provides stable clamping and reliable torque output.
In daily petroleum field operations, the tong can also support well servicing, oilfield equipment maintenance and general pipe handling tasks. It suits projects that require strong torque, safer thread protection, easier tong movement and efficient rig floor tubular handling equipment.
Technical Specifications
Please check the main technical specifications below. For special pipe sizes, rig layouts or operating requirements, contact SGPE for model confirmation before ordering.
| Item | Specification |
|---|---|
| Model | ZQ203-100 / ZQ203/100II |
| Product Type | Hydraulic Drill Pipe Power Tong |
| Application Range | 3 1/2 in – 5 1/2 in drill pipe, 8 in drill collar, casing pipe up to 7 in |
| Torque, High Gear | 7,000 N·m / 5,166 ft-lbs |
| Torque, Low Gear | 100,000 N·m / 73,800 ft-lbs |
| Rated Pressure | 2320 PSI / 16 MPa |
| Max. RPM, High Gear | 40 RPM |
| Max. RPM, Low Gear | 2.7 RPM |
| Oil Flow | 30 GPM / 114 LPM |
| Air Pressure | 73–131 PSI / 0.5–0.9 MPa |
| Cylinder Range | 59 in / 1.5 m |
| Overall Dimension | 67 x 40 x 55 in / 1700 x 1000 x 1400 mm |
| Weight | 5291 lbs / 2400 kg |
Why Choose SGPE ZQ203-100 Hydraulic Drill Pipe Power Tong?
SGPE provides practical oilfield equipment for drilling, workover, well service and rig floor operations. The ZQ203-100 Hydraulic Drill Pipe Power Tong gives operators a strong, reliable and labor-saving solution for high-torque tubular connection work.
This SGPE power tong delivers strong torque capacity for heavy-duty drill pipe connections. It also covers a wide application range for drill pipe, drill collar and casing pipe, which makes it suitable for different oilfield drilling and workover projects. The hydraulic lifting system helps operators adjust the tong height more easily, while the moving cylinder allows more flexible positioning on the rig floor.
The upper and lower tong structure improves clamping stability during make-up and break-out operations. In addition, the floating tong head supports quicker alignment, and the automatic centering mechanism helps the tong grip pipe joints more reliably. The pneumatic clutch gives crews easier speed and torque control, while the reinforced tong body supports demanding rig floor operation.
The easy-maintenance tong head structure also allows crews to inspect, disassemble and service key parts more conveniently. For repeated drill pipe make-up and break-out work, this design helps reduce downtime and improve daily operating efficiency.
For buyers searching for a hydraulic drill pipe tong manufacturer, drill pipe power tong supplier, oilfield power tong for sale, or high-torque hydraulic tong for workover rigs, SGPE can help confirm the suitable model according to pipe size, torque requirement and rig conditions.
Working Advantages on the Rig Floor
The ZQ203-100 drill pipe power tong helps crews complete tubular connection work with better control. The hydraulic boom allows quick height adjustment, while the moving cylinder reduces manual pushing and pulling.
The tong head grips the drill pipe securely and centers the joint automatically. This reduces misalignment, slipping and thread damage. When high torque builds up, the pressure regulating valve supports automatic unloading and protects the drill pipe connection.
Because the tong works in both forward and reverse directions, crews can use it for make-up and break-out operations. High gear improves operating speed, while low gear delivers high torque for heavy-duty oilfield connections.
Suitable for Drilling Rigs, Workover Rigs and Well Service Units
The ZQ203-100 Hydraulic Drill Pipe Power Tong supports different oil and gas field working conditions. It suits drilling rigs, workover rigs, well repair operations, oilfield service projects and drill string maintenance jobs.
For drilling operations, the tong helps crews handle drill pipe connections quickly and reliably. For workover and well repair projects, it helps remove or install pipe strings with less manual labor. Oilfield service companies can use this rig floor tong when the job requires both high torque and flexible positioning.
This model also fits customers who need drill pipe make-up and break-out tools, hydraulic power tong equipment for petroleum drilling operations, or oilfield tubular handling equipment for daily field work.
Quality and Service Support from SGPE
SGPE can supply ZQ203-100 hydraulic drill pipe power tongs according to project requirements. Customers can send drill pipe size, casing size, drill collar size, torque requirement, rig layout and working conditions for model confirmation.
SGPE also supports oilfield equipment selection and spare parts supply. If your project needs hydraulic power tong parts, mud pump spare parts, drilling tools or other petroleum equipment, SGPE can prepare a combined quotation to help reduce procurement time.
How to Select the Right Hydraulic Drill Pipe Power Tong
Before choosing a hydraulic drill pipe power tong, buyers should confirm the drill pipe size range, drill collar or casing size, required make-up torque and break-out torque requirement. These details help determine whether the tong can handle the planned tubular connection work safely and efficiently.
Buyers should also check the rig type, available working space, hydraulic pressure, oil flow and air pressure condition. In addition, the expected operation frequency, spare parts supply and maintenance requirements can affect long-term equipment performance and operating cost.
SGPE can review these project details and recommend a suitable hydraulic power tong model for your oilfield drilling, workover or well service operation.
How to Order
To get a fast quotation for the ZQ203-100 Hydraulic Drill Pipe Power Tong, please send SGPE your required power tong model, drill pipe size range, drill collar or casing size, required torque range, working pressure, oil flow, air pressure condition, drilling rig or workover rig type, order quantity and destination port or delivery address.
If your project has special operating conditions, please also provide the working requirements, rig layout details, old equipment photos or a spare parts list when available. With this information, SGPE can confirm the suitable configuration more quickly and prepare a quotation based on your oilfield project needs.
FAQ About Hydraulic Drill Pipe Power Tong
1. What is the ZQ203-100 Hydraulic Drill Pipe Power Tong used for?
The ZQ203-100 Hydraulic Drill Pipe Power Tong helps rig crews make up and break out drill pipe connections during oil and gas drilling, workover, well repair and well service operations. It grips the pipe securely, delivers high torque and improves handling efficiency on the rig floor.
Operators often choose this hydraulic drill pipe power tong when they need safer drill string connection work, better torque control and less manual labor during repeated make-up and break-out jobs.
2. What pipe sizes can the ZQ203-100 power tong handle?
The ZQ203-100 power tong handles 3 1/2 in to 5 1/2 in drill pipe, 8 in drill collar, and casing pipe up to 7 in. This application range makes it suitable for many petroleum drilling rigs, workover rigs and oilfield service units.
Before ordering, customers can send SGPE the drill pipe size, drill collar size, casing size and connection details. SGPE will check the working range and help confirm whether this model fits the project.
3. What is the maximum torque of the ZQ203-100 hydraulic power tong?
The ZQ203-100 hydraulic power tong provides a maximum torque of 100,000 N·m / 73,800 ft-lbs in low gear. In high gear, it delivers 7,000 N·m / 5,166 ft-lbs with higher rotation speed.
This torque range helps crews handle both efficient rotation and heavy-duty drill pipe connection work. It makes the tong a strong choice for drilling contractors and workover teams that need a high-torque oilfield power tong.
4. Can the ZQ203-100 tong work for both make-up and break-out operations?
Yes. The ZQ203-100 drill pipe power tong works in both clockwise and counter-clockwise directions. Crews can use it for drill pipe make-up, break-out, drill string maintenance and tubular connection handling.
The pneumatic tire clutch and non-stop shifting mechanism allow operators to control speed and torque more easily. This helps the tong support faster operation while maintaining stable torque output.
5. Why does this hydraulic power tong use upper and lower clamps?
The upper and lower tong structure helps the tool hold drill pipe more securely during high-torque operation. This structure reduces the risk of pipe slipping, joint misalignment and drill string bending.
For rig crews, stable clamping matters because drill pipe connections often face heavy torque and vibration. With a stronger clamping structure, the ZQ203-100 power tong improves safety and control during rig floor tubular handling.
6. How does the floating tong head improve operation?
The floating tong head helps the tong align with drill pipe connections more easily. It also makes hoisting, positioning and daily operation more convenient for rig crews.
In real oilfield conditions, pipe joints may show wear after repeated use. The automatic centering and clamping mechanism helps the tong grip both new and used joints more reliably, which reduces adjustment time and improves work efficiency.
7. How does the hydraulic boom reduce manual labor?
The hydraulic boom raises or lowers the tong body according to the working height. At the same time, the moving cylinder helps adjust the tong position without heavy manual pushing.
This structure helps crews align the tong faster during repeated drill pipe make-up and break-out operations. It also reduces labor intensity, which makes the ZQ203-100 a practical choice for workover rigs, drilling rigs and well service units.
8. How does the automatic unloading function protect drill pipe threads?
The large-diameter reversing and pressure regulating valve supports automatic unloading during high-torque operation. This function helps control torque before excessive force damages the drill pipe joint.
Thread protection matters in drilling and workover operations because damaged connections can increase downtime and replacement cost. With better torque control, the ZQ203-100 hydraulic tong helps protect drill pipe, drill collar and casing connections.
9. Is the ZQ203-100 Hydraulic Drill Pipe Power Tong suitable for workover rigs?
Yes. The ZQ203-100 hydraulic drill pipe power tong suits workover rigs, drilling rigs, well repair projects and oilfield service operations. It helps crews remove, install and maintain drill string components with less manual effort.
Workover operations often require flexible equipment, stable clamping and reliable torque output. This SGPE power tong meets those needs with hydraulic lifting, pneumatic control, a reinforced tong body and a high-torque drive system.
10. How should buyers choose the correct hydraulic drill pipe power tong model?
Buyers should check the drill pipe size, drill collar size, casing size, required make-up torque, break-out torque, rig layout, hydraulic pressure, oil flow and air pressure before choosing a hydraulic power tong.
SGPE can help review these details and recommend a suitable model. This support helps customers avoid wrong model selection and improves equipment matching for oilfield drilling, workover and well service projects.
11. Can SGPE supply spare parts for the ZQ203-100 power tong?
Yes. SGPE can supply hydraulic power tong spare parts according to customer requirements. Customers can send part names, part photos, drawings, old equipment information or model details for confirmation.
Common support may include tong-related wear parts, maintenance parts and matching components for oilfield equipment service. If the project also needs mud pump spare parts, drilling tools or other petroleum equipment, SGPE can prepare a combined quotation.
12. What information should I provide to get a quotation?
To get a faster quotation for the ZQ203-100 Hydraulic Drill Pipe Power Tong, please send the drill pipe size range, drill collar or casing size, required torque, working pressure, oil flow, air pressure, rig type, quantity and destination port.
If the project has special operating requirements, customers can also send rig photos, layout information or old tong details. SGPE will review the information and provide a suitable quotation for the hydraulic drill pipe power tong and related spare parts.
