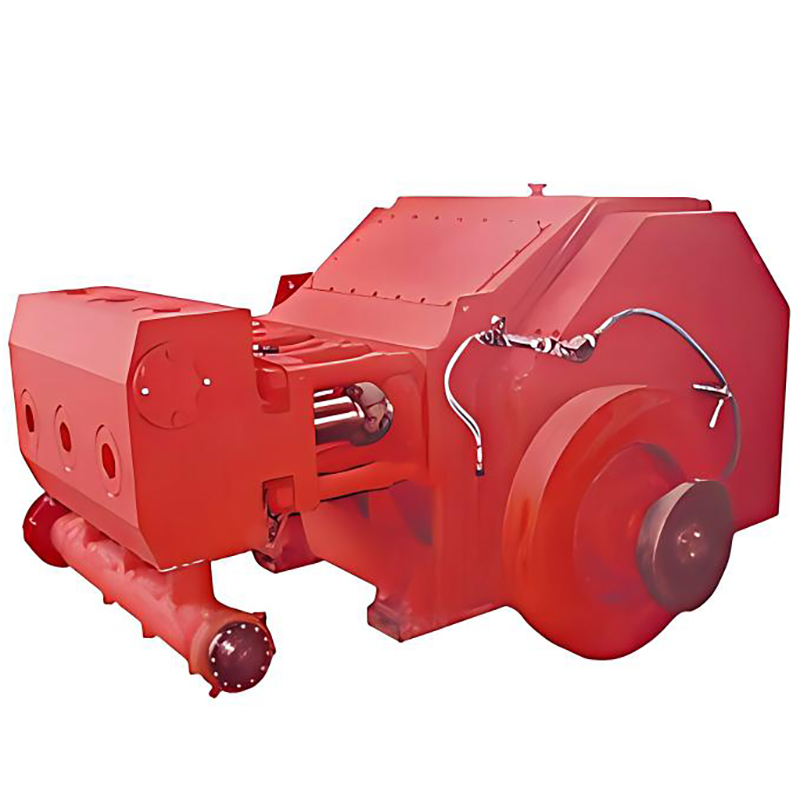

2250HP High-Pressure Triplex Plunger Pump for Fracturing Equipment and Oilfield Pressure Pumping Systems
Product Overview
The 2250 Triplex Frac Plunger Pump is a high-pressure triplex plunger pump commonly used for fracturing equipment and other demanding oilfield pressure pumping applications. Designed for reliable field performance, this pump adopts a double gear transmission driving structure, which helps ensure more uniform force distribution, improved running stability, and longer service life.
With a maximum power braking of 2250HP (1678KW), the 2250 Triplex Frac Plunger Pump is suitable for high-load pumping operations where durability, stable power transmission, and dependable output are essential. It is engineered to support oilfield service companies, fracturing contractors, and equipment integrators looking for a robust and efficient frac plunger pump solution.
The pump is also available with multiple fluid end specifications, including 4”, 4.5”, 5”, and 5.5”, allowing users to select configurations according to different pressure and displacement requirements in the field.
Key Features of 2250 Triplex Frac Plunger Pump
High Power Capacity for Fracturing Service
The pump delivers up to 2250HP (1678KW) of maximum braking power, making it suitable for demanding pressure pumping and fracturing operations.
Triplex Plunger Pump Structure
The triplex design provides reliable pumping performance for oilfield applications requiring high pressure, continuous operation, and strong mechanical output.
Double Gear Transmission for Better Stability
The pump uses a double gear transmission driving model, which helps the equipment achieve more uniform force distribution. This design improves pump stability during operation and contributes to a longer service life.
Flexible Fluid End Options
The available fluid end sizes of 4”, 4.5”, 5”, and 5.5” give users more flexibility in matching the pump to different jobsite pressure and flow requirements.
Compact and Heavy-Duty Construction
With a compact structural layout and rugged build, the 2250 Triplex Frac Plunger Pump is well suited for integration into fracturing units and oilfield pumping packages.
Designed for Oilfield Equipment Integration
This pump is widely used for fracturing equipment, making it a practical choice for pressure pumping systems, skid-mounted units, and field service fleets.
Applications
The 2250 Triplex Frac Plunger Pump is suitable for a wide range of applications in the oil and gas industry, especially where high-pressure fluid pumping is required.
Typical applications include:
- Hydraulic fracturing equipment
- Oilfield pressure pumping systems
- Well stimulation operations
- Frac units and pumping packages
- High-pressure plunger pump systems
- Onshore oilfield service operations
- Pressure pumping equipment integration
Why Choose the 2250 Triplex Frac Plunger Pump?
For buyers searching for a dependable 2250HP frac pump, triplex plunger pump, or fracturing pump manufacturer, this model offers a balanced combination of power, stability, and practical field adaptability.
Its main advantages include:
- Strong power performance for demanding pumping jobs
- Double gear transmission for more stable operation
- Uniform force distribution to reduce mechanical stress
- Multiple fluid end size options for flexible configuration
- Proven suitability for fracturing equipment
- Compact dimensions with heavy-duty construction
The 2250 Triplex Frac Plunger Pump is a good choice for customers seeking a reliable and cost-effective pumping solution for oilfield and stimulation service applications.
Technical Specifications
Specifications for 2250 Triplex Frac Plunger Pump
| Item | Specification |
|---|---|
| Product Name | 2250 Triplex Frac Plunger Pump |
| Pump Type | Triplex plunger pump |
| Power Braking (Max) | 2,250HP (1,678KW) |
| Connecting Rod Load (Max) | 229,305 lbf (1,020KN) |
| Stroke | 8” (203.2mm) |
| Driving Model | Double cylinder gear transmission |
| Speed Ratio | 6.353:1 |
| Dimensions (L × W × H) | 87.81 × 57.65 × 43.5 in. (2,230 × 1,462 × 1,105mm) |
| Weight | 13,778 lb (6,250Kg) |

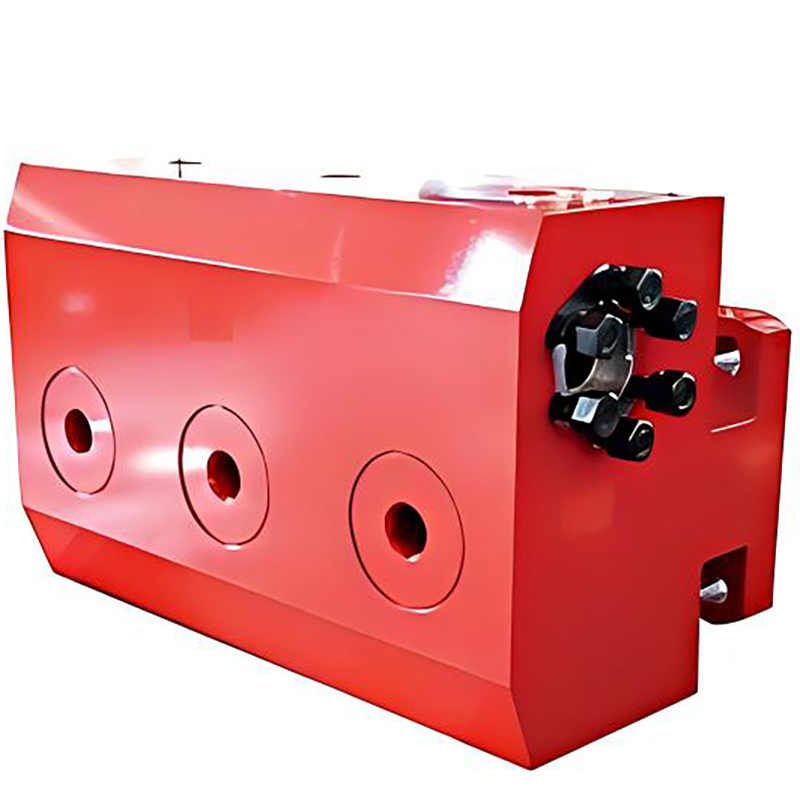

Fluid End Specifications
The 2250 Triplex Frac Plunger Pump can be equipped with different fluid end sizes to meet various operational requirements.
| Item | Model | Specification | Monthly Output/Set | Dimensions (L × W × H) |
|---|---|---|---|---|
| Fluid End | 2250 | 4”, 4.5”, 5”, 5.5” | 30 | 928 × 581 × 505 mm |
Performance and Structural Advantages
The design of this pump focuses on mechanical reliability and practical field performance. The double gear transmission is a key feature that helps distribute force more evenly during operation. This improves overall equipment stability and can help extend pump service life under demanding operating conditions.
The available range of fluid end sizes also provides greater flexibility for customers who need to match their pumping system to different pressure and flow conditions. This makes the pump suitable for a wider range of fracturing equipment and oilfield pumping setups.
For companies requiring a high-pressure triplex fracturing pump with solid transmission performance and adaptable configuration options, the 2250 model provides a practical solution.
SGPE Supply Capability
As a professional supplier of oilfield equipment and pumping system components, SGPE provides reliable solutions for global customers in the energy industry. For the 2250 Triplex Frac Plunger Pump, SGPE can support customers with product supply and project communication for different operating requirements.
SGPE can support:
- Frac pump supply
- Fluid end configuration matching
- Equipment integration support
- Spare parts supply
- Export packing and shipment coordination
- OEM/ODM discussion for project-based needs
Frequently Asked Questions
1. What is the 2250 Triplex Frac Plunger Pump used for?
It is commonly used for fracturing equipment and other oilfield pressure pumping applications where high-pressure fluid delivery is required.
2. What is the maximum power of this pump?
The maximum power braking is 2,250HP (1,678KW).
3. What type of transmission does this pump use?
The pump adopts a double cylinder gear transmission driving model.
4. What is the benefit of double gear transmission?
According to the product design, it helps the equipment achieve uniform force distribution, while improving pump stability and service life.
5. What is the maximum connecting rod load?
The maximum connecting rod load is 229,305 lbf (1,020KN).
6. What is the stroke of the pump?
The stroke is 8 inches (203.2mm).
7. What fluid end sizes are available?
The available fluid end specifications include 4”, 4.5”, 5”, and 5.5”.
Is this pump suitable for oilfield pumping systems?
Yes. It is commonly used in fracturing equipment and other oilfield pressure pumping systems.
