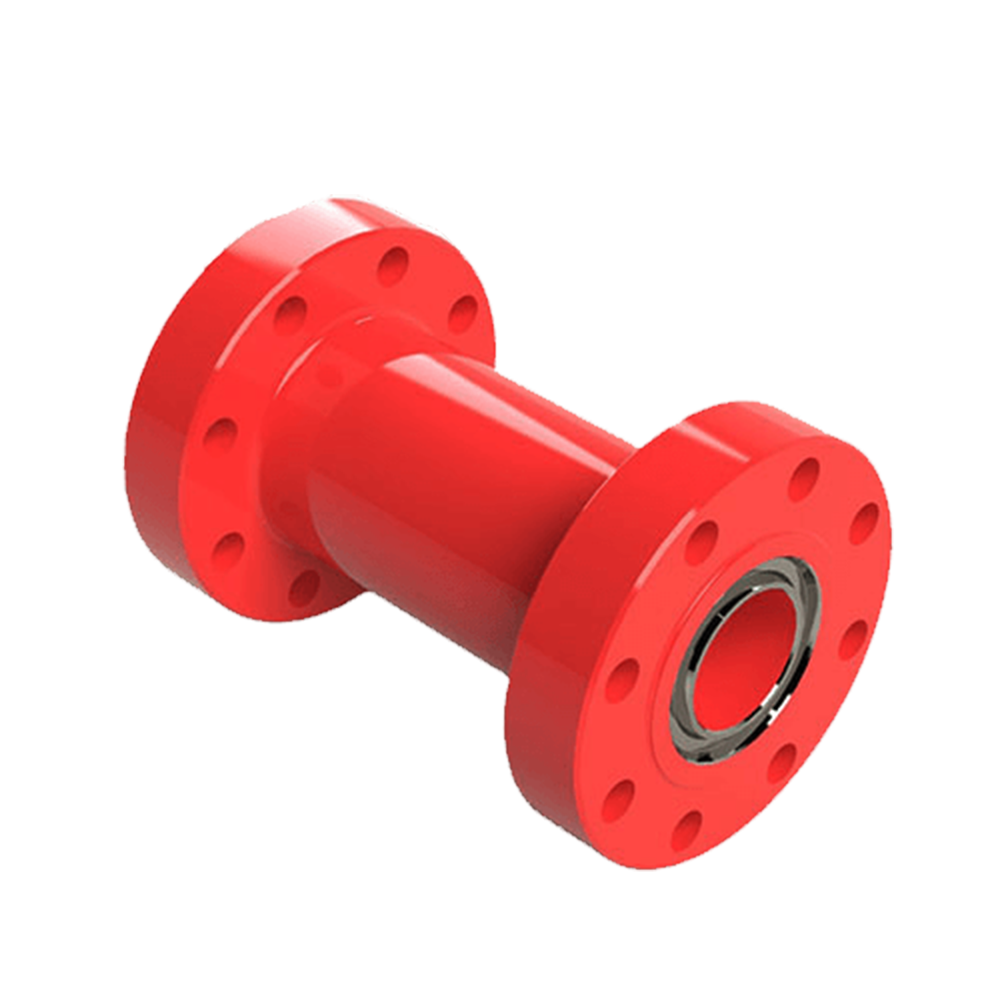

API 6A Wellhead Spacer Spool for Production, Injection, Well Testing and Replacement
SGPE manufactures and supplies custom API 6A Wellhead Spacer Spools for production wellheads, Christmas trees, injection systems, surface well testing packages, workover operations and mature-field equipment replacement.
A wellhead spacer spool adds a controlled distance between two pressure-containing components while maintaining a continuous flow bore. It can correct wellhead stack height, align a production tree, preserve flowline elevation and create working space around valve actuators, instruments and control lines.
Depending on the project, the same component may be described as a wellhead extension spool, Christmas tree spacer spool, wellhead riser spool, oilfield spacer spool or high-pressure wellhead spool. These terms often refer to a similar spacing function. The correct product type, however, depends on the installation position, nominal bore, rated working pressure and end connections.
Available configurations include double-flanged, double-studded, flanged-by-studded, low-profile and custom-length spacer spools. Selected designs may also include side outlets for pressure monitoring, chemical injection, methanol injection, controlled bleed-off or fluid sampling.
Every quotation starts with the actual wellhead arrangement. The technical review covers the bore, pressure rating, upper and lower connections, RTJ grooves, required overall length, body material, temperature range and well-fluid conditions.
This process helps prevent connection errors and unnecessary field modification. It also confirms whether the proposed spacer spool will match the tubing head, tubing head adapter, master valve, production tree, injection tree, flowhead or surface well testing equipment.
Product Overview
An API 6A Wellhead Spacer Spool is a pressure-containing component with a straight internal bore and pressure-rated connections at both ends.
Its main purpose is to add height or separation within a surface wellhead or Christmas tree assembly. Unlike a casing spool or tubing head, it does not suspend casing or production tubing. It also does not normally contain a casing hanger, tubing hanger or secondary packoff.
Instead, the spacer spool acts as a pressure-bearing extension between compatible wellhead components.
A replacement master valve, tubing head adapter or production tree may match the required bore and pressure class but have a different installed height from the original equipment. In this situation, a custom wellhead extension spool fills the dimensional gap and helps preserve the existing flowline elevation.
The spool can also improve access around hydraulic actuators, handwheels, pressure gauges, transmitters, injection tubing and maintenance tools. This extra clearance is especially useful on compact well pads, offshore platforms and crowded production facilities.
Although the external shape appears simple, every interface must match the adjoining equipment. An incorrect bore, flange profile, bolt circle, stud arrangement, RTJ groove or overall length can delay installation and increase field modification costs.
SGPE therefore treats each custom spacer spool as an engineered component rather than a generic stock item. Manufacturing begins only after the critical dimensions, connections and service conditions have been confirmed.
Typical API 6A Wellhead Spacer Spool Specifications
The following ranges provide preliminary purchasing guidance. They do not represent one fixed SGPE model.
Final specifications depend on the approved wellhead arrangement, operating conditions, purchase requirements and confirmed manufacturing scope.
| Technical Item | Typical Range or Option | Main Selection Basis |
|---|---|---|
| Product type | API 6A Wellhead Spacer Spool | Surface wellhead or Christmas tree installation |
| Nominal bore | 2-1/16″, 2-9/16″, 3-1/16″, 4-1/16″, 5-1/8″, 7-1/16″ and custom sizes | Bore of adjoining equipment |
| Rated working pressure | 2,000, 3,000, 5,000, 10,000 or 15,000 psi | Rated pressure of the complete wellhead system |
| End connections | Flanged, studded or flanged-by-studded | Upper and lower equipment interfaces |
| Flange profile | API 6B, API 6BX or another approved API 6A connection | Bore, pressure class and existing arrangement |
| RTJ ring gasket | R, RX or BX | Matching flange profile and ring groove |
| Overall length | Custom face-to-face or shoulder-to-shoulder dimension | Required stack height and flowline elevation |
| Body material | Forged carbon steel, low-alloy steel or approved alloy | Pressure, temperature and fluid conditions |
| Temperature range | Project-defined operating and design range | Minimum and maximum service temperature |
| Product Specification Level | Selected according to the approved purchase specification | Quality, testing and documentation scope |
| Side outlets | Optional threaded, flanged or studded outlets | Monitoring, injection, bleed-off or sampling |
| Internal protection | Corrosion-resistant inlay or overlay when required | Fluid composition and corrosion risk |
| External protection | Phosphate coating, paint, plating or project coating | Onshore, offshore and storage conditions |
| Testing | Dimensional inspection, applicable NDE and hydrostatic testing | Approved inspection and test plan |
| Documentation | Drawing, MTC, NDE reports, dimensional report, test report and COC | Purchase-order requirements |
Common Sizes and Pressure Ratings
Nominal bore and rated working pressure form only part of the specification. Buyers must also confirm the flange profile, RTJ ring number, connection arrangement and required overall length.
| Nominal Bore | Common Applications | Main Details to Confirm |
| 2-1/16″ | Compact production trees, chemical injection systems and small-bore wellheads | Pressure class, flange profile and RTJ ring |
| 2-9/16″ | Production wellheads, injection trees, flowheads and replacement projects | Upper and lower connection details |
| 3-1/16″ | High-pressure production, gas injection and surface well testing | Bore continuity, pressure and service conditions |
| 4-1/16″ | Higher-flow production, gas wells and well testing | Ring groove, material and outlet requirements |
| 5-1/8″ | High-pressure production, offshore wellheads and gas injection | Forged body, NDE and pressure testing |
| 7-1/16″ | Large-bore production, high-rate flowback and selected test systems | Weight, lifting method, bolt circle and length |
2-1/16″ and 2-9/16″ Spacer Spools
A 2-1/16″ API 6A spacer spool may suit compact production trees, small-bore wellhead assemblies and chemical injection installations.
A 2-9/16″ wellhead spacer spool can support production, injection and equipment replacement projects. Typical inquiries may include 2-9/16″ 5,000 psi or 2-9/16″ 10,000 psi connections.
Final confirmation still depends on the complete flange designation, RTJ ring and overall length.
3-1/16″ and 4-1/16″ Spacer Spools
The 3-1/16″ bore appears in many high-pressure production, gas injection and surface well testing systems.
A 3-1/16″ 10,000 psi spacer spool may restore Christmas tree elevation or match a replacement master valve with an existing tubing head adapter.
A 4-1/16″ wellhead spacer spool can support higher-flow production, gas wells, surface testing and selected injection projects. Its bore, flange profile, pressure class and ring groove must match the adjoining equipment.
5-1/8″ and 7-1/16″ Spacer Spools
A 5-1/8″ high-pressure spacer spool may serve offshore wellheads, gas injection, production and well testing projects.
Requirements such as 5-1/8″ 10,000 psi or 15,000 psi need a detailed review of the forged body, end connections, service conditions and inspection scope.
A 7-1/16″ wellhead spool may support large-bore production, high-rate flowback and selected surface test systems. These designs require careful control of the forging, RTJ grooves, bolt circles, lifting arrangement and pressure test procedure.
Why Wellhead Systems Use Spacer Spools
A correctly designed spacer spool can solve installation problems without forcing major changes to the existing wellhead, Christmas tree or connected piping.
Wellhead Stack Height Correction
Replacement equipment may match the required bore and pressure class but use a different face-to-face dimension.
For example, a new API 6A gate valve may sit lower than the obsolete valve it replaces. A custom wellhead spacer spool can restore the original production tree elevation without rebuilding the flowline, support frame or platform piping.
This approach is often practical for mature oilfields, well reactivation programs and brownfield upgrades.
Production Tree and Flowline Alignment
A production tree, injection tree or surface test tree should align correctly with both the equipment below it and the connected piping.
A Christmas tree spacer spool can restore the required elevation. Correct alignment reduces forced assembly and limits unnecessary loads on flanges, valves, flowlines and support structures.
Actuator and Maintenance Clearance
Hydraulic actuators, handwheels, gauges, transmitters and chemical injection lines all need operating space.
A custom-length or low-profile spacer spool can create the required clearance without making the complete wellhead stack excessively tall. This benefit becomes especially important on offshore platforms and compact well pads.
Wellhead Replacement and Retrofit
Older wellheads often contain components with discontinued dimensions or incomplete technical records.
When a replacement valve, adapter or tree component does not match the original installed height, a custom replacement spacer spool can bridge the difference and preserve the surrounding layout.
Auxiliary Outlet Requirements
Selected designs may include side outlets for pressure monitoring, chemical injection, methanol injection, controlled bleed-off or fluid sampling.
The outlet size, rated pressure, position and connection type must form part of the approved body design.
API 6A Wellhead Spacer Spool Configurations
| Configuration | Connection Arrangement | Main Benefit | Typical Application |
| Double-flanged spacer spool | Integral flange at both ends | Convenient bolting access | Production trees, injection trees and well testing |
| Double-studded spacer spool | Tapped stud holes at both ends | Reduces installed height | Offshore and compact wellhead assemblies |
| Flanged-by-studded spool | Flanged at one end and studded at the other | Combines access with compact construction | Replacement and retrofit projects |
| Low-profile spacer spool | Short custom body | Minimizes added stack height | Space-limited installations |
| Custom-length riser spool | Project-specific overall length | Restores tree or flowline elevation | New wellhead packages and brownfield upgrades |
| Spacer spool with outlets | Main bore plus auxiliary connections | Supports monitoring or injection | Production, injection and test systems |
| Replacement spacer spool | Matches verified legacy dimensions | Replaces obsolete equipment | Mature-field maintenance |
Double-Flanged Spacer Spool
A double-flanged spacer spool has an integral flange at each end. This design provides convenient access to studs and nuts during installation, inspection and maintenance.
It suits production wellheads, injection trees and surface well testing packages where sufficient radial clearance remains available.
Related purchasing descriptions include API 6A flanged spacer spool, forged flange spacer spool, high-pressure spacer spool and RTJ wellhead spacer spool.
Double-Studded Spacer Spool
A double-studded spacer spool uses tapped stud holes at both ends.
This arrangement can reduce installed height because the body does not require a complete external flange profile at either end. It often suits offshore platforms, compact production trees and crowded wellhead assemblies.
Tapped-hole depth, thread condition, bolt circle, stud engagement and remaining wall thickness require accurate control.
Flanged-by-Studded Spacer Spool
A flanged-by-studded design combines an integral flange at one end with a studded connection at the other.
It works well when one side needs conventional bolting access while the other requires a compact interface. Replacement and retrofit projects frequently use this configuration.
Low-Profile and Custom-Length Spacer Spools
A low-profile spacer spool provides a small but controlled increase in stack height. It may suit compact well pads, offshore platforms and installations with limited overhead clearance.
A custom-length wellhead riser spool can raise a production tree or flowhead to the required elevation.
Because “riser spool” may also describe other oilfield equipment, the actual installation must be reviewed before the product category is confirmed.
Spacer Spools with Side Outlets
A custom spool may include threaded, flanged or studded side outlets for pressure monitoring, chemical injection, corrosion inhibitor injection, methanol injection, controlled bleed-off, fluid sampling or instrument connections.
The inquiry should state the outlet quantity, nominal size, rated pressure, connection type, clock position and intended function.
A marked orientation drawing provides the clearest reference and reduces the risk of incorrect outlet positioning.
API 6A Flange and RTJ Connections
The end connections determine whether a wellhead spacer spool will fit and seal correctly.
API 6A wellhead equipment commonly uses API 6B or API 6BX flange profiles. The correct interface depends on the nominal bore, pressure class and existing equipment arrangement.
Ring-type joint connections use a metal gasket between accurately machined grooves. Depending on the flange design, the connection may require an R, RX or BX ring.
| Connection Item | Typical Option | Purchasing Importance |
| Flange profile | API 6B or API 6BX | Controls bolt pattern and RTJ groove geometry |
| Connection style | Flanged, studded or mixed | Affects installed height and access |
| RTJ gasket | R, RX or BX | Must match the approved flange and groove |
| Stud holes | Through holes or tapped holes | Determines the bolting arrangement |
| Bolt circle | According to the approved connection | Ensures correct component alignment |
| Surface protection | Standard surface, inlay or overlay | Supports corrosive or sour service |
The RFQ should include the complete flange designation and RTJ ring number. Bore size alone does not identify the correct sealing interface.
SGPE controls the bore, flange faces, RTJ grooves, bolt circles, stud holes, outlet positions and overall length through CNC machining and dimensional inspection.
Forged Body Materials and Service Conditions
A forged spacer spool body must provide suitable strength, toughness and corrosion resistance throughout its operating life.
Forged carbon steel and low-alloy steel suit many conventional wellhead applications. The final material depends on pressure, temperature, produced fluid, injected fluid and project requirements.
| Service Condition | Main Concern | Required Project Information | Typical Engineering Review |
| Standard oil and gas service | Pressure, temperature and general corrosion | Fluid, pressure and temperature | Forged carbon or low-alloy steel |
| Sour service | Sulfide stress cracking and hardness control | H₂S, CO₂, chlorides, water and temperature | Material, heat treatment and hardness |
| CO₂ service | Internal corrosion | CO₂, water conditions and temperature | Material or sealing-surface protection |
| Water injection | Oxygen, chlorides and chemicals | Water chemistry and corrosion program | Material and coating review |
| Gas injection | High pressure and corrosive components | Gas composition, pressure and temperature | Forging and corrosion review |
| Low-temperature service | Impact toughness | Minimum design temperature | Impact-tested material |
| Offshore service | Salt spray and external corrosion | Coating and preservation specification | Enhanced coating and packing |
Sour-Service and NACE Spacer Spools
Sour wells require careful control of material chemistry, heat treatment and hardness.
For a sour-service API 6A spacer spool quotation, provide the available H₂S partial pressure, CO₂ content, chloride concentration, water-phase conditions and operating temperature.
The inquiry should also state any applicable NACE MR0175 or ISO 15156 requirement.
These details help determine the body material, heat-treatment route, hardness limits and sealing-surface protection.
SGPE can review NACE API 6A spacer spools, H₂S-resistant wellhead spacer spools and sour-gas Christmas tree spools according to the approved operating conditions.
Low-Temperature and Offshore Service
Cold-region and selected offshore projects may require impact-tested materials and controlled heat treatment.
The inquiry should state the actual minimum design temperature rather than use broad descriptions such as “winter service.”
Offshore spacer spools may also require compact construction, enhanced external coating, corrosion-resistant sealing surfaces, lifting points, third-party inspection and export preservation.
CO₂ and Injection Service
Water injection, gas injection and CO₂ injection can create additional corrosion risks.
Provide the available fluid composition, water chemistry, operating temperature and corrosion-control philosophy.
These data help determine the forged body material, RTJ groove protection and any required corrosion-resistant inlay or overlay.
Oil and Gas Industry Applications
| Application | Typical Installation | Main Purpose | Important Selection Data |
| Oil production wellhead | Between tubing head adapter, master valve or tree | Adjust height and align flowline | Bore, pressure, drawing and length |
| Natural gas wellhead | Within a high-pressure gas tree | Create clearance and maintain elevation | Pressure, H₂S, CO₂ and temperature |
| Water injection well | Between injection tree components | Position valves and instruments | Water chemistry and pressure |
| Gas or CO₂ injection | Within an injection wellhead | Maintain stack arrangement | Gas composition and corrosion risk |
| Surface well testing | Between wellhead and test tree or flowhead | Align temporary test equipment | Complete test-stack drawing |
| Flowback operation | Between wellhead and flowback equipment | Create equipment clearance | Bore, pressure and temporary layout |
| Workover and intervention | Above the production tree | Position temporary pressure-control equipment | Complete stack arrangement |
| Offshore platform | Compact production or injection tree | Reduce height and improve access | Space, coating, weight and inspection |
| Mature-field replacement | Between new and existing equipment | Preserve flowline and support layout | Legacy dimensions and photographs |
Production, Gas and Injection Wellheads
Oil and gas production wellheads may use a spacer spool between the tubing head, tubing head adapter, lower master valve and production tree.
The component can correct tree height, align the flowline and improve access around valve actuators and instruments. High-pressure gas wells may also require sour-service or low-temperature materials.
Water, gas and CO₂ injection wellheads often use high-pressure trees, monitoring instruments and chemical injection systems.
Material selection should reflect the injection medium, chlorides, oxygen content, CO₂, H₂S and corrosion-control program.
Surface Well Testing, Flowback and Intervention
A surface well testing package may include a test tree, flowhead, choke manifold, separator and temporary flowlines.
A spacer spool can align the test tree or flowhead with the existing tubing head or production tree. It can also create room for temporary valves, pressure instruments and flowback equipment.
Wireline, slickline, coiled tubing and workover operations may also require additional space above the production tree. A custom wellhead riser spool can position approved pressure-control equipment at the required elevation.
The complete test or intervention stack should be reviewed before manufacturing.
Offshore and Brownfield Projects
Offshore platforms often have strict limits on height, weight, access and corrosion protection. Studded or low-profile designs can reduce installed height and improve operator access.
Brownfield and mature-field projects frequently involve unsupported equipment or incomplete drawings. A replacement spacer spool can preserve the existing flowline elevation and reduce site modification when a new valve or tree component uses different dimensions.
API 6A Spacer Spool vs. Adapter Spool
| Comparison Item | API 6A Wellhead Spacer Spool | API 6A Adapter Spool |
| Main purpose | Add distance or adjust stack height | Connect different interfaces |
| Internal bore | Normally remains consistent | May change between the two ends |
| End connections | Usually matching or compatible | Often different |
| Pressure class | Normally consistent with the system | May require a pressure transition |
| Typical use | Tree-height correction and equipment spacing | Size, flange or pressure crossover |
| Main engineering focus | Dimensional fit and pressure integrity | Transition geometry and compatibility |
A wellhead may need a spacer spool when both ends use compatible 3-1/16″ 10,000 psi connections but the production tree requires additional height.
By contrast, a transition from a 5-1/8″ 10,000 psi lower connection to a 3-1/16″ 10,000 psi upper connection normally requires an adapter spool.
Both interfaces must be reviewed before the product type is confirmed.
API 6A Wellhead Spacer Spool vs. API 16A Drilling Spool
An API 6A Wellhead Spacer Spool mainly serves production wellheads, injection trees, Christmas trees and surface well testing equipment.
An API 16A drilling spool belongs to drill-through pressure-control equipment and may form part of an active drilling BOP stack. It may also include choke and kill outlets.
The products can look similar, but the installation determines the correct product category.
The inquiry should clearly state whether the component will sit in a production wellhead, injection tree, surface test package, intervention stack or active drilling BOP system.
SGPE Engineering, Manufacturing and Quality Support
SGPE combines custom manufacturing with project-specific technical review. Support can cover the process from RFQ clarification and drawing approval to production, inspection, packing and shipment.
| Project Stage | SGPE Support | Buyer Benefit |
| RFQ review | Checks bore, pressure, connections and application | Identifies missing or conflicting information |
| Product classification | Distinguishes spacer, adapter and other spool types | Reduces incorrect ordering |
| Drawing preparation | Prepares a project-specific dimensional drawing | Confirms critical interfaces |
| Material review | Checks fluid, temperature and sour-service data | Supports material selection |
| Manufacturing | Controls forging, heat treatment and CNC machining | Improves dimensional consistency |
| Inspection | Coordinates NDE, dimensional checks and hydrostatic testing | Supports project quality requirements |
| Documentation | Compiles agreed manufacturing and test records | Simplifies technical acceptance |
| Replacement support | Reviews drawings, markings, dimensions and samples | Supports obsolete-equipment matching |
| Packing | Protects RTJ grooves and flange faces | Reduces transport and storage damage |
Production begins after the technical scope and dimensional drawing have been approved.
The drawing can identify the bore, overall length, flange profiles, RTJ grooves, bolt circles, stud holes, side outlets, lifting points and product marking.
Material identification remains traceable throughout manufacturing. Depending on the order, the quality plan may include chemical composition, mechanical properties, hardness, impact testing, heat-treatment records and Positive Material Identification.
Controlled heat treatment helps the forged body achieve the required properties. Precision CNC machining controls the bore, flange faces, RTJ grooves, stud holes, bolt circles and outlet connections.
The approved inspection plan may include ultrasonic testing, magnetic particle examination, liquid penetrant examination and inspection of corrosion-resistant overlays.
Hydrostatic testing follows an approved procedure. The test report can record the pressure, holding time, medium, result, date and product identification.
Before shipment, inspectors check the product markings, bore, overall length, connections, sealing surfaces, outlets, coating and documentation.
Protective covers help prevent damage to RTJ grooves and flange faces during transportation and storage.
Inspection and Documentation
Depending on the approved purchase scope, SGPE can provide a general arrangement drawing, Material Test Certificate, heat-treatment records, hardness reports, impact test results and Positive Material Identification records.
The quality package may also include UT, MT or PT reports, dimensional inspection records, RTJ groove measurements, hydrostatic pressure test reports, coating records, product photographs and a Certificate of Conformity.
Third-party inspection release documents can be included when the order requires independent witnessing or final acceptance.
Required reports, hold points and witness points should be confirmed during the quotation stage. Early agreement allows the correct activities to be included in the inspection and test plan.
How to Select the Correct API 6A Wellhead Spacer Spool
Confirm the Installation Position
Explain exactly where the spool will sit within the wellhead or Christmas tree stack.
A stack drawing shows the equipment above and below the proposed component. It also helps distinguish a spacer spool from an adapter spool or drilling spool.
Match the Bore and Pressure Rating
The internal bore should match the required flow path and adjoining equipment.
An incorrect diameter can create a flow restriction, unwanted shoulder or mismatch with intervention tools.
The spacer spool should also meet the rated working pressure of the complete wellhead system. Normal operating pressure alone does not determine the required pressure class.
Identify Both End Connections
Provide the nominal bore, rated working pressure, API 6B or API 6BX profile, flanged or studded arrangement and RTJ ring number for both ends.
Stud size, bolt-circle dimensions and clear photographs of connection markings can support replacement projects.
Define the Overall Length
Identify whether the required dimension means flange face to flange face, shoulder to shoulder or another clearly marked reference.
A simple dimensional sketch can prevent interpretation errors and help maintain the required production tree elevation.
Describe the Service Conditions
Include the operating pressure, rated pressure, minimum and maximum temperatures and produced or injected fluid.
For sour or corrosive service, provide the available H₂S, CO₂, chloride and water-phase data.
These details guide the material, hardness, coating and sealing-surface review.
Confirm Outlets and Quality Requirements
For each side outlet, state the size, connection, rated pressure, clock position and intended function.
Also identify the required PSL, NDE, hydrostatic testing, third-party inspection and documentation package.
Complete information supports a more accurate technical proposal and API 6A spacer spool price.
API 6A Wellhead Spacer Spool Price Factors
The price of a custom wellhead spacer spool depends on the complete technical scope rather than bore and pressure alone.
| Price Factor | Effect on the Quotation |
| Nominal bore | Larger bores require larger forgings and more machining |
| Pressure rating | Higher pressure may increase body size and testing scope |
| Overall length | Longer bodies increase material and machining |
| Connection type | Flanged, studded and mixed connections require different work |
| Body material | Sour-service, low-temperature or alloy materials affect cost |
| Side outlets | Additional outlets add engineering, machining and inspection |
| Corrosion-resistant overlay | Inlay or overlay adds material and process control |
| PSL and NDE | Additional testing and documentation increase scope |
| Third-party inspection | Witness and release points affect planning |
| Quantity | Repeat quantities may improve production efficiency |
| Delivery schedule | Urgent replacement projects may require special scheduling |
A larger bore, higher pressure class or longer body normally requires more material and machining.
Sour-service materials, low-temperature testing, side outlets, corrosion-resistant overlays and third-party inspection can also increase the project scope.
For an accurate API 6A Wellhead Spacer Spool quotation, provide the complete connection details, service conditions, quality requirements, order quantity and delivery destination.
Installation, Maintenance and Storage
Only trained personnel should install pressure-containing wellhead equipment under an approved field procedure.
Before installation, compare the product markings with the approved equipment list. Confirm the bore, pressure rating, overall length and upper and lower connection designations.
Inspect the flange faces, RTJ grooves, stud holes and side outlets for corrosion, impact marks or transport damage. Remove preservation material, dirt and foreign matter from all sealing areas.
Use the correct new metal ring gasket, specified studs, suitable nuts and approved thread lubricant. The connected components should align naturally before tightening.
Do not use bolting force to pull severely misaligned equipment into position. Correct the alignment first, then apply the approved tightening sequence with controlled torque or tension.
After assembly, complete the required wellhead pressure test according to the operator’s approved procedure.
During maintenance, inspect the body, flange faces, RTJ grooves, stud holes, side outlets, coating and product markings. Look for corrosion, pitting, leakage marks, deformation, damaged threads and coating failure.
Do not carry out uncontrolled welding, grinding or machining on the pressure-containing body. Any repair should follow an approved engineering and quality procedure.
After removal, clean the bore and sealing areas. Apply suitable corrosion protection and install strong covers over the machined connections.
Store the spool above the ground in a dry area. Protect it from standing water, salt spray, produced fluids, dirt and mechanical impact.
Replacement of Old or Unsupported Spacer Spools
A reliable replacement requires more than copying the outside shape.
The new component must match the original bore, rated working pressure, end connections, RTJ grooves, overall length, side outlet arrangement, material and temperature requirements.
Useful references include the original drawing, equipment nameplate, flange markings, RTJ ring numbers, verified bore, face-to-face length, bolt-circle dimensions, stud sizes, outlet positions and photographs of both ends.
When the original drawing is unavailable, SGPE can compare field measurements, inspection reports, nameplate data and a qualified used sample.
The engineering team then prepares a replacement drawing for customer approval.
Pressure ratings, flange profiles and critical sealing interfaces will not be confirmed from external appearance alone.
Clear photographs and complete measurements can shorten technical clarification for an urgent replacement wellhead spacer spool quotation.
Why Choose SGPE as Your API 6A Spacer Spool Manufacturer and Supplier?
SGPE focuses on custom oilfield pressure-control equipment and project-specific wellhead components.
Instead of treating every spacer spool as a standard stock item, the engineering team checks the complete interface before quotation. This review can identify incorrect flange descriptions, inconsistent RTJ ring numbers, missing length references, pressure mismatches and confusion between spacer spools and adapter spools.
SGPE can support one urgent replacement component, a custom unit for a new wellhead package or repeat quantities for a field maintenance program.
Available project support covers production tree spacer spools, injection wellhead spacer spools, surface well test spools, custom wellhead riser spools and obsolete equipment replacements.
The technical scope can also cover sour-service materials, low-temperature requirements, offshore exposure, corrosion-resistant sealing surfaces and side outlet arrangements.
Where the purchase specification requires additional quality control, the supply may include NDE, hydrostatic testing, third-party inspection and project-specific manufacturing documents.
Compatible studs, nuts, RTJ gaskets, lifting points, protective covers, export packing and long-term preservation can also form part of the approved order.
SGPE provides one technical contact for drawing review, manufacturing, testing, document preparation and shipment coordination.
Related products include API 6A adapter spools, wellhead flanges, tubing head adapters, casing heads, casing spools, tubing heads, gate valves, blind flanges, test flanges and Christmas tree components.
Information Required for an Accurate Quotation
| RFQ Item | Required Information |
| Application | Production, injection, testing, flowback, workover, intervention or replacement |
| Installation position | Exact location in the wellhead or tree stack |
| Quantity | Required order quantity |
| Nominal bore | Required internal bore |
| Rated working pressure | Complete system pressure rating |
| Top connection | Full flange or studded designation |
| Bottom connection | Full flange or studded designation |
| RTJ ring | R, RX or BX ring number |
| Overall length | Exact dimension and reference points |
| Side outlets | Quantity, size, pressure and orientation |
| Material and temperature | Material requirement and design range |
| Fluid conditions | Oil, gas, water, H₂S, CO₂ and chlorides |
| Quality scope | PSL, NDE, testing and inspection requirements |
| Documents | Required reports and certificates |
| Reference files | Drawings, nameplates, photographs or used sample |
| Delivery destination | Port, country or project location |
For a replacement spool, include the original drawing when available. Otherwise, send clear nameplate photographs, flange markings and verified field dimensions.
Frequently Asked Questions About API 6A Wellhead Spacer Spools
1. What is an API 6A Wellhead Spacer Spool?
An API 6A Wellhead Spacer Spool is a pressure-containing component installed between compatible surface wellhead, Christmas tree or injection wellhead equipment. It adds a controlled distance to the assembly while maintaining a continuous internal flow bore and pressure-rated connection at each end.
Operators commonly use a wellhead spacer spool to correct stack height, restore production tree elevation, maintain flowline alignment or create working clearance around master valves, hydraulic actuators, gauges, transmitters and chemical injection lines. Depending on the project, the same component may also be described as a wellhead extension spool, Christmas tree spacer spool, high-pressure spacer spool or custom wellhead riser spool.
Unlike a casing spool or tubing head, a spacer spool does not normally suspend casing or production tubing. Its main function is to provide a pressure-bearing extension between approved wellhead components.
2. Where is a wellhead spacer spool installed?
A wellhead spacer spool may be installed between a tubing head, tubing head adapter, master valve, production tree, injection tree, flowhead, surface test tree or another compatible API 6A component. The exact installation position determines the required nominal bore, working pressure, upper and lower connections, RTJ grooves and overall length.
On an oil or gas production wellhead, the spacer spool may sit below the Christmas tree to restore the required tree height and flowline elevation. In a water, gas or CO₂ injection system, it can create additional clearance for valves, instruments and injection lines. During surface well testing, flowback, workover or well intervention, a custom spacer spool may also help position temporary pressure-control equipment at the correct elevation.
A complete wellhead stack drawing should be reviewed before manufacturing because the surrounding equipment controls both the product classification and critical interface dimensions.
3. What is the difference between an API 6A spacer spool and an adapter spool?
An API 6A Wellhead Spacer Spool mainly adds height or separation while maintaining compatible bore and connection characteristics between the two adjoining components. For example, a spacer spool may be used when both ends require compatible 3-1/16″ 10,000 psi connections, but the production tree must be raised to preserve the existing flowline elevation.
An API 6A Adapter Spool is designed to connect different interfaces. It may change the nominal bore, pressure class, flange profile or connection arrangement between its top and bottom ends. A transition from a 5-1/8″ lower connection to a 3-1/16″ upper connection would normally require an adapter spool rather than a standard spacer spool.
The outside appearance of these components can be similar. Therefore, SGPE reviews the complete wellhead arrangement, bore, rated pressure and both end connections before confirming whether the project requires a spacer spool, adapter spool or another wellhead component.
4. What sizes and working pressures are available for API 6A Wellhead Spacer Spools?
Common API 6A Wellhead Spacer Spool nominal bores include 2-1/16″, 2-9/16″, 3-1/16″, 4-1/16″, 5-1/8″ and 7-1/16″. Typical rated working pressures may include 2,000, 3,000, 5,000, 10,000 and 15,000 psi, subject to the approved design, connection profile, material and confirmed manufacturing scope.
Smaller 2-1/16″ and 2-9/16″ spacer spools often serve compact production trees, chemical injection systems and mature-field replacement projects. A 3-1/16″ or 4-1/16″ high-pressure spacer spool may suit gas production, gas injection and surface well testing. Larger 5-1/8″ and 7-1/16″ designs may be considered for offshore wellheads, high-rate production, flowback or selected surface test systems.
Bore and pressure alone are not enough to identify the correct product. The RFQ should also confirm the API 6B or API 6BX flange profile, RTJ ring number, flanged or studded arrangement and exact overall length.
5. Which API 6A flange profiles and RTJ connections are available?
API 6A Wellhead Spacer Spools commonly use API 6B or API 6BX connection profiles, depending on the nominal bore, pressure class and existing wellhead arrangement. Available configurations may include double-flanged, double-studded and flanged-by-studded spacer spools.
The connection may use an R, RX or BX ring-type joint gasket. The selected RTJ ring must match the approved flange profile, pressure rating and ring groove geometry. Bore size alone cannot determine the correct gasket or connection because equipment with a similar bore may use different bolt circles, flange profiles or RTJ grooves.
For replacement projects, buyers should provide the complete flange designation, RTJ ring number, stud-hole arrangement, bolt-circle dimensions and clear photographs of all connection markings. These details help prevent sealing-interface errors and unnecessary field modification.
6. Can SGPE manufacture custom-length and low-profile spacer spools?
SGPE can review custom-length and low-profile API 6A Wellhead Spacer Spools according to the approved stack arrangement and manufacturing scope. The required dimension may be defined as flange face to flange face, shoulder to shoulder or another clearly marked reference on the project drawing.
A custom-length wellhead spacer spool can restore production tree elevation after a master valve, tubing head adapter or Christmas tree component has been replaced with equipment of a different installed height. It may also preserve an existing flowline, platform piping arrangement or structural support without requiring major field modification.
Low-profile and double-studded spacer spools are often considered for offshore platforms, compact well pads and crowded wellhead assemblies where height and radial access are limited. Final dimensions must still provide adequate body strength, stud engagement, wall thickness and machining allowance.
7. Can an API 6A Wellhead Spacer Spool include side outlets?
An API 6A Wellhead Spacer Spool may include threaded, flanged or studded side outlets when the approved body design allows them. These outlets can support pressure monitoring, chemical injection, corrosion-inhibitor injection, methanol injection, controlled bleed-off, fluid sampling or instrument connections.
This type of spacer spool can be useful on production trees, gas wellheads, water injection systems, CO₂ injection projects and surface well testing packages where additional monitoring or injection points are required. However, the outlet must form part of the engineered pressure-containing body rather than being added through uncontrolled field modification.
The inquiry should identify the number of outlets, nominal size, rated working pressure, connection type, intended function and clock position. A marked orientation drawing is strongly recommended because an incorrect outlet direction can interfere with actuators, valves, piping or access platforms.
8. Which materials suit sour service, CO₂ service, injection wells and offshore applications?
Forged carbon steel and low-alloy steel suit many conventional API 6A Wellhead Spacer Spool applications. Final material selection depends on the rated pressure, operating and design temperatures, produced or injected fluid, corrosion risk and approved purchase specification.
For sour-service or H₂S-containing wells, the technical review may cover material chemistry, heat treatment, hardness limits and any applicable NACE MR0175 or ISO 15156 requirement. Buyers should provide the available H₂S partial pressure, CO₂ content, chlorides, water-phase conditions and operating temperature rather than describing the application only as “sour service.”
Water injection, gas injection and CO₂ injection systems may require additional review of water chemistry, oxygen, chlorides, CO₂ and the corrosion-control program. Offshore and low-temperature spacer spools may also require impact-tested material, enhanced external coating, sealing-surface protection, lifting arrangements and export preservation. Corrosion-resistant inlay or overlay can be reviewed when required by the actual fluid conditions and approved project scope.
9. What testing, inspection and documentation can SGPE provide?
The inspection and documentation package for an API 6A Wellhead Spacer Spool depends on the approved purchase specification, Product Specification Level and inspection and test plan. The agreed scope may include material traceability, chemical and mechanical property records, heat-treatment records, hardness testing, impact testing and Positive Material Identification.
Applicable nondestructive examination may include ultrasonic testing, magnetic particle examination or liquid penetrant examination. Dimensional inspection can verify the bore, overall length, flange profiles, RTJ grooves, bolt circles, stud holes, side outlets and other drawing dimensions. Hydrostatic testing may also be completed under an approved procedure.
Available project documents may include the approved general arrangement drawing, Material Test Certificate, heat-treatment report, hardness report, NDE reports, dimensional inspection report, RTJ groove measurements, hydrostatic test report, coating record and Certificate of Conformity. Third-party inspection release documents can be included when independent witnessing or final acceptance forms part of the order.
10. Can SGPE replace an old spacer spool without the original drawing?
SGPE can review an obsolete, damaged or unsupported wellhead spacer spool even when the original manufacturing drawing is unavailable. However, the replacement cannot be confirmed from external appearance alone because the pressure rating, flange profile, RTJ groove and critical sealing dimensions may not be visible.
Useful references include the equipment nameplate, product markings, flange designations, RTJ ring numbers, verified bore, face-to-face length, bolt-circle dimensions, stud sizes, side outlet positions and clear photographs of both connections. Inspection reports and a qualified used sample can also support the technical review.
After comparing the available information, the engineering team can prepare a replacement spacer spool drawing for customer approval. This process is particularly useful for mature oilfields, brownfield upgrades, well reactivation programs and urgent replacement projects involving discontinued wellhead or Christmas tree equipment.
11. Can an API 6A Wellhead Spacer Spool be installed in a drilling BOP stack?
An API 6A Wellhead Spacer Spool should not automatically be treated as a drilling BOP stack component. API 6A spacer spools mainly serve production wellheads, Christmas trees, injection wellheads, surface well testing packages and selected intervention arrangements.
An active drill-through BOP stack may require an API 16A drilling spool designed for drilling pressure-control service. A drilling spool may also include choke and kill outlets and must match the specific BOP stack arrangement and operating requirements.
Because API 6A and API 16A spool components can look similar, the installation should always be identified before quotation. The inquiry should clearly state whether the spool will sit within a production wellhead, injection tree, test tree, workover arrangement or active drilling BOP system.
12. What affects the API 6A Wellhead Spacer Spool price?
The price of an API 6A Wellhead Spacer Spool depends on the complete technical and quality scope rather than the nominal bore alone. Larger bores, higher working pressures and longer custom bodies generally require larger forgings, more machining and a broader inspection scope.
The connection arrangement also affects cost. Double-flanged, double-studded, flanged-by-studded and side-outlet designs require different machining operations and material allowances. Sour-service material, low-temperature impact testing, corrosion-resistant inlay or overlay, additional NDE, third-party inspection and project-specific documentation can further change the quotation.
Order quantity, delivery schedule and replacement complexity also influence the final API 6A spacer spool price. For an accurate quotation, buyers should provide the bore, rated working pressure, top and bottom connections, flange profiles, RTJ ring numbers, exact overall length, fluid conditions, quality requirements, quantity and delivery destination.
Request an API 6A Wellhead Spacer Spool Quotation
Available configurations include double-flanged, double-studded, flanged-by-studded, low-profile and custom-length designs. Optional side outlets can support pressure monitoring, chemical injection, bleed-off or fluid sampling.
For sour-service, low-temperature, offshore or corrosive applications, SGPE reviews the body material, heat treatment, hardness, sealing-surface protection, NDE and documentation requirements.
For an accurate quotation, send the nominal bore, rated working pressure, top and bottom connections, flange profiles, RTJ ring numbers, overall length, side outlet details, temperature range, fluid conditions, quantity and delivery destination.
For replacement projects, provide the original drawing, nameplate photographs, flange markings or verified field dimensions.
E-Mail:
info@sgpe.com
