Description

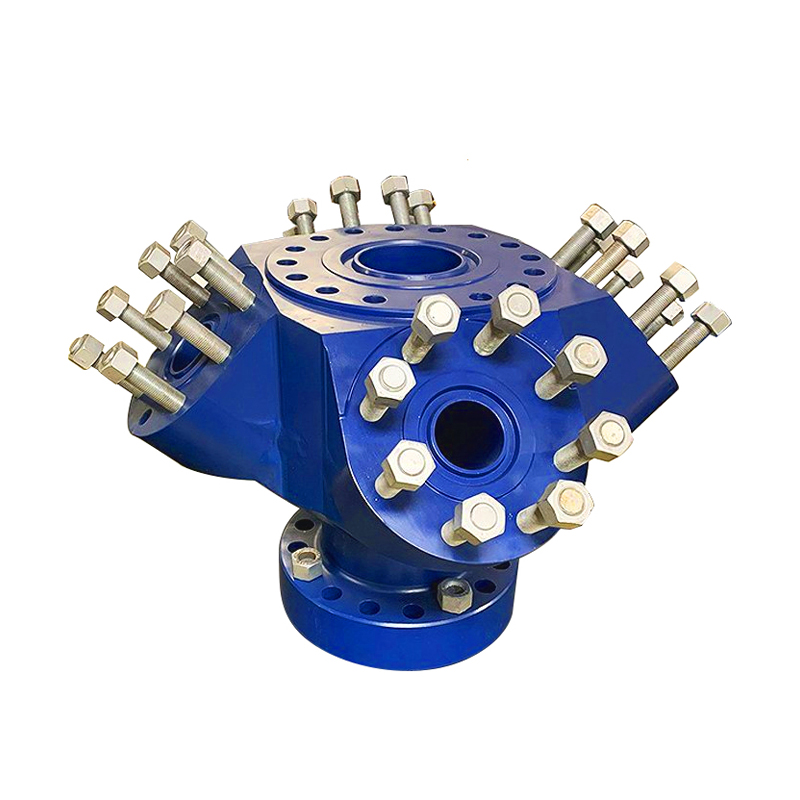

API 6A Frac Head for Oilfield Fracturing Service
SGPE manufactures API 6A Frac Heads for hydraulic fracturing, frac tree connection, wellhead stimulation, plug-and-perf operations, drop ball fracturing, acidizing, and high-pressure pumping service. A frac head, also called a fracturing head, goat head, wellhead frac head, stimulation head, or API 6A frac adapter, connects multiple high-pressure treating lines to the upper section of a frac tree or wellhead assembly.
During fracturing operations, the frac head receives flow from several pressure pumping lines and directs fracturing fluid, proppant, chemicals, and stimulation media into the wellbore. Because it works at a key pressure control point, the final design must match the bore size, working pressure, outlet layout, valve configuration, material class, temperature range, API 6A requirement, and field connection dimensions.
SGPE supplies standard and customized frac heads in common sizes such as 4-1/16″, 5-1/8″, and 7-1/16″. In addition, common pressure ratings include 5,000 psi, 10,000 psi, and 15,000 psi. Customers can also choose 40° or 60° outlet angles, 4 to 6 outlet configurations, flanged ends, studded ends, hammer union outlets, manual valve layouts, hydraulic valve layouts, sour service materials, and OEM designs based on project drawings.
As an API 6A Frac Head Supplier and API 6A Frac Head Manufacturer, SGPE supports drawing-based production, configuration review, and project document preparation for oilfield service companies, frac fleet operators, drilling contractors, wellhead equipment suppliers, EPC contractors, and oil and gas project buyers. Therefore, customers can improve connection compatibility, reduce field modification risk, and source reliable high-pressure fracturing equipment more efficiently.
Quick Specification Overview
| Item | SGPE API 6A Frac Head Options |
|---|---|
| Product Name | API 6A Frac Head / Fracturing Head / Goat Head |
| Other Common Names | API 6A Fracturing Head, High Pressure Frac Head, Wellhead Frac Head, Frac Head Assembly, Stimulation Head |
| Common Sizes | 4-1/16″, 5-1/8″, 7-1/16″ |
| Working Pressure | 5,000 psi, 10,000 psi, 15,000 psi |
| Outlet Angle | 40° or 60° |
| Outlet Quantity | 4 outlets, 5 outlets, 6 outlets, or customized layout |
| Outlet Size | 3-1/16″ to 4-1/16″ |
| Connection Type | Flanged, studded, hammer union, threaded, or customized connection |
| Valve Option | Manual valves, hydraulic valves, or combined configuration |
| Material Class | AA, BB, CC, DD, EE, FF, HH |
| PSL Level | PSL-1, PSL-2, PSL-3, PSL-4 |
| PR Level | PR-1, PR-2 |
| Temperature Range | -46°C to 121°C |
| Service Options | Standard service, sour service, low-temperature service |
| Standard | API 6A and project quality requirements |
| Customization | Drawing-based manufacturing and OEM service available |
Size, Pressure and Outlet Reference
The following table shows common specification combinations for API 6A frac heads. However, final dimensions, weights, flange details, studded connections, and outlet layouts should always follow customer drawings or confirmed datasheets.
| Main Bore Size | Common Working Pressure | Common Outlet Quantity | Common Outlet Size | Typical Use |
| 4-1/16″ | 5,000 psi / 10,000 psi | 4 outlets | 3-1/16″ or 4-1/16″ | Standard well stimulation and pressure pumping service |
| 5-1/8″ | 10,000 psi / 15,000 psi | 4 to 6 outlets | 3-1/16″ or 4-1/16″ | High-pressure fracturing, frac manifold connection, and wellhead stimulation |
| 7-1/16″ | 10,000 psi / 15,000 psi | 4 to 6 outlets | 3-1/16″ or 4-1/16″ | Large-bore frac tree, multi-line pumping, and demanding fracturing jobs |
| Customized Size | Project-specific | Project-specific | Project-specific | OEM frac head assembly or special wellhead connection |
What Is an API 6A Frac Head?
An API 6A frac head is a high-pressure wellhead component used in hydraulic fracturing and well stimulation operations. It normally mounts on a frac tree, wellhead assembly, tubing head adapter, master valve, or pressure control assembly. In most field applications, its main function is to combine several high-pressure flowlines and guide the flow into the well through a controlled path.
Common Names in Global RFQs
Different markets use different names for this product. For example, buyers may search for frac head, fracturing head, API 6A fracturing head, high pressure fracturing head, wellhead frac head, oilfield frac head, frac head assembly, API 6A goat head, fracturing goat head, frac tree head, or stimulation head.
In most RFQs, these names refer to a multi-outlet pressure control head used for frac tree and wellhead connection. Therefore, when buyers send an inquiry, drawings or clear connection details can help avoid misunderstanding.
Equipment Used with a Frac Head
A frac head often works with API 6A gate valves, high-pressure plug valves, check valves, frac manifolds, treating iron, hammer unions, flowline pup joints, crossovers, and other pressure control equipment. Therefore, buyers should confirm size, pressure rating, outlet arrangement, connection type, material class, PSL level, PR level, and service condition before ordering.
When drawings or datasheets are available, the engineering team reviews the field layout before production. As a result, this review helps avoid pressure mismatch, outlet interference, wrong connection dimensions, limited access for treating lines, and installation delays.
Main Features of SGPE API 6A Frac Head
SGPE API 6A frac heads provide a practical high-pressure connection solution for fracturing and stimulation service. In addition, the design focuses on pressure integrity, outlet spacing, connection compatibility, sealing reliability, and stable performance under demanding wellsite conditions.
Bore Size and Pressure Options
Common bore sizes include 4-1/16″, 5-1/8″, and 7-1/16″. Meanwhile, common working pressure options include 5,000 psi, 10,000 psi, and 15,000 psi. Because frac heads work with frac trees and pressure pumping lines, the selected size and pressure rating must match the actual wellhead system.
Outlet and Connection Options
Common outlet angles include 40° and 60°. In addition, SGPE supports 4 to 6 side outlets, 3-1/16″ to 4-1/16″ outlet sizes, flanged ends, studded ends, hammer union outlets, threaded connections, and customized connection designs.
Valve, Material and Service Options
Customers may choose manual valves, hydraulic valves, or mixed valve configurations. Moreover, material classes from AA to HH, PSL-1 to PSL-4, PR-1 and PR-2, sour service options, low-temperature service options, and OEM project requirements are available according to the confirmed specification.
Key Feature List
- API 6A design for frac tree and wellhead pressure control systems
- 5,000 psi, 10,000 psi, and 15,000 psi working pressure options
- 4-1/16″, 5-1/8″, and 7-1/16″ common bore sizes
- 40° and 60° outlet angle options
- 4 to 6 side outlets for multi-line frac connection
- 3-1/16″ to 4-1/16″ outlet size options
- Flanged, studded, hammer union, threaded, or customized end connections
- Manual, hydraulic, or mixed valve configurations
- Material classes from AA to HH
- PSL-1 to PSL-4 options for different project requirements
- PR-1 and PR-2 options when required
- Sour service frac head options for H2S or corrosive well conditions
- Operating temperature range from -46°C to 121°C
- OEM manufacturing and project-based customization
Since frac heads handle high pressure and frequent line connection, SGPE pays close attention to body strength, flow path arrangement, sealing areas, flange dimensions, studded connection accuracy, outlet direction, and compatibility with related oilfield equipment.
Frac Head Assembly and Connection Design
A frac head assembly normally includes the main body, multiple side outlets, end connections, valve interfaces, sealing areas, and lifting or handling features according to project requirements. Therefore, the API 6A frac head assembly must match the pressure rating and connection dimensions of the frac tree or wellhead equipment.
Outlet Layout and Field Clearance

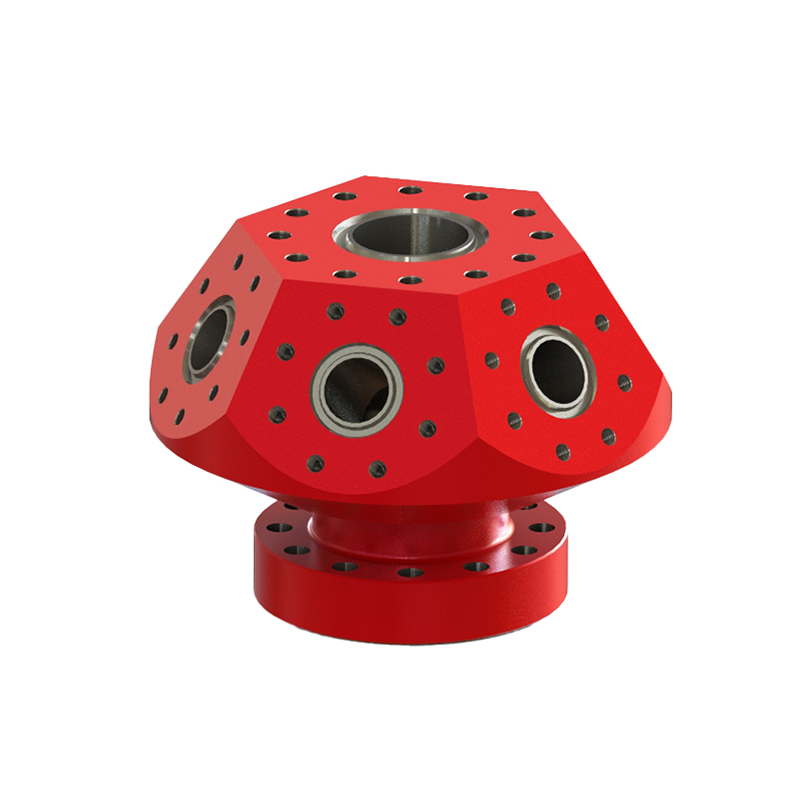

Customers may request a multi-port frac head, multi outlet frac head, multiple inlet frac head, or frac head with multiple inlets when several treating lines need to enter the frac tree from different directions. In these cases, outlet spacing and outlet angle matter because the layout affects treating iron installation, line clearance, valve access, and field safety.
The outlet arrangement can follow the customer’s frac tree structure and pressure pumping layout. Meanwhile, common outlet angles include 40° and 60°. Flanged, studded, hammer union, threaded, and special connections are available after technical review.
Common Configuration Options
| Configuration Type | Common Design Direction | Suitable Operation |
| Multi-Port Frac Head | Multiple side outlets with 40° or 60° layout | Multi-line pressure pumping and frac tree connection |
| Multi Outlet Frac Head | Several outlet connections for treating lines | Fracturing, acidizing, stimulation, and well service packages |
| Multiple Inlet Frac Head | Receives multiple high-pressure lines into one head assembly | Pressure pumping lines entering one frac tree connection point |
| Flanged Frac Head | API flange connection design | Standard wellhead or frac tree assembly |

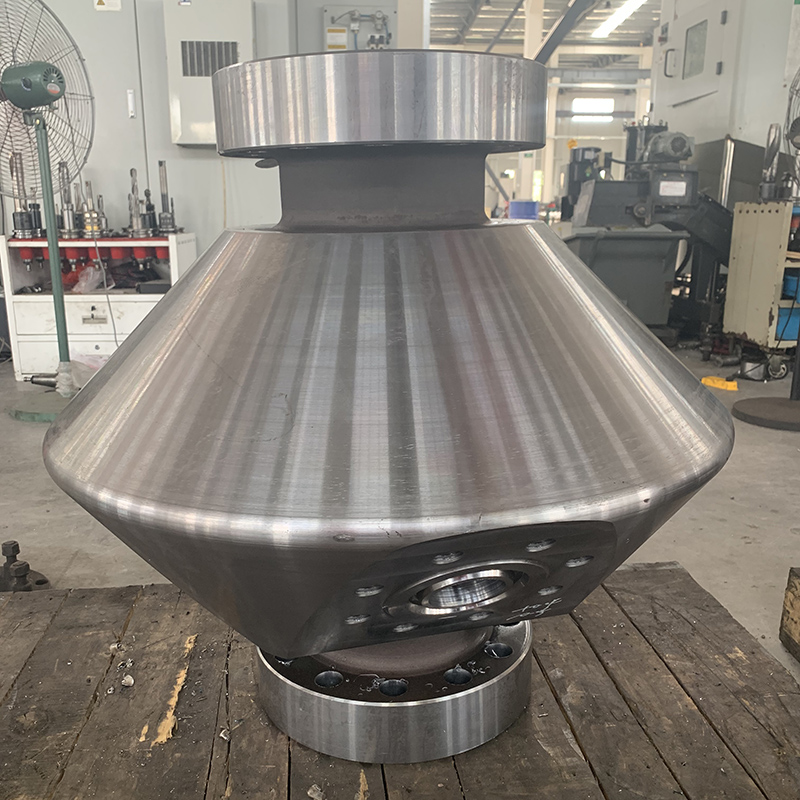

| Studded Frac Head | Studded connection design with reduced assembly height options | Compact frac tree layout or specific wellhead requirement |
| Sour Service Frac Head | Material and hardness control for sour or corrosive conditions | H2S / CO2 service when project specification requires it |
| Hydraulic Frac Head | Hydraulic valve operation for remote or faster control | High-pressure jobs with stricter operating safety requirements |
| Manual Valve Frac Head | Manual valve operation for standard field use | Conventional fracturing and stimulation service |
Available Frac Head Configurations
Drop Ball Frac Head
A drop ball frac head supports staged ball-drop fracturing operations. Operators use this design when they need to drop balls into the wellbore during stimulation stages. In addition, the structure should provide enough access for ball dropping while maintaining pressure integrity, sealing reliability, and safe connection with the frac tree.
This configuration often suits shale oil, shale gas, tight oil, and tight gas wells. Based on the project layout, the design may include customized top access, side outlets, manual valves, hydraulic valves, and special connection arrangements.
Plug-and-Perf Frac Head
A plug-and-perf frac head connects treating lines to the frac tree during repeated pumping stages. This type requires a strong body, accurate sealing design, and practical outlet layout because crews often connect several high-pressure lines in a compact area.
The configuration can follow customer drawings, frac manifold layout, treating iron direction, valve arrangement, and pressure pumping procedure. As a result, the final assembly can match the job site more smoothly and reduce connection adjustments before operation.
Perforating Frac Head
A perforating frac head supports fracturing jobs that involve perforating and stimulation operations. It works with wellhead equipment, pressure control assemblies, frac trees, and high-pressure pumping lines.
Threaded or Screw-Connection Frac Head
Some projects require threaded or screw-connection frac heads because of existing wellhead equipment, local connection standards, or special field preferences. This option gives customers another connection solution when a standard flanged frac head or studded frac head does not fully match the assembly.
The thread type, sealing structure, outlet direction, pressure rating, material class, and inspection documents can follow project requirements. Moreover, this configuration helps customers match older equipment or special stimulation packages.
Conventional Fracturing Head
A conventional fracturing head provides a proven solution for standard hydraulic fracturing, acidizing, well stimulation, and pressure pumping service. It normally includes multiple side outlets and a main bore connected to the frac tree or wellhead assembly.
SGPE conventional frac heads cover 5,000 psi, 10,000 psi, and 15,000 psi working pressure requirements. In addition, customers may request manual valves, hydraulic valves, flanged outlets, studded outlets, or hammer union connections.
Oilfield Applications
SGPE API 6A frac heads suit oil and gas operations that require high-pressure flowline connection and wellhead pressure control. They help operators connect multiple treating lines and maintain an efficient flow path during stimulation service.
Fracturing and Stimulation Operations
Common applications include hydraulic fracturing operations, plug-and-perf fracturing, drop ball fracturing, conventional frac service, acidizing operations, well stimulation service, pressure pumping service, shale oil stimulation, shale gas stimulation, tight oil stimulation, and tight gas stimulation.
Frac Tree and Flowline Connection
Common Application List
- Frac head for wellhead connection
- Frac head for fracturing operation
- Frac head for pressure pumping
- Hydraulic fracturing operations
- Plug-and-perf fracturing
- Drop ball fracturing
- Conventional frac service
- Acidizing operations
- Well stimulation service
- Pressure pumping service
- Frac tree connection
- Wellhead flowline connection
- Multi-line frac manifold connection
- Shale oil and shale gas well stimulation
- Tight oil and tight gas well stimulation
- Unconventional well completion
- Onshore fracturing projects
- Well completion and production enhancement
- High-pressure treating iron connection systems

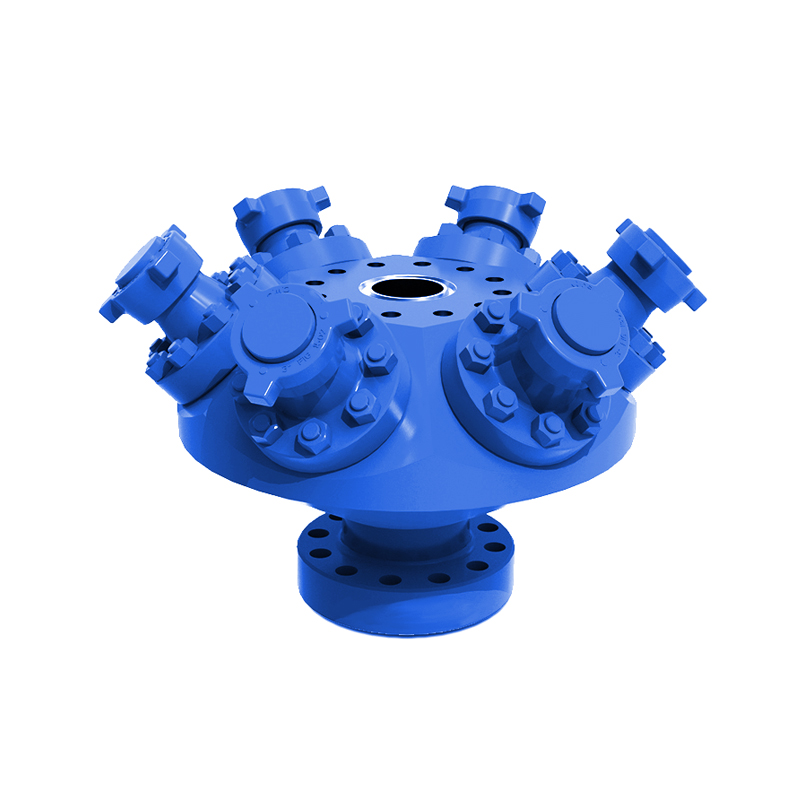

API 6A Frac Head for Frac Tree and Wellhead Systems
A frac tree needs reliable pressure control and strong connection equipment during fracturing operations. The frac head sits on the upper section of the assembly and brings several high-pressure lines into one controlled flow path. However, if the design does not match the frac tree, the field crew may face installation problems, delayed pumping schedules, or safety risks.
RFQ Information to Confirm
Before quotation, buyers should confirm the following details. In addition, drawings, datasheets, or existing connection photos can improve technical review efficiency.
| RFQ Item | What to Confirm |
| Main Bore Size | 4-1/16″, 5-1/8″, 7-1/16″, or customized size |
| Working Pressure | 5,000 psi, 10,000 psi, 15,000 psi |
| Outlet Quantity | 4 outlets, 5 outlets, 6 outlets, or custom design |
| Outlet Size | 3-1/16″, 4-1/16″, or project-specific size |
| Outlet Angle | 40°, 60°, or special outlet arrangement |
| End Connection | Flange, studded, hub, thread, or hammer union |
| Valve Type | Manual valve, hydraulic valve, or mixed configuration |
| Material Class | AA to HH |
| PSL Level | PSL-1 to PSL-4 |
| PR Level | PR-1 or PR-2 |
| Temperature Class | Required operating temperature range |
| Standard Requirement | API 6A, NACE if required, project specification |
| Documentation | MTC, pressure test report, inspection report, certificate |
Clear RFQ information helps SGPE prepare a faster quotation. In addition, it reduces technical back-and-forth before production.
Material Class, PSL and PR Selection
Correct material and specification selection helps reduce compliance risk and field problems. Therefore, buyers should choose material class, PSL level, and PR level according to well condition, pressure rating, temperature range, fluid composition, H2S / CO2 content, and project specification.
| Selection Item | Available Range | Buyer Should Confirm |
| Material Class | AA, BB, CC, DD, EE, FF, HH | Well fluid condition, corrosion risk, H2S / CO2 content |
| PSL Level | PSL-1 to PSL-4 | Required inspection, traceability, testing, and documentation level |
| PR Level | PR-1 or PR-2 | Performance requirement for project or end user specification |
| Temperature Range | -46°C to 121°C | Minimum and maximum operating temperature |
| Service Condition | Standard, sour, low-temperature, harsh service | NACE MR0175 / ISO 15156 requirement when applicable |
| Pressure Rating | 5,000 psi to 15,000 psi | Maximum working pressure of the frac tree or wellhead system |
When Higher PSL or PR Levels May Be Required
Many standard fracturing projects use PSL-2 or PSL-3. However, critical wells, national oil company projects, sour service wells, 15,000 psi fracturing jobs, or harsh operating environments may require higher PSL and PR levels. Therefore, if the RFQ specifies PR-2 or NACE service, buyers should state it clearly during the inquiry stage because it can affect design review, material selection, inspection, lead time, and cost.
Manual and Hydraulic Valve Options
API 6A frac heads can use manual valves, hydraulic valves, or combined valve configurations. Therefore, the valve arrangement should follow the frac tree design, pumping method, wellsite safety requirement, and operation procedure.
Manual Valve Frac Head
Manual valve frac heads provide a simple and practical solution for many standard fracturing and stimulation jobs. Moreover, they work well when crews can operate valves safely from the required position.
Hydraulic Frac Head
Hydraulic frac heads suit projects that need remote control, faster response, or reduced manual operation near high-pressure zones. In addition, they help improve field efficiency during pumping stages and may support safer operation around the frac tree.
Combined Valve Configuration
Some customers choose a mixed layout. For example, hydraulic valves may control main flow paths, while manual valves handle auxiliary outlets. As a result, the final assembly can balance field operation, safety, cost, and project requirements.
Manufacturing and Quality Control
Inspection and Testing Steps
| Quality Step | Purpose |
| Raw Material Inspection | Check material source, grade, and traceability |
| Chemical and Mechanical Review | Confirm material properties meet project requirements |
| Heat Treatment Control | Support required mechanical performance and hardness control |
| Precision Machining | Ensure flange, studded connection, bore, and outlet dimensions |
| Dimensional Inspection | Verify critical dimensions before assembly |
| NDE Inspection When Required | Check key areas according to project specification |
| Hydrostatic Pressure Testing | Confirm pressure integrity before delivery |
| Sealing Area Inspection | Reduce leakage risk during field operation |
| Final Assembly Check | Confirm layout, marking, valve interface, and connection details |
| Packing Inspection | Protect equipment during export shipment |
Quality Documents
SGPE provides inspection documents according to order requirements. For example, these documents may include material test certificates, pressure test reports, dimensional inspection reports, quality certificates, and other project documents.
Customization and OEM Manufacturing
Drawing and Datasheet Review
Customers can send drawings, datasheets, technical specifications, or photos of existing equipment. After that, the engineering team reviews the connection, pressure rating, material requirement, outlet layout, valve configuration, and document package.
Custom Manufacturing Options
| Custom Item | Available Direction |
| Bore Size | 4-1/16″, 5-1/8″, 7-1/16″, or project-specific size |
| Outlet Quantity | 4, 5, 6, or customized multi-outlet layout |
| Outlet Angle | 40°, 60°, or special outlet arrangement |
| End Connection | Flanged, studded, hammer union, threaded, or customized end |
| Valve Layout | Manual, hydraulic, or combined configuration |
| Service Condition | Standard, sour service, low-temperature, or harsh well condition |
| Marking | SGPE marking, OEM nameplate, or project-specific marking |
| Documents | MTC, pressure test report, inspection report, quality certificate |
As a result, customers can source frac heads that match the actual frac tree, wellhead system, treating iron layout, frac manifold, and pressure pumping operation.
How to Select the Right API 6A Frac Head
Selecting the right frac head helps reduce field installation risk and improve operation efficiency. Buyers should not only compare price. Instead, they should confirm pressure rating, connection type, material grade, outlet layout, API 6A level, and service condition.
Key Selection Points
| Selection Step | What to Check | Why It Matters |
| 1 | Main bore size and working pressure | Confirms compatibility with the frac tree or wellhead assembly |
| 2 | Outlet quantity and outlet size | Helps match treating iron, frac manifold, and pressure pumping lines |
| 3 | Outlet angle and line direction | Reduces line interference and improves field access |
| 4 | Manual or hydraulic valve configuration | Matches operating method and safety requirements |
| 5 | Flanged, studded, hammer union, or threaded connection | Avoids connection mismatch during installation |
| 6 | Material class, PSL, PR, and service condition | Supports project compliance and documentation requirements |
Cost and Design Difference
A 7-1/16″ 15,000 psi frac head requires a different design and cost level from a 4-1/16″ 5,000 psi frac head. Therefore, clear technical information at the inquiry stage helps avoid repeated revisions and delivery delays.
Common Buyer Search Terms and RFQ Meanings
Buyers may use different search terms when looking for the same product. Therefore, the following tables help match common API 6A frac head keywords with real RFQ meanings and purchase needs.
Common Product Names for API 6A Frac Head
| Buyer Search Term | What Buyers Usually Need |
| API 6A Frac Head | Fracturing head manufactured according to API 6A |
| Frac Head / Fracturing Head | High-pressure head for frac tree, wellhead, or stimulation service |
| API 6A Fracturing Head | API 6A head for frac tree or wellhead stimulation |
| High Pressure Frac Head | Frac head for 5,000 psi, 10,000 psi, or 15,000 psi service |
| Wellhead Frac Head | Frac head installed on a wellhead or frac tree |
| Oilfield Frac Head | Oilfield pressure control head for fracturing service |
| Frac Head Assembly | Complete frac head structure with body, outlets, and connections |
| Stimulation Head | Frac head used for well stimulation and pressure pumping service |
| Goat Head / API 6A Goat Head | Multi-outlet fracturing head used on frac tree assemblies |
Configuration and RFQ Terms for Frac Head Selection
| Buyer Search Term | What Buyers Usually Need |
| Multi-Port Frac Head | Frac head with multiple side outlets for treating lines |
| Multi Outlet Frac Head | Frac head designed with several outlet connections |
| Multiple Inlet Frac Head | Frac head that receives several pressure pumping lines |
| Frac Head for Wellhead | Frac head connected to wellhead equipment |
| Frac Head for Pressure Pumping | Frac head for high-pressure pumping lines |
| Frac Tree Goat Head | Goat head used on a frac tree assembly |
| Studded Frac Head | Frac head with studded end connection |
| Flanged Frac Head | Frac head with API flanged connection |
| Sour Service Frac Head | Frac head for sour or corrosive well conditions |
| API 6A Frac Head Supplier | Supplier offering API 6A frac head products |
| API 6A Frac Head Manufacturer | Manufacturer producing API 6A frac heads by drawing or project requirement |
Why Choose SGPE?
SGPE focuses on high-pressure oilfield equipment for wellhead, pressure control, fracturing, and production service. Customers often need more than a standard product. Therefore, they need the correct configuration, reliable pressure performance, complete documentation, and clear technical communication before production.
SGPE Support Scope
- API 6A frac head manufacturing
- Custom frac head design based on drawings or datasheets
- OEM production and private label support
- Project-based technical review before quotation
- 5,000 psi, 10,000 psi, and 15,000 psi pressure options
- Manual and hydraulic valve configurations
- Flexible 40° and 60° outlet layouts
- Flanged, studded, hammer union, and customized connections
- Material and service condition review
- Complete inspection and test documents
- Export packing and international delivery support
- Fast RFQ response for oilfield projects
Typical Project Examples
Documents Available
| Document | Availability |
| Material Test Certificate | Available according to order requirement |
| Pressure Test Report | Available after pressure test |
| Dimensional Inspection Report | Available when required |
| Quality Certificate | Available |
| Product Photos Before Shipment | Available |
| Nameplate and Marking Photos | Available |
| Packing List and Commercial Invoice | Available |
| Operation or Maintenance Information | Available when required |
| Third-Party Inspection Support | Available when agreed before order |
If the project requires special inspection, third-party inspection, NACE compliance, PSL-3, PSL-4, PR-2, or special marking, customers should mention it during the RFQ stage. Then, SGPE can confirm the document scope before production.
Operation, Maintenance and After-Sales Support
Proper operation and maintenance help extend service life and reduce field risk. Before use, operators should check the connection interface, sealing areas, studs, nuts, outlet ports, valve status, pressure rating, and matching equipment. Moreover, the frac head should not operate beyond its rated working pressure or outside the approved temperature range.
Inspection After Fracturing Service
After each fracturing job, field crews should clean the flow path, inspect sealing surfaces, check outlet connections, and review wear caused by proppant or abrasive flow. For sour service or harsh well conditions, customers should follow the project maintenance procedure and inspection schedule.
Technical Support
Related Products
Customers who purchase API 6A Frac Heads may also need related wellhead and flowline equipment. Therefore, SGPE supports package inquiries for the following products:
| Related Product | Use with Frac Head |
| API 6A Gate Valves | Wellhead and frac tree pressure control |
| High-Pressure Plug Valves | Treating line shut-off and flow control |
| Frac Manifolds | Multi-line pressure pumping distribution |
| Choke Manifolds | Well control and flow restriction service |
| Check Valves | Backflow prevention in pressure lines |
| Hammer Unions | High-pressure flowline connection |
| Flowline Pup Joints | Treating line length adjustment |
| Swivel Joints | Flexible line direction adjustment |
| Treating Iron | High-pressure fracturing line system |
| API 6A Flanges | Wellhead and pressure control connection |
| Adapter Spools | Connection transition between equipment |
| Frac Tree Components | Complete fracturing assembly support |
Package sourcing helps customers improve connection compatibility and reduce procurement time.
Frequently Asked Questions About API 6A Frac Heads
1. What is an API 6A Frac Head used for?
An API 6A frac head connects multiple high-pressure frac lines to a frac tree or wellhead assembly during hydraulic fracturing, well stimulation, plug-and-perf operations, drop ball fracturing, acidizing, and pressure pumping service. As a result, it guides fracturing fluid, proppant, chemicals, and stimulation media into the wellbore through a controlled flow path.
Since it works at a key pressure control position, buyers should confirm the bore size, working pressure, outlet quantity, connection type, material class, PSL level, and PR requirement before ordering.
2. What is the difference between a frac head, fracturing head, and goat head?
Frac head, fracturing head, and goat head usually refer to the same oilfield product. For example, many field crews use “goat head” because the side outlets look like horns. In international RFQs, buyers may also call it a wellhead frac head, frac goat head, multi-port frac head, stimulation head, API 6A goat head, or API 6A frac adapter.
Although the name changes by market or project, the product normally connects several pressure pumping lines to the frac tree or wellhead during fracturing operations.
3. What sizes of API 6A Frac Head does SGPE manufacture?
SGPE commonly manufactures API 6A frac heads in 4-1/16″, 5-1/8″, and 7-1/16″ sizes. In most projects, these sizes suit many frac tree, wellhead, and high-pressure stimulation applications.
In addition, SGPE reviews customized bore sizes when customers provide drawings, datasheets, flange details, studded connection dimensions, or photos of existing equipment. Therefore, this review helps reduce connection mismatch and field installation delays.
4. Can SGPE manufacture a 7-1/16″ 15,000 psi frac head?
Yes. SGPE manufactures 7-1/16″ 15,000 psi API 6A frac heads according to customer drawings, frac tree layout, outlet arrangement, material class, PSL level, PR requirement, and connection details. Therefore, this high-pressure frac head option suits demanding well stimulation and pressure pumping projects.
For faster technical review, customers should provide the main bore size, working pressure, outlet size, outlet quantity, outlet angle, valve configuration, end connection, service condition, and required documents.
5. What working pressure options are available for SGPE frac heads?
SGPE API 6A frac heads commonly cover 5,000 psi, 10,000 psi, and 15,000 psi working pressure ratings. However, the final design depends on bore size, end connection, outlet layout, material grade, temperature range, and API 6A requirement.
For high-pressure jobs, buyers should also confirm whether the project requires PSL-3, PSL-4, PR-2, NACE MR0175 / ISO 15156, or special inspection documents. As a result, clear pressure information helps SGPE select the correct design direction from the beginning.
6. What outlet configurations does SGPE provide?
SGPE provides 4-outlet, 5-outlet, 6-outlet, and customized multi-port frac head configurations. In addition, common outlet angles include 40° and 60°, while outlet sizes usually range from 3-1/16″ to 4-1/16″.
The right outlet layout depends on frac tree design, treating iron direction, frac manifold position, wellsite space, and pressure pumping line arrangement. Therefore, when customers provide a field layout or existing equipment drawing, SGPE can review the outlet direction and connection compatibility.
7. What is the difference between a flanged frac head and a studded frac head?
A flanged frac head uses API flange connections to match wellhead, frac tree, or pressure control equipment with corresponding flanges. By contrast, a studded frac head uses a studded connection design, which can help reduce overall assembly height or match a specific frac tree structure.
Both designs suit fracturing service. However, the correct choice depends on the wellhead layout, pressure rating, installation space, sealing requirement, and project specification.
8. Does SGPE offer hydraulic frac heads and manual valve frac heads?
Yes. SGPE manufactures API 6A frac heads with manual valves, hydraulic valves, or combined valve configurations. In general, manual valve frac heads suit many standard fracturing and stimulation jobs because they offer a simple and practical operation method.
Meanwhile, hydraulic frac heads suit projects that require remote control, faster response, or reduced manual operation near high-pressure zones. In some projects, hydraulic valves control main flow paths, while manual valves handle auxiliary outlets.
9. Can SGPE manufacture drop ball frac heads and plug-and-perf frac heads?
Yes. SGPE manufactures drop ball frac heads, plug-and-perf frac heads, perforating frac heads, conventional fracturing heads, and threaded or screw-connection frac heads. For example, a drop ball frac head supports staged ball-drop fracturing operations, while a plug-and-perf frac head supports repeated pumping stages during well completion.
In addition, these configurations often require accurate outlet spacing, reliable sealing areas, correct pressure rating, and practical field access. Therefore, SGPE reviews the customer’s operation method before recommending the final structure.
10. What material class, PSL level, and PR level should buyers choose?
Buyers should choose the material class, PSL level, and PR level according to the well condition, pressure rating, temperature range, fluid composition, H2S / CO2 content, and project specification. In addition, SGPE manufactures frac heads with material classes from AA to HH, PSL-1 to PSL-4, and PR-1 or PR-2 requirements.
Many standard projects use PSL-2 or PSL-3. However, critical wells, sour service, national oil company projects, and high-pressure fracturing jobs may require higher levels. Therefore, buyers should state NACE, PSL, PR, and documentation requirements clearly at the inquiry stage.
11. What information should I provide for an API 6A Frac Head quotation?
For a faster and more accurate quotation, please provide the main bore size, working pressure, outlet quantity, outlet size, outlet angle, end connection, valve configuration, material class, PSL level, PR level, temperature class, service condition, quantity, and required documents.
In addition, drawings, datasheets, photos, or existing frac tree connection dimensions help SGPE confirm the correct design. If the project needs OEM marking, third-party inspection, NACE compliance, special packing, or a complete document package, please mention these requirements in the RFQ.
12. Can SGPE customize API 6A Frac Heads for OEM or project-based orders?
Yes. SGPE supports customized API 6A frac head manufacturing for oilfield service companies, frac fleet operators, wellhead equipment suppliers, drilling contractors, EPC companies, and oil and gas equipment distributors.
In addition, customers may request customized bore sizes, outlet quantities, outlet angles, flanged ends, studded ends, hammer union outlets, manual or hydraulic valve layouts, sour service materials, low-temperature service designs, OEM nameplates, and project document packages. After reviewing drawings and datasheets, SGPE can manufacture the frac head to match the customer’s actual frac tree, wellhead system, and pressure pumping layout.
Request a Quote for API 6A Frac Head
SGPE supplies API 6A frac heads in several configurations, including API 6A fracturing heads, goat head frac heads, wellhead frac heads, multi-port frac heads, multi outlet frac heads, studded frac heads, flanged frac heads, and sour service frac heads. In addition, these products support frac tree connection, wellhead stimulation, hydraulic fracturing, plug-and-perf operations, drop ball fracturing, acidizing, conventional frac service, and pressure pumping applications.
To receive a faster quotation, please include the required size, working pressure, outlet layout, connection type, valve configuration, material grade, PSL/PR level, quantity, and delivery destination.
E-Mail:
info@sgpe.com
