Description

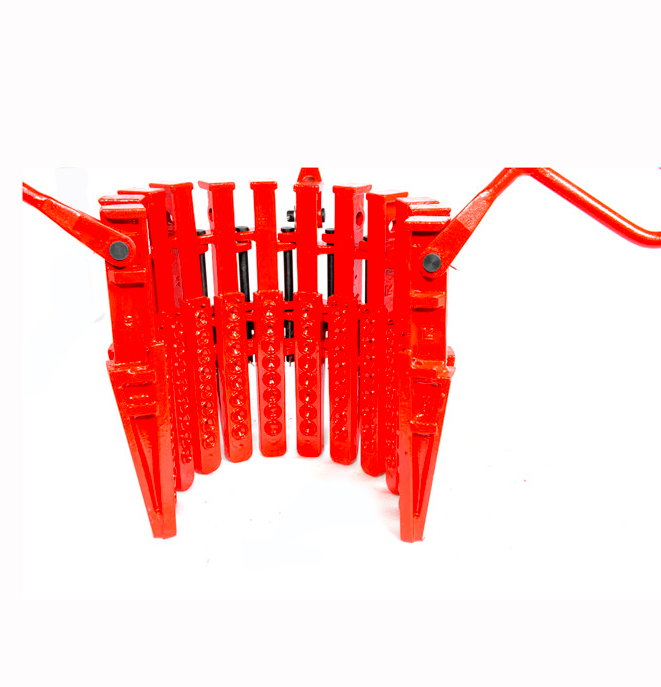

DCS Type Drill Collar Slips
SGPE DCS Type Drill Collar Slips are API Spec 7K oilfield slips designed for secure drill collar handling on petroleum drilling rigs, workover rigs and well service units. Used with rotary tables and insert bowls, these drill collar slips help crews grip, hold and support drill collars during drilling, tripping, workover, well servicing and rig floor tubular handling operations.
The DCS series includes three model groups: DCS-S, DCS-R and DCS-L. Together, they cover drill collar outside diameters from 3 in to 14 in. Customers can select the suitable model according to drill collar OD, insert bowl type, rotary table arrangement, well depth and field operating requirements.
SGPE manufactures DCS drill collar slips with high-strength alloy steel, replaceable slip inserts and a clear size structure. This helps drilling contractors, oilfield service companies and equipment buyers improve field compatibility, reduce selection mistakes and support safer rig floor work. SGPE also provides model confirmation, technical documents, replacement inserts, spare parts and export packing for international oilfield projects.
Product Overview
DCS Type Drill Collar Slips are rotary table slips used to grip and support drill collars in oil and gas field operations. Rig crews use them when preparing the drill string, making connections, performing tripping operations or handling heavy tubulars on the rig floor.
Drill collars are heavier than regular drill pipe, so they need stable and properly matched handling tools. A suitable set of API 7K drill collar slips helps crews keep the drill collar under better control, reduce slippage risk and improve daily tubular handling efficiency.
SGPE DCS drill collar slips match different drill collar OD ranges and work with corresponding insert bowls. DCS-S covers smaller drill collar sizes, DCS-R covers common medium-size ranges, and DCS-L handles larger drill collars used in deeper wells and heavier drilling environments.
Key Features of DCS Type Drill Collar Slips
API Spec 7K Oilfield Design
SGPE manufactures DCS Type Drill Collar Slips according to API Spec 7K requirements for drilling and well servicing equipment. These API 7K drill collar slips are suitable for oilfield environments where crews need reliable handling tools for daily rig floor operations.
Correct size matching matters in field use. The slip model, drill collar OD and insert bowl should match before operation. A proper match improves contact between the slip inserts and the drill collar surface, which helps crews handle tubulars more safely during tripping, drill string preparation and connection work.
Wide Drill Collar Size Range
SGPE DCS Type Drill Collar Slips cover drill collar outside diameters from 3 in to 14 in. This range allows drilling contractors and service companies to use one product series for different rigs, well depths and tubular programs.
DCS-S handles smaller drill collars, DCS-R covers medium OD ranges, and DCS-L supports larger drill collars for heavy-duty field conditions. This model structure makes product selection easier for buyers, rig maintenance teams and oilfield service providers.
DCS-S, DCS-R and DCS-L Model Options
SGPE offers three DCS model groups for different drill collar size ranges. Each group works with suitable insert bowls and supports specific rig floor applications.
DCS-S suits smaller OD drill collars and light to medium handling tasks. DCS-R fits medium drill collar sizes for general petroleum drilling, workover and well servicing operations. DCS-L handles larger drill collars used in deeper wells, larger drill strings and heavier oilfield drilling applications.
This clear model arrangement helps customers reduce mismatch problems before purchase. It also helps rig crews prepare suitable slips, inserts and spare parts before field operation.
High-Strength Alloy Steel Construction
SGPE uses high-strength alloy steel for the slip body. This material helps the slips handle rig floor impact, vibration, mud, drilling fluids, repeated contact and demanding oilfield conditions.
A strong body structure supports reliable grip and longer service life. For drilling rigs, workover rigs and well service units, durable oilfield slips help reduce downtime and keep tubular handling work more stable.

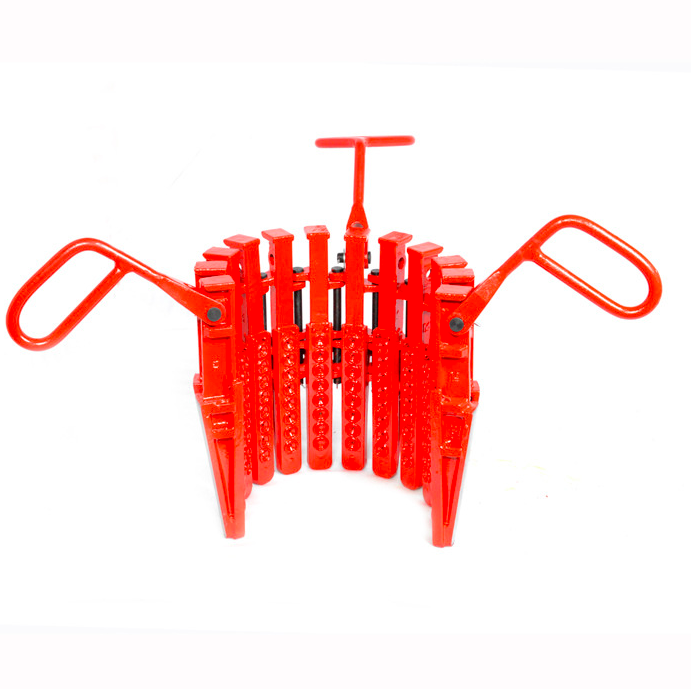

Replaceable Slip Inserts or Dies
DCS drill collar slips use suitable slip inserts or dies for different drill collar sizes. The insert contacts the drill collar directly, so it plays a key role in gripping performance and service life.
Customers should choose replacement inserts according to the DCS model and drill collar OD. When inserts show visible wear, deformation, damage or reduced bite, crews should replace them in time. Proper insert maintenance helps extend tool life and supports safer drill collar handling on the rig floor.
Designed for Rotary Tables and Insert Bowls
DCS Type Drill Collar Slips work with rotary tables and matching insert bowls. The correct combination of drill collar slip, drill collar OD, rotary table and insert bowl helps improve field compatibility.
Before ordering, customers should confirm the drill collar size range, insert bowl type and rig floor operating conditions. SGPE can review these details and recommend the suitable DCS drill collar slip for petroleum drilling, oilfield workover or well servicing applications.
Main Technical Parameters of DCS Type Drill Collar Slips
| Model | Drill Collar OD, in | Drill Collar OD, mm | Approx. Product Weight, kg | Approx. Product Weight, lb | Insert Bowl |
|---|---|---|---|---|---|
| DCS-S | 3–4 in | 76.2–101.6 mm | 51 kg | 112 lb | API or No. 3 |
| DCS-S | 4–4 7/8 in | 101.6–123.8 mm | 47 kg | 103 lb | API or No. 3 |
| DCS-R | 4 1/2–6 in | 114.3–152.4 mm | 54 kg | 120 lb | No. 2 |
| DCS-R | 5 1/2–7 in | 139.7–177.8 mm | 51 kg | 112 lb | No. 2 |
| DCS-R | 6 3/4–8 1/4 in | 171.4–209.6 mm | 70 kg | 154 lb | No. 2 |
| DCS-R | 8–9 1/2 in | 203.2–241.3 mm | 78 kg | 173 lb | No. 2 |
| DCS-L | 8 1/2–10 in | 215.9–254 mm | 84 kg | 185 lb | No. 1 |
| DCS-L | 9 1/4–11 1/4 in | 235–285.7 mm | 90 kg | 198 lb | No. 1 |
| DCS-L | 11–12 3/4 in | 279.4–323.9 mm | 116 kg | 256 lb | No. 1 |
| DCS-L | 12–14 in | 304.8–355.6 mm | 107 kg | 237 lb | No. 1 |
Note: The kg and lb values in the table show approximate product weights. They do not show working load ratings. Please confirm drill collar OD, insert bowl type, rotary table arrangement and rig floor operating requirements before selecting a model.
Applications in Petroleum Industry
Petroleum Drilling Operations
Rig crews use DCS Type Drill Collar Slips to grip and support drill collars during petroleum drilling operations. The slips help crews prepare the drill string, make connections, perform tripping work and handle heavy tubulars on the rig floor.
A suitable API 7K drill collar slip can reduce slippage risk and improve handling stability. For drilling contractors, this supports safer daily drilling work and smoother tubular handling procedures.
Oilfield Workover Operations
Workover rigs often handle drill collars, heavy tubulars and related oilfield tools during maintenance and intervention work. SGPE DCS drill collar slips help crews position and support drill collars during pulling, running, repair and service operations.
Because workover jobs may involve different well conditions, rig layouts and tubular sizes, customers should choose the correct DCS model according to drill collar OD, insert bowl type and field requirements.
Rig Floor Tubular Handling
Rig floor tubular handling requires accurate size matching, dependable tools and regular inspection. DCS Type Drill Collar Slips work with rotary tables and insert bowls to support drill collar handling during tripping, drill string preparation and related rig floor procedures.
The slips help crews hold drill collars in position while they complete oilfield handling tasks. They suit drilling rigs, workover rigs and well service units that need practical drill collar handling equipment.
Well Servicing Operations
Well service units need reliable oilfield handling tools for repair, maintenance and service work. SGPE DCS Type Drill Collar Slips provide stable gripping support when crews handle drill collars and heavy tubulars in oil and gas field operations.
For well servicing companies, the proper slip model helps reduce mismatch problems and improves field compatibility. SGPE can recommend a suitable model based on drill collar OD, insert bowl type, rig layout and application details.
Deep Well and Heavy-Duty Drilling Applications
DCS-R and DCS-L models suit larger drill collar sizes used in deeper wells and heavier drilling environments. These models help crews handle larger drill collars when they need stronger rig floor tools for demanding field conditions.
For deep well projects, customers should check drill collar size, insert bowl type, rotary table arrangement, spare insert needs and maintenance plan before placing an order. SGPE can help review these details and provide model selection support.
Oil and Gas Field Service Projects
Oil and gas field service companies often manage different tubular sizes across multiple jobs. DCS Type Drill Collar Slips help these teams prepare for drilling, workover and service projects with a clear model structure.
When a service company works with several rigs or well programs, it needs accurate size matching and reliable spare parts. SGPE supports these needs with DCS-S, DCS-R and DCS-L model options, replacement inserts and technical support.
Model Selection Guide

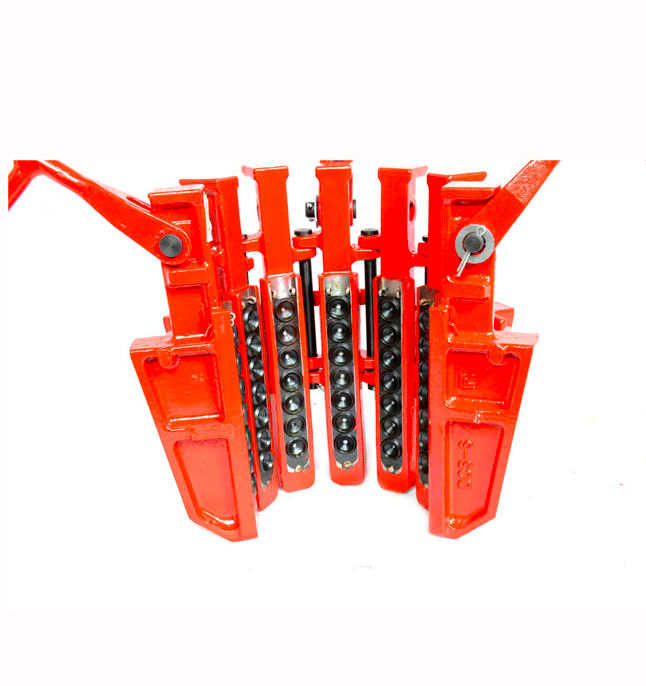

DCS-S Drill Collar Slips
DCS-S Drill Collar Slips cover smaller drill collar sizes from 3 in to 4 7/8 in. Rig crews often use them for light to medium drill collar handling on drilling rigs and well service units.
Customers may choose DCS-S when the operation uses smaller drill collars and compatible API or No. 3 insert bowls. This model provides a practical option for smaller OD ranges while meeting API 7K oilfield handling requirements.

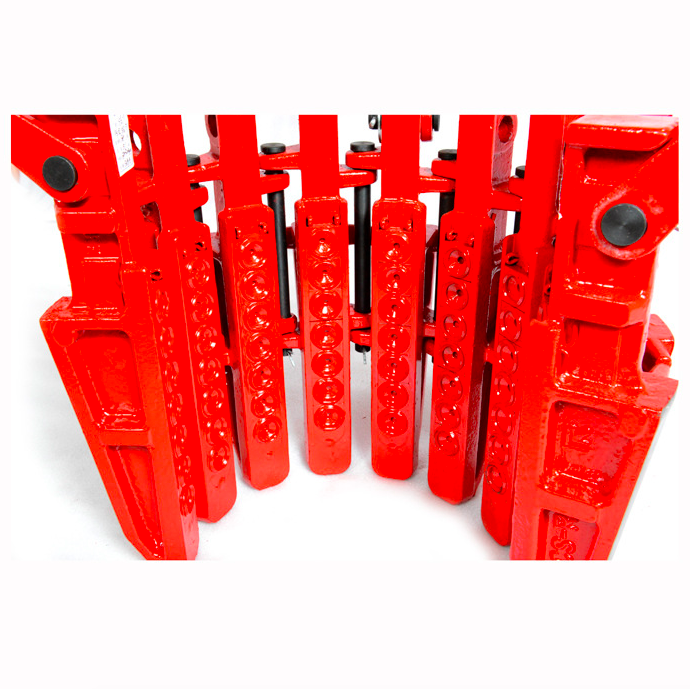

DCS-R Drill Collar Slips
DCS-R Drill Collar Slips cover medium drill collar sizes from 4 1/2 in to 9 1/2 in. This range suits many petroleum drilling, workover and rig floor tubular handling applications.
DCS-R models work with No. 2 insert bowls and cover several common drill collar OD ranges. For customers who handle different medium-size drill collars, DCS-R provides flexible selection within the DCS series.
DCS-L Drill Collar Slips
DCS-L Drill Collar Slips cover larger drill collar sizes from 8 1/2 in to 14 in. Rig crews use DCS-L for heavy-duty drill collar handling in oilfield drilling, workover and well servicing environments.
This model group works with No. 1 insert bowls and suits large OD drill collars. Customers working on deeper wells, larger drill strings or heavy-duty rig floor operations can select DCS-L as the main option.
How to Choose the Right DCS Drill Collar Slip
Start with the drill collar outside diameter. Then check the insert bowl type, rotary table equipment, rig floor layout and operating environment.
For smaller drill collars, DCS-S usually provides the right size range. For medium OD drill collars, DCS-R covers common drilling and workover applications. For larger drill collars, DCS-L offers the required size coverage for heavy-duty field operations.
Customers should also consider spare slip inserts or dies. Inserts wear during field use, especially in harsh drilling environments with mud, drilling fluids and repeated metal contact. Keeping suitable replacement inserts on site helps crews maintain gripping performance and reduce downtime.
When customers send SGPE the drill collar OD, insert bowl type, required quantity and field application, our team can recommend the proper DCS Type Drill Collar Slips and prepare a quotation.
Compatibility with Rotary Tables and Insert Bowls
DCS Type Drill Collar Slips need proper matching with rotary tables and insert bowls. The insert bowl provides the seating area, while the slips grip the drill collar. If the slip model, drill collar OD and insert bowl do not match, the tool may not perform as expected.
Customers should check the technical table before ordering. DCS-S models work with API or No. 3 insert bowls. DCS-R models work with No. 2 insert bowls. DCS-L models work with No. 1 insert bowls.
It also helps to confirm the rig floor layout, rotary table condition and existing equipment standard. This information allows SGPE to recommend the correct DCS drill collar slip and suitable replacement inserts.
Spare Parts and Replacement Inserts
Slip inserts or dies directly affect gripping performance. They contact the drill collar surface and help the slip hold the tubular during rig floor operations. Over time, inserts may wear because of repeated use, mud, drilling fluids, vibration and metal contact.
SGPE can supply replacement slip inserts for DCS Type Drill Collar Slips. Customers should provide the DCS model, drill collar OD and required quantity when ordering spare parts. If the rig crew uses the slips frequently, SGPE recommends keeping spare inserts on site.
A proper spare parts plan helps reduce downtime. It also helps crews maintain safer drill collar handling during petroleum drilling, workover and well servicing operations.
Maintenance and Inspection Tips
Regular inspection helps DCS Type Drill Collar Slips perform safely and last longer. Crews should check the slip body, inserts, pins and contact surfaces before each operation. They should look for cracks, deformation, abnormal wear, loose parts and damaged inserts.
After operation, crews should clean off mud, drilling fluids, oilfield debris and metal particles. Clean contact surfaces help the inserts grip more effectively and reduce unnecessary wear.
Crews should replace worn slip inserts in time. A worn insert may reduce gripping performance and increase slippage risk during drill collar handling. Customers who run frequent drilling or workover operations should keep suitable spare inserts on site.
Crews should also store the slips in a dry and clean area when they do not use them. Proper storage helps reduce corrosion and keeps the tool ready for the next operation.
Why Choose SGPE DCS Type Drill Collar Slips?
Oilfield-Focused Product Selection
SGPE focuses on oilfield drill collar handling tools for drilling rigs, workover rigs and well service units. The DCS series supports petroleum drilling, tripping, workover, well servicing and heavy-duty tubular handling.
This application-focused product range helps buyers choose slips that match real oil and gas field conditions instead of general-purpose lifting or clamping work.
Clear Model Range for Easier Procurement
DCS-S, DCS-R and DCS-L models help customers choose the right API 7K drill collar slip according to drill collar size, insert bowl type and field application. This clear model structure reduces confusion during procurement and helps buyers match rig floor equipment more accurately.
Replacement Inserts and Spare Parts Support
SGPE can supply replacement slip inserts or dies for DCS Type Drill Collar Slips. Customers can order spare parts together with the main tool or request them later according to field maintenance needs.
Replacement parts matter because inserts directly affect gripping performance. With the right spare parts plan, crews can maintain the tool more easily and extend service life.
Technical Support Before Ordering
SGPE helps customers confirm the suitable DCS slip model before ordering. Customers can share drill collar OD, insert bowl type, rotary table arrangement, rig application and quantity. Our team will review the information and help avoid model selection mistakes.
This helps overseas buyers confirm the right model before purchase and avoid mismatch problems after delivery.
Export Supply for Oilfield Projects
SGPE supports international oilfield projects with export packing, technical documents, model confirmation and spare parts supply. For buyers who need oilfield slips, drill collar handling tools, API 7K rotary slips or rig floor tubular handling equipment, SGPE can help confirm the model, prepare documents and quote the required quantity.
Information Needed Before Ordering
To help SGPE confirm the right DCS Type Drill Collar Slips, customers can share the drill collar OD, required DCS model if already known, insert bowl type and rotary table arrangement. These details help our team check whether the selected drill collar slip matches the rig floor equipment and actual field application.
Customers can also provide the required quantity, rig type and operation type, such as drilling rig, workover rig or well service unit application. If replacement inserts, spare parts, export packing or special delivery requirements are needed, please include this information when sending the inquiry.
E-Mail:
info@sgpe.com
FAQ About DCS Type Drill Collar Slip
1. What are DCS Type Drill Collar Slips used for?
DCS Type Drill Collar Slips grip and hold drill collars during petroleum drilling, workover and well servicing operations. These API 7K oilfield slips work with rotary tables and insert bowls on the rig floor.
They support drill collar handling during tripping, drill string preparation, connection work and other tubular handling jobs. Because drill collars are heavier than regular drill pipe, a properly matched set of DCS drill collar slips helps improve gripping stability and reduce slippage risk.
2. What drill collar sizes do SGPE DCS Type Drill Collar Slips cover?
SGPE DCS Type Drill Collar Slips cover drill collar outside diameters from 3 in to 14 in. The exact size range depends on the selected model, including DCS-S, DCS-R and DCS-L.
Before ordering, customers should confirm the drill collar OD, insert bowl type and field application. This information helps SGPE recommend the correct API 7K drill collar slip for drilling rigs, workover rigs or well service units.
3. What is the difference between DCS-S, DCS-R and DCS-L drill collar slips?
DCS-S handles smaller drill collar sizes from 3 in to 4 7/8 in. DCS-R covers medium drill collar sizes from 4 1/2 in to 9 1/2 in. DCS-L fits larger drill collars from 8 1/2 in to 14 in.
In general, DCS-S suits lighter handling work, DCS-R fits common drilling and workover applications, and DCS-L supports larger drill collars used in deeper wells or heavy-duty oilfield operations.
4. Are SGPE DCS Type Drill Collar Slips API 7K compliant?
Yes. SGPE manufactures DCS Type Drill Collar Slips according to API Spec 7K requirements for oilfield drilling and well servicing equipment.
API 7K compliance matters because oilfield slips work under demanding rig floor conditions. Customers who purchase API 7K drill collar handling tools often need reliable structure, proper material selection and consistent field performance.
5. Can DCS drill collar slips work with rotary tables and insert bowls?
Yes. DCS Type Drill Collar Slips work with rotary tables and matching insert bowls. The technical table lists suitable insert bowl options, including API or No. 3, No. 2 and No. 1.
For better field compatibility, customers should check the drill collar OD, insert bowl type and rotary table arrangement before purchase. A correct match helps the slip seat properly and grip the drill collar more securely.
6. How do I choose the right DCS Type Drill Collar Slip model?
Start with the drill collar outside diameter. Then check the insert bowl type, rotary table arrangement, rig floor layout and operating environment. After that, compare the size range with DCS-S, DCS-R and DCS-L models.
Choose DCS-S for smaller drill collars, DCS-R for common medium-size drill collars and DCS-L for larger drill collars or heavier field conditions. If you are not sure which model fits your rig, SGPE can help review the drill collar OD and insert bowl requirement.
7. Are the kg and lb values in the technical table working load ratings?
No. The kg and lb values in the technical table show approximate product weights. They do not show working load ratings.
This distinction is important for safe product selection. Customers should not use the product weight as a load capacity value. For drilling, workover or well servicing applications, please share the drill collar size, insert bowl type and operating conditions with SGPE.
8. Can SGPE supply replacement slip inserts or dies?
Yes. SGPE can supply suitable slip inserts or dies for DCS Type Drill Collar Slips. The insert directly contacts the drill collar, so it plays an important role in gripping performance and service life.
Customers should provide the DCS model, drill collar OD and required quantity when ordering replacement inserts. Keeping spare inserts on site can help reduce downtime during frequent drilling or workover operations.
9. What materials does SGPE use for DCS Type Drill Collar Slips?
SGPE uses high-strength alloy steel for the slip body. This material helps the slips handle rig floor vibration, impact, drilling fluids, mud and repeated drill collar handling.
A strong body structure supports stable gripping and longer service life in demanding oil and gas field environments. Proper machining and quality control also help improve fit, wear resistance and field reliability.
10. Where can oilfield crews use DCS Type Drill Collar Slips?
Oilfield crews can use DCS Type Drill Collar Slips on drilling rigs, workover rigs and well service units. These slips support drill collar handling during petroleum drilling, tripping, drill string preparation, well maintenance, intervention work and heavy-duty tubular handling.
They are especially useful in rig floor operations where crews need to hold drill collars with rotary tables and insert bowls. DCS drill collar slips also suit oilfield service companies that manage different rig types, well depths and tubular handling programs.
11. How should crews maintain DCS Type Drill Collar Slips?
Crews should inspect the slip body, inserts, pins and contact surfaces before each operation. They should look for cracks, deformation, abnormal wear, loose parts and damaged inserts.
After use, crews should clean off mud, drilling fluids, oilfield debris and metal particles. Clean contact surfaces help the inserts grip better and reduce unnecessary wear. Crews should also replace worn slip inserts in time to maintain safe gripping performance.
12. What information should I provide when requesting a quotation?
Please provide the drill collar OD, required DCS model if known, insert bowl type, rotary table arrangement and quantity. You can also share the rig type, operating environment, export packing needs and replacement insert requirements.
With this information, SGPE can confirm the suitable DCS Type Drill Collar Slips, check field compatibility and provide a more accurate quotation for your drilling or workover project.
