Description

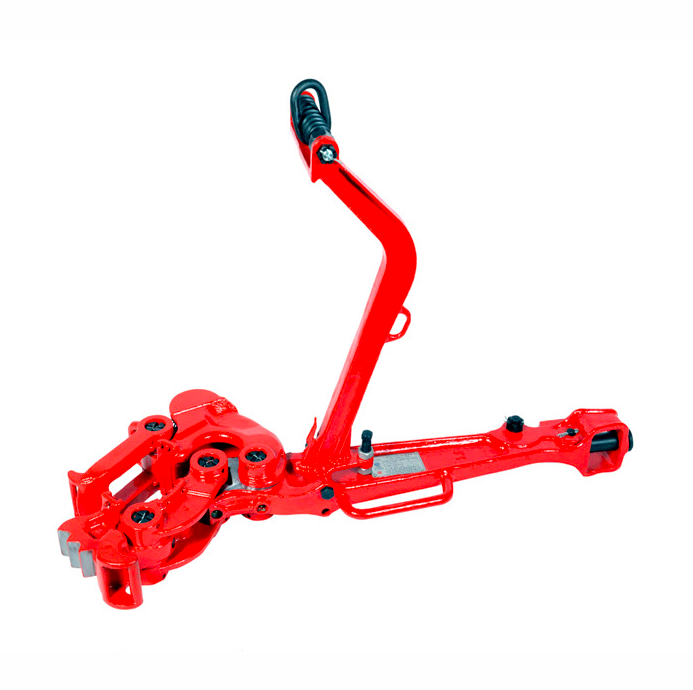

Q2-3/8–10-3/4-48 Type C Manual Tong for Petroleum Drilling and Workover
SGPE Q2-3/8–10-3/4-48 Type C Manual Tong is a heavy-duty API 7K manual tong for petroleum drilling, workover service and rig floor tubular handling. Drilling crews and workover teams use it to grip, turn and handle drill pipe, tubing, casing, pipe strings and downhole tools during pipe make-up, break-out and threaded connection work.
This Type C manual tong covers pipe diameters from 2-3/8 inch to 10-3/4 inch and provides a maximum rated torque of 48 kN·m. Operators can change the latch lug jaw, short jaw, hinge jaw and clamping step to match different tubular sizes on drilling rigs, workover rigs and well service units.
SGPE manufactures this manual tong according to API Spec 7K requirements. With a wide working range, strong mechanical structure and interchangeable jaw system, this model gives oilfield contractors a reliable tool for daily rig floor pipe handling.
Reliable API 7K Type C Manual Tong for Rig Floor Pipe Handling
Rig floor pipe handling requires secure grip, smooth torque transfer and simple field operation. SGPE Type C Manual Tong helps crews control threaded connections with better accuracy during drilling, tripping, tubing service, casing work and workover operations.
The tong works with common oilfield tubular goods, including drill pipe, tubing, casing, pipe strings and downhole tools within its rated range. Its interchangeable jaw system allows one tong body to handle several pipe diameters, which helps contractors reduce tool changes, simplify spare parts planning and improve rig floor efficiency.
For drilling contractors, workover service companies, well service providers, rig package suppliers and oilfield equipment distributors, SGPE Q2-3/8–10-3/4-48 Type C Manual Tong offers a practical balance of size coverage, torque capacity, easy maintenance and long-term field reliability.
Main Product Specifications
| Item | Specification |
|---|---|
| Product Name | Q2-3/8–10-3/4-48 Type C Manual Tong |
| Product Type | Type C Manual Tong / API 7K Manual Tong / Oilfield Manual Tong |
| Applicable Pipe Diameter | 2-3/8 in to 10-3/4 in |
| Metric Size Range | 60.33 mm to 273.05 mm |
| Maximum Rated Torque | 48 kN·m |
| Main Use | Pipe make-up, break-out and rig floor tubular handling |
| Application Environment | Petroleum drilling, workover and well service operations |
| Suitable Tubulars | Drill pipe, tubing, casing, pipe strings and downhole tools |
| Jaw System | Latch lug jaw, short jaw and hinge jaw combinations |
| Standard | Manufactured according to API Spec 7K requirements |
| Brand | SGPE |
Technical Parameters for Type C Manual Tong
| No. of Latch Lug Jaw | No. of Short Jaw | No. of Hinge Jaw | Size Range, in | Size Range, mm | Rated Torque |
|---|---|---|---|---|---|
| 1# | 1# | / | 2-3/8–3.668 | 60.33–93.17 | 48 kN·m |
| 2# | 1# | / | 2-7/8–4-1/4 | 73.03–108 | 48 kN·m |
| 3# | 1# | / | 3-1/2–5-1/4 | 88.9–133.35 | 48 kN·m |
| 4# | 1# | 1# | 5-1/2–7 | 139.7–177.8 | 48 kN·m |
| 5# | 2# | 1# | 7–8-5/8 | 177.8–219.08 | 48 kN·m |
| 6# | 2# | 2# | 9-5/8–10-3/4 | 244.5–273.05 | 48 kN·m |
Key Features of SGPE Q2-3/8–10-3/4-48 Type C Manual Tong
Wide pipe size range for oilfield tubular handling
This Type C manual tong covers pipe diameters from 2-3/8 inch to 10-3/4 inch, so crews can use it for many drill pipe, tubing and casing sizes in drilling and workover operations. The wide range helps contractors handle different tubulars with one tong body instead of preparing several separate manual tongs.
When the pipe outside diameter changes, operators can select the suitable jaw combination and adjust the clamping step. This design improves tool flexibility and supports projects that involve several pipe sizes on the same rig.
48 kN·m torque for pipe connection work
The tong provides up to 48 kN·m rated torque for pipe make-up, break-out and other threaded connection tasks. This torque capacity supports daily operation on drilling rigs, workover rigs and well service units.
Stable torque transfer helps reduce slipping and gives operators better control when they handle drill pipe, tubing, casing and downhole tools. It also helps crews work more smoothly in demanding rig floor conditions.
API Spec 7K manufacturing basis
SGPE manufactures the Q2-3/8–10-3/4-48 Type C Manual Tong according to API Spec 7K requirements. This makes the product suitable for buyers who need API 7K manual tongs for petroleum drilling, workover service and oilfield tubular handling.
For procurement teams, this manufacturing basis supports model selection, project bidding, rig package supply and oilfield equipment purchasing.
Interchangeable jaw system for different tubular sizes
The tong uses latch lug jaws, short jaws and hinge jaws to cover different pipe diameters. Operators can choose the correct jaw set according to the pipe outside diameter and keep a stable grip throughout the job.
This interchangeable jaw system also makes field adjustment easier. When crews move from one pipe size to another, they can replace the jaw combination instead of changing the whole tong. This helps reduce downtime and keeps rig floor work more efficient.
Strong grip for rig floor connection work
Pipe make-up and break-out require firm contact between the tong and the pipe body. SGPE Type C Manual Tong uses a practical mechanical structure to hold tubulars securely and transfer torque effectively.
The tong helps crews control drill pipe, tubing, casing and downhole tool connections during daily rig floor work. It also suits tough field environments where tools often face mud, oil, drilling fluid, impact, heavy loads and frequent handling.
Easy inspection and spare parts support
Rig crews need tools that remain easy to inspect, maintain and service. SGPE Type C Manual Tong uses replaceable jaws and wear parts, so maintenance teams can check key components and keep the tong ready for continuous field use.
For contractors and equipment distributors, this structure helps reduce maintenance pressure and supports better planning for spare jaws, hinge jaws, short jaws and other wear parts.
Petroleum Industry Applications
SGPE Q2-3/8–10-3/4-48 Type C Manual Tong works in petroleum drilling, workover and well service operations where crews need reliable tubular handling tools. Crews can use it for rig floor pipe handling, drill pipe connection work, tubing running and pulling, casing connection handling, pipe string assembly and downhole tool connection work.
This manual tong also helps during well repair and service operations. Its wide pipe size range and interchangeable jaw system make it practical for contractors who move between drill pipe, tubing, casing and downhole tools across different field projects.
For drilling rigs, workover rigs and well service units, this oilfield manual tong gives crews a dependable pipe handling tool for daily rig floor operation. It helps improve connection efficiency, reduce tool changes and maintain stable grip during tubular make-up and break-out.
Designed to Improve Drilling and Workover Efficiency
A drilling or workover crew often handles more than one pipe size during a project. When the working pipe diameter changes, the tong must adapt quickly. SGPE Type C Manual Tong simplifies this process with a replaceable jaw system and adjustable clamping step.
This flexibility helps reduce tool change time on the rig floor. It also supports smoother operation when crews move between tubing, drill pipe, casing and downhole tools. For oilfield contractors, one wide-range manual tong can improve equipment utilization and reduce the need to prepare multiple pipe tongs for one job.
Secure pipe holding also matters during field operation. If a tong slips or does not match the pipe size correctly, crews may lose time and risk damage to pipe surfaces or threads. SGPE focuses on firm contact, dependable torque transfer and simple operation, so crews can complete rig floor connection work with greater confidence.
Jaw Selection for Different Pipe Sizes
The Q2-3/8–10-3/4-48 Type C Manual Tong covers six main jaw configurations. Each jaw combination matches a specific pipe size range. Operators can choose the correct latch lug jaw, short jaw and hinge jaw before operation to maintain a stable grip on the pipe.
For smaller pipe sizes from 2-3/8 inch to 5-1/4 inch, the tong mainly uses 1# short jaw combinations with different latch lug jaws. For medium pipe sizes from 5-1/2 inch to 8-5/8 inch, the tong adds hinge jaw support. For larger pipe sizes from 9-5/8 inch to 10-3/4 inch, it uses 6# latch lug jaw, 2# short jaw and 2# hinge jaw.
Correct jaw selection improves grip stability, torque transmission and operating safety. SGPE can help customers confirm the suitable jaw configuration according to the pipe size range used in their drilling or workover project.
Product Structure and Working Principle
The Type C Manual Tong uses a mechanical clamping structure to grip the pipe body. During operation, crews select the correct jaw combination according to pipe diameter. The latch lug jaw, short jaw and hinge jaw work together to hold the pipe securely. Then the tong transfers torque to make up or break out the threaded connection.
This direct mechanical design gives operators a practical way to handle pipe connections on petroleum rigs. The tong does not require a complex hydraulic system, so crews can operate and maintain it more easily in many drilling and workover environments.
Because of its strong structure and replaceable jaw system, this manual tong works well as a daily rig floor tool, spare equipment item or part of a petroleum rig package.
Built for Tough Petroleum Field Conditions
Rig floor tools must handle hard working conditions. During drilling and workover service, manual tongs may face mud, oil, drilling fluid, impact, vibration, heavy pipe loads and frequent operation. SGPE Type C Manual Tong uses a durable structure to support repeated pipe connection work in these demanding environments.
The tong suits petroleum drilling rigs, workover rigs and well service units. It also fits buyers who need manual tongs for rig package supply, field replacement, spare equipment preparation or tool upgrading.
With proper inspection and maintenance, the tong can support long-term service. Its wide pipe size range and replaceable jaw parts help users control operating cost while keeping the tool ready for field use.
Benefits for Petroleum Contractors and Equipment Buyers
SGPE Type C Manual Tong gives petroleum contractors and equipment buyers a practical way to handle multiple pipe sizes with one tong body. It supports drill pipe, tubing and casing connection work, so crews can use it for pipe make-up, break-out and general rig floor tubular handling in drilling, workover and well service operations.
With a rated torque of 48 kN·m, this manual tong helps crews complete demanding connection work with stable gripping force and reliable torque transfer. Its interchangeable jaw system allows operators to match different pipe diameters more easily, which can reduce tool change time and improve rig floor efficiency.
For procurement teams, this model supports API 7K manual tong purchasing requirements and helps simplify spare jaw and wear part planning. It also fits petroleum drilling rigs, workover rigs, well service units, petroleum equipment distributors and rig package suppliers that need durable manual tongs for long-term field use.
For buyers who need a dependable oilfield manual tong, workover manual tong, tubing tong, drill pipe tong or casing handling tool, the SGPE Q2-3/8–10-3/4-48 Type C Manual Tong provides a practical and cost-effective choice.
Why Choose SGPE Type C Manual Tong?
SGPE supplies petroleum equipment for drilling, workover and well service applications. The company understands what rig crews need from daily pipe handling tools. A manual tong must remain strong, practical and easy to maintain under demanding rig floor conditions.
The Q2-3/8–10-3/4-48 Type C Manual Tong meets these needs with a wide working range, reliable torque capacity and field-friendly structure. It covers pipe sizes from 2-3/8 inch to 10-3/4 inch and provides rated torque up to 48 kN·m, which makes it suitable for many threaded connection tasks in drilling, workover and well service operations.
The interchangeable jaw system allows operators to match different tubular sizes by changing the latch lug jaw, short jaw and hinge jaw combination. This gives crews better flexibility when they handle drill pipe, tubing, casing, pipe strings or downhole tools in one project. The strong gripping structure also helps improve torque transfer and supports stable connection work on the rig floor.
SGPE also supports customers with tong model selection, jaw configuration confirmation and spare jaw or wear part recommendations. With practical maintenance features and spare parts support, this Type C Manual Tong offers a reliable solution for petroleum contractors, well service companies and equipment distributors who need durable manual tongs for long-term field use.
Ordering Information
To request a quotation for the SGPE Q2-3/8–10-3/4-48 Type C Manual Tong, please tell us the pipe size range you need to handle and the pipe type used in your project, such as drill pipe, tubing or casing. You can also share the required torque, working condition and expected application, so SGPE can check whether this Type C Manual Tong matches your drilling or workover operation.
Please also provide the jaw combinations you may need, the order quantity, the destination country and any delivery requirements. If your project needs spare jaws or wear parts, SGPE can prepare a suitable spare parts recommendation together with the quotation.
With these details, SGPE can confirm the suitable Type C Manual Tong configuration, recommend the correct jaw set and provide a more accurate quotation for your petroleum drilling, workover or well service project.
Frequently Asked Questions About Type C Manual Tong
1. What is the Q2-3/8–10-3/4-48 Type C Manual Tong used for?
Crews use this Type C Manual Tong for pipe make-up, break-out and rig floor tubular handling in petroleum drilling, workover and well service operations. It helps operators grip and turn drill pipe, tubing, casing, pipe strings and downhole tools during threaded connection work.
This API 7K manual tong gives drilling crews and workover teams a practical mechanical tool when they need stable grip, dependable torque transfer and flexible pipe size coverage.
2. What pipe size range does this Type C Manual Tong cover?
This manual tong covers pipe diameters from 2-3/8 inch to 10-3/4 inch, equal to 60.33 mm to 273.05 mm. The wide working range allows one tong body to handle several common oilfield tubular sizes.
Because the tong uses interchangeable jaw combinations, crews can adjust it for different drill pipe, tubing and casing sizes during drilling and workover projects.
3. What is the rated torque of this manual tong?
The Q2-3/8–10-3/4-48 Type C Manual Tong provides a maximum rated torque of 48 kN·m. This torque capacity supports pipe make-up, break-out and threaded connection work on drilling rigs, workover rigs and well service units.
Stable torque output helps crews reduce slipping and control tubular connections more smoothly.
4. Which pipe types can this oilfield manual tong handle?
This oilfield manual tong can handle drill pipe, tubing, casing, pipe strings and downhole tools within the specified size range. It suits daily rig floor work where crews need to connect, disconnect or service different petroleum tubulars.
For projects with multiple pipe sizes, the interchangeable jaw system helps operators choose the correct jaw combination before the job.
5. Does this manual tong meet API Spec 7K requirements?
SGPE manufactures the Q2-3/8–10-3/4-48 Type C Manual Tong according to API Spec 7K requirements. This makes the product a strong choice for buyers who need API 7K manual tongs for drilling, workover and rig floor tubular handling.
For contractors and distributors, API 7K manufacturing support also helps during procurement, bidding and equipment selection.
6. How do operators choose the correct jaw set?
Operators choose the jaw set according to the pipe outside diameter. The tong uses different combinations of latch lug jaws, short jaws and hinge jaws to cover each working size range.
SGPE can help customers confirm the correct jaw configuration based on the required drill pipe, tubing or casing size.
7. Can one Type C Manual Tong handle several pipe diameters?
Yes. One Q2-3/8–10-3/4-48 Type C Manual Tong can handle several pipe diameters by changing the jaw combination and clamping step. This makes it useful for contractors who work with different pipe sizes in one drilling or workover project.
Using one tong body with matching jaws can reduce equipment cost, simplify spare parts management and save rig floor preparation time.
8. Is this Type C Manual Tong suitable for both drilling rigs and workover rigs?
Yes. This Type C Manual Tong suits petroleum drilling rigs, workover rigs and well service units. Crews can use it for pipe make-up, break-out, tubing service, casing connection work and general rig floor tubular handling.
Its mechanical structure also makes field inspection and maintenance easier.
9. What makes this Type C Manual Tong different from a standard manual pipe tong?
This Type C Manual Tong combines a wide pipe size range, high rated torque and flexible jaw combinations. It covers 2-3/8 inch to 10-3/4 inch pipe diameters and provides up to 48 kN·m torque.
Its Type C structure helps crews adapt the tong to drill pipe, tubing and casing connection work with better flexibility.
10. Can SGPE provide spare jaws and wear parts?
Yes. SGPE can provide matching spare jaws and related wear parts according to the tong model and pipe size requirement. Common spare parts may include latch lug jaws, short jaws, hinge jaws and other replaceable components.
Spare parts support helps contractors reduce downtime and maintain long-term field performance.
11. What information should customers provide before requesting a quotation?
Customers can provide the pipe size range, pipe type, working condition, quantity, destination country and spare parts requirement. They can also confirm whether the tong will handle drill pipe, tubing, casing or downhole tools.
This information helps SGPE recommend the correct Type C Manual Tong configuration, suitable jaw combinations and spare parts list.
12. Why should buyers choose SGPE Q2-3/8–10-3/4-48 Type C Manual Tong?
Buyers choose this model because it combines wide size coverage, 48 kN·m rated torque, API Spec 7K manufacturing and practical field maintenance. It helps crews handle pipe connection work more efficiently in drilling, workover and well service operations.
SGPE also supports buyers with technical communication, jaw configuration selection, spare parts supply and quotation service.
SGPE Type C Manual Tong for Petroleum Industry Buyers
SGPE Q2-3/8–10-3/4-48 Type C Manual Tong gives petroleum crews a dependable mechanical solution for pipe make-up and break-out. It combines wide size coverage, 48 kN·m rated torque, interchangeable jaw combinations and API Spec 7K manufacturing. As a result, it fits drilling contractors, workover service companies, well service providers, petroleum equipment distributors and rig package suppliers.
For projects that require reliable Type C manual tongs, API 7K manual tongs, oilfield manual tongs, drill pipe tongs, tubing tongs, casing handling tools or rig floor tubular handling equipment, SGPE can provide technical communication, jaw configuration support, spare parts support and quotation service.
