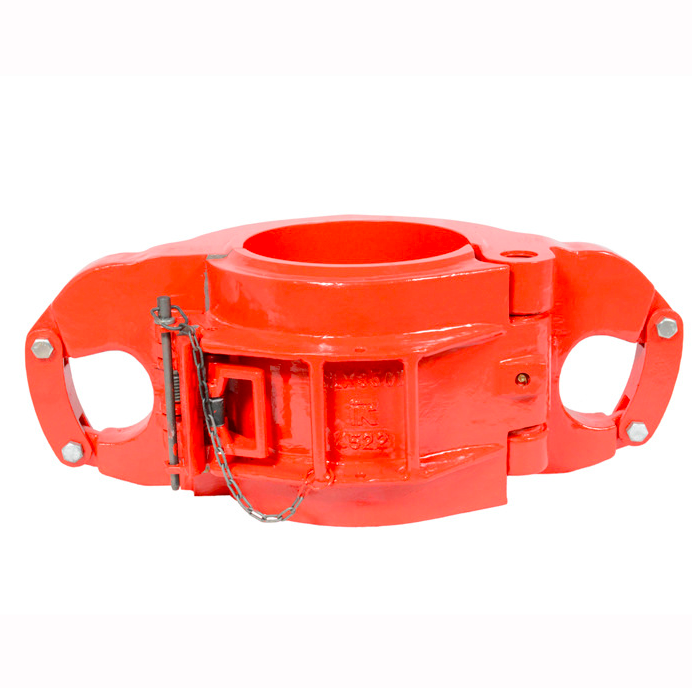

SX Type Casing Elevator | API Spec 8C Side-Opening Elevator for Casing Running
The SX Type Casing Elevator is a heavy-duty oilfield lifting tool for casing handling in petroleum drilling, casing running, workover and well servicing operations. Rig crews use this side-opening casing elevator to lift, hold, align and position casing on drilling rigs, workover rigs and service rigs.
SGPE manufactures the SX Type Casing Elevator according to API Spec 8C requirements for oilfield lifting and hoisting equipment. The elevator combines a side door structure, a secure locking system and a high-strength alloy steel body. This structure helps crews handle casing safely and keep rig floor operations more efficient.
This API 8C casing elevator fits oil and gas projects that need casing lifting equipment, casing running tools, side door elevators and rig floor tubular handling solutions. It also serves drilling contractors, oilfield service companies, well servicing operators and petroleum equipment distributors that need dependable casing elevators for field use.
Product Overview
Casing handling requires strength, control and repeatable performance. During casing running, crews lift, move, align and lower casing joints many times in one operation. A properly selected casing elevator helps crews improve lifting control, reduce handling delays and keep rig floor work organized.
The SX Type Casing Elevator uses a side-opening design. Operators can open the elevator from the side, place it around the casing and close the locking system before lifting. This structure gives crews better access around the casing and saves time during repeated casing joint handling.
SGPE offers SX casing elevator models for casing sizes from 7 in to 20 in, depending on model and order configuration. Customers can choose 350 short ton or 500 short ton capacity options according to casing OD, string weight, lifting load, rig condition and field application.
For projects that require an API Spec 8C casing elevator, side-opening casing elevator, side door casing elevator or oilfield casing lifting tool, the SX series provides a strong and practical option for daily drilling, casing running and workover operations.
Key Features of SX Type Casing Elevator
API Spec 8C Oilfield Design
SGPE builds the SX Type Casing Elevator according to API Spec 8C requirements for oilfield lifting and hoisting equipment. It fits projects that need API 8C casing handling tools, casing lifting elevators and tubular handling equipment.
Oilfield lifting work involves heavy loads, repeated operation and tough site conditions. The SX elevator meets these needs with a strong body, dependable latch system and side-opening structure.
Side-Opening Casing Elevator Structure
The side-opening structure helps crews engage and release casing quickly on the rig floor. Operators can open the elevator from the side, position it around the casing and secure the lock before lifting.
This side door design supports faster casing lifting, casing alignment and casing running operations. It also gives crews better access during busy rig floor work, especially when they handle multiple casing joints in sequence.
350 Ton and 500 Ton Capacity Options
SGPE supplies the SX Type Casing Elevator with 350 short ton and 500 short ton capacity options. A 350 ton casing elevator fits many standard casing handling jobs, while a 500 ton casing elevator supports heavier lifting requirements.
Customers should select the rated capacity according to casing OD, string weight, rig type, lifting load and operating condition. SGPE can recommend the proper configuration after reviewing casing size and project details.
Secure Locking System
The elevator uses a secure locking structure to hold casing firmly during lifting, lowering and positioning. This system helps crews control casing movement and reduce slipping risk during rig floor operations.
During casing running, crews often lift and align many joints within a short time. A stable lock keeps the casing under control while operators position the joint and prepare for the next step.
High-Strength Alloy Steel Body
The elevator body uses high-strength alloy steel for strength, wear resistance and long service life. Oilfield tools often face drilling mud, sand, impact, heavy loads and frequent lifting cycles, so a rugged steel body matters in daily operation.
With proper inspection, cleaning and lubrication, the SX casing elevator can support long-term use on drilling rigs, workover rigs and service rigs.
Standard and Customized Opening Sizes
SGPE provides common SX casing elevator sizes for standard casing OD requirements. Available sizes include 7 in, 9 5/8 in, 9 7/8 in, 10 3/4 in, 11 3/4 in, 12 3/4 in, 12 7/8 in, 13 3/8 in, 13 5/8 in, 14 in, 16 in, 18 5/8 in and 20 in.
For special projects, SGPE can also supply customized opening sizes according to casing OD, rated capacity and lifting requirement. This helps customers match the elevator to different drilling, casing running and well service conditions.
Practical Rig Floor Handling
The SX side-opening casing elevator helps crews lift casing from the rig floor, align casing joints and control casing movement during well construction. Its side door design, strong body and secure locking system make it a practical tool for daily rig floor tubular handling.
Applications of SX Type Casing Elevator
The SX Type Casing Elevator works in petroleum industry applications where crews need to lift, suspend, align or position casing during rig operations. It supports drilling rigs, workover rigs, service rigs and wellsite tubular handling areas.
Petroleum Drilling Operations
During oil and gas drilling operations, crews use this API 8C casing elevator to lift and handle casing strings on the rig floor. It supports casing movement during well construction, drilling preparation and casing installation.
Drilling projects often require repeated casing handling. The SX elevator helps crews lift casing joints, move them into position and align them before running them into the wellbore.
Casing Running Operations
Casing running requires stable lifting, smooth alignment and controlled lowering. The SX side-opening casing elevator helps crews grip, lift, align and lower casing joints into the wellbore.
The side door structure allows fast opening and closing during repeated casing handling. This makes the elevator a practical casing running tool for drilling rigs and workover rigs that require API 8C side-opening casing elevators.
Oilfield Workover Operations
Workover crews often handle casing or compatible tubulars during well maintenance, well intervention and repair operations. The SX Type Casing Elevator supports these jobs with a strong lifting structure and secure lock.
Workover rigs operate under different field conditions, so crews need tools that can handle frequent use. This workover casing elevator helps improve handling control when casing or suitable tubulars require lifting and positioning.
Well Servicing Operations
Well servicing crews can use this side door casing elevator when casing or compatible tubulars require controlled lifting. The elevator supports field service operations that need simple operation, stable gripping and quick casing engagement.
For service rigs, the SX casing elevator helps crews manage casing movement more efficiently while supporting safer lifting practices.
Rig Floor Tubular Handling
Rig floor tubular handling requires equipment that works repeatedly and remains easy to operate. The SX Type Casing Elevator supports casing lifting, casing suspension, casing alignment and casing positioning.
This oilfield tubular handling tool fits projects where casing handling safety, lifting capacity and field durability matter.
Oilfield Equipment Supply and Replacement
Petroleum equipment distributors and oilfield service companies can use the SX Type Casing Elevator for rig package supply, equipment replacement and spare tool inventory. Its common size range and 350 ton / 500 ton capacity options make it a practical choice for casing elevator supply and rig floor tool replacement projects.
For buyers looking for an API 8C casing elevator supplier, SGPE can support model selection based on casing OD, lifting load and operation requirement.
Why Choose SGPE SX Type Casing Elevator?
Stable Casing Lifting Performance
The SX Type Casing Elevator helps crews handle casing with stable gripping and controlled lifting during drilling, casing running, workover and well servicing operations. Its side-opening structure supports quick casing engagement, while the locking system helps crews keep the casing secure on the rig floor.
Built for Heavy Oilfield Work
SGPE offers 350 short ton and 500 short ton capacity options for different lifting requirements. These configurations support casing handling on drilling rigs, workover rigs and well servicing units.
A 350 short ton model fits many standard casing handling applications. A 500 short ton model supports heavier casing lifting requirements. SGPE can help customers choose the right option according to casing OD, lifting load and rig condition.
Rugged Oilfield Construction
The alloy steel body, secure latch system and reinforced structure help the elevator handle tough oilfield environments. Rig floor tools often face drilling mud, impact, frequent movement and heavy load cycles. The SX casing elevator uses a rugged construction to support daily field use.
Flexible Size Support
SGPE supplies both standard casing elevator sizes and customized opening sizes. Standard sizes cover many common casing OD options, while customized openings help match special project needs.
This flexibility supports drilling contractors, oilfield service companies and equipment distributors that handle different casing sizes across multiple oilfield projects.
Practical Model Selection Support
SGPE focuses on oilfield lifting tools, casing elevators and tubular handling equipment for petroleum drilling, casing running, workover and well servicing applications. The company helps customers confirm model, size, rated capacity and quotation details before ordering.
For buyers who need an API Spec 8C casing elevator, side-opening casing elevator or casing lifting tool, SGPE can recommend a suitable model according to the project requirement.
SX Elevator Main Technical Parameters
| Model | Size Range | Available Sizes | Rated Capacity |
|---|---|---|---|
| SX7-16 | 7 in to 16 in | 7 in, 9 5/8 in, 9 7/8 in, 10 3/4 in, 11 3/4 in, 12 3/4 in, 12 7/8 in, 13 3/8 in, 13 5/8 in, 14 in, 16 in | 350 short tons / 500 short tons |
| SX18 5/8-20 | 18 5/8 in to 20 in | 18 5/8 in, 20 in | 350 short tons / 500 short tons |
SGPE offers 350 short ton and 500 short ton configurations according to model and order requirements. The final rated capacity depends on casing size, lifting load, rig condition and project specification. Customers should confirm the final model before ordering.
How to Select the Right SX Type Casing Elevator
To choose the correct SX Type Casing Elevator for an oilfield project, customers should first confirm the casing outside diameter and required rated capacity. These two factors help determine the suitable elevator model, opening size and load configuration.
Customers should also consider the working conditions of the drilling rig, workover rig or service rig. They should define the application clearly from the beginning, such as casing running, casing lifting, casing positioning or rig floor tubular handling. When a project requires API Spec 8C compliance, customers should confirm this requirement before model selection.
Opening size also matters. Some projects can use a standard casing elevator size, while other projects may need a customized opening size for special casing OD requirements. Customers should also provide order quantity, delivery schedule and any special field conditions during the inquiry stage.
After receiving these details, SGPE can recommend a suitable SX casing elevator model according to casing size, lifting load and petroleum field application.
Quality and Manufacturing Considerations
An oilfield casing elevator must handle heavy loads and frequent lifting cycles. Therefore, customers should pay attention to material strength, machining accuracy, latch reliability and opening size accuracy during product selection.
SGPE focuses on the elevator body structure, hinge area, latch system, load-bearing parts and casing contact area. These details help the tool fit casing properly and support stable performance during field operation.
When customers choose an API 8C casing elevator, they should check more than the model name. They should also confirm casing OD, rated capacity, opening size, working environment and service support. A correct model can improve rig floor efficiency and reduce unnecessary field problems.
Maintenance Tips for SX Type Casing Elevator
Regular inspection and maintenance help extend service life and support safe oilfield operation.
Crews should inspect the elevator body, hinge, latch and locking mechanism before each operation. They should also check the gripping area for wear, deformation, cracks or visible damage.
After field use, crews should remove drilling mud, sand and debris from the tool. Clean surfaces help operators find wear or damage more easily. Moving parts need lubrication according to maintenance requirements, especially after repeated field use.
Crews should check load-bearing areas regularly. If they find abnormal wear, cracks or damaged parts, they should replace the worn components before the next lifting operation. When crews finish the job, they should store the elevator in a dry and protected area.
Good maintenance helps improve service life, supports safer casing lifting and keeps the SX Type Casing Elevator ready for the next oilfield operation.
Frequently Asked Questions About SX Type Casing Elevator
1. What is the SX Type Casing Elevator?
The SX Type Casing Elevator is an API Spec 8C side-opening casing elevator for oilfield casing lifting and handling. Rig crews use it during petroleum drilling, casing running, workover and well servicing projects.
Its side door structure helps operators engage casing quickly on the rig floor. The locking system supports stable lifting and controlled handling. This makes the elevator a practical casing lifting tool for drilling rigs, workover rigs and service rigs.
2. What is the SX Type Casing Elevator used for?
Crews mainly use the SX Type Casing Elevator for casing lifting, casing running, casing positioning and rig floor tubular handling. It helps operators lift, align and move casing safely on drilling rigs, workover rigs and service rigs.
The elevator can also handle compatible tubulars when the size, load and working condition match the tool configuration. Customers should confirm casing OD, lifting load and field application before use.
3. Does the SX Type Casing Elevator follow API Spec 8C requirements?
Yes. SGPE manufactures this casing elevator according to API Spec 8C requirements for oilfield lifting and hoisting equipment. It suits projects that require API 8C casing elevators, side-opening elevators and casing lifting tools.
Many drilling contractors and oilfield service companies prefer API-oriented tools for drilling and workover operations. The SX elevator helps meet these project needs with a practical structure and heavy-duty capacity options.
4. What is the difference between a side-opening casing elevator and a conventional casing elevator?
A side-opening casing elevator uses a side door structure that allows crews to open the elevator from the side and engage casing quickly. This design helps save time during repeated casing running operations.
The side door structure also improves access on the rig floor. It helps crews lift, align and handle casing more efficiently during petroleum drilling, casing running and workover jobs. For projects with frequent casing joint handling, the side-opening design offers clear operational advantages.
5. What rated capacity options does SGPE offer?
SGPE offers 350 short ton and 500 short ton capacity options for the SX Type Casing Elevator. A 350 ton casing elevator suits many standard casing handling jobs, while a 500 ton casing elevator supports heavier lifting requirements.
Customers should confirm the final capacity according to casing OD, string weight, rig condition and project requirements. SGPE can recommend the proper rated capacity after reviewing the application details.
6. What casing sizes can this elevator handle?
SGPE supplies SX casing elevators for several common casing sizes, including 7 in, 9 5/8 in, 9 7/8 in, 10 3/4 in, 11 3/4 in, 12 3/4 in, 12 7/8 in, 13 3/8 in, 13 5/8 in, 14 in, 16 in, 18 5/8 in and 20 in.
For special oilfield projects, SGPE can also provide customized opening sizes according to casing OD and lifting requirements. Customers should provide the exact casing size during inquiry to help SGPE recommend the correct model.
7. Can the SX Type Casing Elevator support casing running operations?
Yes. The SX Type Casing Elevator works well for casing running because it helps crews grip, lift, align and lower casing joints into the wellbore. The side door structure allows quick opening and closing, so crews can handle repeated casing joints more efficiently.
This makes the elevator suitable for casing running on drilling rigs, workover rigs and service rigs. It also supports projects that need an API 8C side-opening casing elevator for casing installation and well construction.
8. Can this elevator work in workover and well servicing operations?
Yes. Workover and well servicing crews can use this side-opening casing elevator when casing or compatible tubulars require controlled lifting and positioning. The elevator supports well maintenance, well repair, well intervention and field service operations.
Its alloy steel body and secure locking structure suit tough oilfield working conditions. Customers should still confirm casing size, lifting load and operating conditions before choosing the final model.
9. How do I choose the right SX Type Casing Elevator model?
Start with casing OD and required rated capacity. Then consider rig type, lifting load, casing running method and field operating conditions. Customers should also confirm whether the project needs a standard opening size or a customized casing elevator size.
To speed up model selection, send SGPE your casing size, capacity requirement, quantity and application details. SGPE can recommend a suitable model according to the project requirements.
10. What information should I provide when requesting a quote?
Please provide casing OD, required rated capacity, quantity, application, rig type and delivery requirement. Also mention any API Spec 8C requirement, customized opening size, special working condition or spare parts requirement.
Clear inquiry details help SGPE recommend a suitable SX Type Casing Elevator and prepare a more accurate quotation. They also reduce communication time during model selection.
11. How should crews maintain the SX Type Casing Elevator?
Crews should inspect the elevator body, hinge, latch, locking mechanism and load-bearing areas before operation. After use, they should clean drilling mud, sand and debris from the tool.
They should also lubricate moving parts and replace worn components in time. Good maintenance helps improve service life and supports safer casing lifting during oilfield operations.
12. Why choose SGPE for SX Type Casing Elevator?
SGPE supplies oilfield lifting tools, casing elevators and tubular handling equipment for petroleum drilling, casing running, workover and well servicing applications. The SX Type Casing Elevator offers API Spec 8C manufacturing, heavy-duty capacity options, standard and customized sizes, and practical support for oilfield projects.
SGPE can help customers select the right casing elevator according to casing OD, lifting load and rig condition. For petroleum equipment distributors, drilling contractors and oilfield service companies, SGPE provides a dependable source for API Spec 8C casing lifting equipment.
Request a Quote for SX Type Casing Elevator
Looking for a reliable API Spec 8C casing elevator for petroleum drilling, casing running, workover or well servicing operations?
