TA Type Elevators | API 8C Split-Type Elevators for Oilfield Tubular Handling
SGPE TA Type Elevators are API Spec 8C split-type elevators for oilfield tubular handling. Drilling crews, workover teams, and well service operators use this elevator series to lift, grip, and position drill pipe, tubing, casing, and drill collars on drilling rigs, workover rigs, and well service units.
The TA series combines a split-type body, secure locking structure, and rated load options from 35 to 150 short tons. It supports drill pipe lifting, tubing handling, casing handling, drill collar lifting, workover pipe handling, cementing support, and daily rig floor pipe handling in petroleum field operations.
For drilling contractors, oilfield service companies, and procurement teams, SGPE TA Type Elevators provide a practical API 8C lifting solution for harsh oilfield environments where pipe control, model accuracy, and safe hoisting performance matter.
What Are TA Type Elevators?
TA Type Elevators are split-type oilfield lifting tools used with the rig hoisting system. Crews use them to handle tubular goods during petroleum drilling, workover, well servicing, cementing, and other rig floor operations.
The elevator opens around the tubular body, closes securely around the pipe, and connects with the hoisting system for controlled lifting. This structure helps crews handle drill pipe, tubing, casing, and drill collars with better control during repeated field operations.
A proper oilfield elevator must match the tubular type, pipe outside diameter, rated load, aperture size, and working condition. SGPE offers several TA models and aperture options, so customers can choose a suitable elevator according to actual field requirements.
When crews handle pipe frequently, the right split-type elevator can improve operating speed, reduce model selection errors, and support safer hoisting work on drilling rigs and workover rigs.
Key Features of SGPE TA Type Elevators
API Spec 8C Compliant Design
SGPE manufactures TA Type Elevators according to API Spec 8C requirements for drilling and production hoisting equipment. This makes the series suitable for oilfield hoisting applications that require strength, safety, and consistent lifting performance.
For customers searching for API 8C TA Type Elevators, this product line supports drill pipe handling, casing handling, tubing handling, drill collar lifting, and rig floor tubular movement. It also helps buyers meet common technical requirements for petroleum drilling equipment and well service tools.
Split-Type Elevator Structure
The split-type body allows crews to place the elevator around the pipe before lifting. This design improves pipe access, shortens handling steps, and supports smoother rig floor operation.
During drilling, workover, or well servicing jobs, crews may handle tubular goods many times in one shift. A practical split-type elevator helps operators keep better control during repeated lifting, positioning, and pipe movement.
Wide Tubular Handling Capability
This elevator series covers several oilfield pipe handling tasks, including drill pipe lifting, tubing handling, casing handling, and drill collar lifting. Its application range allows one product series to serve multiple petroleum industry operations.
Customers can use SGPE TA Type Elevators for drilling operations, well repair, well maintenance, production restoration, cementing support, and routine rig floor pipe handling. The final model should match the tubular type, pipe OD, aperture size, and rated load requirement.
Rated Loads from 35 to 150 Short Tons
SGPE offers TA-35, TA-65, TA-100, and TA-150 models. These rated load options cover light-duty, medium-duty, and heavy-duty tubular lifting requirements.
TA-35 and TA-65 suit lighter pipe handling tasks. TA-100 and TA-150 support higher load requirements. Customers can choose the proper model according to pipe size, tubular weight, lifting load, and rig floor working condition.
Standard and Custom Aperture Sizes
SGPE supplies standard aperture sizes for common oilfield tubulars. Customers can also request custom aperture sizes when standard options do not match the actual pipe outside diameter or field requirement.
Custom aperture support improves tool compatibility for specific drill pipe, tubing, casing, or drill collar sizes. For accurate selection, customers can provide pipe OD, tubular type, rated load, and operation type before requesting a quotation.
Built for Oilfield Working Conditions
Petroleum drilling and workover sites require tools that can handle repeated lifting, rig floor impact, and demanding field conditions. SGPE TA Type Elevators use a robust structure for daily oilfield use.
The series suits field environments where crews need secure pipe gripping, controlled tubular movement, and long service life. Whether the job involves drilling, workover, well servicing, or cementing, the elevator must support continuous rig floor operation.
Applications of TA Type Elevators in the Petroleum Industry
Petroleum Drilling Operations
Drilling crews use TA Type Elevators to lift and position drill pipe, casing, tubing, and drill collars during petroleum drilling. The elevator helps operators move tubular goods on the rig floor and supports efficient drilling operations.
In drilling environments, pipe handling tools must grip tubulars securely and work smoothly with the hoisting system. SGPE TA Type Elevators meet these needs through a split-type structure, multiple rated load options, and compatibility with common oilfield tubulars.
Drill Pipe Handling
The TA series can serve as a drill pipe elevator for rig floor pipe lifting and positioning. Crews can use it during drilling operations, pipe movement, and related hoisting work.
For drill pipe handling, model selection should consider pipe OD, pipe weight, operation type, and lifting load. SGPE can help customers choose a suitable elevator model according to project requirements and rig floor conditions.
Casing Handling and Cementing Support
In casing handling and cementing support operations, crews often need to lift and position casing or related tubular equipment. SGPE TA Type Elevators can support casing lifting within the applicable model range.
During cementing operations, controlled tubular handling helps crews maintain smoother field work. This makes the elevator series a practical choice for casing handling, cementing support, and well construction-related tubular movement.
Tubing Handling in Workover Operations
Workover crews use split-type elevators when they pull, lift, or reposition tubing during well repair and well maintenance. The TA structure supports efficient operation on workover rigs and helps crews manage tubing strings during service work.
For tubing handling, customers should confirm whether the pipe uses NU or EU tubing and provide the required outside diameter. This information helps SGPE recommend the correct aperture size and elevator model.
Drill Collar Lifting
Drill collars require controlled lifting because of their weight and function in drilling operations. SGPE TA Type Elevators can handle drill collars within the listed OD range and rated load capacity.
When selecting an elevator for drill collar lifting, customers should confirm the drill collar outside diameter, required load, and rig floor conditions. Proper model selection helps improve tool compatibility and lifting safety.
Oilfield Workover Operations
During oilfield workover jobs, crews may need to pull, lift, reposition, or run tubular strings. The TA series helps workover rigs complete well repair, well maintenance, and production restoration tasks with dependable pipe handling.
The product suits workover service companies that need oilfield lifting tools for tubing, drill pipe, and related tubular handling. The proper model depends on pipe specification, field application, and required rated load.
Well Servicing Operations
Well service crews use TA Type Elevators during maintenance, intervention, and service operations. The tool helps operators handle tubular goods on well service units and supports efficient field work.
Because well servicing projects may involve different pipe sizes and lifting requirements, customers should provide clear pipe and operation details when requesting a quotation.
Rig Floor Tubular Handling
TA Type Elevators also support routine rig floor tubular handling, including lifting drill pipe, tubing, casing, and drill collars. They provide practical support for drilling crews, workover teams, cementing crews, and well service operators.
For daily rig floor work, an elevator must operate easily, handle the required load, and match the pipe OD. SGPE helps customers meet these needs through multiple model options and custom aperture support.
Why Choose SGPE TA Type Elevators?
Practical Lifting Performance for Oilfield Crews
SGPE TA Type Elevators help operators grip and lift tubular goods with better control. The structure supports steady handling of drill pipe, casing, tubing, and drill collars during rig floor operations.
The series suits customers who need oilfield elevators for petroleum drilling, workover, well servicing, and cementing projects. It also helps crews improve pipe handling efficiency during repeated lifting tasks.
Multiple Models for Different Pipe Handling Needs
SGPE offers several TA models with rated loads from 35 to 150 short tons. Customers can choose TA-35, TA-65, TA-100, or TA-150 according to pipe outside diameter, tubular type, rated load, and operating condition.
This model range helps customers match the elevator to different drilling rigs, workover rigs, and well service units. It also gives procurement teams a clear basis for technical comparison and quotation.
Suitable for Drilling, Workover, and Well Service Rigs
These split-type elevators suit drilling rigs, workover rigs, well service units, and cementing operation sites. They help crews handle tubular goods in petroleum industry applications that require reliable hoisting tools.
The elevator series works well for oilfield projects that involve drill pipe lifting, casing handling, tubing handling, drill collar lifting, and general rig floor pipe handling.
Custom Support for Project Requirements
Different oilfield projects may require different aperture sizes. SGPE can provide standard or customized aperture options to match specific pipe sizes and field needs.
For accurate selection, customers can provide pipe OD, tubular type, rated load, operation site, and working condition. This information helps SGPE recommend a suitable API 8C split-type elevator and reduce selection errors.
API 8C Quality for Oilfield Hoisting Equipment
SGPE manufactures TA Type Elevators for oilfield hoisting applications where safety, strength, and consistent performance matter. The API Spec 8C compliant design supports safe tubular handling in drilling and well service operations.
For customers searching for API 8C oilfield hoisting equipment, the TA series offers a practical choice for tubular lifting, rig floor handling, and petroleum field service work.
Quality Control and Inspection
Oilfield lifting tools require strict quality control because they work with heavy tubular goods and rig hoisting systems. SGPE focuses on product consistency, dimensional accuracy, and operating performance during manufacturing.
Before delivery, SGPE can check the elevator body, locking structure, aperture size, and key contact areas according to order requirements. These checks help confirm that the tool matches the customer’s pipe size, rated load, and field application.
For projects with specific documentation needs, SGPE can discuss inspection documents, certificates, and related technical files before production or shipment. This support helps procurement teams prepare documents for drilling contractors, oilfield service companies, and project owners.

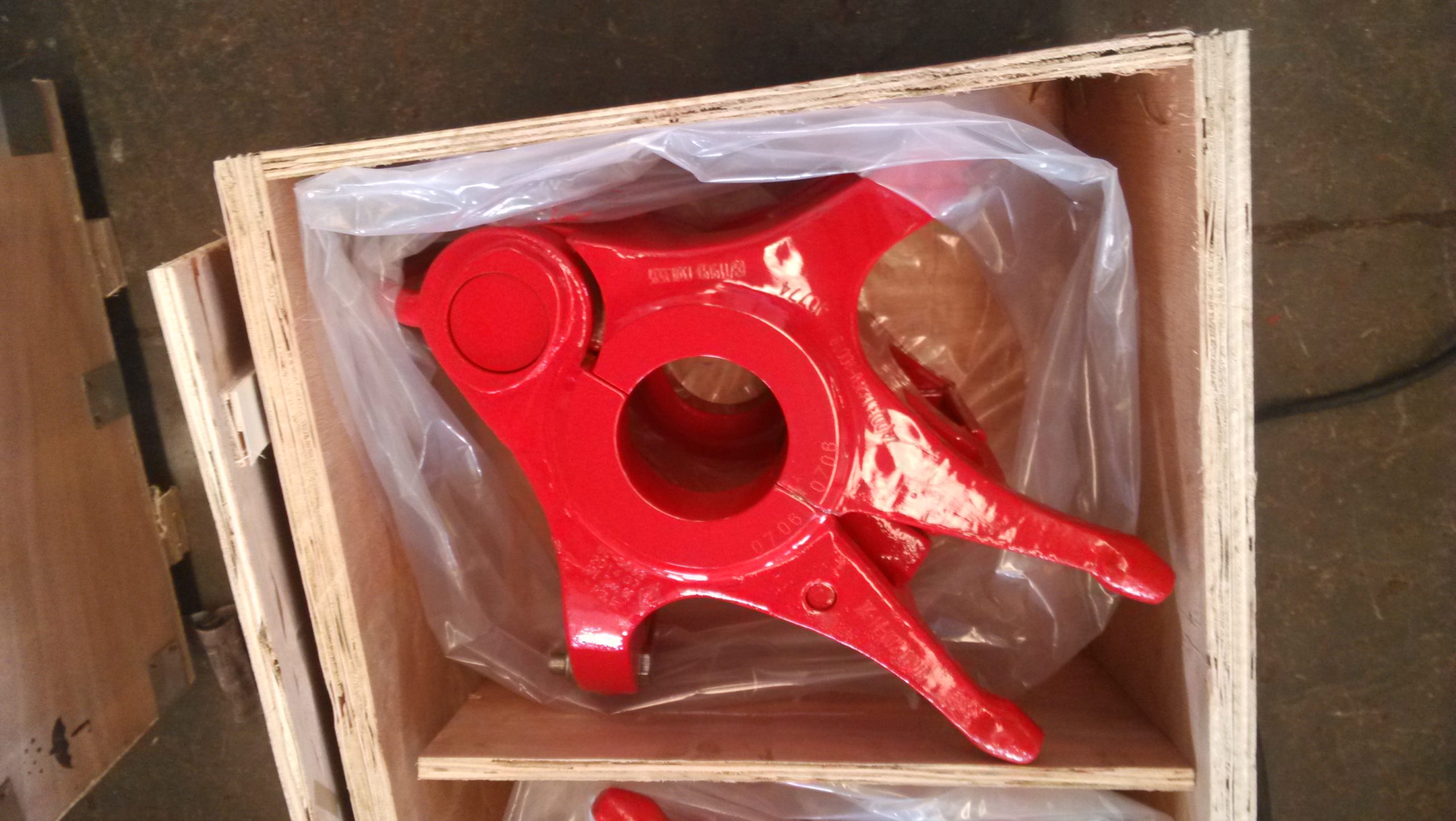

Packaging and Delivery
SGPE can arrange suitable packaging for TA Type Elevators according to product size, order quantity, and shipping method. Proper packaging helps protect the elevator during transportation, storage, and site delivery.
For export orders, customers can provide destination port, delivery schedule, and any special packing requirements. SGPE can then support quotation, shipping preparation, and delivery coordination more efficiently.
Clear communication before shipment helps reduce delays and ensures that the equipment arrives ready for inspection and field preparation.
Main Technical Parameters of TA Type Elevators
| Model | Drill Collar OD Range | Tubing OD Range, NU | Tubing OD Range, EU | Casing OD Range | Rated Load |
|---|---|---|---|---|---|
| TA-35 | 2-7/8–3-1/8 in | 1.05–2-7/8 in | 1.05–2-7/8 in | — | 35 short tons |
| TA-65 | 2-7/8–3-1/8 in | 1.66–2-7/8 in | 1.66–2-7/8 in | — | 65 short tons |
| TA-100 | 3-1/8–5-1/4 in | 2-3/8–5 in | 2-3/8–4-1/2 in | — | 100 short tons |
| TA-100 | 4-3/4–8-1/2 in | — | — | 4-3/4–8-5/8 in | 100 short tons |
| TA-150 | 4-1/8–11-1/4 in | — | — | 4-1/2–10-3/4 in | 150 short tons |
Note: NU means non-upset tubing. EU means external upset tubing. TA-100 comes in different tubular range configurations. SGPE can supply custom aperture sizes upon request. Customers should choose the final model according to pipe outside diameter, tubular type, rated load, and actual oilfield working conditions.
How to Select the Right TA Type Elevator
Choosing the correct TA Type Elevator helps improve lifting safety, pipe handling efficiency, and tool compatibility. Before placing an order, customers should confirm the pipe and field information clearly.
1. Confirm the Tubular Type
Start with the tubular type. SGPE TA Type Elevators can handle drill pipe, tubing, casing, and drill collars within the applicable model range. Different tubulars may require different aperture sizes and rated loads.
2. Check the Pipe Outside Diameter
Pipe outside diameter directly affects elevator selection. Customers should provide the exact pipe OD, not only the general pipe name. Accurate OD information helps SGPE recommend the correct aperture size.
3. Confirm the Required Rated Load
The elevator rated load must match the actual lifting requirement. SGPE offers 35, 65, 100, and 150 short ton options. Customers should select the model according to pipe weight, operation type, and rig hoisting requirements.
4. Review the Operation Type
Petroleum drilling, workover, well servicing, and cementing operations may involve different pipe handling conditions. Therefore, customers should explain the application clearly when requesting a quotation.
5. Check Standard or Custom Aperture Needs
If a standard aperture does not match the pipe OD, customers can request a custom aperture. Customization helps improve compatibility for special pipe sizes and specific field conditions.
6. Share Rig Floor Working Conditions
Rig type, operating environment, pipe handling frequency, and field service conditions can affect model selection. By sharing this information, customers help SGPE recommend a more suitable elevator for the project.
Model Selection Example
A customer who needs a split-type elevator for tubing handling on a workover rig should first confirm the tubing OD, whether the tubing is NU or EU, and the required lifting load. After that, the customer can compare the information with the technical table and select a suitable TA model.
For casing handling or drill collar lifting, the process works in the same way. The customer should confirm pipe OD, tubular weight, operation type, and rig floor condition. If the standard aperture does not fit the pipe size, SGPE can review a custom aperture solution.
This simple selection process helps reduce the risk of choosing the wrong elevator and improves compatibility with field requirements.
Related Oilfield Tubular Handling Tools
For complete rig floor handling solutions, customers can also explore related tools such as tubing elevators, casing elevators, drill pipe slips, drill collar slips, safety clamps, pneumatic spiders, and other oilfield tubular handling tools.
These tools can support different stages of petroleum drilling, oilfield workover, well servicing, and casing or tubing handling operations. Customers can select related equipment according to tubular type, rig condition, and field operation requirements.
Frequently Asked Questions About TA Type Elevators
1. What is a TA Type Elevator?
A TA Type Elevator is a split-type oilfield elevator for lifting drill pipe, tubing, casing, and drill collars on the rig floor. It works with the rig hoisting system and helps crews handle tubular goods during drilling, workover, well servicing, and cementing operations.
SGPE manufactures this elevator series according to API Spec 8C requirements for drilling and production hoisting equipment. It suits oilfield projects that need reliable tubular lifting tools and stable rig floor handling performance.
2. What is a TA Type Elevator used for in oilfield operations?
Oilfield crews use this split-type elevator for drill pipe lifting, tubing handling, casing handling, drill collar lifting, workover pipe handling, and rig floor tubular handling. The tool helps operators lift, position, and move tubular goods during drilling and well service operations.
It also supports cementing work, well maintenance, well intervention, and production restoration projects. Therefore, drilling contractors and service companies can use one elevator series for several petroleum industry applications.
3. Is the SGPE TA Type Elevator API 8C compliant?
Yes. SGPE manufactures TA Type Elevators according to API Spec 8C requirements for oilfield hoisting equipment. API Spec 8C covers drilling and production hoisting tools, so it plays an important role in oilfield lifting safety.
For customers who need an API 8C split-type elevator for drilling, workover, well servicing, or cementing, SGPE offers a suitable option for drill pipe, tubing, casing, and drill collar handling.
4. What tubulars can TA Type Elevators handle?
These elevators can handle several types of oilfield tubular goods, including drill pipe, tubing, casing, and drill collars. The actual handling range depends on the selected model, pipe OD, aperture size, and rated load.
For example, customers can choose different TA models for drill collar lifting, tubing handling, or casing handling. To improve selection accuracy, customers should provide the tubular type, outside diameter, and working condition before ordering.
5. What rated load options does SGPE offer?
SGPE offers rated loads from 35 to 150 short tons. Common models include TA-35, TA-65, TA-100, and TA-150. These options cover different pipe handling needs on drilling rigs, workover rigs, and well service units.
Customers should choose the rated load according to pipe size, tubular weight, lifting requirement, and field operation type. For heavy-duty tubular handling, SGPE can help check the suitable elevator model before quotation.
6. How do TA-35, TA-65, TA-100, and TA-150 differ?
The main differences come from rated load and applicable pipe size range. TA-35 and TA-65 suit lighter tubular handling tasks, while TA-100 and TA-150 support heavier oilfield lifting requirements.
Different models also cover different drill collar, tubing, and casing OD ranges. Customers should compare pipe OD, tubular type, and operating condition before choosing a model. When the project involves special pipe sizes, SGPE can help review the aperture requirement.
7. Can SGPE customize the aperture size?
Yes. SGPE can supply standard aperture sizes for common oilfield tubulars and custom aperture options for specific pipe handling requirements. Custom apertures help improve fit when standard sizes do not match the customer’s pipe OD or field condition.
For a faster quotation, customers can provide pipe outside diameter, tubular type, rated load, connection type if needed, and operation type. This information helps SGPE recommend the right TA model and aperture size.
8. Where do crews commonly use these elevators?
Crews commonly use this elevator series on drilling rigs, workover rigs, well servicing units, and cementing operation sites. The tool supports well repair, well maintenance, well intervention, casing running support, and daily rig floor pipe handling.
Because the split-type structure helps crews handle tubulars efficiently, the elevator suits oilfield environments where operators need secure lifting, quick pipe positioning, and stable hoisting performance.
9. How does a split-type TA Elevator work?
A split-type TA Elevator opens around the tubular body, closes around the pipe, locks securely, and then connects with the rig hoisting system for lifting. This working method helps crews lift and position drill pipe, tubing, casing, or drill collars with better control.
The split-type design also helps operators place and remove the tool more easily during rig floor operations. This improves handling efficiency during drilling, workover, well servicing, and cementing work.
10. How should I choose the right model?
To choose the right model, start with the tubular type and pipe outside diameter. Then confirm the required rated load, operation type, rig floor condition, and aperture requirement.
For example, a workover project may focus on tubing handling, while a drilling project may require drill pipe or drill collar lifting. If the pipe size or working condition does not match a standard option, SGPE can help recommend a custom aperture solution.
11. What information should I provide when requesting a quote?
For an accurate quotation, please provide pipe outside diameter, tubular type, rated load requirement, application, and working condition. You can also share your rig type, operation site, and any custom aperture needs.
This information helps SGPE recommend the correct TA model, such as TA-35, TA-65, TA-100, or TA-150. It also helps reduce selection errors and improves compatibility with your petroleum drilling, workover, well servicing, or cementing project.
12. Why choose SGPE TA Type Elevators for oilfield tubular handling?
SGPE TA Type Elevators combine API 8C compliant design, split-type structure, multiple rated load options, and custom aperture support. They help crews handle drill pipe, tubing, casing, and drill collars on drilling rigs, workover rigs, and well service units.
In addition, SGPE can support model selection according to pipe OD, tubular type, rated load, and field operation. This makes the series a practical choice for customers who need oilfield elevators for drilling, workover, well servicing, cementing, and rig floor tubular handling.
Get a Quote for SGPE TA Type Elevators
Looking for API 8C TA Type Elevators for petroleum drilling, oilfield workover, well servicing, cementing, or rig floor tubular handling?
SGPE supplies TA Type Elevators with multiple rated load options, standard aperture sizes, custom aperture support, and practical technical support for oilfield hoisting applications.
