Description

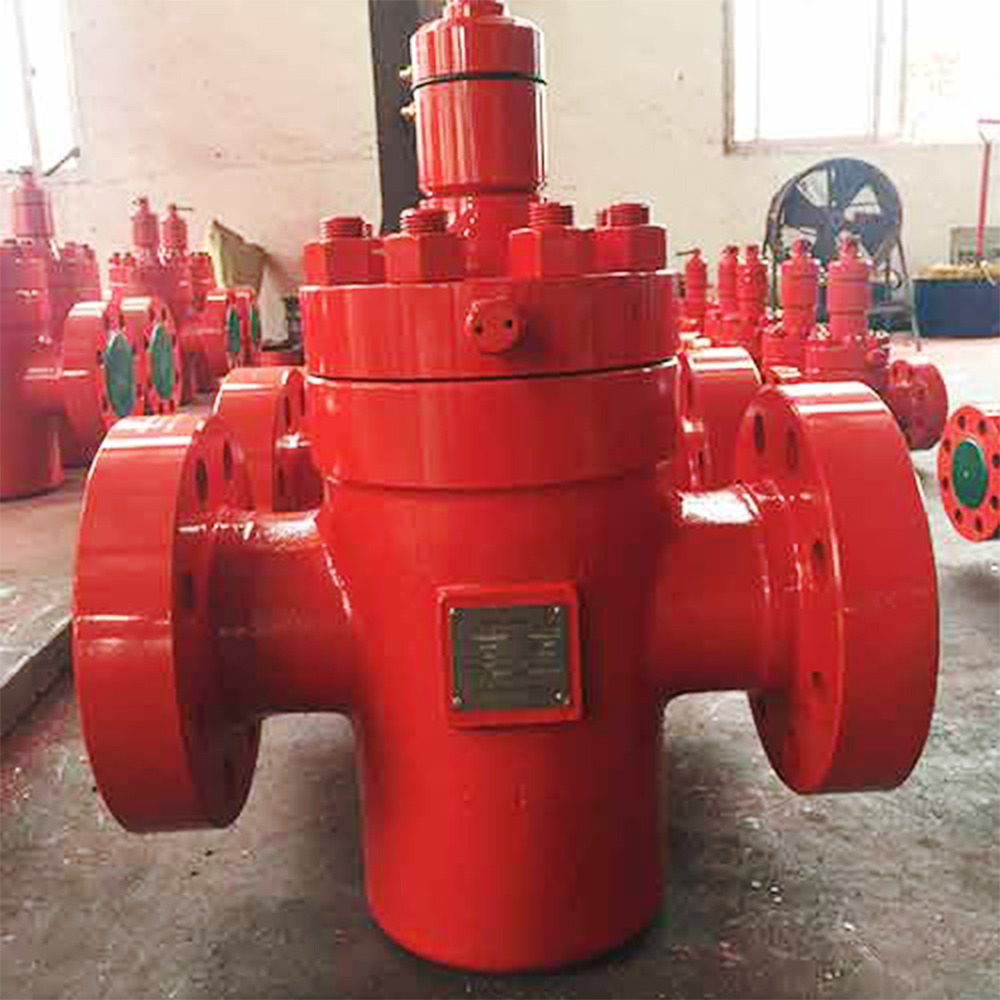

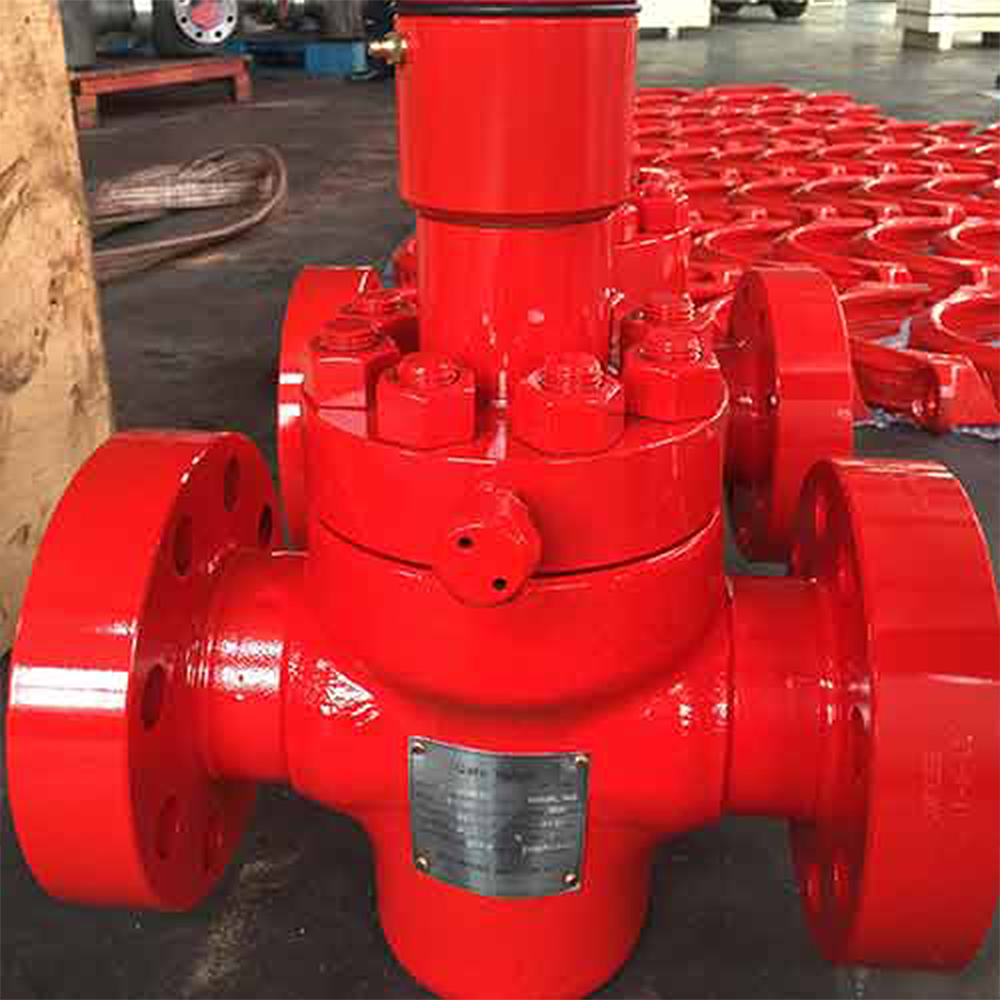

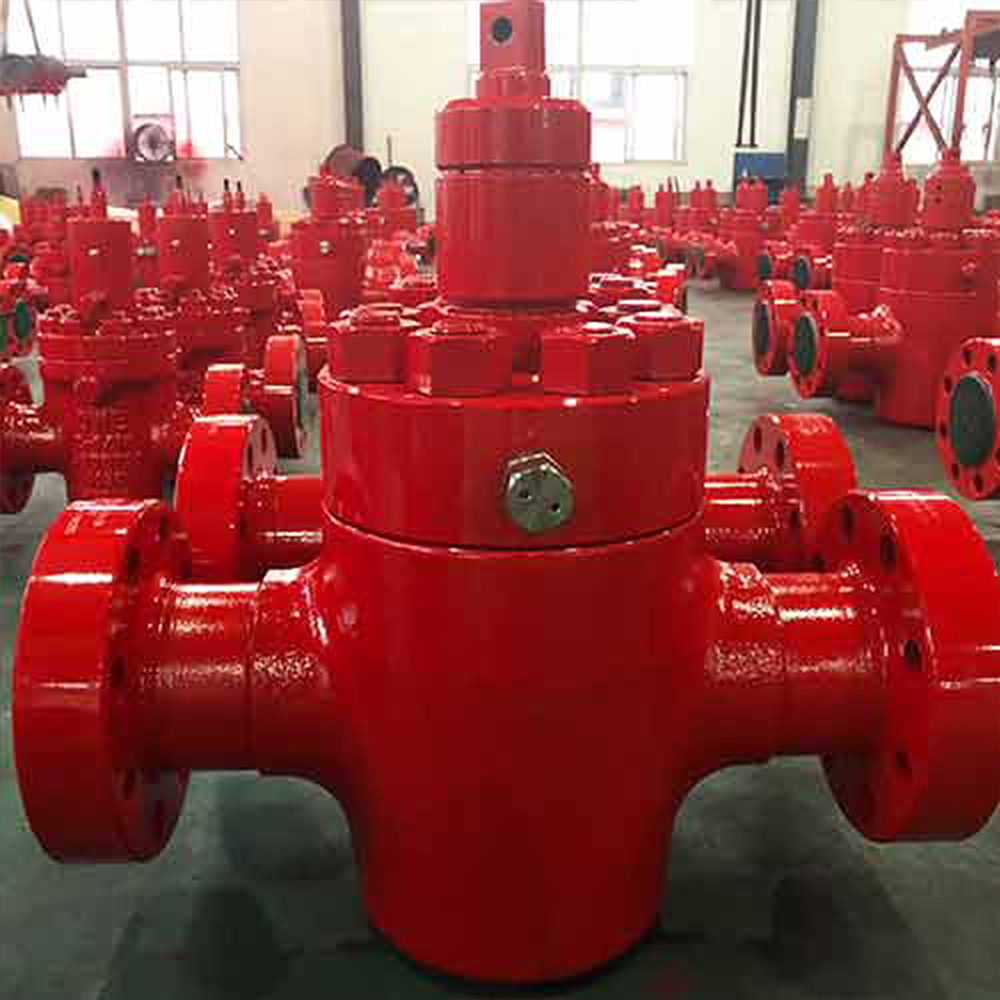

API 6A Slab Gate Valve for Wellhead, Christmas Tree, Surface Test Tree, Flowhead and High Pressure Manifold Systems
SGPE supplies API 6A Slab Gate Valves for full-bore pressure isolation in oil and gas wellheads, Christmas trees, surface test trees, flowheads and high-pressure manifold systems.
The valve uses a flat parallel gate, pressure-energized seats and a straight through-conduit bore. In the fully open position, the gate port aligns with the body bore and creates a low-restriction flow path. During closing, the solid gate section moves across the bore and isolates the pressure.
Typical installation positions include lower and upper master valves, production and kill wing valves, swab valves, casing outlets and tubing head outlets. Suitable configurations can also serve on test trees, flowheads, choke and kill manifolds, production manifolds, frac trees, flowback packages and injection wellheads.
Operating options include direct handwheel, bevel gear and hydraulic actuation. Depending on the project, SGPE can supply forged or selected cast bodies, API 6B or API 6BX connections, studded ends, hardfaced gates and seats, corrosion-resistant trim and Alloy 625 overlay.
Available working-pressure classes range from 2,000 to 20,000 psi. The final configuration depends on the connection size, minimum bore, pressure class, material class, temperature class, PSL, performance requirement, operating method and qualified design scope.
Product Short Description About API 6A Slab Gate Valves
SGPE API 6A Slab Gate Valves provide normally bidirectional, full-bore isolation for wellheads, production trees, surface test trees, flowheads and high-pressure oilfield manifolds.
Manual and hydraulic configurations are available with forged or selected cast bodies, API flanged or studded connections, hardfaced trim, CRA components and Alloy 625 overlay. Material and sealing options can support standard production, defined H₂S sour service, abrasive flowback, offshore operation and other demanding oil and gas applications.
API 6A Slab Gate Valve Specifications
The following values provide a general selection range. Final specifications depend on the approved valve design, service conditions and purchase requirements.
| Parameter | Available Range or Option |
|---|---|
| Product | API 6A Slab Gate Valve |
| Related Names | Wellhead slab gate valve, full-bore gate valve, through-conduit gate valve |
| Design Basis | API Spec 6A and applicable ISO 10423 project requirements |
| Working Pressure | 2,000 to 20,000 psi |
| Pressure Classes | 2K, 3K, 5K, 10K, 15K and selected 20K designs |
| Common Bore Sizes | 1 13/16 to 7 1/16 in., subject to design |
| Material Class | AA, BB, CC, DD, EE and FF |
| Product Specification Level | PSL 1, PSL 2, PSL 3, PSL 3G and PSL 4, subject to design scope |
| Performance Requirement | PR1 or PR2 where covered by the qualified design and purchase specification |
| Gate Type | Single flat parallel slab gate |
| Bore Type | Full bore / through conduit |
| Sealing Direction | Normally bidirectional, subject to seat design |
| Body Construction | Forged body; selected cast-body designs may also be available |
| Operation | Handwheel, bevel gear or hydraulic actuator |
| End Connections | API 6B or 6BX flange, studded end, threaded end or project-specific hub |
| Trim Options | Standard, hardfaced, CRA and project-specific erosion-resistant trim |
| Service Conditions | Standard, sour, abrasive, offshore and high-pressure oilfield service |
| Testing | Shell, seat, backseat and functional testing according to the agreed specification |
| Documentation | Drawings, MTCs, NDT reports, pressure-test records, COC and MDR as required |
Not every bore size supports every pressure class, PSL, material class or connection arrangement. SGPE reviews the complete requirement before confirming technical and commercial availability.
Pressure Class Reference
The rated pressure applies to the complete valve assembly. The body, bonnet, gate, seats, stem, end connections and operator must all suit the selected class.
| Pressure Class | Rated Working Pressure | Approximate Metric Equivalent | Typical Application Range |
| 2K | 2,000 psi | 13.8 MPa | Lower-pressure wellheads and selected production systems |
| 3K | 3,000 psi | 20.7 MPa | Conventional wellheads, production trees and surface equipment |
| 5K | 5,000 psi | 34.5 MPa | Production wellheads, test trees, manifolds and injection systems |
| 10K | 10,000 psi | 69.0 MPa | High-pressure gas wells, test equipment and choke manifolds |
| 15K | 15,000 psi | 103.4 MPa | High-pressure testing, stimulation and well-control systems |
| 20K | 20,000 psi | 137.9 MPa | Selected ultra-high-pressure applications with qualified designs |
Maximum system pressure alone does not determine the correct valve. Selection must also account for differential pressure, temperature, fluid composition, operating cycles and the ratings of connected equipment.
Common Bore Size Reference
The values below help buyers compare common oilfield valve bores. They do not confirm flange dimensions, face-to-face length, pressure compatibility or component interchangeability.
| Bore Size | Approximate Metric Diameter | Common Application Examples |
| 1 13/16 in. | 46.0 mm | Compact wellhead outlets and smaller manifold branches |
| 2 1/16 in. | 52.4 mm | Master valves, wing valves and flowline outlets |
| 2 9/16 in. | 65.1 mm | Production trees, injection wellheads and test equipment |
| 3 1/16 in. | 77.8 mm | High-pressure trees, flowheads and manifold systems |
| 3 1/8 in. | 79.4 mm | Selected legacy or project-specific wellhead designs |
| 4 1/16 in. | 103.2 mm | Main-bore wellheads, frac trees and high-capacity manifolds |
| 5 1/8 in. | 130.2 mm | Large production trees and injection systems |
| 7 1/16 in. | 179.4 mm | Large-bore trees and intervention-access applications |
The nominal connection size and actual minimum through bore may differ. Both values should appear clearly in the RFQ.
What Is an API 6A Slab Gate Valve?
An API 6A slab gate valve is a high-pressure isolation valve used in oil and gas wellhead and Christmas tree equipment.
A single flat gate moves vertically between two seat assemblies. Seat springs maintain initial contact at low pressure. As line pressure rises, it adds sealing load to the applicable seat.
When the valve opens fully, the gate bore aligns with the body bore. Crude oil, natural gas, produced water, completion fluid, test fluid or injection media can then pass through a straight flow path. When the valve closes, the solid gate section blocks the bore.
Unlike an expanding gate valve, the slab design does not use a separate gate segment to create mechanical seat loading. Its simpler movement reduces the number of moving sealing components and can help control operating torque.
A typical valve contains a pressure-retaining body and bonnet, upstream and downstream seats, seat springs, a stem, stem packing, a body-to-bonnet seal and a backseat arrangement. The operator may use a handwheel, bevel gear or hydraulic actuator.
Depending on the configuration, the assembly may also include a position indicator, grease fittings, sealant fittings, check valves and cavity-pressure-management components.
Key Design Features
Full-Bore Through-Conduit Flow Path
When fully open, the gate port aligns with the body bore. The straight passage limits internal restriction and helps reduce pressure loss across the valve.
The primary sealing areas remain outside the centre of the open flow path. This arrangement reduces direct exposure to high-velocity production fluid compared with sealing surfaces positioned inside a restricted port.
A correctly selected minimum bore can also preserve access for certain wireline, slickline and well-intervention operations. However, the complete wellhead stack must provide sufficient clearance. Buyers should confirm the tool outside diameter and every bore restriction before planning intervention work.
Flat Parallel Gate
The gate follows a simple vertical travel path and does not require a separate expanding segment. This arrangement makes the internal trim easier to inspect and reduces the number of moving parts inside the pressure-containing body.
The compact structure also suits wellhead and Christmas tree installations where stack height, handwheel clearance and maintenance access matter.
Pressure-Energized Seats
Seat springs establish initial contact between the seats and gate. Line pressure then energizes the applicable seat and increases the sealing force.
Many designs provide normally bidirectional isolation. Even so, the seat arrangement determines the exact sealing direction, cavity-pressure response and relief method. These functions should match the installation position and operating conditions.
Metal Body-to-Bonnet Seal
Selected configurations use a metal sealing ring between the body and bonnet. This arrangement suits high-pressure duty, repeated pressure cycles and demanding temperature conditions.
For corrosive or sour service, stainless steel or nickel-alloy protection may be applied to defined ring-groove areas. The overlay material and coverage depend on the retained fluid, pressure, temperature and API 6A material class.
Stem Backseat
The stem and bonnet can include a backseat that forms a secondary sealing interface when the valve reaches the fully open position.
The backseat can reduce pressure exposure to the primary stem packing. However, it does not permit maintenance under pressure. Operators must isolate and depressurize the valve before replacing packing or opening pressure-retaining components.
Forged and Selected Cast Bodies
Forged bodies offer controlled mechanical properties and reliable pressure integrity. They commonly suit high-pressure wellheads, production trees, test equipment and critical manifold positions.
Selected cast-body designs may also be available when an approved configuration covers the required size, pressure class, PSL and service conditions.
The final body selection should consider pressure, material class, impact requirements, external loading, sour-service conditions and the installation environment.
Hardfaced Gates and Seats
Produced sand, frac proppant, scale and drilling debris can damage the sealing surfaces. Hardfacing or spray-welded alloys can improve the wear resistance of the gate and seats.
The correct trim depends on particle size, solids concentration, pressure differential, fluid chemistry and operating frequency. Severe service may require wider hardfacing coverage, corrosion-resistant seat pockets or a project-specific erosion-resistant combination.
CRA Components and Alloy 625 Overlay
Stainless steel or nickel-alloy materials can protect selected sealing and wetted areas. Typical locations include ring grooves, seat pockets, stem sealing areas and defined sections of the body bore.
Alloy 625 overlay can improve resistance to specified H₂S, CO₂ and chloride exposure. The required locations and coverage should follow the actual service conditions rather than a general trim description.
API 6A Slab Gate Valve Applications
| Equipment or System | Typical Valve Position | Main Function | Main Selection Considerations |
| Christmas tree | Lower master valve | Primary vertical-bore isolation | Pressure integrity, full bore and required PSL |
| Christmas tree | Upper master valve | Secondary production-bore isolation | Manual or actuated operation and intervention access |
| Christmas tree | Production wing valve | Production outlet isolation | Local, remote or fail-safe operation |
| Christmas tree | Kill wing valve | Kill and circulation-line isolation | Sealing direction and outlet orientation |
| Christmas tree | Swab valve | Top-access isolation | Minimum bore for intervention access |
| Wellhead spool | Casing outlet valve | Casing-annulus isolation | Compact flanged or studded connection |
| Surface test tree | Master or wing valve | Test-string pressure isolation | Hydraulic actuation and emergency closure |
| Flowhead | Production or kill valve | Test-flow routing and isolation | Remote control and position feedback |
| Choke manifold | Branch valve | Isolate choke and bypass lines | Abrasive service and full-open operation |
| Kill manifold | Pump or kill-line valve | Route well-control fluid | Matching pressure, bore and connections |
| Production manifold | Well branch valve | Isolate wells and headers | Low restriction and operating frequency |
| Frac tree | Master or wing valve | Isolate stimulation flow | Proppant exposure and erosion-resistant trim |
| Flowback package | Manifold valve | Isolate temporary flow paths | Sand content and hardfacing requirements |
| Injection wellhead | Master or outlet valve | Isolate injection pressure | Fluid chemistry and corrosion resistance |
| Offshore platform | Wellhead or manifold valve | Production or shutdown isolation | Coating, lifting and remote feedback |
Wellhead and Christmas Tree Isolation
On a Christmas tree, slab gate valves commonly operate as lower master, upper master, production wing, kill wing and swab valves.
The master valves isolate the main vertical production bore. The production wing valve controls the flowline outlet, while the kill wing valve connects the tree to a kill, circulation or injection line. The swab valve isolates the top opening and can preserve access for selected intervention equipment.
The same valve type can isolate casing outlets, tubing head outlets and annulus connections. Injection wellheads may use it to control water, gas, CO₂ or chemical-injection flow.
For intervention-related applications, buyers should confirm the minimum bore through every component in the stack. The nominal connection size alone does not guarantee tool clearance.
Surface Test Tree and Flowhead Service
Surface test trees and flowheads require reliable isolation during drill-stem testing, extended well testing, well cleanup, flowback, well unloading and temporary production.
Manual valves can suit local or secondary positions. Hydraulic configurations can connect to the well-test control system and provide remote emergency closure.
On a surface test tree, the valve may serve as a master, wing or kill-line valve. On a flowhead, it can isolate the production outlet or route test flow towards downstream equipment.
For hydraulic applications, SGPE reviews control pressure, fail position, actuator orientation, operating time and feedback requirements. Offshore packages may also need low-temperature materials, compact actuators, lifting provisions and additional corrosion protection.
Choke, Kill and Production Manifolds
Choke Manifold Isolation
In a choke manifold, the slab gate valve isolates branches before and after fixed or adjustable chokes. It can select the active line, isolate a bypass or allow maintenance on an individual choke branch.
The valve should not regulate flow continuously. A fixed choke, adjustable choke or another dedicated control device should manage pressure reduction.
Where the manifold handles sand or abrasive returns, the trim selection should consider solids concentration, fluid velocity, differential pressure and operating frequency.
Kill Manifold Isolation
Kill manifolds use slab gate valves to route drilling fluid, kill fluid or cementing fluid between pumps, flowlines and well-control equipment.
The pressure class and minimum bore must match the connected BOP and manifold system. The RFQ should also define the end connections, flow direction and required outlet orientation.
Production and Test Manifolds
Production and test manifolds use through-conduit gate valves to isolate individual wells, headers and process routes.
The straight bore helps limit local pressure loss. For frequently operated valves, selection should also consider cycle frequency, operating torque, stem protection and maintenance access.
Frac Tree, Flowback and Well Cleanup Applications
Selected API 6A slab gate valves can support frac trees, zipper manifolds, stimulation packages, high-pressure pump lines and acidizing systems.
After stimulation, similar configurations may operate on flowback manifolds, sand separator packages, debris-catching equipment and temporary production skids.
These applications can expose the gate and seats to proppant, formation sand, scale and acidic fluids. The technical review should cover particle size, solids concentration, fluid velocity, pressure differential and operating cycles.
Hardfaced trim can improve service life, but it cannot prevent all erosion. During normal service, the valve should remain fully open or fully closed. Operators should avoid moving it under high differential pressure unless an approved procedure requires that action.
Injection and Offshore Applications
API 6A slab gate valves can isolate water-injection, produced-water reinjection, gas-injection, CO₂-injection and chemical-injection systems.
Injection-fluid chemistry can affect the body material, gate, seats, stem, packing and non-metallic seals. Relevant data may include chlorides, dissolved oxygen, bacteria, H₂S, CO₂ and treatment chemicals.
Offshore applications include platform wellheads, production trees, test packages, injection systems and manifold skids. These projects may require marine coating, CRA overlay, compact actuators, remote position feedback, lifting provisions and detailed manufacturing records.
How an API 6A Slab Gate Valve Works
The gate travels vertically between two pressure-energized seat assemblies.
During opening, the handwheel, bevel gear or hydraulic actuator raises the gate until its port aligns with the body bore. Fluid can then pass through the valve with limited internal restriction.
During closing, the solid gate section crosses the bore. Seat springs maintain contact, while line pressure increases the sealing load on the applicable seat.
A suitable seat arrangement can provide normally bidirectional isolation. Before ordering, the purchaser should still confirm pressure direction, maximum differential pressure, cavity-pressure behaviour, relief method and equalization requirements.
A slab gate valve provides isolation rather than continuous throttling. Partial opening creates high velocity around the gate edge and can accelerate erosion of the gate, seats and downstream bore.
Slab Gate Valve vs. Expanding Gate Valve
| Comparison | Slab Gate Valve | Expanding Gate Valve |
| Closure Element | Single flat parallel gate | Ported gate and expanding segment |
| Sealing Method | Pressure-energized seats seal against the gate | Gate and segment mechanically load the seats |
| Internal Structure | Relatively simple | Contains more moving sealing components |
| Operating Torque | Generally lower | Can rise near fully open and fully closed positions |
| Mechanical Seat Loading | No gate expansion | Created by gate-and-segment movement |
| Full-Bore Option | Available | Available |
| Throttling Use | Not recommended | Not recommended |
| Common Applications | Wellheads, trees, test systems and manifolds | Wellheads and trees requiring mechanical seating |
The two valve types may share similar pressure classes and end connections, but they do not necessarily share the same face-to-face dimensions, cavity behaviour or internal parts. Buyers should not assume direct interchangeability.
Manual and Hydraulic Operating Options
| Operating Method | Main Characteristics | Typical Applications | Information Required |
| Direct handwheel | Simple local operation | Accessible wellheads and manifolds | Valve size, torque and available space |
| Bevel gear | Reduces operator effort | Larger valves and higher pressure classes | Gear orientation and handwheel position |
| Double-acting hydraulic | Hydraulic pressure opens and closes the valve | Test trees, flowheads and remote wellheads | Control pressure and operating time |
| Hydraulic open, spring close | Spring closes the valve after loss of control pressure | Surface safety and emergency shutdown systems | Fail position and control pressure |
| Hydraulic with manual override | Remote operation with local backup | Offshore and critical test packages | Override type and access requirements |
Manual configurations may use a rising or non-rising stem. Options can include a stem protector, locking device, local position indicator and pressure-equalizing arrangement.
Hydraulic configurations may include a double-acting or spring-return actuator. Manual overrides, limit switches and remote position feedback may also be available.
Before selecting an actuator, SGPE checks the hydraulic supply pressure, valve stroke, fail position, operating time, ambient conditions and control-panel interface.
FLS-Style and FC-Style Slab Gate Valves
Selected FLS-style and FC-style slab gate valve configurations may be available for wellhead and Christmas tree service.
Although these valve families commonly use flat gates and through-conduit bores, their bodies, bonnets, stems, seats and spare-part dimensions can differ.
For replacement equipment, provide the original model, serial number, nominal size, minimum bore and working pressure. A clear nameplate photograph, cross-sectional drawing, face-to-face dimension and component measurements help confirm compatibility.
API 6A End Connection Options
| Connection Type | Main Characteristics | Typical Application | Required RFQ Details |
| API 6B flange | RTJ flanged connection | Selected lower and medium pressure systems | Size, pressure class and ring number |
| API 6BX flange | Pressure-energized BX ring connection | High-pressure wellhead and tree systems | Size, rating, BX number and bolt pattern |
| Studded end | Reduces stack height | Compact wellhead and tree assemblies | Size, rating, facing and ring gasket |
| Flange by studded | Uses different connections at each end | Tree and spool integration | Complete top and bottom details |
| Threaded end | Project-specific threaded connection | Selected special equipment | Thread type, size and mating drawing |
| Clamp hub | Compact high-pressure connection | Test packages and special flow systems | Hub profile, seal ring and clamp details |
The top and bottom connections may use different sizes or arrangements. SGPE requires an approved mating drawing for non-standard threaded or hub interfaces.
Materials, Trim and Service Conditions
| Service Condition | Typical Selection Direction | Main Data Required |
| Sweet crude oil or gas | General-service material and standard trim | Pressure, temperature, water and CO₂ |
| Wet gas or high water cut | Corrosion review and upgraded trim | Water chemistry, chlorides and CO₂ |
| H₂S sour service | Controlled-hardness materials and sour-service review | H₂S partial pressure, pH, chlorides and temperature |
| High CO₂ service | CRA trim or overlay may be required | CO₂ partial pressure and water phase |
| Produced sand | Hardfaced gates and seats | Sand concentration, particle size and velocity |
| Fracturing proppant | Erosion-resistant trim | Proppant size, concentration and operating cycles |
| Produced-water injection | Corrosion and seal review | Chlorides, oxygen, bacteria and chemicals |
| Offshore environment | External corrosion protection | Marine exposure and coating specification |
| Low-temperature service | Low-temperature materials and seals | Minimum ambient and process temperatures |
| High-temperature service | High-temperature packing and seals | Maximum continuous and transient temperatures |
Body and bonnet options may include carbon steel, low-alloy steel, forged alloy steel and controlled-hardness sour-service grades.
Gate and seat options can include alloy steel, stainless steel, nickel-alloy components, tungsten-carbide hardfacing and cobalt-free hardfacing. Alloy 625 overlay may protect specified ring grooves, seat pockets or wetted areas.
“Super trim” does not identify one universal material combination. The purchase specification should define the actual fluid, pressure, temperature and corrosion conditions.
H₂S Sour-Service Slab Gate Valve Options
SGPE can configure API 6A slab gate valves for defined H₂S sour-service conditions.
Depending on the service, the valve may require controlled-hardness pressure-retaining materials, material class DD, EE or FF, CRA trim, Alloy 625 overlay, corrosion-resistant stems and sour-service packing.
The inspection scope may include hardness testing, positive material identification, additional NDT and enhanced material traceability.
The phrase “H₂S service” alone does not provide enough information for final selection. Please provide H₂S concentration and partial pressure, CO₂ content, chlorides, water phase, operating pressure, temperature, pH and chemical additives.
Manufacturing, Inspection and Testing
| Stage | Typical Control Activities | Available Records |
| Material receipt | Certificate and heat-number verification | MTC and receiving record |
| Heat treatment | Furnace and hardness control | Heat-treatment chart and hardness report |
| Machining | Bore, seat pocket, flange and ring-groove inspection | Dimensional records |
| NDT | MT, PT, UT or RT according to the agreed scope | NDT reports |
| Overlay and hardfacing | Procedure control and examination | WPS/PQR references and inspection records |
| Assembly | Gate-seat matching, seal installation and function checks | Assembly inspection record |
| Pressure testing | Shell, seat, backseat and specified gas testing | Test chart or report |
| Functional testing | Valve travel, operator and position checks | Functional-test record |
| Final release | Marking, coating, documentation and packing | COC, release note and packing list |
SGPE controls material traceability from receipt through final release. During machining, inspectors check the body bore, seat pockets, sealing surfaces, ring grooves and connection dimensions.
After assembly, technicians check gate travel, stem movement, operator function, packing installation and position indication. Hydraulic configurations also undergo actuator and control-pressure checks.
The final inspection and testing scope follows the selected design, PSL and purchase specification.
Documentation and Replacement Parts
Depending on the order requirements, SGPE can provide a product data sheet, general arrangement drawing, material certificates, pressure-test report, functional-test record, certificate of conformity and installation, operation and maintenance manual.
Project-specific packages may also include a cross-sectional drawing, bill of materials, heat-treatment records, NDT reports, hardness or PMI reports, dimensional records, coating reports, ITP and manufacturing data record book.
Available replacement parts can include gates, upstream and downstream seats, seat springs, stems, stem nuts, bearings, packing, body seals, bonnet seals, O-rings, backup rings, grease fittings, check valves, handwheels, gear operators, position indicators and actuator seal kits.
Valve size and pressure rating alone do not confirm spare-part interchangeability. For accurate identification, provide the original model, serial number, drawing, dimensions and component photographs.
How to Select the Correct API 6A Slab Gate Valve
Start with the connection size and minimum bore. These values may differ, so the technical specification should state both.
Next, define the maximum working pressure and the top and bottom connections. Include the connection type, pressure class and ring-gasket number.
Material selection requires the API 6A material class, operating temperature range and process-fluid composition. Sour or corrosive service also requires H₂S, CO₂, chloride and water information.
The required PSL affects manufacturing controls, inspection, testing, traceability and documentation. However, a higher PSL cannot compensate for an unsuitable pressure rating or material selection.
Finally, select the operating method. Accessible valves may use a handwheel or bevel gear. Well-test, surface safety and emergency shutdown applications often require a hydraulic actuator with a defined fail position.
Information Required for Quotation
| Required Information | Example |
| Product | API 6A Slab Gate Valve |
| Application | Christmas tree upper master valve |
| Quantity | 2 pcs |
| Connection Size | 4 1/16 in. |
| Minimum Bore | 3 1/16 in. |
| Working Pressure | 10,000 psi |
| Top Connection | 4 1/16 in. API 6BX flange |
| Bottom Connection | 4 1/16 in. API 6BX flange |
| Ring Gasket | Project-specified BX ring |
| Material Class | EE |
| Temperature Class | Project specified |
| PSL | PSL 3 |
| Performance Requirement | PR1 or PR2, as specified |
| Operation | Manual handwheel |
| Process Fluid | Crude oil, natural gas and produced water |
| Sour Service | Defined H₂S conditions |
| Trim | Hardfaced gate and seats |
| Overlay | Alloy 625 ring-groove overlay |
| Documentation | MTC, NDT, pressure-test report and COC |
| Inspection | Customer or third-party inspection |
For a replacement valve, also provide the existing nameplate, model, serial number, face-to-face dimension and operator orientation.
Frequently Asked Questions About API 6A Slab Gate Valves
1. What is an API 6A slab gate valve?
An API 6A slab gate valve is a high-pressure isolation valve used in oil and gas wellheads, Christmas trees, surface test trees, flowheads and manifold systems. It uses a single flat parallel gate that moves between two pressure-energized seat assemblies.
When the valve reaches the fully open position, the gate port aligns with the body bore and forms a straight through-conduit flow path. This full-bore design helps limit pressure loss and keeps the main gate and seat sealing areas away from the centre of the production flow.
Customers may also refer to this product as an API 6A wellhead gate valve, full-bore slab gate valve, through-conduit gate valve or Christmas tree isolation valve.
2. Where are API 6A slab gate valves commonly installed?
API 6A slab gate valves are commonly installed as lower master valves, upper master valves, production wing valves, kill wing valves and swab valves on wellhead and Christmas tree assemblies.
They can also isolate casing outlets, tubing head outlets and annulus connections. On surface test trees and flowheads, hydraulic slab gate valves may serve as master, production or kill-line valves during drill-stem testing, well cleanup, flowback and temporary production.
Other applications include choke manifolds, kill manifolds, production manifolds, frac trees, zipper manifolds, injection wellheads and offshore production systems. The final valve configuration should match the installation position, pressure direction, required bore and operating method.
3. What is the difference between a slab gate valve and an expanding gate valve?
A slab gate valve uses one flat parallel gate and pressure-energized seats. An expanding gate valve uses a ported gate and a separate expanding segment that mechanically loads the seats near the fully open and fully closed positions.
The slab design has fewer moving sealing components and often requires lower operating torque. It is widely used on wellheads, Christmas trees, test trees, flowheads and high-pressure manifolds where full-bore isolation and a relatively simple internal structure are important.
An expanding gate valve may be selected when the project requires mechanical seat loading. Although both valve types can provide through-conduit flow, similar pressure ratings or matching API connections do not confirm direct interchangeability.
4. Is an API 6A slab gate valve bidirectional?
Many API 6A slab gate valve designs provide normally bidirectional pressure isolation. However, the actual sealing direction depends on the seat design, cavity-pressure arrangement and relief method.
A valve that seals from both directions may still respond differently to upstream pressure, downstream pressure or trapped body-cavity pressure. For this reason, the purchaser should define the normal pressure direction, maximum differential pressure, required isolation function and any pressure-equalization requirements.
This information is especially important for master valves, wing valves, choke manifold branches, kill lines and surface test equipment where pressure can approach the valve from different sides during operation or testing.
5. Can an API 6A slab gate valve be used for throttling?
An API 6A slab gate valve should normally remain fully open or fully closed. It is designed for pressure isolation rather than continuous flow regulation.
Operating the valve in a partially open position creates high fluid velocity around the gate edge. This concentrated flow can erode the gate, seats and downstream body bore, especially when the medium contains produced sand, frac proppant, scale or drilling debris.
In choke manifold and well-test applications, a fixed choke or adjustable choke should control pressure and flow. The slab gate valve should isolate the selected branch, bypass line or downstream equipment before maintenance or operational changes.
6. What sizes and working-pressure classes are available?
Common API 6A slab gate valve pressure classes include 2,000, 3,000, 5,000, 10,000 and 15,000 psi. Selected qualified designs may also support 20,000 psi applications.
Common bore references range from approximately 1 13/16 to 7 1/16 inches. Frequently requested sizes include 2 1/16, 2 9/16, 3 1/16 and 4 1/16 inches for wellhead master valves, production wing valves, test trees and high-pressure manifold systems.
Not every bore size is available with every pressure class, material class, PSL, connection type or operating method. The connection size and minimum through bore should therefore be stated separately in the RFQ.
7. Which end connections can be supplied for API 6A slab gate valves?
API 6A slab gate valves may use API 6B flanges, API 6BX flanges, studded ends or flange-by-studded arrangements. Selected project-specific designs may also use threaded ends or compact clamp-hub connections.
Flanged connections provide a conventional removable interface, while studded ends can reduce the overall stack height on wellheads and Christmas trees. The top and bottom connections do not always use the same size or arrangement.
A complete RFQ should identify the connection size, working-pressure class, flange or studded configuration, ring-gasket number and required orientation. For non-standard threaded or hub connections, SGPE requires a mating drawing or detailed dimensional specification.
8. Are manual and hydraulic slab gate valves available?
SGPE can supply manual and hydraulic API 6A slab gate valve configurations, subject to the qualified design and project requirements.
Manual valves may use a direct handwheel or bevel gear operator. They commonly serve on accessible wellheads, production trees and manifold branches where local operation is acceptable. Hydraulic valves can use double-acting or spring-return actuators for remote operation on surface test trees, flowheads, offshore wellheads and emergency shutdown systems.
Depending on the application, hydraulic configurations may include manual override, position indication, limit switches and remote feedback. Valve selection should consider the available control pressure, fail position, required operating time, actuator orientation and control-panel interface.
9. Can an API 6A slab gate valve be supplied for H₂S sour service?
API 6A slab gate valves can be configured for defined H₂S sour-service conditions when the pressure-retaining materials, trim, stem, packing and non-metallic seals match the actual fluid environment.
Depending on the service, the valve may require controlled-hardness materials, API 6A material class DD, EE or FF, CRA trim, Alloy 625 overlay, corrosion-resistant stems and sour-service packing. The inspection plan may also include hardness testing, positive material identification and additional NDT.
The term “H₂S service” alone is not enough for final material selection. The RFQ should include H₂S concentration and partial pressure, CO₂ content, chlorides, water phase, operating pressure, temperature, pH and chemical additives.
10. Which trim is suitable for produced sand, flowback or frac proppant?
Hardfaced gates and seats can improve wear resistance in produced-sand, flowback and fracturing applications. Depending on the duty, the trim may use tungsten-carbide hardfacing, spray-welded alloys, corrosion-resistant seat pockets or wider hardfacing coverage.
The correct erosion-resistant trim depends on the particle size, solids concentration, fluid velocity, pressure differential, process chemistry and expected operating cycles. A valve selected for normal production service may not suit severe proppant flow or high-velocity well cleanup.
Even with upgraded trim, the valve should remain fully open or fully closed during normal service. Hardfacing can improve service life, but it cannot eliminate erosion under every flow condition.
11. Can SGPE supply replacement parts for FLS-style and FC-style slab gate valves?
SGPE can review replacement gates, seats, seat springs, stems, packing, body seals, bonnet seals, bearings, handwheels, gear operators and selected actuator seal kits for FLS-style, FC-style and other slab gate valve configurations.
However, a similar product name, bore size or working-pressure class does not confirm component interchangeability. Valve bodies, bonnets, gates, seats, stems and seal dimensions can vary between models and manufacturing designs.
For an accurate compatibility review, provide the original model, serial number, nameplate photograph, nominal connection size, minimum bore, working pressure and face-to-face dimension. Cross-sectional drawings, component photographs and measured dimensions can further reduce the risk of supplying an incorrect replacement part.
12. What information does SGPE need to quote an API 6A slab gate valve?
A complete quotation request should identify the valve application, quantity, connection size, minimum bore, working-pressure class, top and bottom connections, material class, temperature class, PSL, performance requirement and operating method.
The RFQ should also describe the process fluid and operating environment. For sour, corrosive or abrasive service, include H₂S and CO₂ data, chlorides, water phase, solids content, particle size, pressure differential and temperature range. Required trim, Alloy 625 overlay, coating, documentation and third-party inspection should also be stated.
For replacement valves, send the existing nameplate, model, serial number, face-to-face dimension and operator orientation. These details allow SGPE to review the configuration before confirming availability and compatibility.
Why Choose SGPE?
SGPE supports oil and gas operators, drilling contractors, well-service companies, EPC contractors, wellhead manufacturers and equipment distributors.
The supply scope covers API 6A slab gate valves for master and wing positions, surface test trees, flowheads, production manifolds, choke and kill manifolds, frac trees and injection systems.
Before quotation, the technical team checks the pressure, minimum bore, end connections, materials, temperature, process fluid and documentation requirements. This review helps reduce the risk of connection mismatch, unsuitable trim and incorrect pressure selection.
Request an API 6A Slab Gate Valve Quotation
Please include the application, size, minimum bore, working pressure, top and bottom connections, material class, temperature class, PSL, operating method, process fluid, sour-service conditions, solids content, trim, overlay, quantity and inspection requirements. Send your valve data sheet or existing nameplate for a configuration and compatibility review.
E-Mail:
info@sgpe.com
