Description

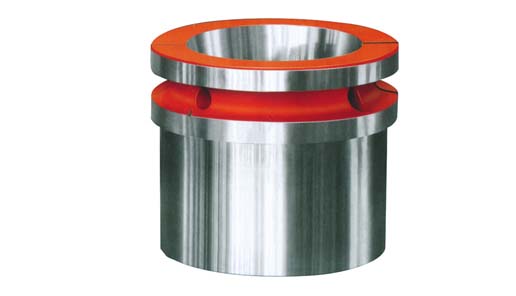

Casing Spiders and Insert Bowls
SGPE Casing Spiders and Insert Bowls provide stable casing string support for petroleum drilling, casing running, completion, workover and well servicing operations. The hinged casing spider mounts above the rotary table and works with a matching split insert bowl to fit different casing sizes, taper requirements and load conditions.
On the rig floor, casing work requires secure support, accurate size matching and smooth tubular control. If the casing spider does not match the rotary table setup, or if the insert bowl does not fit the casing diameter and taper, crews may face slower operation, unstable support and extra adjustment work.
SGPE manufactures casing spiders and insert bowls in accordance with API Spec 7K for drilling and well servicing equipment. Our product range covers tubular sizes from 2-3/8 in to 36 in, with 1:3 and 1:4 taper options and 200 short ton and 500 short ton rated capacity models.
These options help drilling contractors, workover companies, rig operators, oilfield service providers and equipment distributors select the right casing spider and insert bowl configuration for demanding field applications.
If you need a hinged casing spider, replacement insert bowls, a rotary table casing spider, or a complete API 7K casing spider solution, SGPE can help match the proper model according to your casing size, taper, rated load and operation type.
What Is a Casing Spider?
A casing spider is an oilfield tool used to support, suspend and control casing strings during petroleum drilling, casing running, completion, workover and well servicing operations. Crews usually install it above the rotary table, where it helps hold the casing string during running, pulling, positioning and connection work.
Because casing strings carry heavy loads, rig crews need dependable support and steady control. A well-matched casing spider helps reduce manual effort, improve operating stability and support safer field work.
A hinged casing spider adds more convenience for daily rig operations. Its body opens and closes around the casing string, so crews can position the tool faster during repeated casing running, workover or service jobs. When the tool works with the correct insert bowl, one casing spider can match different casing sizes and taper requirements without replacing the entire body.
For many oilfield buyers, a casing spider is not just a single product. It is part of a complete casing support package that includes the spider body, insert bowl, taper selection, rated capacity and tubular range. These details must work together before the equipment can fit the job properly.
How a Casing Spider and Insert Bowl Work Together
A casing spider and insert bowl work as a matched set. The spider body provides the main support structure, while the insert bowl helps the tool fit the required casing diameter and taper.
During casing running or well servicing, crews need the equipment to support the casing string steadily above the rotary table. A properly selected insert bowl improves contact between the casing and the spider body. This helps crews maintain better control and reduces common fitment issues on the rig floor.
The insert bowl also gives the equipment more flexibility. When a rig handles different casing sizes across several wells or service jobs, crews may not need to change the complete spider body. Instead, they can select the correct insert bowl for the new tubular range, as long as the model, taper and load rating match the job requirement.
This matched configuration improves equipment utilization. It also helps drilling contractors and oilfield service companies prepare for different casing programs with fewer selection errors.
SGPE API 7K Casing Spider and Insert Bowl Solutions
Oilfield buyers usually compare casing size range, taper, rated capacity, rotary table compatibility and field usability before choosing a casing spider. SGPE focuses on these practical selection points and provides casing spiders and insert bowls for real drilling and service conditions.
Hinged Casing Spider for Faster Operation
The hinged casing spider body allows crews to open, close and position the tool more easily above the rotary table. This design helps reduce setup time during casing running, drilling support, workover and well servicing operations.
For repeated field use, fast positioning can improve workflow. Crews can open the body, place the spider around the casing string and continue the operation with fewer handling steps. This makes the hinged design useful for oilfield teams that need both stability and efficiency.
Split Insert Bowl for Flexible Size Matching
The split insert bowl makes replacement and size adjustment more convenient. Operators can change the bowl to match different tubular ranges, so one casing spider can serve multiple casing programs when the model and rated load meet the requirement.
This flexibility helps contractors who work with different casing sizes on different projects. It also helps oilfield equipment distributors offer more complete casing spider and insert bowl solutions to customers who need several size options.
Wide Tubular Size Coverage
SGPE offers casing spider models for a broad range of oilfield tubular sizes. The product line covers smaller casing sizes as well as large-diameter casing used in petroleum drilling, completion and casing running projects.
The available range from 2-3/8 in to 36 in allows buyers to select models for different field requirements. Whether the job involves standard casing work or larger tubular strings, SGPE can help match the correct spider and insert bowl configuration.
1:3 and 1:4 Taper Options
Different casing programs may require different bowl matching conditions. SGPE provides 1:3 and 1:4 taper options to help buyers match the spider body, insert bowl and casing string correctly.
Taper affects fit and support stability. When buyers confirm the required taper before ordering, they reduce the risk of poor contact, incorrect matching and unnecessary delays during casing running or well servicing.
200 Short Ton and 500 Short Ton Capacity Models
SGPE provides 200 short ton casing spider and 500 short ton casing spider options. Buyers can choose the rated capacity according to casing weight, rig condition, field requirement and operating safety margin.
A 200 short ton model may fit standard casing work or lighter field requirements. A 500 short ton casing spider may suit heavier casing strings, larger tubular sizes or more demanding service conditions. SGPE recommends checking casing size, load requirement and job condition together before model selection.
API Spec 7K Manufacturing Approach
SGPE manufactures casing spiders and insert bowls in accordance with API Spec 7K for drilling and well servicing equipment. This gives buyers a dependable option for petroleum industry casing support applications.
For procurement teams, API Spec 7K is an important reference when comparing casing spider manufacturers, oilfield equipment suppliers and rig floor tubular handling tools. It helps buyers focus on equipment that matches drilling and well servicing industry requirements.
Applications in Petroleum Drilling and Oilfield Well Servicing
SGPE Casing Spiders and Insert Bowls support oil and gas field operations that require steady casing string control and efficient workflow above the rotary table.
These products fit petroleum drilling rigs, casing running jobs, workover rigs, well servicing units and completion projects. They also support rotary table casing support, rig floor tubular work and large-diameter casing programs.
During petroleum drilling, a casing spider helps crews hold and control casing strings as the operation moves through different stages. During completion and well servicing work, the same type of tool can support casing-related tasks where accurate matching and stable support matter.
Workover and service teams often face changing field conditions and different tubular programs. A hinged casing spider with matching insert bowls helps crews adapt faster when the job moves from one casing size to another.
With multiple size ranges, taper options and rated capacity choices, SGPE casing spiders can serve standard casing work as well as heavy-duty field applications. This makes them a practical choice for drilling contractors, oilfield service companies, rig operators and equipment distributors.
Key Features of SGPE Hinged Casing Spider Systems
SGPE designs each casing spider around real rig floor needs: stable support, easier handling, fast size matching and dependable field performance.
The hinged body helps crews position the tool quickly above the rotary table. Its opening and closing structure reduces handling effort during repeated operations and makes the tool easier to place around the casing string.
The split insert bowl structure simplifies replacement and helps operators match different tubular sizes across changing casing programs. With the correct insert bowl, the spider can support casing strings with better contact and more consistent stability.
SGPE Hinged Casing Spider Systems cover a wide tubular range and offer 1:3 and 1:4 taper choices. The available 200 short ton and 500 short ton models help buyers match the equipment to petroleum drilling, casing running, completion, workover and well servicing requirements.
Each system supports rotary table operation, rig floor tubular control and API Spec 7K drilling and well servicing equipment requirements. Together, these features help improve job flow and maintain stable casing string support in oil and gas field environments.
Why Insert Bowls Matter in Casing Spider Selection
The insert bowl plays a key role in the complete casing spider configuration. It connects the spider body to the required tubular diameter and taper condition.
When the insert bowl fits correctly, the spider can support the casing string with better contact and stability. This matters during casing running, drilling support, workover and well servicing because poor fit can slow the job and create avoidable handling issues.
For rigs that handle different casing sizes across multiple wells or service jobs, insert bowls improve equipment flexibility. Operators can select a matching insert bowl for a new tubular range instead of replacing the whole spider body, provided that the model, taper and load rating fit the operation.
A correctly matched insert bowl also helps buyers protect their equipment investment. It allows one casing spider package to support different field needs when the configuration meets the required tubular diameter and load condition.
For project buyers, insert bowl selection should not be treated as a minor accessory decision. It affects the working fit of the whole tool. Before purchasing, buyers should confirm casing size, taper, rated capacity and rotary table operation requirements.
Benefits for Oilfield Buyers, Contractors and Distributors
SGPE Casing Spiders and Insert Bowls help buyers match casing size, taper and load requirement more efficiently.
For Drilling Contractors
Drilling contractors need tools that support safe rig floor work and smooth casing running. A correctly matched casing spider helps crews control casing strings with better stability during petroleum drilling and casing installation.
When contractors work across different casing programs, insert bowl flexibility becomes more valuable. It helps them adapt to different tubular sizes while keeping the main casing spider in service.
For Workover and Well Servicing Companies
Workover and well servicing crews often face changing tubular sizes and field conditions. Flexible insert bowl matching helps them adapt faster when the job moves from one casing program to another.
A hinged casing spider also helps service teams complete setup more efficiently. This matters when crews need practical equipment that performs well under real field schedules.
For Oilfield Equipment Distributors
Oilfield equipment distributors need products with clear market demand and broad application coverage. Casing spiders, hinged casing spiders and insert bowls serve drilling rigs, workover rigs and well servicing units, so they remain important products in oilfield equipment supply.
Distributors can also offer more complete solutions when they provide both casing spider bodies and matching insert bowls. This helps customers select a working package instead of searching for separate parts.
For Project Buyers
Project buyers usually compare technical fit, API standard compliance, rated capacity, tubular range and field usability. SGPE provides clear model information and selection support to help buyers choose a suitable casing spider and insert bowl configuration.
For faster procurement, buyers can share casing size, taper requirement, load rating and operation type. SGPE can then review the requirement and recommend a suitable model.
SGPE Manufacturing and Selection Support
SGPE supports oilfield buyers with practical model matching, replacement insert bowl supply and project-based selection guidance. Instead of only offering a product name, we help customers review the key details that affect field use, including tubular size, taper, rated capacity, rotary table setup and operation type.
For drilling contractors and workover service companies, this support can reduce selection mistakes before shipment. For oilfield equipment distributors, it helps build a more complete supply package for customers who need casing spiders, insert bowls and related drilling or well servicing equipment.
SGPE also understands export supply requirements for oilfield machinery. We focus on clear specifications, practical communication and reliable product matching, so buyers can choose equipment with more confidence before placing an order.
As an oilfield equipment supplier, SGPE can support both single-product inquiries and project-based procurement. Whether you need one hinged casing spider, several replacement insert bowls, or a complete casing handling solution for a drilling or workover project, our team can help review the required configuration before production and delivery.
Casing Spider and Insert Bowl Technical Specifications
| Model | Applicable Diameter of Tubulars | Taper | Rated Capacity |
|---|---|---|---|
| JOY13-3/8/200 | 7 in – 8-5/8 in | 1:3 | 200 short tons |
| JOY13-3/8/200 | 9 in – 13-3/8 in | 1:4 | 200 short tons |
| JOY20/200 | 7 in – 8-5/8 in | 1:3 | 200 short tons |
| JOY20/200 | 9 in – 20 in | 1:4 | 200 short tons |
| JOY30/200 | 16 in – 30 in | 1:4 | 200 short tons |
| JOY36/200 | 18-3/8 in – 36 in | 1:4 | 200 short tons |
| JOY30/500 | 16 in – 30 in | 1:3 | 500 short tons |
| JOY36/500 | 18-5/8 in – 36 in | 1:3 | 500 short tons |
| HCS20/500 | 2-3/8 in – 20 in | 1:3 | 500 short tons |
E-Mail:
info@sgpe.com
How to Choose the Right Casing Spider and Insert Bowl
Choosing the correct casing spider and insert bowl combination helps crews run casing more smoothly and reduces avoidable fitment problems on the rig floor. Before placing an order, buyers should confirm the key technical and field details below.
1. Confirm the Tubular Size Range
First, confirm the actual casing or tubular diameter used on site. The casing spider and insert bowl must match the tubular size range accurately. If the size range is wrong, the tool may not provide the required support.
SGPE offers models for multiple tubular ranges, including smaller casing sizes and large-diameter casing up to 36 in. Buyers should provide exact casing sizes when requesting a recommendation.
2. Check the Rated Capacity
Rated capacity must match the casing weight, job condition and rig requirement. SGPE offers 200 short ton and 500 short ton options for different operating needs.
Buyers should not select the model only by pipe size. They should also review the load requirement and field condition. This helps ensure that the casing spider matches both the tubular range and the working load.
3. Confirm the Taper Requirement
The insert bowl taper affects fit and support stability. Buyers should confirm whether the field application requires a 1:3 or 1:4 taper.
A wrong taper can cause poor matching between the spider body and insert bowl. That may reduce stability and create extra adjustment work during casing running or well servicing operations.
4. Match the Operation Type
Different oilfield jobs may need different casing spider configurations. The selected model should match petroleum drilling, casing running, completion, workover or well servicing use.
For example, a drilling contractor may focus on casing running efficiency, while a well servicing company may need flexibility across different jobs. The correct model depends on actual field use.
5. Review Rotary Table and Rig Floor Matching
The casing spider should match the rotary table setup and the intended rig floor tubular process. This helps the crew reduce adjustment time and keep the operation moving.
Before ordering, buyers can share the rig type, rotary table condition and operating process. SGPE can use this information to recommend a more suitable casing spider and insert bowl package.
When buyers confirm these details early, SGPE can recommend a suitable model faster and help reduce selection errors.
Why Buyers Choose Hinged Casing Spider Solutions
Many oilfield buyers choose hinged casing spider solutions because they combine faster positioning, easier handling and better adaptability across different casing programs.
The hinged body helps crews open, close and position the spider efficiently above the rotary table. This structure is useful during repeated casing running, drilling support, workover and well servicing jobs.
At the same time, the matching insert bowl allows the tool to cover different tubular sizes and taper requirements without replacing the entire spider body. This improves equipment flexibility and helps contractors prepare for different field requirements.
For buyers searching for an API 7K casing spider, hinged casing spider, rotary table casing spider, insert bowl or oilfield tubular handling equipment, SGPE provides practical model options and selection support.
Why Oilfield Buyers Choose SGPE
SGPE focuses on petroleum drilling and well servicing equipment for demanding oilfield applications. We understand that buyers in the oil and gas sector need clear specifications, suitable model matching and equipment that performs reliably on the rig floor.
Oilfield buyers choose SGPE because we design casing support equipment for practical field operations, manufacture products in accordance with API Spec 7K, and provide multiple casing spider models for different tubular sizes and rated capacities.
Our insert bowl matching support helps customers adapt the equipment to different casing programs. Our product selection guidance also helps buyers choose suitable solutions for drilling rigs, workover rigs and well servicing units.
SGPE helps buyers source casing spiders and insert bowls from a supplier that understands technical matching, field operation requirements and real oilfield working conditions.
Frequently Asked Questions About Casing Spider and Insert Bowl
1. What does a casing spider do in petroleum drilling and casing running?
A casing spider supports and holds the casing string during petroleum drilling, casing running, completion, workover and well servicing operations. Crews place it above the rotary table, where it helps control the casing string during running, pulling, positioning and connection work.
A reliable casing spider improves rig floor stability. It also reduces unnecessary manual handling and helps crews keep casing operations smoother and safer.
2. How does a hinged casing spider improve rig floor operation?
A hinged casing spider opens and closes around the casing string. This design helps rig crews position the spider faster above the rotary table, especially during repeated casing running or workover jobs.
Because the hinged body simplifies handling, crews can save setup time and reduce unnecessary movement on the rig floor. For drilling contractors and oilfield service companies, this means better workflow and easier tubular control.
3. What does an insert bowl do in a casing spider system?
An insert bowl connects the casing spider to the required tubular size and taper. It helps the spider match the casing diameter correctly, so the tool can support the casing string with better contact and stability.
In oilfield tubular operations, the insert bowl helps improve fit, reduce mismatch problems and support smoother casing running.
4. Can SGPE supply replacement insert bowls?
Yes. SGPE can supply matching insert bowls for casing spider systems according to tubular size, taper and model requirement. Replacement insert bowls help buyers adapt the same spider body to different casing programs when the configuration matches the rated capacity and field condition.
Before ordering replacement insert bowls, buyers should confirm the existing spider model, casing size range, required taper and operation type. This helps SGPE recommend the correct bowl configuration.
5. What casing sizes do SGPE Casing Spiders and Insert Bowls cover?
SGPE offers casing spider and insert bowl models for a wide range of oilfield tubular sizes. The available range covers smaller casing sizes as well as large-diameter casing used in drilling, completion and casing running projects.
The product range includes models for tubular sizes from 2-3/8 in to 36 in, depending on the spider model, insert bowl and taper configuration. This helps contractors handle different casing programs with one suitable equipment package.
6. How should buyers choose between 200 short ton and 500 short ton casing spiders?
Buyers should choose the rated capacity according to casing weight, operating condition, rig requirement and field application. SGPE offers both 200 short ton casing spider and 500 short ton casing spider options.
For lighter casing work, a 200 short ton model may meet the project requirement. For heavier casing strings or more demanding field conditions, buyers may need a 500 short ton casing spider. Before selection, SGPE recommends checking tubular size, casing load and job condition together.
7. Why does the 1:3 or 1:4 taper matter?
The taper affects how the insert bowl fits inside the casing spider and how it supports the casing string. A correct taper helps maintain stable contact between the casing, insert bowl and spider body.
SGPE provides casing spiders and insert bowls with 1:3 and 1:4 taper options. Buyers should confirm the taper before ordering, because a wrong taper may cause poor fit and reduce stability during casing running or well servicing work.
8. Is this system suitable for large-diameter casing?
Yes. SGPE offers casing spider models for large-diameter casing applications, including models covering tubular sizes up to 36 in. These options can support drilling, completion and casing running projects that require larger casing size coverage.
For large-diameter casing work, buyers should confirm the tubular size, taper and rated capacity before selecting a model. SGPE can help review these details and recommend a suitable casing spider and insert bowl combination.
9. Where do crews place a rotary table casing spider?
Crews place a rotary table casing spider above the rotary table. From this position, the spider helps support and control the casing string during petroleum drilling, casing running, workover and well servicing operations.
A properly matched rotary table casing spider improves control when crews run, pull or position casing strings.
10. What information should buyers provide before ordering?
Buyers should provide the tubular size range, required taper, rated load requirement, operation type and quantity. These details help SGPE recommend the correct casing spider model and insert bowl configuration.
For faster selection, buyers can also share the rig type, rotary table setup and casing running condition. With this information, SGPE can help confirm a suitable API 7K casing spider solution for the project.
11. Can equipment distributors order different insert bowl configurations?
Yes. Oilfield equipment distributors can order casing spiders with different insert bowl configurations according to customer demand. This helps distributors support multiple casing sizes, taper requirements and field applications with a more complete product offering.
SGPE can assist distributors with model matching, replacement insert bowl selection and project-based recommendations for drilling rigs, workover rigs and well servicing units.
12. Why choose SGPE as a casing spider manufacturer and insert bowl supplier?
SGPE manufactures casing spiders and insert bowls for petroleum drilling, casing running, workover and well servicing applications. We focus on practical field use, clear technical matching and reliable model selection.
Buyers choose SGPE because we provide API Spec 7K casing spider solutions, hinged casing spider options, split insert bowls, 1:3 and 1:4 taper choices, and 200 short ton and 500 short ton capacity models. SGPE also helps customers select the right casing support equipment according to tubular size, load requirement and field operation needs.
Request a Quote
Looking for a reliable casing spider manufacturer or a trusted supplier of casing spiders and insert bowls for petroleum drilling, casing running, workover or well servicing operations?
SGPE can help you select the right API 7K casing spider and insert bowl system for your oilfield application. To receive a suitable recommendation, please tell us your tubular size range, required taper, rated load requirement, operation type and order quantity.
E-Mail:
info@sgpe.com
