High Pressure Steel Wire Reinforced Rubber Covered Hydraulic Hose | SGPE
SGPE supplies High Pressure Steel Wire Reinforced Rubber Covered Hydraulic Hose for hydraulic systems used in demanding petroleum service. Designed in line with SAE 100 R2 construction, this hose is made for petroleum-based hydraulic fluids and performs well in high-pressure oilfield working conditions. It combines pressure capacity, flexibility, oil resistance, and outdoor durability, which makes it a practical choice for drilling, workover, well servicing, and hydraulic control applications.
The hose features an oil-resistant synthetic rubber inner tube, two braids of high-tensile steel wire reinforcement, and an oil- and weather-resistant synthetic rubber cover. This structure helps maintain stable pressure performance, improves abrasion resistance, and supports reliable service in harsh field environments.
For buyers looking for a dependable hose for rig hydraulic systems, hydraulic power units, pipe handling systems, or other oilfield equipment, SGPE offers a clear solution with a broad size range and detailed technical data.
Built for Oilfield Hydraulic Systems
In oil and gas operations, hose failure can cause downtime, leakage, repair costs, and delays in field schedules. Buyers therefore need more than a standard rubber hose. They need a hydraulic line that can handle pressure cycles, vibration, oil exposure, and outdoor service without becoming a weak point in the system.
This SAE 100 R2 hydraulic hose is suitable for:
- petroleum-based hydraulic fluids
- high-pressure hydraulic circuits in oilfield equipment
- hydraulic pressure lines and return lines
- drilling rig hydraulic systems
- workover rig hydraulic systems
- well servicing unit hydraulic lines
- oilfield hydraulic control systems
- outdoor hydraulic equipment exposed to oil, weather, and abrasion
Because it uses two steel wire braids, the hose provides stronger pressure support than a single-wire braided alternative. At the same time, it keeps enough flexibility for routing in compact hydraulic layouts on petroleum equipment. That balance makes it a practical option for both new equipment supply and replacement work in the field.
Key Features Of Steel Wire Reinforced Rubber Covered Hydraulic Hose
Strong Pressure Performance
Two layers of steel wire braid reinforcement improve pressure-bearing capacity and help the hose work reliably in hydraulic systems that operate under continuous load and repeated pressure fluctuation.
Oil-Resistant Tube
The inner tube uses oil-resistant synthetic rubber, so it suits petroleum-based hydraulic fluids commonly used in drilling and well servicing systems.
Durable Outer Cover
The cover resists oil, weather, and external wear. This helps extend service life in exposed oilfield environments such as rig sites, maintenance areas, and mobile service units.
Flexible Routing
Although this is a high-pressure hose, it still offers good flexibility. That makes routing easier in compact hydraulic systems on drilling rigs, workover rigs, hydraulic skids, and service equipment.
Broad Size Availability
SGPE supplies sizes from 3/16 inch to 2-1/2 inch, helping buyers match different flow and pressure requirements across a wide range of petroleum equipment.
Suitable for Harsh Field Conditions
This hose works well in petroleum-related hydraulic applications where equipment faces vibration, oil contamination, outdoor exposure, repeated bending, and demanding duty cycles.

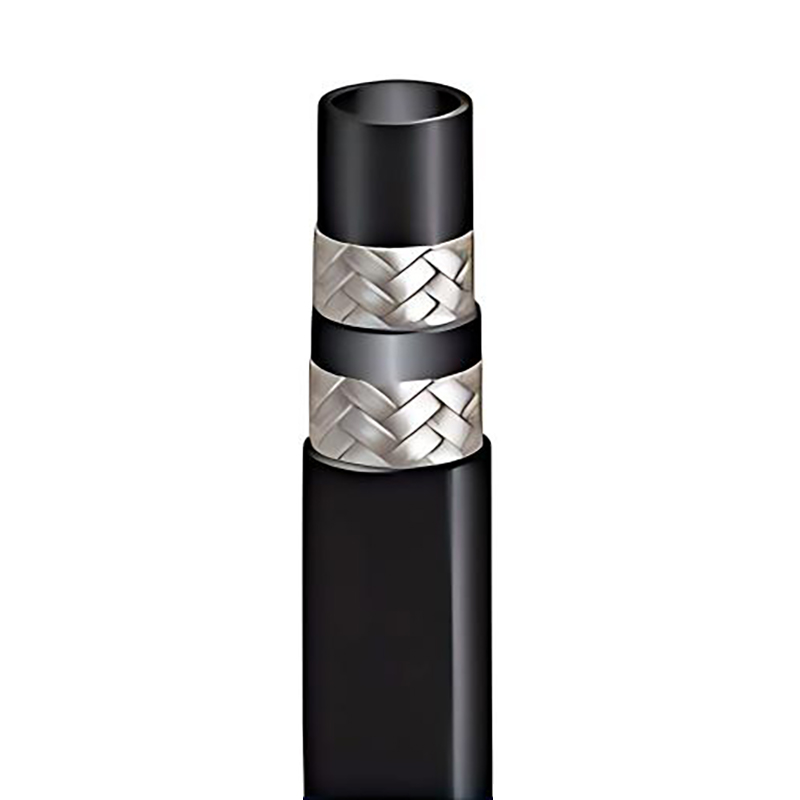

Product Construction
| Item | Description |
|---|---|
| Inner Tube | Oil-resistant synthetic rubber |
| Reinforcement | Two braids of high-tensile steel wire |
| Cover | Oil- and weather-resistant synthetic rubber |
| Standard | SAE 100 R2 |
| Temperature Range | -40°C to +100°C |
| Fluid Compatibility | Petroleum-based hydraulic fluids |
Oilfield Applications Of Steel Wire Reinforced Rubber Covered Hydraulic Hose
This hose is designed for hydraulic power transmission in petroleum industry environments. It performs especially well in systems that need stable pressure control, dependable flexibility, and long-term service reliability.
Typical Applications
- hydraulic lines for land drilling rigs
- hydraulic systems on workover rigs
- hydraulic circuits for well servicing units
- hydraulic power transmission for rig floor equipment
- hydraulic control lines for top drive support systems
- hydraulic hose service for pipe handling equipment
- hydraulic lines for power tong systems
- hydraulic systems for BOP handling and auxiliary control equipment
- hydraulic circuits for mud pump support systems
- hydraulic hose applications in fracturing support equipment
- hydraulic systems for oilfield maintenance units
- hydraulic pressure and return lines in mobile field service equipment
In petroleum operations, the hose helps transfer hydraulic power in equipment used around drilling sites, production service locations, and maintenance systems. It supports stable movement, hydraulic actuation, and control response under demanding field conditions.
Why It Works Well for Petroleum Projects
Oilfield hydraulic systems need more than basic pressure resistance. They also need stable performance in real operating conditions. Hoses often face oil mist, mud, sunlight, rain, abrasion, vibration, bending, and repeated machine movement. A weak hose can fail early, increase replacement frequency, and slow field work.
This hose is a practical choice for petroleum projects because it offers:
- strong pressure-bearing performance
- stable two-wire braided reinforcement
- good flexibility for installation and routing
- oil-resistant inner tube for hydraulic fluid service
- weather-resistant cover for outdoor use
- broad size availability for different equipment needs
That makes it suitable for OEM supply, replacement demand, maintenance planning, and project procurement in the oil and gas industry. Buyers can use it in both scheduled replacement programs and urgent field maintenance situations.
Hose Assembly and Supply Options
For many buyers, the hose itself is only one part of the requirement. Field equipment often needs a complete solution that matches installation space, pressure demand, hose length, and connection standards. That is why this product also works well as a replacement and project supply option for oilfield hydraulic systems.
SGPE can support inquiries for:
- cut-length hydraulic hose
- bulk hydraulic hose supply
- replacement hose for drilling rig hydraulic systems
- replacement hose for workover rig hydraulic systems
- hose for oilfield hydraulic power units
- hose for petroleum equipment maintenance projects
- hose assemblies with fittings on request
- project-based hydraulic hose procurement for oilfield service companies
Quality Focus and Order Support
For industrial buyers, a good product page should do more than describe the hose. It should also reduce uncertainty before inquiry. Buyers usually want to confirm whether the hose specification matches the operating pressure, routing space, fluid type, and service environment of their equipment.
This page therefore supports a more practical purchasing process. Before quotation, buyers can prepare key information such as hose size, working pressure, required length, application, fitting type, and replacement details. That helps both sides confirm the correct hose solution more efficiently and reduces mismatch risk during procurement.
This is especially important for oilfield maintenance, urgent replacement, and project-based purchasing.
Why Choose SGPE
SGPE focuses on petroleum equipment and related industrial solutions. For oilfield buyers, the main concerns usually include pressure safety, stable quality, clear specifications, supply flexibility, and responsive communication.
With SGPE, buyers can quickly see that the product offers:
- clear SAE 100 R2 hose positioning
- technical specifications across multiple sizes
- oilfield-focused application coverage
- support for project and bulk procurement
- custom length discussion based on application needs
- hose assembly discussion based on fitting and connection requirements
- responsive quotation support for petroleum equipment buyers
Technical Specifications
SAE 100 R2 Steel Wire Reinforced Rubber Covered Hydraulic Hose
| Size (mm) | Size (inch) | I.D. (mm) | O.D. (mm) | Working Pressure (MPa / Psi) | Burst Pressure (MPa / Psi) | Min Bend Radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|
| 5 | 3/16 | 4.6–5.4 | 15.1–16.7 | 35 / 5075 | 140 / 20300 | 90 | 0.32 |
| 6.3 | 1/4 | 6.2–7.0 | 16.7–18.3 | 35 / 5075 | 140 / 20300 | 100 | 0.36 |
| 8 | 5/16 | 7.7–8.5 | 18.3–19.8 | 29.7 / 4310 | 119 / 17255 | 115 | 0.45 |
| 10 | 3/8 | 9.3–10.1 | 20.6–22.2 | 28 / 4060 | 112 / 16240 | 125 | 0.54 |
| 12.5 | 1/2 | 12.3–13.5 | 23.8–25.4 | 24.5 / 3550 | 98 / 14210 | 180 | 0.68 |
| 16 | 5/8 | 15.5–16.7 | 27.0–28.6 | 19.2 / 2780 | 77 / 11165 | 205 | 0.80 |
| 19 | 3/4 | 18.6–19.8 | 31.0–32.5 | 15.7 / 2280 | 63 / 9135 | 240 | 0.94 |
| 25 | 1 | 25.0–26.4 | 38.5–40.9 | 14 / 2030 | 56 / 8120 | 300 | 1.35 |
| 31.5 | 1-1/4 | 31.4–33.0 | 49.2–52.4 | 11.3 / 1640 | 45.5 / 6600 | 420 | 2.15 |
| 38 | 1-1/2 | 37.7–39.3 | 55.6–58.7 | 8.7 / 1260 | 35 / 5075 | 500 | 2.65 |
| 51 | 2 | 50.4–52.0 | 68.3–71.4 | 7.8 / 1130 | 31.5 / 4570 | 630 | 3.42 |
| 63 | 2-1/2 | 63.1–65.1 | 80.9–84.1 | 7 / 1015 | 28 / 4060 | 760 | 4.20 |
How to Select the Right Hose
Before placing an order, buyers usually need to confirm six key points:
1. Hose Size
Choose the correct inner diameter based on hydraulic flow requirements.
2. Working Pressure
The hose working pressure should meet or exceed the actual operating pressure of your hydraulic system.
3. Bend Radius
If installation space is limited on the rig or service unit, make sure the hose can bend safely without kinking.
4. Fluid Compatibility
This hose suits petroleum-based hydraulic fluids. If your system uses another medium, confirm compatibility first.
5. Operating Temperature
Make sure the working environment stays within the rated temperature range of -40°C to +100°C.
6. Length and Fittings
A correctly matched hose length and fitting selection help improve installation efficiency and reduce leakage risk.
Frequently Asked Questions
1. Is SAE 100 R2 the right hydraulic hose for my oilfield equipment?
SAE 100 R2 is a strong choice when your system needs a two wire braided hydraulic hose for higher pressure service, stable reinforcement, and reliable field performance. It works well in drilling rig hydraulic systems, workover rig hydraulic systems, well servicing units, and other petroleum equipment that runs under pressure, vibration, and outdoor exposure.
If you need a replacement hydraulic hose for oilfield equipment, SAE 100 R2 often gives you the strength and durability buyers expect in demanding service conditions.
2. What kind of hydraulic fluid is this hose designed for?
This hose is designed for petroleum-based hydraulic fluids. That makes it suitable for many oilfield hydraulic hose applications, including hydraulic pressure lines, return lines, and control systems used in drilling, workover, and field maintenance equipment. If your system uses another medium, check fluid compatibility before ordering so you can avoid performance issues and select the right hose for your application.
3. What temperature range does this SAE 100 R2 hose support?
This hose works within a temperature range of -40°C to +100°C. That range fits many outdoor petroleum applications where equipment operates in cold mornings, hot working conditions, and changing field environments. When buyers compare high pressure hydraulic rubber hose options for oilfield use, temperature range is one of the first points they should confirm.
4. What size range is available?
SGPE offers sizes from 3/16 inch to 2-1/2 inch, so buyers can match different flow, pressure, and routing requirements across a wide range of petroleum equipment. This broad range makes the hose suitable for both small hydraulic lines and larger oilfield hydraulic circuits. If you are sourcing a SAE 100 R2 hydraulic hose supplier for multiple equipment types, this size coverage helps simplify purchasing.
5. What is the difference between SAE 100 R1 and SAE 100 R2 hydraulic hose?
The key difference is reinforcement. SAE 100 R1 uses one steel wire braid, while SAE 100 R2 uses two. Because of that, SAE 100 R2 usually handles higher pressure and tougher duty cycles more effectively. If your system runs under heavier load, repeated pressure fluctuation, or demanding oilfield service conditions, buyers often choose SAE 100 R2 oilfield hydraulic hose instead of SAE 100 R1.
6. Can this hose be used as a replacement hydraulic hose for drilling rigs and workover rigs?
Yes. This hose works well for replacement demand in drilling rigs, workover rigs, well servicing units, and other oilfield hydraulic systems, as long as the size, pressure, fluid, and routing requirements match the equipment. Many buyers search for a replacement hydraulic hose for drilling rig hydraulic systems or a replacement hose for workover rig hydraulic systems, and this product fits that type of procurement need well.
7. Can SGPE supply hose by roll, cut length, or finished hose assembly?
Yes. Buyers can discuss bulk hydraulic hose supply, cut-length hydraulic hose, or finished hose assemblies with fittings based on project requirements, installation space, and connection standards. This flexibility is useful for distributors, maintenance teams, and project buyers who need more than standard hose stock.
If you are sourcing a hose assembly with fittings for oilfield equipment, it helps to send your hose size, required length, fitting type, and thread details with the inquiry.
8. Can you help match fittings and connection requirements?
Yes. SGPE can discuss hose assembly requirements based on hose size, hose length, fitting type, thread standard, and actual application conditions. This is important because a good hose is only part of a reliable hydraulic system.
The right fitting match improves installation, reduces leakage risk, and helps the hose assembly perform more safely in field service. Buyers who need a hydraulic hose assembly for petroleum equipment should always prepare these details before quotation.
9. What information should I send to get an accurate quotation quickly?
To get a faster and more accurate quote, send the hose size, working pressure, required length, quantity, application, fitting type, and destination country or port. If the hose is for replacement, also share photos, hose markings, old assembly details, or equipment information when possible. This helps confirm the right high pressure steel wire reinforced hydraulic hose and reduces back-and-forth during the quotation process.
10. Is this hose suitable for OEM supply as well as replacement demand?
Yes. This hose works for both OEM projects and replacement procurement in oilfield hydraulic service. Buyers can use it for new equipment supply, scheduled maintenance planning, urgent field replacement, and project-based purchasing. That makes it a practical option for contractors, equipment manufacturers, distributors, and maintenance teams looking for a dependable steel wire reinforced hydraulic hose supplier.
11. Can I request a custom hose length for my project?
Yes. Buyers can discuss custom hose length based on project needs, equipment layout, installation space, and routing requirements. This is especially useful when standard hose lengths do not fit compact hydraulic systems or replacement assemblies in the field. If you need a custom length SAE 100 R2 hydraulic hose for oilfield service, include the required length and connection details in your inquiry.
12. Who usually buys this product?
Typical buyers include drilling contractors, workover service companies, petroleum equipment distributors, hydraulic maintenance teams, and project procurement teams that need reliable hose supply for oilfield hydraulic systems. In many cases, they look for a product that can serve both routine maintenance and urgent replacement work.
Request a Quote
Looking for a reliable SAE 100 R2 oilfield hydraulic hose manufacturer, steel wire reinforced hydraulic hose supplier, or replacement hydraulic hose for petroleum equipment? SGPE can support your project with clear specifications, oilfield-focused application coverage, and responsive quotation support.
When you send your inquiry, please include:
- hose size
- working pressure
- required length
- quantity
- application
- fitting type if needed
- destination port or country
E-Mail: info@sgpe.com
