Description

API 6A Back Pressure Valve for Tubing Hanger, Wellhead and Christmas Tree Applications

SGPE manufactures and supplies API 6A Back Pressure Valves for tubing hanger pressure isolation, oil and gas wellheads, Christmas tree work, wellhead maintenance, workover operations and replacement of existing BPVs.

Also known as a Wellhead Back Pressure Valve, Tubing Hanger Back Pressure Valve, Wellhead BPV, Tubing Hanger BPV or BPV Plug, this removable pressure-control component installs inside a compatible profile in the tubing hanger below the Christmas tree.

A conventional one-way BPV holds pressure from the production or injection tubing below. Where the selected design supports it, controlled pump-through or circulation from above can remain available for selected well-control operations.

SGPE supports BPV requirements for 2K, 3K, 5K, 10K and 15K wellhead systems, including oil production wells, high-pressure gas wells, water and gas injection wells, workover programs, Christmas tree replacement and mature-field maintenance.

Replacement is an important part of the supply scope. An existing valve sample, tubing hanger drawing, critical dimensions, photographs, old part number or running-tool information can be used to evaluate Type H BPV replacement, legacy Wellhead BPVs, obsolete Tubing Hanger BPVs and custom replacement Back Pressure Valves.

Whether the project involves a new Wellhead BPV, 10K or 15K Back Pressure Valve, sour-service BPV, Type H BPV replacement or custom BPV for an existing tubing hanger, SGPE can start technical matching from the information already available.

---

Product Short Description

SGPE supplies API 6A Back Pressure Valves, Wellhead BPVs, Tubing Hanger BPVs, Type H Back Pressure Valves, one-way BPVs, pump-through BPVs and replacement BPVs for oilfield wellhead systems.

Applications include oil and gas production, water and gas injection, Christmas tree installation and replacement, tubing head maintenance, wellhead valve service, workover preparation, selected well intervention and brownfield wellhead upgrades.

Requirements for 2K, 3K, 5K, 10K and 15K wellhead systems are reviewed against the tubing hanger profile, pressure class and service conditions. Supply can also include sour-service configurations, legacy or obsolete profile replacement, custom BPVs, running tools and retrieval tools.

For quotation, send the working pressure, tubing hanger information, service conditions, quantity and any available drawings, photographs or dimensional data.

---

Product Overview

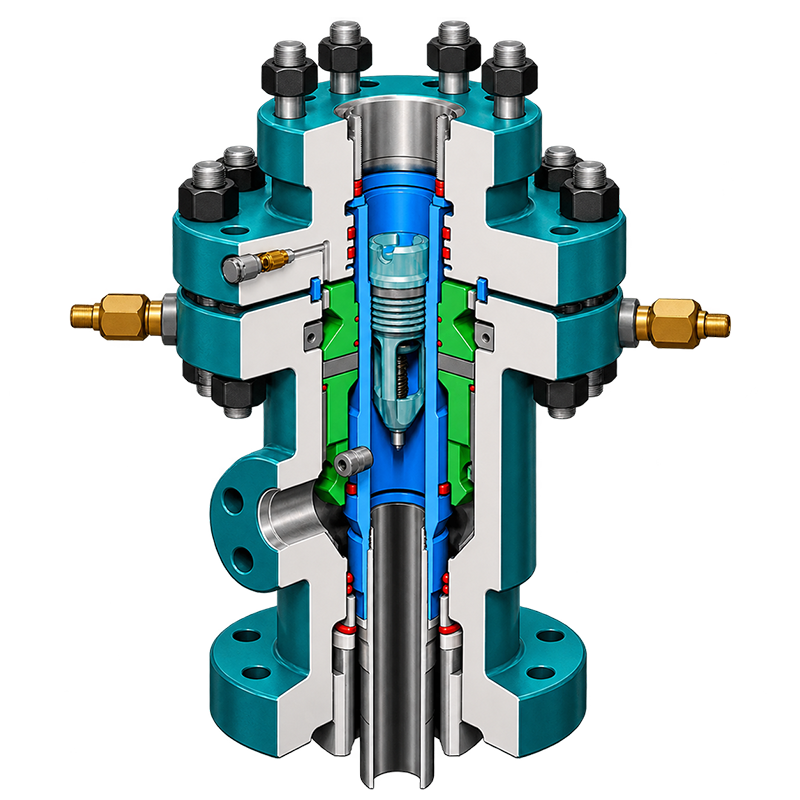

An API 6A Back Pressure Valve is a removable pressure-control device used inside a dedicated profile in the tubing hanger of an oilfield wellhead.

Its position below the Christmas tree provides an isolation point between the production or injection tubing and equipment above the hanger. This allows the BPV to form part of an approved barrier arrangement while crews install, remove or service upper wellhead equipment.

In a conventional one-way configuration, the BPV holds tubing pressure from below. Depending on the valve design, a downward flow path may remain available for circulation, fluid displacement or selected well-kill procedures.

A pressure rating is only the starting point.

The correct valve must match the thread or locking profile, tubing hanger bore, sealing diameter, engagement length, landing shoulder, minimum through bore, maximum outside diameter and running-tool interface of the actual hanger.

This becomes especially important in mature fields. A tubing head and tubing hanger may remain serviceable for years after the original BPV has been damaged, lost or discontinued.

Correct profile matching can allow the operator to replace the missing component without unnecessarily replacing a larger wellhead assembly.

---

API 6A Back Pressure Valve Technical Parameters

The following specifications provide a practical reference for preliminary selection, supplier comparison and RFQ preparation. Final values depend on the confirmed BPV configuration, tubing hanger profile, pressure class and actual operating conditions.

BPV Configuration, Pressure Rating and Interface Parameters

The tubing hanger profile remains the primary technical reference. A 10K or 15K pressure rating alone does not confirm BPV compatibility.

BPV Materials, Service Conditions and Replacement Support

For Type H BPV, legacy or obsolete Back Pressure Valve replacement, existing samples, tubing hanger drawings, dimensions, photographs or running-tool information can be used for preliminary matching and quotation.

---

API 6A BPV Pressure Ratings

Common wellhead pressure classes provide a useful starting point when preparing a BPV inquiry.

Two tubing hangers with the same pressure rating can still use different BPV profiles, seal diameters, bores and running-tool interfaces.

For this reason, a 5K, 10K or 15K Back Pressure Valve quotation should include tubing hanger information together with the required pressure class.

---

How Does a Tubing Hanger Back Pressure Valve Work?

A compatible BPV running tool carries the valve into the tubing hanger and engages the required thread or locking profile.

Once positioned, the sealing surfaces of the BPV interface with the tubing hanger. Pressure from the production or injection tubing acts from below, while the valve restricts uncontrolled upward flow.

Some one-way configurations also allow controlled fluid movement from above.

This pump-through BPV function can support selected circulation, displacement or well-kill operations when the valve configuration and field procedure permit it.

After the planned wellhead work is complete, the BPV is removed with the corresponding retrieval tool or pulling tool.

Because tubing hanger profiles vary, appearance alone is not a reliable basis for deciding whether two BPVs are interchangeable.

---

One-Way BPV, Pump-Through BPV and Two-Way Isolation

A conventional one-way Back Pressure Valve is intended primarily to hold tubing pressure from below.

Where the design permits, fluid can still be pumped downward through the valve. This makes a pump-through BPV useful when the operating program requires circulation, displacement or fluid injection while the valve remains installed.

The available through bore matters in these applications because an undersized flow passage may restrict the intended operation.

Two-way isolation is a different requirement.

If pressure must be contained in both directions, this should be stated separately during technical review rather than assumed from the term “Back Pressure Valve.”

---

Oilfield Applications of API 6A Back Pressure Valves

A Wellhead BPV can support production, injection, maintenance and intervention activities throughout the life of a well.

BPVs for Oil, Gas and Injection Wells

An oil production well BPV may be exposed to crude oil, natural gas, produced water, scale and other well fluids. Working pressure, temperature and fluid conditions should therefore be included in product selection.

High-pressure gas wells can place greater demands on pressure containment, materials and seals. An inquiry for a 10K or 15K gas well Back Pressure Valve should identify gas composition, H2S, CO2 and applicable project requirements.

Water injection service introduces different corrosion conditions, while gas injection wells can combine high pressure with demanding gas composition and sealing requirements.

Across these applications, correct selection still begins with the tubing hanger profile.

---

Christmas Tree Replacement, Workover and Well Intervention

Operators commonly use a Tubing Hanger Back Pressure Valve during Christmas tree installation, removal and replacement to help control tubing pressure below the hanger.

Because the Christmas tree sits above the tubing hanger, a compatible Christmas Tree Back Pressure Valve can support the approved barrier arrangement while crews work on upper wellhead equipment. This configuration allows operators to keep tubing pressure isolated below while they repair, upgrade or replace the tree.

This application becomes especially valuable in mature fields where the tubing head and tubing hanger can remain in service even though the production tree requires replacement or refurbishment. Keeping the existing lower wellhead can reduce unnecessary equipment replacement, intervention scope and downtime.

Workover operations create similar requirements. Crews may need to remove surface equipment, service upper wellhead valves or install temporary intervention equipment while maintaining an appropriate tubing barrier.

Selected wireline, slickline and coiled tubing intervention programs may also require changes to equipment above the tubing hanger. In these situations, the BPV can provide an additional pressure-control point as part of the overall well-control plan.

Operators should always integrate the API 6A Back Pressure Valve into the complete well-barrier system and follow the approved well-control and intervention procedures for each operation.

---

Type H Back Pressure Valve and Tubing Hanger Compatibility

A Type H Back Pressure Valve, also known as a Type H BPV or Type H Tubing Hanger BPV, fits a compatible Type H profile in the tubing hanger.

Type H is a common purchasing term for wellhead spare parts and replacement projects, but the name by itself does not guarantee interchangeability.

Different equipment generations can vary in thread geometry, sealing diameter, engagement length, landing shoulder and running-tool interface.

For a Type H BPV quotation, an existing valve, tubing hanger drawing, profile dimensions or running-tool details provide useful matching references.

The same method can be applied to selected legacy BPVs, obsolete Tubing Hanger BPVs and custom replacement profiles.

---

BPV Profile and Critical Dimensional Matching

A replacement BPV can have the correct working pressure and still fail to fit the tubing hanger.

Dimensional compatibility is therefore one of the most important considerations when purchasing a Replacement Wellhead BPV.

For custom and replacement BPVs, a physical sample or approved tubing hanger drawing provides the strongest reference.

If neither is available, accurate measurements, sectional drawings, photographs and existing running-tool information can still support preliminary matching.

---

Materials, Seals and Sour-Service Back Pressure Valves

BPV materials and seals should reflect the actual well environment.

Production fluids can contain crude oil, natural gas, produced water, H2S, CO2, chlorides, scale and other contaminants. Injection service may expose the valve to treated water or high-pressure gas.

SGPE reviews the body material, internal components and sealing arrangement against working pressure, temperature and fluid composition.

For a Sour Service Back Pressure Valve or H2S BPV, the inquiry should identify sour-service conditions, CO2 where relevant, operating pressure, temperature and applicable material requirements.

API 6A material class, PSL and other project requirements should be confirmed against the relevant BPV and wellhead scope rather than inferred from pressure class alone.

For example, a 10K sour-service BPV inquiry should include both the tubing hanger information and the actual well-service conditions.

---

BPV Running Tool and Retrieval Tool

A Tubing Hanger BPV must match the tooling used to install and retrieve it.

The BPV running tool engages the valve and positions it inside the tubing hanger. After the required operation, a compatible BPV retrieval tool or pulling tool allows the valve to be removed.

Tool interfaces can differ between BPV profiles.

Customers can therefore order the BPV alone, a Back Pressure Valve with running tool, or a complete BPV running and retrieval tool package.

For legacy equipment, an existing field tool can also provide valuable matching information. Drawings, photographs, interface dimensions and old part numbers are useful when original BPV documentation is incomplete.

---

Replacement API 6A Back Pressure Valve

Many mature wellhead systems remain in service even after the original BPV becomes damaged, lost or obsolete.

In many cases, the tubing head and tubing hanger can continue operating safely, while only the Back Pressure Valve requires replacement. Replacing the complete tubing hanger simply because the original BPV is no longer available can increase intervention scope, downtime and project cost.

SGPE can evaluate a Replacement API 6A Back Pressure Valve using an existing valve sample, tubing hanger drawing, BPV drawing, sectional drawing, dimensional data, photographs, old part numbers or running-tool information.

Our technical team can compare the available reference data with the required thread or locking profile, sealing diameter, engagement length, landing shoulder, through bore and tool interface to support accurate matching.

The same process applies to Type H BPV replacement, legacy Wellhead BPVs, obsolete Back Pressure Valves and custom BPVs for existing tubing hangers, helping operators extend the service life of mature and brownfield wellhead systems without unnecessary equipment replacement.

---

Replacement BPV Identification Guide

Good reference information reduces dimensional uncertainty and shortens technical review.

Complete historical records are useful, but they are not required for the first inquiry.

If documentation is incomplete, send the information available. The missing dimensions or service conditions can then be identified during technical review.

---

Legacy, Obsolete and Brownfield BPV Replacement

Mature oilfields often operate several generations of wellhead equipment, which can make replacement BPV sourcing increasingly difficult over time.

Original drawings may disappear, spare inventories may become incomplete, and the original equipment supplier may stop supporting older BPV designs.

SGPE can evaluate Legacy Wellhead BPV replacement requirements when the existing tubing head and tubing hanger remain suitable for continued service. For an obsolete Back Pressure Valve, technical matching can start with an existing valve, tubing hanger drawing, field measurements, photographs, old part numbers or running-tool information.

Brownfield wellhead projects create similar challenges. Operators may need to replace an aging Christmas tree while keeping the existing lower wellhead and tubing hanger in service.

In these cases, SGPE can develop a custom replacement BPV for the existing tubing hanger after confirming the profile, critical dimensions, pressure class and service conditions.

The same matching approach can also help operators rebuild missing BPV spare inventories across mature fields that use multiple tubing hanger configurations.

---

Back Pressure Valve vs. Valve Removal Plug vs. Check Valve

Back Pressure Valves, Valve Removal Plugs and conventional oilfield check valves serve different pressure-control functions and operate at different locations within a wellhead or flow system. Buyers should select each component according to its installation position, pressure-isolation function and operating purpose rather than treat them as interchangeable products.

A Tubing Hanger Back Pressure Valve fits a dedicated internal profile inside the tubing hanger and normally works with a compatible running tool and retrieval tool. It helps isolate pressure from the production or injection tubing during Christmas tree work, wellhead maintenance and selected workover operations.

A Valve Removal Plug performs a different task. Operators install it in a wellhead or tubing spool side outlet to isolate pressure while removing, repairing or replacing a side-outlet gate valve.

A conventional oilfield check valve controls flow in pipelines, injection lines or manifolds and prevents reverse flow through the line. It does not provide the same tubing-hanger isolation function as a Wellhead BPV.

For this reason, buyers should match the product to the actual wellhead location and operating requirement instead of substituting a VR Plug or Check Valve for an API 6A Back Pressure Valve.

---

API 6A Back Pressure Valve Price and Quotation Factors

There is no universal API 6A Back Pressure Valve price because the final supply scope varies with pressure class, tubing hanger profile, materials, tooling and inspection requirements.

For an accurate API 6A Back Pressure Valve quote, provide the technical requirement and quantity together.

A request for a 10K BPV price, 15K Wellhead BPV quotation, Type H BPV quote or custom replacement Back Pressure Valve should also include tubing hanger information.

For replacement projects, an old sample, drawing or clear photographs can significantly reduce uncertainty before pricing.

---

Manufacturing, Inspection and Documentation

---

---

Preparing an API 6A Back Pressure Valve RFQ

For a new BPV requirement, provide the working pressure, tubing hanger type and profile, hanger bore, well type, service fluid, operating temperature and required quantity.

Where H2S, CO2 or other corrosive conditions exist, include the relevant service and material requirements.

If pump-through capability is required, state the intended operation and minimum through bore. A two-way isolation requirement should also be identified separately.

For a replacement project, an existing BPV or dimensional drawing provides the best technical reference.

When these are unavailable, send the tubing hanger drawing, old part number, thread or locking profile, sealing diameter, maximum OD, minimum through bore, overall length, landing shoulder, photographs and running-tool information that are available.

The RFQ should also identify whether the required supply is BPV only, BPV with running tool, a complete running/retrieval tool package, replacement seals, inspection documentation or related wellhead equipment.

---

Why Choose SGPE as Your API 6A Back Pressure Valve Supplier?

Sourcing a Wellhead BPV involves more than selecting 5K, 10K or 15K from a catalogue.

The valve must match the tubing hanger profile, wellhead configuration, service environment and field tooling.

SGPE supports new wellhead BPV requirements, Type H BPV replacement, 5K/10K/15K high-pressure BPVs, sour-service applications, custom replacement valves and legacy wellhead projects.

For a new wellhead package, the BPV can be reviewed together with the tubing hanger and related API 6A wellhead equipment.

For existing installations, technical matching can begin with a physical sample, drawing, photograph, dimensional record, old part number or running-tool information.

Supply can also include tubing hangers, BPV running tools, retrieval tools, seals and selected replacement components according to project scope.

This approach suits oil and gas operators, EPC contractors, wellhead service companies, workover contractors, oilfield maintenance companies, distributors and procurement teams that need profile matching and replacement support rather than a generic catalogue valve.

---

Frequently Asked Questions About API 6A Back Pressure Valves

1. What is an API 6A Back Pressure Valve used for?

An API 6A Back Pressure Valve works as a removable pressure-control component inside a compatible tubing hanger profile. It helps isolate pressure from the production or injection tubing below while crews work on equipment above the tubing hanger.

Operators commonly use a Wellhead BPV, Tubing Hanger BPV or BPV Plug during Christmas tree installation or replacement, tubing head maintenance, wellhead valve service and workover preparation. When the selected design allows it, the BPV can also support controlled pump-through or circulation from above.

2. Where does a Tubing Hanger Back Pressure Valve install?

A Tubing Hanger Back Pressure Valve installs inside a dedicated internal profile in the tubing hanger, below the Christmas tree. This position allows the BPV to isolate tubing pressure while crews install, remove or service selected upper wellhead equipment.

The valve must match the hanger’s thread or locking profile, bore, sealing diameter, landing position and running-tool interface. The pressure rating alone cannot confirm compatibility.

3. What oilfield applications use API 6A Wellhead BPVs?

Operators use API 6A Wellhead BPVs in oil production wells, high-pressure gas wells, water injection wells and gas injection wells. Other applications include Christmas tree installation and replacement, tubing head maintenance, workover preparation and selected well intervention operations.

Mature fields and brownfield wellhead projects also create strong replacement demand when the tubing head and tubing hanger remain serviceable but the original Back Pressure Valve becomes damaged, lost or obsolete.

4. What pressure ratings can SGPE support for API 6A Back Pressure Valves?

SGPE can evaluate Back Pressure Valve requirements for 2K, 3K, 5K, 10K and 15K wellhead systems, corresponding to approximately 2,000, 3,000, 5,000, 10,000 and 15,000 psi working-pressure classes.

A 5K, 10K or 15K BPV must also match the actual tubing hanger profile, sealing diameter, through bore and tool interface. Two wellheads with the same pressure rating may use different BPV configurations, so buyers should include tubing hanger information in the RFQ.

5. What is a Type H Back Pressure Valve?

A Type H Back Pressure Valve, also called a Type H BPV or Type H Tubing Hanger BPV, fits a compatible Type H profile inside the tubing hanger.

However, the Type H designation does not guarantee universal interchangeability. Different wellhead generations may use different thread geometry, seal diameters, engagement lengths, landing shoulders and running-tool interfaces.

For a Type H BPV replacement, an existing valve, tubing hanger drawing or accurate dimensional information gives SGPE a more reliable basis for matching.

6. What dimensions matter when replacing a Tubing Hanger BPV?

A replacement BPV must match more than the working-pressure class. Key dimensions include the thread or locking profile, maximum outside diameter, minimum through bore, sealing diameter, engagement length, landing shoulder, overall length and running-tool interface.

For a Replacement Tubing Hanger BPV, a physical sample or tubing hanger drawing provides the best technical reference. If these are unavailable, clear photographs, sectional drawings, field measurements, old part numbers and existing tool information can still support preliminary matching.

7. Can fluid pass through a Back Pressure Valve?

Some conventional one-way pump-through BPVs allow controlled downward fluid flow while holding tubing pressure from below. This function can support selected circulation, fluid displacement or well-kill operations when the BPV design and field procedure allow it.

If the project requires pump-through capability, buyers should specify the intended operation and minimum through bore. If the project requires pressure isolation in both directions, buyers should identify that requirement separately because it differs from conventional one-way BPV service.

8. Can SGPE supply 5K, 10K and 15K high-pressure Back Pressure Valves?

SGPE can evaluate 5K BPV, 10K BPV and 15K Back Pressure Valve requirements for compatible oilfield wellhead systems. These pressure classes suit many production wells, high-pressure gas wells, workover projects and selected injection well applications.

Final selection also depends on the tubing hanger profile, service temperature, well fluid, sealing arrangement and tool interface. For sour or corrosive service, customers should also provide H2S, CO2 and applicable material requirements.

9. Can SGPE manufacture a replacement BPV for a legacy or obsolete wellhead?

Yes. SGPE can review legacy Wellhead BPV, obsolete Back Pressure Valve and custom replacement BPV requirements when customers provide enough technical reference information.

An old BPV sample gives the strongest starting point, but SGPE can also work from a tubing hanger drawing, dimensional records, photographs, old part numbers or running-tool information. This approach suits mature-field maintenance projects where operators want to retain the existing tubing head and hanger but can no longer source the original BPV.

10. Can operators use a Back Pressure Valve during Christmas Tree replacement?

Yes. A compatible Christmas Tree Back Pressure Valve can form part of the approved tubing-pressure isolation arrangement during tree installation, removal or replacement.

Because the BPV sits inside the tubing hanger below the Christmas tree, it can support projects where operators keep the existing tubing head and hanger while servicing or replacing upper wellhead equipment.

Operators should always use the BPV within the approved well-control and barrier-management procedure.

11. Can SGPE supply sour-service Back Pressure Valves for oil and gas wells?

SGPE can evaluate Sour Service Back Pressure Valves, H2S BPVs and high-pressure gas Wellhead BPVs according to actual well conditions.

Customers should provide the working pressure, operating temperature, H2S, CO2, fluid composition and applicable project material requirements. For example, a 10K sour-service BPV still requires confirmation of the tubing hanger profile and sealing interface before SGPE can finalize the configuration.

12. What information should I send for an API 6A Back Pressure Valve quotation?

For a new API 6A Back Pressure Valve quotation, send the working pressure, tubing hanger profile, hanger bore, well type, service fluid, operating temperature, sour-service conditions, pump-through requirement and required quantity.

For a replacement BPV, also send any available existing valve, photographs, tubing hanger drawing, critical dimensions, old part number or running-tool information.

You do not need complete historical records for the first review. SGPE can evaluate the available information, identify any missing technical details and prepare the appropriate BPV supply proposal and quotation.

---

Request an API 6A Back Pressure Valve Quote from SGPE

SGPE supplies API 6A Back Pressure Valves, Wellhead BPVs, Tubing Hanger BPVs, Type H BPVs, 5K/10K/15K high-pressure BPVs, pump-through BPVs, sour-service BPVs and custom replacement valves for oil, gas and injection wellhead systems.

Typical applications include Christmas tree installation and replacement, tubing head maintenance, wellhead valve service, workover, well intervention, brownfield upgrades and mature-field refurbishment.

For a new project, please provide the working pressure, tubing hanger profile, hanger bore, service medium, operating temperature, sour-service requirements, pump-through requirement and quantity.

For a replacement BPV, send any available existing valve sample, photographs, tubing hanger drawing, critical dimensions, old part number or running-tool information. Complete historical records are not required for an initial review.

Whether you need a 10K or 15K BPV, Type H Back Pressure Valve, sour-service BPV, legacy replacement valve or custom BPV for an existing tubing hanger, SGPE will review the available technical information, confirm the suitable supply scope and provide a corresponding quotation for your project.
