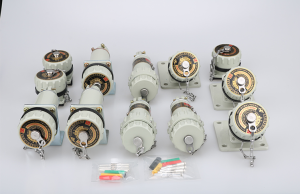

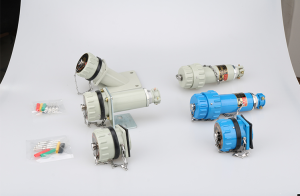

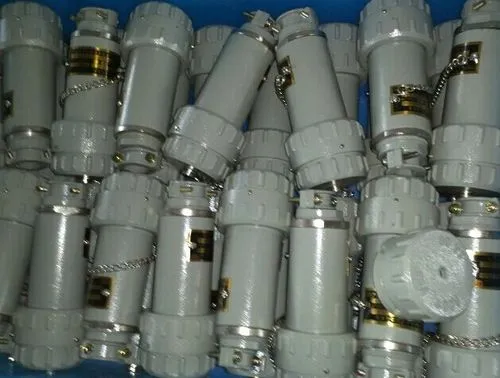

Spark Proof Explosion Proof Three-Phase Five-Pole Plug

Description

The spark-proof explosion-proof three-phase five-pole plug is an electrical connector used in explosive gas environments, mainly for connecting power sources and electrical equipment.



It has the following characteristics:
Explosion-proof performance: Adopting a special design and manufacturing process, it can work in explosive gas environments and prevent sparks generated during plug insertion and removal or during operation from causing explosion accidents.
Three-phase five-pole: It has three phase lines (live wires) and two pole lines (usually including the neutral wire and the ground wire), and is suitable for three-phase power systems.
Rated voltage and current: Depending on different models and specifications, it has specific rated voltage and current values to ensure safe operation within the specified range.

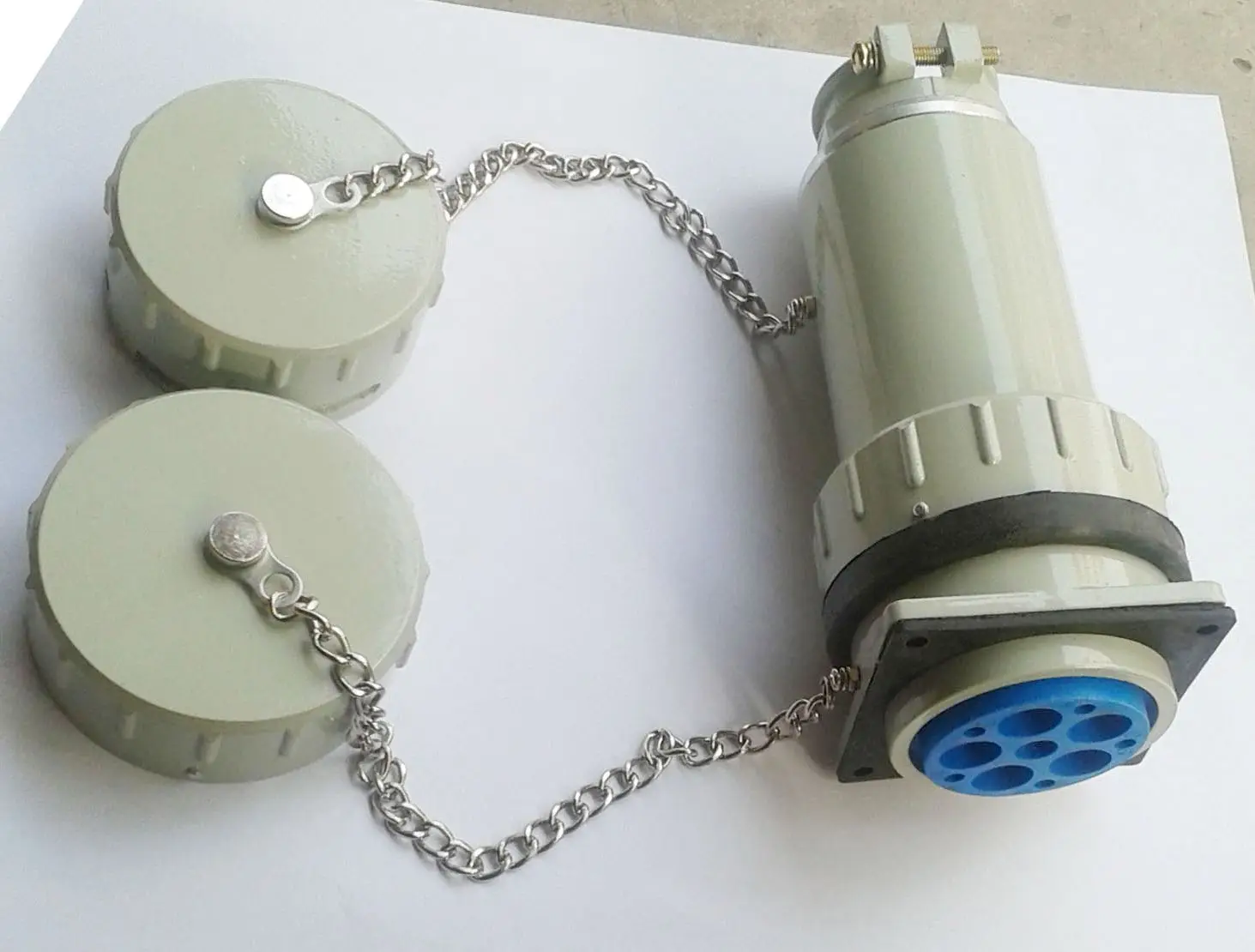

Material and protection: Its shell is usually formed by die-casting aluminum alloy and undergoes high-voltage electrostatic powder coating treatment on the surface, with good protection performance such as waterproofing, dustproofing, impact resistance, and shock resistance. The socket may have separate and combined protective covers, and there are signs strictly prohibiting opening the cover while live.

Interlocking structure: The plug pin and the switch are made into an interlocking structure, and the plug can only be pulled out when the switch is disconnected to ensure operational safety.
Installation and wiring: The cable connection method can be either welding or crimping, providing convenience for installation and wiring.
This type of plug is suitable for explosive gas environments in Zone 1 and Zone 2, such as in fields like petroleum extraction and refining, storage, chemical industry, national defense power, and transportation, as well as in environments with temperature groups of T1 to T6/T4.

During specific use, it is necessary to select the appropriate specification of the spark-proof explosion-proof three-phase five-pole plug according to actual needs and strictly operate in accordance with relevant installation and use requirements to ensure its explosion-proof performance and the reliability of the electrical connection. At the same time, attention should be paid to the regular inspection and maintenance of the plug to ensure its safe operation in hazardous environments.
